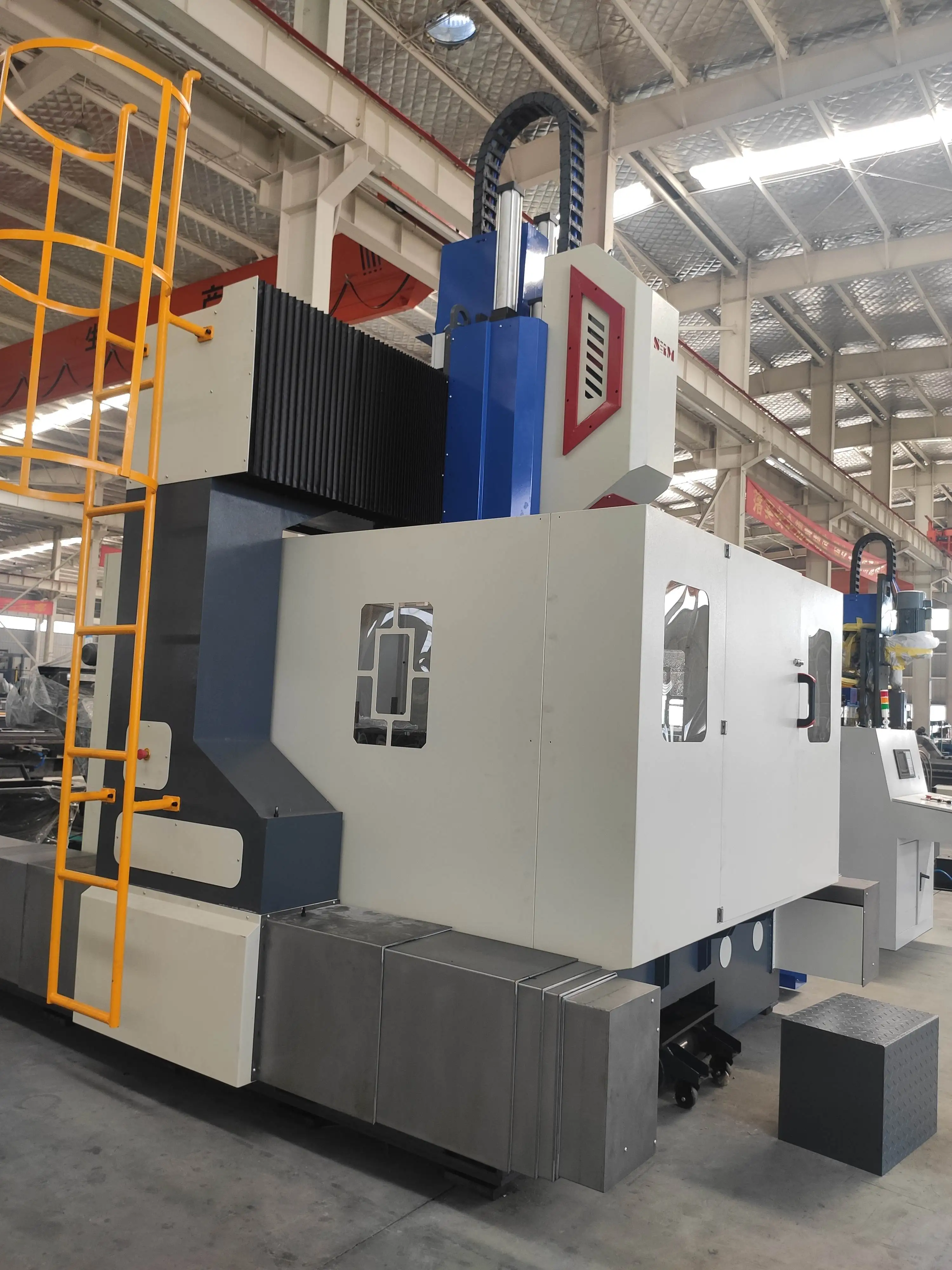

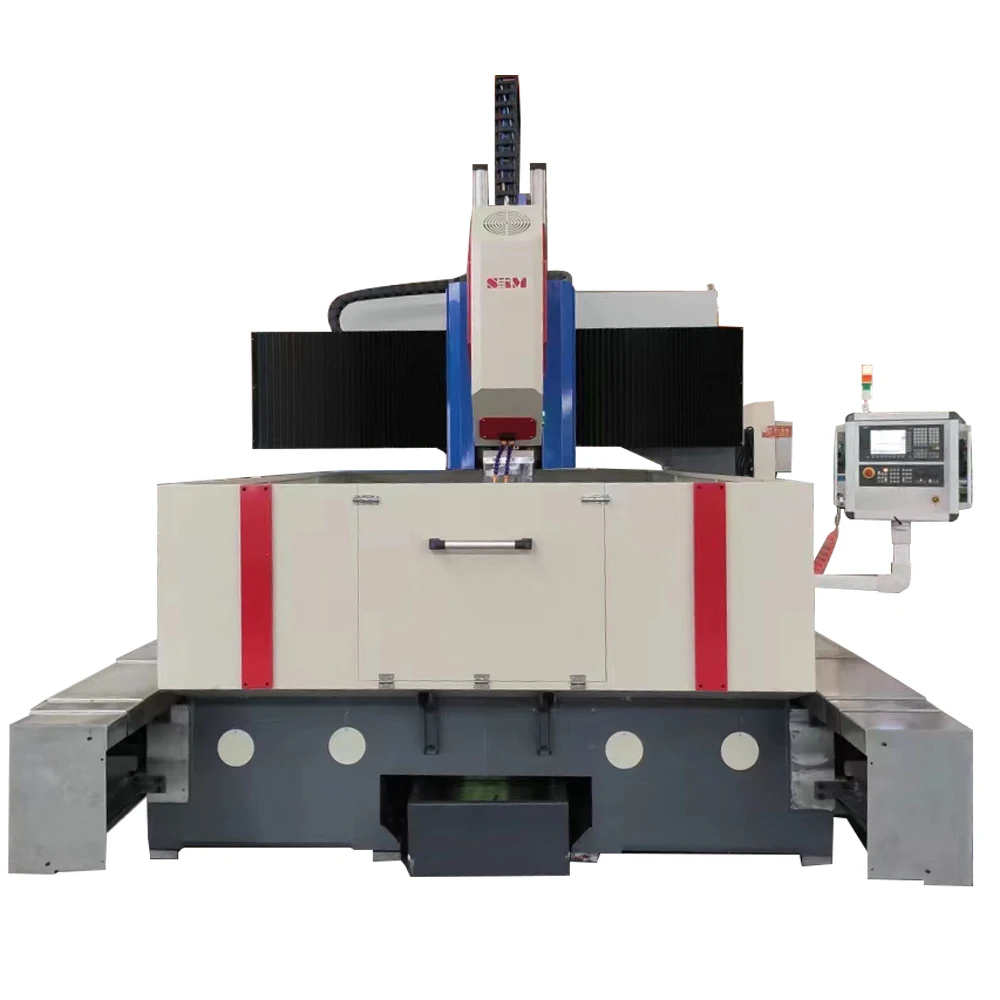

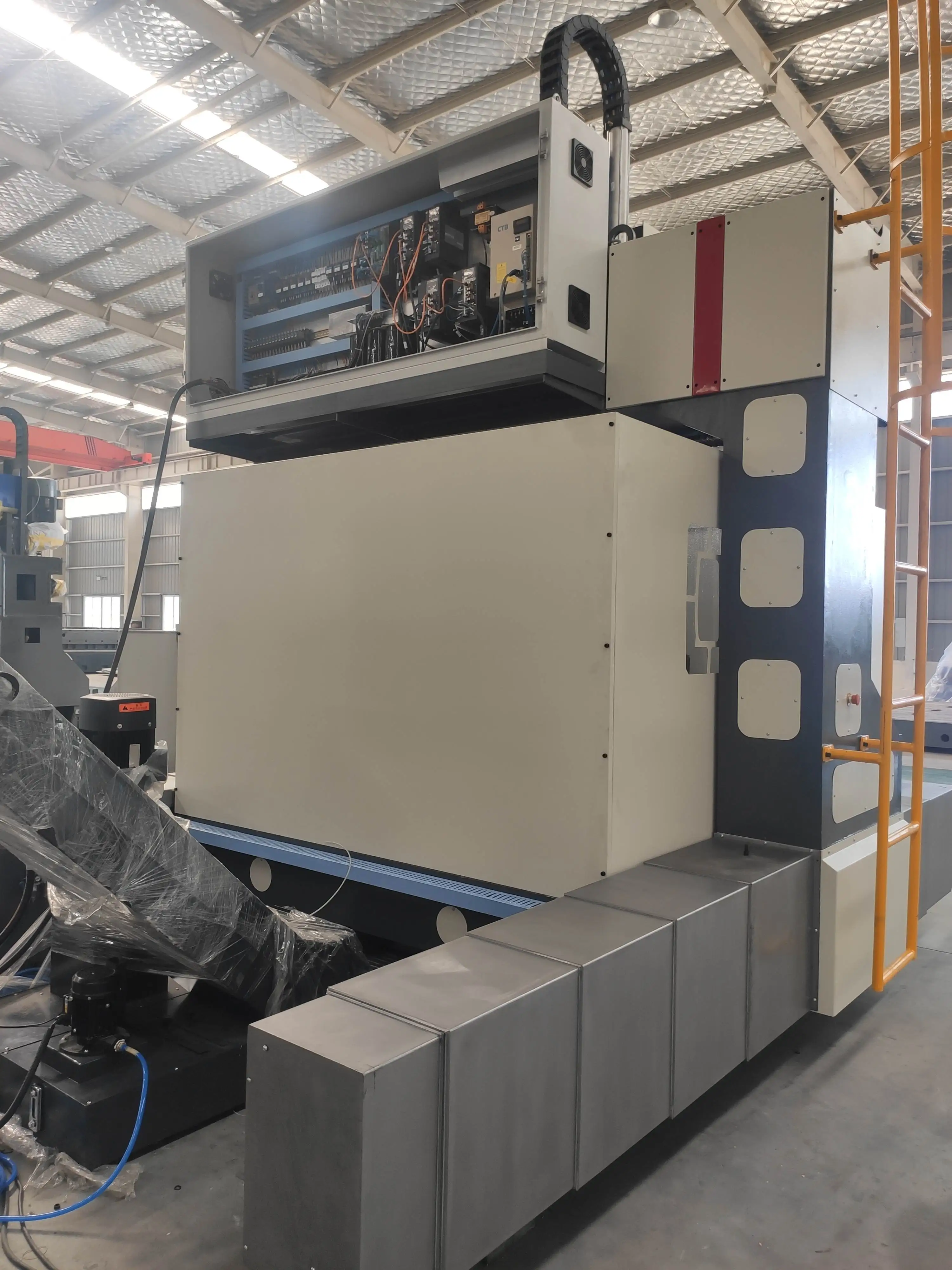

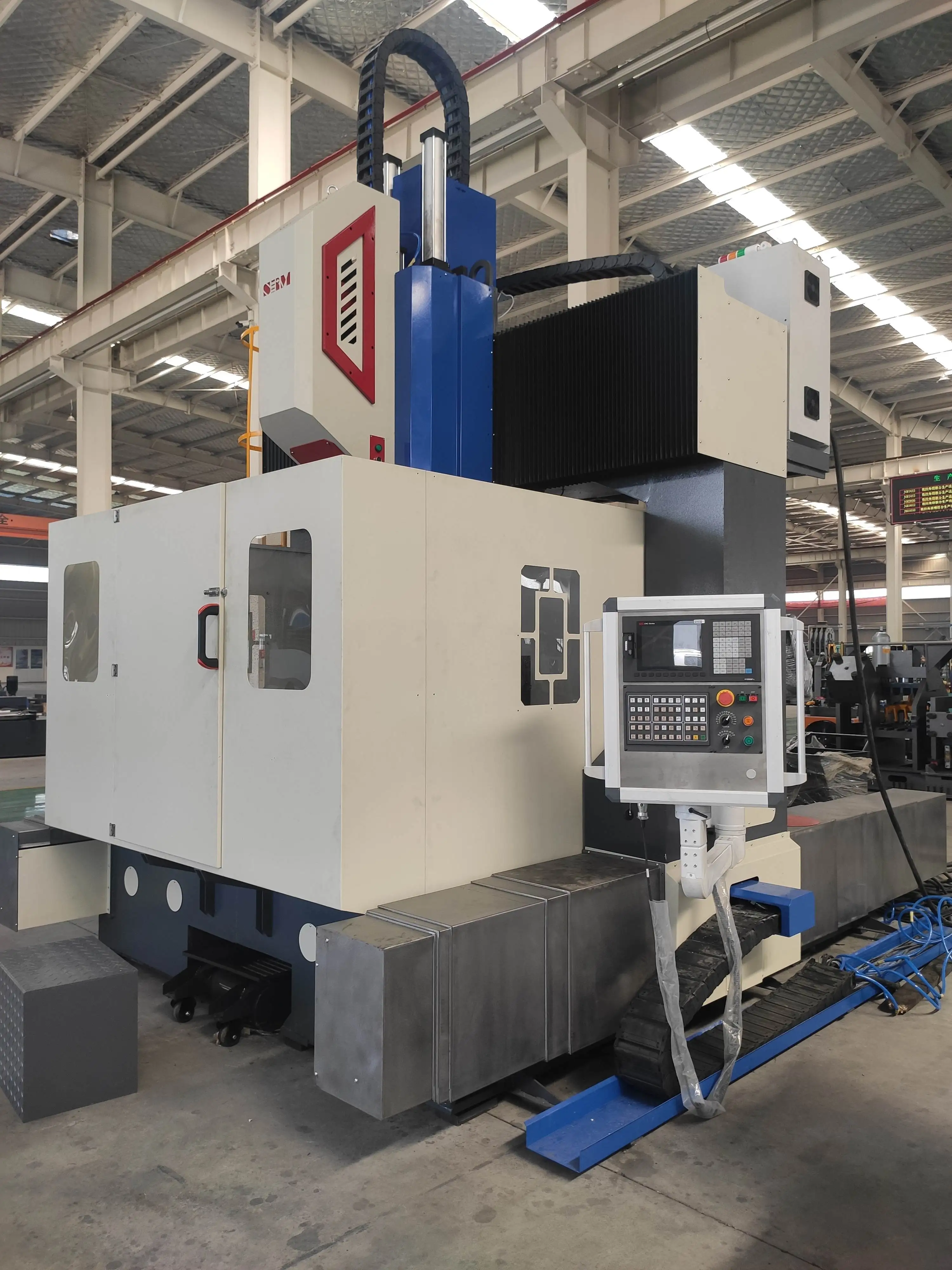

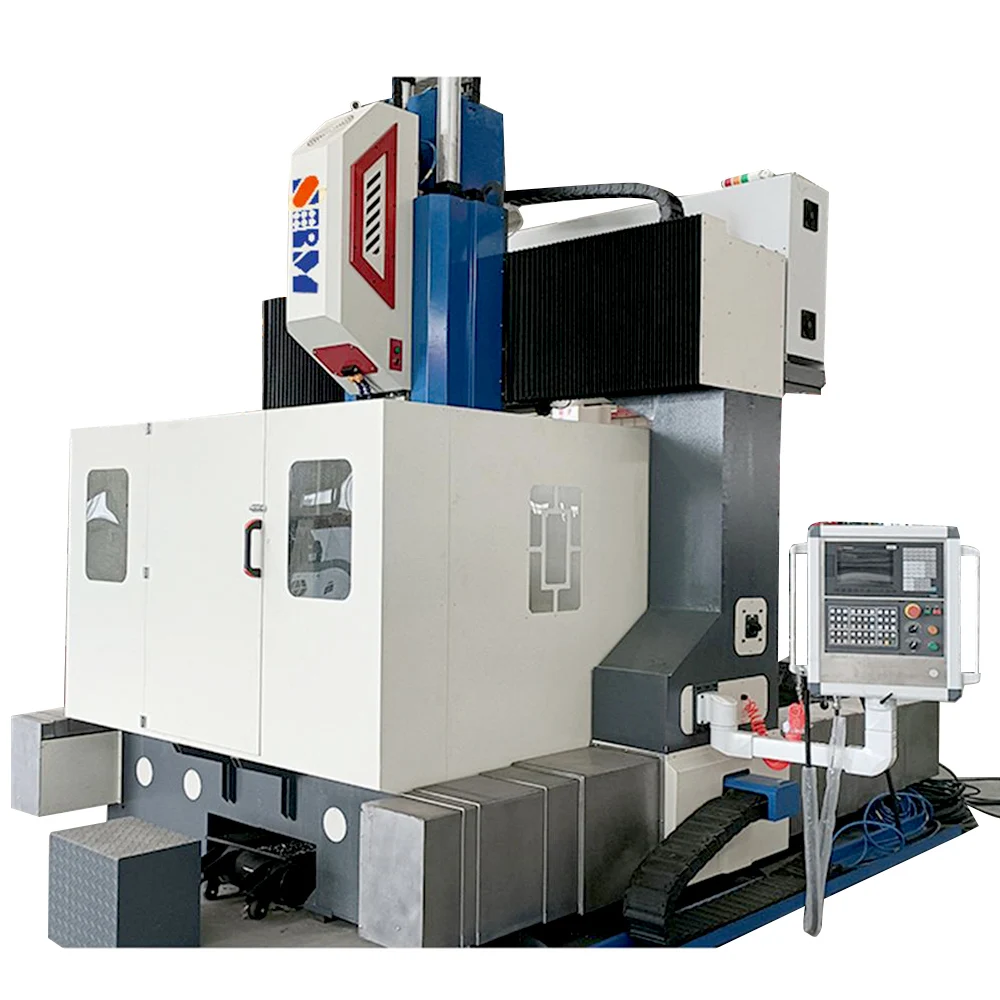

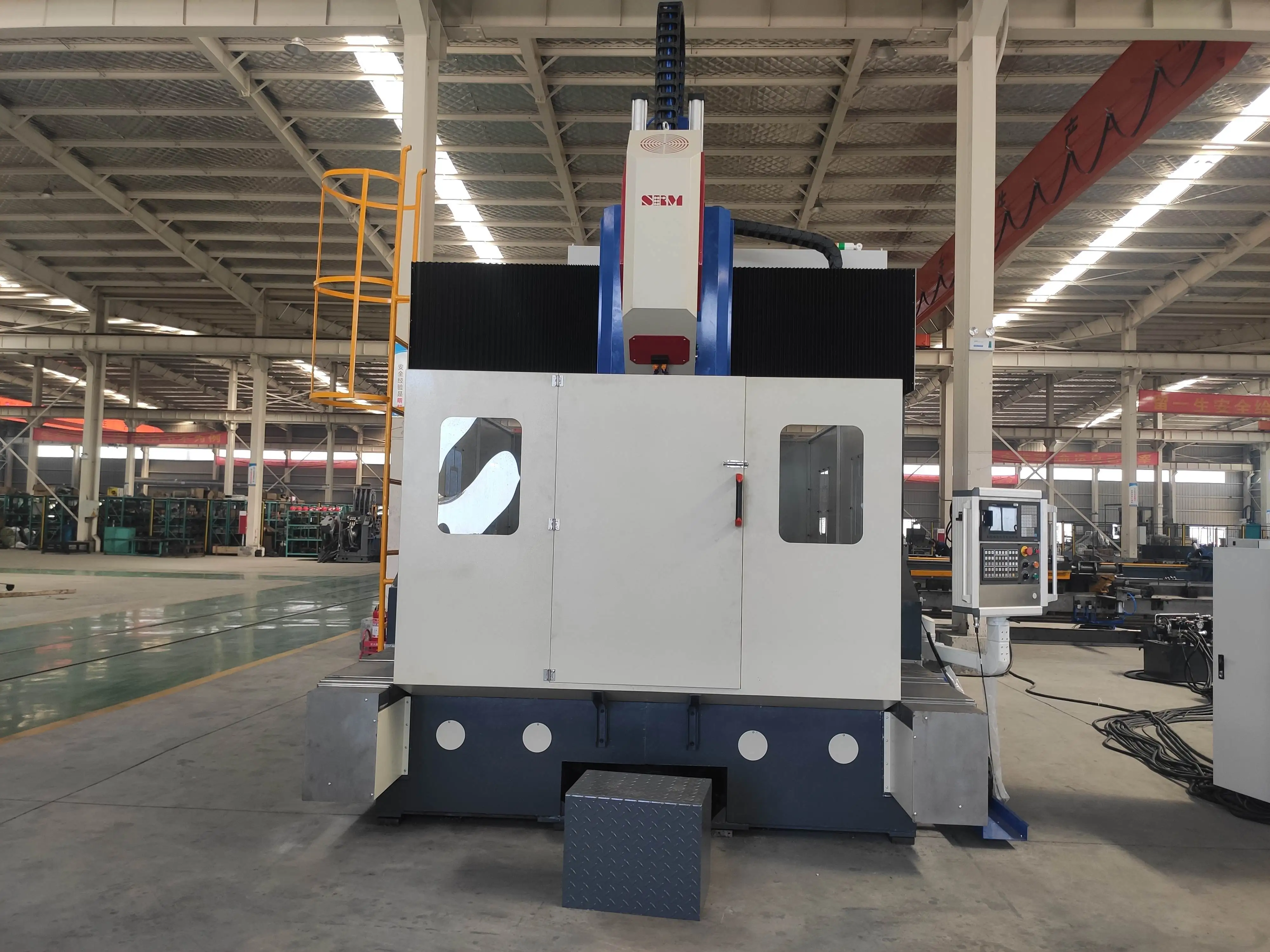

Cost Effective CNC Drilling Machine PHD2016 CNC Plate Metal Steel Drilling Milling Machine With BT50 Spindle
- Category: >>>
- Supplier: SHANDONG RAINTECH SANS TECHNOLOGY CO. LTD
Share on (1601017357129):
Product Overview
Description
High Quality CNC Drilling Machine HIgh SPeed HPD2016 3016 CNC Drilling Milling Tapping Machine for Metal Steel
Product Description
Advantage and Highlight:
1.Steel plate welded bed workbench.
2.Honeycomb mobile gantry .
3.Double screw synchronous drive system.
4.Servo motor power head.
5.BT40/50 precision spindle.
Product Parameters
Model | PHD1616 | PHD2016 | PHD2020 | ||||
Processing range | LxW(mm) | 1600*1600 | 2000*1600 | 2000*2000 | |||
Max. Thicknesss(mm) | 15-100 | ||||||
Slide Ram type power head | Number of spindle ( pcs ) | 1 | |||||
Spindle model | BT40/BT50 | ||||||
Spindle speed(r/min) | 30-4500 | ||||||
Feed stroke (mm ) | 260 | ||||||
Tapping diameter (mm ) | M20 | ||||||
Motor Power(KW) | Spindle Servo Motor | 7.5/11 | |||||
X axis | 2x2.3 | ||||||
Y axis | 2.3 | ||||||
Z axis | 2.3 | ||||||
Positioning accuracy ( mm) | 0.1 | ||||||
Repeated positioning accuracy ( mm ) | 0.08 | ||||||
Control method | Siemens 808D CNC system/PLC+host computer | ||||||
Weight (T) | 5.5 | 6.6 | 7.2 | ||||
Dimensions (mm） | 3800x2050x2750 | 4200x2450x2750 | 4200x2850x2750 | ||||
Product Details
Sample Display
The machine is mainly used for drilling and milling of steel structure,irontower,bridge,
mechanical processing and other industries,such as connectingplate and floor board,drilling and milling of tubes,baffles and flanges inindustries such as boiler petrochemical,pressure vessel and so on; drillinoholes,blind holes,step holes,chamfering and light milling
Recommend Products
After-sale Service
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
Inside Factory
SHANDONG RAINTECH SANS TECHNOLOGY co., LTD
It is a professional group for CNC machines with more than 13 years experience. Plant now covers an area of more than 12000 square meter, annual capacity is around 200 units. Raintech have an experienced expert with young active technical team, which can provide the professional with improved design solutions for our customers, assure that can satisfy various customer's special requirements by cost- effective way.
ENTERPRISE CERTIFICATE
International exhibitions
Customer visits
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help,please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.

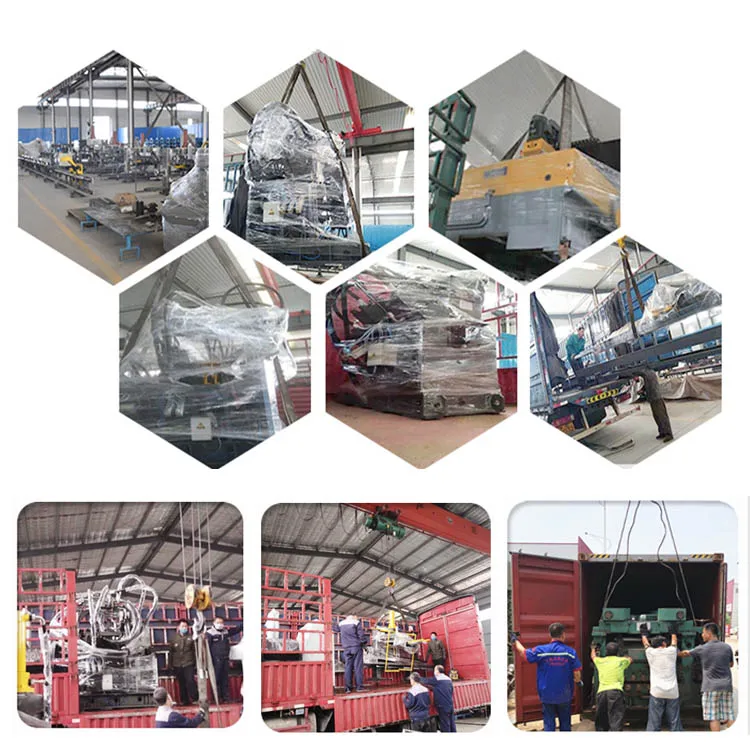

♥4. What about the package and shipment ？
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ？
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
