Products Description

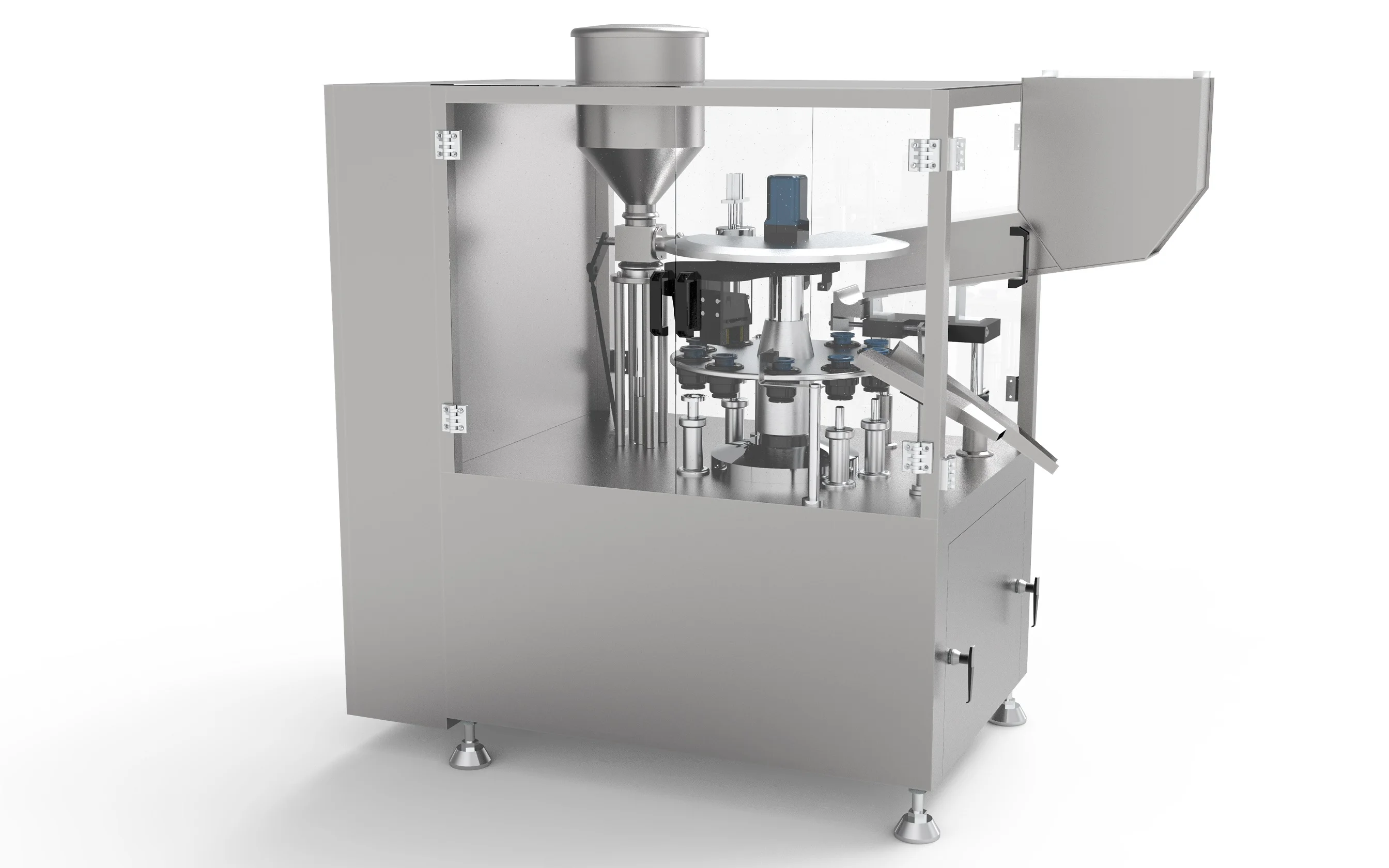

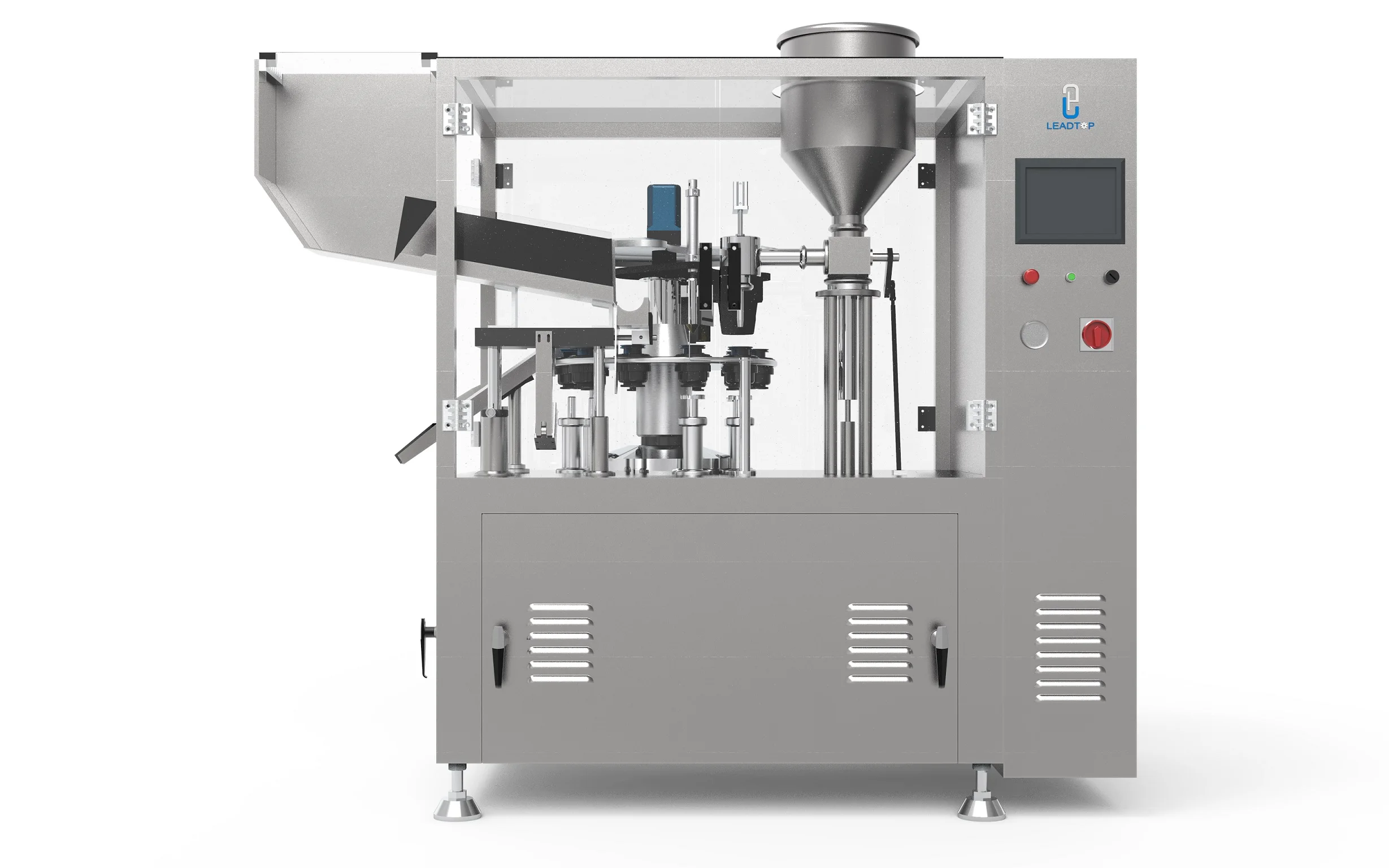

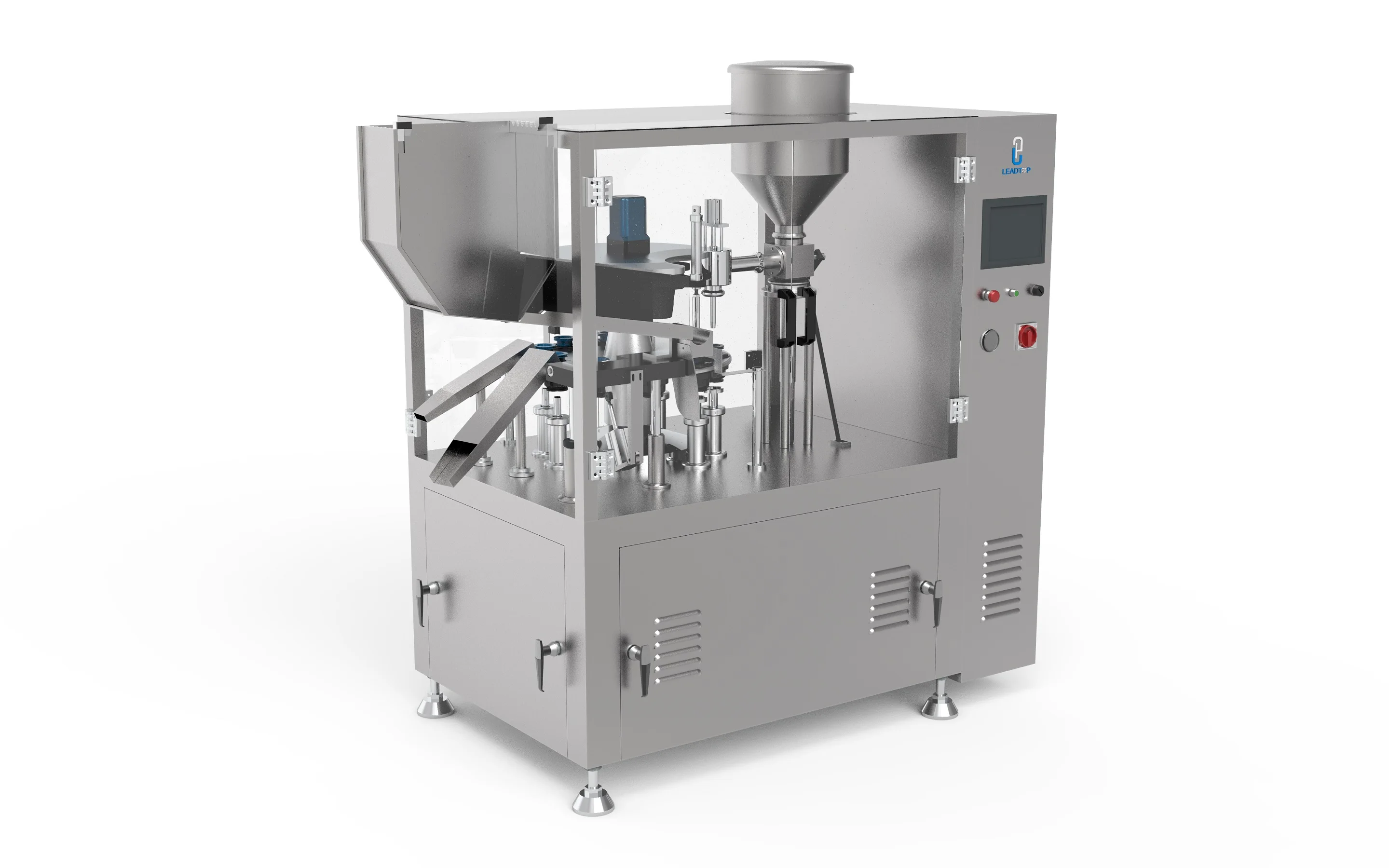

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, foodstuff and bond industries.
Technical Data
Model | LTRG-60 | LTRG-100 | LTRG-120 | ||
Tube Material | Plastic tube, laminated tube, aluminum tube, composite tube | ||||
Tube Diameter | Φ5mm-Φ60mm | ||||
Tube Length | 50-300mm (customizable) | ||||
Filling Volume | 5-250ml/piece (Adjustable) | ||||
Filling Accuracy | ≤±1% | ||||
Product Capacity (Pcs/min) | 30-50 pcs/min | 50-80 pcs/min | 80-120 pcs/min | ||
Air Supply | 0.55-0.65Mpa | ||||
Motor Power | 4kw (380V/220V 50Hz) | 6kw | 7kw | ||
Overall Dimension(mm) | 1600*1640*1900mm | 2500*1200*2400mm | 2950*1310*2300mm | ||
Machine Weight (kg) | 1100kg | 2000kg | 3000kg | ||
Features
1.With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.

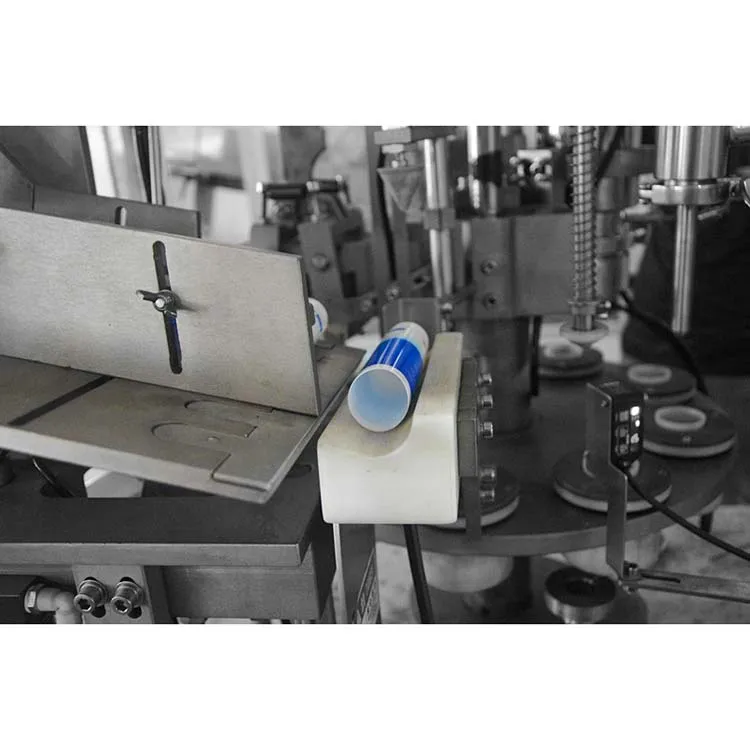

2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3.Servo control makes it precise and convenient to adjust the filling amount by touch screen.

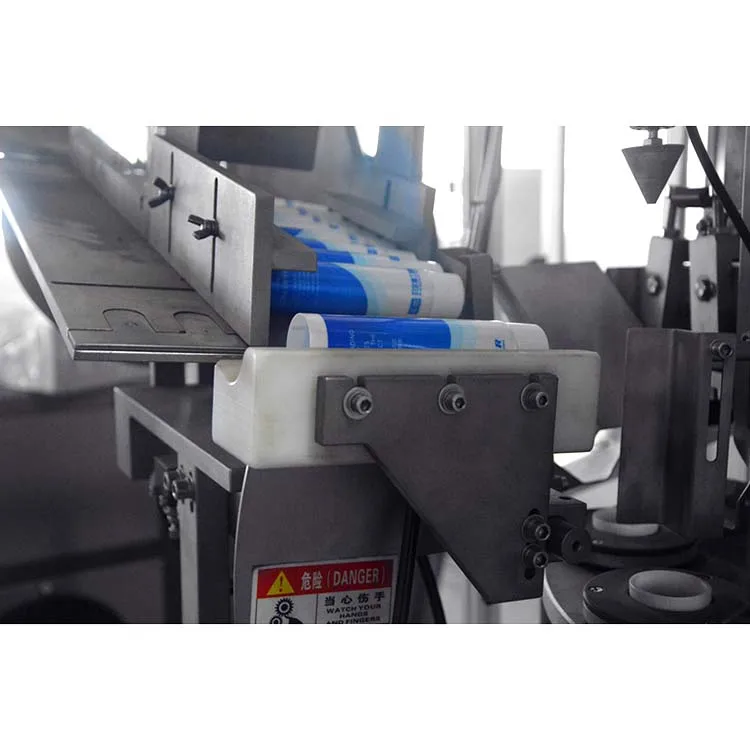

4.According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

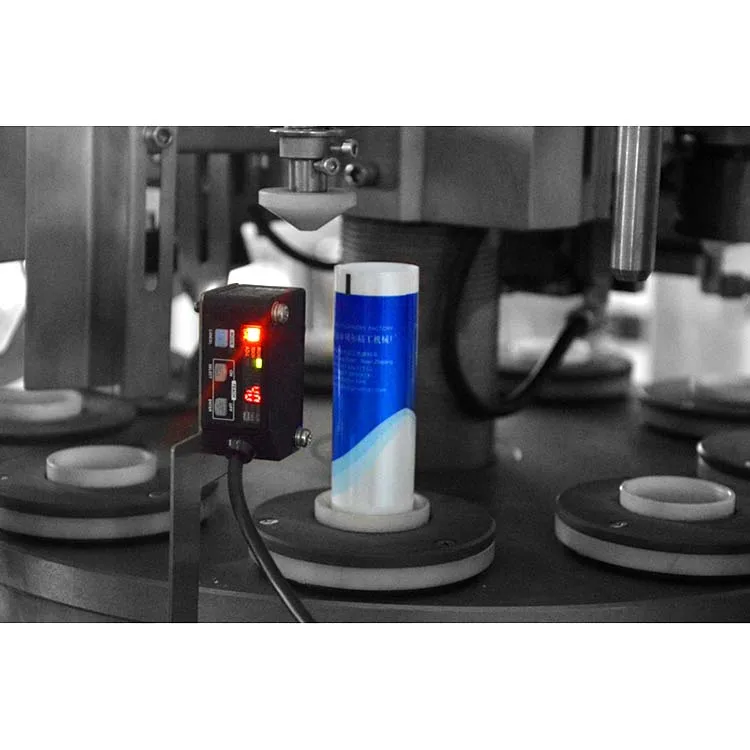

5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

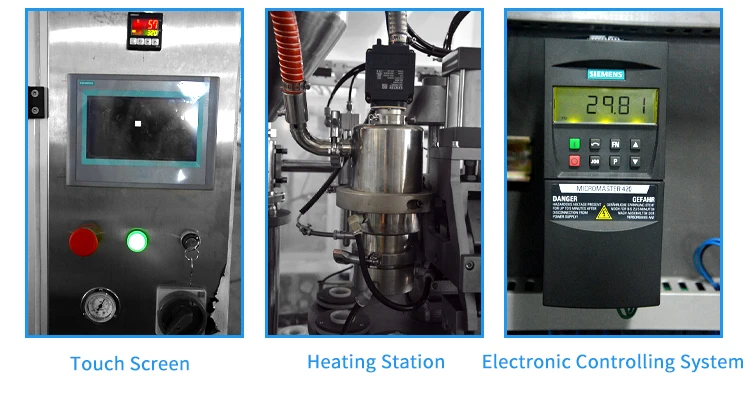

6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7.Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3.Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4.According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7.Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

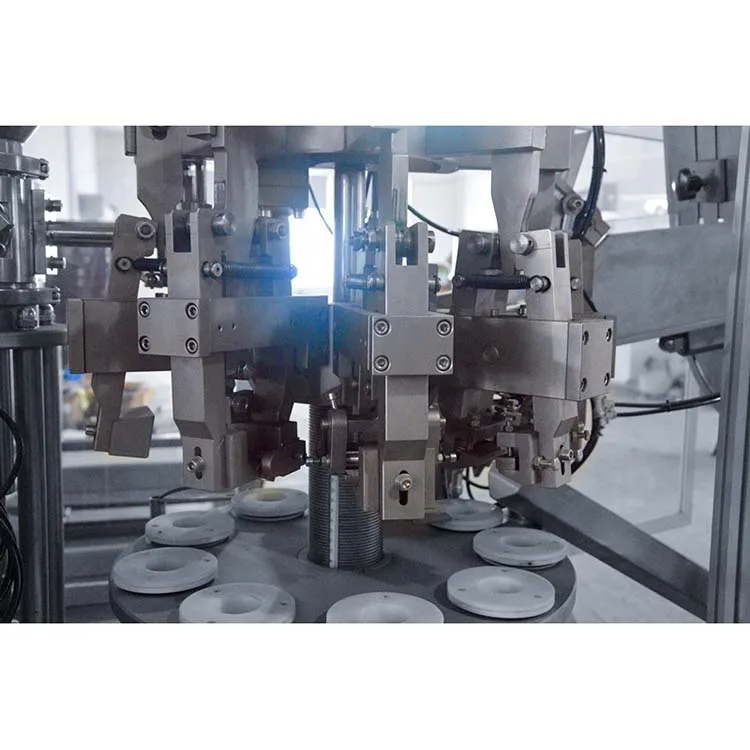

Details Images
Products
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing chemical and food packaging machines such as Ampoule Filling and SealingMachine, Blister Packaging Machine, Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling andCapping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Certificates
ISO, CE, SGS, BV Certified Company.

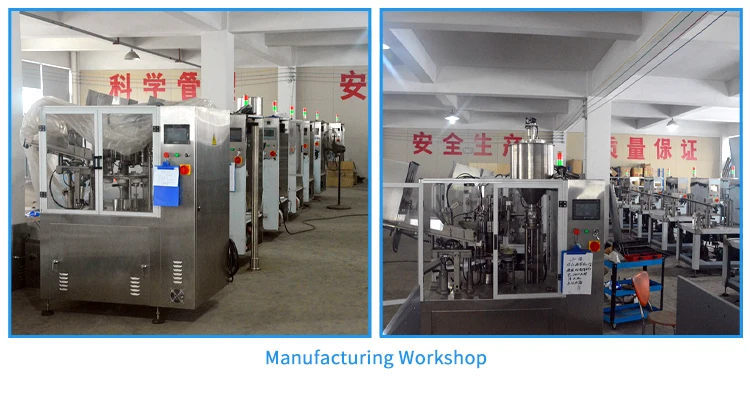

Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
