Product Overview

Description

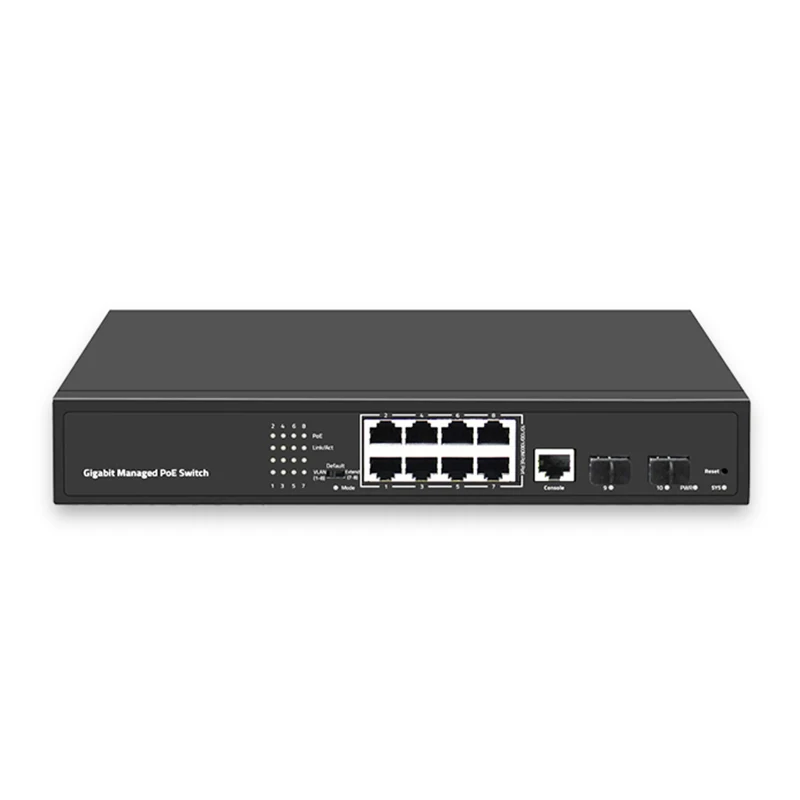

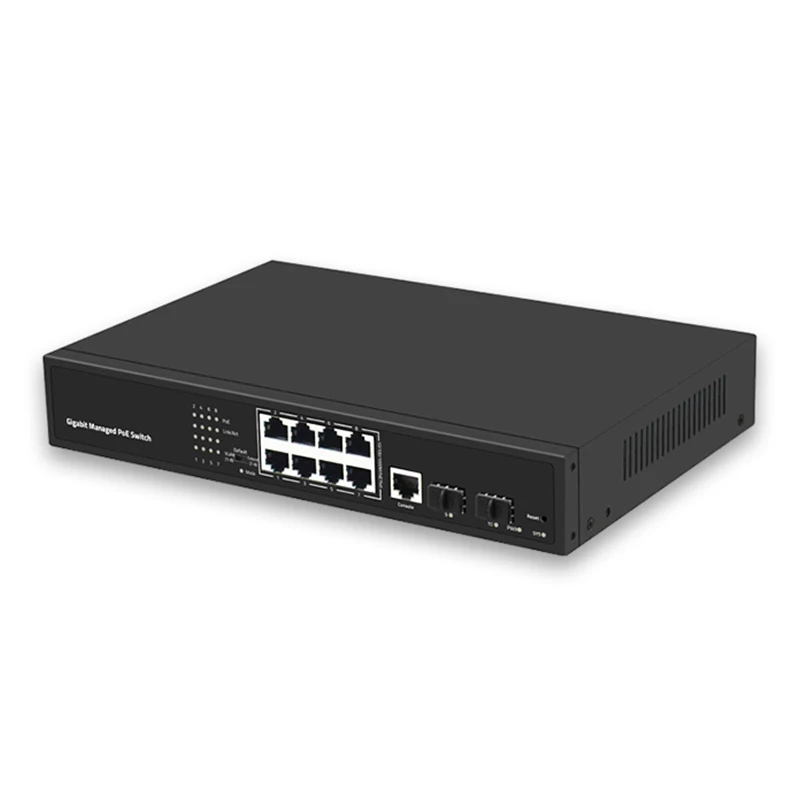

POE Managed Switch
8 * 10/100/1000Mbps PoE+2* 1000Mbps SFP+1 * RJ45 Console




【 Specification 】



1.8 x 10/100/1000Mbps auto-sensing PoE Ports, 2 x Gigabit SFP Uplink Ports, 1 x Console Port.

2.Support IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3

3.Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
4.Ethernet port supports 10/100/1000M adaptive

5.Panel indicator monitoring the status and help failure analysis

6.Fanless design, Natural Cooling,Compatible with 1U Rack Mount

7.Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication

8.Support WEB, TELNET, CLI, SSH, SNMP, RMON management

9.Support PoE Power Management, PoE watch dog

10.The port supports 6kV lightning protection



Input/output Port

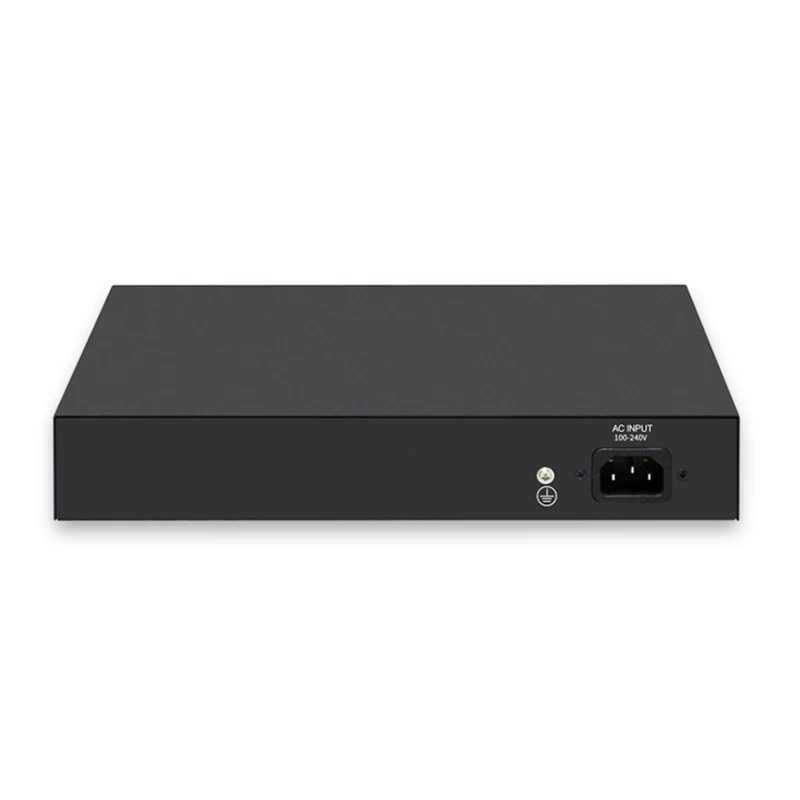

AC INPUT
AC100-240V，50/60Hz
Ethernet Port
8 * 10/100/1000Mbps PoE Port
2* 1000Mbps SFP Port
1 * RJ45 Console Port
Performance
Bandwidth
20Gbps
Packet Forwarding rate
14.88Mpps
DDR SDRAM
128MB
Flash Memory
16MB
Packet Buffer Memory
4M
MAC Address
8K
Jumbo frame
9.6Kbytes
VLANs
4096
Standard
Network Protocols
IEEE 802.3：Ethernet MAC Protocol
IEEE 802.3i：10BASE-T Ethernet
IEEE 802.3u：100BASE-TX Fast Ethernet
IEEE 802.3ab：1000BASE-T Gigabit Ethernet
IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ad：Standard method for performing link aggregation
IEEE 802.3x：Flow control
IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q：VLAN Bridge Operation
IEEE 802.1x：Client/Server Access Control and Authentication Protocol
IEEE 802.1d：STP
IEEE 802.1s：MSTP
IEEE 802.1w：RSTP
PoE protocol
IEEE802.3af （15.4 W）
IEEE802.3at （30 W）
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、
EN61000-4-4 (EFT)、
EN61000-4-5 (Surge)
Network Media
10BASE-T: Cat3、4、5 or above UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Medium
Multi-mode Fiber: 50/125、62.5/125、100/140um
Single-mode Fiber: 8/125、8.7/125、9/125、10/125um
Certification
Safety Certificate
CE、FCC、RoHS
Environmental standards
Working Environment
Operating temperature: -10~50°C
Storage temperature: -40~70°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~90%, No condensation
Function indication
Indicator
PWR, SYS, PoE, Link/ACT
PWR（Power Indicator）
Lighting：Powered
Un-Light：No Power
SYS（System Indicator）
Flashing: System Start-up
Lighting: System Running
PoE
Lighting：PoE on
Un-Light：PoE off
Link/ACT
Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect
Reset
Short press restart, long press 5 seconds to restore factory Settings
Physical specifications
Voltage
Input Voltage: AC100-240V/50-60Hz
Power supply: 52V2.3A

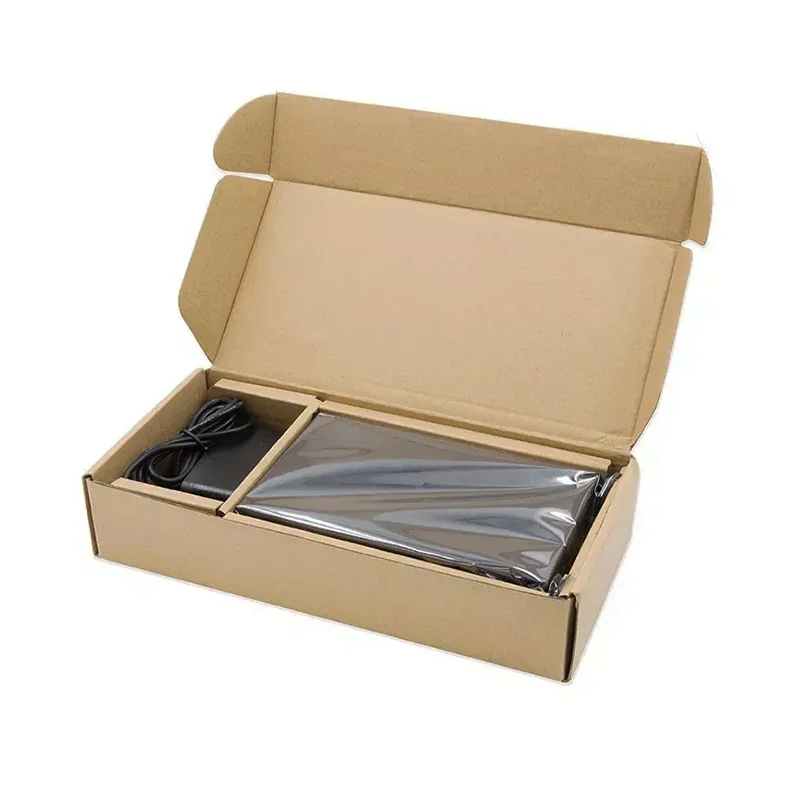

Packing list
1. Ethernet switch: 1 Set
2. Instruction manual: 1 PCS
3. Certificate: 1 PCS

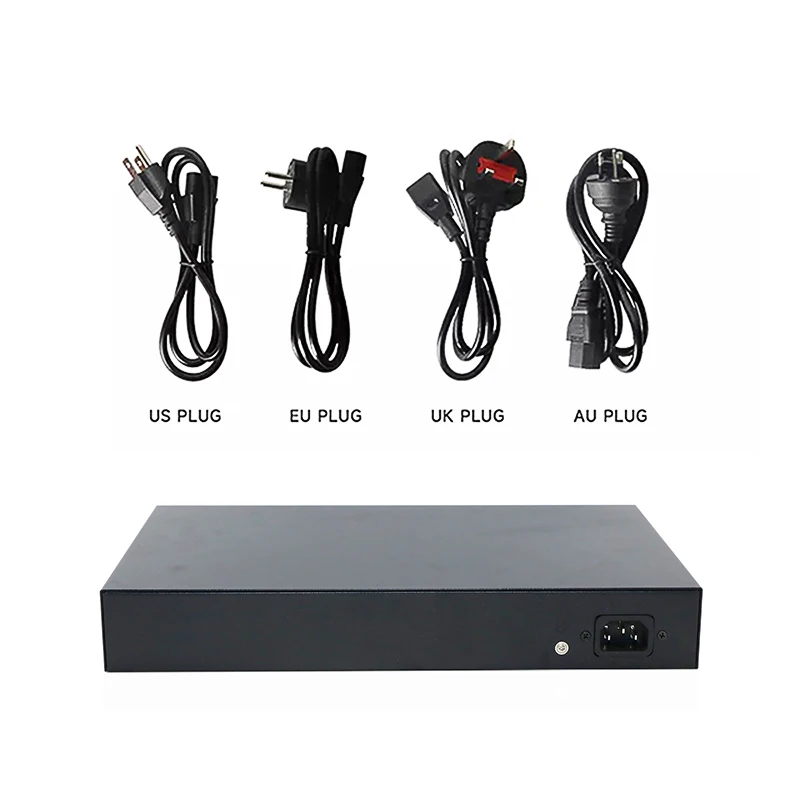

4. Power cord: 1PCS
5. Serial cable: 1PCS
6. Brackets: 1 pair
