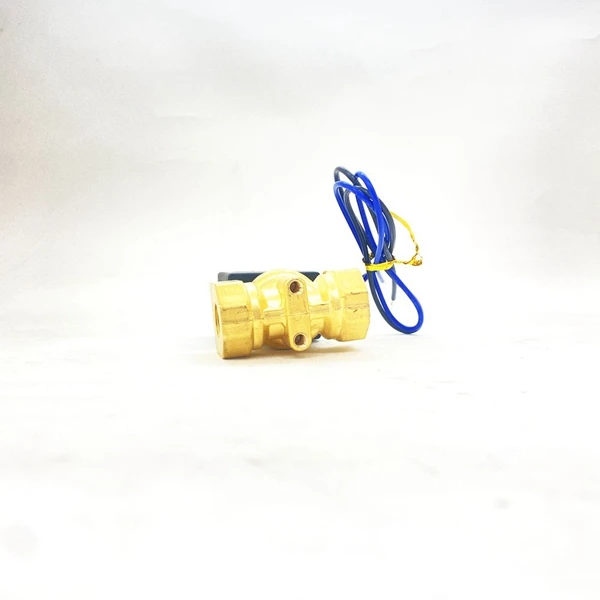

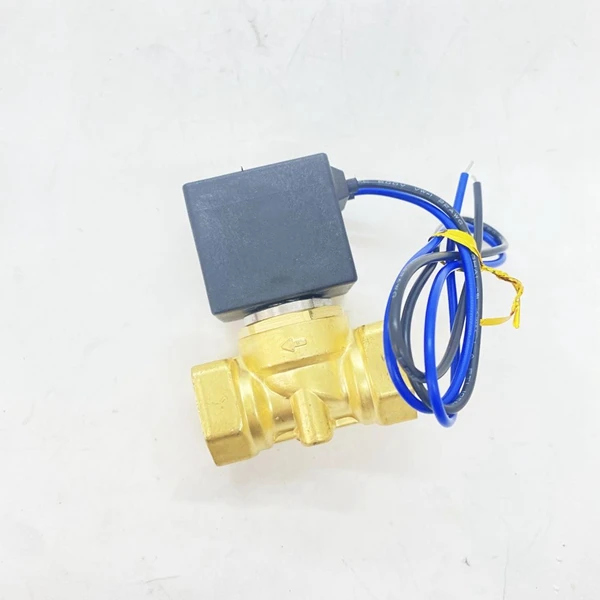

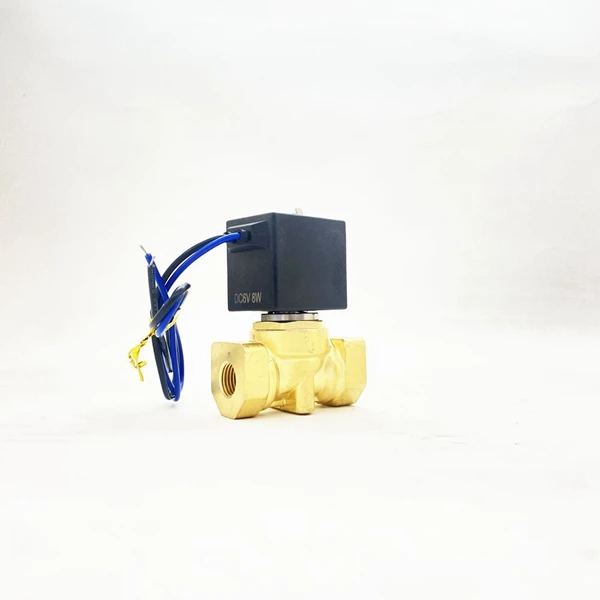

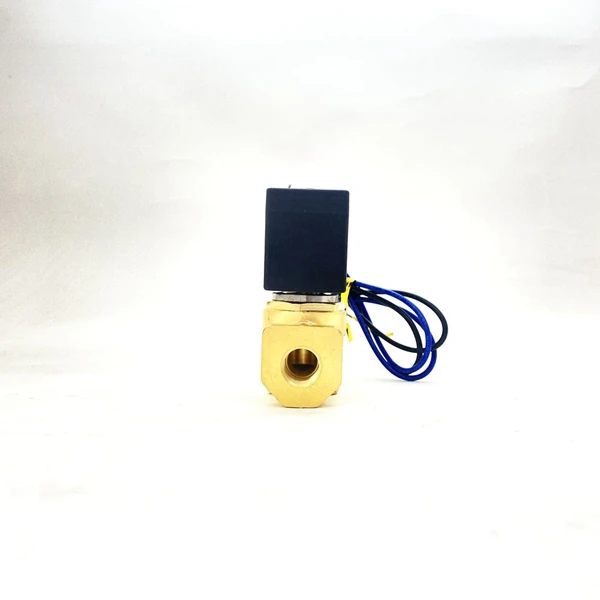

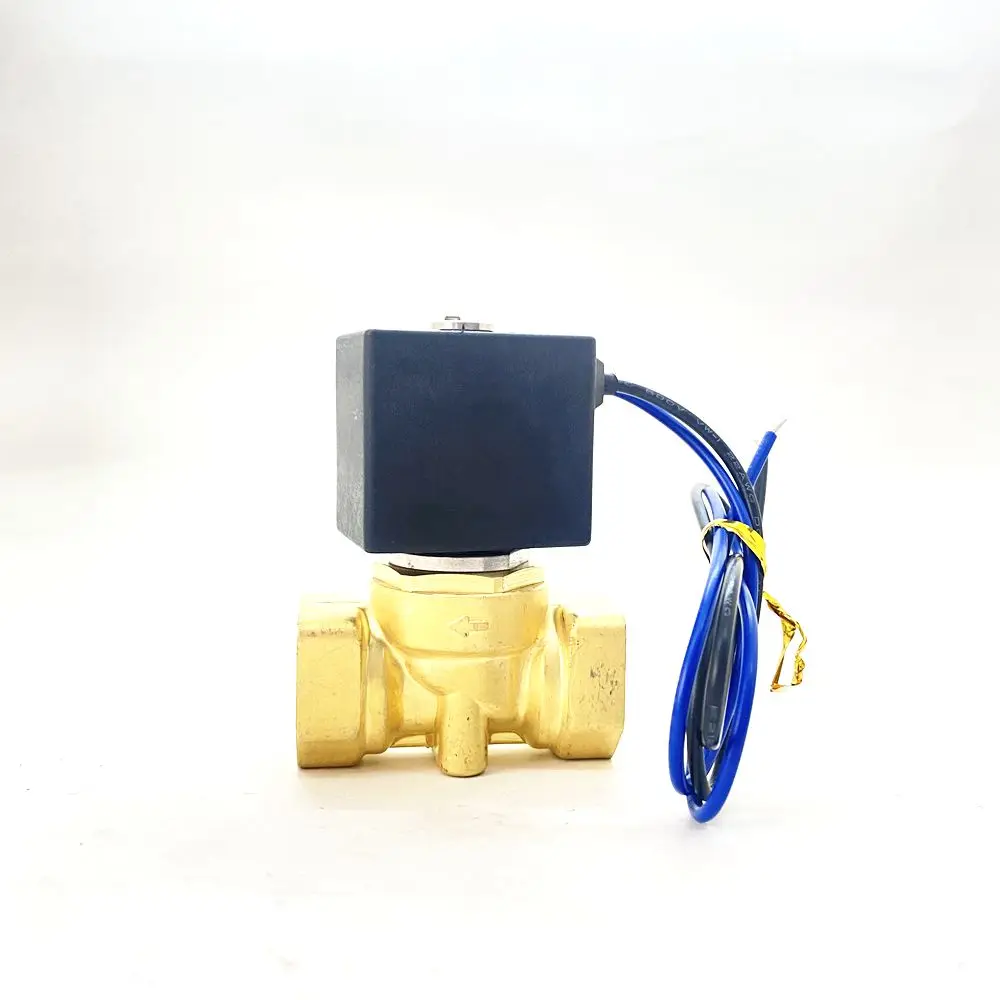

HOYAN PXC 10P orifice 10mm 2 way direct acting Bistable Latching Solenoid Valve
- Category: >>>
- Supplier: Yuyao Hoyan Electronic Co. Ltd.
Share on (1601017484770):
Product Overview
Description
Product Description
Bistable Latching Solenoid Valve is also named Latching Valve and Pulse Valve.
PXC-10P
Bistable-LatchingTwo Way Pilot Diaphragm Solenoid Valve
Brass Pressure: 0-1bar
PXC-10 1/4" Orifice: 10mm
PXC-10 3/8" Orifice: 10mm
PXC-10 1/2" Orifice: 10mm
PXC-10 3/8" Orifice: 10mm
PXC-10 1/2" Orifice: 10mm

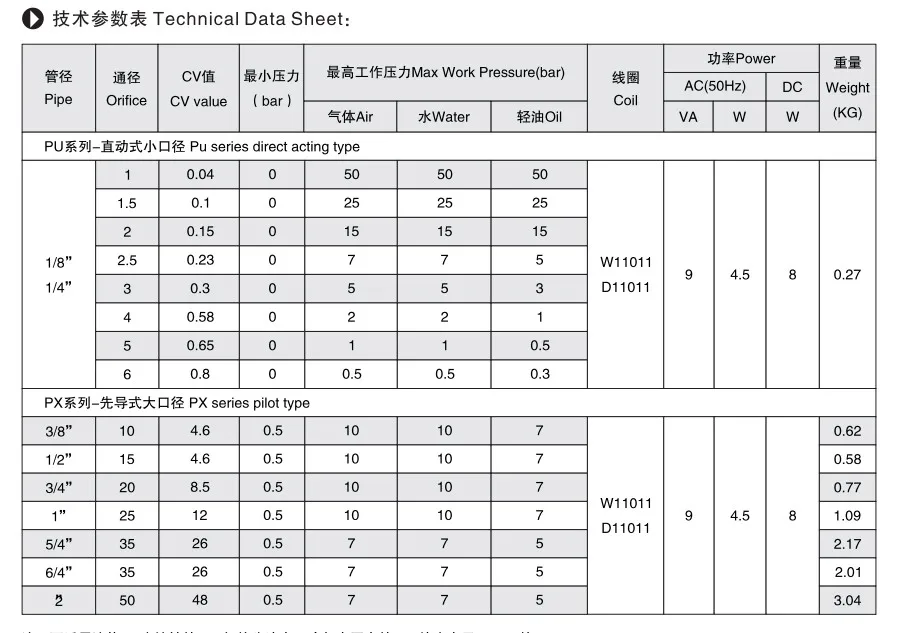

Model | Pipe | Orifice mm | CV | Min.Working Pressure(bar) | Max.Working Pressure(bar) | |||||||||
DC | ||||||||||||||
Air | Water | Oil | ||||||||||||
Brass for water Seals: NBR ,Pressure: 0.5~10bar | ||||||||||||||
PXC-10P | 1/4in | 10 | 1.4 | 0 | 1 | 1 | 0.5 | |||||||
PXC-10P | 3/8in | 10 | 1.4 | 0 | 1 | 1 | 0.5 | |||||||
PXC-10P | 1/2In | 10 | 1.4 | 0 | 1 | 1 | 0.5 | |||||||

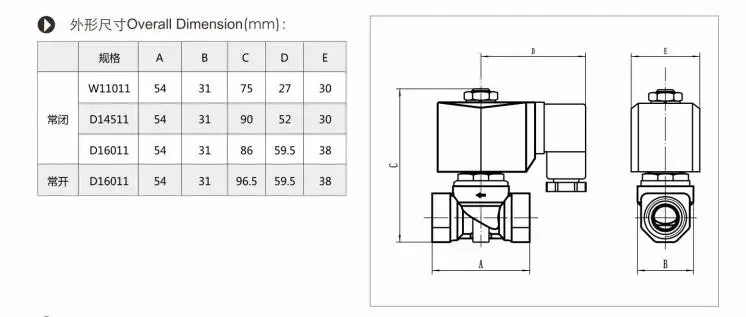

Overall Dimension(mm)
Bistable Latching Solenoid Valve
Spec.
Seal | Temperature(℃) | Fluids | ||
Min | Max | |||
NBR | -5 | 80 | Air ヽwater etc. | |
EPDM | -10 | 120 | Hot waterヽ Steam etc. | |
FKM | -10 | 150 | GasヽDiesel oil etc. | |
Pattern: | Two-port two-position | ||||||||||
Principium: | Pilot Diaphragm type | ||||||||||
Control mode: | Normally Close | ||||||||||
Valve body: | Brass | ||||||||||
Diaphragm material: | NBR: <80°C , EPDM: <120°C FKM: <150°C;PTFE: <180°C | ||||||||||
Working pressure: | 0~1bar | ||||||||||
Max pressure: | 1bar | ||||||||||
Voltage: | DC 6V 12V DC24V | ||||||||||
Medium: | Air ,water ,hot water ,steam ,oil ect. | ||||||||||
Application: | Low pressure large-flow normally air water control system | ||||||||||

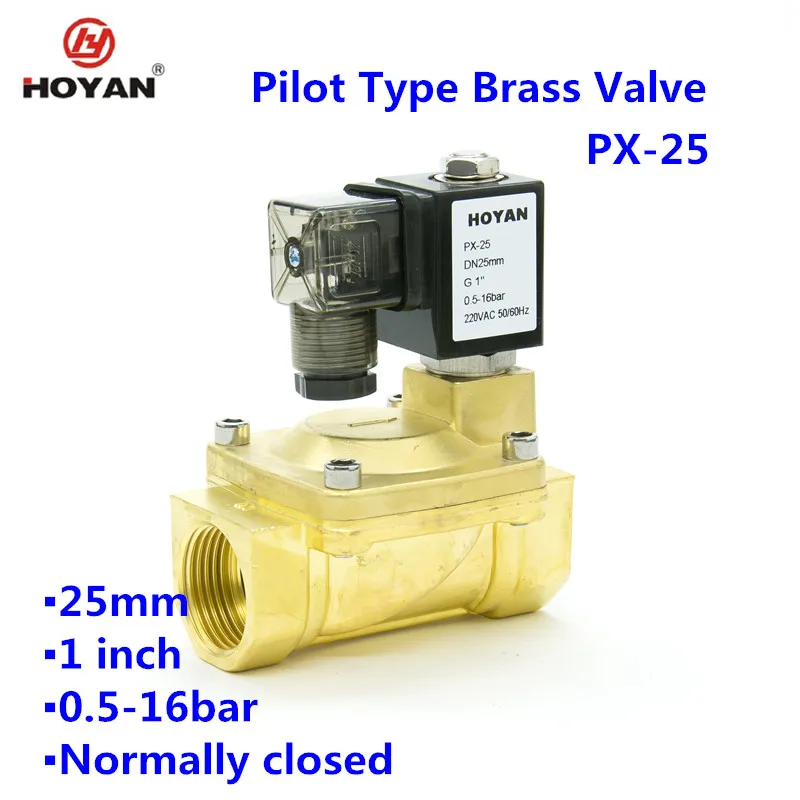

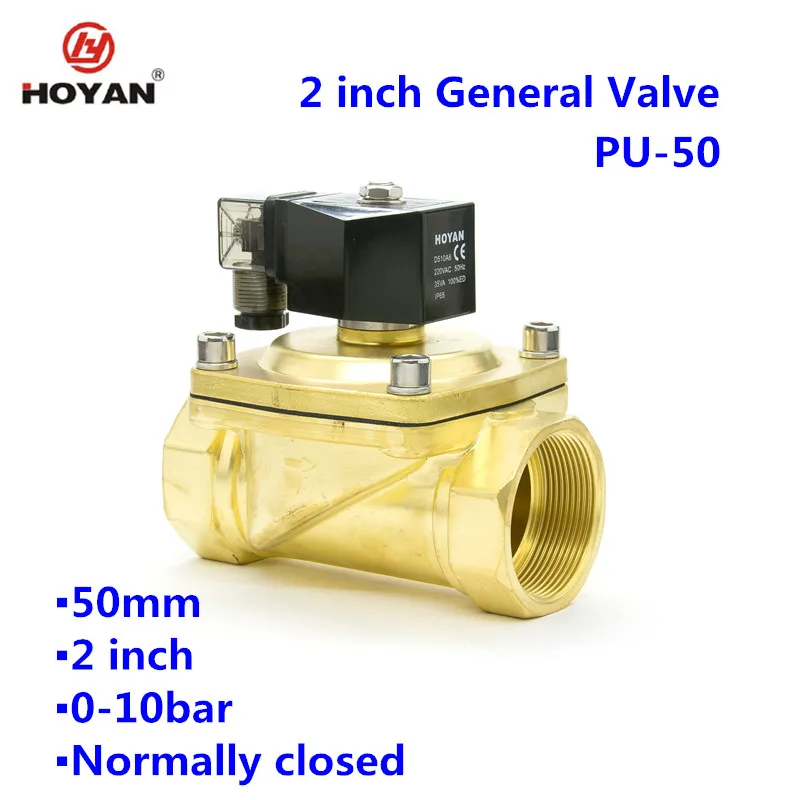

Other 2/2Way solenoid valve
Related Products
Warranty period
We Provied One Year Quality Assurance Date Warranty Period After Shipment Date ,
But If There is Quality Issue out of Period ,We will Also Be Responsible for it !
Packing & Delivery
Packing :
1.Export Cartons
2.Packed according to the client requirements
Delivery:
Within 15 days after receipt of deposit
Certifications
FAQ
Q1:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing more than 10 years.
Q2:Where is your factory located? How can I visit there?
A: Our factory is located in Yuyao city,Zhejiang Province,China.
It is about more than 3 hours from Shanghai airport, We can pick you up if you need, welcome to visit our factory.
Q3:What is the material for your products?
A: The material is Brass or stainless steel
Q4:Can you make samples?
A: Yes, we can make samples for you.
Q5:How does your factory do as quality control?
A: Quality is the lift of our factory. We have inspector in different post, and there are three inspectors before packing to get best quality products.
Q6: How is your after sale?
A: 1.If any damaged rings in the course of carriage, with the checking it's our mistake, we will take full responsibility to compensate the
customers.
