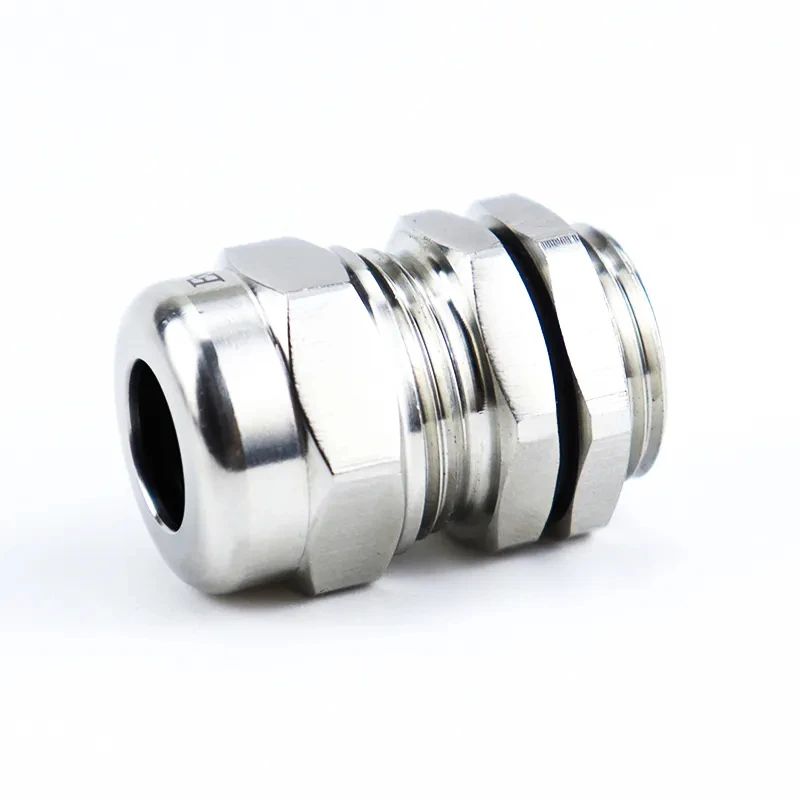

High Quality Explosion Proof EX Metal Nickel Plated Brass Cable Gland
- Category: >>>
- Supplier: Xiamen Mj Industrial Tech Co. Ltd.
Share on (1601017498408):
Product Overview
Description
Product Overview
PG type stainless steel cable gland
E-flex stainless steel cable gland to ensure quick, simple and hermetic tightening: it protects cables and electrical connections, whatever the environments and applications.
Blocking part made up of flexible slats exerting strong pressure on the cable and giving the product optimum resistance to traction.
FEATURES AT A GLANCE
• Completely sealed against dust
• Excellent water resistance

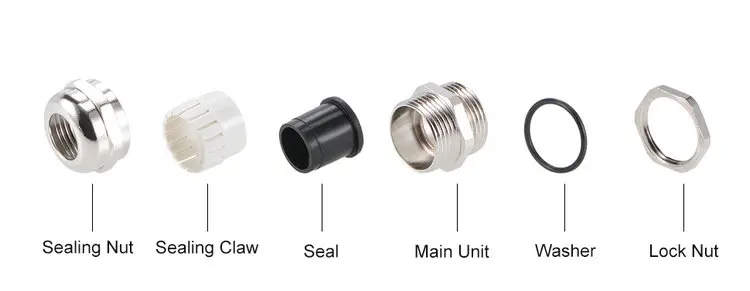

• Locknut and seal supplied
• High quality nickel plated brass
PRODUCT PHYSICAL PROPERTIES
Material | Stainless Steel(SS304 and SS306 Optional) |
Seal Material | NBR |
Material o-ring | NBR |
Clamping insert | Polyamide(94 V0 Standard) |
Thread Style | Pg type |
Service Temperature Range | -40℃ ~ +100℃ |
Intermittent Temperature | Up to 150℃ |
Protection class | IP68 - 10bar/30min |
Flammability | 94 V2 |
Size Range | PG7~PG48 |
Standard Color | Stainless Steel |
CERTIFICATION
ROHS
Halogen Free
REACH
CE
APPLICATION

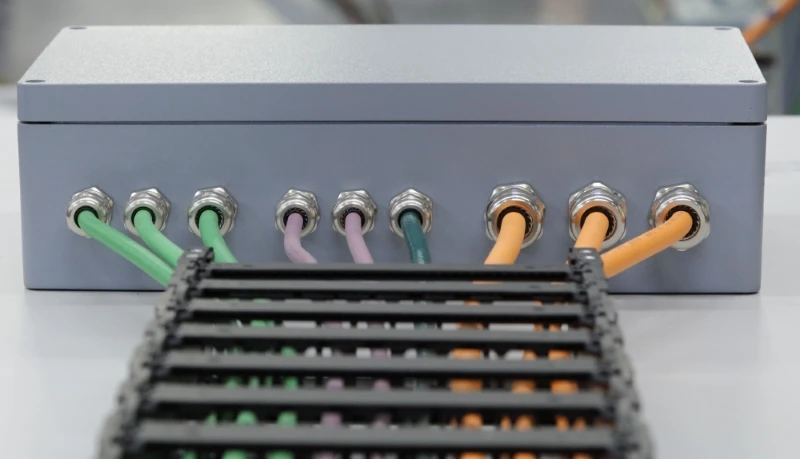

Cable gland stainless steel are used throughout many industries to terminate and seal cable entries into electrical equipment and enclosures.
They are vital accessories in ensuring cables are fitted and retained correctly providing a secure connection. Some of the mostcommon areas to find cable glands are:
They are vital accessories in ensuring cables are fitted and retained correctly providing a secure connection. Some of the mostcommon areas to find cable glands are:
(1)Robotics
(2)Moving machine parts
(3)Electrical Installations
(4)Lighting
(5)Wind and Solar
(6)New Energy Vehicles
(2)Moving machine parts
(3)Electrical Installations
(4)Lighting
(5)Wind and Solar
(6)New Energy Vehicles

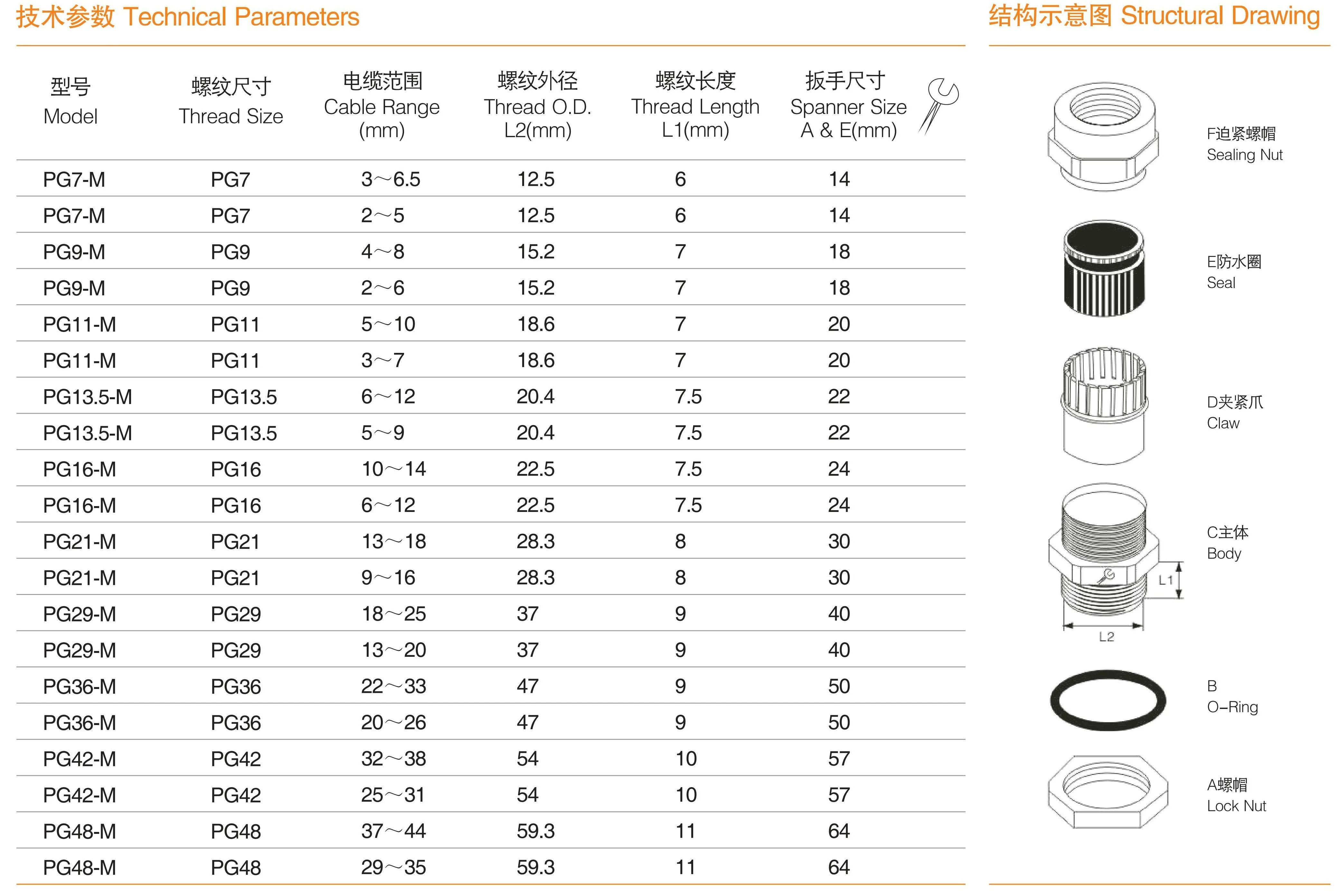

PRODUCT SPECIFICATIONS
SIMILAR PRODUCTS
FAQ
Q1:Are you a manufacturer?
A1:Yes,MJ developing,manufacturing,distribution cable sleeving and connectors more than 10 years.
Q2:Which certifications or test reports do u have？
A2:We Audited by ISO9001,ISO14001,IATF16949,SGS.
Q3:I'd like to get a sample of your product(s) before I buy. Can you send samples to me?
A3:Of course! Please go to our contact us section and fill out the very brief sample request form.
Q4:I have a other brand's part number, but I don't know what it is or can't find it on your website
A4:Send us an email with the part number (usually start with 3, 5 or 6), and we'll introduce correct item to u.
Q5:I found the product I need, but I need more technical data. Will you supply this information?
A5:Yes,product data sheet will send to u within 24 hours,if you still need more information, please send us an email or call
Q6:What is the warranty on your products
A6:MJ warrantees any product purchased against defects in workmanship or materials under normal use for a period of one year from the date of purchase. Any product determined by MJ to be defective in material or workmanship and returned to us will, at MJ's option, be repaired, replaced or the purchase price including shipping refunded.
