Xpon Gpon ONU dual ONT 4GE 1POTS 2USB Wi Fi ONT ONU HG6821M Fiberhome GPON ONU
- Category: >>>
- Supplier: HiOSO Technology Co. Ltd.
Share on (1601017581864):
Product Overview
Description
Product Description
Overview

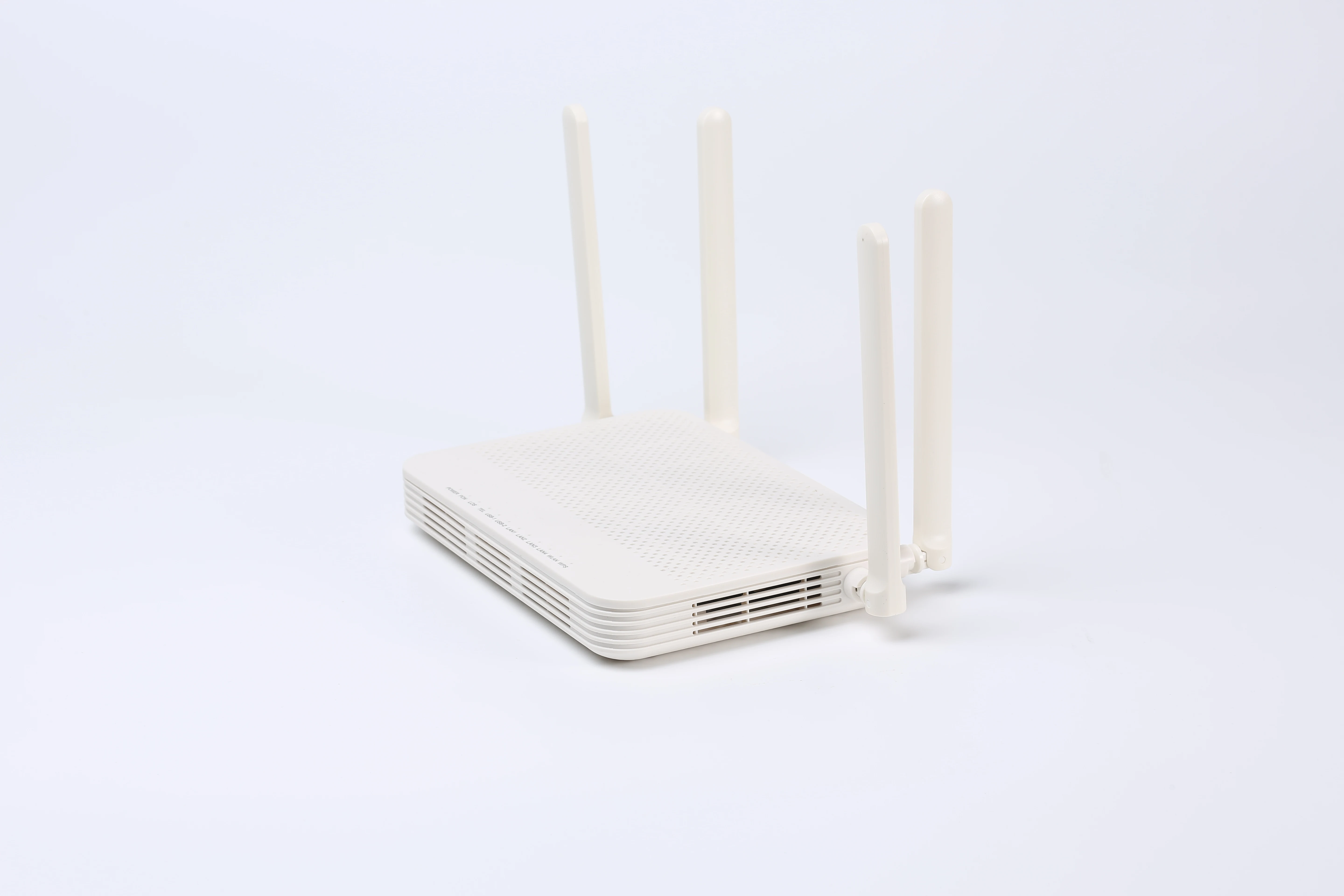

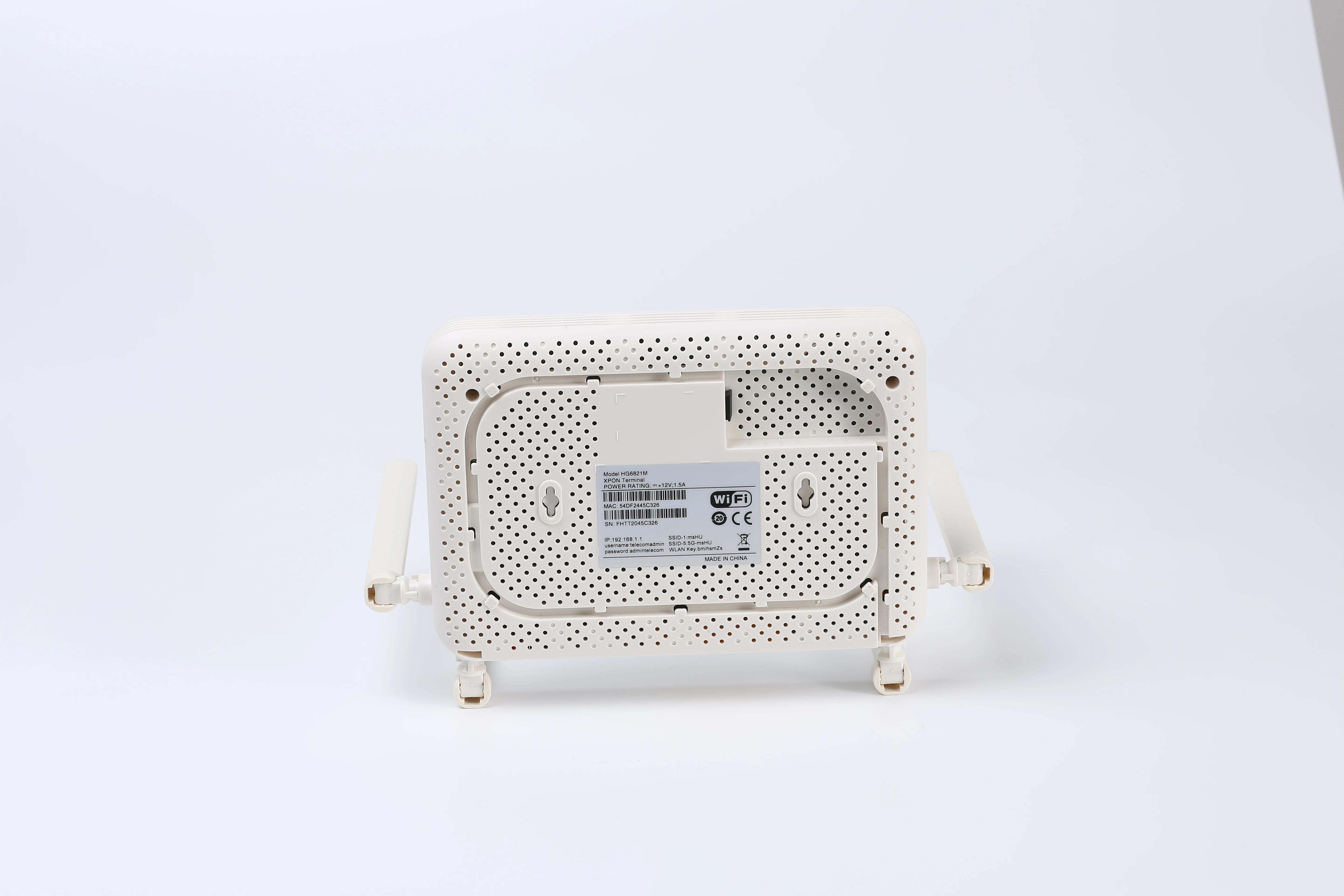

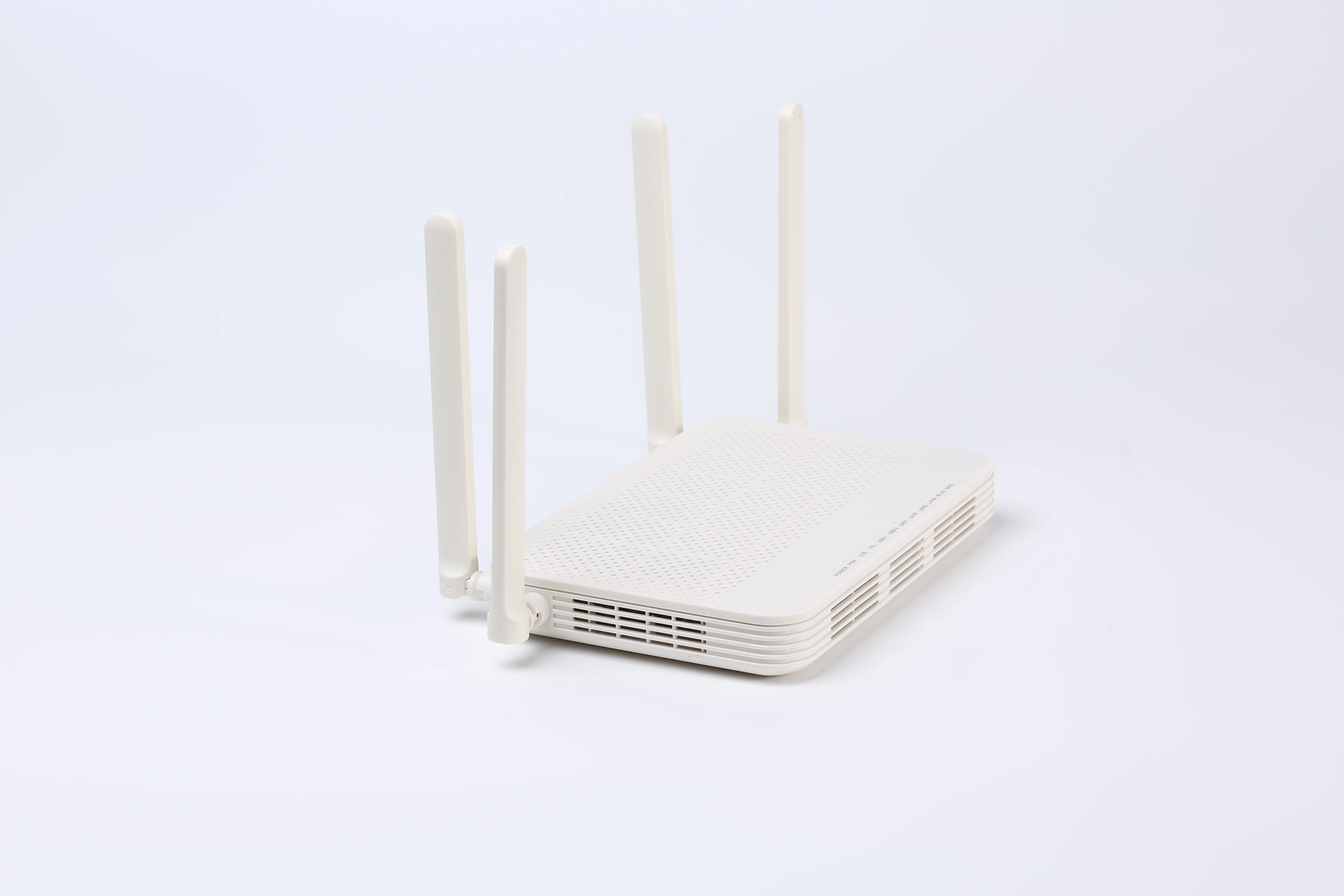

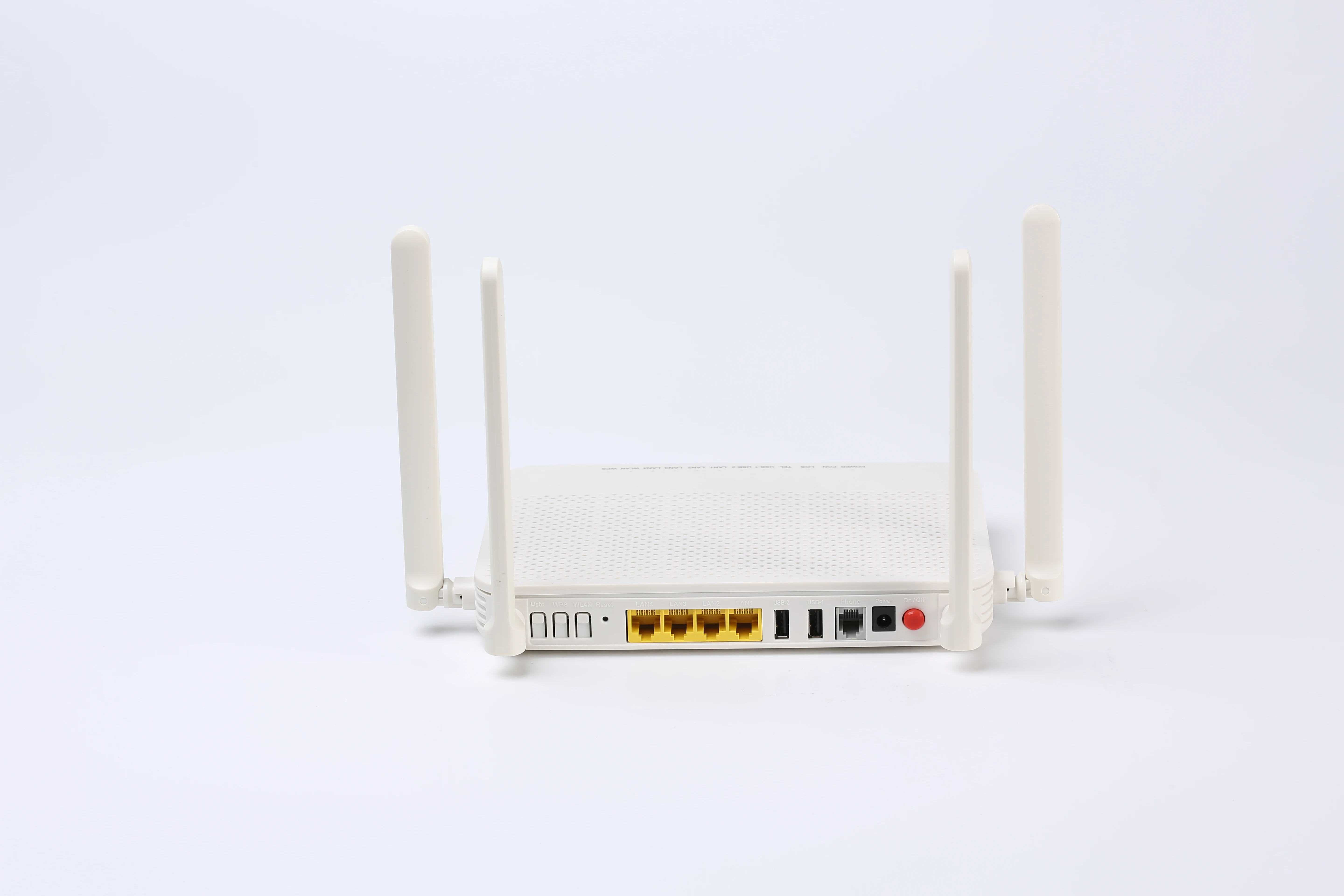

HG6821M Fiberhome GPON ONU
Fiberhome HG6821M ONU is GPON Optical Network Terminal （ONT）and designed for HGU (Home Gateway Unit) in FTTH applications.Fiberhome HG6821M ONU supports L3 function to help subscriber construct the intelligent home network. Fiberhome HG6821M provides a GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.
Fiberhome HG6821M ONU is GPON Optical Network Terminal （ONT）and designed for HGU (Home Gateway Unit) in FTTH applications.Fiberhome HG6821M ONU supports L3 function to help subscriber construct the intelligent home network. Fiberhome HG6821M provides a GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.
HG6821M is a hybrid plug-in central office equipment (OLT) designed and developed by Fiberhome for the requirements of high-speed,multi-service, and wide coverage of the next-generation optical network. Various application scenarios require a new generation of high-capacity carrier-grade fibre-optic access equipment.
The functional positioning of HG6821M equipment is as follows: As the central office equipment OLT in the FTTx solution, it is used in conjunction with the remote equipment ONU to support broadband services such as VoIP, TDM, IPTV, and Internet access.
Features
Smart Service
Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
Association of one account with one POTS ports
Smart interconnection
Smart Wi-Fi coverage
SIP/H.248 auto-negotiation
Any port any service
Parental control (V300R015C00)
L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Layer 3 Features
PPPoE/Static IP/DHCP
Port forwarding
DDNS/DNS server/DNS client
IPv6/IPv4 dual-stack, and DS-Lite
Static/Default routes
Multiple services on one WAN port
Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
Association of one account with one POTS ports
Smart interconnection
Smart Wi-Fi coverage
SIP/H.248 auto-negotiation
Any port any service
Parental control (V300R015C00)
L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Layer 3 Features
PPPoE/Static IP/DHCP
Port forwarding
DDNS/DNS server/DNS client
IPv6/IPv4 dual-stack, and DS-Lite
Static/Default routes
Multiple services on one WAN port
Technical Specification
Brand | Fiberhome |
Model | HG6821M |
Ports | 4GE+1POTS+2USB+Wi-Fi |
Dimensions (H x W x D) (mm) | 220 mm x 160 mm x 32 mm |
Weight | < 1000 g |
Operating temperature | 0°C to +40°C |
Operating humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 VAC, 50–60 Hz |
System power supply | 11–14 VDC, 0.5 A |
Static power consumption | 7.5 W |
Max power consumption | 18 W |
Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
Working Environment
Certification
Company Profile
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.
To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.
With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry.
To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products.
To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.
With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry.
To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products.
3D Reality Showroom
VR
Hot Sales
Packing & Delivery
Standard packing
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to South America(30.00%),Southeast Asia(30.00%),Western Europe(20.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical Line Terminal,Optical Network Unit,Fiber Media Converter,Switch,SFP
4. why should you buy from us not from other suppliers?
HiOSO founed in 2002, Shenzhen. HiOSO is a manufacturer focusing on GPON,GEPON, PoE switches, fiber switches, industrial ethernet switches,Din Rail switches,Access network Ethernet switches, EOC and fiber media converters, fiber modems, ECC, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2002,sell to South America(30.00%),Southeast Asia(30.00%),Western Europe(20.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical Line Terminal,Optical Network Unit,Fiber Media Converter,Switch,SFP
4. why should you buy from us not from other suppliers?
HiOSO founed in 2002, Shenzhen. HiOSO is a manufacturer focusing on GPON,GEPON, PoE switches, fiber switches, industrial ethernet switches,Din Rail switches,Access network Ethernet switches, EOC and fiber media converters, fiber modems, ECC, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
