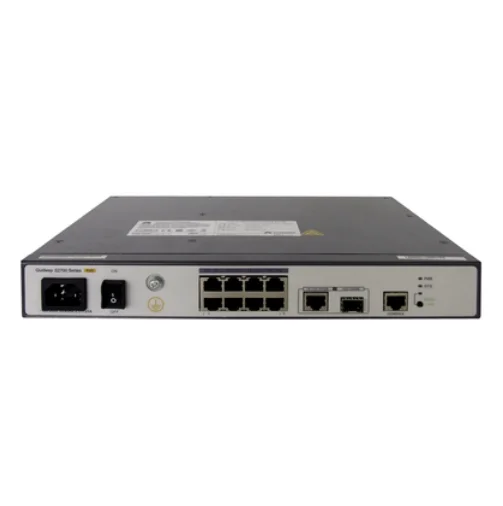

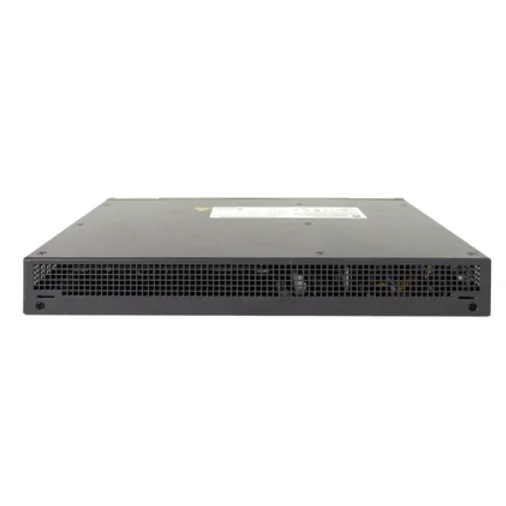

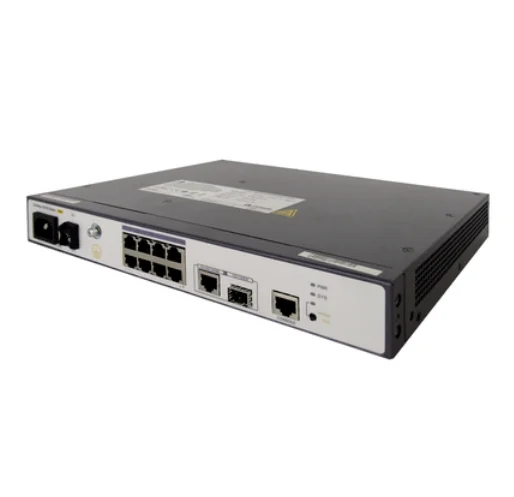

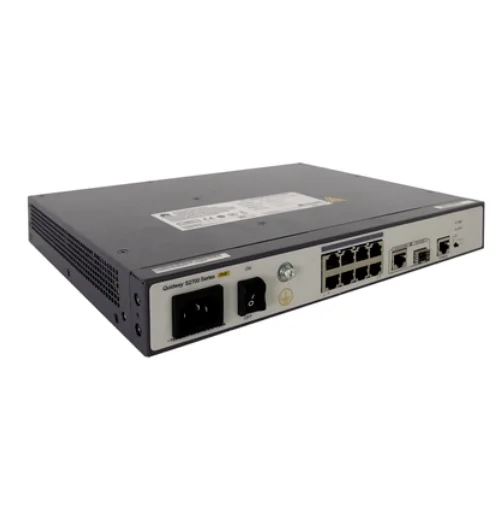

HW Model S2700 9TP PWR EI 8 port 100M POE power supply 1 port Gigabit photoelectric multiplexing port Management switch

Product Overview

Description

HW S2700-9TP-PWR-EI 8-port 100M POE power supply + 1-port Gigabit photoelectric multiplexing port management switch



Overviews

S2700-9TP-PWR-EI is a switch that supports 8 Ethernet 10/100 ports, one dual-purpose 10/100/1000 or SFP and provides a 124 W internal power module for PoE. It’s one of the S2700 Series Enterprise Switches that deliver Standard (SI) and Enhanced (EI) models with exclusive Easy Operation Toolkit for easy installation, configuration, monitoring, and trouble shooting. This switch is an Enhanced model.





Specifications



The product type	Smart Switch	Scope of application	Small and medium-sized enterprises
Switching Capacity (Gpbs)	32Gbps	Stacking support	backing
The number of ports	9

Basic parameters

The product type	Smart Switch	Scope of application	Small and medium-sized enterprises
Switching Capacity (Gpbs)	32Gbps	Interchange mode	Store-and-forward
Packet forwarding rate	2.7Mpps	Address table size	8K
Product Highlights	Support for manual addition and removal of MAC address tables Support for MAC address aging time configurable Support for port/aggregate group shutdown learning MAC capability Support for port MAC address limit Support for black hole MAC address Support for port rate limit and flow limit Support for 4 queues of different priority per port Support for mapping to different queues according to packet 802.1p Support for SP, WRR, SP+WRR algorithm Support for IPv6 host function Support for configuring static routes Support for IPv6 ACL Support for MLD v1/v2 Snooping supports IGMP v1/v2/v3 Snooping supports multicast load sharing for bundled ports Supports port-based multicast stream rate limiting and traffic statistics	Delay	8K

Port parameters

The number of ports	9	The port type	8 x 10/100Base-TX, 1 x Gigabit Combo port (10/100/1000Base-T or 100/1000Base-X)

Other parameters	Stacking support

Features	Lightning protection capability of all service ports: 6KV; Add additional lightning protection equipment, all ports lightning protection capacity 15KV. Support port 1:1 or N:1 mirroring Support 802.1x, support single port maximum number of users limit Support dynamic ARP detection Support IP Source Guard function Support AAA authentication, support Radius, HWTACACS+, NAC and other ways Support IP, MAC, port, VLAN combination binding Support port speed limit Support port isolation, port security, Sticky MAC support packet filtering Support MAC address filtering Support multicast, Broadcast and unknown unicast packet suppression Supports MAC address learning limit Supports CPU protection function

Electrical parameters

Voltage(V)	AC: Rated voltage range: 100-240V AC; 50/60Hz Maximum Voltage Range: 90-264V AC; 50/60Hz DC: Rated voltage range: -48~-60V DC Maximum voltage range: -36~-72V DC	Power(W)	<154W (PoE:124W)

Appearance parameters

Product size	320×220×43.6mm	Weight (Kg)	<2.5kg
