China 12v 3 Light Sign Lens Mini METALUX 1.5w Modulo De Led Smd Led Modul Injection 2835 Led Modules
- Category: >>>
- Supplier: Guangdong Metalux Led Limited
Share on (1601017596065):
Product Overview
Description
Products Description
SMD Single Color Batwing LED Module

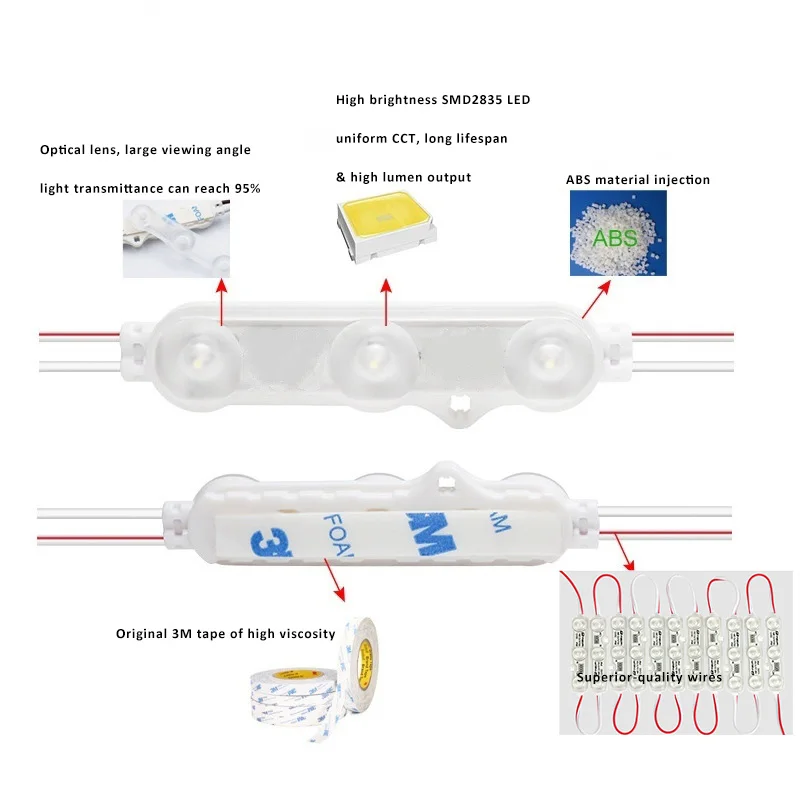

※ Back injection technology, higher water resistance
※1800K~6000K/Red/Green/Blue/Yellow/
Amber/Pink and other custom CCT available
※More than 50000 hours lifespan
※More than 50000 hours lifespan
※Different LED quantity form 1LED/pc to 4LED/pc
※ Different power consumption from 0.3W/module to 2W/module
※ Different power consumption from 0.3W/module to 2W/module
※All of Materials Are Accord With RoHS & CE & EMC & ERP2.0 & REACH & FCC & ETL.
※As a manufacturer, we can customize different size, voltage, power, color temperature and color rendering index according to customer requirements.

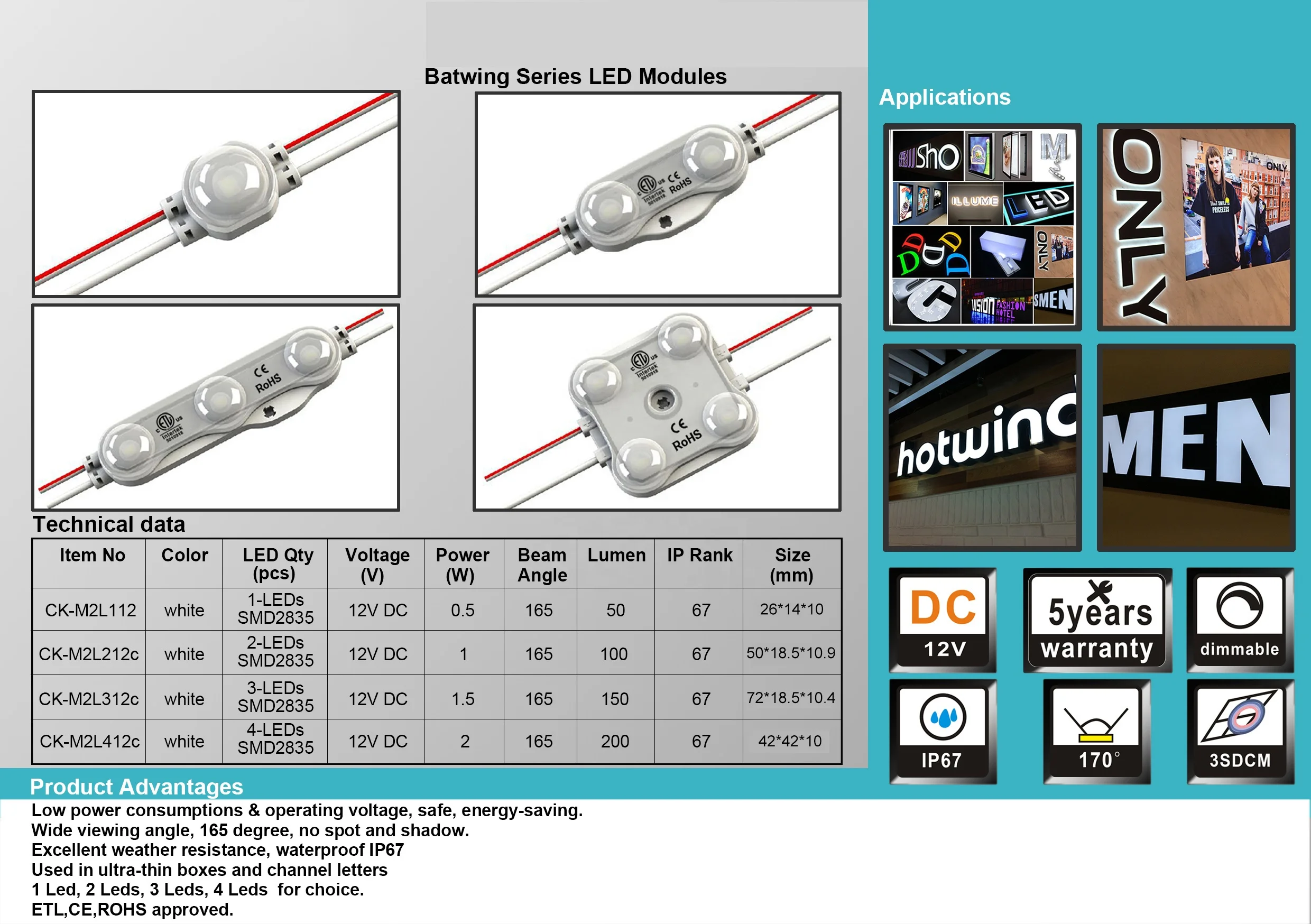

Metalux LED Limited LED Module Parameter | ||||||||
Part Number | YQ-M1N1V12/ YQ-M1N2V12/ YQ-M1N3V12/ YQ-M1N4V12 | |||||||
Size ( Length * Width * Height) | 26x14x10/ 50x18.5x10.9/ 72x18.5x10.4/ 42x42x10mm | |||||||
LED Quantity | 1/2/3/4 LEDs per piece | |||||||
LED Type | SMD 2835 | |||||||

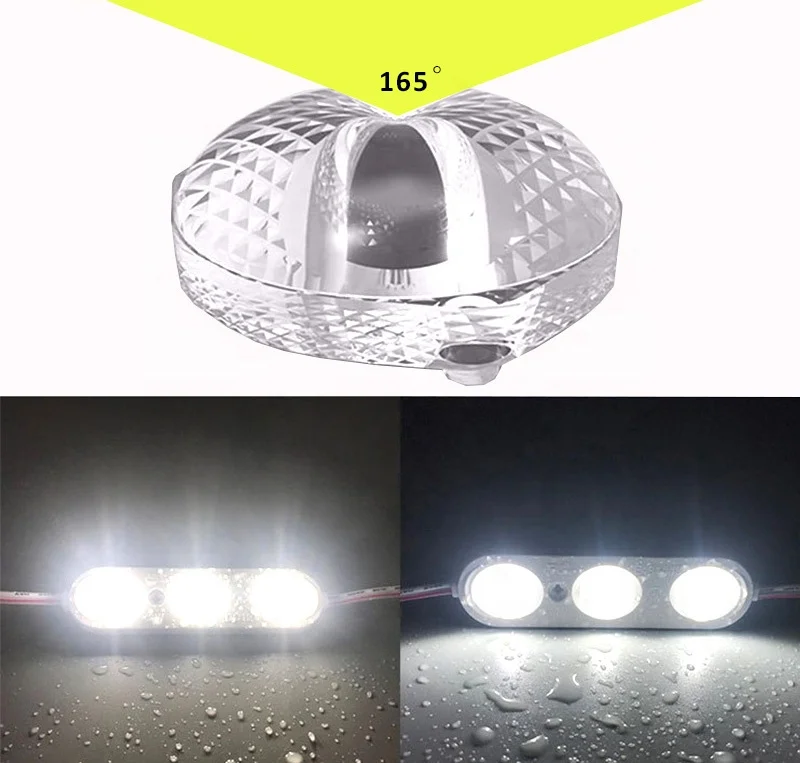

Beam Angle | 165° | |||||||
Input Voltage | DC12V | |||||||
Power | 0.5W/ 1W/ 1.5W/ 2W | |||||||
Lumious Flux | 50 Lm/LED | |||||||
Temperature Color | 3000K & 4000K & 6000K | |||||||
IP Grade | IP65/67 waterproof | |||||||
Operating Temperature & Beam Angle | -25 to 45 ℃ & 180 ℃ | |||||||
Cetification | CE & LVD & EMC & RoHS & REACH & ERP2.0 & FCC & ETL | |||||||
Warranty | 5 years | |||||||
PRODUCT FEATURE
Back Injection Batwing LED Module Series

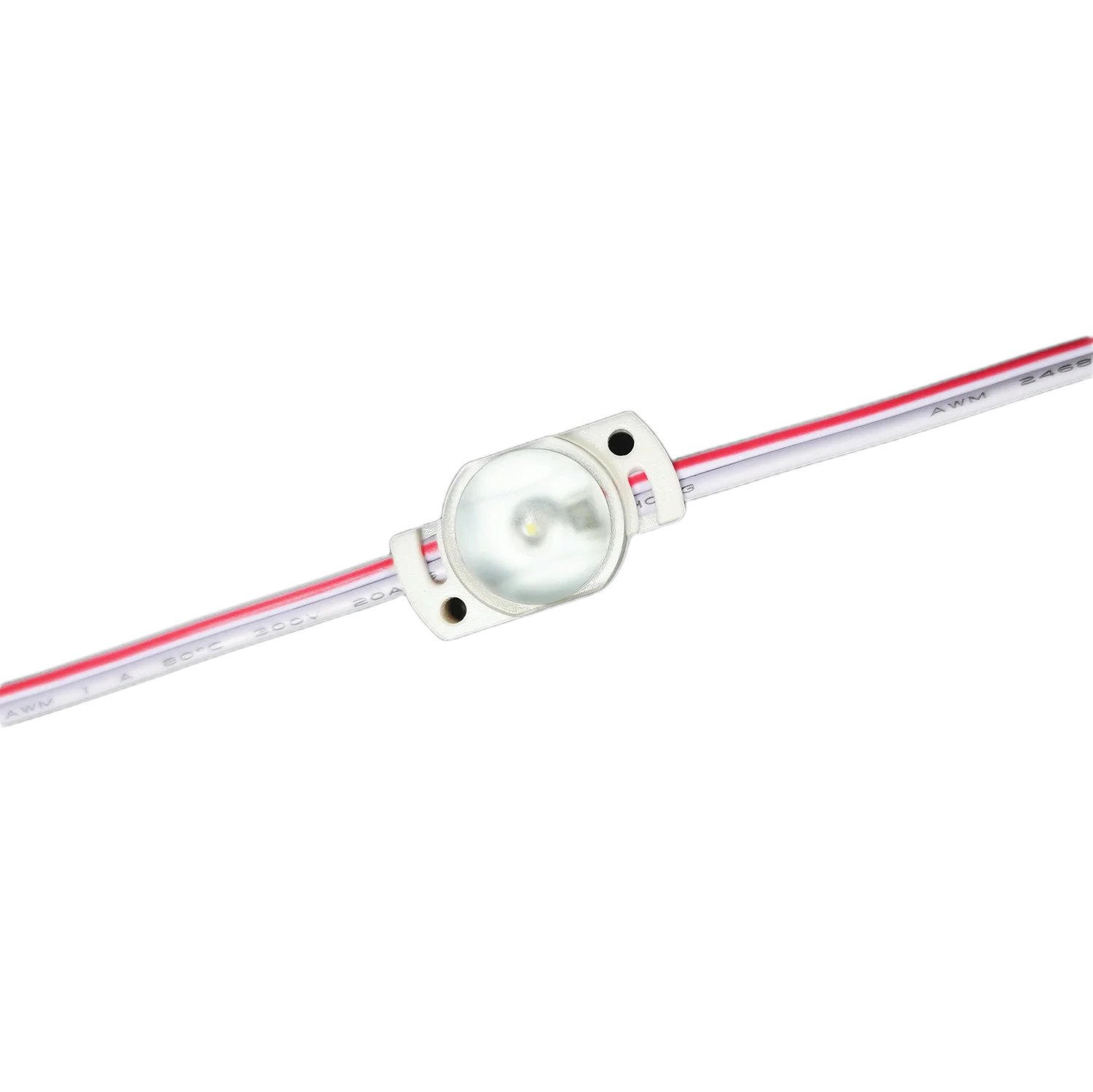

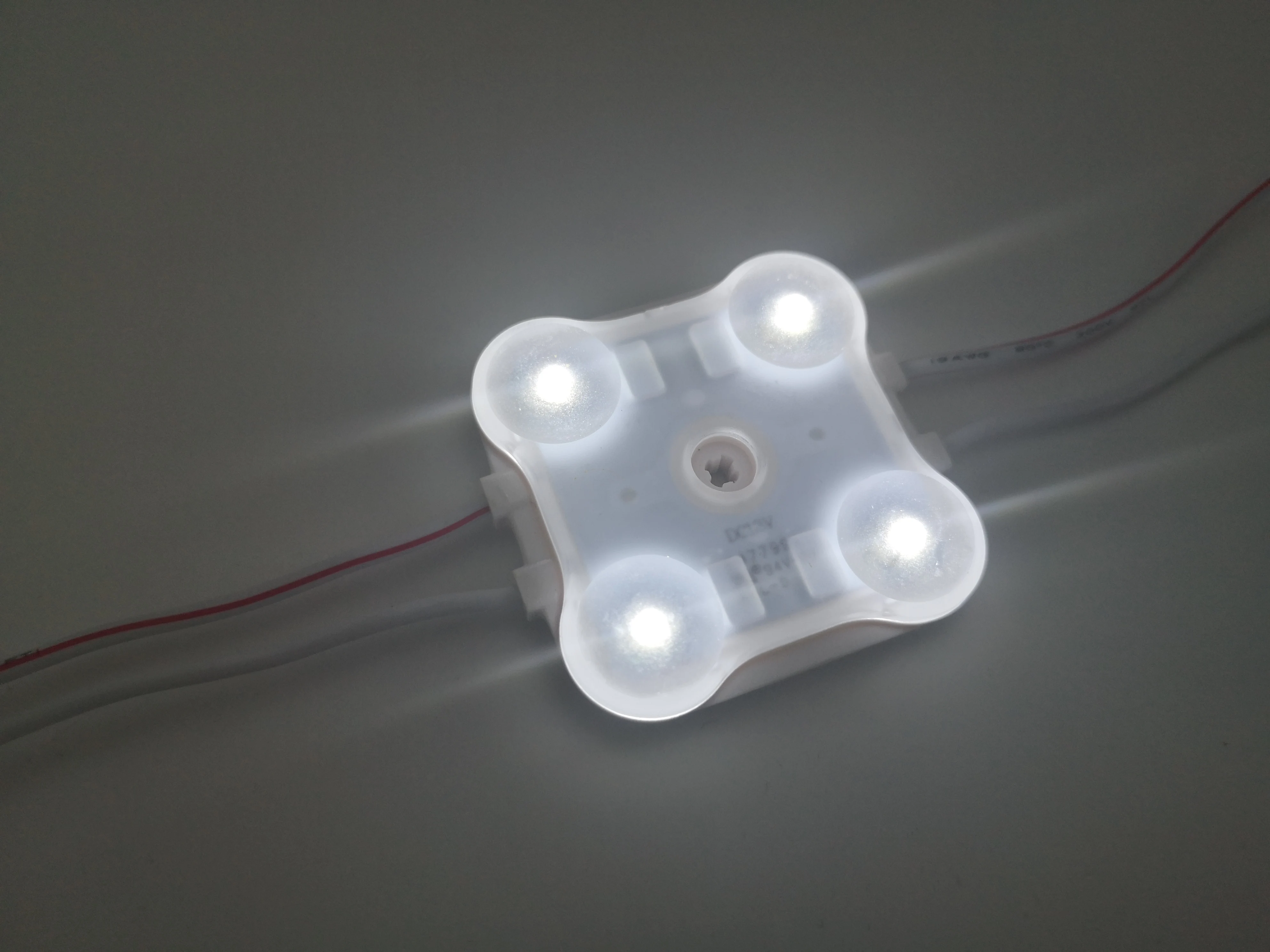

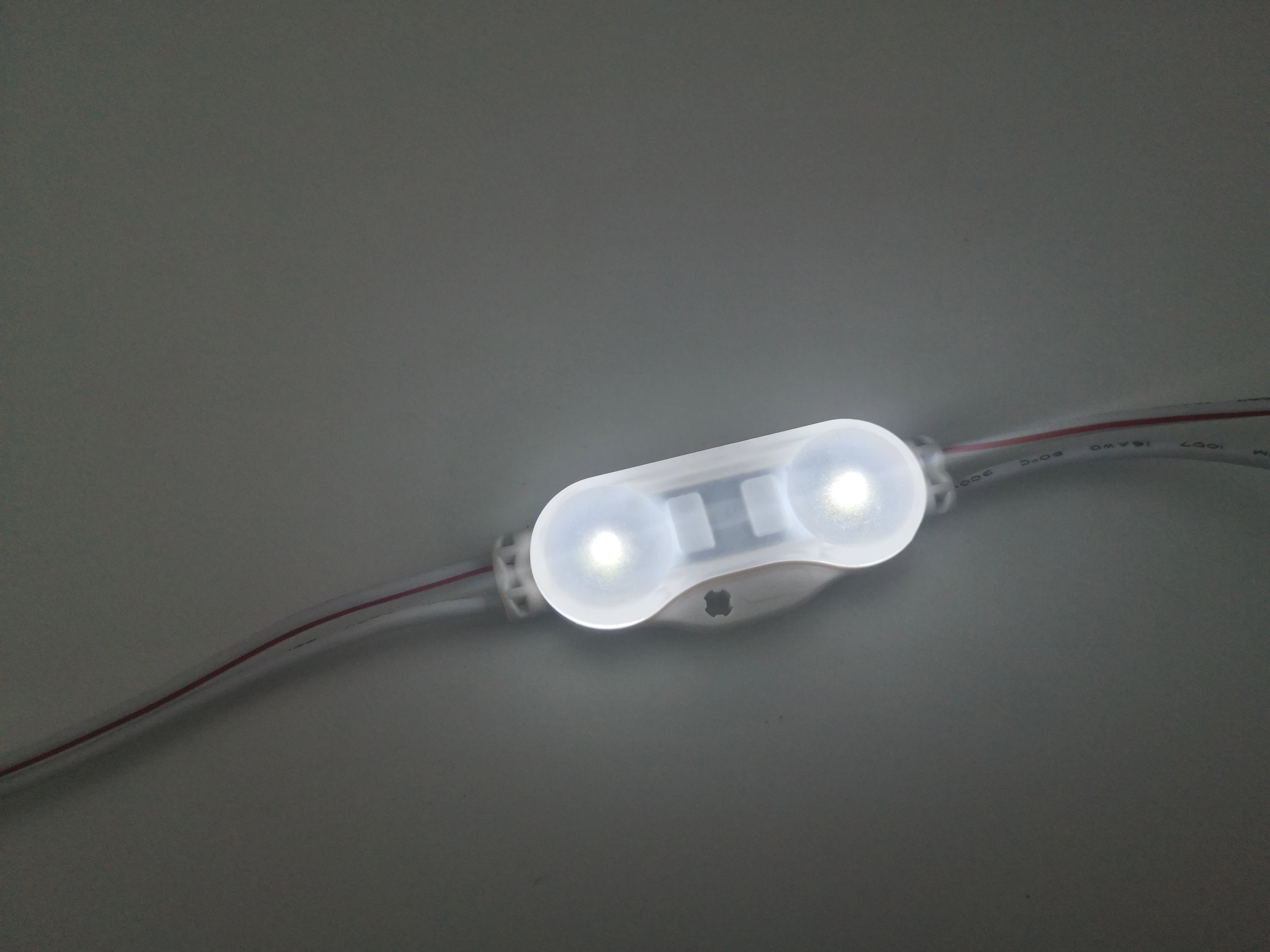

1LED/pc 2LEDs/pc 3LEDs/pc 4LEDs/pc
Color Temperature Customization
Color Options
LED modules are offered in metalux standard white outputs: 3000K Warm White, 4000K Naturall White and 6000K Pure White, up 8000K Cool White, RED, YELLOW, PINK, BULE, GREEN, ICE BLUE, ORANGE, AMBER etc.Temperature Color could also be Customized.
Different color temperatures for different environments make it possible to choose appropriate light source as required.
Packaging & Delivery
Delivery Time
※ SMD LED Strip delivery time will be need 5-7days for normal order.
※ LED Module delivery time will be need 3-5days for normal order.
※ Aluminium Profile delivery time will be need 3-5days for normal order.
Remark: The delivery dates mentioned above are all in stock. For special products, please ask the customer service separately and serve you 24 hours a day.
FAQ
1.What is the main market for METALUNX Lighting?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new BENLED Lighting. We are also optimistic about the markets for other American and Asian regions.
2.Why Choose METALUX LED Module?
This LED module is manufactured using the highest quality components available on the market for the price making it a professional and commercial grade product. METALUX LED modules carry a typical lifespan of 25000 Hours and come
complete with a 3-year guarantee to ensure superior quality and continued high performance.
complete with a 3-year guarantee to ensure superior quality and continued high performance.
3.Who can I contact for help or if I have any questions about SMD Smart?
To learn more about reducing the challenges and costs associated with coordination of benefits, contact our Sales representative or email: info@metalux-led.com
