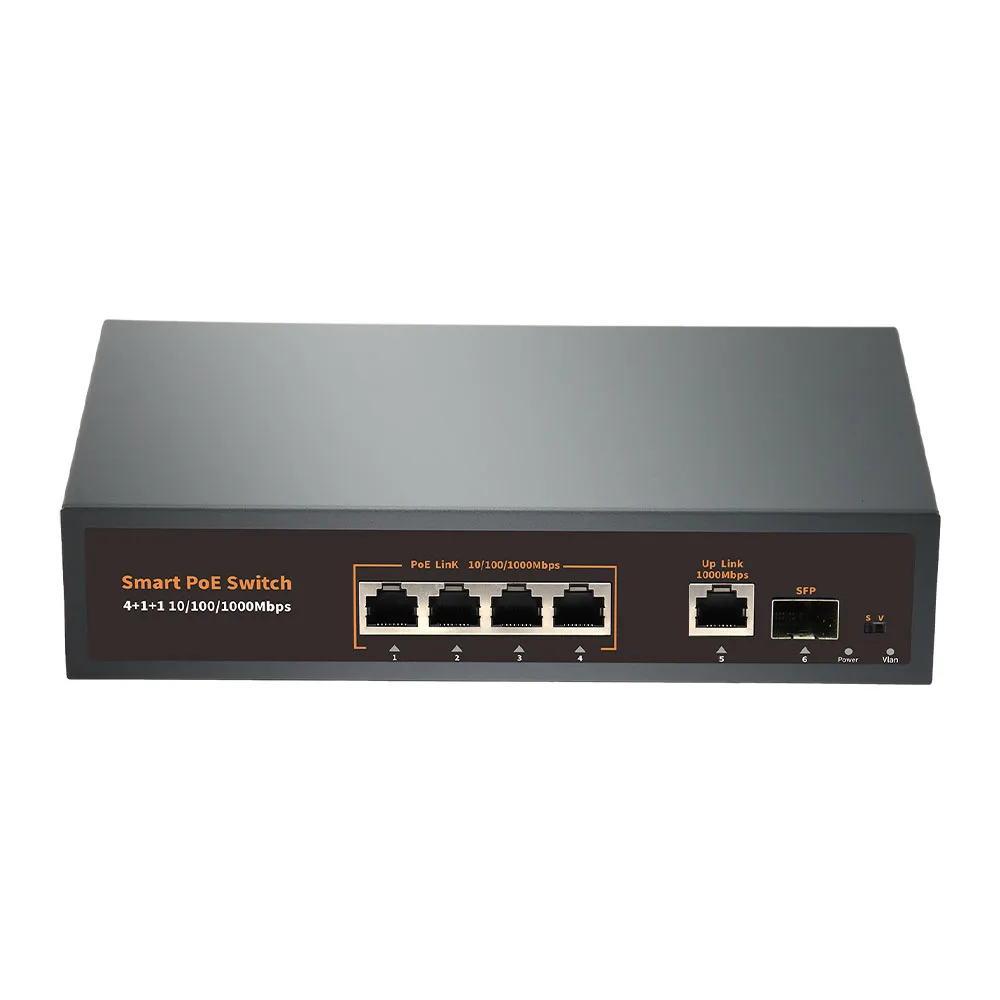

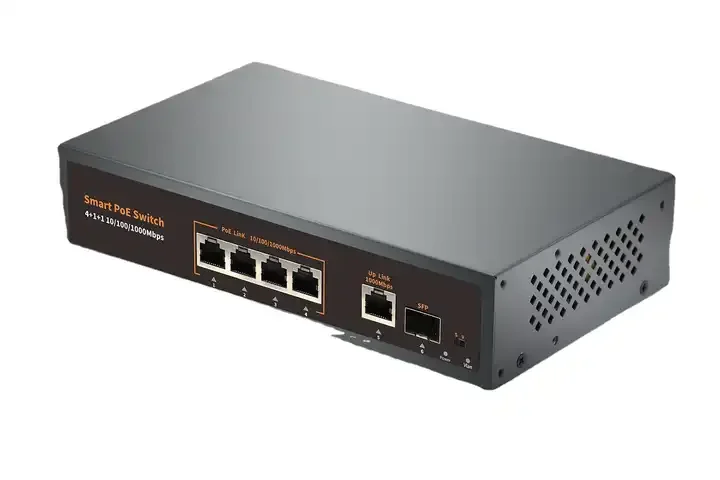

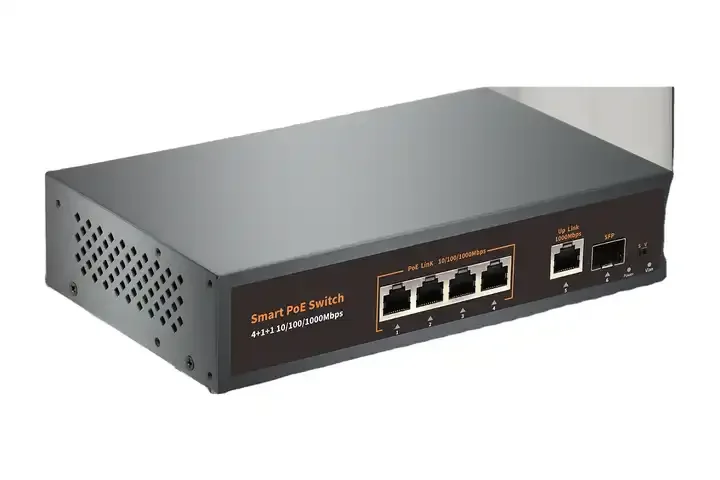

4 Port POE Switch 10/100/1000Mbps Smart Standard Switcher with IEEE802.3af/at for IP Camera,NVR,Security Surveillance
- Category: >>>
- Supplier: Shenzhen Opmedia Technology Co. Ltd.
Share on (1601017617985):
Product Overview
Description
* 1 GE & 1 SFP UPLINK - 4*10/100/1000Mbps Ethernet POE ports，1*1000Mbps SFP and 1*10/100/1000Mbps Ethernet uplink
* 820FT LONG DISTANCE POE - It supports POE Extend mode for 820ft long distance POE transmission (Bandwidth reduces to 10Mbps per
port)
* IEEE802.3af/at COMPLIANT- Providing up to 30W per port and total PoE power budget of 65W
* SURGE PROTECTION - 6KV surge protection, keep the PoE Extender from lightning strikes and other electrical surges, offering
reliable performance even in some harsh environments.
* EASY to USE - Plug and play, no configuration is needed. Easy installation, ideal for Wifi AP, IP Security camera, VoIP etc.
* 24/7 US LOCAL + GLOBAL TECH SUPPORT - 1-year warranty and life-time 24/7 US Local + GLOBAL Technical Support. Ready and willing
to help in anytime.
* 820FT LONG DISTANCE POE - It supports POE Extend mode for 820ft long distance POE transmission (Bandwidth reduces to 10Mbps per
port)
* IEEE802.3af/at COMPLIANT- Providing up to 30W per port and total PoE power budget of 65W
* SURGE PROTECTION - 6KV surge protection, keep the PoE Extender from lightning strikes and other electrical surges, offering
reliable performance even in some harsh environments.
* EASY to USE - Plug and play, no configuration is needed. Easy installation, ideal for Wifi AP, IP Security camera, VoIP etc.
* 24/7 US LOCAL + GLOBAL TECH SUPPORT - 1-year warranty and life-time 24/7 US Local + GLOBAL Technical Support. Ready and willing
to help in anytime.
Model | S1200-G0411GP |
Network standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Function | POE |
Port | 4*10/100/1000Mbps RJ45 port 1*10/100/1000Mbps RJ45 uplink port 1*1000Mbps SFP uplink port |
Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode |
Backplane bandwidth | 12Gbps |

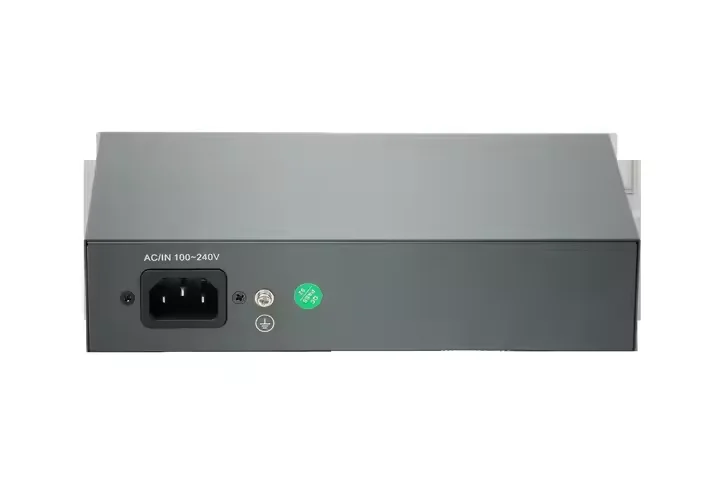

Power | Built in power base board Input:220V,50HZ,Output:DC52V±5%,1.5A Whole power≤78W |
Environment | Operating Temperature:-10℃ - -55℃ |
Transmission | 250M |
Forwarding rate | 10BASE-T:14880PPS/port 100BASE-tx:148800pps/port 1000BASE-tx:1488000pps/port |
Weight | 1KG |
Size | 200mm×118mm×44mm(L×W×H) |
Company Profile
Shenzhen Opmedia Technology Co., Ltd., Ltd. was founded in 2012, headquartered in Guangming District, Shenzhen. It is a high-tech enterprise committed to the research and development, production, sales and service of optical fiber communication and network communication equipment, and is a market innovator and application technology pioneer in the field of global optical communication and optical network interconnection. The company has a strong, professional communication technology research and development team, over the years in the field of optical fiber communication for many years, after more than 10 years of operation, has successfully opened up the international market, products have been widely used and recognized by customers around the world, won a good reputation. We are committed to providing customers with quality products and good service..
Our Advantage
R&D advantage
Product advantages
With more than 30 experienced optical module engineers, we also provide training courses for foreign engineers and
communicate with foreign senior engineers to maintain our leading position in R & D. As over 10 years customized optical modules provider, keeping learn and exploring are our faith.
communicate with foreign senior engineers to maintain our leading position in R & D. As over 10 years customized optical modules provider, keeping learn and exploring are our faith.
Product advantages
Strict quality management, non-performing rate control in less than five over ten thousand, the production of
each steps have inspection. Full-range product lines reflected in different package types、data-rate and compatible brands. And we also provide customized products to meet the needs of different industries personalized demand.
Cost advantage
each steps have inspection. Full-range product lines reflected in different package types、data-rate and compatible brands. And we also provide customized products to meet the needs of different industries personalized demand.
Cost advantage
We strictly control the quality of raw materials, most of the raw materials purchase from Japan and USA. Long-term
stable raw material suppliers give us good price support and we also achieve scale economies production. Low mobility of employees by training and humanized management reduce the cost of staff mobility problems.
stable raw material suppliers give us good price support and we also achieve scale economies production. Low mobility of employees by training and humanized management reduce the cost of staff mobility problems.
Manufacturing Technique
SMT Production
AOI checking
DIP
PCBA inspection
Assembly
Aging
FAQ
Q: Can I use supplies of differing voltage as the redundant power ? For example, 12v and 24v without unwanted effects or damage?
A: Yes, you can use supplies of differing voltages. There will be no ill effects, the switch's internal regulators were designed
to handle a wide range of voltage inputs.
to handle a wide range of voltage inputs.
Q: What temperature range can this device handle?
A: The operating temperature is -40～85℃（-40～185°F）
Q: Does it come with a small din rail?
A: The switch support 35mm din rail ,but the din rail is not included.
A: The switch support 35mm din rail ,but the din rail is not included.
Q: Does this have any management capability?
A: No,This is a unmanaged industrial ethernet switch.
Q: Is this unit fanless?
A: Yes, the unit is fanless. No noise.
