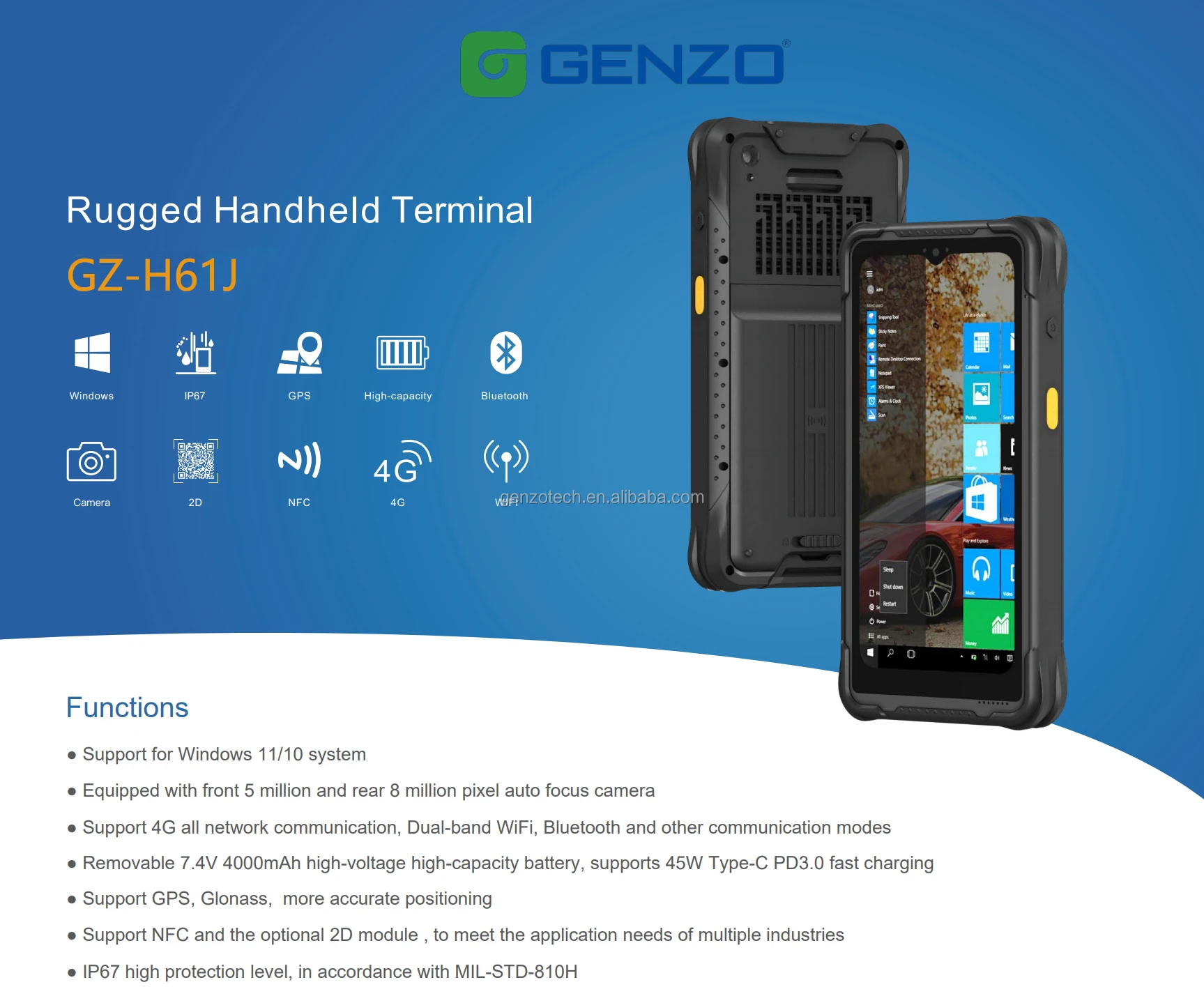

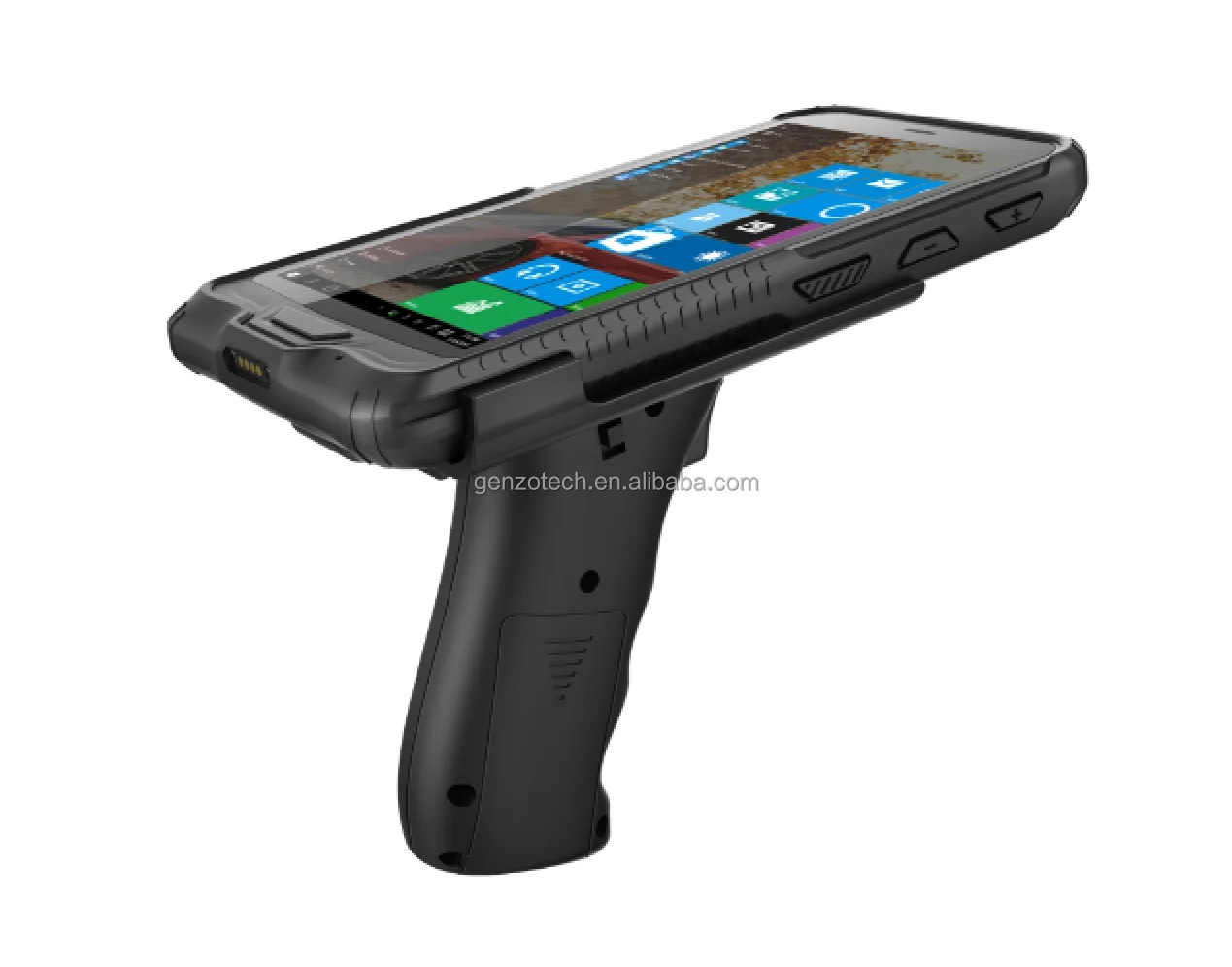

GENZO 6.5 inch IP67 PDA Windows 11 Rugged Phone Industrial PDAS Barcode Scanner Mobile POS Computer handheld terminals windows
- Category: >>>
- Supplier: Shenzhen Genzo Technology Co. Ltd
Share on (1601017679378):
Product Overview
Description
10 Years Old Store Upgraded & Reopened
Upgrade Rugged PDA With Windows OS
Intel JASPER LAKE N5100,2.8GHz. RAM 8GB LPDDR4 + ROM 128GB EMMC + 2D Barcode Scanner（Optional）
Product Description
Hardware | ||
CPU | Intel JASPER LAKE N5100,2.80 GHz | |
GPU | Intel® UHD Graphics 620 | |
RAM/ROM | 8GB LPDDR4+128GB Emmc | |
External Memory | Support TF*1,MAX 512GB | |
LCD Display | 6.5 inch full laminated TFT color full IPS screen,Dropnotch 20:9, Resolution: 720*1600P, Brightness: 500cd/cm² | |
Touch Panel | 5 points Capacitive, G+FF, Corning Gorilla Glass, Hardness 6H or higher, scratch-resistant. | |
Camera | Front:5.0MP,Rear 8.0MP automatic focusing | |
Battery | 7.4V/4000mAh. Removeable polymer lithium ion battery, About 6 hours(50% volume sounds, 50% screen brightness, 1080P HD video display by default ) Support 45W PD3.0 - Fast Charging | |
Speaker | Embedded 1Ω/1W speaker x 1 95dB@0.1m | |
Microphone | Single microphone | |
Senssors | G_sensor *1 | |
Data Collection & Networking | ||
Barcode Scanner | 2D Optional Honeywell N4680/N3680 | |
NFC | 13.56MHz, Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 3-5cm | |
BT | BT5.0 (BLE) class1 transmission distance：10m | |
WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI | |
4G | MeiGlink 750VE, LTE FDD: B1/B3/B7/B8/B20, LTE TDD: B40, WCDMA: B1/B5/B8 GSM: 900/1800 China (Unicom, Telecom, Mobile) Europe, Middle East,Africa, Taiwan, Japan Optional: 750-VA，LTE-FDD: B2/4/5/12/13/17/18/25/26, LTE-TOD:B41, WCDMA: B2/4/5, CDMA&EVDO: BC0/BC1 GSM: 850/1900 750-VSA, LTE-FDD:B2/4/5/7/8/28, LTE-TOD:B40, WCDMA: B2/5/8, GSM:850/900/1900 | |
GPS | GPS+GLONASS | |
OS | Windows 10 IOT/Windows 11 IOT inactivated os(Free) | |
I/O Port & Appearance & Package | ||
I/O Port | TYPE-C 2.0*1 OTG (Data transmission), Standard USB-A port/Data Transfer (3.0), TF card *1, Max: 512GB Nano-SIM * 1 Pogo Pin (Suitable docking charger) | |
Dimension | 183.1*88.6*24.1mm | |
Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 Bar code scanning (left and right)*2 | |
Weight | Device unit: 470g | |

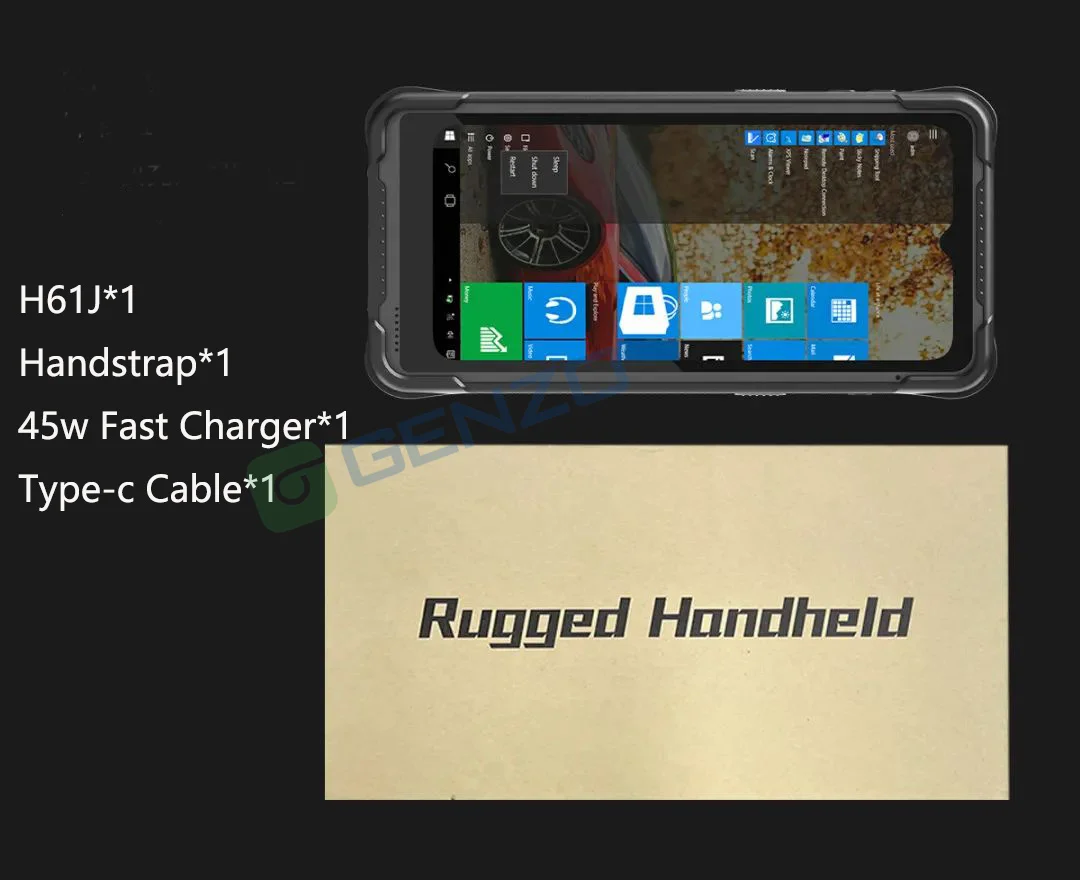

Package | USB C to C cable/PD3.0 45W Adapter/Packing box（Can be customized logo) Handstrap is Optional | |
Certificate System & Reliability Design | ||
IP67 | IP67 Report：waterproof test：IP-X7，dustproof test：IP-6X a.nozzle inner diameter：6.3mm； b.water-carrying capacity：12.5±0.625L/min； c.water pressure：adjust according to specified water-carrying capacity； d.central part of main water flow Away from the nozzle 2.5 m diameter about 40mm circle； e.water spray time for outter shell per a square meter：about 1min； f. test time：at least 3min; g.distance from nozzle to outter shell surface：2.5～3m. after tested,check sample and no water inside situation | |
CE NB | YES | |
MIL-STD-810G | YES | |
Battery | UN38.3，MSDS,IEC62133 | |
Drop Height | MIL-STD-810G 1.22m drop | |
Operate Temperature | ‘-10 °C to 50 °C | |
Store Temperature | ’-20 °C to 60 °C | |
Humidity | Humidity: 95% Non-Condensing | |
Details Images

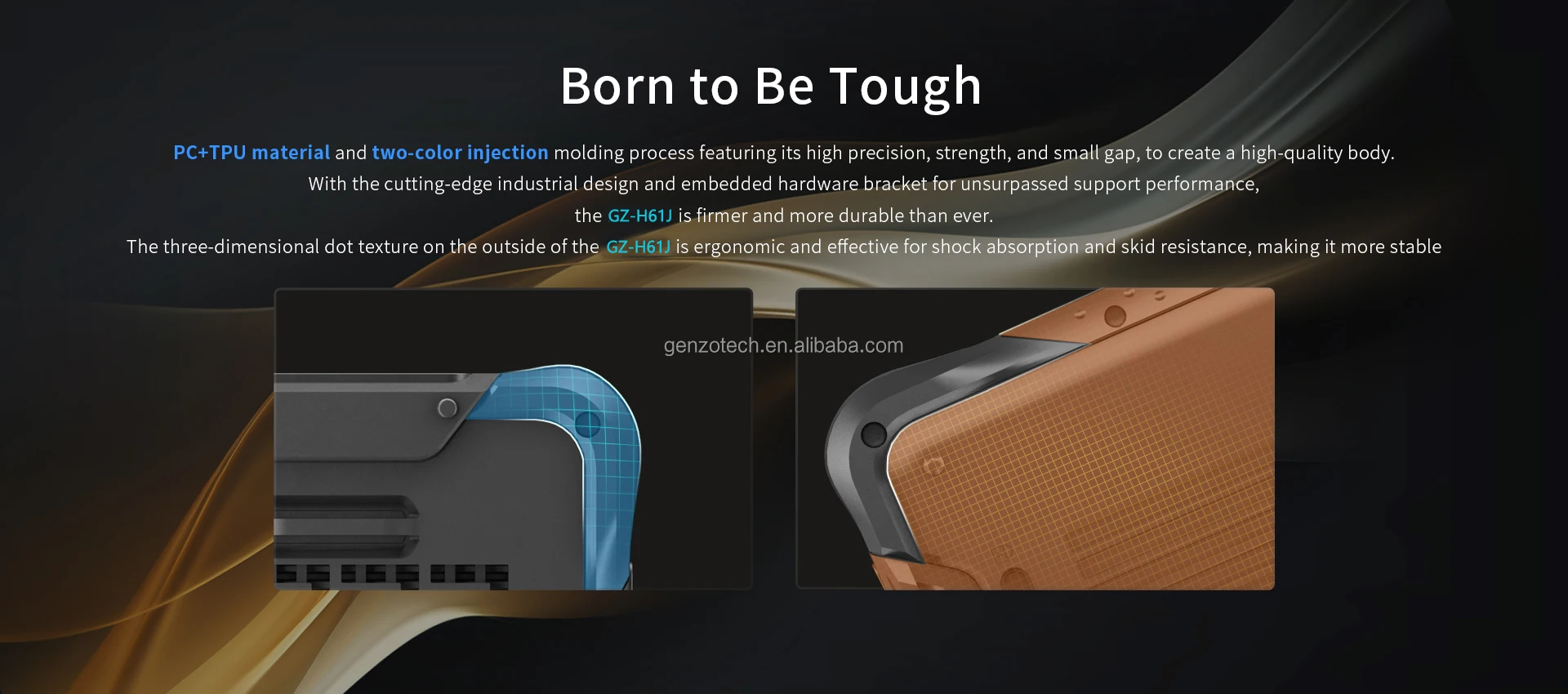

Born To Be Tough
PC+TPU material and two-color injection molding process featuring its high precision, strength, and small gap, to create a high-quality body.With the cutting-edge industrial design and embedded hardware bracket for unsurpassed support performance.
The GZ-H61J is firmer and more durable than ever. The three-dimensional dot texture on the outside of the GZ-H61J is ergonomic and effective for shock absorption and skid resistance, making it more stable.

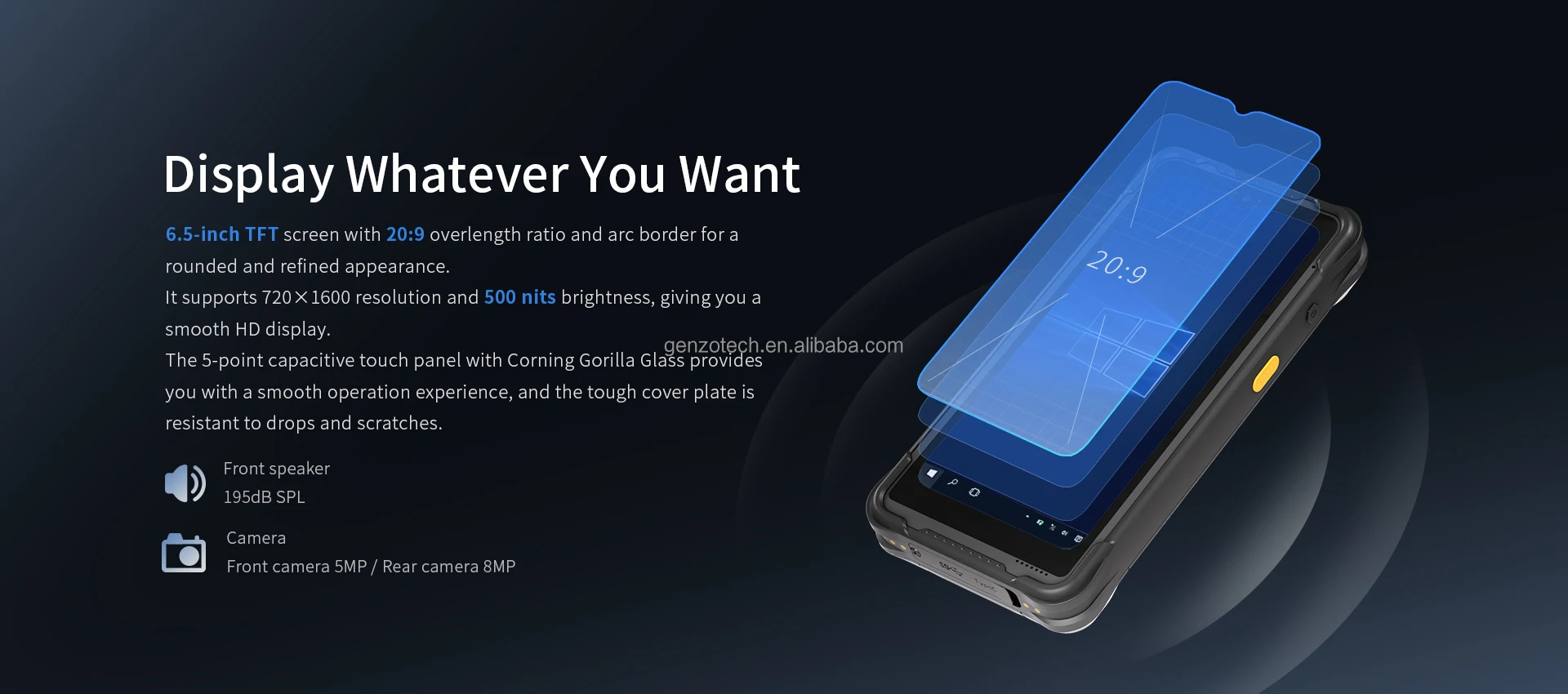

Display Whatever You Want
6.5-inch TFT screen with 20:9 overlength ratio and arc border for arounded and refined appearance.
lt supports 720x 1600 resolution and 500 nits brightness, giving you asmooth HD display.
The 5-point capacitive touch panel with Corning Gorilla Glass provides,you with a smooth operation experience, and the tough cover plate is resistant to drops and scratches.
The 5-point capacitive touch panel with Corning Gorilla Glass provides,you with a smooth operation experience, and the tough cover plate is resistant to drops and scratches.
Camera: Front 5.0MP/Rear 8.0MP

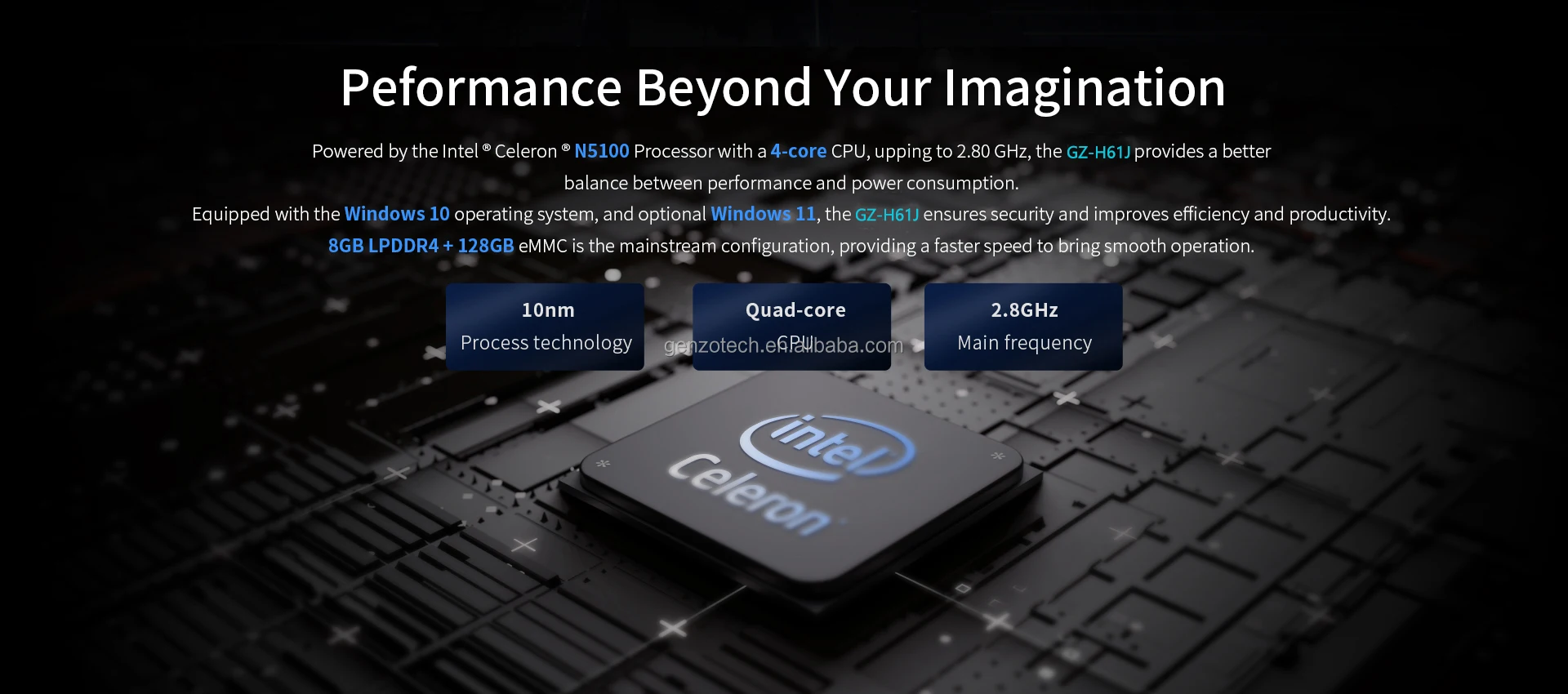

Peformance Beyond Yourlmagination
Powered by the lntel Celeron N5100 Processor with a 4-core CPU, upping to 2.80 GHz, the GZ-H61J provides a better balance between performance and power consumption.
Equipped with the Windows 10 operating system, and optional Windows 11, the GZ-H61J ensures
security and improves efficiency and productivity.
security and improves efficiency and productivity.
8GB LPDDR4 + 128GB eMMC is the mainstream configuration, providing a faster speed to bring smooth operation.

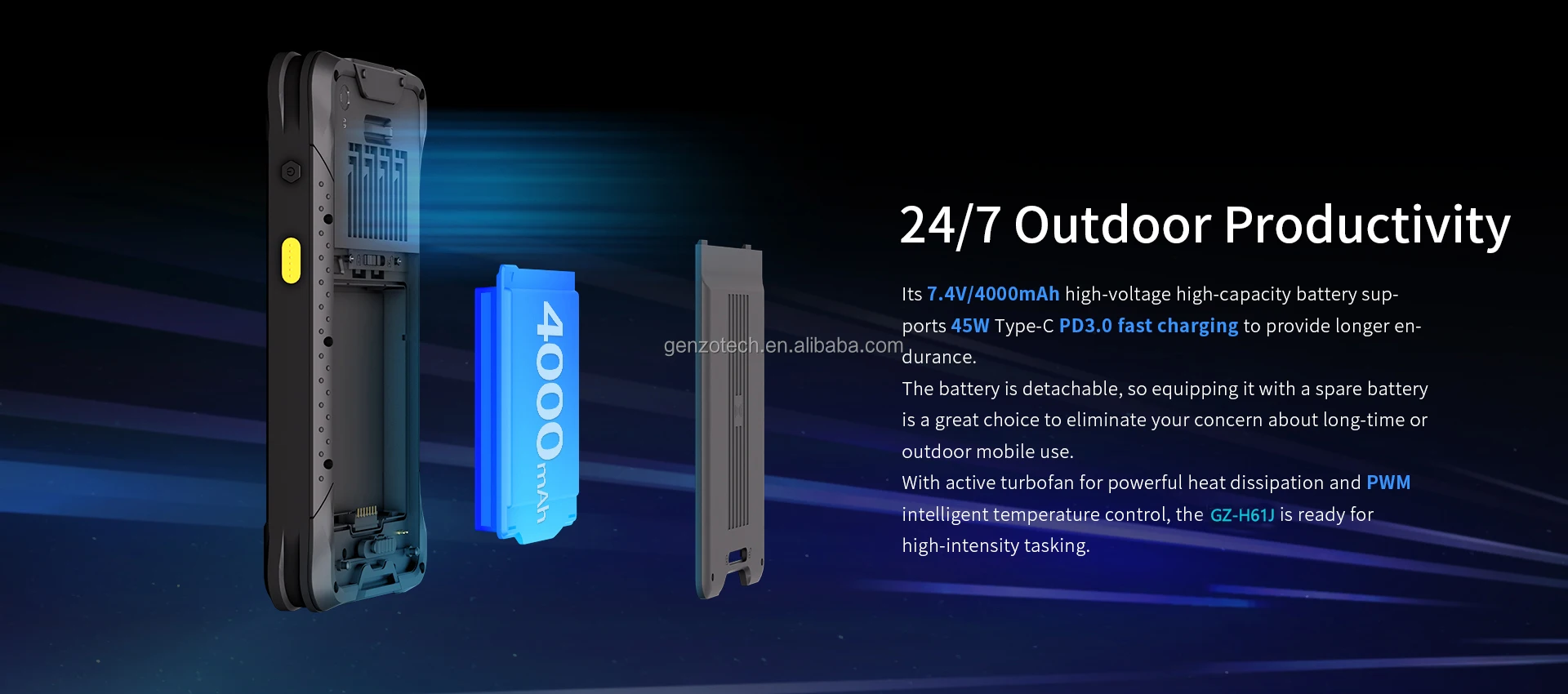

24/7 Outdoor Productivity
lts 7.4V/4000mAh high-voltage high-capacity battery supports 45W Type-C PD3.0 Fast Charging to provide longer endurance.
The battery is detachable, so equipping it with a spare battery is a great choice to eliminate your concern about long-time oroutdoormobile use.
With active turbofan for powerful heat dissipation and PWM intelligent temperature control, the GZ-H61J is ready for high-intensity tasking.

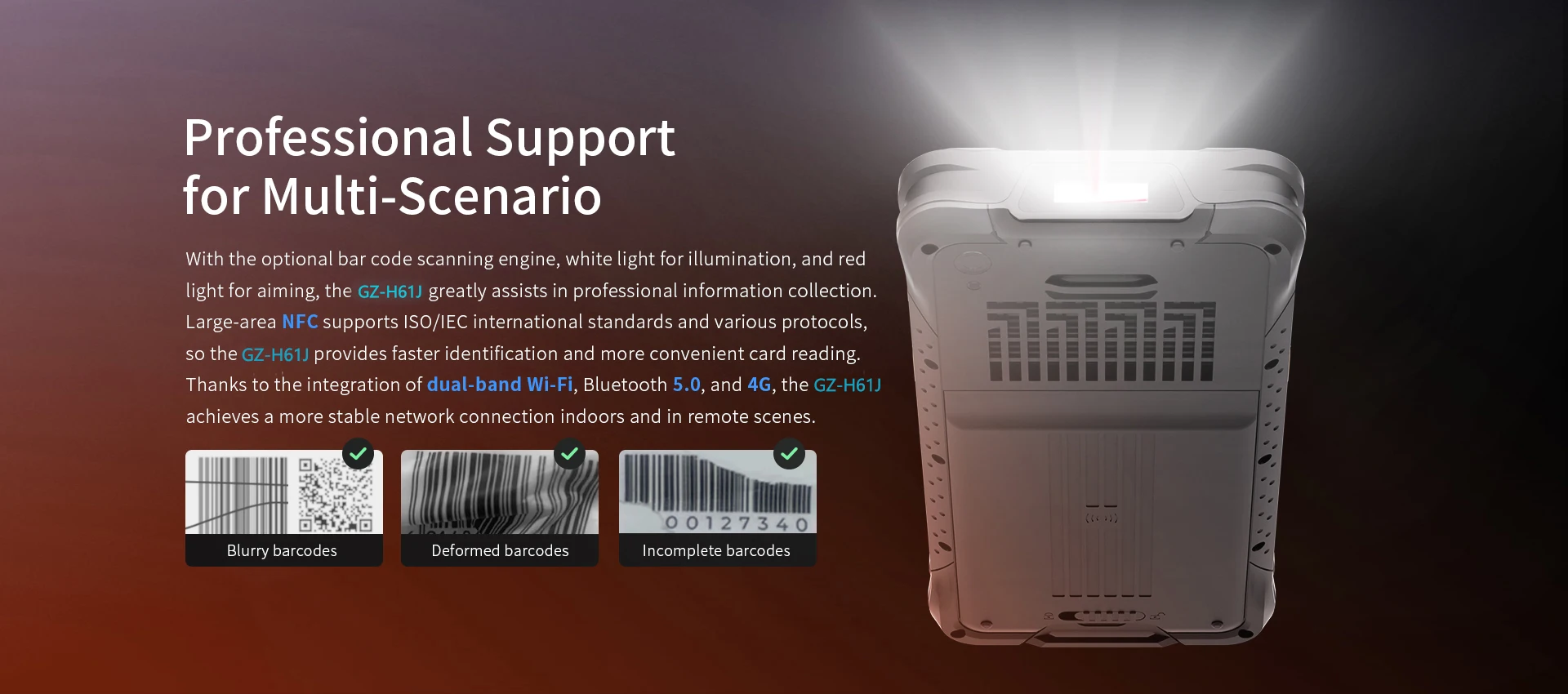

Professional Supportfor Multi-Scenario
With the optional barcode scanning engine, white light for illumination, and red light for aiming, the GZ-H61J greatly assists in professional information collection.
Large-area NFC supports ISO/IEC international standards and various protocols,so the GZ-H61J provides faster identification and more convenient card reading.Thanks to the integration of dual-band Wi-Fi, Bluetooth 5.0, and 4G, the GZ-H61J achieves a more stable network connection indoors and in remote scenes.
Ready for Harsh Environments
GZ-H61J's sealed and precision structure is up to lP67-grade dustproof and waterproof, so there is no need to worry about rainy and other harsh weather. Its 1.5m fall-resistance performance keeps it intact even if falling from a height of up to 1.5m to the surface of the composite wood floor.
GZ-H61J is impressive in fast cooling and temperature control. In the laboratory test environment, it can maintain about 30°C for a long time.

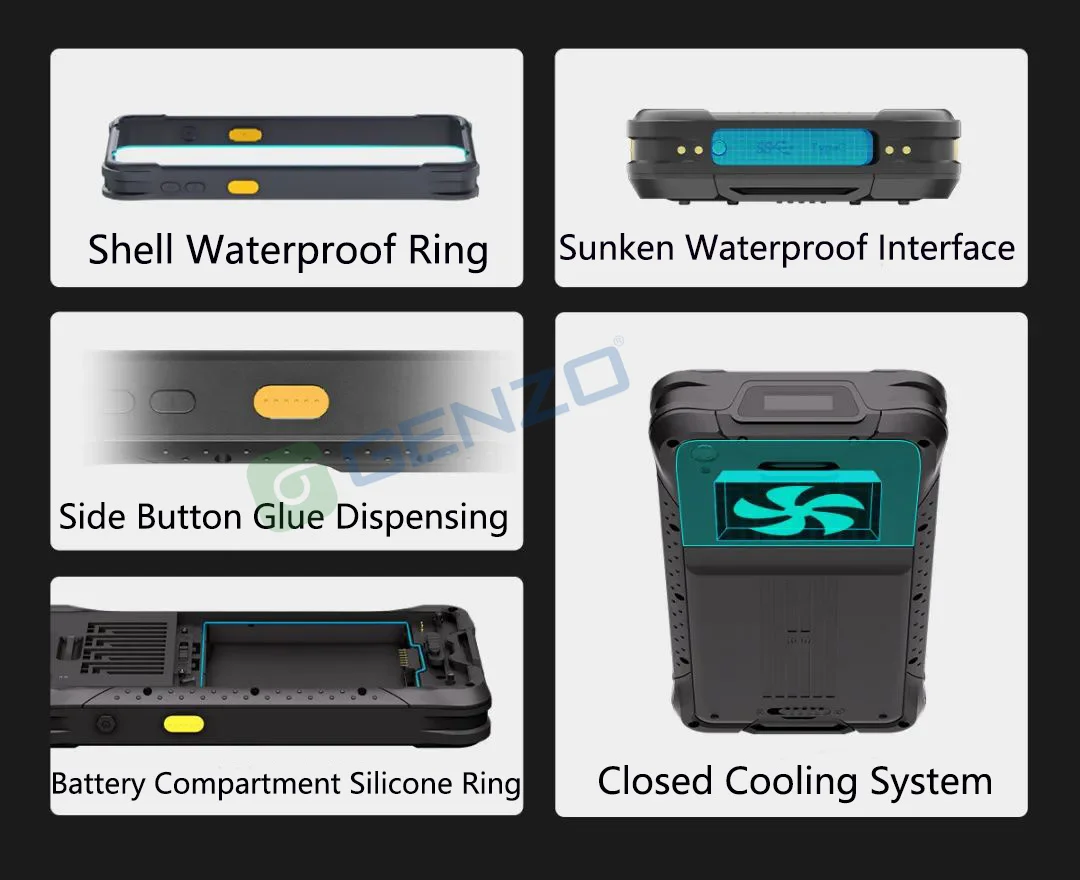

How does GZ-H61J achieve IP67?
First, the joint between the front and rear shells of GZ-H61J is sealed with a waterproof ring to improve the sealing performance of the shell joint surface. Then a sunken waterproof interface plug is used to seal the interface, and a dispensing process isused at the side buttons.
The joint between the soft rubber on the inside of the button and the shell is fixed to solve the waterproof problems such as seams and holes in the outer area of the device and integrate it into one.
The joint between the soft rubber on the inside of the button and the shell is fixed to solve the waterproof problems such as seams and holes in the outer area of the device and integrate it into one.
GZ-H61J also uses a sealing method for the removable battery. A silicone ring is used at the junction of the battery and the battery compartment for sealing. After the battery body is placed in the battery compartment, the silicone ring is pressed tightly to achieve an excellent waterproof effect.
Finally, the GZ-H61J rear case fan is a waterproof fan and is completely isolated from the internal circuit board, so it will not affect the overall IP protection level.

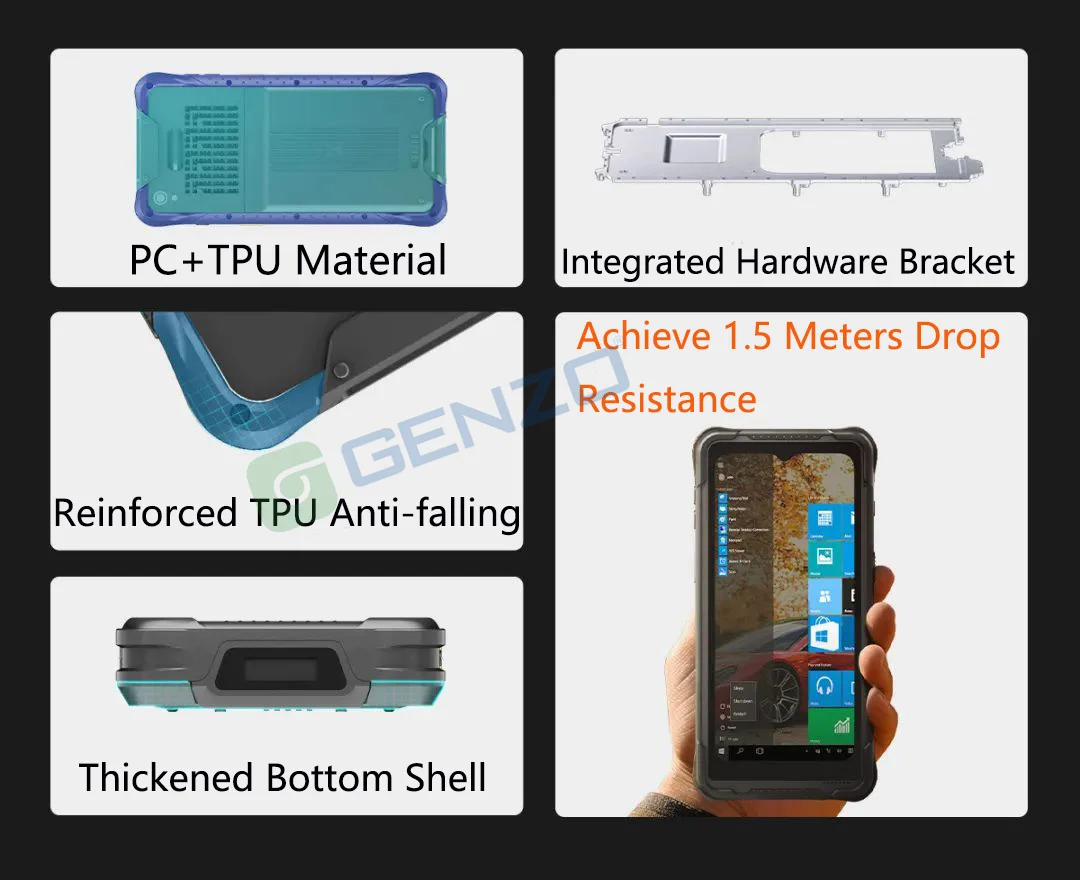

1.5 meter drop --- Stable structural design and proper detail control
Everyone must know the 1.22-meter drop standard of MIL-STD-810, so what has been upgraded in the 1.5-meter drop resistance standard of GZ-H61J this time?
The whole machine is made of PC engineering plastic material. It is then covered with a layer of TPU rubber material on the four sides through two-color injection molding.
It replaces the original all-PC material and can achieve stronger drop resistance. At the same time, when the embedded hardware bracket is deployed behind the screen, the in-mold injection molding process is used.
The iterative upgrade of the GZ-H61J drop performance is mainly reflected in the material, manufacturing process and structural design.
The material of GZ-H61J is PC+TPU.
The whole machine is made of PC engineering plastic material. It is then covered with a layer of TPU rubber material on the four sides through two-color injection molding.
It replaces the original all-PC material and can achieve stronger drop resistance. At the same time, when the embedded hardware bracket is deployed behind the screen, the in-mold injection molding process is used.

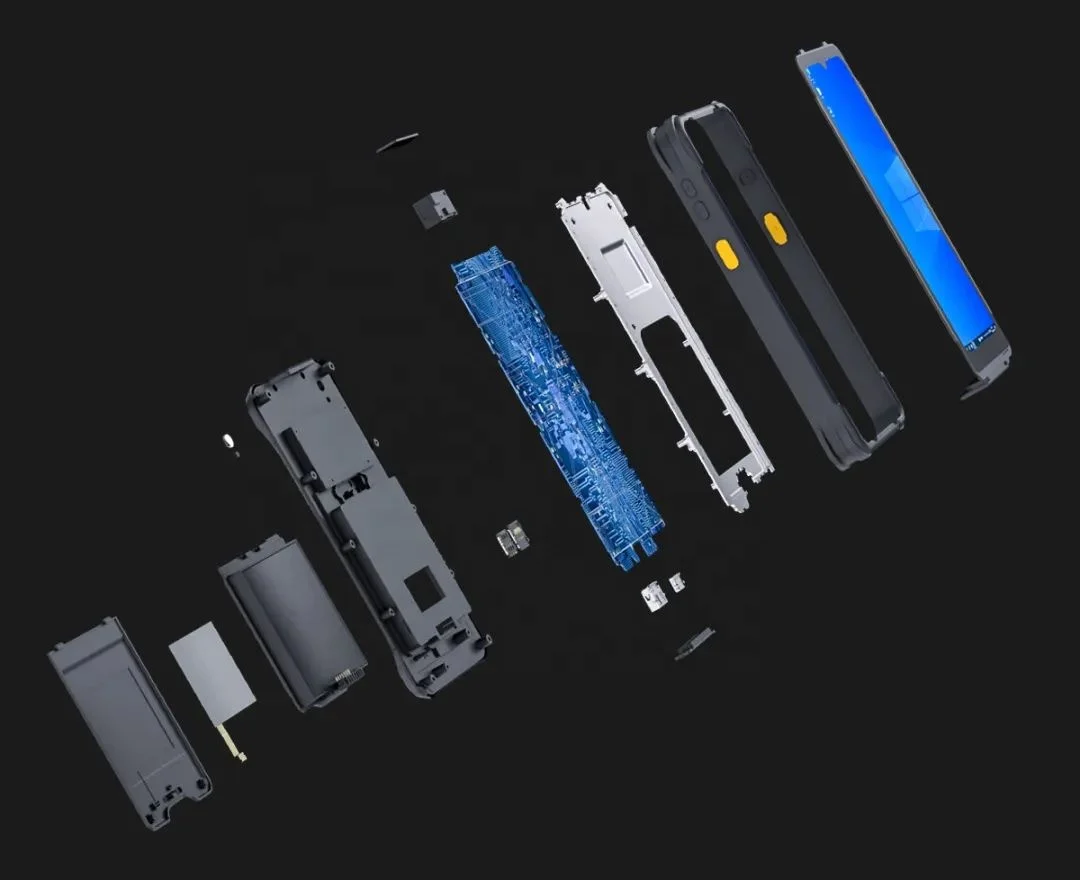

The hardware bracket and the front shell are integrally formed, and the circuit board is then fixed on the hardware bracket
through screws. Compared with no bracket and the bracket and the front shell are separated, In the detachable case, the upgraded structure and technology provide better support and stability to the whole machine.
In addition, the design and features such as small size, four-corner anti-fall, and thickened bottom case are also the core of the GZ-H61J's 1.5-meter drop resistance standard, so everyone can experience it with confidence.
through screws. Compared with no bracket and the bracket and the front shell are separated, In the detachable case, the upgraded structure and technology provide better support and stability to the whole machine.
In addition, the design and features such as small size, four-corner anti-fall, and thickened bottom case are also the core of the GZ-H61J's 1.5-meter drop resistance standard, so everyone can experience it with confidence.

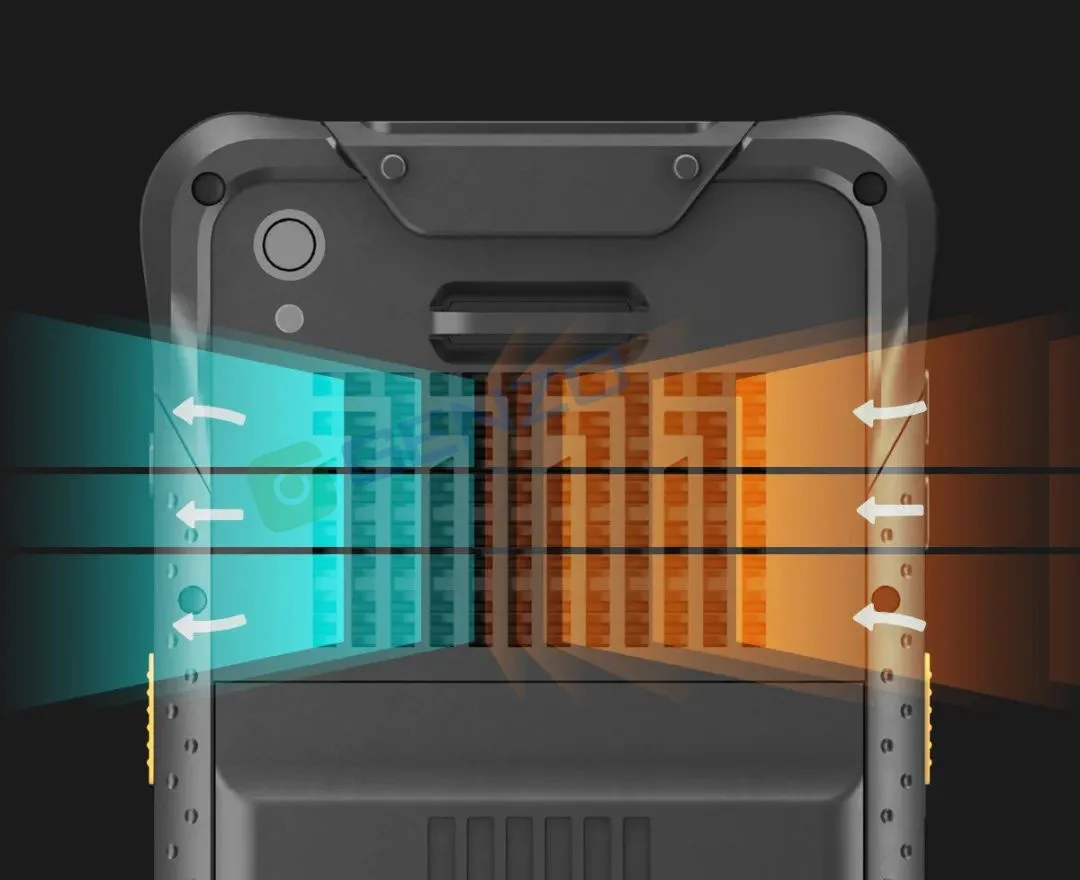

Thermal advantages --- High performance, small size technical challenges
As a 6.5-inch rugged handheld terminal equipped with Intel® Celeron® N5100 processor, GZ-H61J needs to be able to achieve good heat dissipation under high performance and small size to ensure the normal operation of the device and protect performance.
Therefore, Genzo directly adopted an active cooling system of heat sink + fan + fins, and optimized it many times until it achieved the best balance of performance and effect.
Therefore, Genzo directly adopted an active cooling system of heat sink + fan + fins, and optimized it many times until it achieved the best balance of performance and effect.
Specifically, Genzo uses heat sinks to completely cover the main components such as the CPU to expand the heat exchange area and export heat from high-temperature areas more evenly. It also uses "fan + fin" area heat dissipation, using fans to inlet air and fins to outlet. Wind, greatly enhances the exchange of cold air flow and hot air flow, and comprehensively improves heat dissipation performance. Among them, the heat sink fills the gap between the core components and the heat dissipation system, and is sealed with waterproof glue, so that the waterproof performance can also be improved to an innovative level.

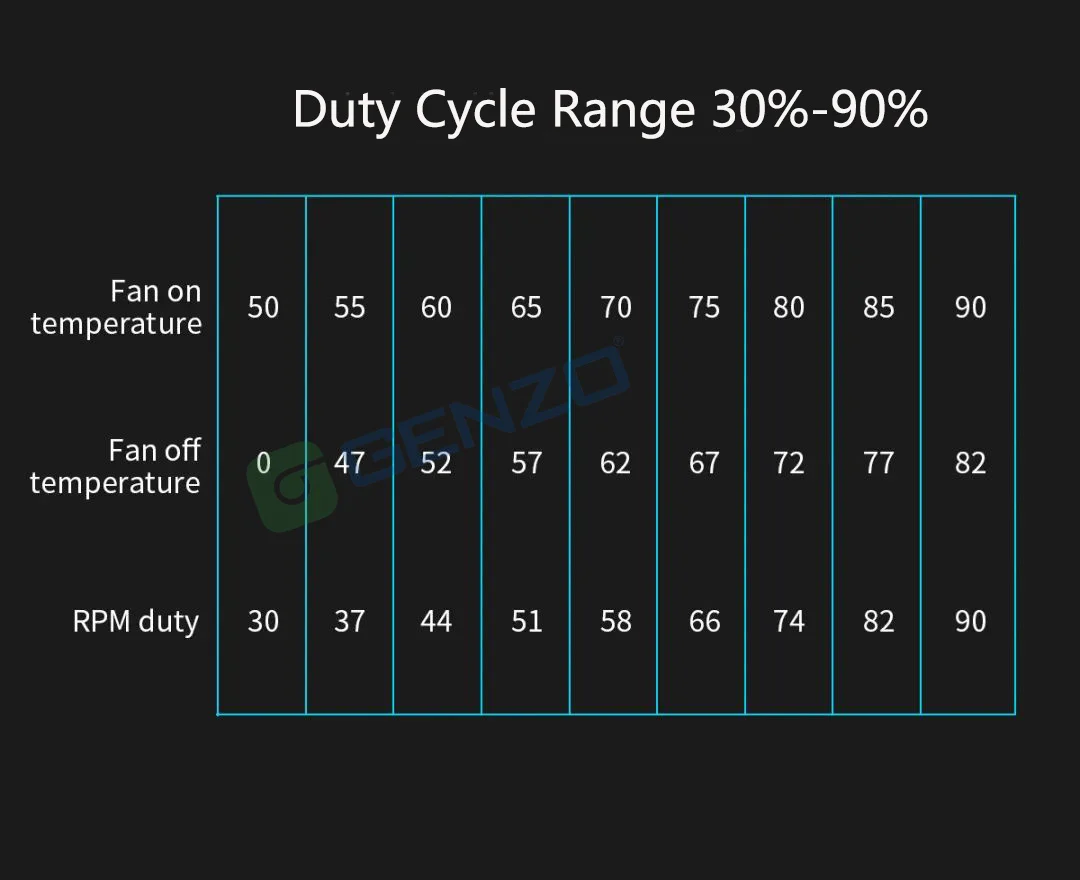

PWM Function
In addition to hardware improvements, Genzo also uses the PWM function in the cooling fan to make heat dissipation more efficient and smarter. GZ-H61J can dynamically adjust the duty cycle of the PWM fan according to the motherboard or CPU temperature, thereby
obtaining different output voltages to control the fan speed.
Among them, the duty cycle range set by GZ-H61J is 30%-90%. When the temperature is 0℃-50℃, the duty cycle is 30%. When the temperature is 47℃-55℃, the duty cycle is 37%. And so on.
obtaining different output voltages to control the fan speed.
Among them, the duty cycle range set by GZ-H61J is 30%-90%. When the temperature is 0℃-50℃, the duty cycle is 30%. When the temperature is 47℃-55℃, the duty cycle is 37%. And so on.
Battery life advantage --- How to extend battery life in Windows
Battery life and power consumption are linked. Everyone must know that although the N5100 equipped with GZ-H61J is a high-performance and low-power processor,
it is limited to a ruggedized handheld terminal form and 6.5-inch size, and cannot be equipped with a larger capacity Battery, so it needs a strong battery life to ensure that it does not fall behind in actual use.
it is limited to a ruggedized handheld terminal form and 6.5-inch size, and cannot be equipped with a larger capacity Battery, so it needs a strong battery life to ensure that it does not fall behind in actual use.
Regarding this part, GZ-H61J finally showed a battery life of more than 6 hours under test conditions by setting the power saving mode and charging threshold
when the 29.6Wh battery capacity is equivalent. Genzo first set up the power-saving mode.
When the GZ-H61J is in standby, the CPU immediately enters the power-saving mode. The system will intelligently lower the frequency,
voltage and other parameters of the CPU core to reduce the CPU power consumption and extend the standby time.

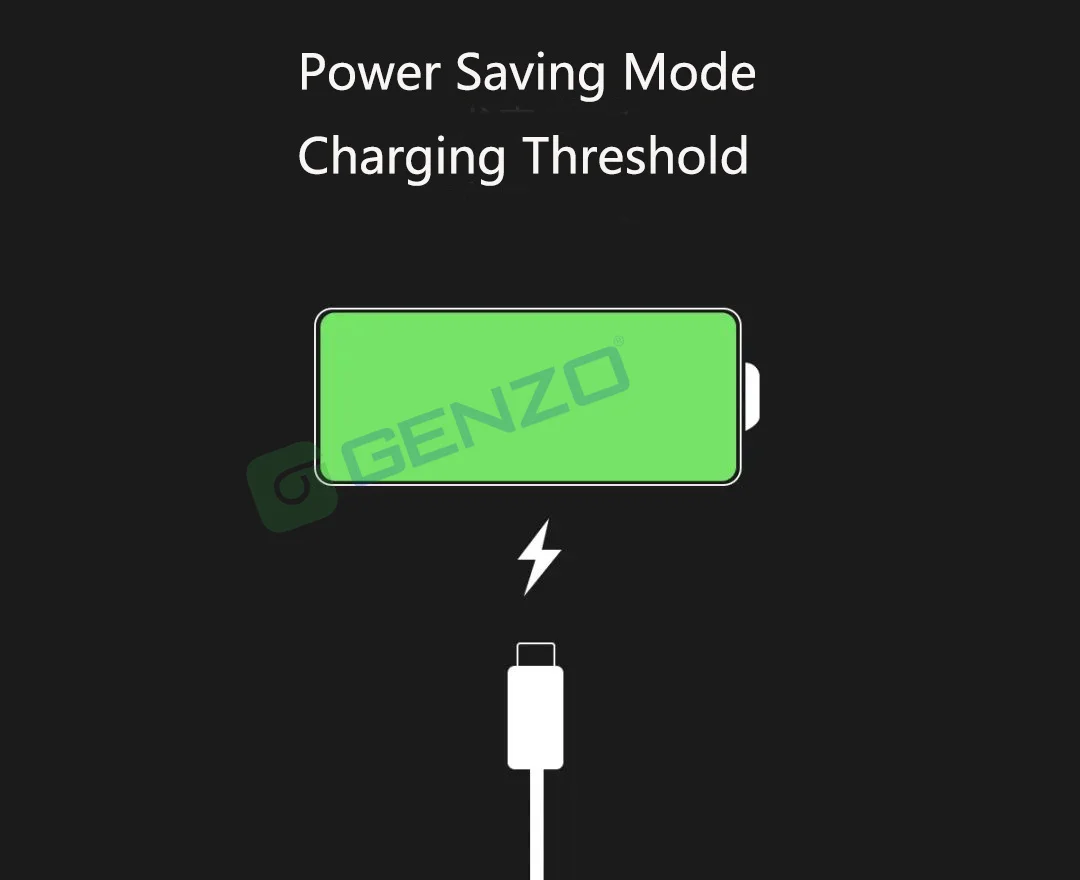

Another focus is the optimization of charging status. Genzo sets the battery end ambient temperature to be within a specific temperature range before charging can be performed.
This can maintain battery performance, maximize battery life and capacity, and extend battery life.
when the 29.6Wh battery capacity is equivalent. Genzo first set up the power-saving mode.
When the GZ-H61J is in standby, the CPU immediately enters the power-saving mode. The system will intelligently lower the frequency,
voltage and other parameters of the CPU core to reduce the CPU power consumption and extend the standby time.
Another focus is the optimization of charging status. Genzo sets the battery end ambient temperature to be within a specific temperature range before charging can be performed.
This can maintain battery performance, maximize battery life and capacity, and extend battery life.
Users can also help maximize battery life in Windows by adjusting screen brightness, adjusting power battery settings, adjusting sleep status, etc. during use.
In addition, Genzo has also set the maximum charging power of the entire machine to 45W to speed up charging efficiency.
In addition, Genzo has also set the maximum charging power of the entire machine to 45W to speed up charging efficiency.
Professional strength, no need to worry，Just Order it
Optional Accessories

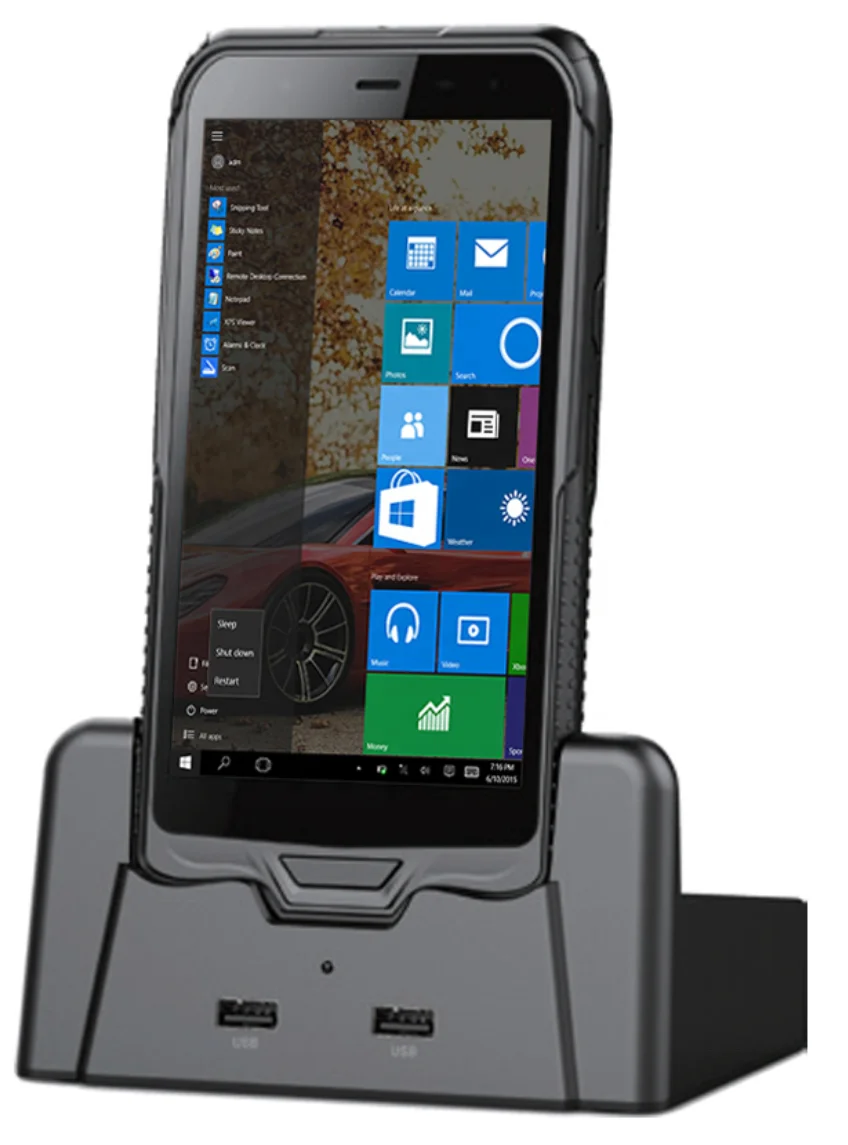

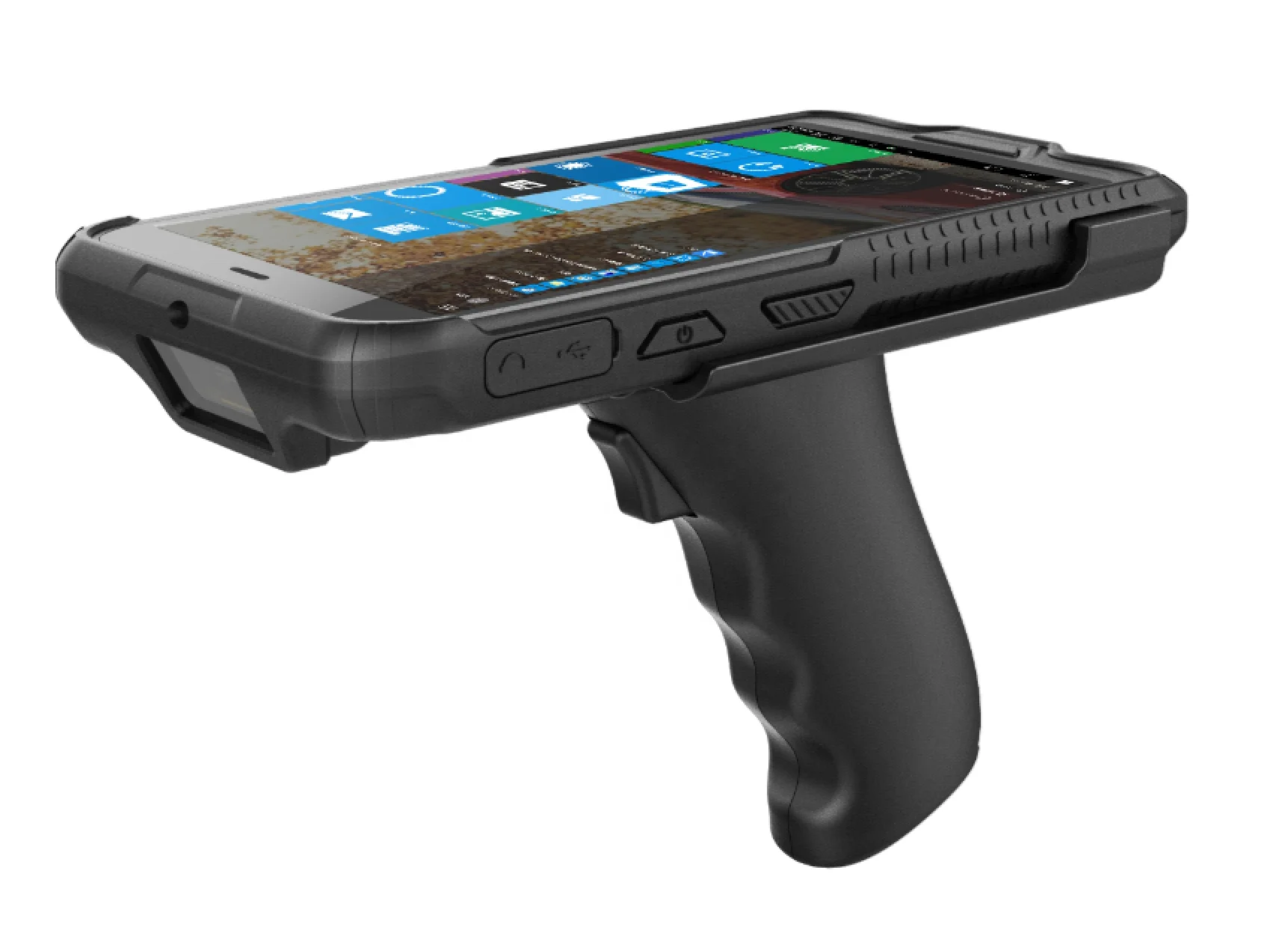

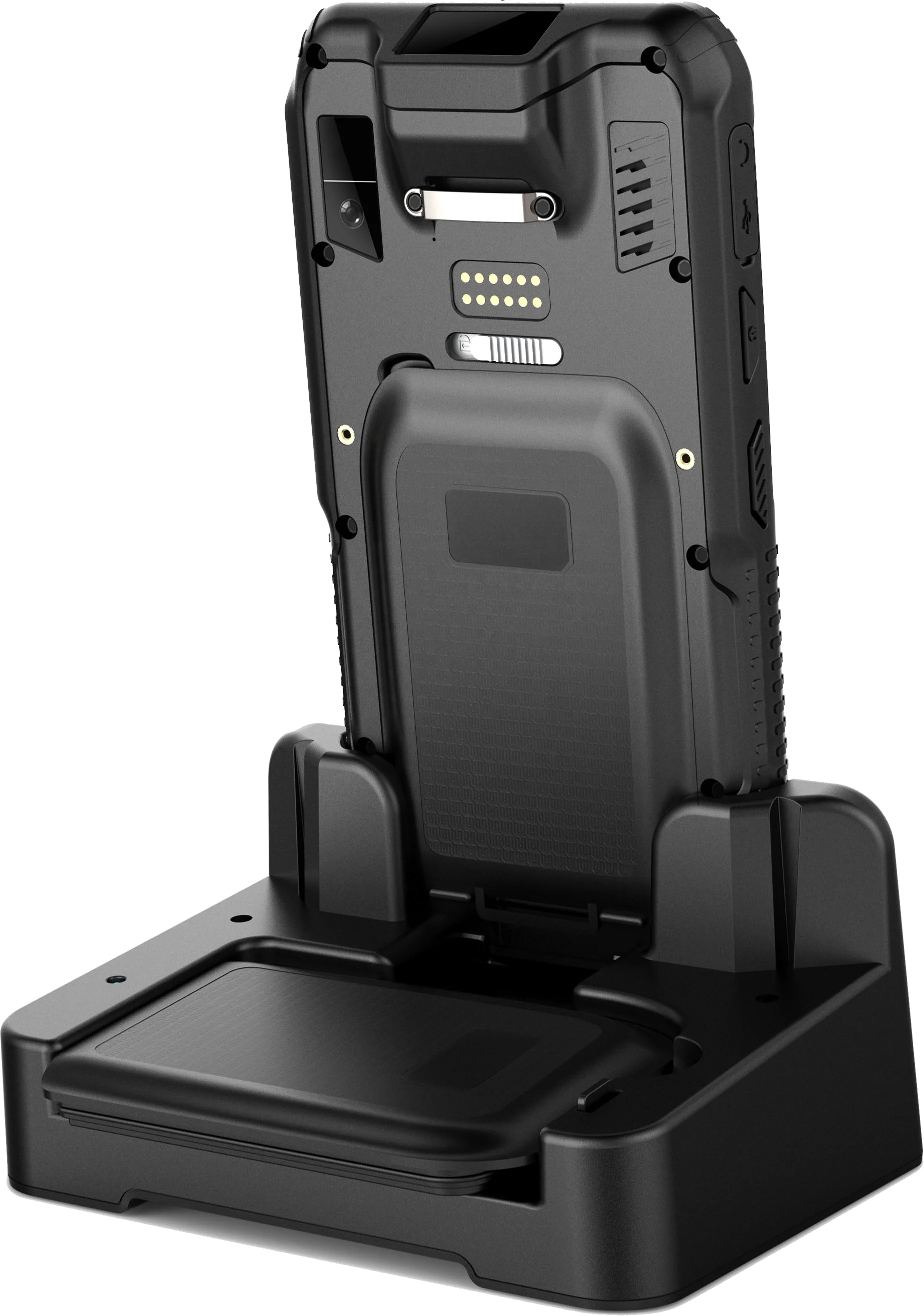

Docking Charger, Scanner Trigger, Vehicle Mount, Battery
Vehicle Mount
Car Charger
Removeable Battery
