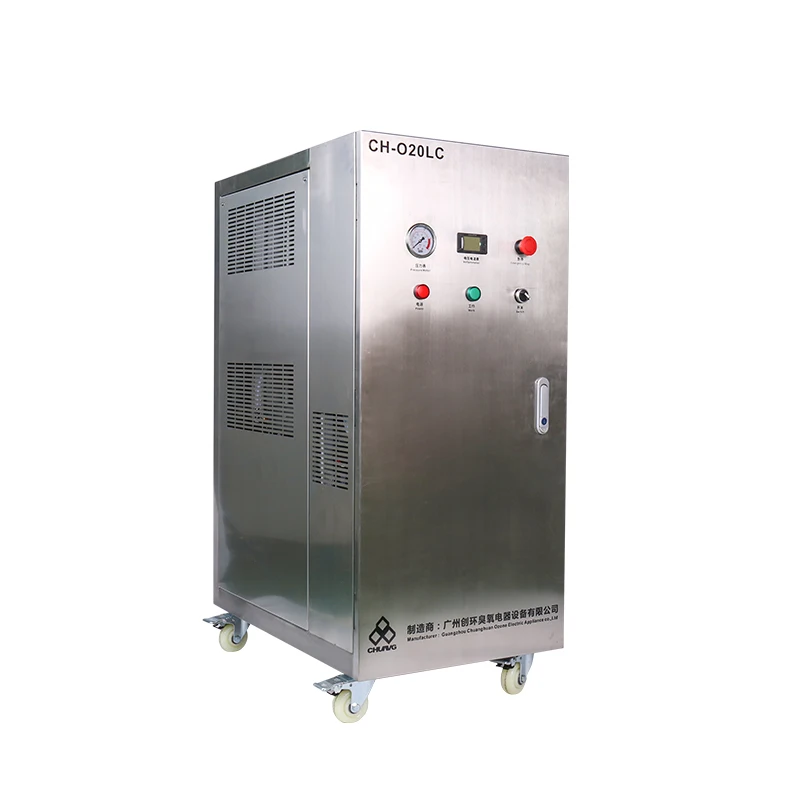

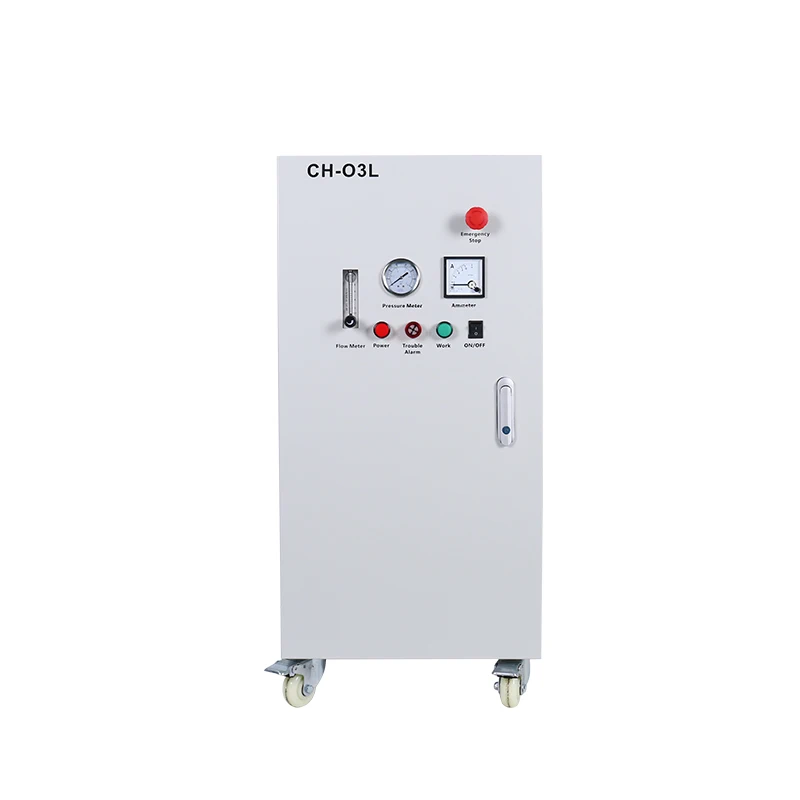

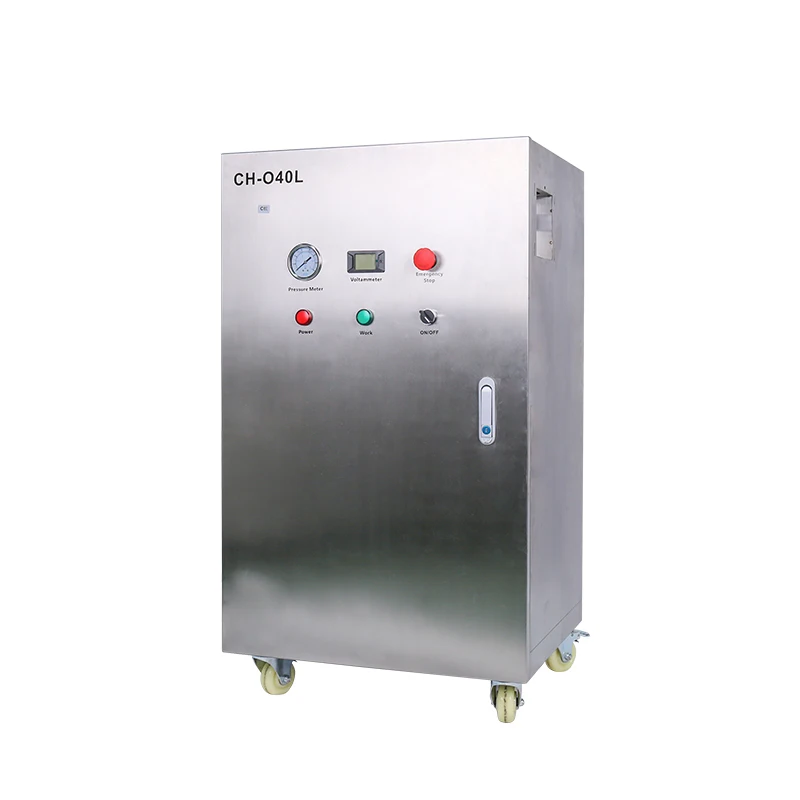

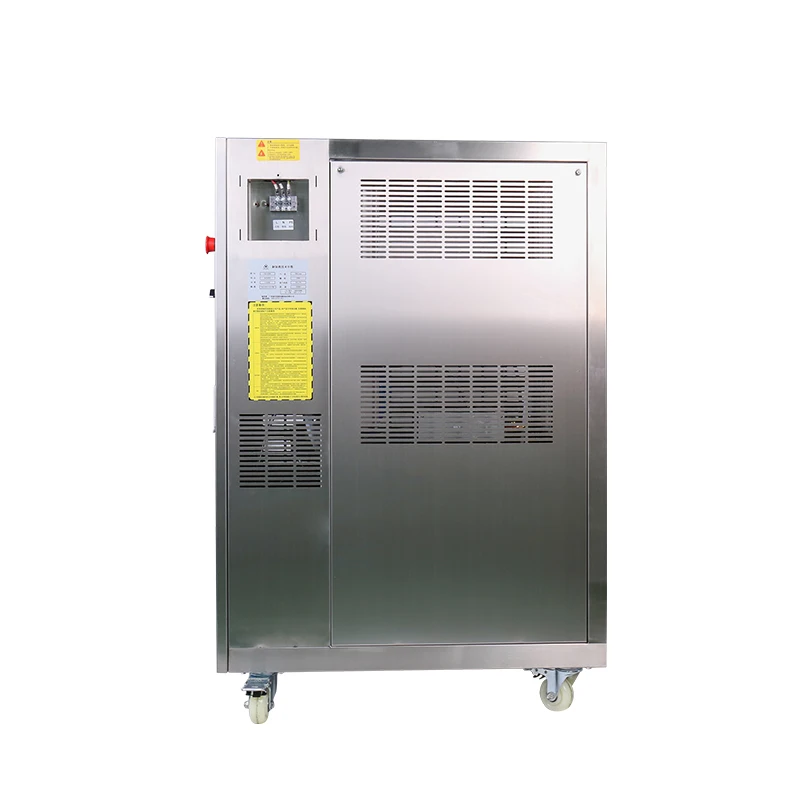

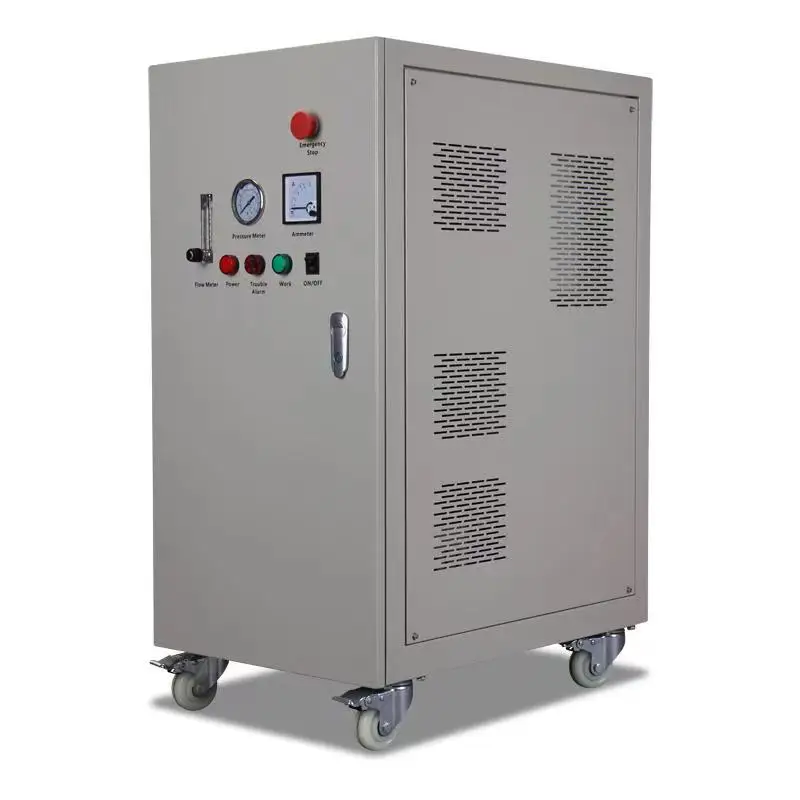

Chuanghuan industrial oxygen 10L 15L oxygen concentrator 20L oxygen generator for ozone machine and aquaculture
- Category: >>>
- Supplier: Guangzhou Chuanghuan Ozone Electric Appliance Co. Ltd.
Share on (1601017741272):
Product Overview
Description
Chuanghuan industrial oxygen 10L 15L oxygen concentrator 20L oxygen generator for ozone machine and aquaculture
Configuration of Oxygen concentrator:
1. Built-in oil free air compressor
2. Built-in refrigerated air dryers
3. High efficiency PSA oxygen generate unit
4. Oxygen concentration: 90%±3%
5. Pressure of oxygen outlet: ≤0.1 MPA
6. Control: Door lock, Amp-meter,Working indicator, Power indicator, On/Off, Oxygen flow meter, Voltmeter, Oxygen outlet, Fuse, Power input
Advantage of Oxygen concentrator:
1. Low working temperature of air compressor ,thus extending service life of air compressor
2. Built in Small refrigerated air dryer ,thus oxygen concentrator is compact .
3. Oxygen concentrator feed dry, cool ,clean air ,thus extending service life
4. stable oxygen output ,high oxygen purity
Model | Unit | CH-0L10C | CH-0L15C | CH-0L20C | CH-0L30C | CH-0L40C | ||||
Oxygen flow rate | LPM | 10 | 15 | 20 | 30 | 40 | ||||
Oxygen concentration | % | 90±3 | 90±3 | 90±3 | 90±3 | 90±3 | ||||
Output oxygen pressure | bar | 0.4-0.6 bar(kg) | ||||||||
Voltage | V | 220V 50hz or 110V 60hz | ||||||||
Power | W | 1060 | 1800 | 2120 | 3180 | 4240 | ||||
Dimension | cm | 50×84×95 | 67×102×950 | |||||||
