web inspection system automatic 4 6 8 colors Foil film Plactig Bag Printing ci flexo printing machine
- Category: >>>
- Supplier: Ruian Nuoxin Machinery Co. Ltd.
Share on (1601017922781):
Product Overview
Description
Product Overview
Introduction
Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Note:Different printing material , machine some parts design different. Pls kindly show Printing material when inquiry.
Main Features & Advantages
1.Method:Central impression for better color. registration,with the central impression configuration,the printed material is supported by the cylinder,and greatly improving.color registration,especially with extensible materials.
2.Structure:Wherever possible,parts are communized for availability and wear-resisting design.
3.Dryer:Hot wind dryer,automatic temperature controller,and separated heat source.
4.Transmission:Siemens Motor,and encoder buttons are placed on both control chassis and body for operations convenience.
5.Rewind:Micro Decelerate Motor,drive Magnetic Powder and Clutch,with PLC control tension stability.
6.Gearing of Printing cylinder:repeat length is 5MM.
2.Structure:Wherever possible,parts are communized for availability and wear-resisting design.
3.Dryer:Hot wind dryer,automatic temperature controller,and separated heat source.
4.Transmission:Siemens Motor,and encoder buttons are placed on both control chassis and body for operations convenience.
5.Rewind:Micro Decelerate Motor,drive Magnetic Powder and Clutch,with PLC control tension stability.
6.Gearing of Printing cylinder:repeat length is 5MM.
Machine Video

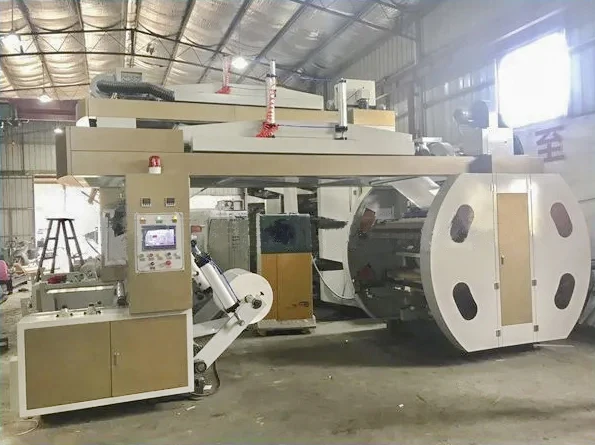

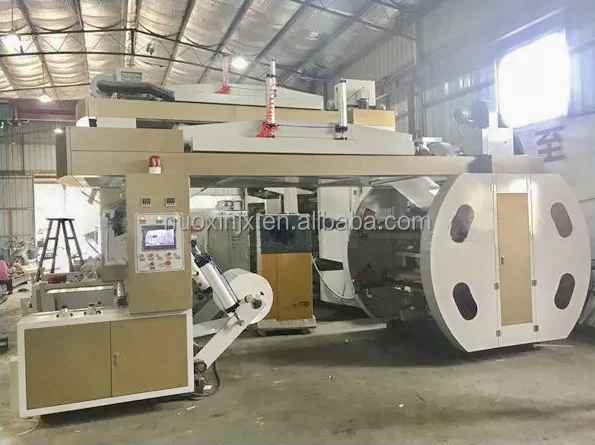

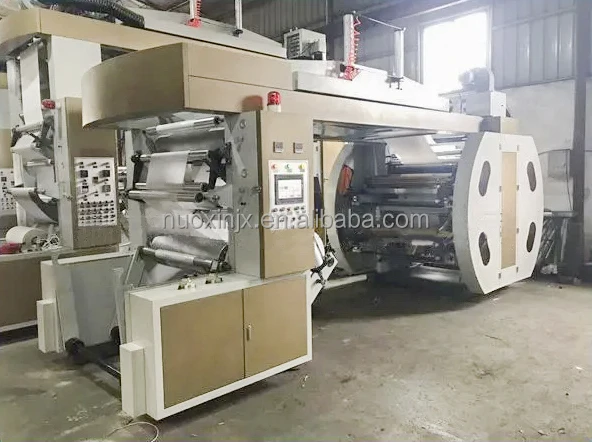

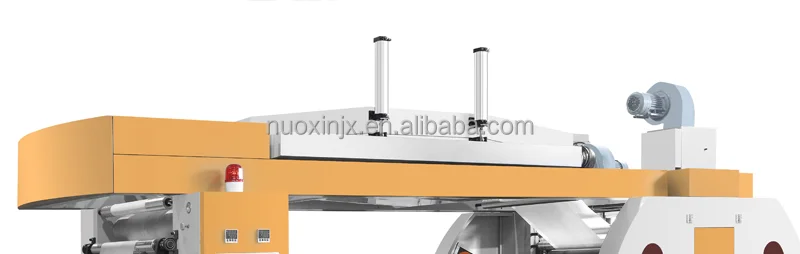

Machine Photos
Technical Parameter
Model | NXS4-600 | NXS4-800 | NXS4-1000 | NXS4-1200 | NXS4-1400 | NXS4-1600 | ||||||
Max. Material width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | ||||||
Max. Printing width | 560mm | 760mm | 960mm | 1160mm | 1360mm | 1560mm | ||||||
Printing color | 4 colors | |||||||||||
Printing length | 300-800mm | |||||||||||
Printing cylinder way | Pneumatic control up and down | |||||||||||
Drive type | Big center Roller drive | |||||||||||
Mechanical speed | 170m/min | |||||||||||
Max.running speed | 150m/min | |||||||||||
Anilox roller | Ceramic anilox roller 4pcs: Shanghai murata brand 200-800LPI Open type doctor blade 2pcs Chamber doctor blade 2pcs with two diaphragm pump | |||||||||||
Tension system | Automatic tension controller with magnetic powder brake | |||||||||||
EPC | Web guide 1pc | |||||||||||
Register precision | Longitudinal:±0.15mm crosswise:±0.15mm; | |||||||||||
Color register | By manual | |||||||||||
Unwind/rewind dia. | Φ1000mm/Φ1200mm | |||||||||||
Unwind/rewind way | Center unwind; Center rewind | |||||||||||
Printing way | Full width on one side | |||||||||||
Dry system | Electric heating | |||||||||||
PLC human touch screen | 1set, Taiwan delta brand | |||||||||||
Image inspect system | 1set, China famous kesai branad | |||||||||||
Machine power | 34KW | 38KW | 42KW | 45KW | 55KW | 60kw | ||||||
Machine size (L x W x H) | 6×2.2×3.0m | 6×2.4×3.0m | 6×2.6×3.0m | 6×2.8×3.0m | 6×3×3.0m | 6×3.2×3.0m | ||||||
(L x W x H) | ||||||||||||
Machine Also can made as client requirement. If you need other width Size or high speed machine, pls kindly contact us directly. | ||||||||||||
Optional Parts
1.Various size of Printing cylinder
2.Double unwinder/rewinder
3.Automatic pneumatic loading
4.Automatic pneumatic unloading
5.Half width Double sided printing
6.CI Drum with water Cooling System
7.Water cold cooling machine
8.Shaftless for unwind
9.Servo motor for unwind/rewind
2.Double unwinder/rewinder
3.Automatic pneumatic loading
4.Automatic pneumatic unloading
5.Half width Double sided printing
6.CI Drum with water Cooling System
7.Water cold cooling machine
8.Shaftless for unwind
9.Servo motor for unwind/rewind

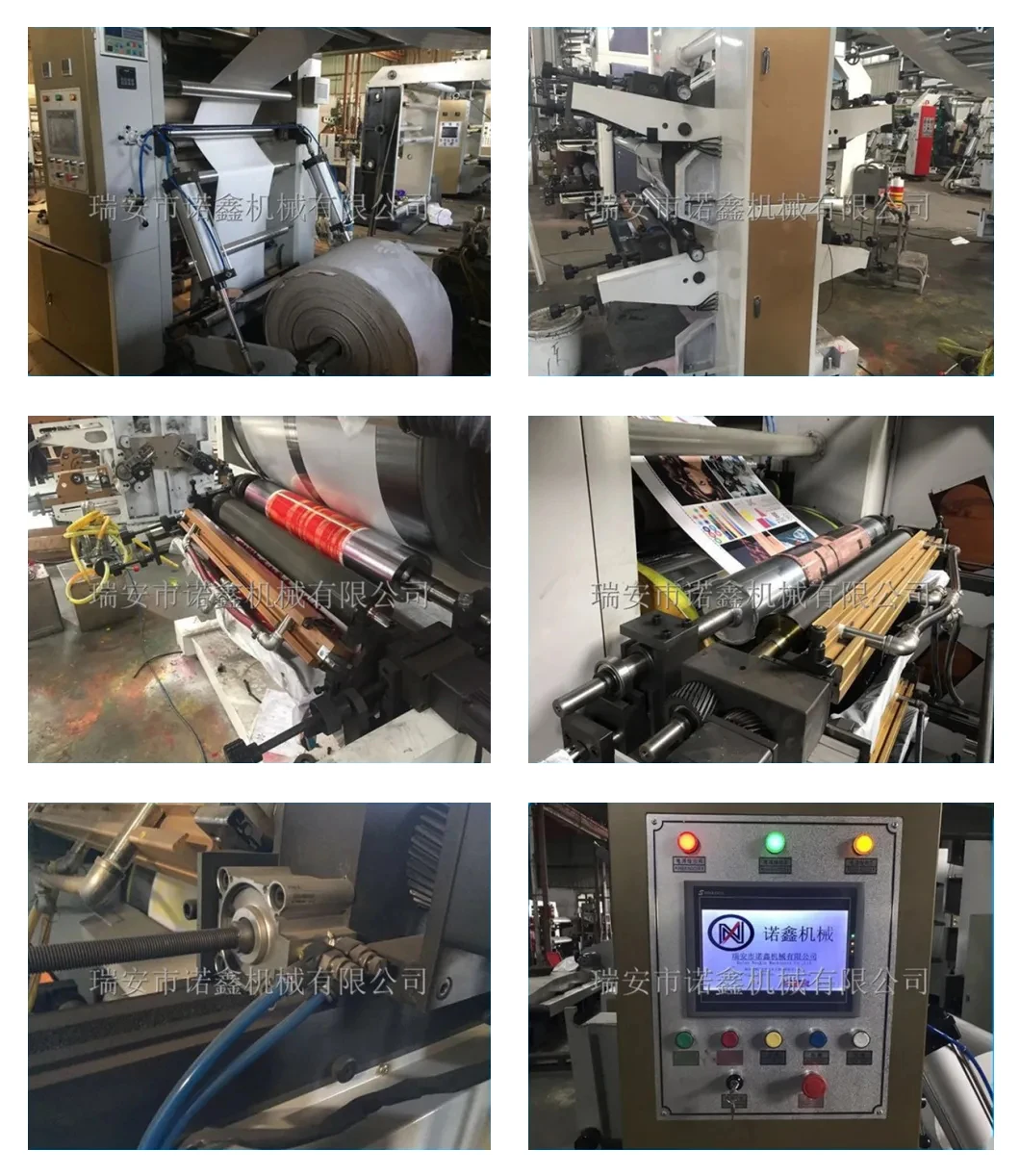

Details Images

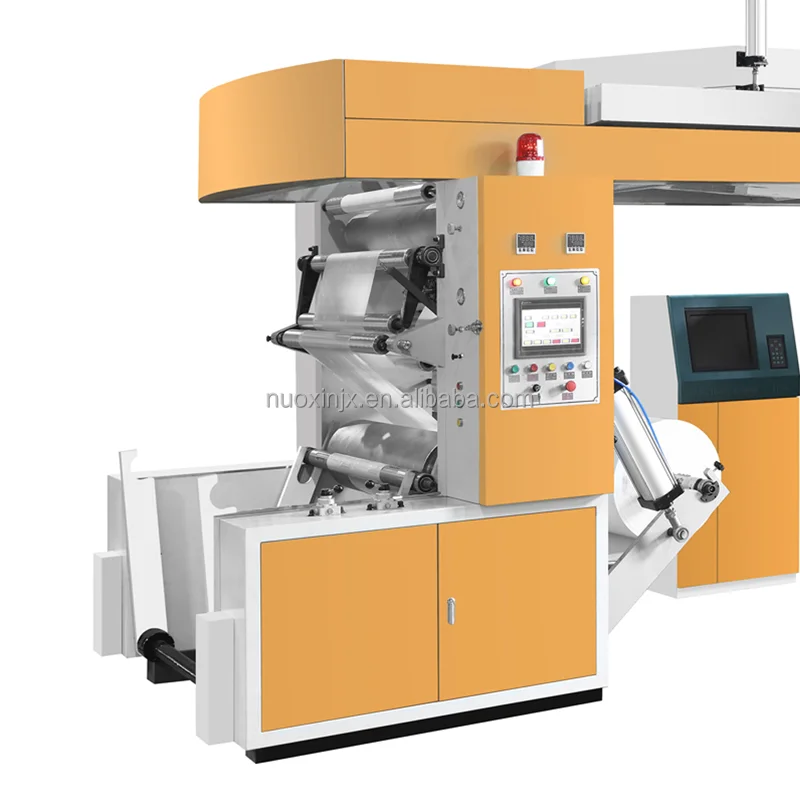

PLC and Camera
Printing Part Transferring Part

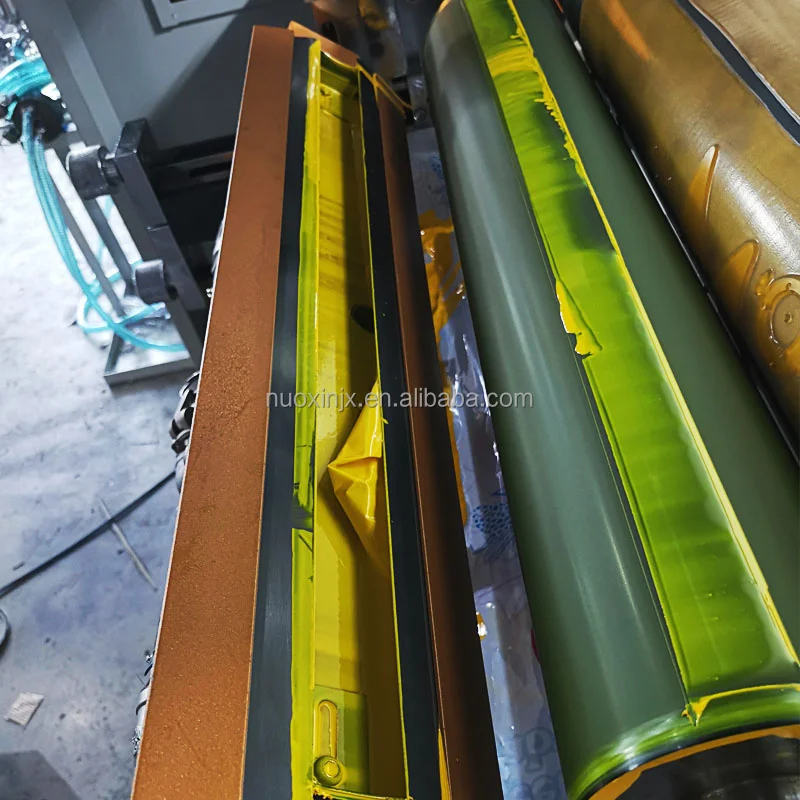

Closed chamber: to make speed faster and the ink never splashs.
Ceramic anilox roller to make the finished samples more accurate.

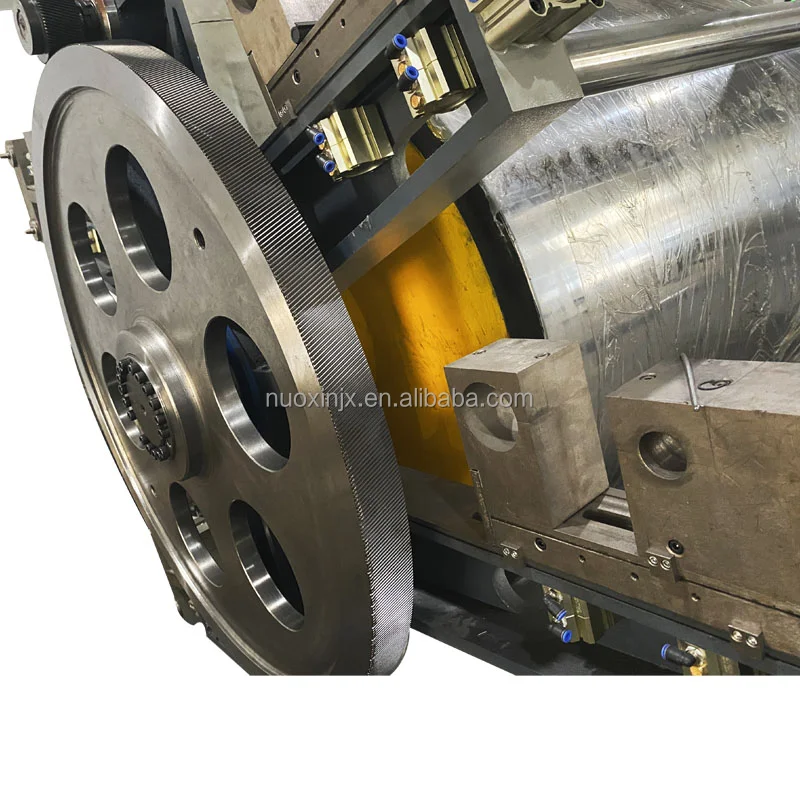

Central roll : plate roller and traction roller and anilox roller on the central roll to work together.
Closed chamber: to make speed faster and the ink never splashs.
Ceramic anilox roller to make the finished samples more accurate.
Central roll : plate roller and traction roller and anilox roller on the central roll to work together.

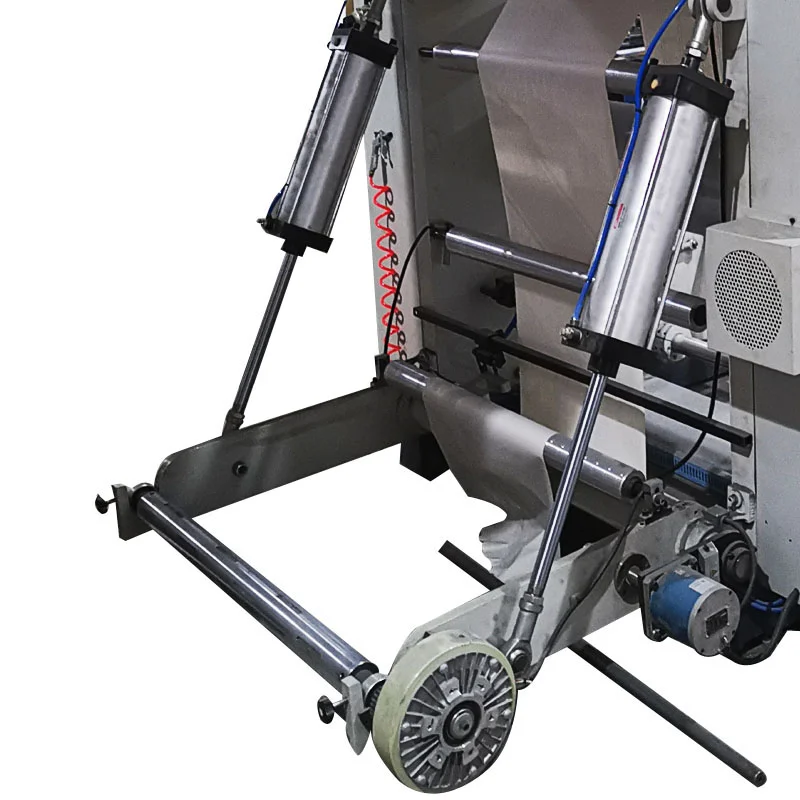

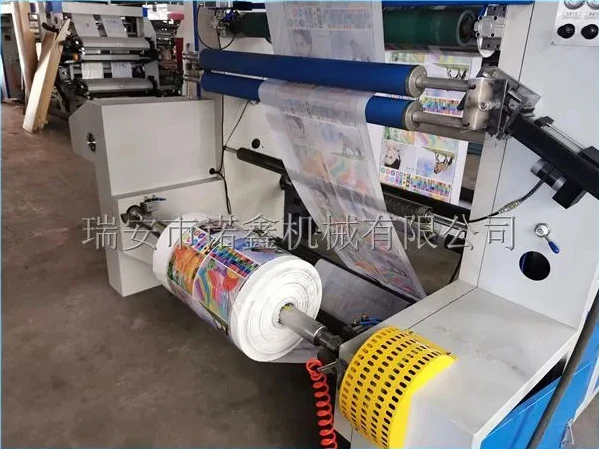

Unwinder and rewinder part:
Pneumatic Single Unwinder and rewinder :to save work and to change rolls easily.
Drying part:
The oven length is 2.5 meters , all printing part is heat wind circulating.

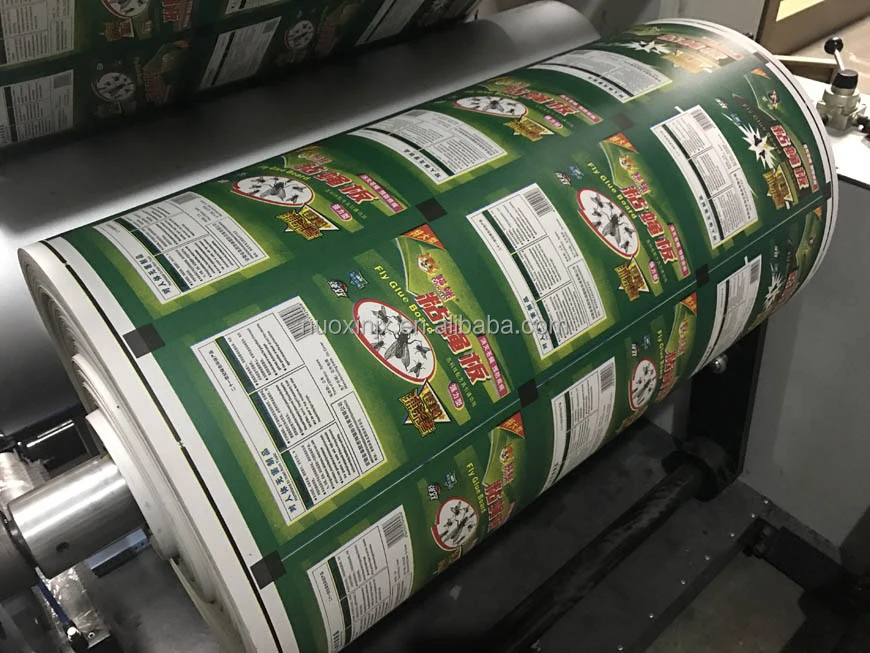

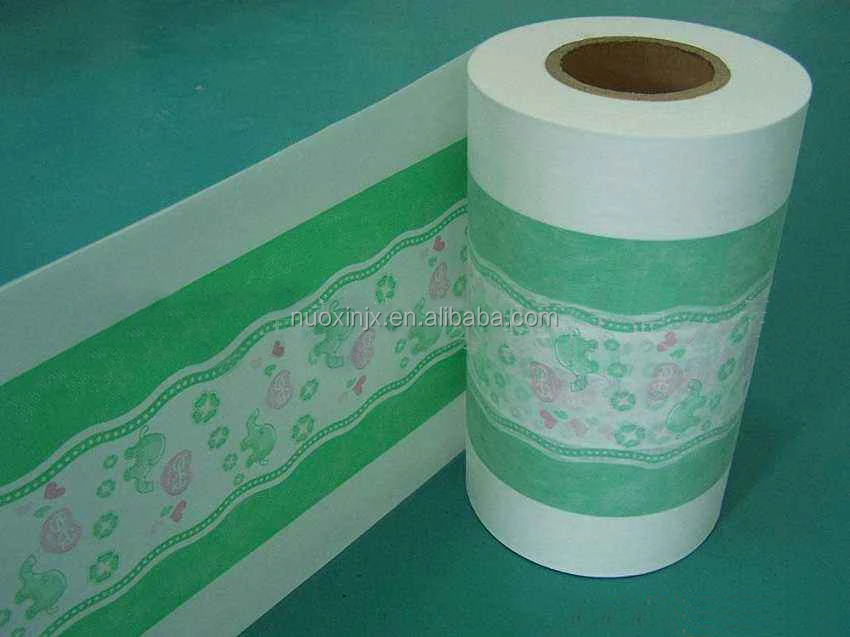

Printed Samples
Company Profile
Successful Project
The client in Spain.
The client in Spain.
The client in Guatemala.
The client in Ghana.
Our Service
Packing & Delivery
FAQ
Q1.Which industries are widely used in of your machines?
Q3.Where is your factory Located? How can we visit it?
A3:Our factory is in Ruian City, which belongs to Zhejiang Province,China.About one hour by air from Shanghai. All our clients,from home or abroad, are warmly welcome to visit us!
Q4.What about your main market?
A4:Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Eastern Europe, North America,South America,Southeast Asia,Russia, Africa, the Middle East and other regions.The market response is good,the customer has a reputation.
Q6.What is your machine guarantee?
Q7.What is the payment term?
A7: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q8.What`s the payment method?
Q9.What is your delivery time?
A9:About 20-40 work days.
Q10.What is your after-sale service ?
A10: you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.Our engineer can train you abroad , the salary per day is USD 100.
We will provide you : manual , working video ,drawing ,wiring diagram etc if you need.
A1:The machines are widely used in various roll drum material printing.
Q2.Are you manufacturer or trading company?
A2:We are manufacturer , we have a history more than 14 years.
A2:We are manufacturer , we have a history more than 14 years.
Q3.Where is your factory Located? How can we visit it?
A3:Our factory is in Ruian City, which belongs to Zhejiang Province,China.About one hour by air from Shanghai. All our clients,from home or abroad, are warmly welcome to visit us!
Q4.What about your main market?
A4:Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Eastern Europe, North America,South America,Southeast Asia,Russia, Africa, the Middle East and other regions.The market response is good,the customer has a reputation.
Q5.How does your factory do regarding quality control?
A5: Quality is the most important principle. Our factory always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
A5: Quality is the most important principle. Our factory always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q6.What is your machine guarantee?
A6:One year , we will give you spare parts for free.During this period, if the machine has some problems, our engineers can go abroad to fix for you.Our after-service is forever!
Q7.What is the payment term?
A7: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q8.What`s the payment method?
A8:TT , LC , trade insurance.
Q9.What is your delivery time?
A9:About 20-40 work days.
Q10.What is your after-sale service ?
A10: you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.Our engineer can train you abroad , the salary per day is USD 100.
We will provide you : manual , working video ,drawing ,wiring diagram etc if you need.
