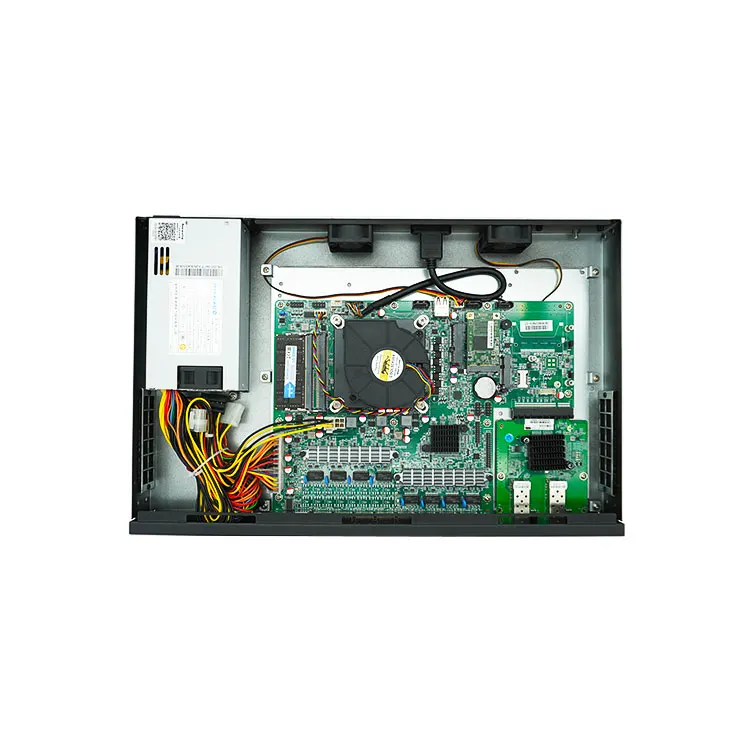

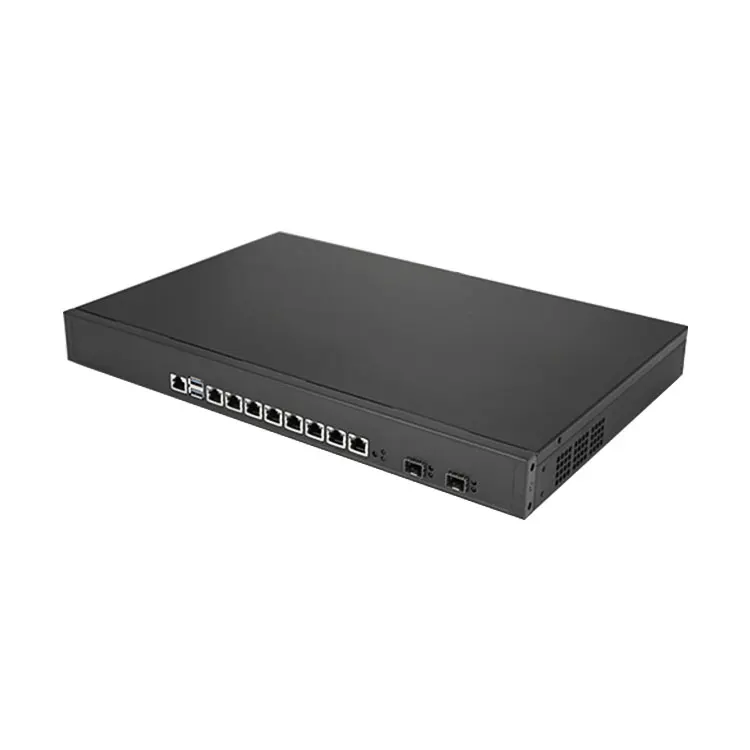

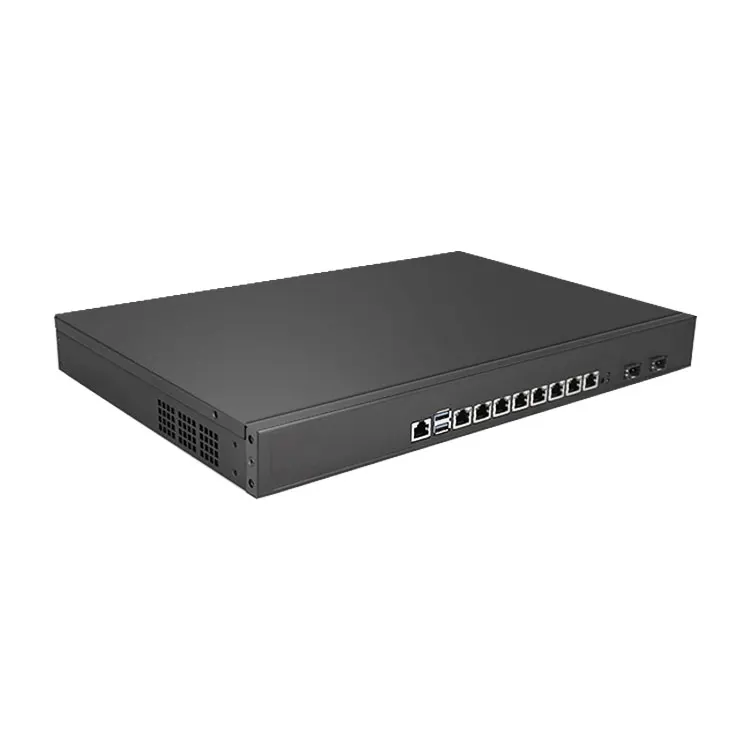

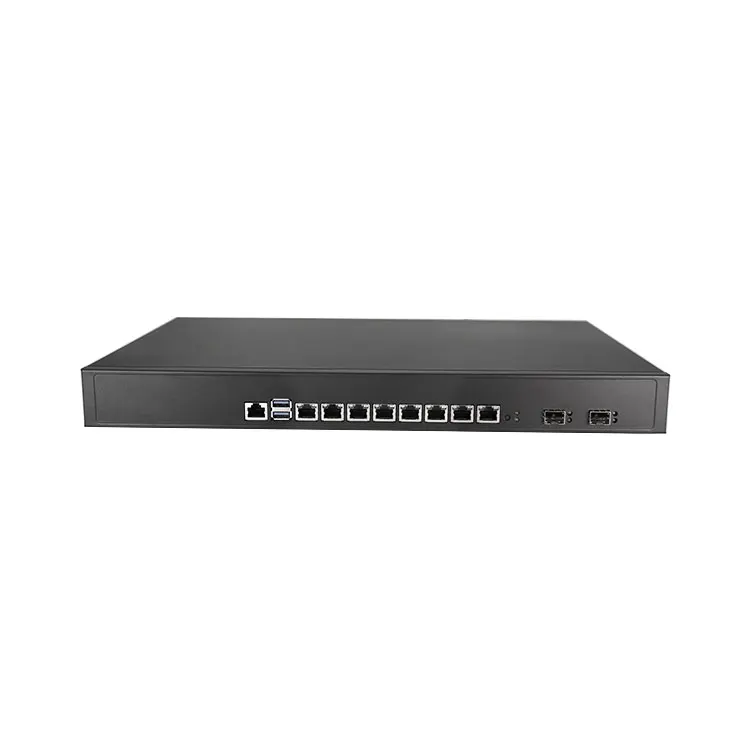

8 lan ports with 2*SFP 1U router I7 6700 firewall support I3/I5/I7 6.7.8.9th Pfsense 1U PC network security firewall server

General

CPU

Intel®Core I7-6700/3.40GHz 4 core processor,support Intel®Skylake processor

Chipset

Intel® H87 high speed chipset,TDP 65W

Memory

2*DDR4 SODIMM,support dual channel 1600MHz memory,up to 64GB

Storage

1*SATA 3.0

1*MSATA 3.0

Expansion Interface

1*MINIPCIE(Wifi+BT,3G/4G)

BIOS

AMI UEFI BIOS

OS

Windows 7/8/10, Linux

I/O Interface

Ethernet

8*Intel 82574L/I210/I225V,1/2.5Gbps PCIe Ethernet Controller, RJ45

Optical fiber

Optional 2*1Gbe SFP Or 2*10Gbe SFP

Serial

1*RS232 CISCOS,1*RS232(2*5pin 2.54mm)

USB

2*USB 2.0

GPIO

8*Programmable GPIO

Display

Display Interface

1*VGA: Up to 1920*1080@60Hz

Mechanical & Environment

Function

Power on operation,Network wake up,PXE,Watchdog

Dimension

430mm*380mm*45mm(L*W*H)

Package size(1PCS)

540*500*145mm

Package size(5PCS)

Net Weight(1PCS)

7kg

Gross weight(5PCS)

Colour

Black

Colour

Black

Power Input

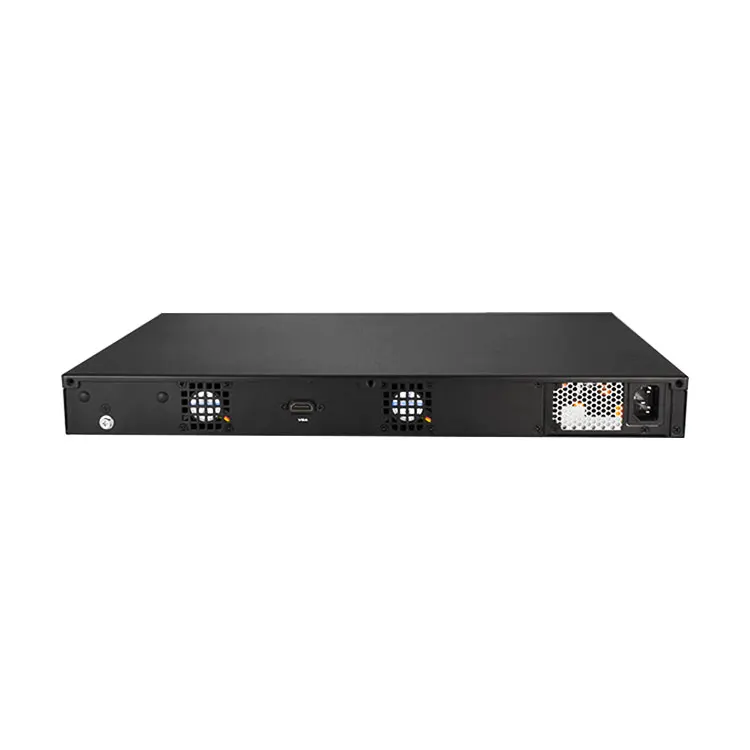

ATX PSU

Temperature

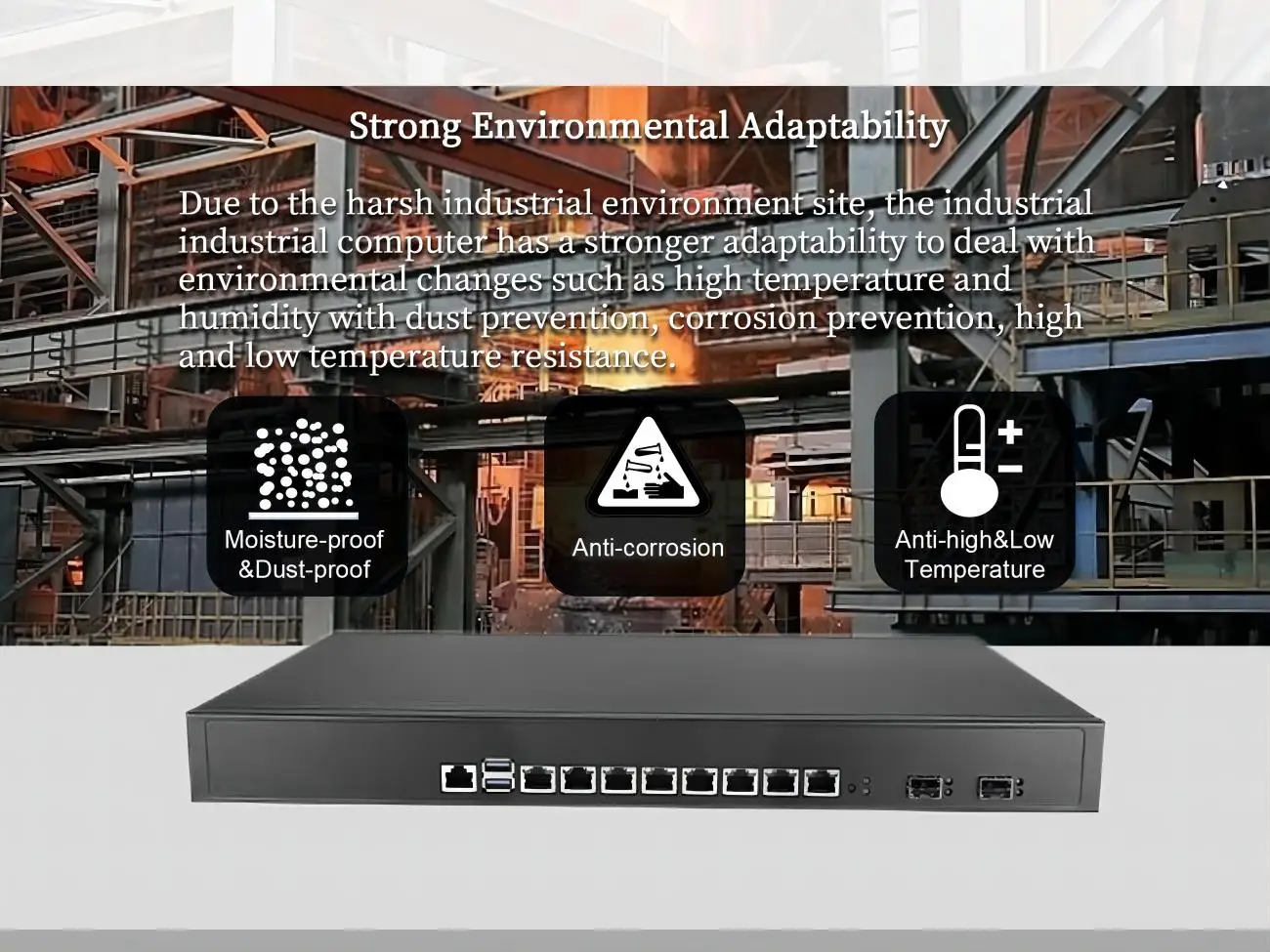

Operation: -10℃~60℃, Storage: -20℃~70℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
