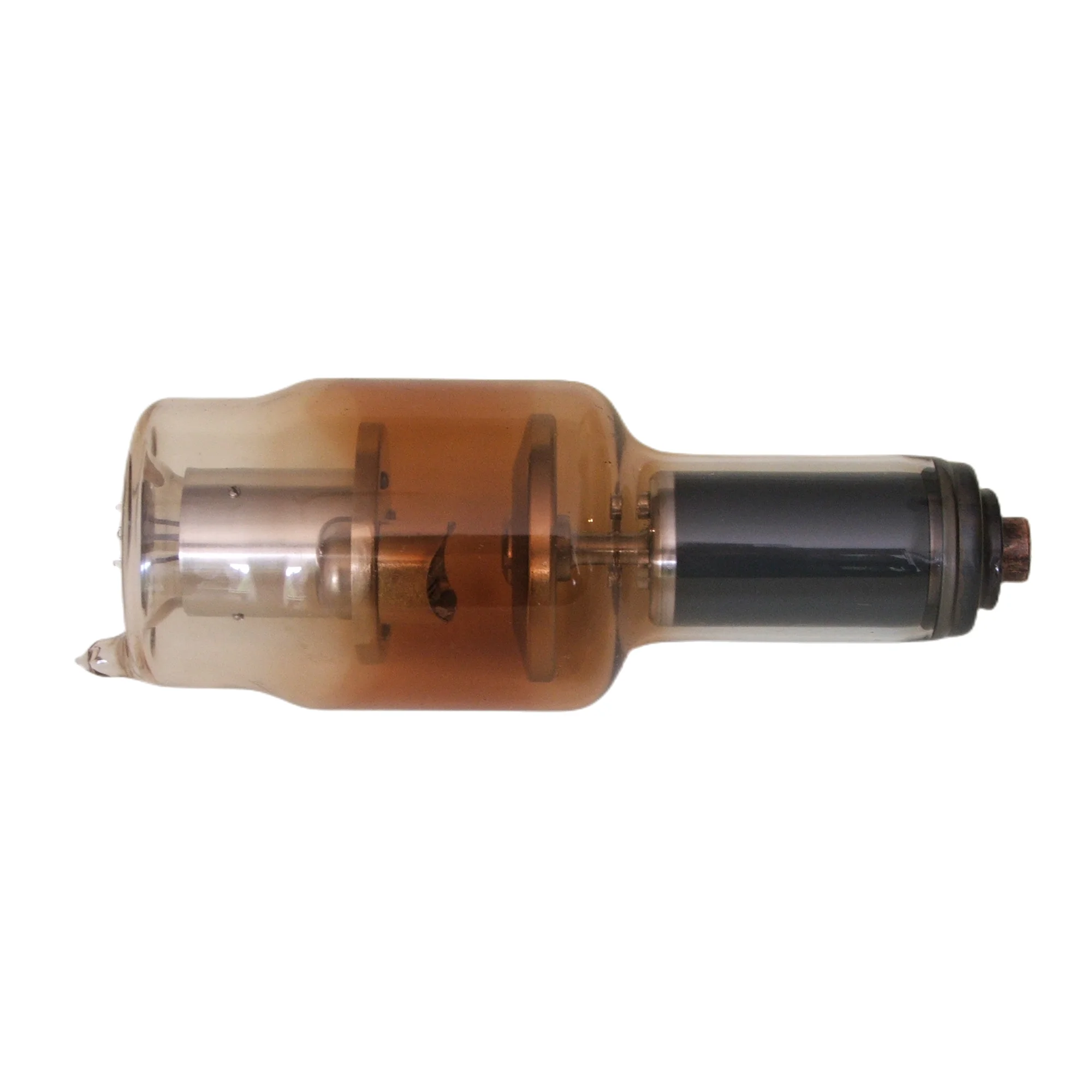

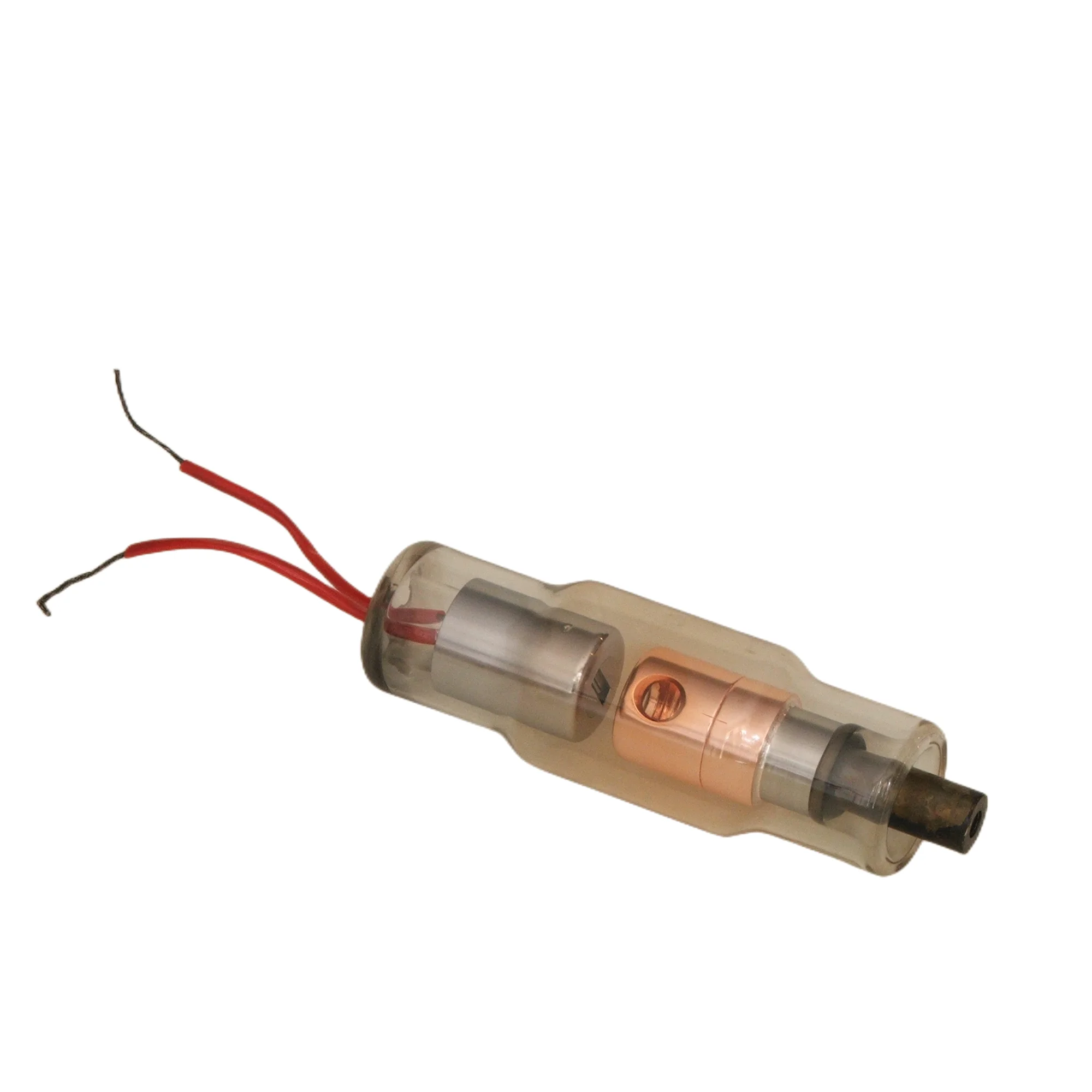

Competitive price head hanger with degree GS 4570 for eclos 16 XD51 20.40/125 x ray insert tube
- Category: >>>
- Supplier: Shanghai Nova Industry Co. Ltd
Share on (1601017937492):
Product Overview
Description

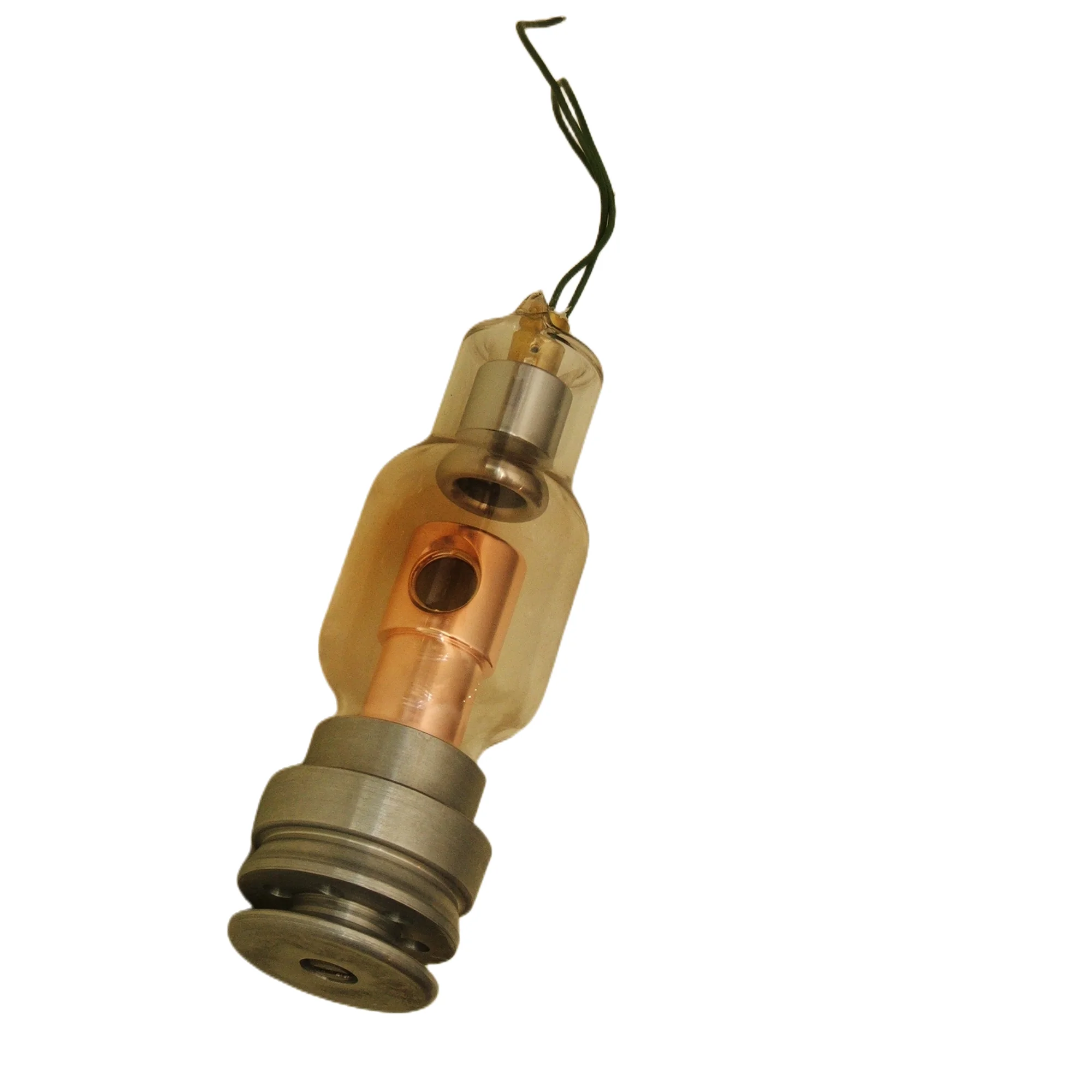

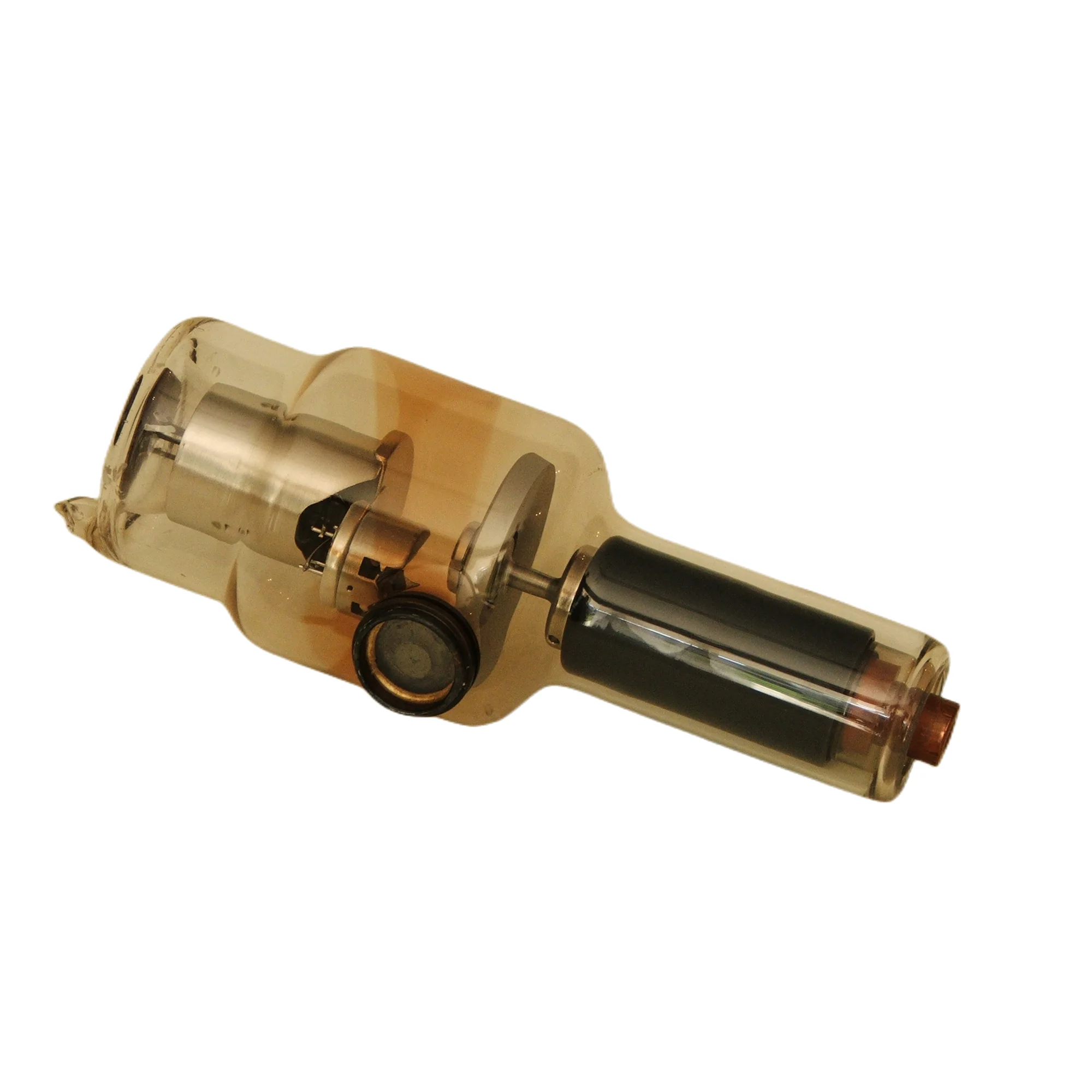

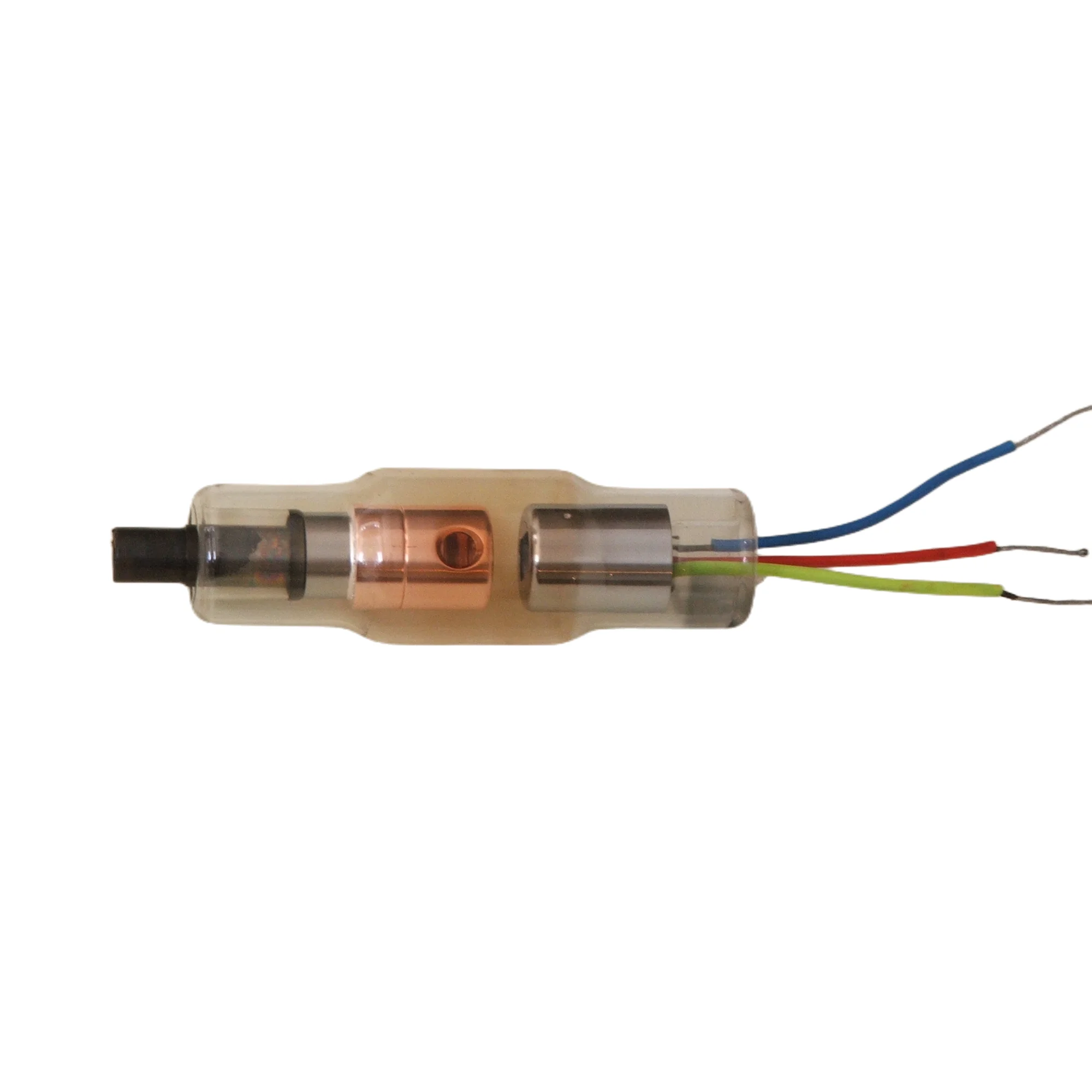

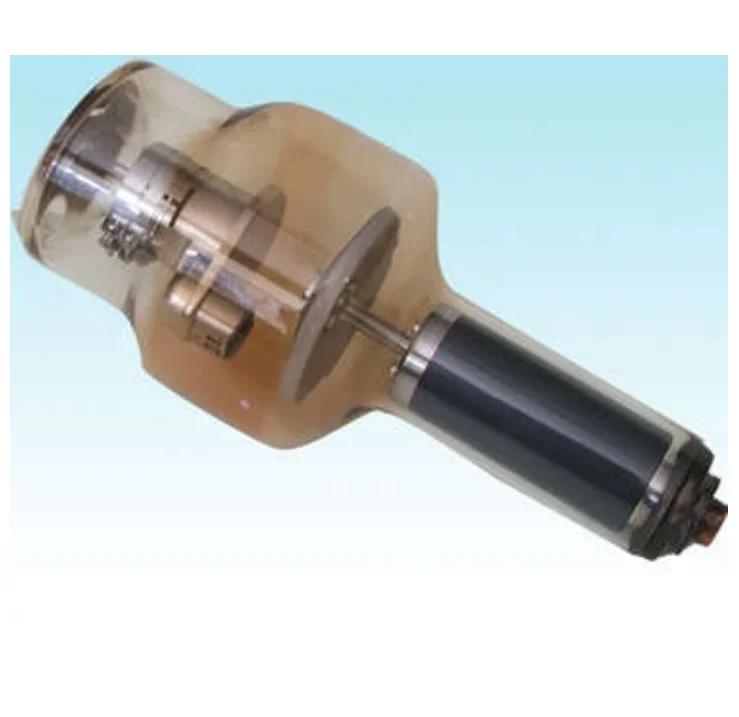

Medical Stationary Anode X-ray Tube for Diagnostic X-ray Machine

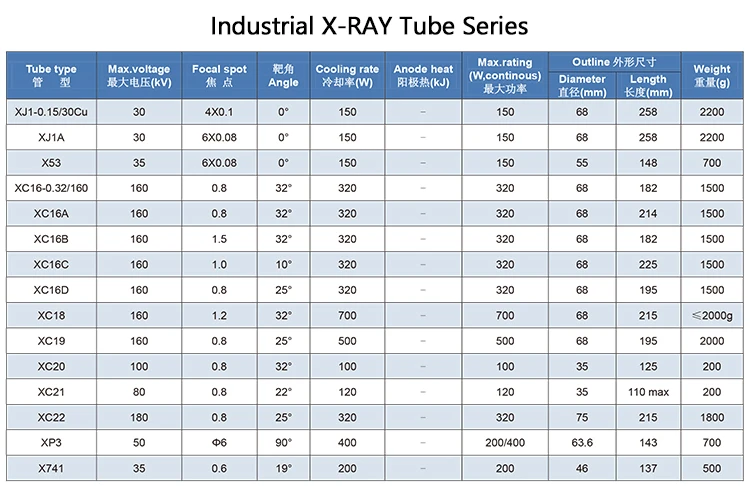

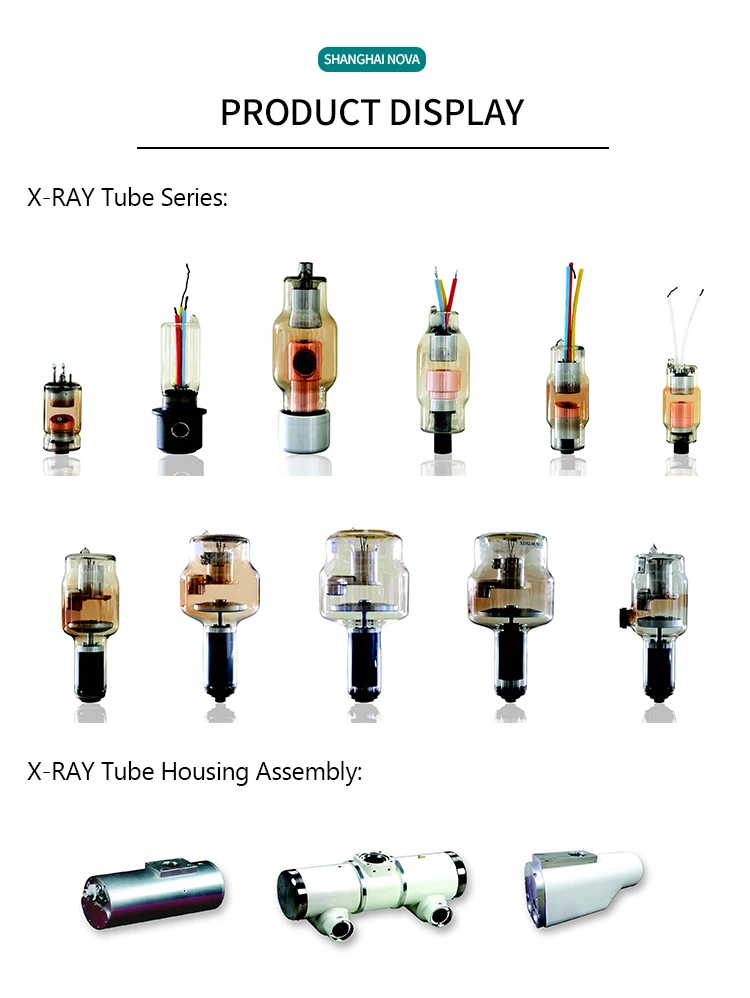

Our medical diagnostic rotating anode X-ray tubes and stationary anode X-ray tubes with Max. operating voltage up to 150kV, focal spot less than 0.1. We are also making 250kV X-ray tubes for deep therapy X-ray units, up to 300KV NDT tubes, diffraction tubes, fluorescence analysis tubes, All products are well sold in Southeast Asia, America, and Europe.

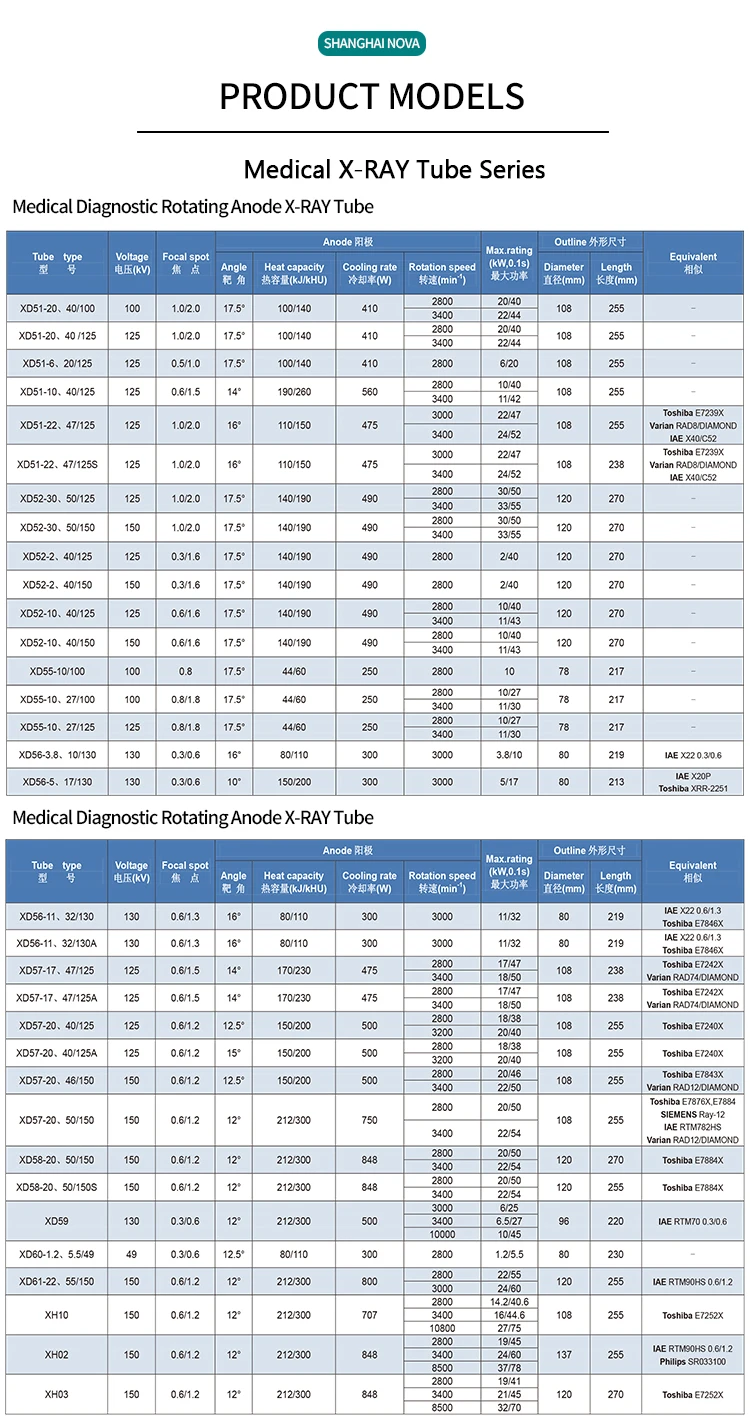

Product Description

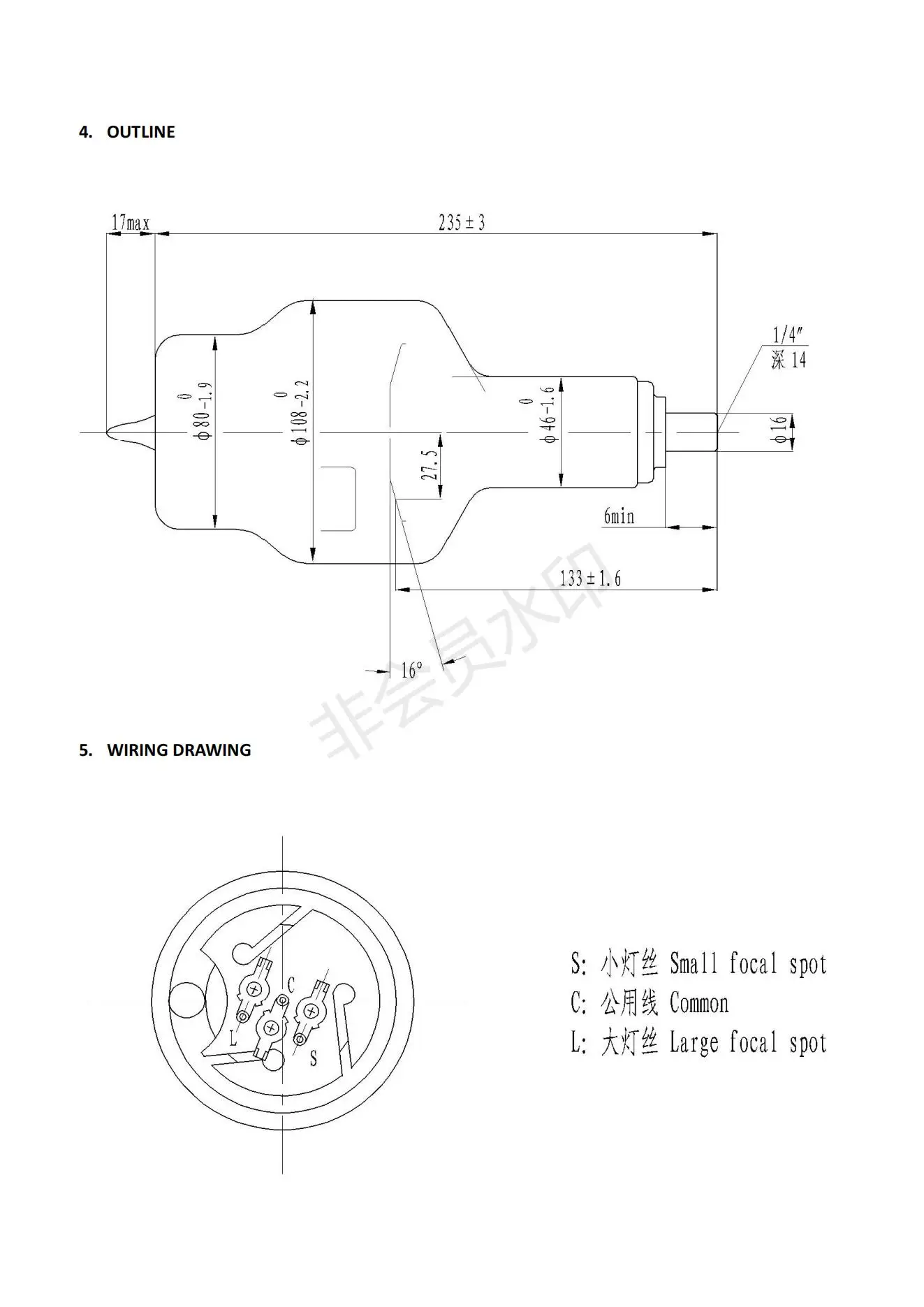

Drawing

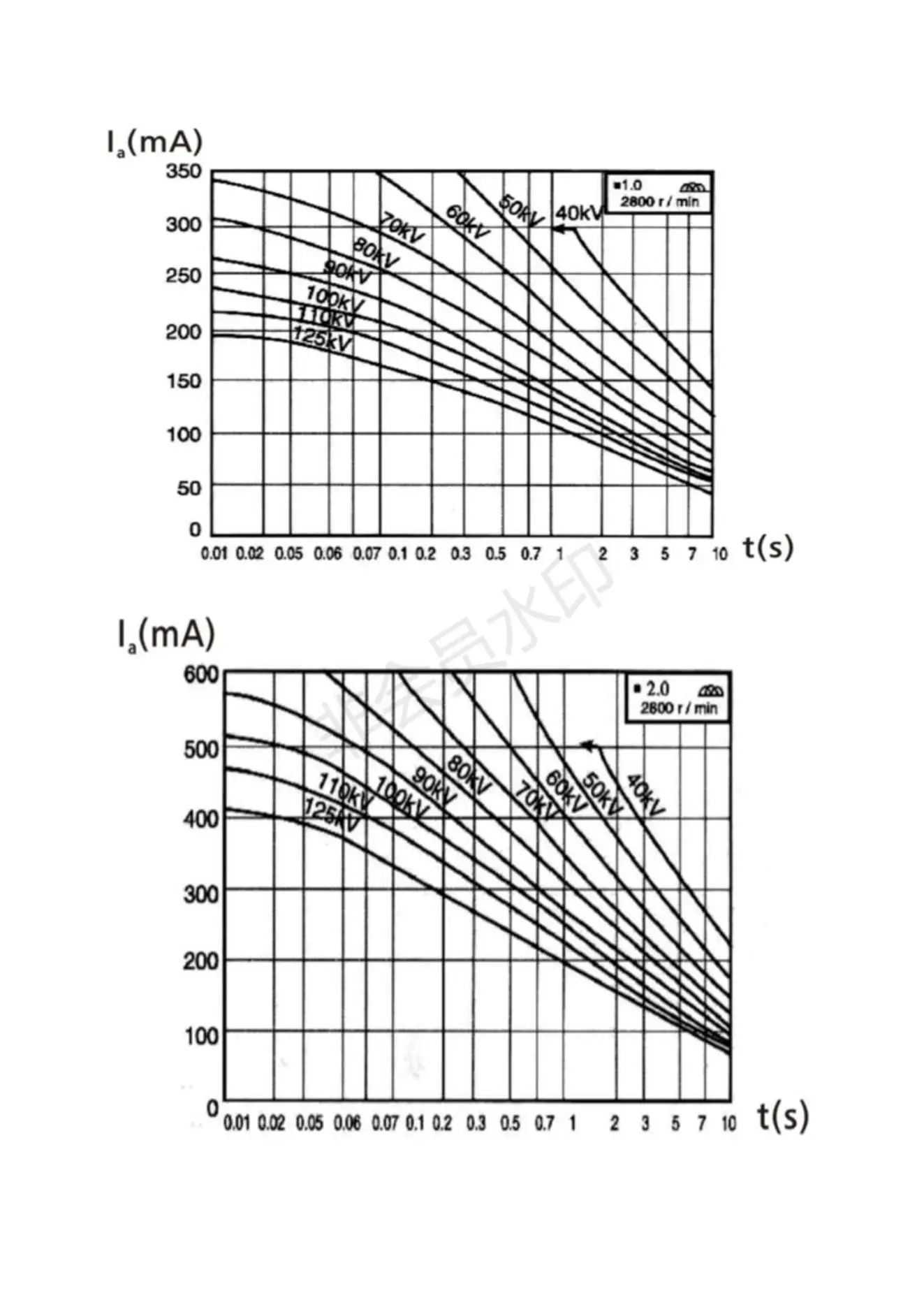

Specifications
| Max Operating Voltage (kV) | 125 |

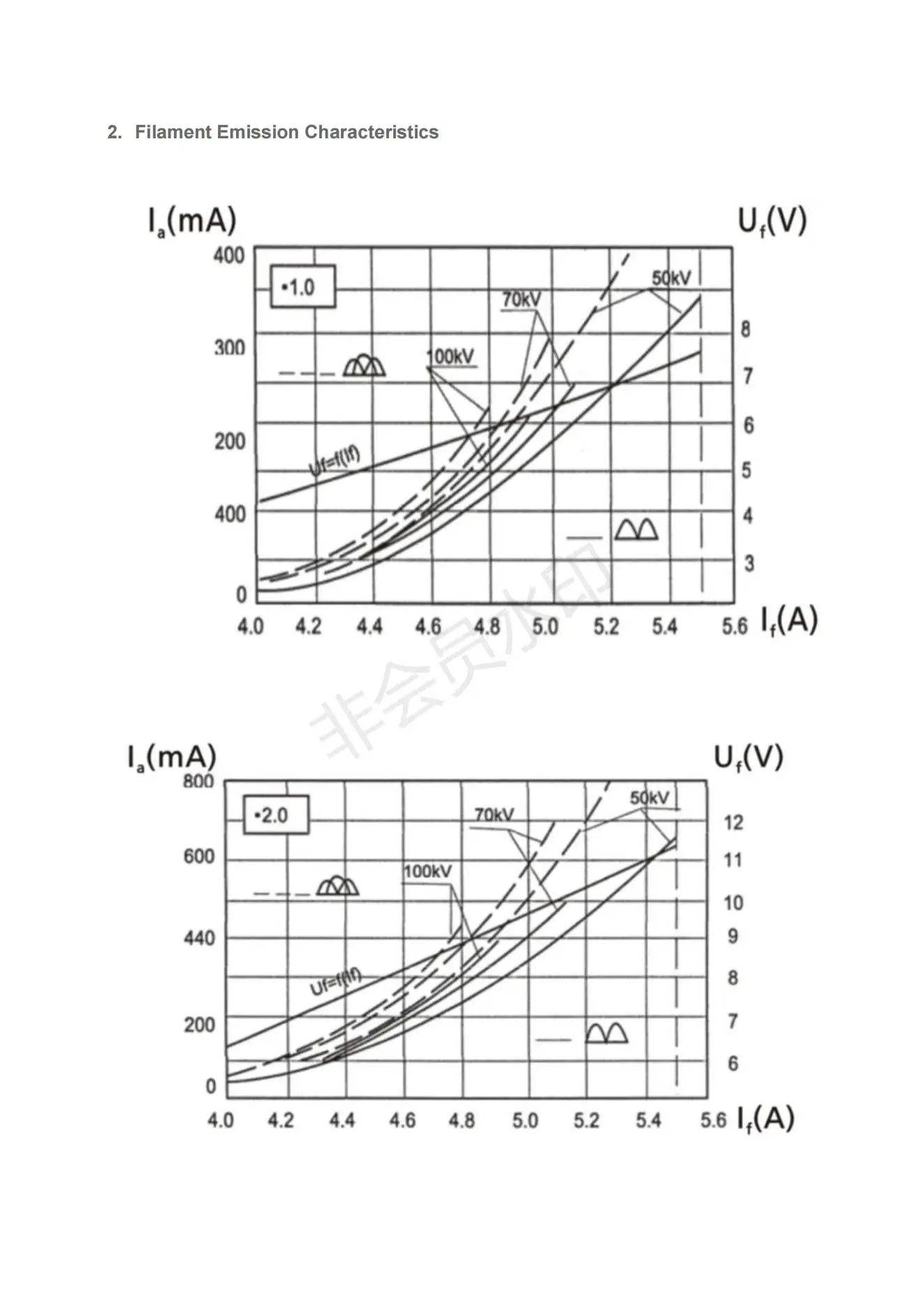

| Filament Characteristics (V) | Ifmax=5.5A, Uf=7~9 (small) Ifmax=5.5A, Uf=10~13 (big) |
| Target Material | W |
| Target Angle | 16° |
| Diameter | 74mm |
| Rotate Speed | 2800 (50Hz) |
| Inherent filtration (mmAl) | 0.8~1.2 |
| Weight (≤kg) | 1.5 |
| Nominal Focal Spot Value | 1.0 /2.0 |

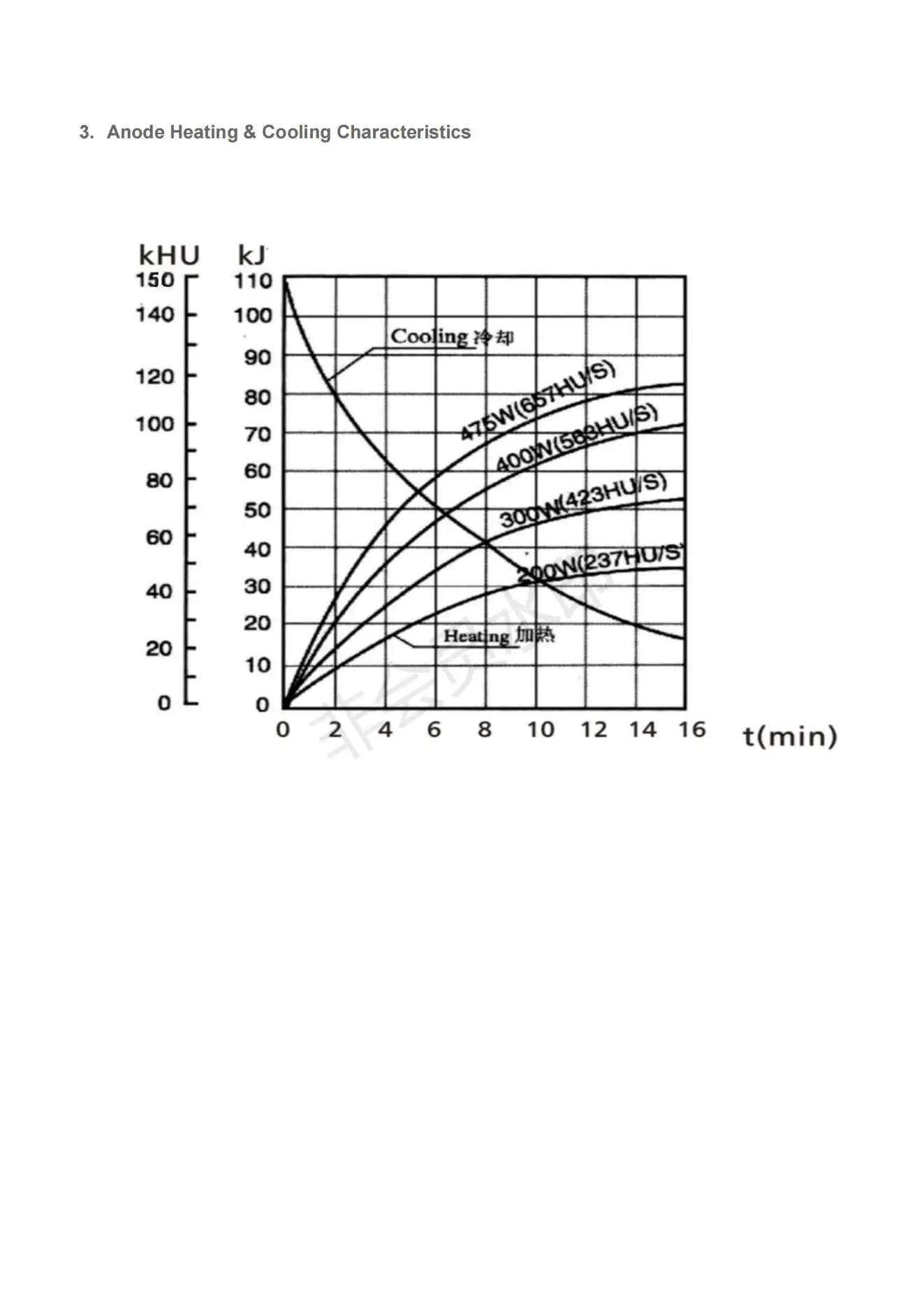

| Anode Heat Storage Capacity (kJ) | 111 (150kHU) |
| Max. Power (0.1s) (kW) | 22/47 |
| Max. Continuous (W) | 410 |
Packaging & Shipping
Company Information
Shanghai Nova has been providing x-ray equipment, lab equipment, and others for the past 20+ years. How do we do this? By maintaining long-standing relationships with a variety of healthcare providers through excellent customer service and product knowledge.
It is our mission to provide state-of-the-art x-ray equipment, lab equipment, and others across the healthcare sectors; our industry knowledge and expertise add real value to the products we supply to organizations. We get to understand your needs and suggest products that will really benefit your practice.
Nova drove by core values of integrity, quality, commitment, and innovation, and is renowned for excellence in what we do. We established in 1988 and have been specialized and developing various X-ray machines (including their accessories) & Lab equipment for more than 20 years.
Nova’s products have been enjoying a very good reputation in different countries with very competitive prices in China & around the world.
- Recognized R&D by countless customers
- International Product Standards
- Advanced manufacturing facilities
- Rich Experience & Domain Knowledge
- In-house R&D & Production
- Quality Products at Affordable Prices
Contact us
Email: cnshnova2017 at vip.126.com
WhatsApp/WeChat/Tel: +86 15921357946
