  • PCI Express x1 Gigabit Single port Copper Network Card based on Intel I210 chipset for desktop
PCI Express x1 Gigabit Single port Copper Network Card based on Intel I210 chipset for desktop
PCI Express x1 Gigabit Single-port Copper Network Card based on Intel I210 chipset for desktop
PCI Express x1 Gigabit Single-port Copper Network Card based on Intel I210 chipset for desktop
PCI Express x1 Gigabit Single-port Copper Network Card based on Intel I210 chipset for desktop

PCI Express x1 Gigabit Single port Copper Network Card based on Intel I210 chipset for desktop

Share on (1601017951923):


Price:

Quantity:


Product Overview

Description

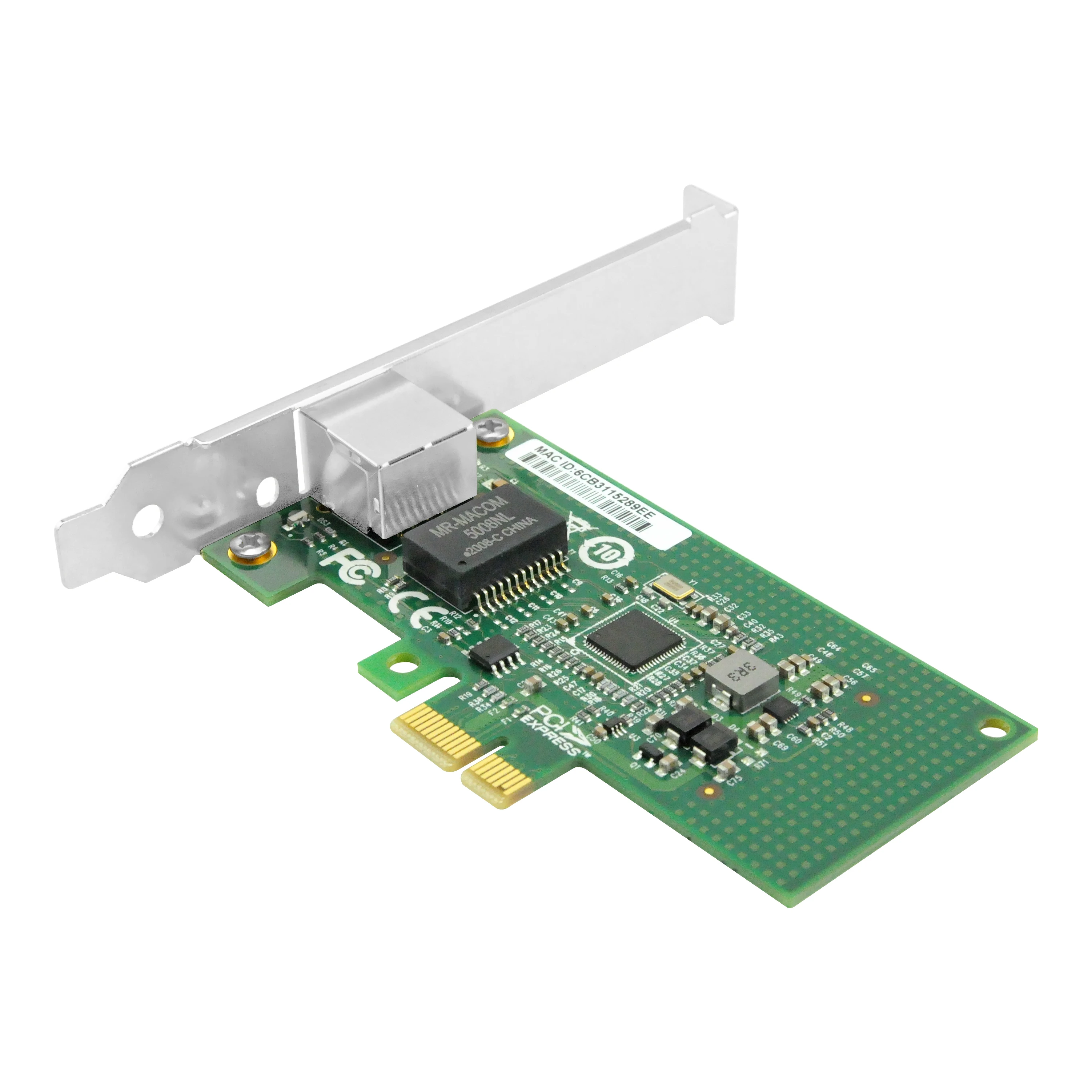

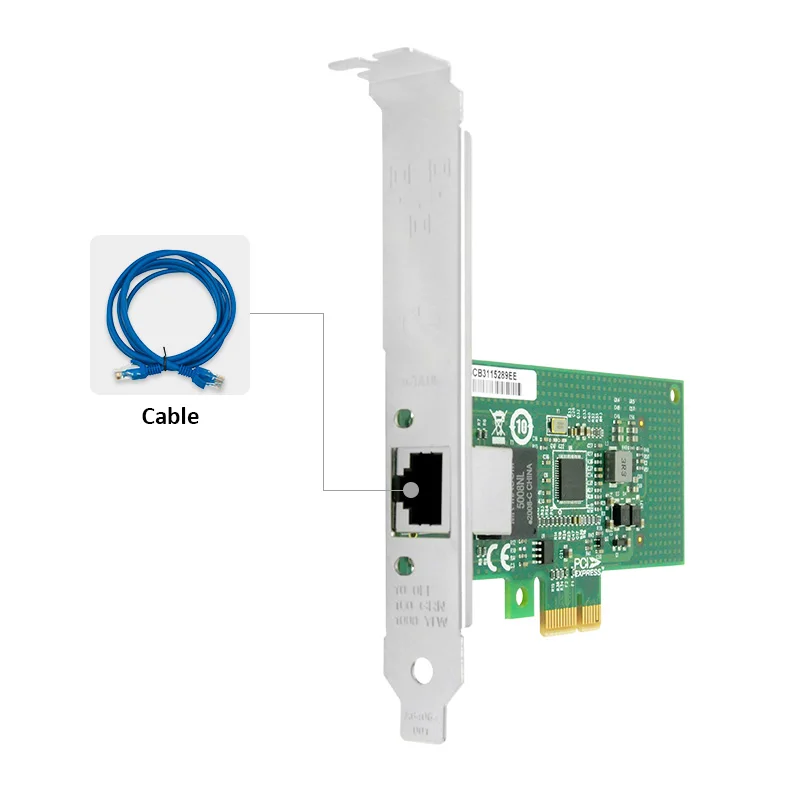

LREC9204CT is PCI Express x1 Gigabit Ethernet desktop network adapter based on Intel I210 solution. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC.
The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures.
The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.






• Single Port 10/100/1000Mbps adapter
• PCI Express (PCIe) 2.1 (2.5 GT/s) x1 lane
• RJ45 Connectivity
• Low-cost, low-power
•WOL, PXE Support
• Innovative power management features
• MSI,MSI-X support
• Excellent small packet performance for network appliances
• Low profile and full-height bracket


Specification




Controller
Intel I210
Bracket
Full height & half height
Transmission Rate
10/100/1000Mbps
Power Consumption
1.9W
System Support
Windows XP/Vista/7/8/8.1/10
Windows Server 2003/2008 (R2)/2012 (R2)/2016 R2
Linux Stable Kernel version 2.4.x/2.6.x/3.x/4.x or later
FreeBSD 4.x/5.x/6.x or later
Novell Netware 4.x/5.x/6.x or later
VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type
PCI Express v2.1 (2.5GT/s) x1
Data Rate
10/100/1000Mbps
Connector
4 * RJ45


Technical Features
Standards Compliant
IEEE 802.3x Full Duplex and flow control
IEEE 802.3u
IEEE 802.3ab


Environment Features
Operating Temperature
0 ℃ to 55 ℃ (-13 ℉ to 158 ℉)
Storage Temperature
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity
Maximum: 90% non-condensing relative humidity at 35 ℃


Physical Features
Size (mm ±1.0mm)
100.9*120*16
Weight (g)
*


LED Indicators
LED Indicators
1000M Link/Act, 100M Link/Act, 10 Link/Act


Order Information
P/N
Description
LREC9204CT
PCIe x1 Single-port 1G RJ45 Network Adapter
PS: The above details are for reference only, no prior notification for any changes.
