MIWI S 1500 24 High quality low price 200VAC 240VAC input 24vdc 62.5a power supply 1500W LED switching Power Supply 24v
- Category: >>>
- Supplier: Wenzhou Qianxiang Electric Technology Co. Ltd
Share on (1601017954555):
Product Overview
Description
<
You are here:Home>>Single Output Series>>SCN Series
Product Description

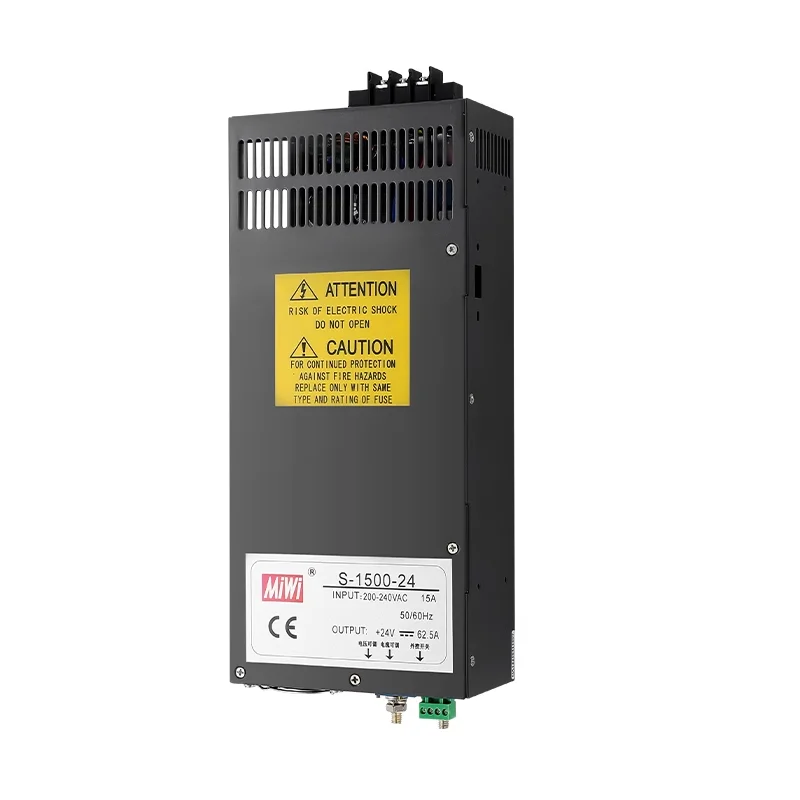

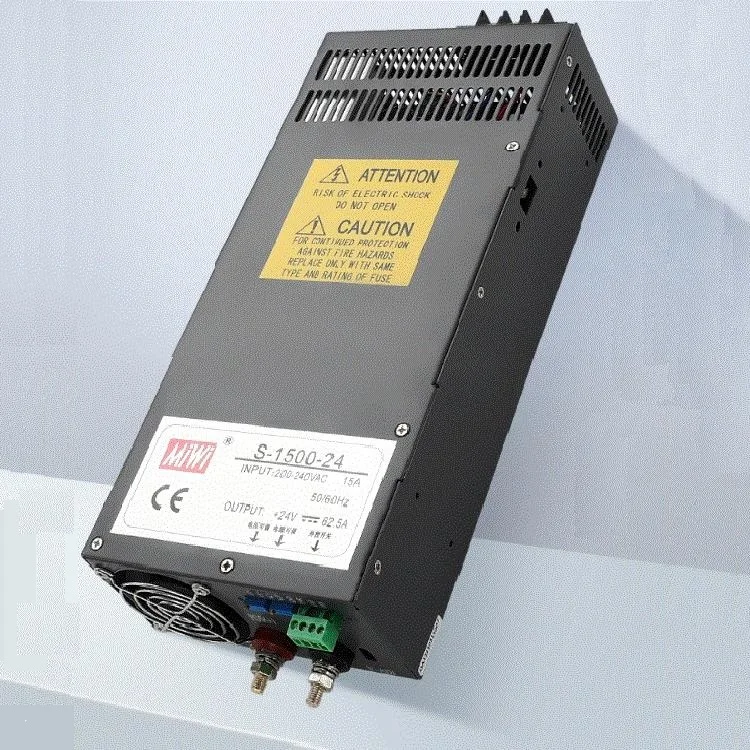

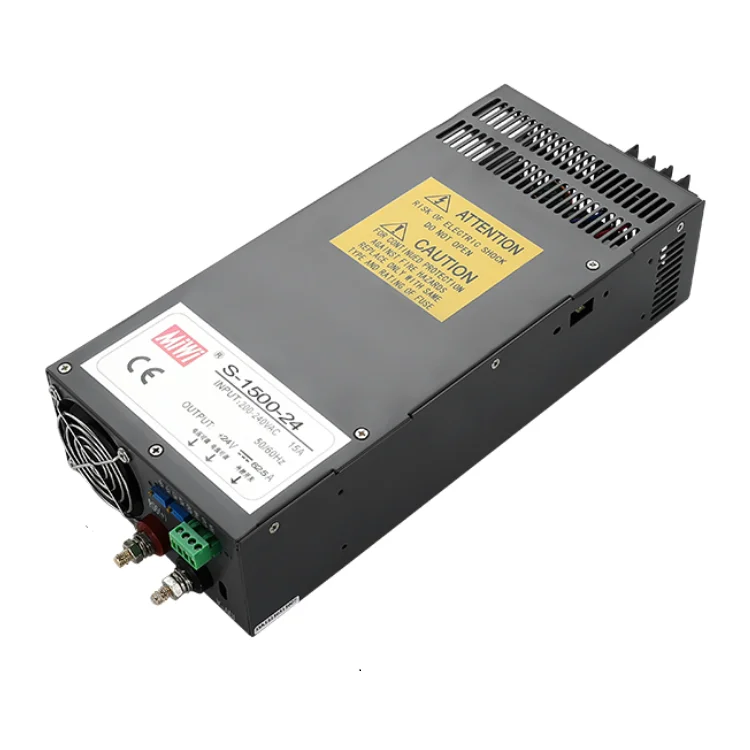

MiWi S-1500-24 High quality low price 200VAC-240VAC input 24vdc 62.5a power supply 1500W LED switching Power Supply 24v
- AC input 200~240V only
- Protections: Short circuit / Overload / Over voltage / Over temp.
- High reliability/ Low ripple noise

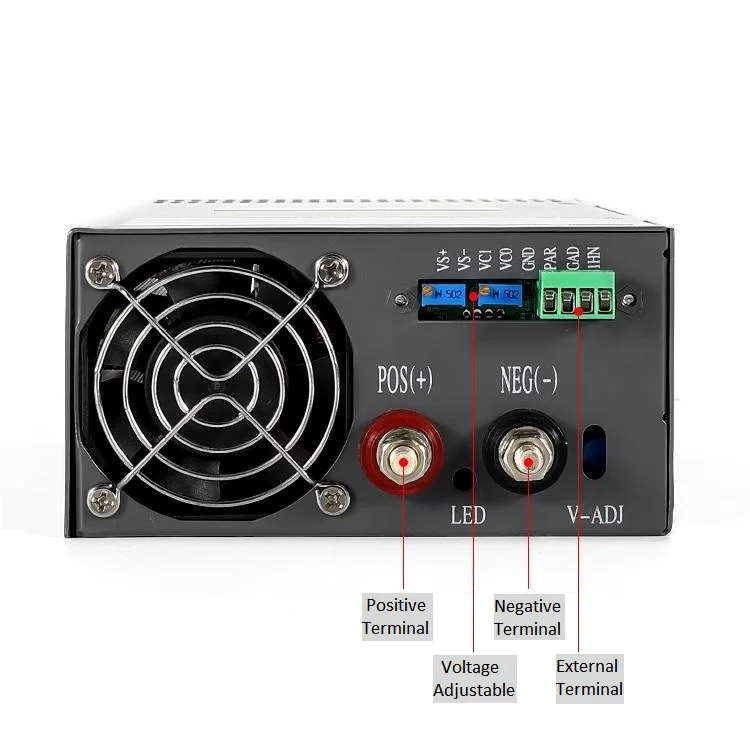

- Can adjust from 20~100% output voltage

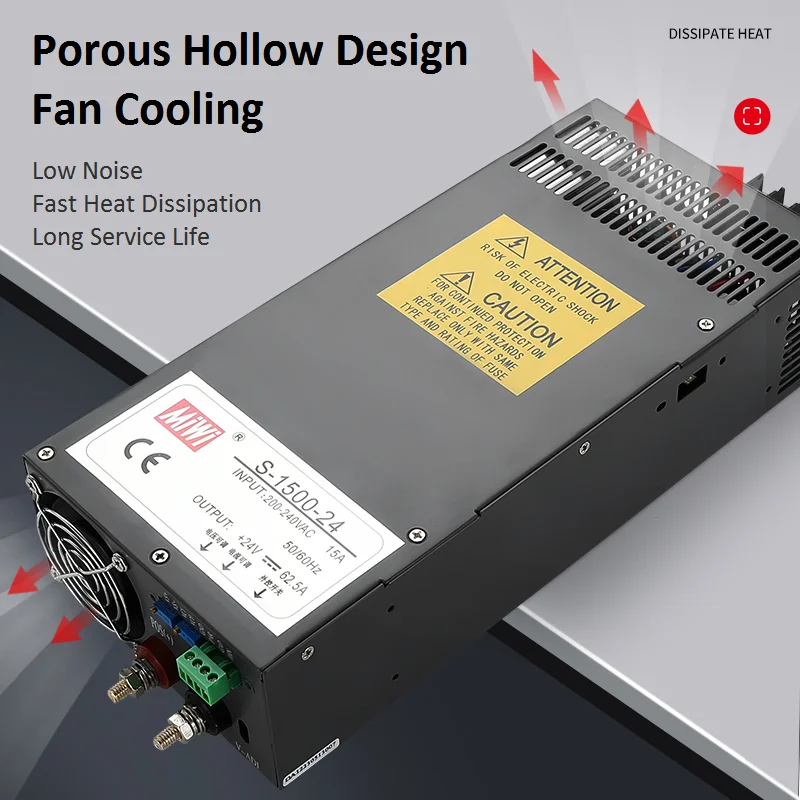

- Forced air cooling by built-in DC fan
- Case coating with paint
- 2 years warranty
| Model | S-1500-12 | S-1500-24 | S-1500-36 | S-1500-48 |
| DC Output Voltage | 12V | 24V | 36V | 48V |
| Rated Current | 0-125A | 0-62.5A | 0-41.6A | 0-31.2A |
| Rated Power | 1500W | 1500W | 1497.6W | 1497.6W |
| Ripple & Noise | 150mvp-p | 240mvp-p | 360mvp-p | 480mvp-p |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% |
| Voltage Adj. Range | 0-13.8V | 0-26.4V | 0-39.6V | 0-52.8V |
| Load Regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Line Regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5%± 0.5% |
| Efficiency | 83% | 85% | 85% | 87% |
| AC Input Voltage Range | 200VAC-240VAC 47Hz-63Hz | |||
| Input AC Current | 15A | |||
| Power factor | 0.65 | |||
| Setup, Rise Time | 200ms, 50ms,20ms,230VAC | |||
| Overload Protection | Recovers automatically after constant current voltage goes down | |||
| Over Voltage Protection | >115%-135% shut down o/p voltage, recovers automatically | |||
| Short Circuit Protection | Shut down o/p voltage,recovers automatically | |||
| Over Temperature Protection | Directly dissipating heat by fan, >85% cut off output | |||
| Working Temp,Humidity | '-10°C~+50°C; 20%~95RH | |||
| Storage Temp,Humidity | '-20°C~+85°C; 10%~95RH | |||
| Working Frequency Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC 1min | |||
| Insultation Resisance | Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ | |||

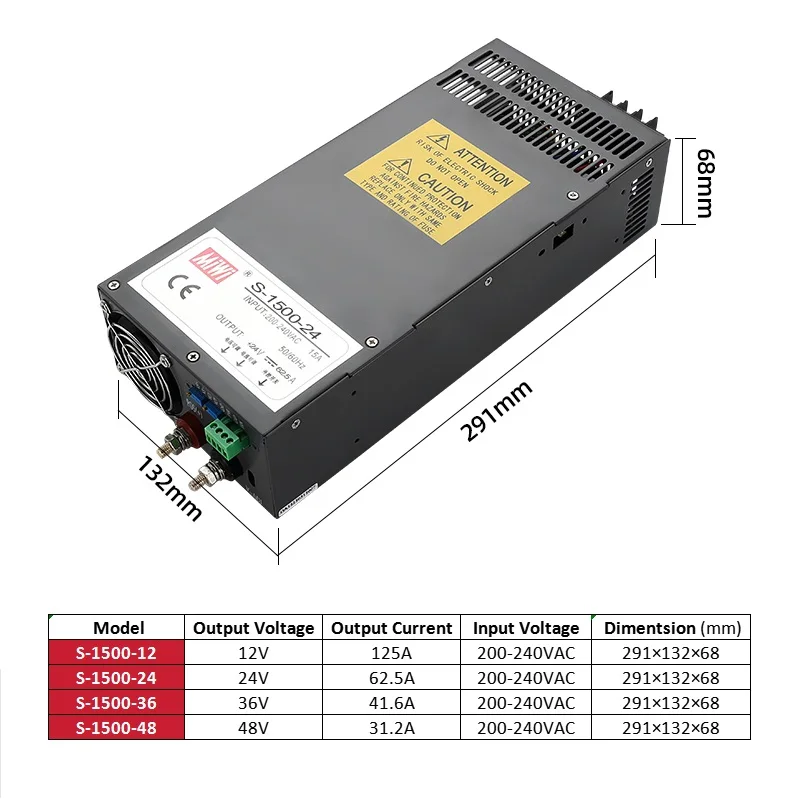

| Overall Dimension | 291×132×68mm | |||
| Net Weight/Gross Weight | 2500G/2600G | |||
