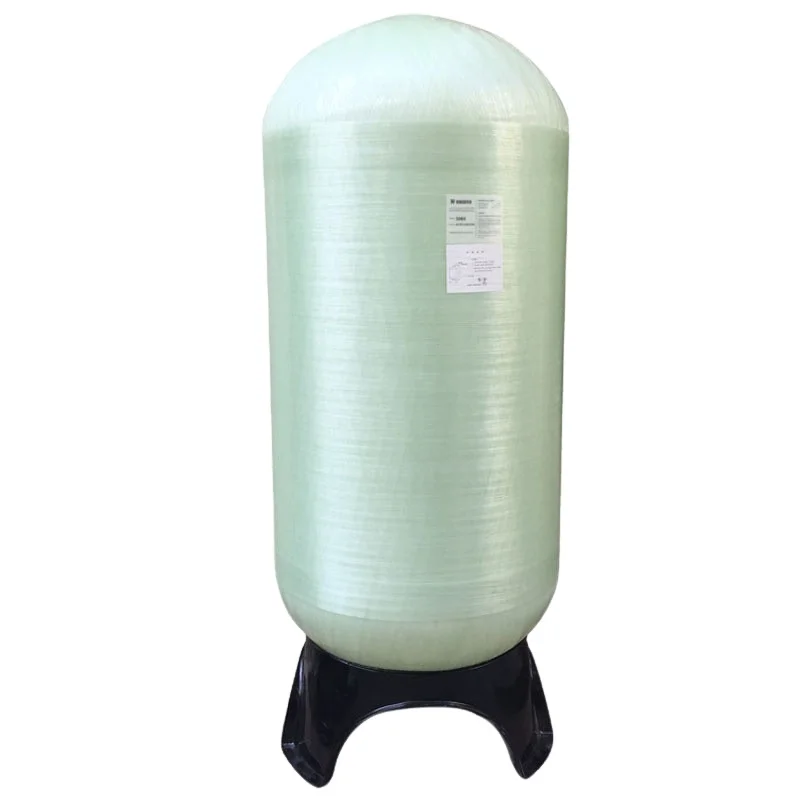

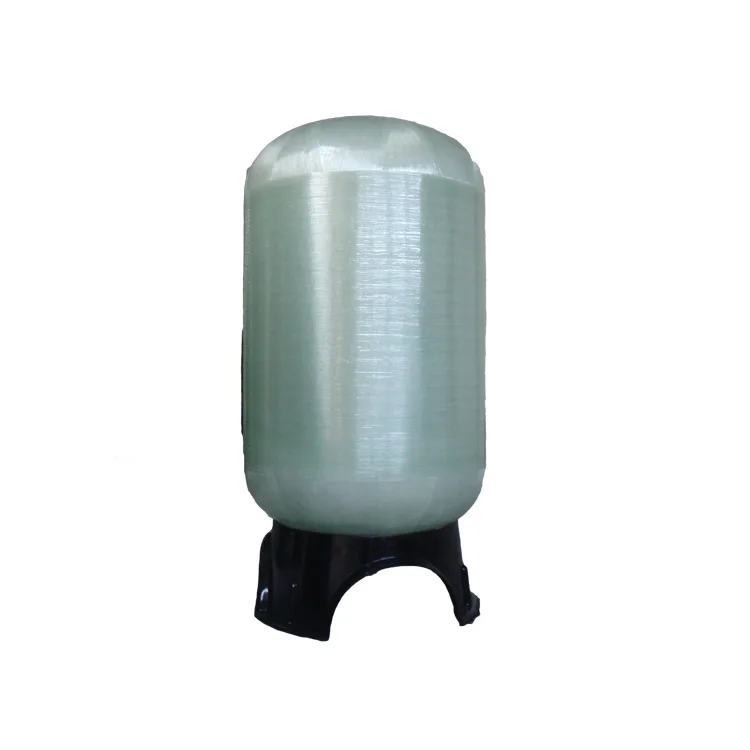

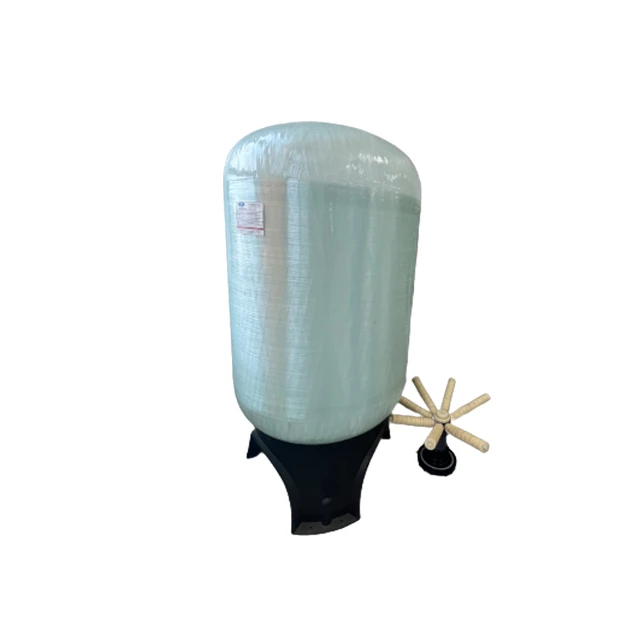

Canature Huayu Industrial Resin Water Filter 2472 FRP Tank For Water Purification
- Category: >>>
- Supplier: Wuxi Ewater Water Treatment Co. Ltd.
Share on (1601017978736):
Product Overview
Description
Product Description
Hot Sale FRP Tank for Water Treatment System/ FRP Vessel/ FRP Pressure Tank
1.PE liner with FRP filament winding,high quality but competitive cost.
2.Specification: from 0613 to 7294
3.Available in natural and blue or custom color.
4.NSF and CE certified.
1.PE liner with FRP filament winding,high quality but competitive cost.
2.Specification: from 0613 to 7294
3.Available in natural and blue or custom color.
4.NSF and CE certified.

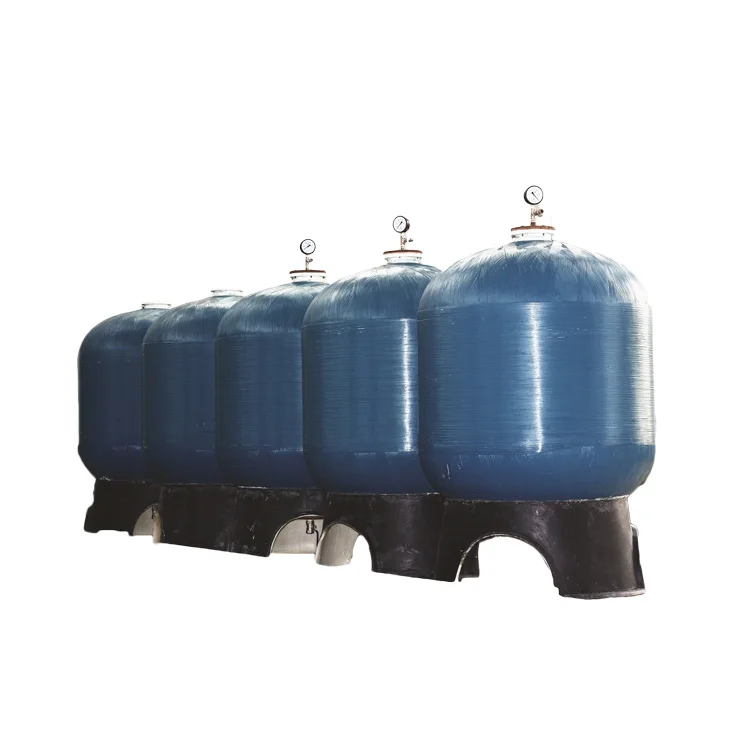

FRP TANK

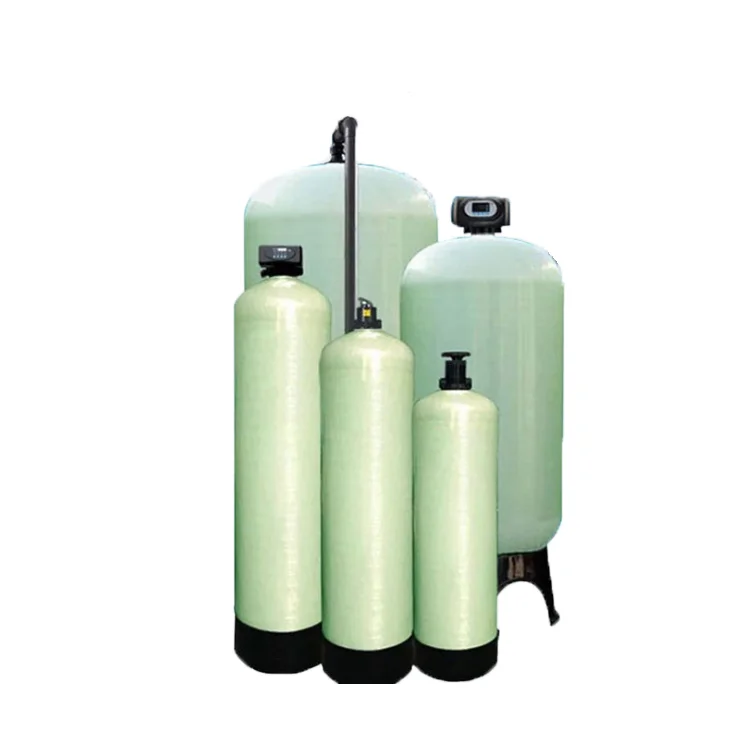

8"- 63"dia. For multi-media filter and softerner
1).PE(Polyethylene)seamless one-piece tank liner:
2).2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;
3).4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;
4).6"Aluminum alloy flange opening for 36",42",48",60",63"dia. tanks;
5).Continuous strands of fiber-glass with high strength Epoxy resin;
6).Completely rust and corrosion free;
7).FRP reinforced tripod base.
8"- 63"dia. For multi-media filter and softerner
1).PE(Polyethylene)seamless one-piece tank liner:
2).2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;
3).4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;
4).6"Aluminum alloy flange opening for 36",42",48",60",63"dia. tanks;
5).Continuous strands of fiber-glass with high strength Epoxy resin;
6).Completely rust and corrosion free;
7).FRP reinforced tripod base.
Application:
All feed water and waste water treatment application, included in commercial and industrial field.
All feed water and waste water treatment application, included in commercial and industrial field.
Characters | Fully Rustproof and corrosion resistant |
Hight strength Light weight | |
Easy transport and installation | |
Nice appearance | |
Operating Specifications | Operating Pressure:150psi(10.5bar) |
Operating Temperature:1-49℃(34-120℉) | |
Max.Vacuum:127mm Hg(5'' Hg) | |
Lowest Exposed Temperature:-27℃(-17℉) | |
Test Parameter | Burst test to 4 times(600psi) of its operating pressure |
Exceed 100,000 times of circle test from 0-150psi with standing pressure. |

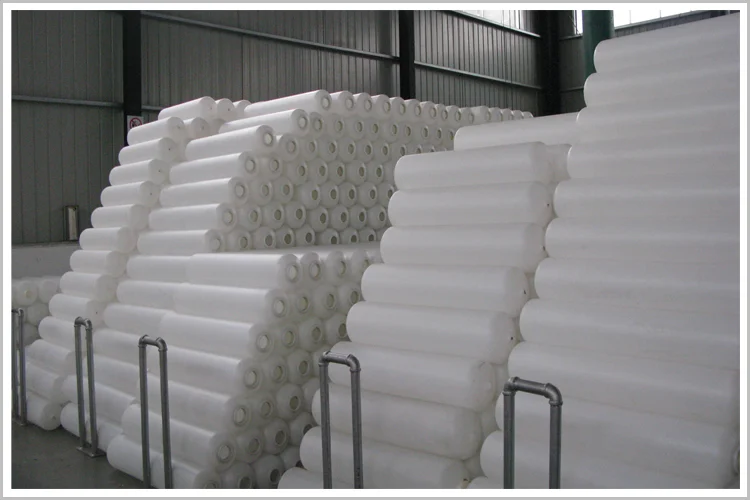

PE liner: Rotation moulding or blowing one-piece seamless without leakage.

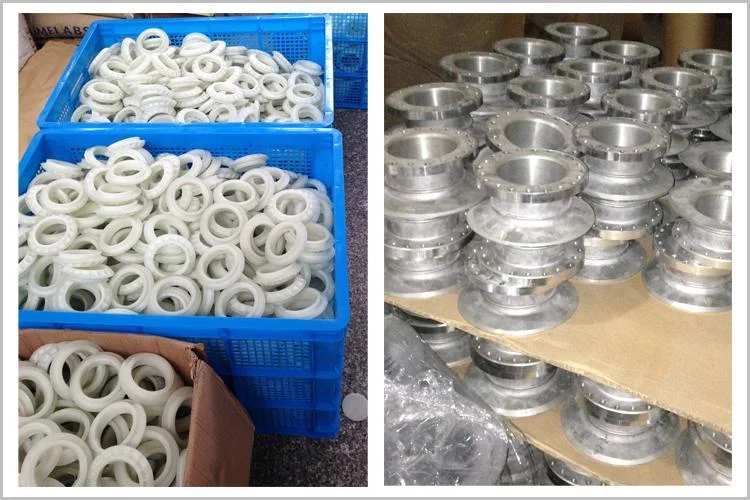

Opening: we have 2.5'' and 4'' reinforced plastic thread opening or 6'' alloy flange.

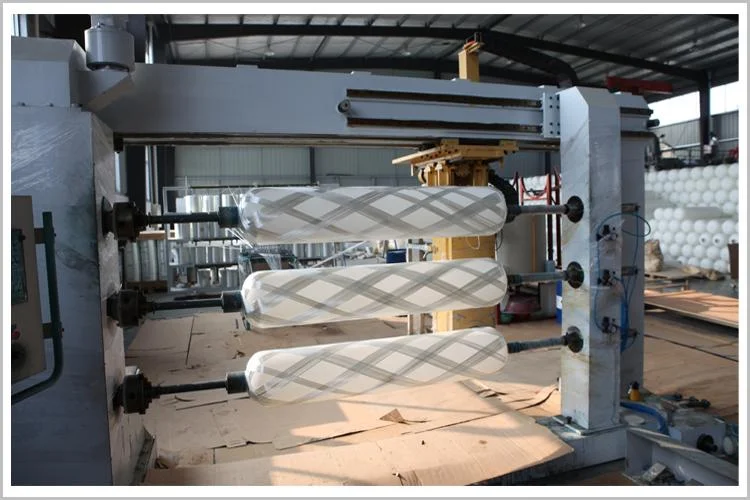

Fiberglass winding: Color can be customized.

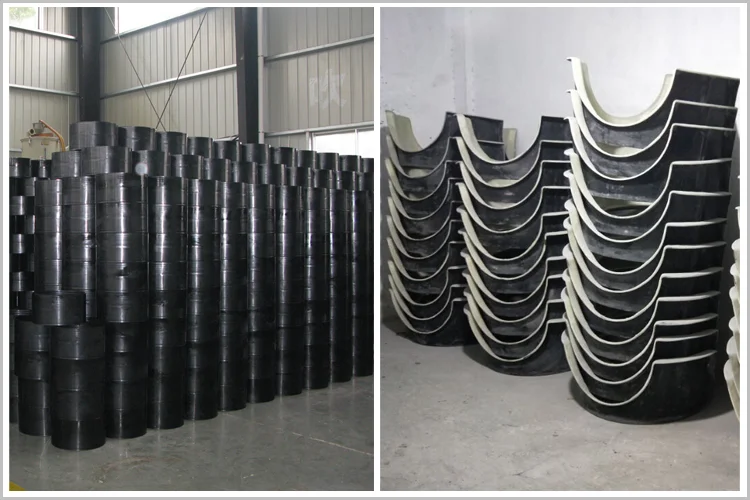

Reinforced PP base

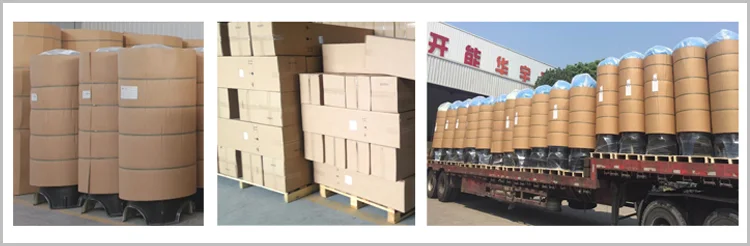

Packing&Shipping
