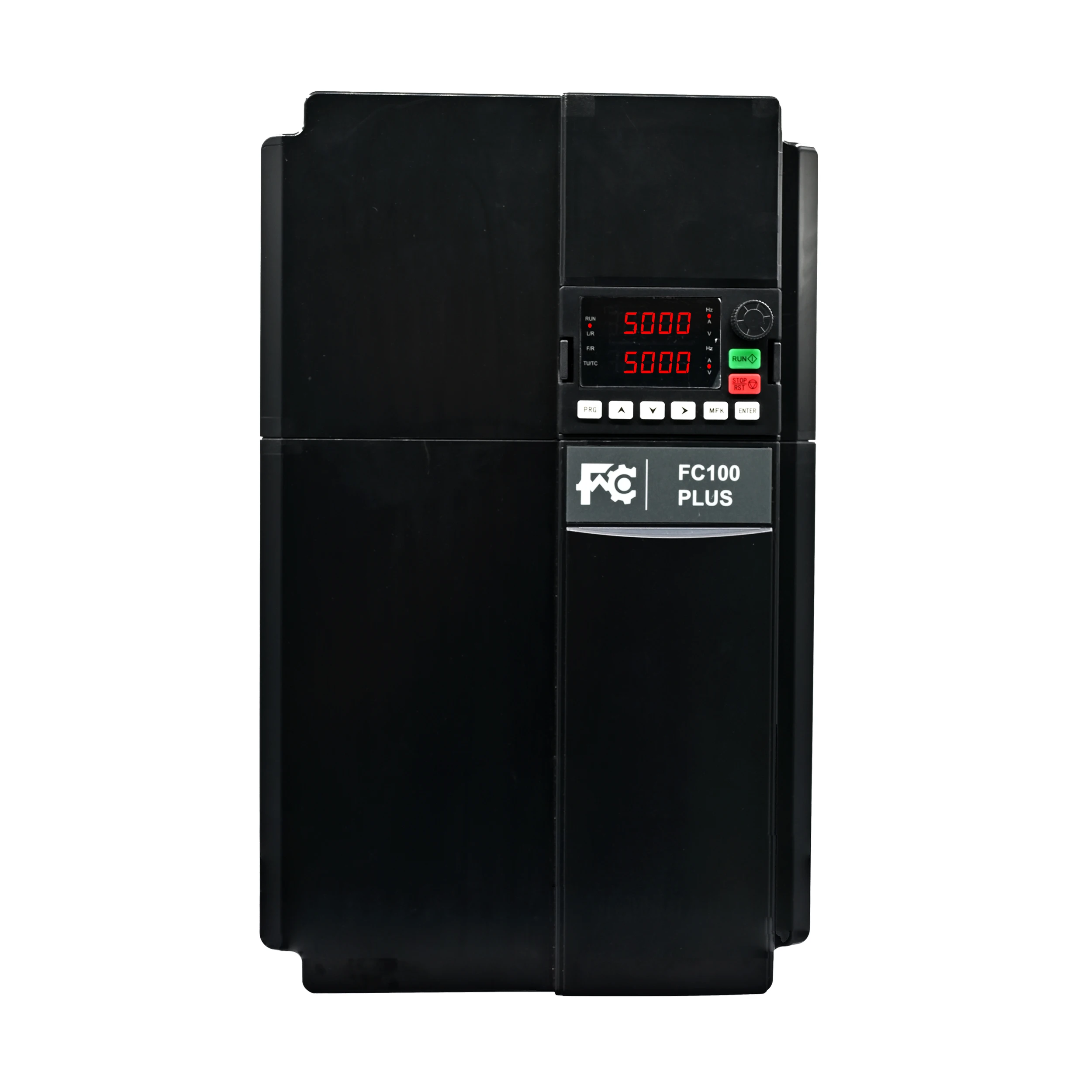

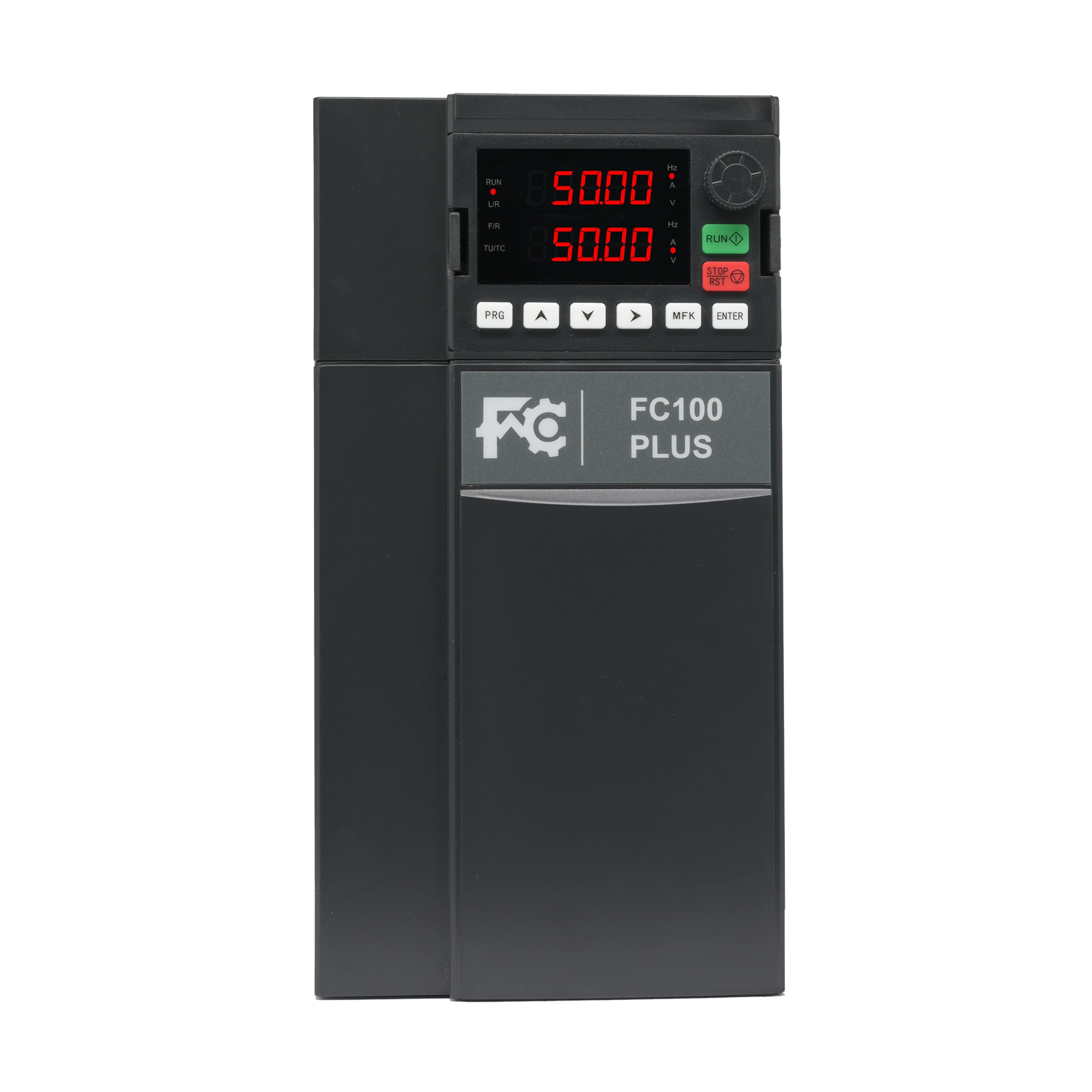

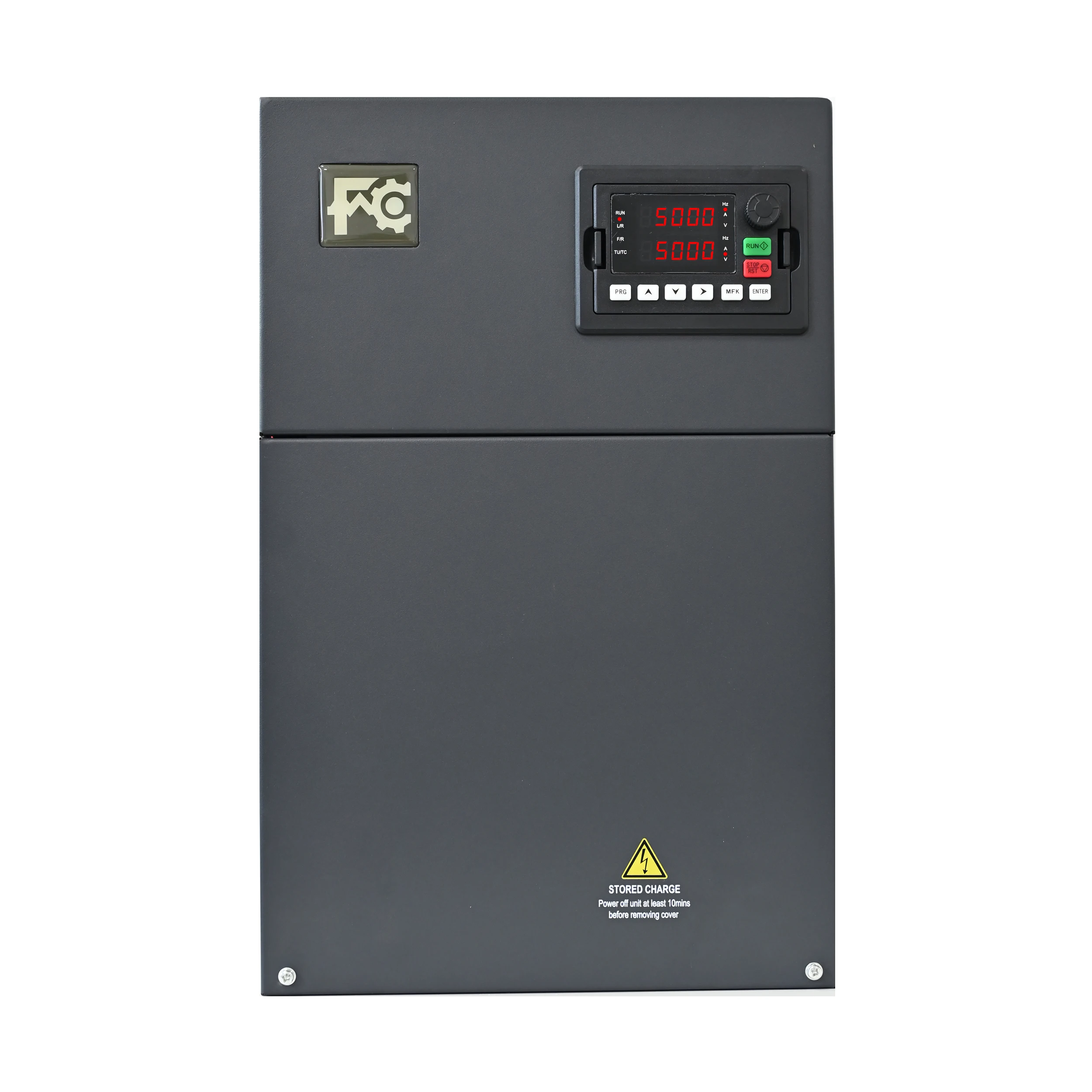

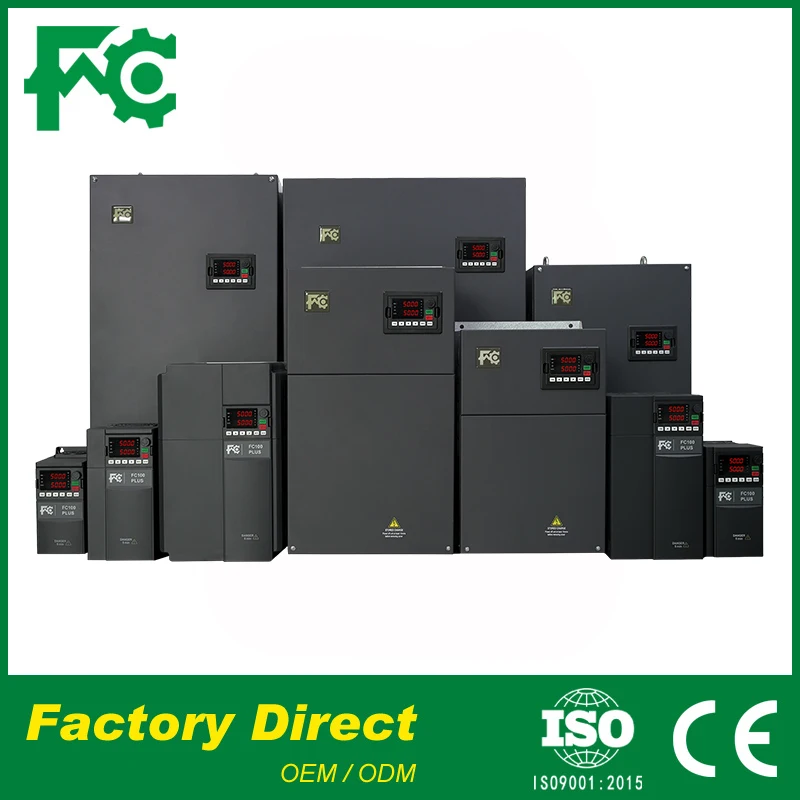

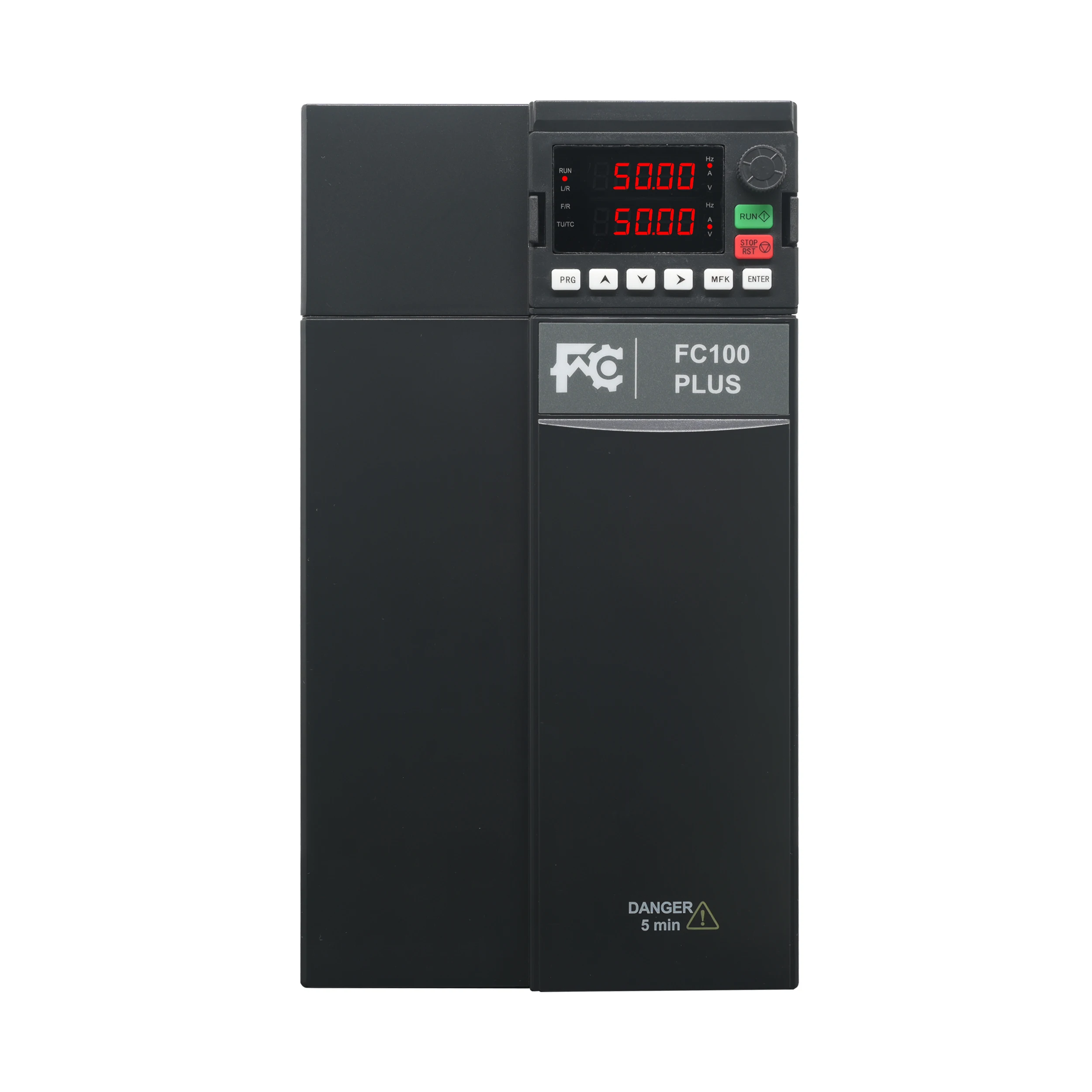

FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers
FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers
FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers
FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers
FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers
FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers
FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers

FACTORY 1/3 phase inverter frequency converter 60hz 50hz vfd China VFD manufacturers

Share on (1601017980830):


Price:

Quantity:


Product Overview

Description



Product Description






MODEL SIZE 1
FC100P-2S-0.4G~2T-2.2GB
FC100P-4T-0.75GB~4T-4.0GB
Adaptable Motor 0.4kW~4.0kW
220V/380V 1/3 PHASE
SIZE 1 :89.6 * 197.2 * 139 (mm)
MODEL SIZE 2
FC100P-2S/T-4.0GB
FC100P-4T-5.5GB~4T-7.5GB
Adaptable Motor 4.0kW~7.5kW
220V/380V 1/3 PHASE
SIZE 2 :102 * 202 * 162 (mm)
MODEL SIZE 3
FC100P-2S/T-5.5GB~2S/T-7.5GB
FC100P-4T-11GB~4T-15GB
Adaptable Motor 5.5kW~15kW
220V/380V 1/3 PHASE
SIZE 3 :125 * 242.5 * 169.5 (mm)


MODEL SIZE 4
FC100P-2S/T-11GB
FC100P-4T-18.5GB~4T-22GB
Adaptable Motor 11kW~22kW
220V/380V 1/3 PHASE
SIZE 4 :165 * 297 * 206.2 (mm)
MODEL SIZE 5
FC100P-2S/T-15G(-B)~2T-18.5G(-B)
FC100P-4T-30G~4T-37G
Adaptable Motor 18.5kW~37kW
220V/380V 3 PHASE
SIZE 5 :225 * 360 * 231.7 (mm)
MODEL SIZE 6
FC100P-2T-22G(-B)
FC100P-4T-45G
Adaptable Motor 37kW~45kW
220V/380V 3 PHASE
SIZE 6:260 * 440 * 230 (mm)


MODEL SIZE 7
FC100P-2T-30G(-B)
FC100P-4T-55G(-B)~4T-75G(-B)
Adaptable Motor 55kW~75kW
380V 1/3 PHASE
SIZE 4 :300 * 555 * 270 (mm)
MODEL SIZE 8
FC100P-4T-90G~4T-110G
Adaptable Motor 90kW~110kW
380V 3 PHASE
SIZE 8 :338 * 580 * 315 (mm)
MODEL SIZE 9
FC100P-4T-132G~4T-160G
Adaptable Motor 132kW~160kW
380V 3 PHASE
SIZE 9 :400 * 840 * 340 (mm)


Specification




Item No.

W
(MM)

H
(MM)

D
(MM)

Diameter
(MM)
Rated
Input/Output Current
(A)
Power Capacity
(KVA)
Adaptable Motor
(kW)
1/3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance)
FC100P-2S-0.4GB
89.60
197.20
139.00
Ø5
6.5/2.1
0.7
0.4
FC100P-2S-0.75GB
89.60
197.20
139.00
Ø5
8.2/4.0
1.5
0.75
FC100P-2S-1.5GB
89.60
197.20
139.00
Ø5
14.0/7.0
3
1.5
FC100P-2S-2.2GB
89.60
197.20
139.00
Ø5
23.0/9.6
4
2.2
FC100P-2S/T-4.0GB
102.00
202.00
162.00
Ø5.6
39 &19/16.5
5.9
4
FC100P-2S/T-5.5GB
125.00
242.50
169.50
Ø6.3
60 & 28/25
8.5
5.5
FC100P-2S/T-7.5GB
125.00
242.50
169.50
Ø6.3
70 & 35/30
11
7.5
FC100P-2S/T-11GB
165.00
297.00
206.20
Ø7
100 & 47/45
16
11
FC100P-2S/T-15G(-B)
225.00
360.00
231.70
Ø7
130 & 62/55
21
15
3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance)
FC100P-2T-18.5G(-B)
225.00
360.00
231.70
Ø7
77/70
24
18.5
FC100P-2T-22G(-B)
260.00
440.00
230.00
Ø7
92/80
30
22
FC100P-2T-30G(-B)
300.00
555.00
270.00
Ø8
113/110
39
30
3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance)
FC100P-4T-0.75GB
89.60
197.20
139.00
Ø5
3.4/2.1
1.5
0.75
FC100P-4T-1.5GB
89.60
197.20
139.00
Ø5
5.0/3.8
3
1.5
FC100P-4T-2.2GB
89.60
197.20
139.00
Ø5
5.8/5.1
4
2.2
FC100P-4T-4.0GB
89.60
197.20
139.00
Ø5
10.5/9.0
5.9
4
FC100P-4T-5.5GB
102.00
202.00
162.00
Ø5.6
14.6/13.0
8.9
5.5
FC100P-4T-7.5GB
102.00
202.00
162.00
Ø5.6
19/17
11
7.5
FC100P-4T-11GB
125.00
242.50
169.50
Ø6.3
28/25
16
11
FC100P-4T-15GB
125.00
242.50
169.50
Ø6.3
35/32
21
15
FC100P-4T-18.5GB
165.00
297.00
206.20
Ø7
39/37
24
18.5
FC100P-4T-22GB
165.00
297.00
206.20
Ø7
47/45
30
22
FC100P-4T-30G(-B)
225.00
360.00
231.70
Ø7
62/60
39
30
FC100P-4T-37G(-B)
225.00
360.00
231.70
Ø7
77/75
49
37
FC100P-4T-45G(-B)
260.00
440.00
230.00
Ø8
92/90
59
45
FC100P-4T-55G(-B)
300.00
555.00
270.00
Ø10
113/110
72
55
FC100P-4T-75G(-B)
300.00
555.00
270.00
Ø10
156/152
114
75
FC100P-4T-90G
338.00
580.00
315.00
Ø10
180/176
134
90
FC100P-4T-110G
338.00
580.00
315.00
Ø10
214/210
160
110
FC100P-4T-132G
400.00
840.00
340.00
Ø10
256/253
192
132
FC100P-4T-160G
400.00
840.00
340.00
Ø10
307/304
231
160


Janson Controls




Company Profile










Certifications




Payment And Shipping






FAQ


WHY US?
Q:Can I get some samples?
A:Yes,Sample order is available for quality check and market test.Butyou have to pay for it.
Q:What's delivery time?
A:It usually takes about 3-5 working days for small order and 10-15days for big order.
Q:What's your payment terms?
A:We usually accept all kinds of payment terms,Such as T/T,L/C,Western.
Q:What's your warranty terms?
A:We offer 24 months warranty time.
Q:Do you have the products in stock?
A:Depends on your request,We have standard models in stock.Somespecial products and big order will be newly produced according to your order.
Q:Can I mix different power in one container?
A:Yes,Different models can be mixed up in one container,even one order.
Q:How does your factory do the quality control?
A:Quality is our principal duty,we always attach the importance to quality controlfrom the beginning to the end of the
production.every product will be fully assembled and carefully tested before packing and shipping.
Q:Can you sell spare parts?
A:If you are using our products.we can sell spare parts to you.But wecouldn't sell the half-finished products.
