ASJ10 LD1C Din Rail Earth Leakage Fault Protection Relay Residual Current Relay For Electrical Circuit Protection
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601017987767):
Product Overview
Description

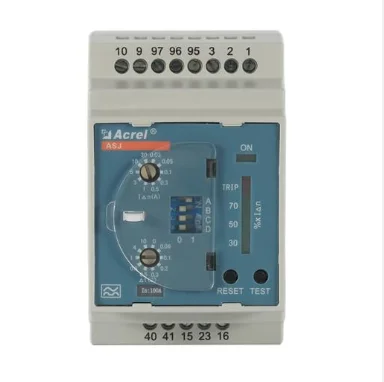

ASJ10-LD1C Earth Leakage Relay
ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined
after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating
current 50Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault
protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by
the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating
current 50Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault
protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by
the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
Product Description
50Hz±5Hz
Auxiliary power supply
AC110V, AC220V
(permissible error ±10%)
Consumption
≤5W
DIN rail 35mm

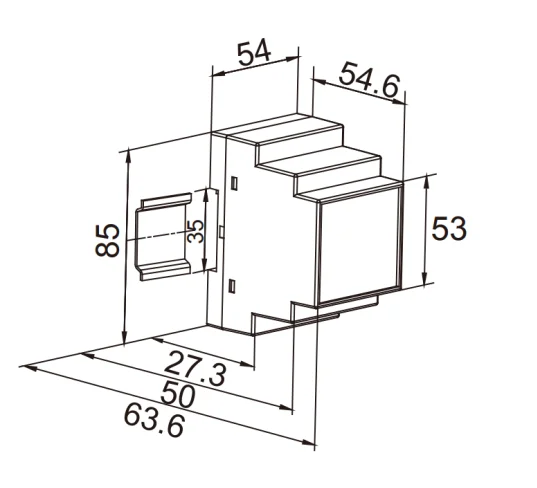

Dimension(L*W*H)
85×54×64mm

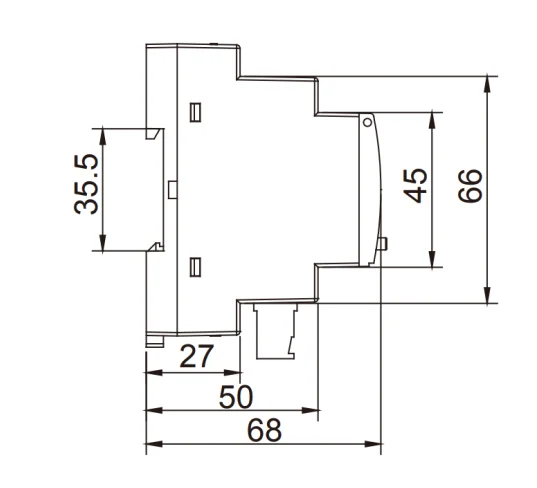

Dimension
Application
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise which concentrates on research, production, sales and
services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. Acrel has equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users realizing energy visual management ,supplying energy data services and improving electrical efficiency and safety.
Acrel Energy Efficiency Management System includes various cloud platforms such as substation operation and maintenance, safety power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit and environment variables, intelligent lighting and IT distribution insulation.
Acrel has set up branches and offices in major cities in China. Local sales and technical support teams are deployed to quickly respond to customers’ and provide users with high-quality product experience.By the end of 2018, Acrel have had 5 trademarks, 18 invention patents, 70 utility model patents, 93 appearance patents and 147 computer software copyrights, and participated in the formulation of national or industrial standards.Acrel has maintained a steady growth since its listing in 2012. With the concept of "innovation, efficiency, unity and integrity", the company will adhere to steady operation and continuous innovation to provide more high-quality solutions, products and services for the end users.
Exhibition
Shanghai Electric Power Exhibition
Indonesia Exhibition
Vietnam Exhibition
Certifications
Packing & Delivery
MINIMUM PAKAGE | Package dimensions(1 PC) 230*145*120mm | Pakage Weight(2 PC) 0.5Kg | |||||
WHOLE BOX PAKAGE | Package dimensions(48 PCS) 615*480*395mm | Pakage Weight(36 PCS) 12kG | |||||
PRODUCT HS CODE | 9028301300 | ||||||
FAQ
1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China.
2. How long would your equipment be used?
Generally, more than 10 years.
3. How long could I get my order?
Stock Products: shipping within 5-7 days.
Customized products: usually 10-15 days. It depends on your design and quantity.
4. What certificate do you have?
We have ISO9001, CE, IEC and so on.
5. What's the payment term?
We accept T/T, L/C, PayPal, cash, etc.
6. What's your MOQ?
At least one pcs.
Our production base is located in Jiangyin City, Jiangsu Province, China.
2. How long would your equipment be used?
Generally, more than 10 years.
3. How long could I get my order?
Stock Products: shipping within 5-7 days.
Customized products: usually 10-15 days. It depends on your design and quantity.
4. What certificate do you have?
We have ISO9001, CE, IEC and so on.
5. What's the payment term?
We accept T/T, L/C, PayPal, cash, etc.
6. What's your MOQ?
At least one pcs.
