Theory of fractional co2 laser machine :
The carbon dioxide laser (CO2 laser) was one of the earliest gas lasers to be developed (invented by Kumar Patel of Bell Labs in 1964, and is still one of the most useful. Carbon dioxide lasers are the highest-power continuous wave lasers that are currently available. They are also quite efficient: the ratio of output power to pump power can be as large as 20%.
The CO2 laser produces a beam of infrared light with the principal wavelength bands centering around 9.4 and 10.6 micrometers.

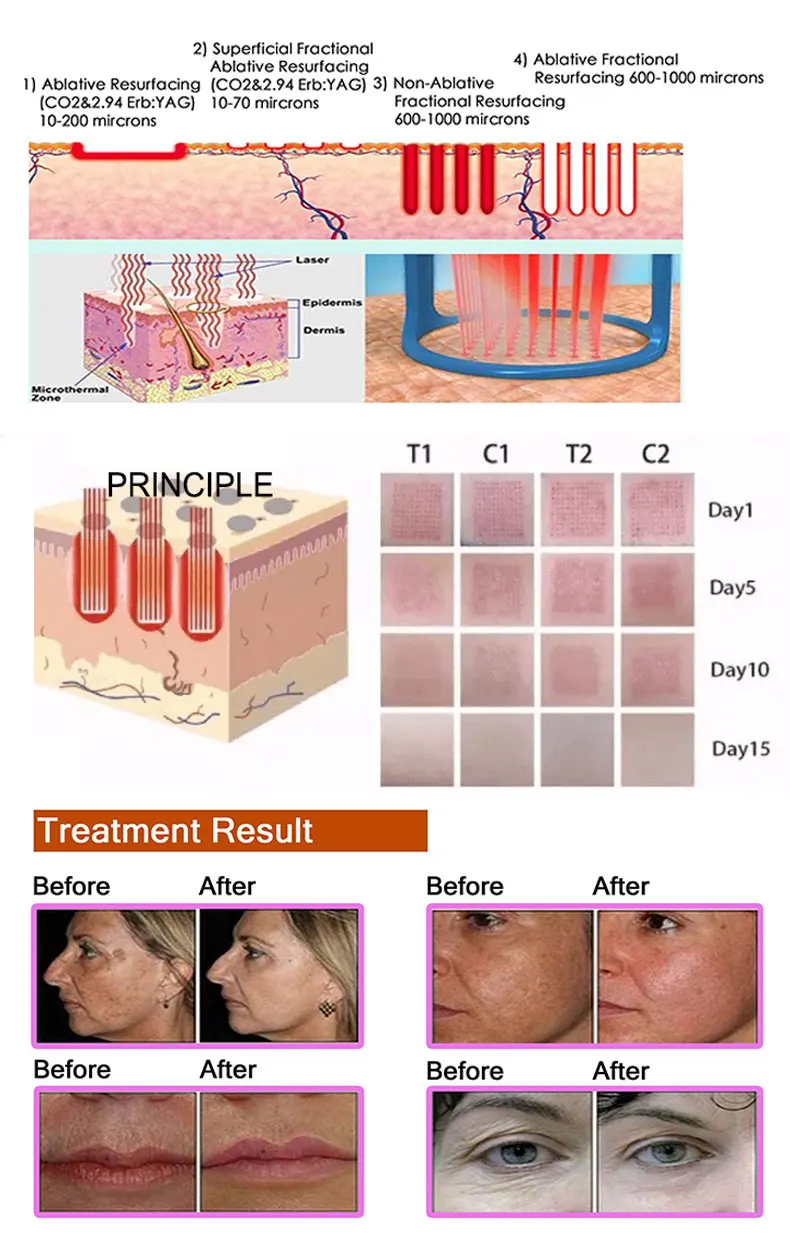

With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These
small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
The carbon dioxide laser (CO2 laser) was one of the earliest gas lasers to be developed (invented by Kumar Patel of Bell Labs in 1964, and is still one of the most useful. Carbon dioxide lasers are the highest-power continuous wave lasers that are currently available. They are also quite efficient: the ratio of output power to pump power can be as large as 20%.
The CO2 laser produces a beam of infrared light with the principal wavelength bands centering around 9.4 and 10.6 micrometers.
With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These
small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
Applications of fractional co2 laser machine :
* Skin renewing and resurfacing;
* Skin tightening;
* Acne and acne scar removal;
* Smooth burnt scars and surgery scars, dermabrasion etc-;
* Remove intractable chloasmas and pigmentation;
* Sun damage recovery
* Skin renewing and resurfacing;
* Skin tightening;
* Acne and acne scar removal;
* Smooth burnt scars and surgery scars, dermabrasion etc-;
* Remove intractable chloasmas and pigmentation;
* Sun damage recovery

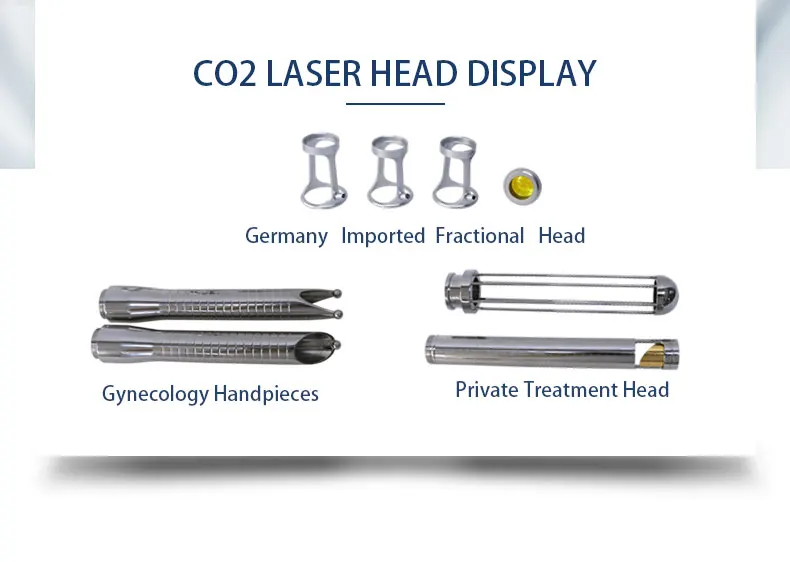

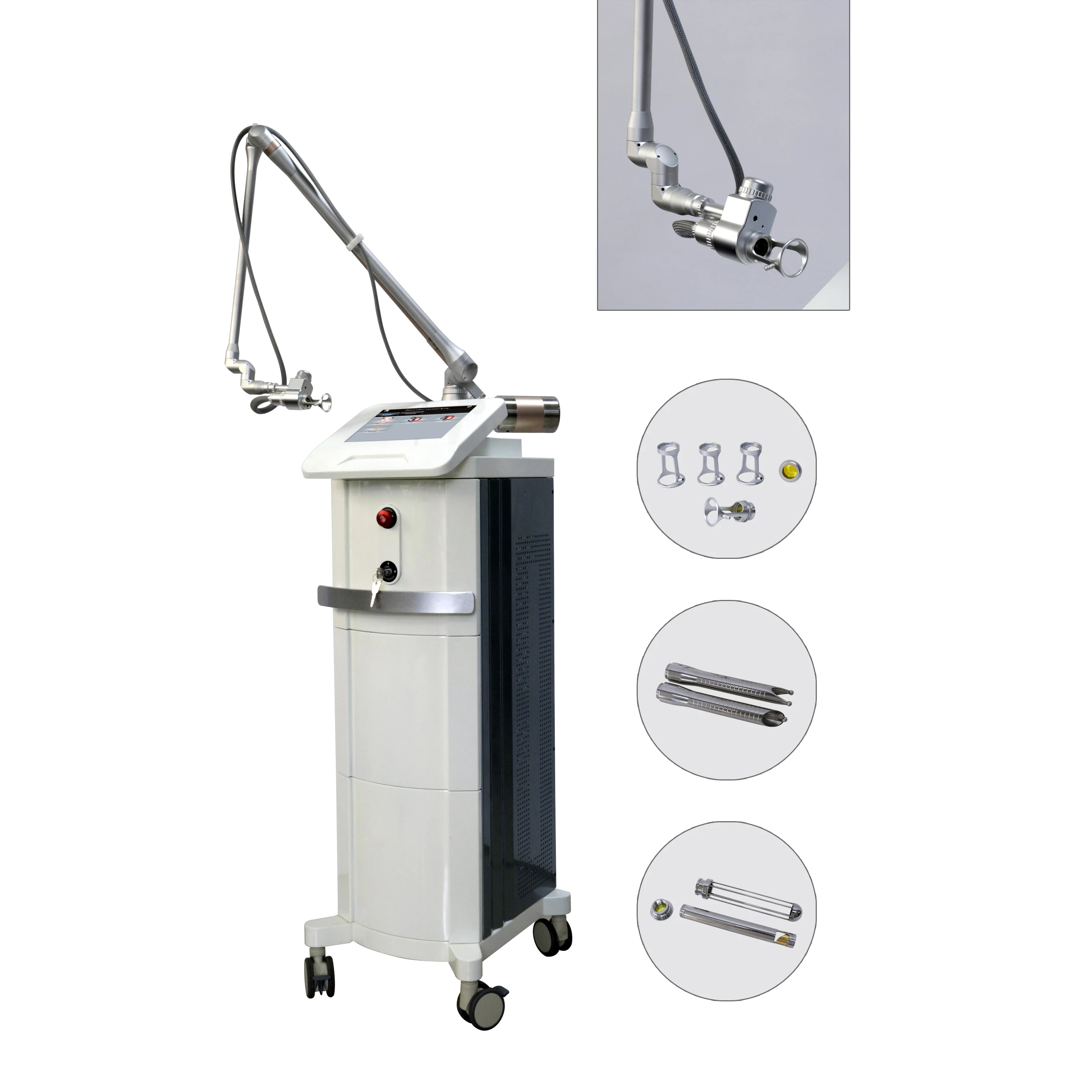

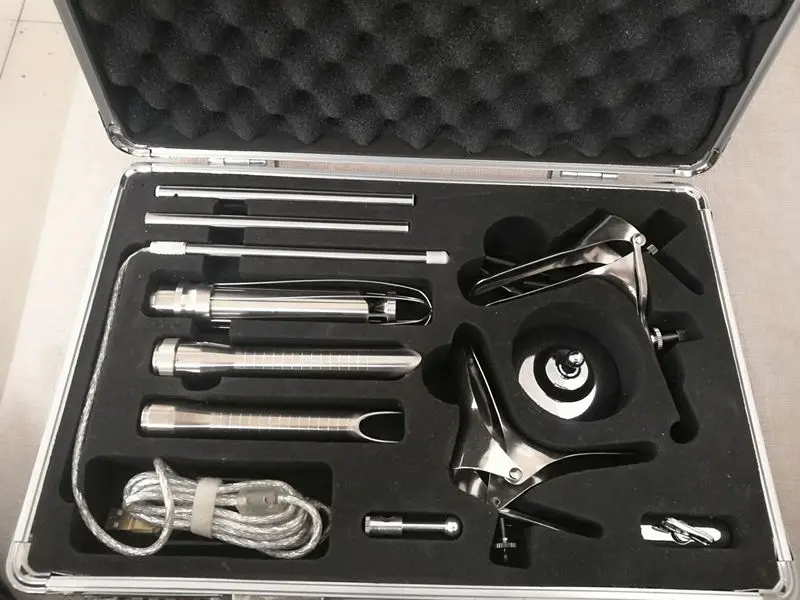

Five head
We provide 5 treatment heads,one scanning head, one cutting head, three private heads
Scanning head is used for tender skin,shrinking pores, removing striae gravidarum and chloasma Cutting head is used for removing sarcoma/nevus
Private head is used for vagina tighten, tender vulva, tender vulva
We provide 5 treatment heads,one scanning head, one cutting head, three private heads
Scanning head is used for tender skin,shrinking pores, removing striae gravidarum and chloasma Cutting head is used for removing sarcoma/nevus
Private head is used for vagina tighten, tender vulva, tender vulva
Basic information | Wavelength | 10.600 nm | |
Pulsed radiofrequency | 0.530 W | ||
Ultrapulse | 1.Max power: 130W 2.Pulse width:200 to 500μs. you can choose | ||
Pulse | Average power: 40W | ||
Matrix mode | Scan pattern | Square, rectangle, round, triangle, oval, 6-diamond shape, line or customized graphics | |
Scan pattern size | 0.1x0.1mm—20x20mm | ||
Dot quantity | 400 dots at most | ||
Working state | ultrapulsed mode; | ||
Scan mode | free scan; Sequence scan; maximum distance scan | ||
Pulse duration | 0.1-10ms | ||
Spot distance | 0.1-2mm | ||
Pulse energy | 1mj to 100mj is optional for each dot. | ||
Technical specification | Laser apparatus | Sealed off laser device stimulated by direct current | |
Condenser focus | f=50mm | ||
Beam divergence angle | 0.3 mrad | ||
Spot size | ≥0.2mm at the focus | ||
Radiation time / Interval time | 0.01 1 s | ||
Aiming beam | 635nm infrared ray | ||
Beam transport device | 7 articular arm | ||
Net weight | 57 kg | ||
Machine size | 46x61x120cm | ||
Power supply | 220V/110V | ||
Are you a beauty salon? distributor? or a trading company?
Do you need to OEM or ODM for the products?
Our factory provide OEM, ODM services, for more information, please send an inquiry!! Thanks.
Online customization
Custom Section

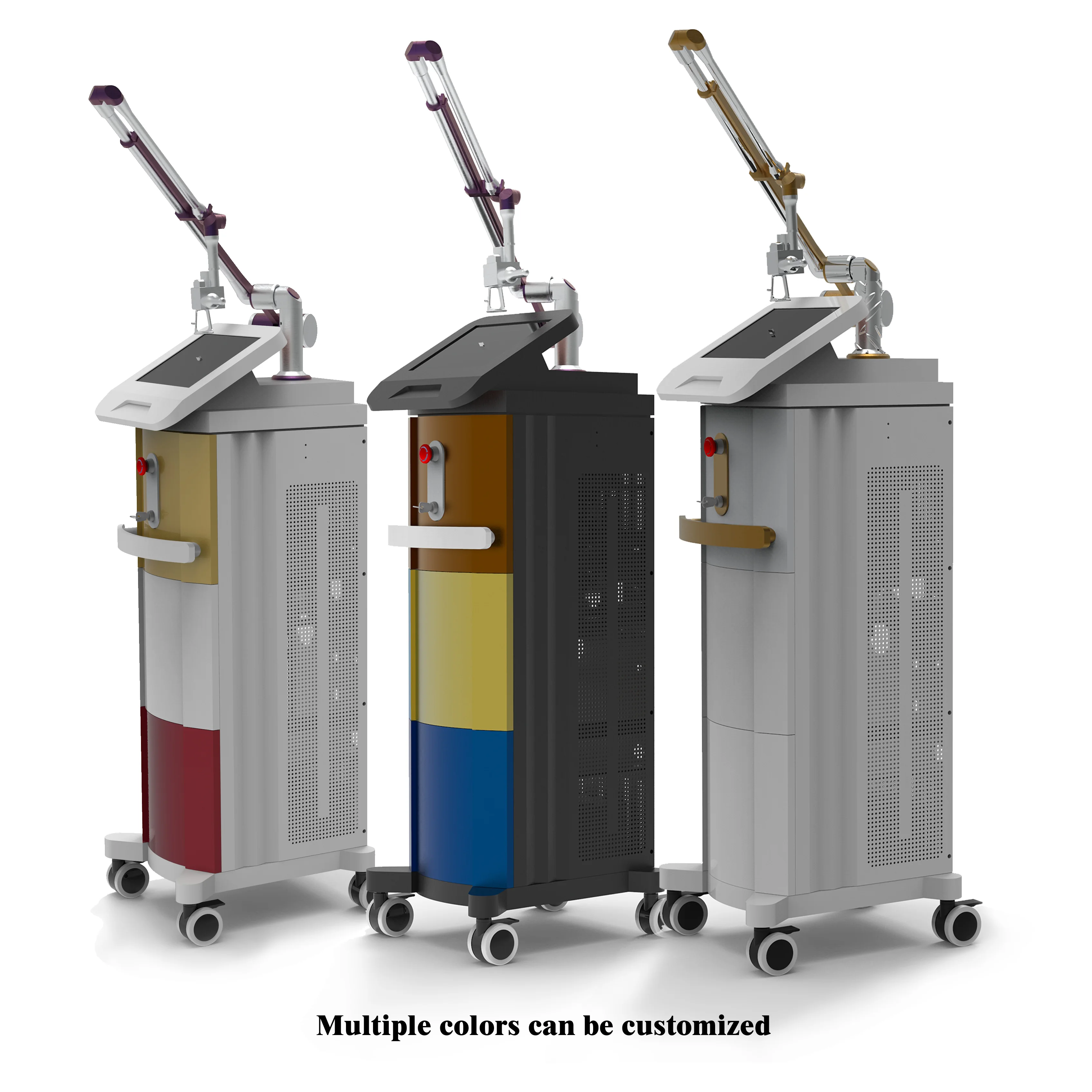

Support shell customization, color customization and language system customization...
