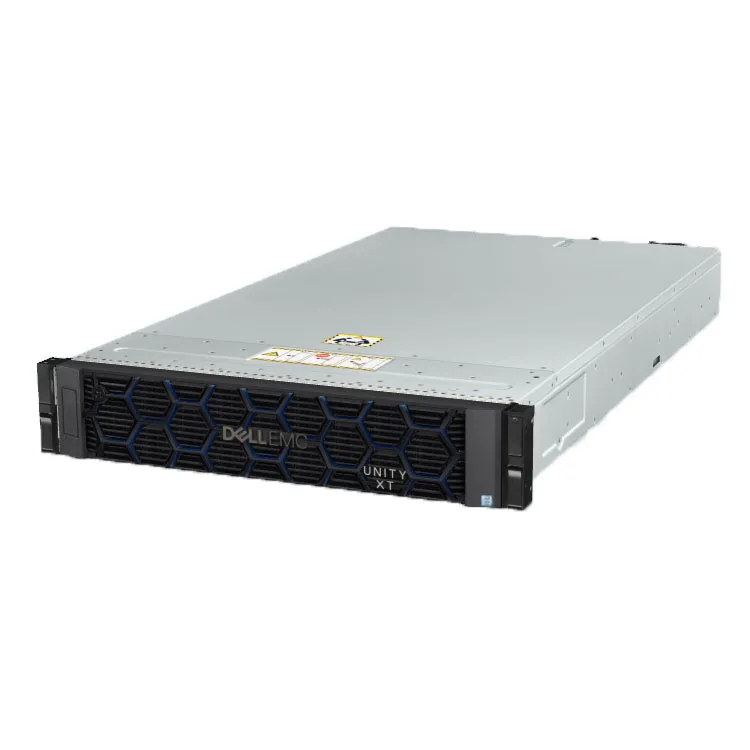

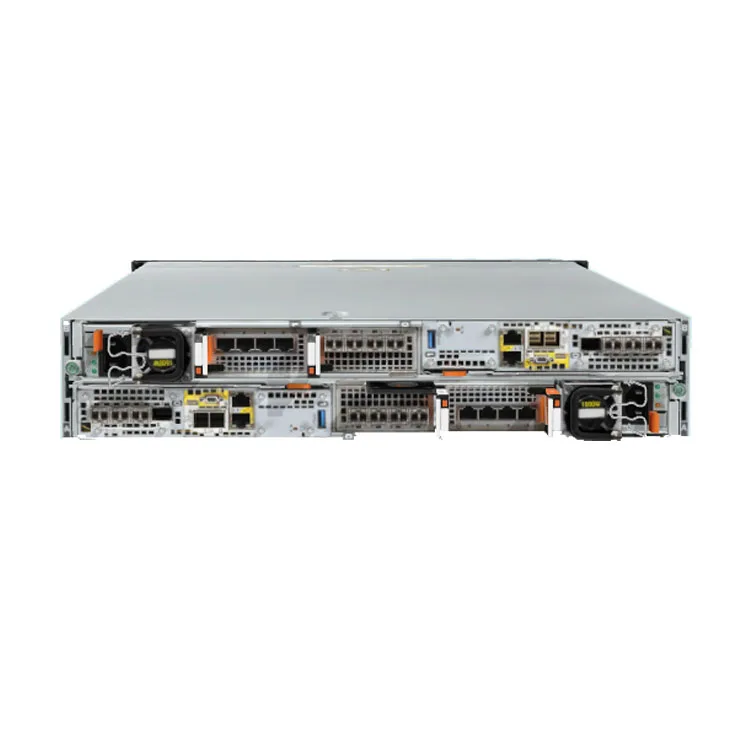

DELL UNITY XT 480 480F wih 192 GB Cache per Array Dual Controller storage with RAID Options 1/0, 5, 6
- Category: >>>
- Supplier: Beijing Jingke Xinghua Technology Co. Ltd.
Share on (1601018039724):
Product Overview
Description
product information
Per appliance | 380F/380 | 480F/480 | 680F/680 | 880F/880 | |||
Min/Max Drive Count | Min. 6 SSDs or 10 HDDs / Max. 500 | Min. 6 SSDs or 10 HDDs / Max. 750 | Min. 6 SSDs or 10 HDDs / Max. 1000 | Min. 6 SSDs or 10 HDDs / Max. 1500 | |||

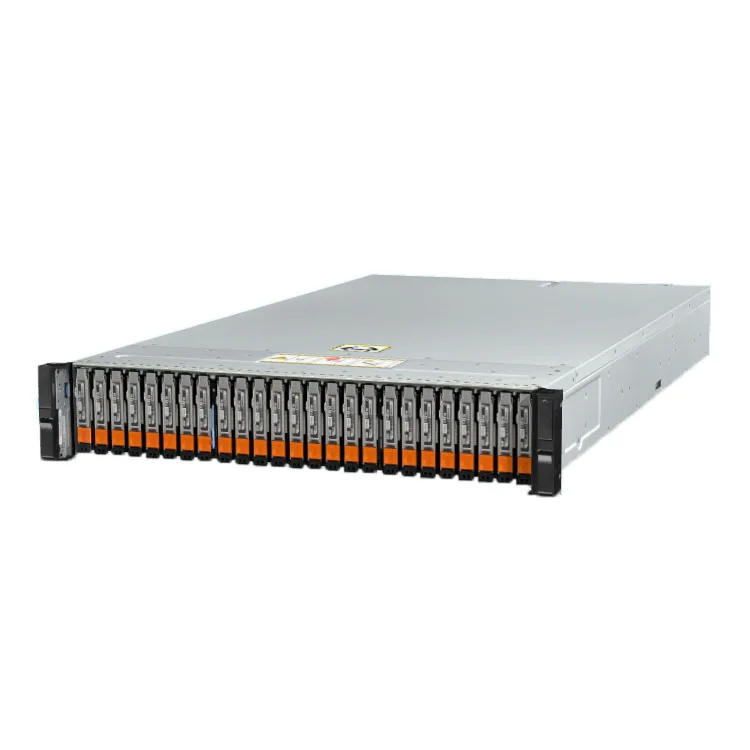

Array Enclosure | A 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives | ||||||
Drive Enclosure (DAE - Disk Array Enclosure) | All-Flash (F) models support 2.5” drives in the 2U twenty-five drive tray. Hybrid models support 2.5“drives in 2U twenty-five drive and 3.5” drives in 3U fifteen drive trays. | 384GB | 768GB | 1152GB | |||
Standby Power System | Dell Unity systems are powered by 2 power supplies (PS) per DPE/DAE. Each power supply can provide power to the entire module if the peer PS has been removed or is faulted. DPE power during a power failure is provided by a Battery Back Up (BBU) module. BBU is located within the SP enclosure and provides power to a single module (power zone) | 93 | 93 | 93 | |||
RAID Options | 1/0, 5, 6 | 2 | 2 | 4 | |||

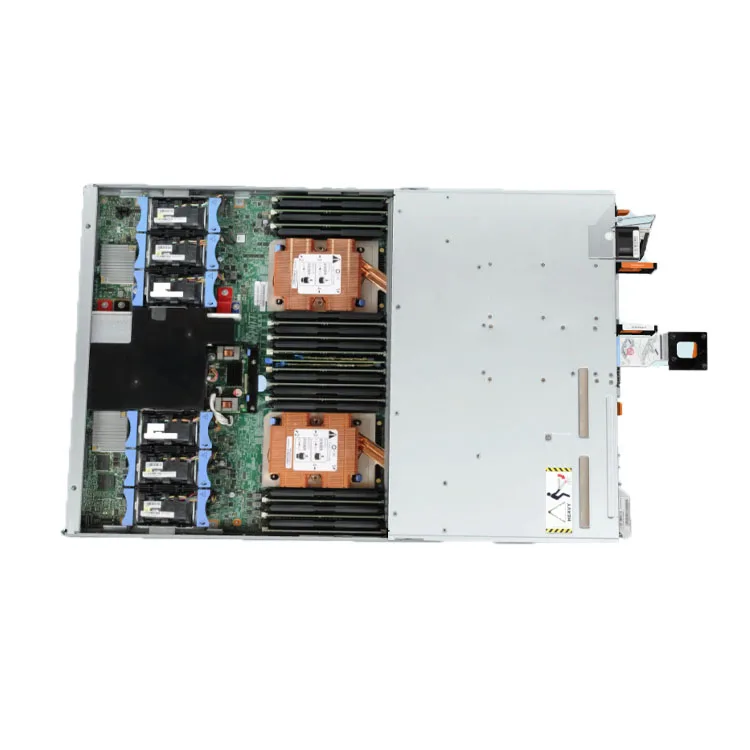

CPU per Array | 2 x Intel CPUs, 12 cores per Array, 1.7GHz | 2 x dual-socket Intel CPUs, 32 cores per Array, 1.8GHz | 2 x dual-socket Intel CPUs, 48 cores per Array, 2.1GHz | 2 x dual-socket Intel CPUs 64 cores per Array, 2.1GHz | |||
System Memory/Cache per Array | 128 GB | 192 GB | 384 GB | 768 GB | |||
Max FAST Cache per Array* | Up to 800 GBs | Up to 1.2 TBs | Up to 3.2 TBs | Up to 6.0TBs | |||
Total CacheA | Up to 928 GBs | Up to 1.39 TBs | Up to 3.58 TBs | Up to 6.76 TBs | |||
Max Mezzanine cards per ArrayB | NA | 2 | 2 | 2 | |||
Max IO modules3 | 4 | 4 | 4 | 4 | |||
Embedded SAS IO Ports per Array | 4 x 4 lane 12Gb/s SAS ports for BE (back end) Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection | |||
Optional SAS IO ports per Array | NA | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) | |||
Base 12 Gb/s SAS BE Buses per Array | 2 x 4 Lane | 2 x 4 Lane | 2 x 4 Lane | 2 x 4 Lane | |||
Max 12 Gb/s SAS BE Buses per Array | 2 x 4 Lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane | |||
Max FE (front end) Total Ports per Array (all types) | 20 | 24 | 24 | 24 | |||
Max Initiators per Array | 1,024 | 2,048 | 2,048 | 2,048 | |||
Max FC Ports per Array | 20 | 16 | 16 | 16 | |||
Embedded CNA ports per Array | 4 ports: 8/16 Gb FCD , 10Gb IP/iSCSI, or 1Gb RJ45 | NA | NA | NA | |||
1 Gbase-T/iSCSI Max Total Ports per Array | 20 | 24 | 24 | 24 | |||
10/25 GbE/iSCSI Max Total Ports per Array | 20 – 10GbE 16 – 25GbE | 24 | 24 | 24 | |||
Max Raw CapacityE | 2.4 PBs | 4.0 PBs | 8.0 PBs | 16.0 PBs | |||
Max SAN Hosts | 512 | 1,024 | 1,024 | 2,048 | |||
Max Number of Pools | 20 | 30 | 40 | 100 | |||
Max Number of LUNs per Array | 1000 | 1500 | 2000 | 6000 | |||
IOPSF (All Flash Models 380F – 880F) | up to 600K | up to 1.68M | up to 2.36M | up to 2.56M | |||
Details Images

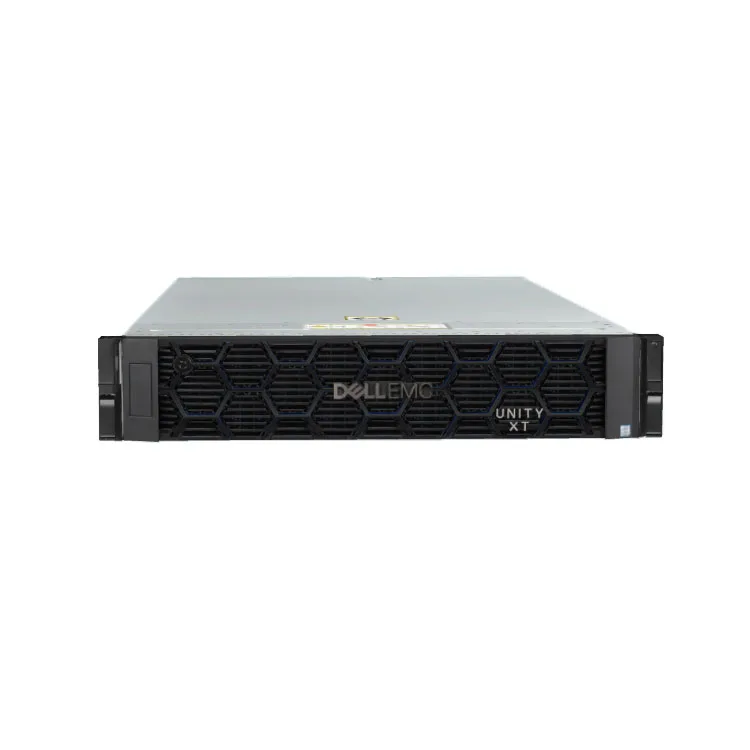

DELL UNITY XT HFA and AFA STORAGE
Simplify the path to IT transformation and unlock the full potential of your data capital with Dell Unity XT storage arrays
that are designed for performance, optimized for efficiency, and built to simplify your multi-cloud journey. Unity XT arrays
feature up to 2X more IOPS for both HFAs and AFAs, more memory, and up to 50% more drives than previous Dell Unity
models. These cost-efficient storage systems are equipped with dual-active controllers and include a rich set of all
inclusive enterprise-class software. Unity XT AFAs are available with a Future Proof guaranteed 3:1 data reduction rate
while the Unity XT HFAs are ideal for workloads that don’t require the speed and low latency of NVMe architectures.
that are designed for performance, optimized for efficiency, and built to simplify your multi-cloud journey. Unity XT arrays
feature up to 2X more IOPS for both HFAs and AFAs, more memory, and up to 50% more drives than previous Dell Unity
models. These cost-efficient storage systems are equipped with dual-active controllers and include a rich set of all
inclusive enterprise-class software. Unity XT AFAs are available with a Future Proof guaranteed 3:1 data reduction rate
while the Unity XT HFAs are ideal for workloads that don’t require the speed and low latency of NVMe architectures.
Company Profile
Company Introduction
Beijing jingke xinghua technology co., LTD is located in Beijing high-tech core circle, committed to the construction of China's information industry, set in the field of computer sales, maintenance, service in the integration of high-tech companies. We have professional engineers with rich experience in network security system configuration, we can at any time for the different needs of users to provide pre-sale consultation and after-sale technical services. Our products are involved, servers, storage, workstations, video conference, etc. A wide variety, good quality, reasonable price, customers and other industries can be widely used in enterprises. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We will with high quality products, efficient service, welcome old and new customers, win-win cooperation.
Certifications

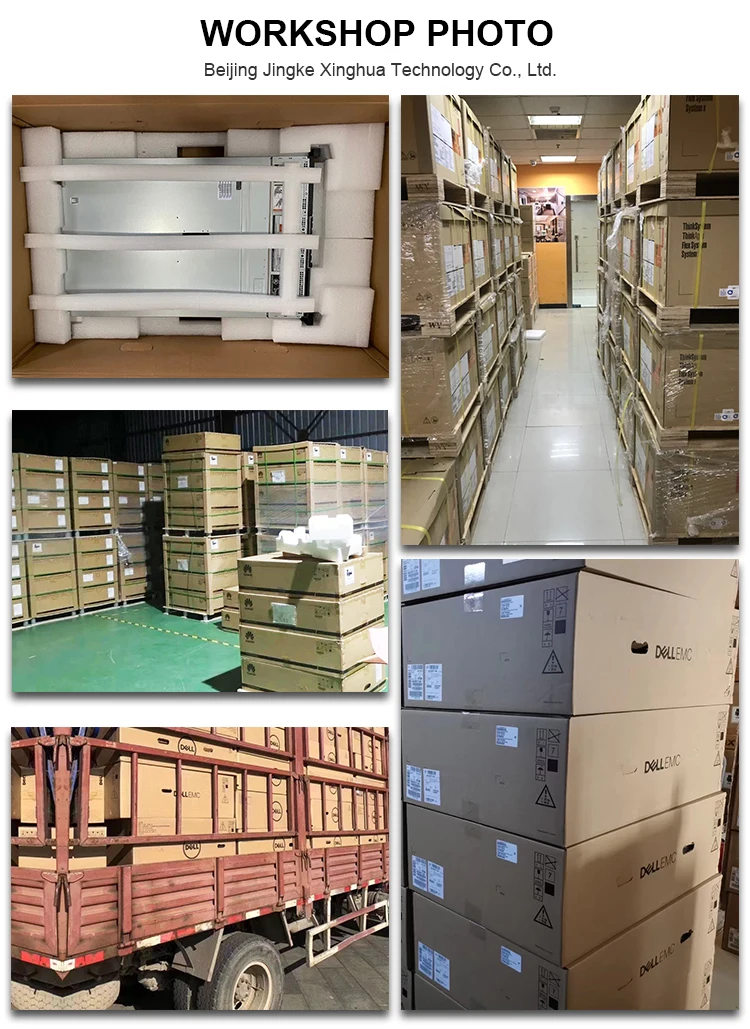

Packaging and shipping
