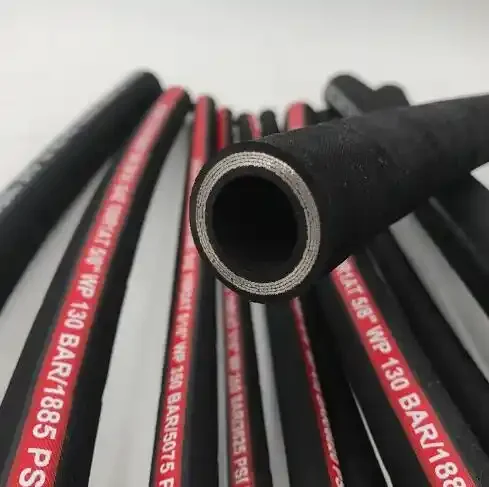

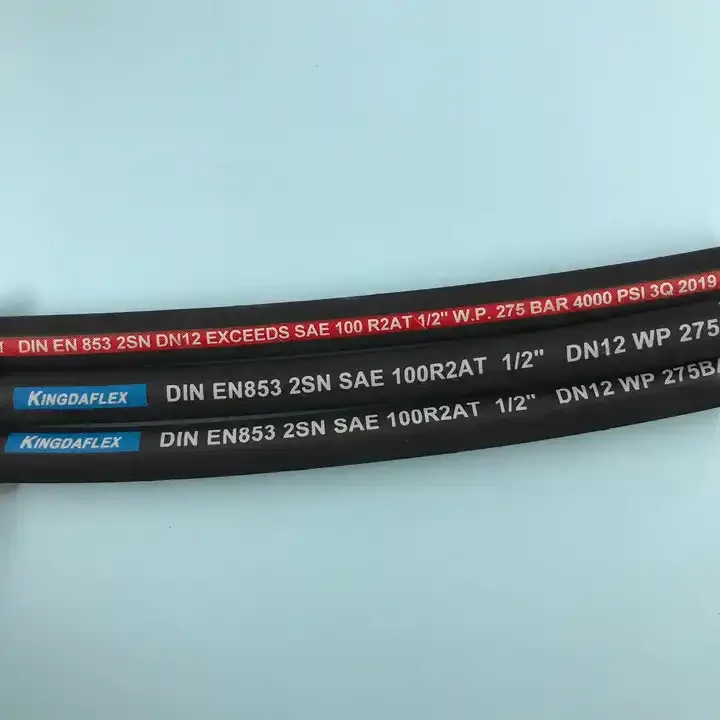

Oem Two Steel Wire Braided Rubber Hoses 2Sc Smooth Hydraulic Hose High Pressure Smooth 1Sc And 2Sc Hydraulic Hose
- Category: >>>
- Supplier: Qingdao Kingdaflex Industrial Co. Ltd.
Share on (1601018065378):
Product Overview
Description
Product Description

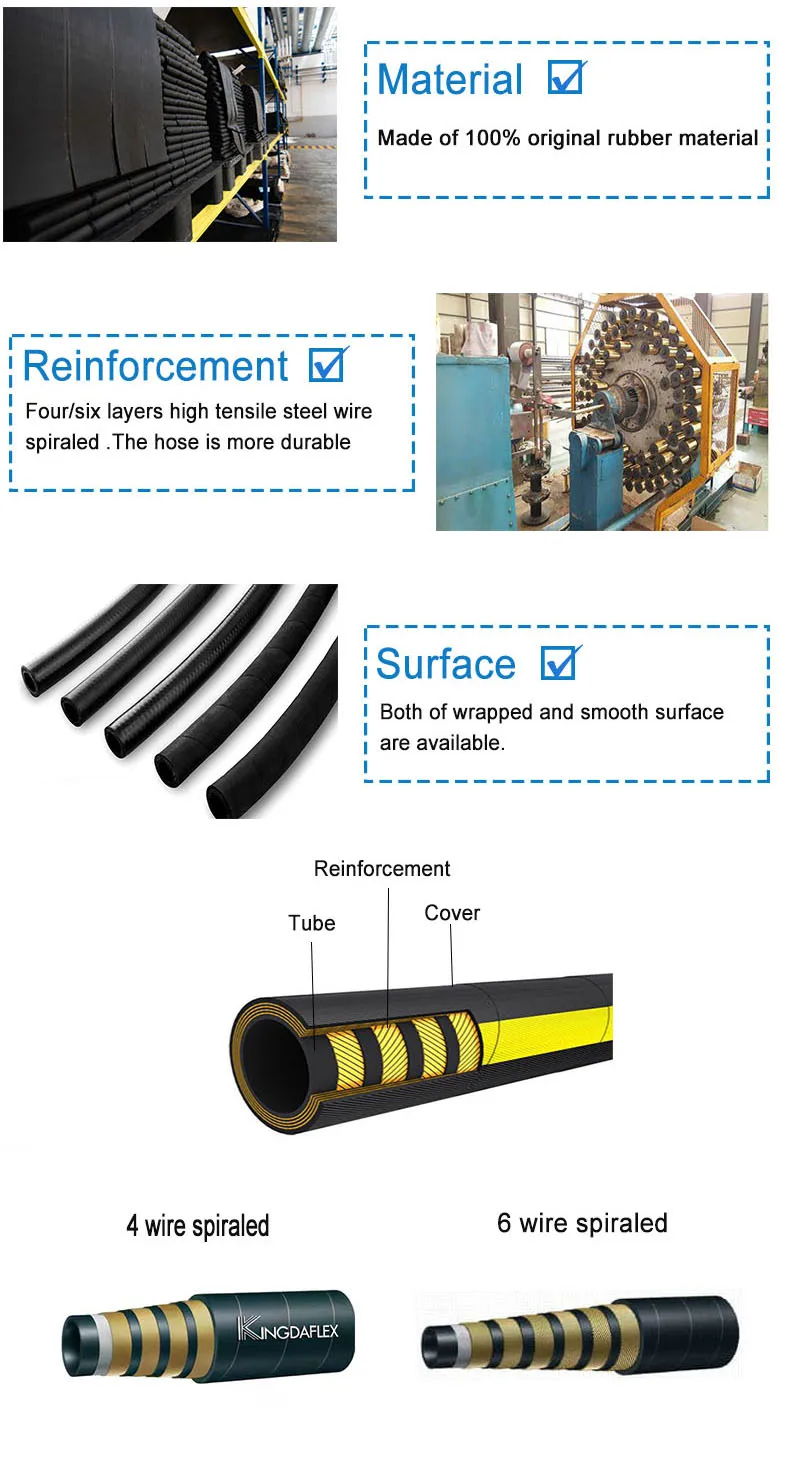

Inner: oil resistant synthetic rubber
Reinforcement: four/six high tensile steel wire braided
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface or smooth surface
Temperature range: -40℃ to +100℃
Reinforcement: four/six high tensile steel wire braided
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface or smooth surface
Temperature range: -40℃ to +100℃

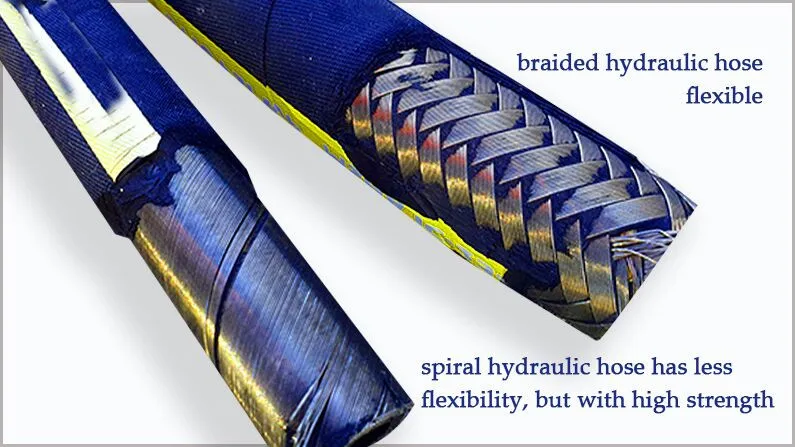

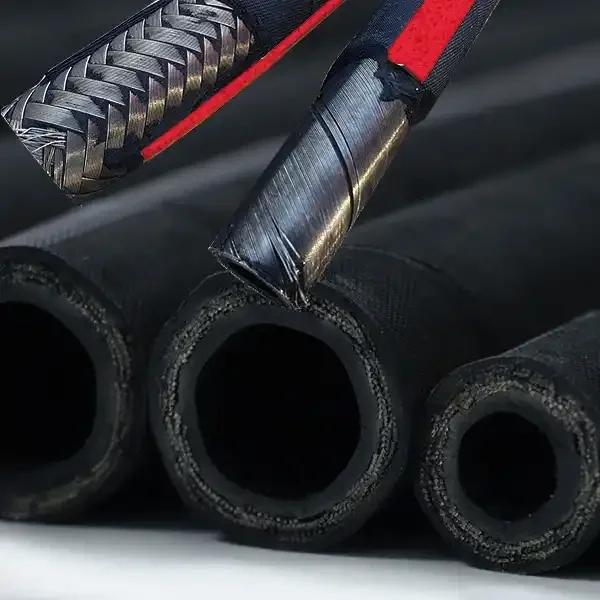

The braided reinforcement of the hydraulic hose can make it much more flexible for you to locate it for a better hydraulic hose routing.
The spiral hydraulic hose is reinforced with the spiral steel wire, the spiral constructed steel reinforcement can remain parallel, wrapping the hydraulic hose firmly, making it solid and not easy to be bent over.
The spiral hydraulic hose is reinforced with the spiral steel wire, the spiral constructed steel reinforcement can remain parallel, wrapping the hydraulic hose firmly, making it solid and not easy to be bent over.
Compared with the braided hydraulic hose, the spiral hydraulic hose has much less flexibility, but with better maximum pressure capacity. So that you can use the spiral hydraulic hose for the heavy-duty machine due to the spiral hose’s high strength.
Both of these two hydraulic hoses are manufactured with certain functions, and you only need to choose the suitable hydraulic hose for your hydraulic system, making it work better for your hydraulic project.
Both of these two hydraulic hoses are manufactured with certain functions, and you only need to choose the suitable hydraulic hose for your hydraulic system, making it work better for your hydraulic project.
Name | Hydraulic Hose / High Pressure Hose | ||||||
Size | 1/4" ~ 2" | ||||||
Reinforcement | one, two, four or six layers of steel wire | ||||||
Temperature Range | -40ºC ~ +100ºC (-40ºF~ +212 ºF) | ||||||
Application | High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids. | ||||||
Certification | SGS, CE and ISO approved | ||||||
Customized | OEM/ODM | ||||||
Packaging Detail | By weaving belt or as your request. | ||||||
Delivery | About 25 days for a 20' container. | ||||||

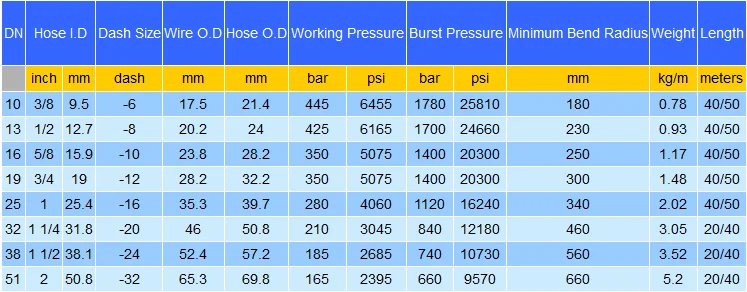

EN856 4SH
Inner: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire layers
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface
Temperature range: -40℃ to +100℃
Inner: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire layers
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface
Temperature range: -40℃ to +100℃

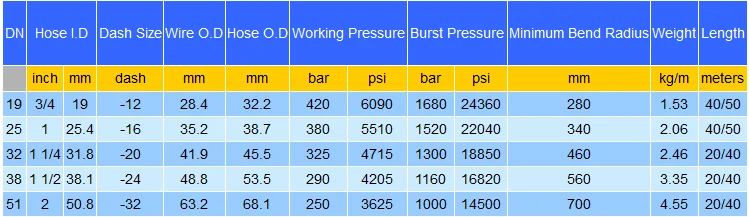

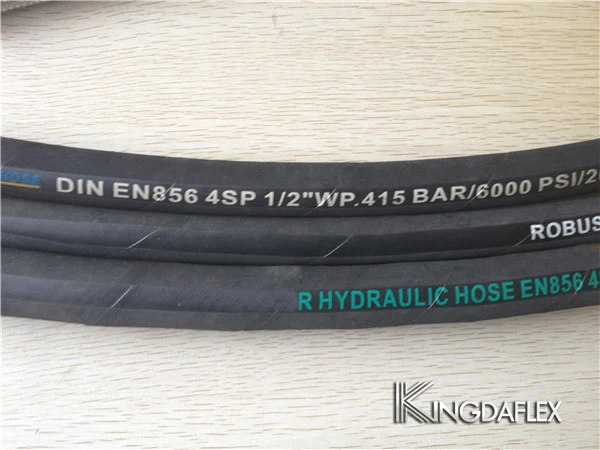

EN856 4SP
Inner: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire layers
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface
Temperature range: -40℃ to +100℃
Inner: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire layers
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface
Temperature range: -40℃ to +100℃
HOW TO USE
Working Theory :
Mechanization and automation in the hydraulic system of conveying with a certain pressure (high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.The maximum working pressure-resistant up to 70-100MPa.

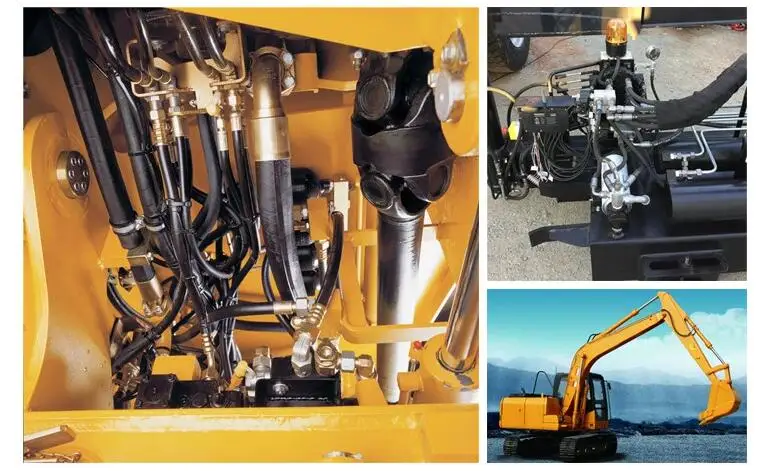

Application
The application of the hydraulic hose:
The high pressure hose is mainly used for Mine hydraulic support, oilfield exploitation, object construction, lifting transport, metallurgic forging, mine equipment, ship, injection molding machinery, agricultural machinery, all kinds of machine tools and various industrial sectors.
Mechanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.The maximum working pressure-resistant up to 70-100MPa.
Mechanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.The maximum working pressure-resistant up to 70-100MPa.
Company Profile
Kingdaflex
History: Established in 2001
Business Type : Professional flexible hose supplier
Main Products: Industrial hose, hydraulic hose, fire sleeve
Technical team: 15 years experienced workers, 16 years experienced engineers
Sales Team: 20 sales and service employees,15 years experiences in foreign trade.

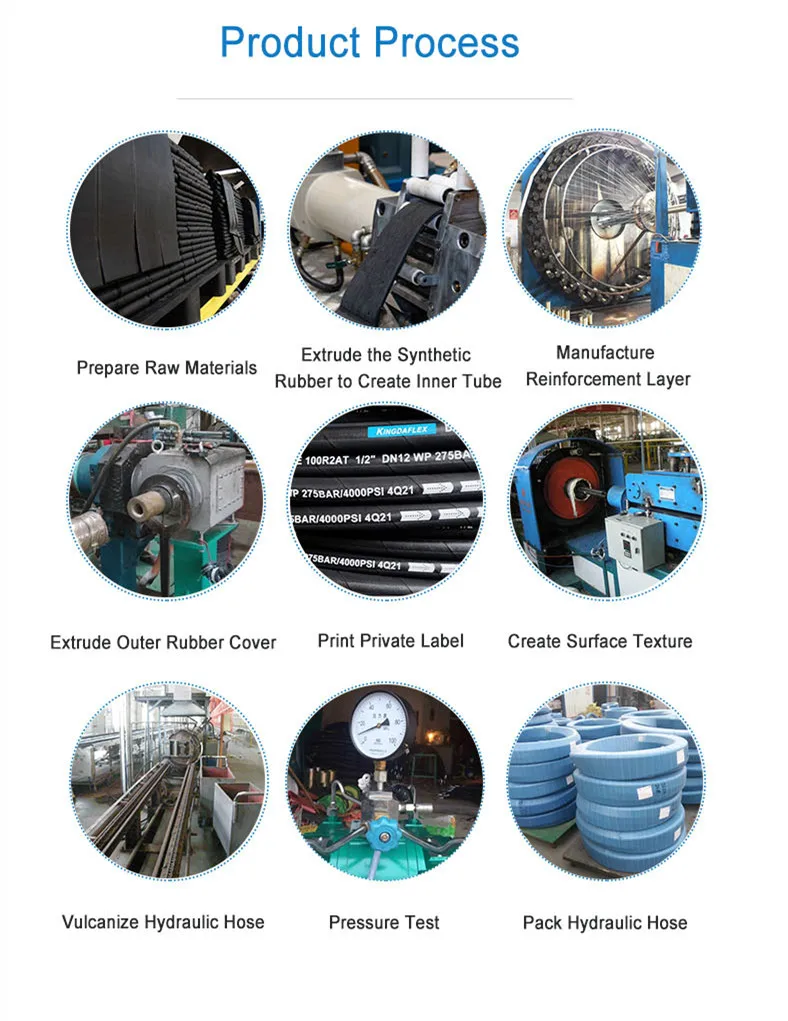

Facilities: 16 automatic high speed braiding machines, 4 steel wire spiral machines, 2 Italy VP equipment for industrial hose, 8 production lines for Industrial hose
Technology: latest rubber tech support by Qingdao University of Science& Technology
Quality control :100% inspection before shipment .Our all the products are produced according to SAE standard, DIN standard, Gost standard.
Market :more than 42 countries,1400 clients all over world
Certificate: ISO 9001 ISO 14001
Business Type : Professional flexible hose supplier
Main Products: Industrial hose, hydraulic hose, fire sleeve
Technical team: 15 years experienced workers, 16 years experienced engineers
Sales Team: 20 sales and service employees,15 years experiences in foreign trade.
Facilities: 16 automatic high speed braiding machines, 4 steel wire spiral machines, 2 Italy VP equipment for industrial hose, 8 production lines for Industrial hose
Technology: latest rubber tech support by Qingdao University of Science& Technology
Quality control :100% inspection before shipment .Our all the products are produced according to SAE standard, DIN standard, Gost standard.
Market :more than 42 countries,1400 clients all over world
Certificate: ISO 9001 ISO 14001
Feedback
Packaging & Shipping
FAQ
Q1. Who is Kingdaflex?
A: Kingdaflex is a professional manufacturer and exporter for hydraulic hose, industrial hose and fire sleeve in the market more than 15 years. We have exported to 30 countries with good reputation.
Q2. Do you have OEM servie?
A: Yes, we have OEM and ODM service.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: Usually the sample is free of charge, but the customers have to pay for the freight charge.
Q5. What is your payment term?
A: T/T 30% as deposit, and 70% before delivery or against copy of documents.
Q6. What is your delivery term?
A: EXW, FOB, CFR, CIF.
Q7. How about your delivery time?
A: Generally it will take 25 days for one container.
Q8. Do you have quality certificate?
A: Yes, we have ISO, SGS, CE and related test report.
Q9. How long can you guarantee the goods?
A: We guarantee the goods one year.
A: Kingdaflex is a professional manufacturer and exporter for hydraulic hose, industrial hose and fire sleeve in the market more than 15 years. We have exported to 30 countries with good reputation.
Q2. Do you have OEM servie?
A: Yes, we have OEM and ODM service.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: Usually the sample is free of charge, but the customers have to pay for the freight charge.
Q5. What is your payment term?
A: T/T 30% as deposit, and 70% before delivery or against copy of documents.
Q6. What is your delivery term?
A: EXW, FOB, CFR, CIF.
Q7. How about your delivery time?
A: Generally it will take 25 days for one container.
Q8. Do you have quality certificate?
A: Yes, we have ISO, SGS, CE and related test report.
Q9. How long can you guarantee the goods?
A: We guarantee the goods one year.
