Product Overview
Description
Display General Description

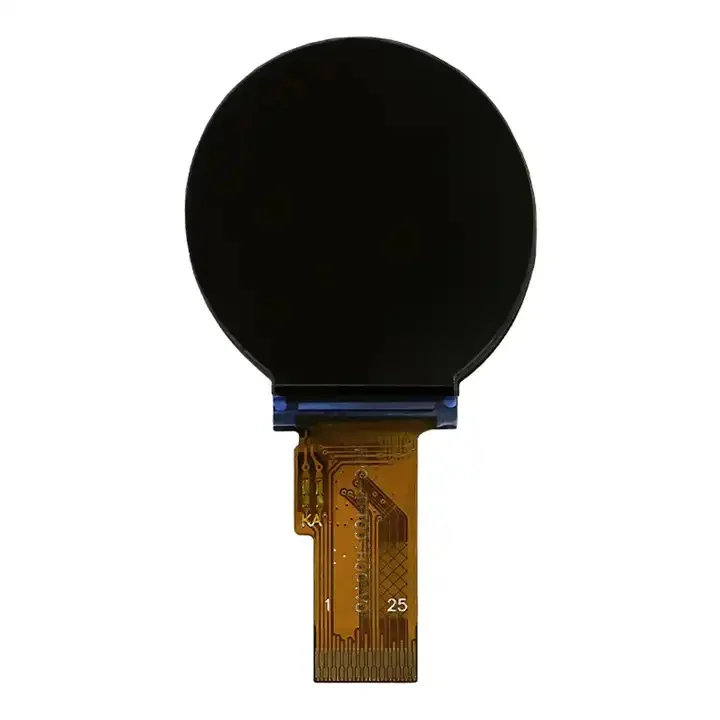

The TFT009B001 is a small and lively module with a 0.9-inch TFT LCD display. Manufactured by SWICN, this module showcases a 128x128 RGB pixel resolution on a black backdrop, offering an attractive visual encounter. Its typical brightness is 250cd/m2, guaranteeing clear visibility under various lighting conditions. Equipped with the GC9A01 driver IC and supporting the 4-wire SPI interface, this module ensures dependable performance.
The TFT009B001 is compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility makes it suitable for a wide array of applications, such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
The module's 25-pin Flexible Printed Circuit (FPC) is designed with a Board to Board (B2B) connector, allowing for effortless and direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited, the manufacturer of the TFT009B001 , offers customization options to meet specific requirements.We provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly matches their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
The TFT009B001 is compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility makes it suitable for a wide array of applications, such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
The module's 25-pin Flexible Printed Circuit (FPC) is designed with a Board to Board (B2B) connector, allowing for effortless and direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited, the manufacturer of the TFT009B001 , offers customization options to meet specific requirements.We provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly matches their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | TFT | |
2 | Diagonal Size | 0.9 | inch |
3 | Resolution | 128(RGB) x 128 | Dots |
4 | Active Area | 23.04(H) x 23.04(V) | mm |
5 | Outline Dimension | 25.23(H) x 27.14(V) | mm |
6 | Thickness | 1.95 ±0.15 | mm |
7 | Pixel Pitch | 0.18(W) x 0.18(H) | mm |
8 | Pixel Size | 0.18(W) x 0.18(H) | mm |
9 | Display Driver IC | ST7735P3 | - |
10 | Touch Driver IC | NO Touch | - |
11 | Display Color | 262K | - |
12 | Gray Scale | 8 | Bit |
13 | Brightness | 250 (Typ.) | cd /m2 |
14 | Interface | 4-wire SPI | - |
15 | IC Package Type | COG | - |
16 | Module Connecting Type | Connector (Pitch:0.3mm) | - |
17 | Contrast Ratio | TBD(Typ.) | - |
18 | Pins | 25 | Pins |
19 | Operating Temperature | -20~70 | ℃ |
20 | Storage Temperature | -30~80 | ℃ |

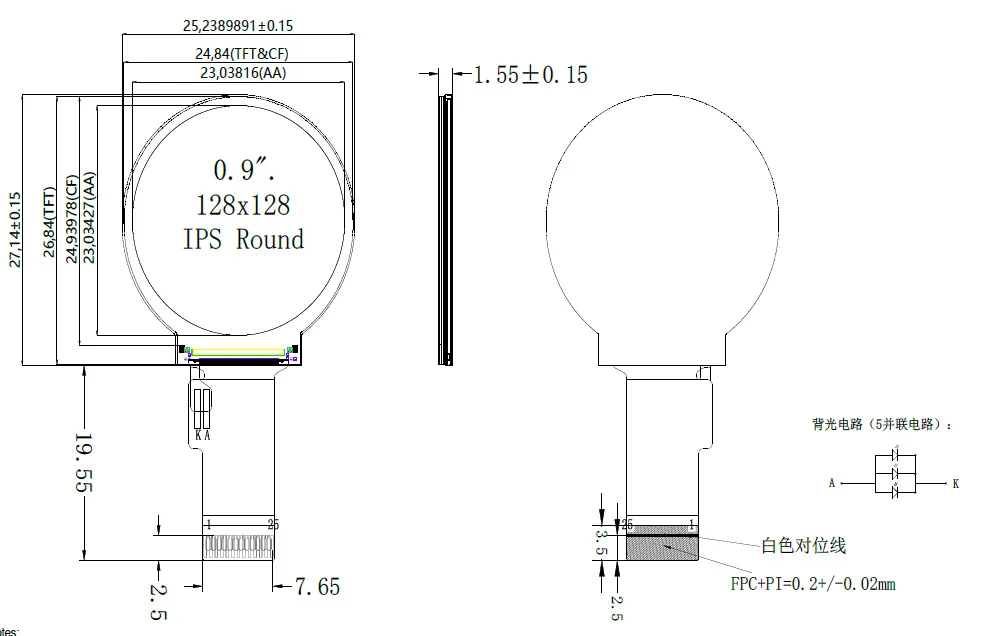

Drawings
Product Details
About TFT Display
SWI presents a comprehensive range of small to medium-sized TFT display modules, spanning from 0.96 inches to 10.1 inches. Our offerings encompass both custom-engineered display modules and off-the-shelf solutions from a wide array of technologies. These modules can be integrated seamlessly with touch sensors and/or cover lenses.
Our TFT LCD modules include various options such as TFT panels, TFT LCM with controller boards, industry-standard mono TFT LCMs, TFT color displays, IPS displays, and are designed to operate efficiently within a broad temperature range of -20°C to +70°C or -30°C to +80°C. Multiple interface options, including MCU, RGB, SPI, UART, 8080, and LVDS, are available. We also offer customization options for backlighting and FPC.
Our products find applications across a diverse spectrum of industries, including E-cigarettes, wearable devices, energy metering equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities, and industrial control.
Leveraging our automatic direct bonding process, we have the capability to seamlessly integrate these displays with customized capacitive touch panels and/or cover lenses using lamination techniques such as OCA, SCA, or OCR.
Our TFT LCD modules include various options such as TFT panels, TFT LCM with controller boards, industry-standard mono TFT LCMs, TFT color displays, IPS displays, and are designed to operate efficiently within a broad temperature range of -20°C to +70°C or -30°C to +80°C. Multiple interface options, including MCU, RGB, SPI, UART, 8080, and LVDS, are available. We also offer customization options for backlighting and FPC.
Our products find applications across a diverse spectrum of industries, including E-cigarettes, wearable devices, energy metering equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities, and industrial control.
Leveraging our automatic direct bonding process, we have the capability to seamlessly integrate these displays with customized capacitive touch panels and/or cover lenses using lamination techniques such as OCA, SCA, or OCR.
