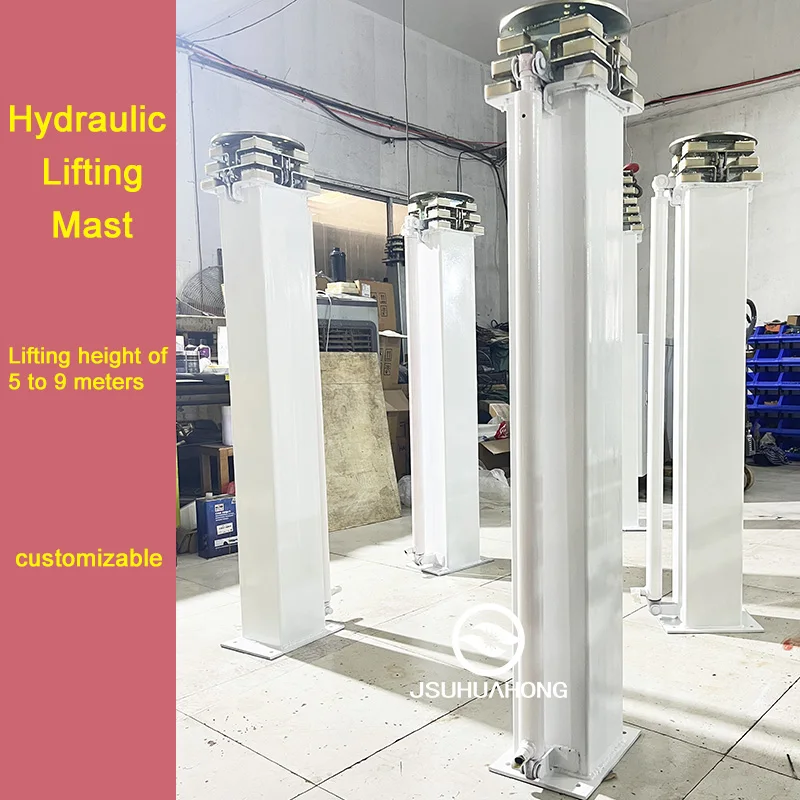

5M 6M 7M 8M 9M100Kg Max Payload Steel Telescopic Lifting Rod Mast Hydraulic Lifting Mast
- Category: >>>
- Supplier: Yixing Huahong Electrical Appliance Manufacturing Co. Ltd.
Share on (1601018159478):
Product Overview
Description
Products Description

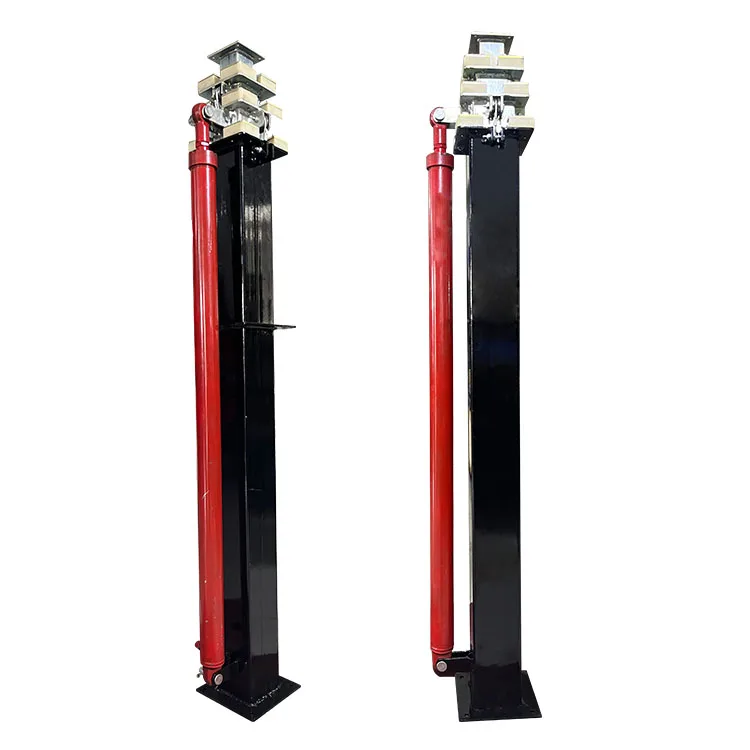

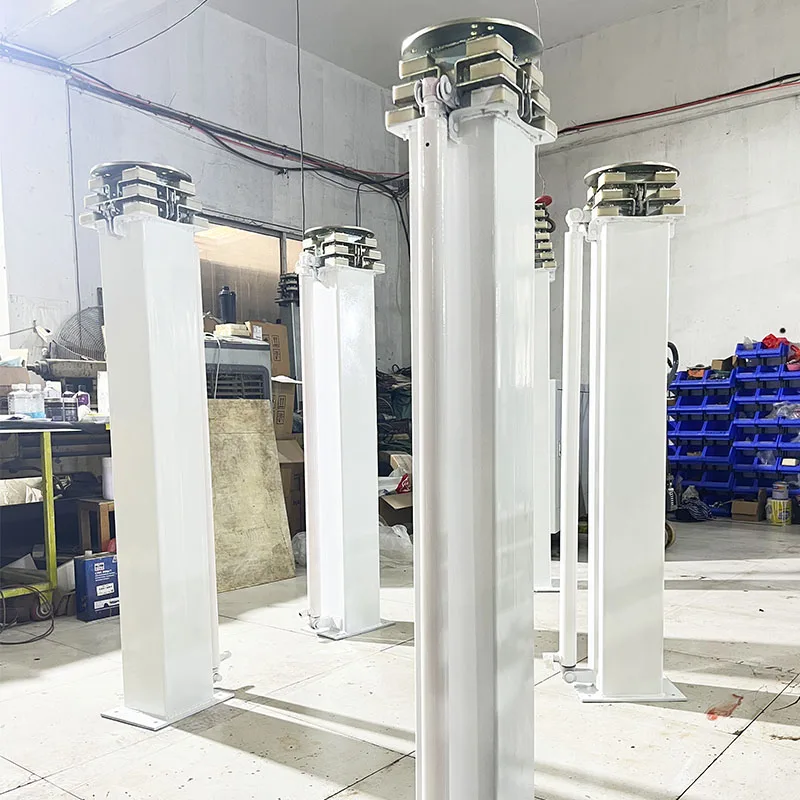

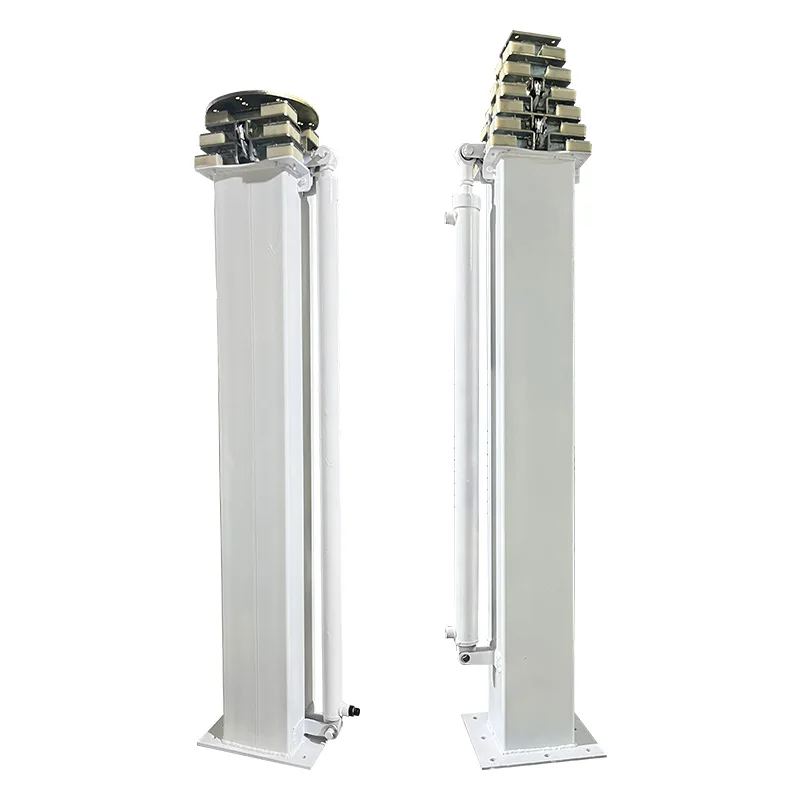

Hydraulic Mast Components and Advantages
1.It operates via a hydraulic cylinder, which utilizes the hydraulic system to control the vertical movement of the mast. This
design ensures stable and precise lifting operations, regardless of environmental conditions. The mast boasts high bearing
capacity and stability, making it suitable for various environments.
2.The lifting mast typically utilizes a wire rope pulley block and square steel pipe. The wire rope pulley system, typically
composed of a series of pulleys and ropes, is installed on the mast structure to vertically lift it. The design of the pulley
block reduces friction, enhancing efficiency and stability. The square steel pipe, made of high-strength steel, provides ample
support and stability. Together, they form the core structure of the lifting mast, suitable for various lifting requirements.
design ensures stable and precise lifting operations, regardless of environmental conditions. The mast boasts high bearing
capacity and stability, making it suitable for various environments.
2.The lifting mast typically utilizes a wire rope pulley block and square steel pipe. The wire rope pulley system, typically
composed of a series of pulleys and ropes, is installed on the mast structure to vertically lift it. The design of the pulley
block reduces friction, enhancing efficiency and stability. The square steel pipe, made of high-strength steel, provides ample
support and stability. Together, they form the core structure of the lifting mast, suitable for various lifting requirements.
Product Paramenters
Yixing Huahong Electrical Appliance Manufacturing Co., Ltd | ||||||||||||
SYH- Hydraulic Lifting Mast | ||||||||||||
SELECTION TABLE (Hydraulic mast) | ||||||||||||
Model Code | SYH-4M | SYH-5M | SYH-6M | SYH-7M | SYH-8M | SYH-9M | ||||||
Extended Height | 4 meters | 5 meters | 6 meters | 7 meters | 8 meters | 9 meters | ||||||
Retracted Height | 1430mm | 1510mm | 1580mm | 1650mm | 1760mm | 1800mm | ||||||
Net weight | 96kg | 110kg | 124kg | 132kg | 147kg | 162kg | ||||||
Number of sections | 4 sections | 5 sections | 5 sections | 6 sections | 7 sections | 7 sections | ||||||
Base tube size | 140×140mm | 140×140mm | 160×160mm | 160×160mm | 180×180mm〔Square tube〕 | |||||||
Top tube size | 50×50mm〔Square tube〕 | |||||||||||
Brand | JSUHUAHONG | |||||||||||
Mast Type | Multi-Section Retractable Mast | |||||||||||
material quality | Steel〔Square tube wall thickness 2.0mm〕 | |||||||||||
Lifting Driver | Hydraulic | |||||||||||
Max payload | 100kg | |||||||||||
Voltage | AC220V,DC48V,DC36V,DC24V,DC12V, | |||||||||||
Hydraulic Cylinder | 1.2KW / 2.2KW | |||||||||||
Surface treatment | Galvanizatio/Powder Coat | |||||||||||
Feature | The lifting mechanism can be paused at any desired height during operation. | |||||||||||

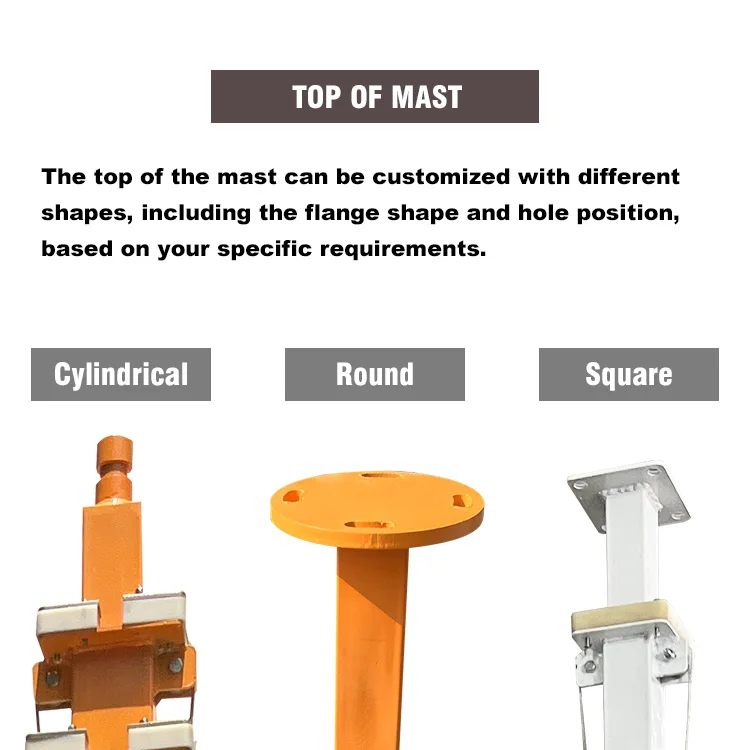

We can customize various aspects such as expansion and contraction heights, closure heights, sections, upper and lower flanges,colors, spiral lines, and pipes based on your specific requirements. | ||||||||||||
Recommend Products

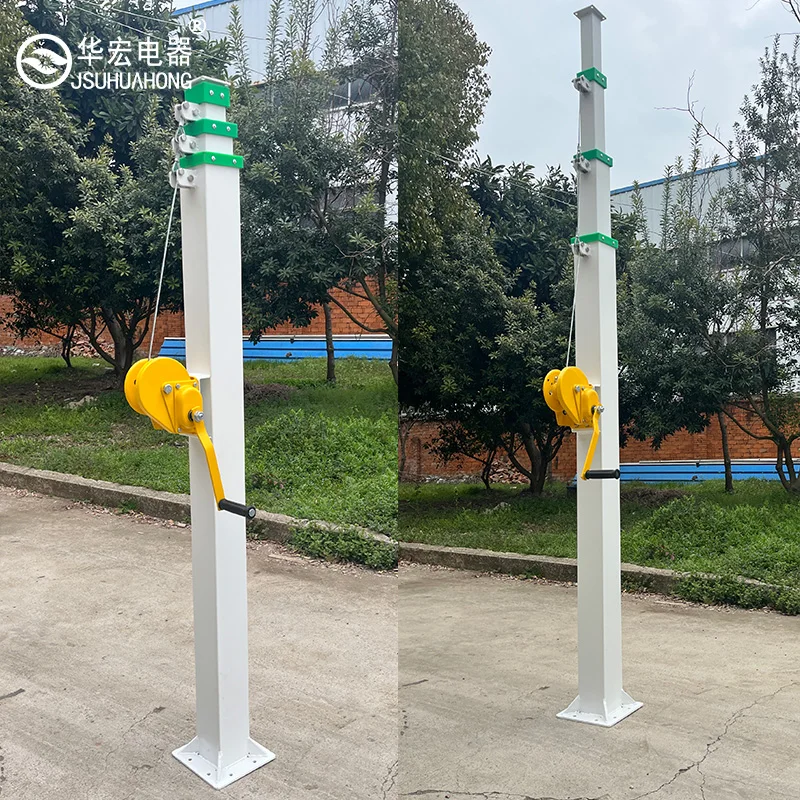

Manual lifting mast
Lifting height: 3-12 meters high
A hand-cranked lifting mast is a mechanical device designed to raise and lower loads using manual effort.
Electric mast
An electric telescope mast is a vertically extendable pole powered by an electric motor, designed to raise and lower attached equipment smoothly and efficiently.

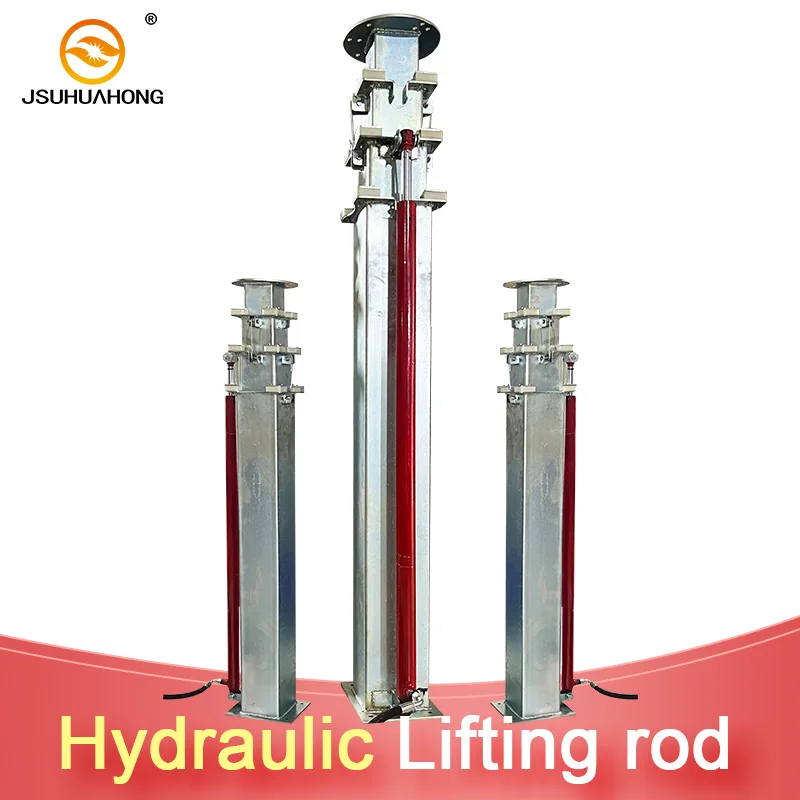

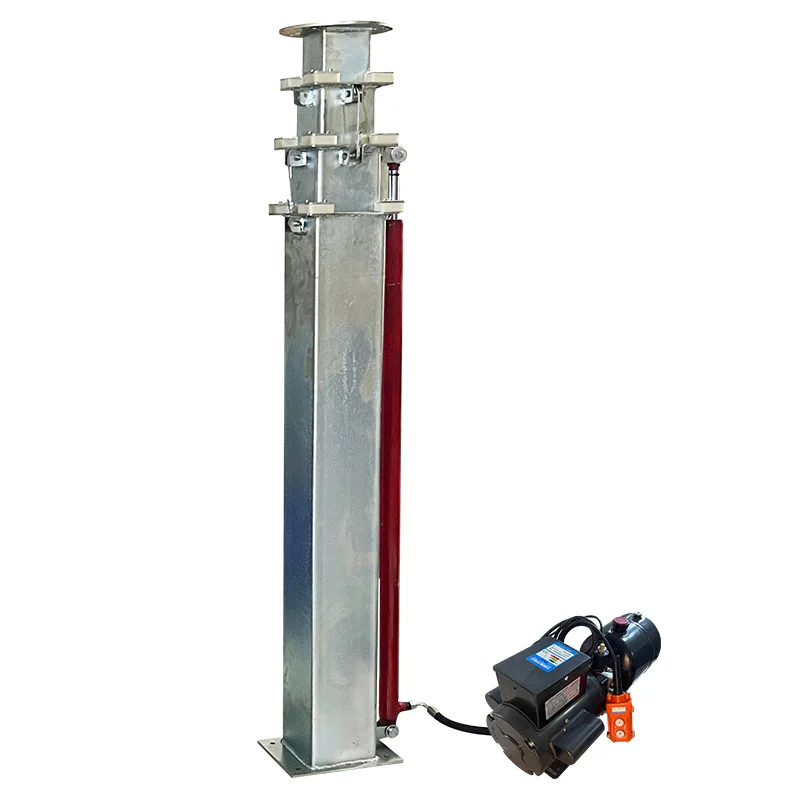

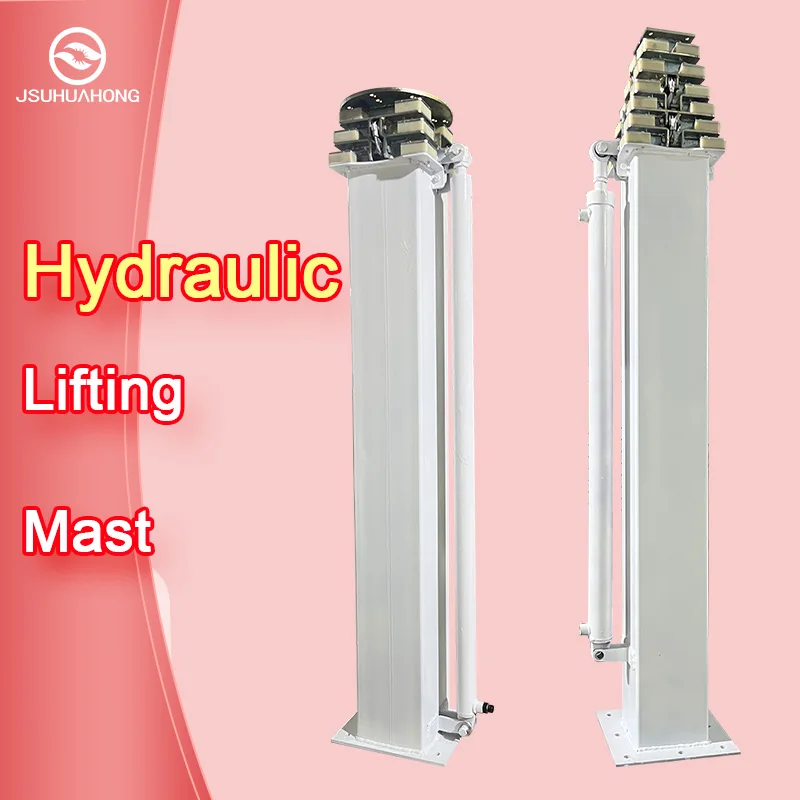

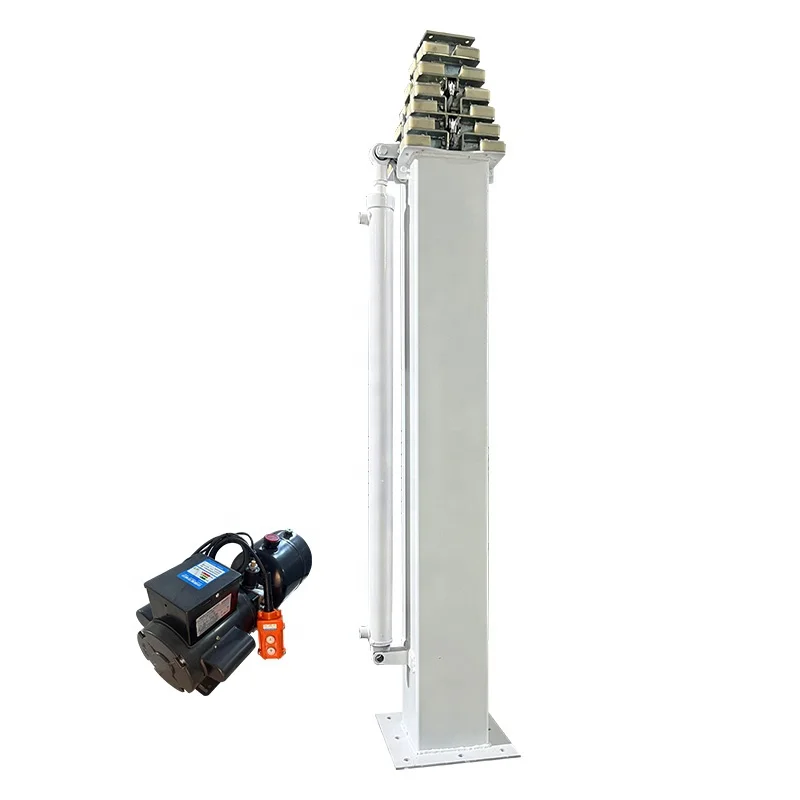

Hydraulic mast
The hydraulic lifting mast operates via a hydraulic cylinder, which utilizes the hydraulic system to control the vertical movement of the mast.
Applications
used to elevate equipment such as antennas, cameras, lighting, or sensors to a higher vantage point.
These masts are commonly used in fields like telecommunications, broadcasting, surveillance, and emergency response, where temporary or adjustable height is essential.
These masts are commonly used in fields like telecommunications, broadcasting, surveillance, and emergency response, where temporary or adjustable height is essential.
Product packaging
Plastic film or wooden case packaging according to customer requirements
