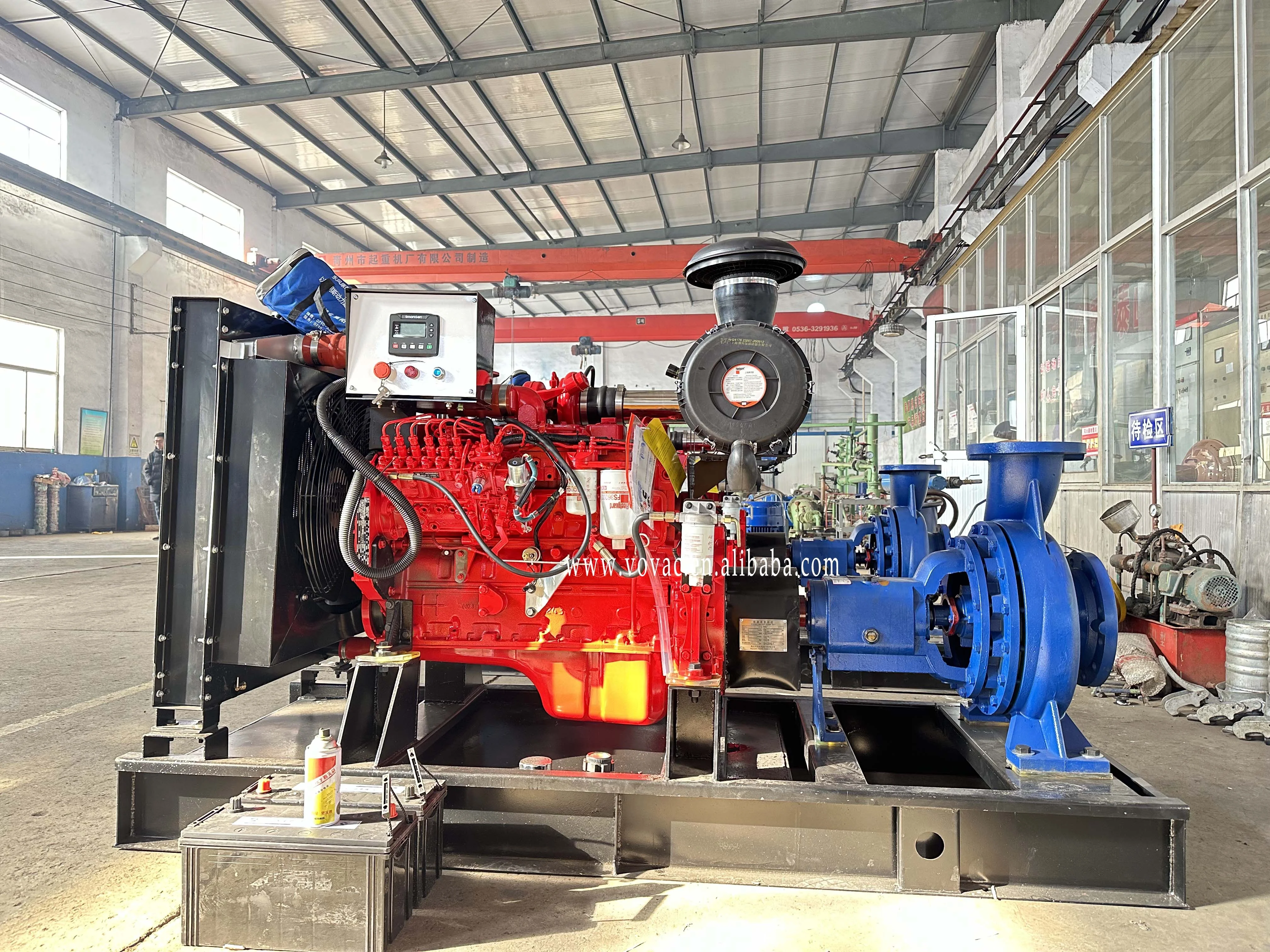

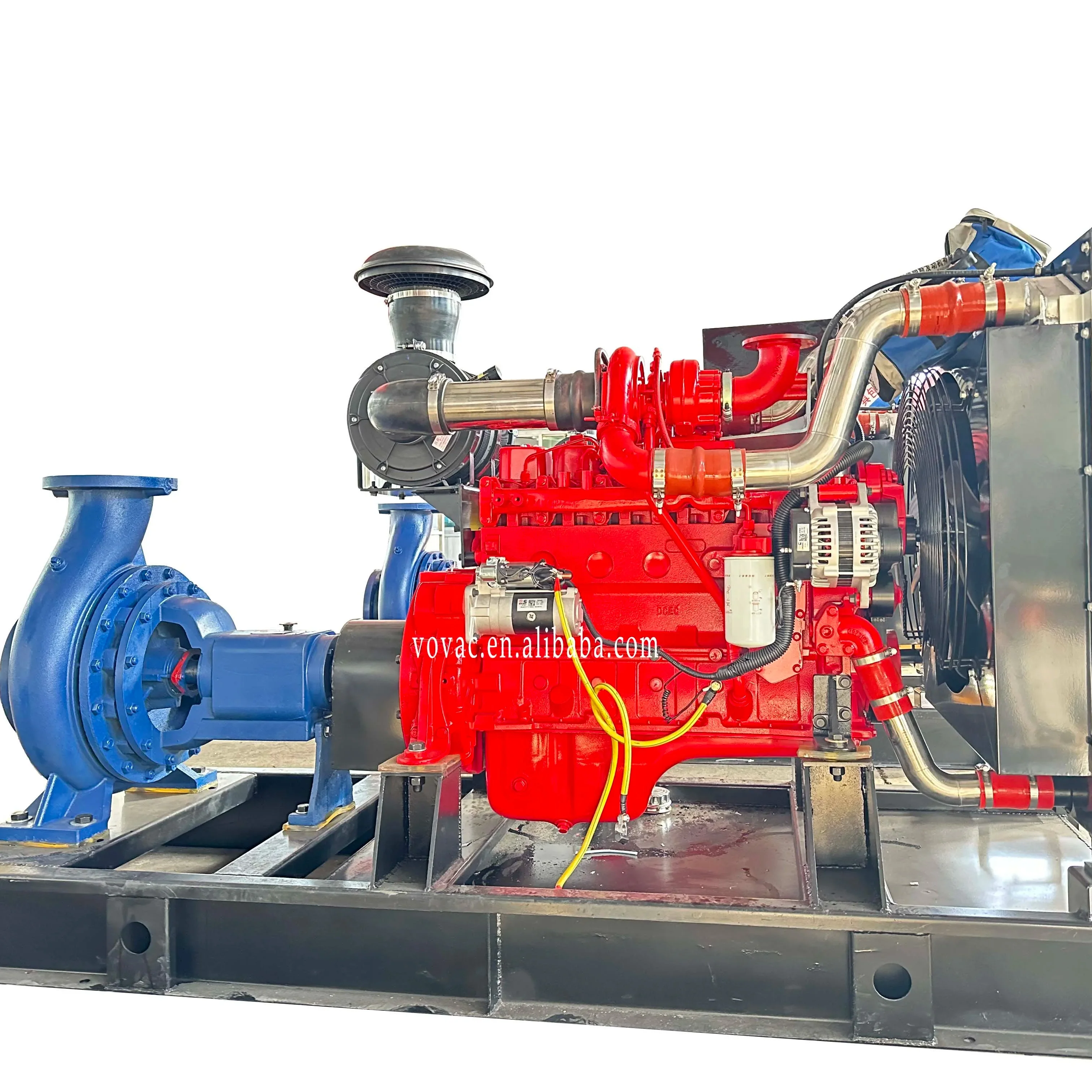

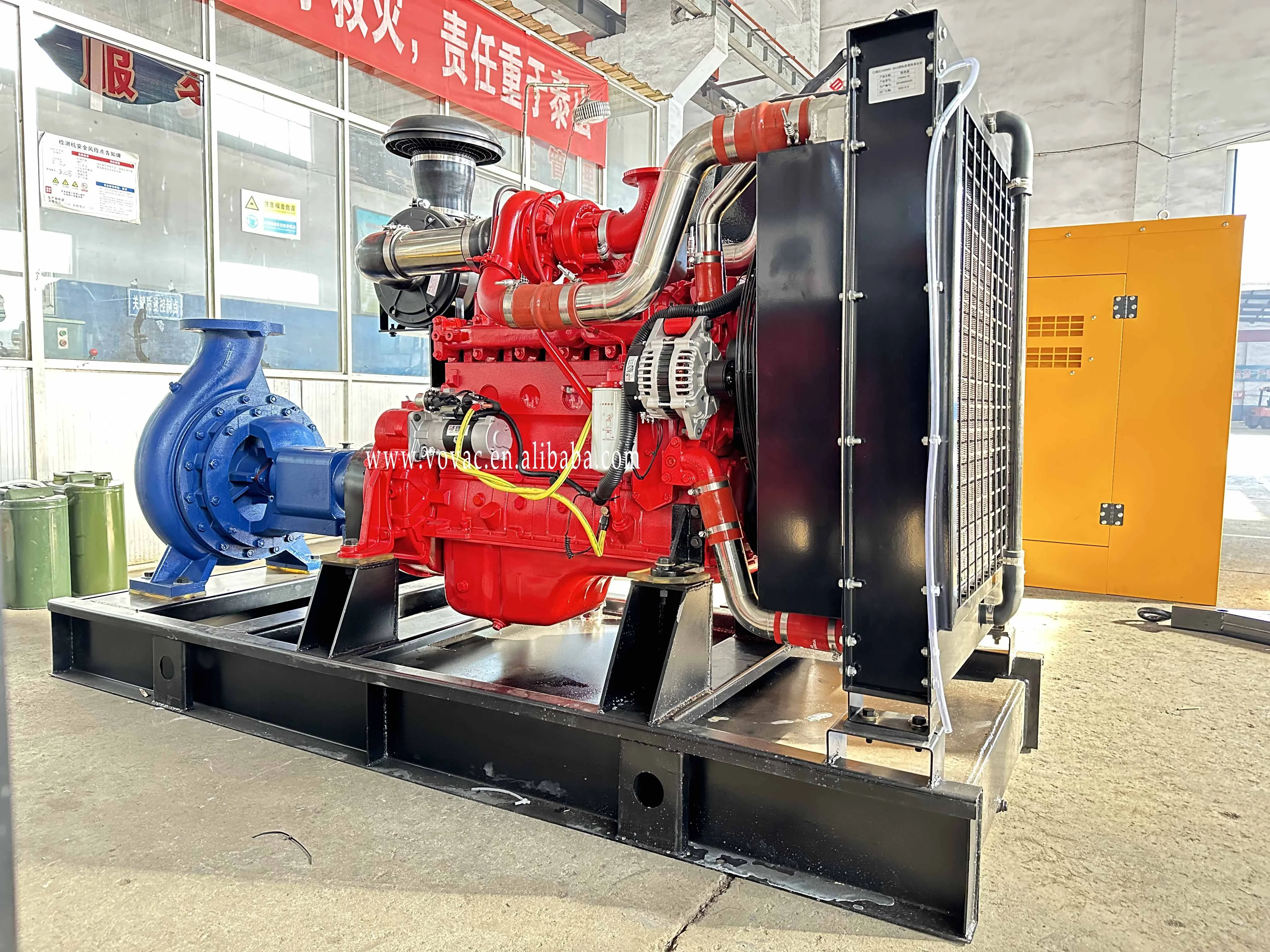

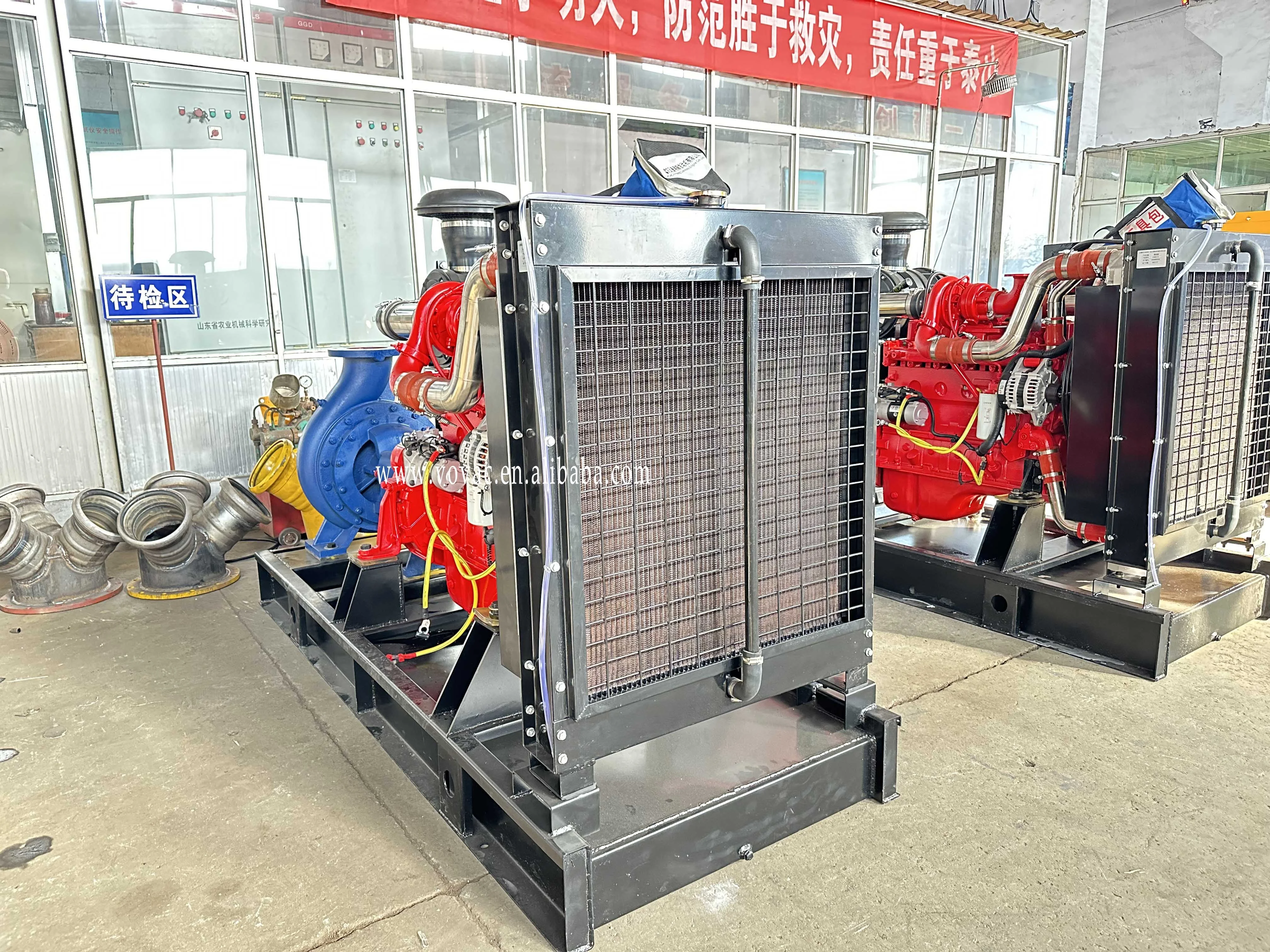

6 inch 8inch agriculture large flow high purssure 180hp diesel engine water pump

Share on (1601018199372):


Price:$9,200.00 - $9,500.00

Quantity:


Product Overview

Description



Product Description






Specification


Product name
Diesel mud water pump
Diesel pump model
V180C460-45
Outflow
460m³/h
Head lift
45m
Diesel engine
Model
6BTAA5.9-C180
Rated Output
180HP
Rated Speed (r/min)
2200
Starting Method
24DC Electric Motor
Cooling Method
Water cooled
Cylinders
4
Type
inline,4 stroke,direct injection
Model Pump
Single stage single suction centrifugal pump
Model
IS200-150-400
Outflow
460³/h
Head lift
45
suction
About 5m
Inlet diameter
200mm (8")
Outlet diameter
150mm (8")
Casing material
cast iron
Control System
Operation option;show water temperature,oil pressrue,and speed;start,stop.
Standard Equipments
Diesel engine: 1set
Pump: 1set
Common base with 8 hours fuel tank  :1 set
Control system: 1set
Battery:1set
Technic file: 1set


Optional configuration

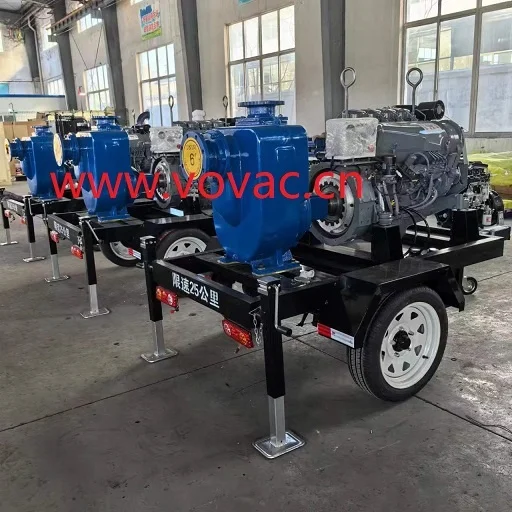

Two or four wheel trailer
Rainproof canopy
Battery
Bottom Value
Inlet and outlet pipes
quick connector




Packing & Delivery




plywood case


Company Profile










Weifang Vovac Power Co., Ltd. is located in Weifang, Shandong, China. We are committed to the development and production of power equipment, such as land-use marine diesel generating sets and automated pump units. Our main products are Cummins, Perkins, Steyr, Deutz and Ricardo totally more than 10 series and over 200 varieties. The power range is from 8KW to 1000KW. We will use the international brand name such as Standford, Marathon, and Leroy-Somer on generating sets to ensure product quality.

We insist that product quality is a fundamental for survival. Complete set of quality control system has been set up here. Through equipment performance testing, we ensure that our products are 100% factory qualified. At the same time, we also pay great attention to the product after-sales service system in order to resolve worries of customers at home and abroad.

Our company is one of the export-oriented enterprises. Our products are sold to Europe, Africa, South America, Southeast Asia, and West Asia totally more than 30 countries and regions.

"Create a world-renowned brand" is our business philosophy. We pay close attention to the human living environment while marking high-quality products.
