Product Overview
Description
Product Description
A NEW WAY TO MEASURE THE WORLD

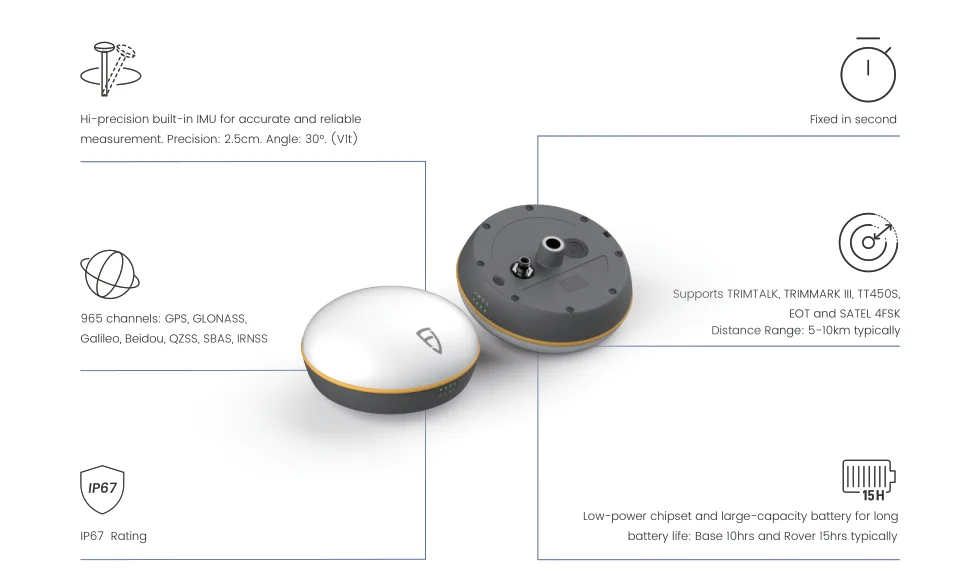

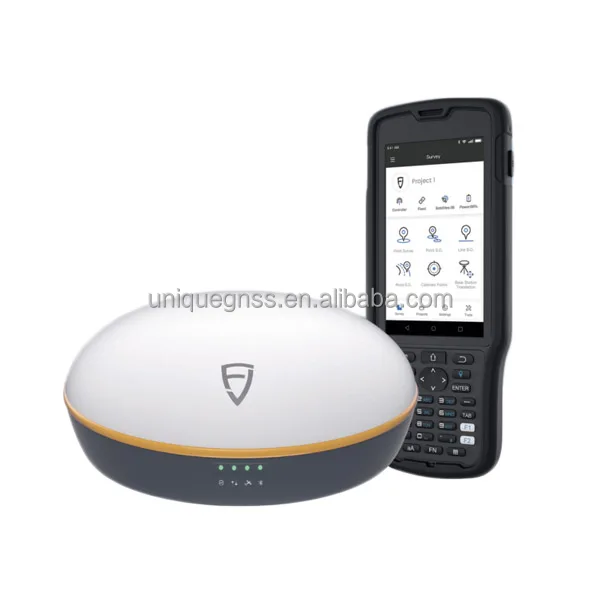

UNIQUENAV V1 series, a versatile and lightweight GNSS RTK receiver, can fast deliver accurate positions inharsh environments with global signal coverage. V1t, the advanced version, is engineered with an Inertial
Measurement Unit (IMU) that frees you up from watching and leveling the bubble when measuring.

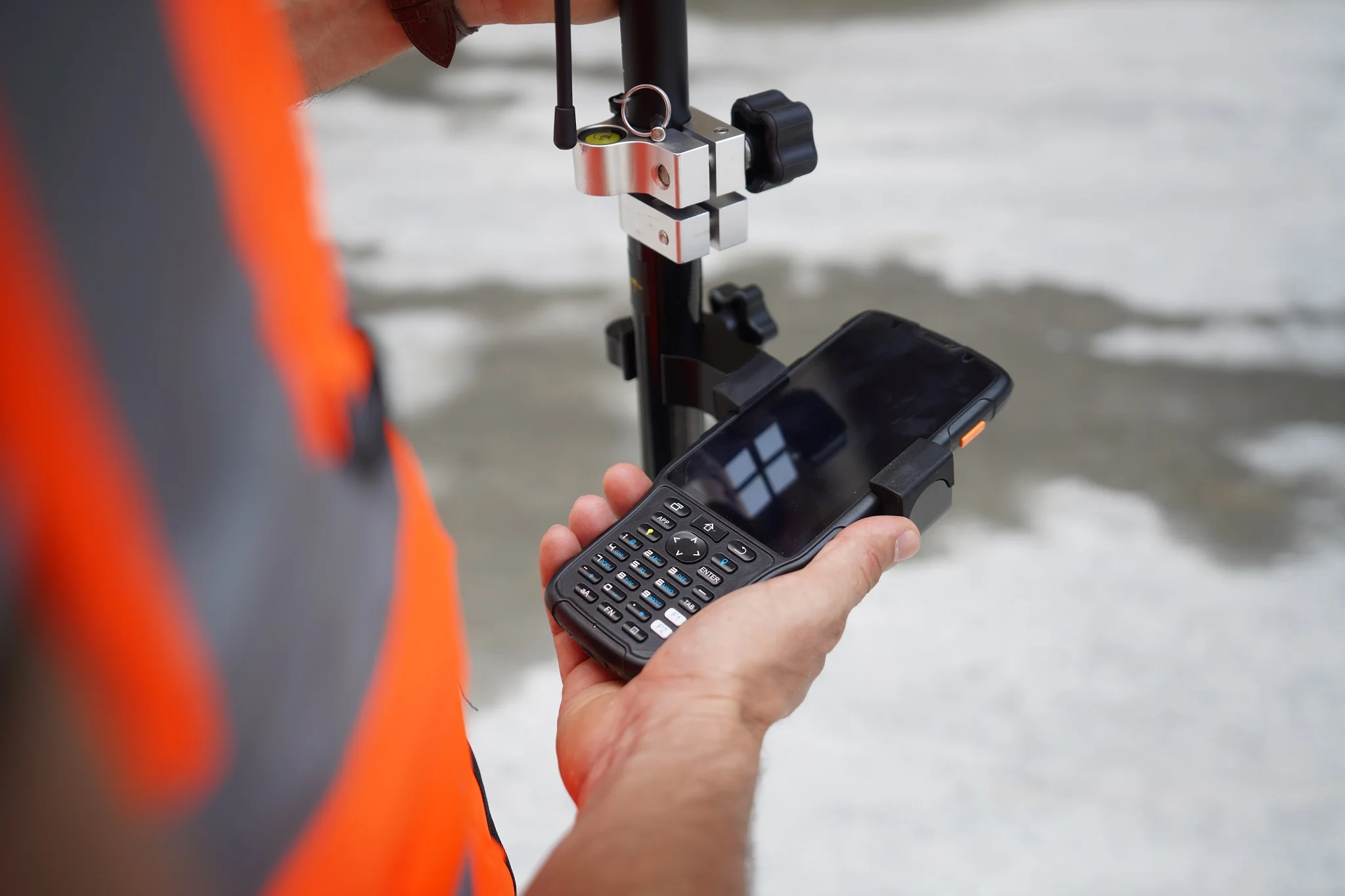

FIELD CONTROLLER E200
5-inch screen
7000 mAh, 24h battery life
CPU 2.4Ghz
Memory 4+64 GB
USB- Type C, OTG Support
1.5-meter drop test survivor
7000 mAh, 24h battery life
CPU 2.4Ghz
Memory 4+64 GB
USB- Type C, OTG Support
1.5-meter drop test survivor

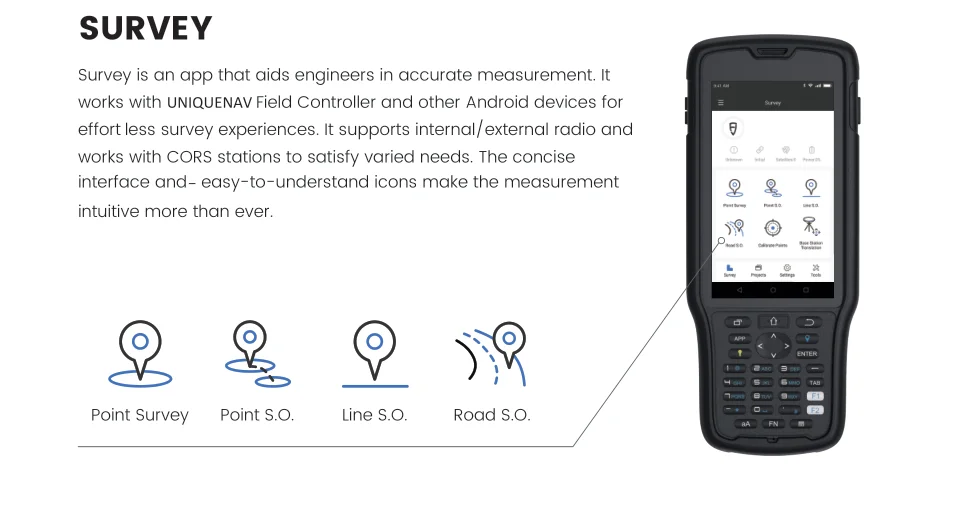

SURVEY
Survey is an app that aids engineers in accurate measurement. It
works with UNIQUENAV Field Controller and other Android devices for
effort less survey experiences. It supports internal/external radio and
works with CORS stations to satisfy varied needs. The concise
interface and- easy-to-understand icons make the measurement
intuitive more than ever.
works with UNIQUENAV Field Controller and other Android devices for
effort less survey experiences. It supports internal/external radio and
works with CORS stations to satisfy varied needs. The concise
interface and- easy-to-understand icons make the measurement
intuitive more than ever.
Satellite Constellation | Channels | 965 |
GPS | L1C/A, L2P, L2C, L5, L1C | |
BDS-2 | B1l, B2l, B3l, B1C, B2a, B2b | |
BDS-3 | B1I, B3I, B1C, B2a, B2b | |
GLONASS | G1, G2, G3 | |
Galileo | E1, E5a, E5b, E6 | |
QZSS | L1C, L2, L5, L1C/A | |
SBAS | L1C/A, L5* | |
IRNSS | L5* | |
Receiver | Size & Weight | 162*86 mm; 1 kg |

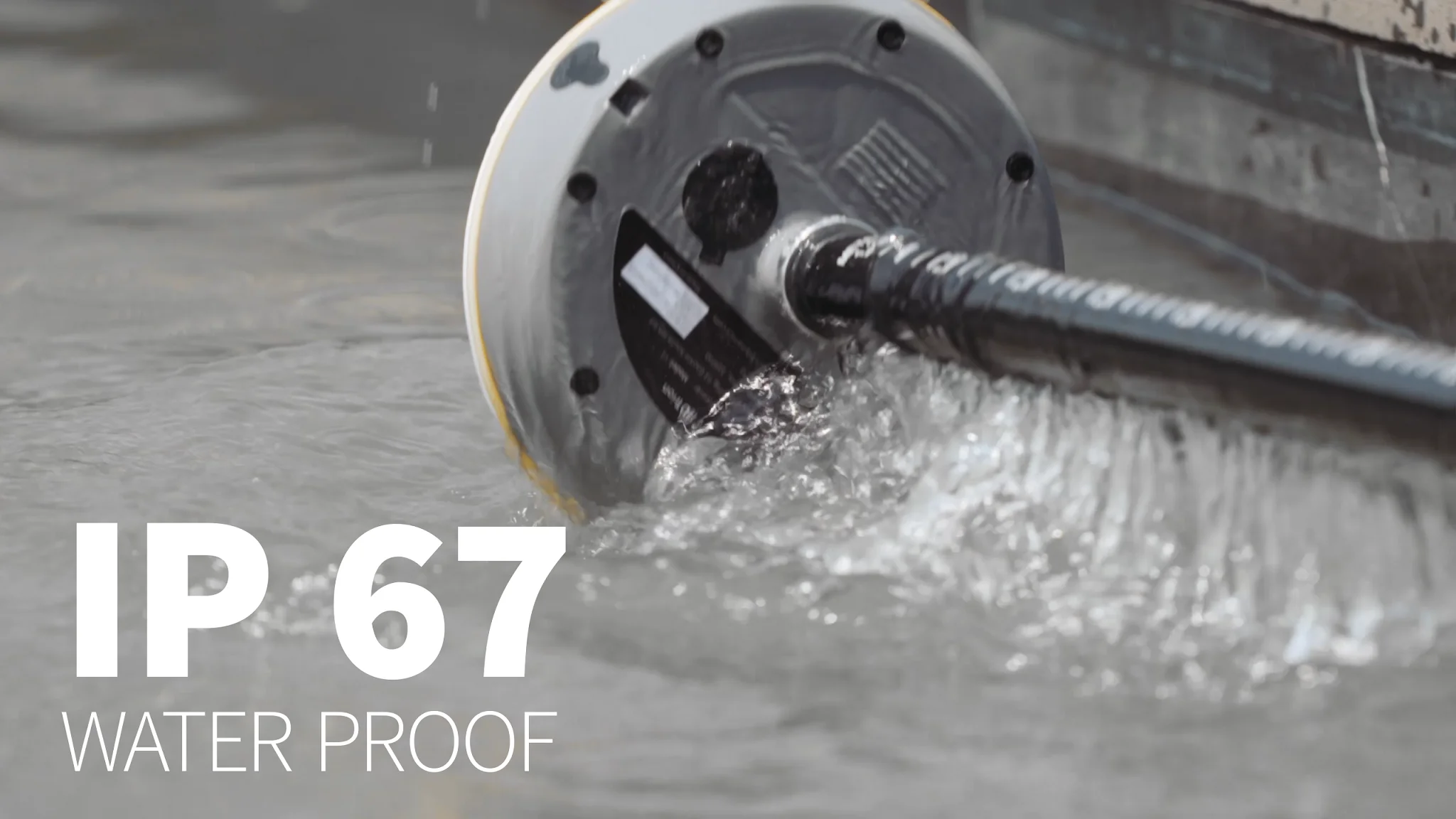

IP rating | IP67 | |
Battery | Battery capacity & life | Base 10hrs and Rover 15hrs typically |
Positioning Performance | Single positioning (RMS) | Horizontal 1.5 m, vertical 3 m |
Post-processing static accuracy | Horizontal: 2.5mm+1ppm RMS Vertical: 5mm+1ppm RMS | |
RTK accuracy | Horizontal: 8mm+1ppm RMS Vertical: 15mm+1ppm RMS | |
Tilt Survey with IMU | Precision 2.5cm with angle 30 degree | |
Update rate | Raw observation data: 1, 2, 5, 10 Hz | |
Real-time positioning data: 1, 2, 5, 10 Hz | ||
Data format | RTCM2.X, RTCM3.X, NMEA-0183, RINEX | |
Bluetooth | Protocol | BT4.2 & BLE |

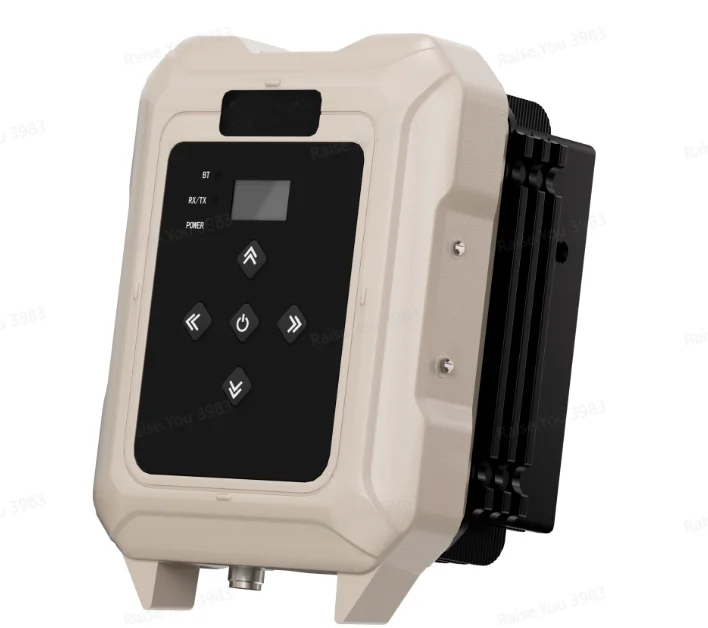

Built-in Radio | Power consumption | 0.5 W/1 W |
Frequency | 410Mhz-470Mhz | |
840.5Mhz-845Mhz&902Mhz-928Mhz | ||
Protocol | TRIMTALK, TRIMMARKIII, TT450S, TRANSEOT Satel 4FSK | |
Power Supply | Voltage | Rated input voltage: 12 V DC |
Input voltage range: 9 - 32 V DC | ||
Ambient Environment | Operating temperature | -30°C - 60 °C |
Storage temperature | -40°C - 75°C | |
Humidity | 95% | |
System Configuration | Internal Storage | 32 GB |

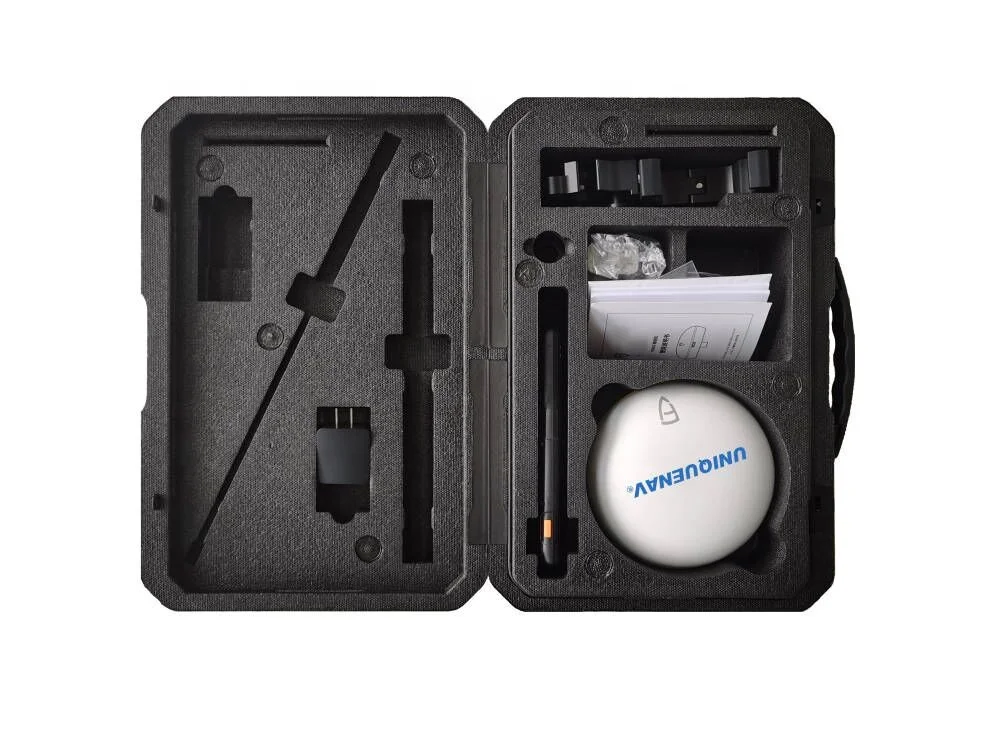

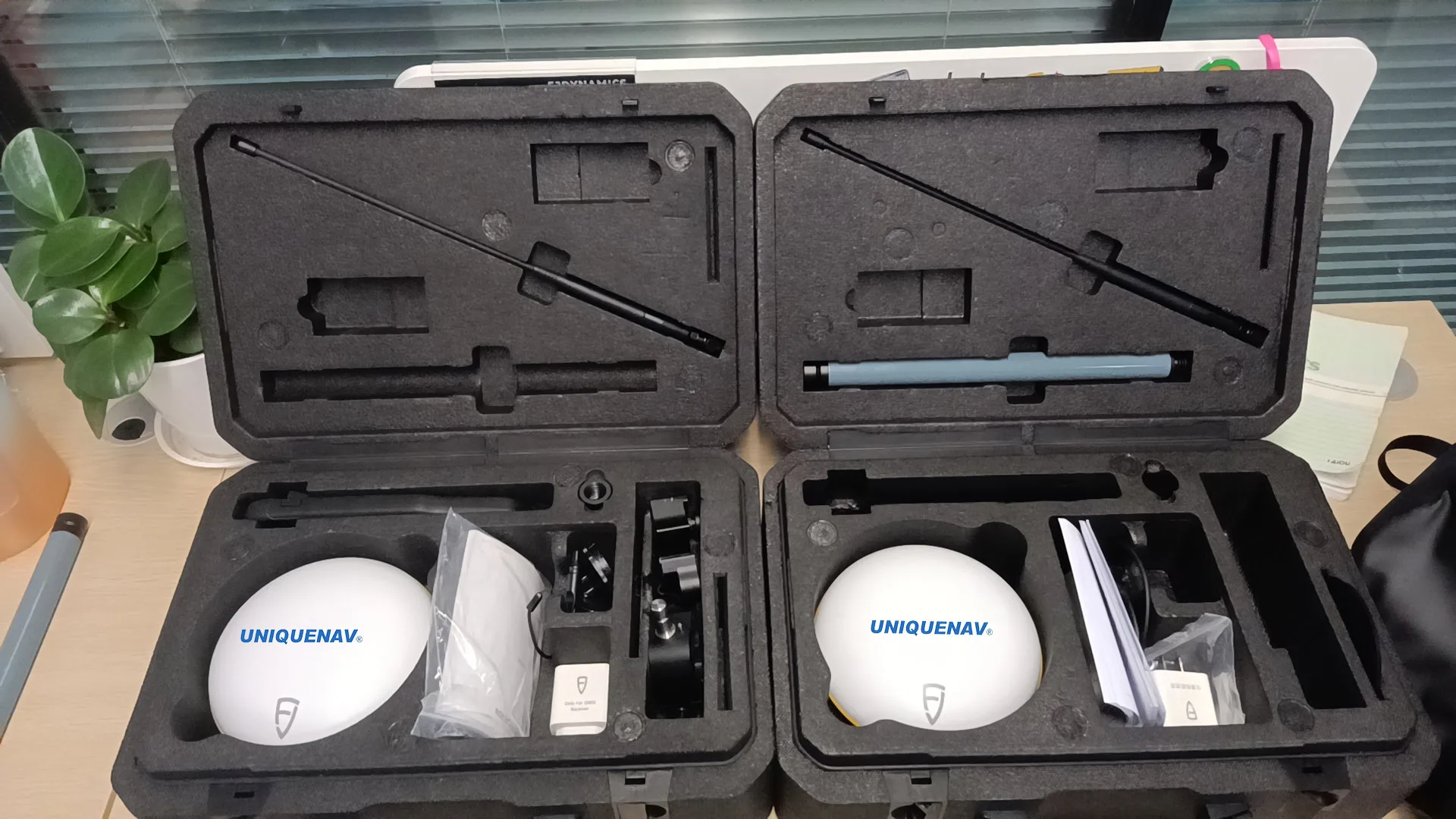

Packing & Delivery
Our Services and Advantages
Services
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free for maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
2.All our products have one year warranty, And we sure the products will be free for maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
Company Profile

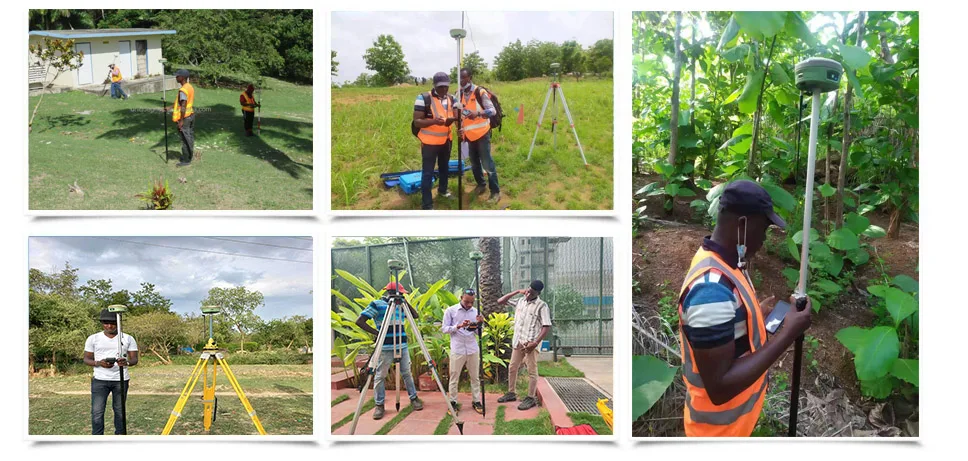

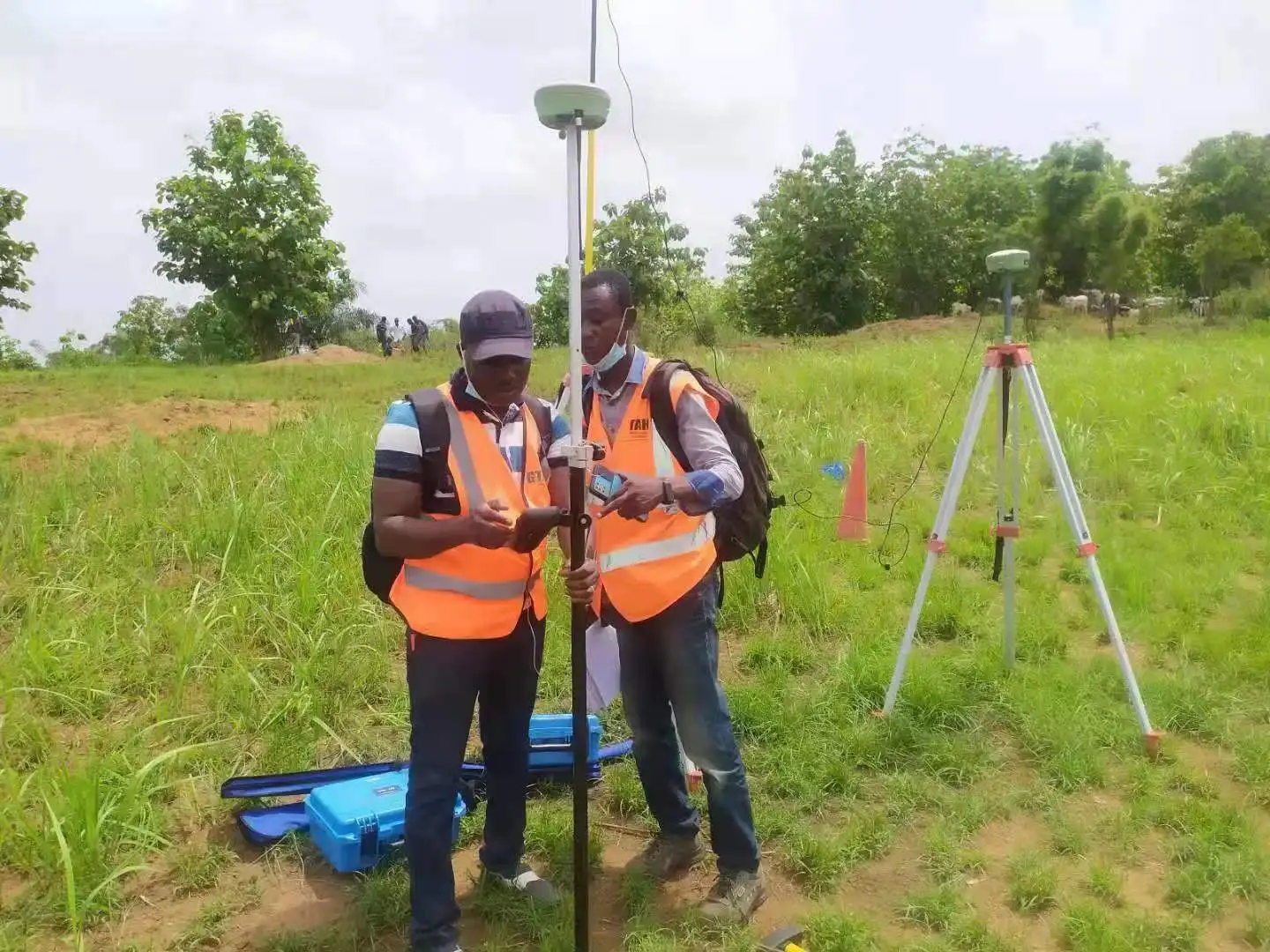

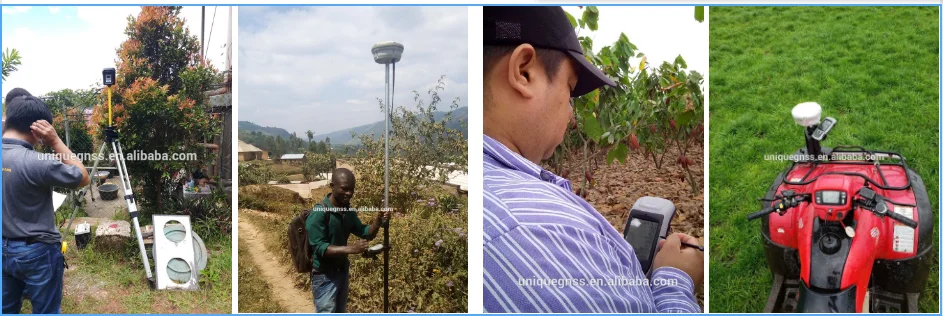

Successful cases
