2000000kcal 6mkcal 2mkcal Coal Fired Thermal Oil Heater for melamine alumina
- Category: >>>
- Supplier: Wuxi Zozen Boilers Co. Ltd.
Share on (1601018214643):
Product Overview
Description
PRODUCT INTRODUCTION

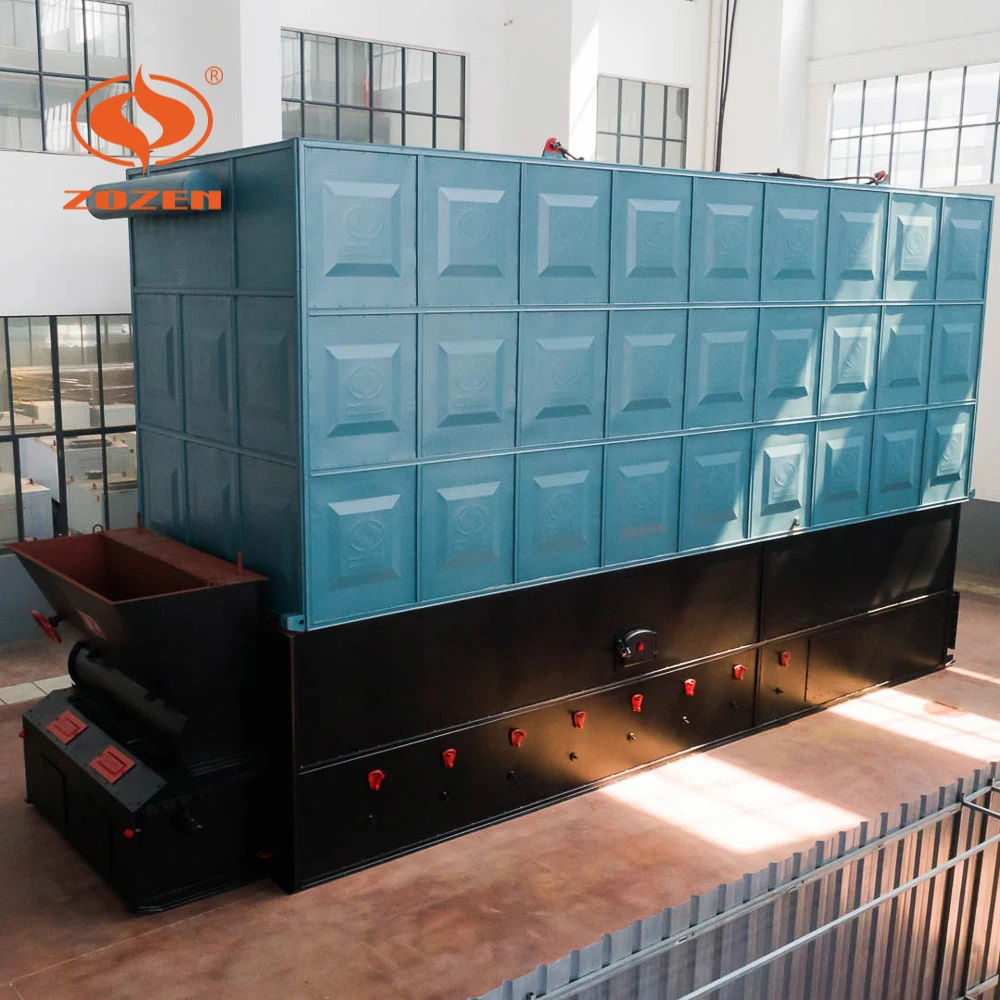

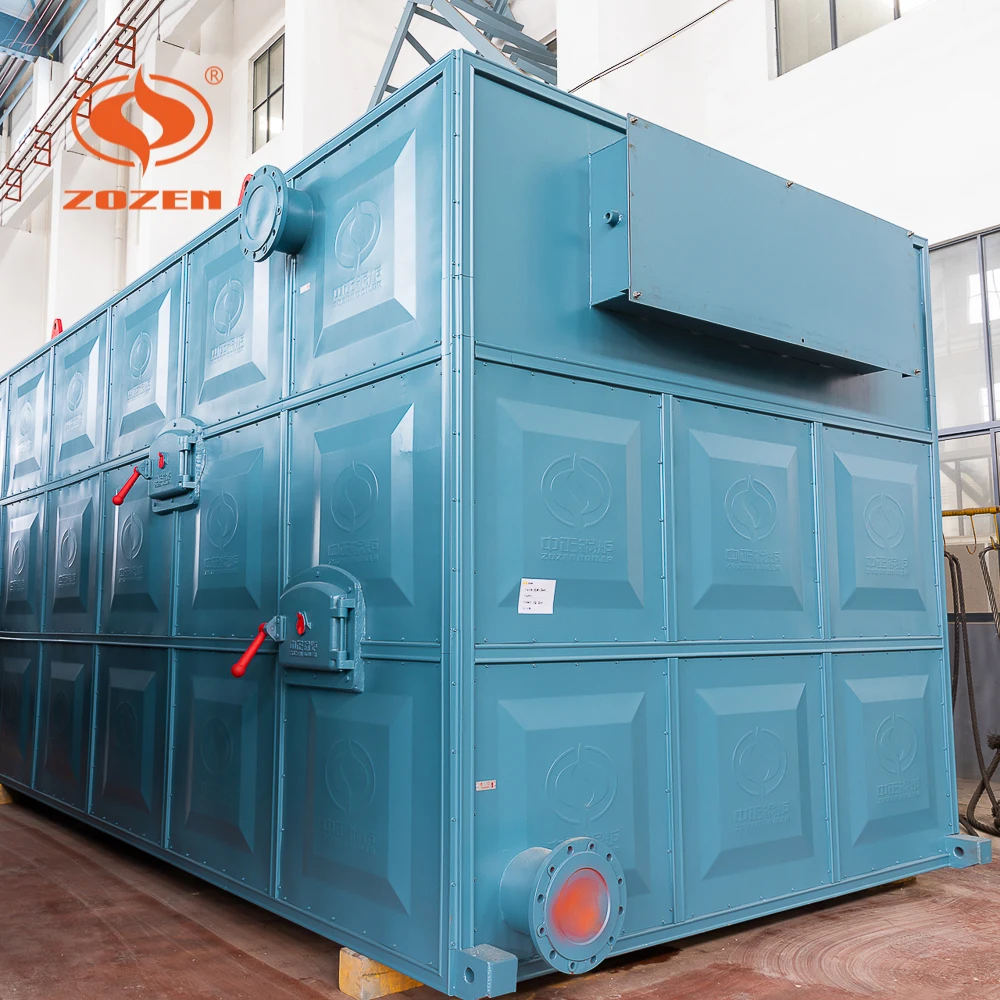

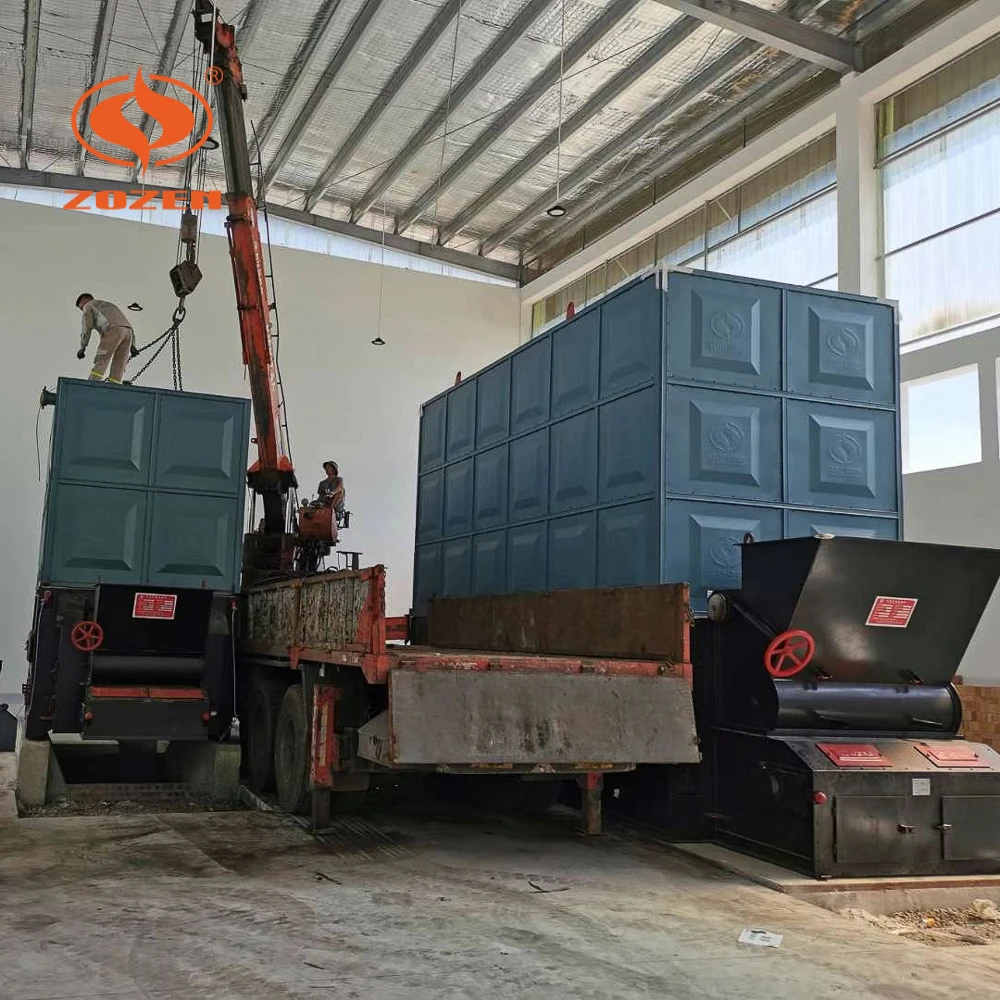

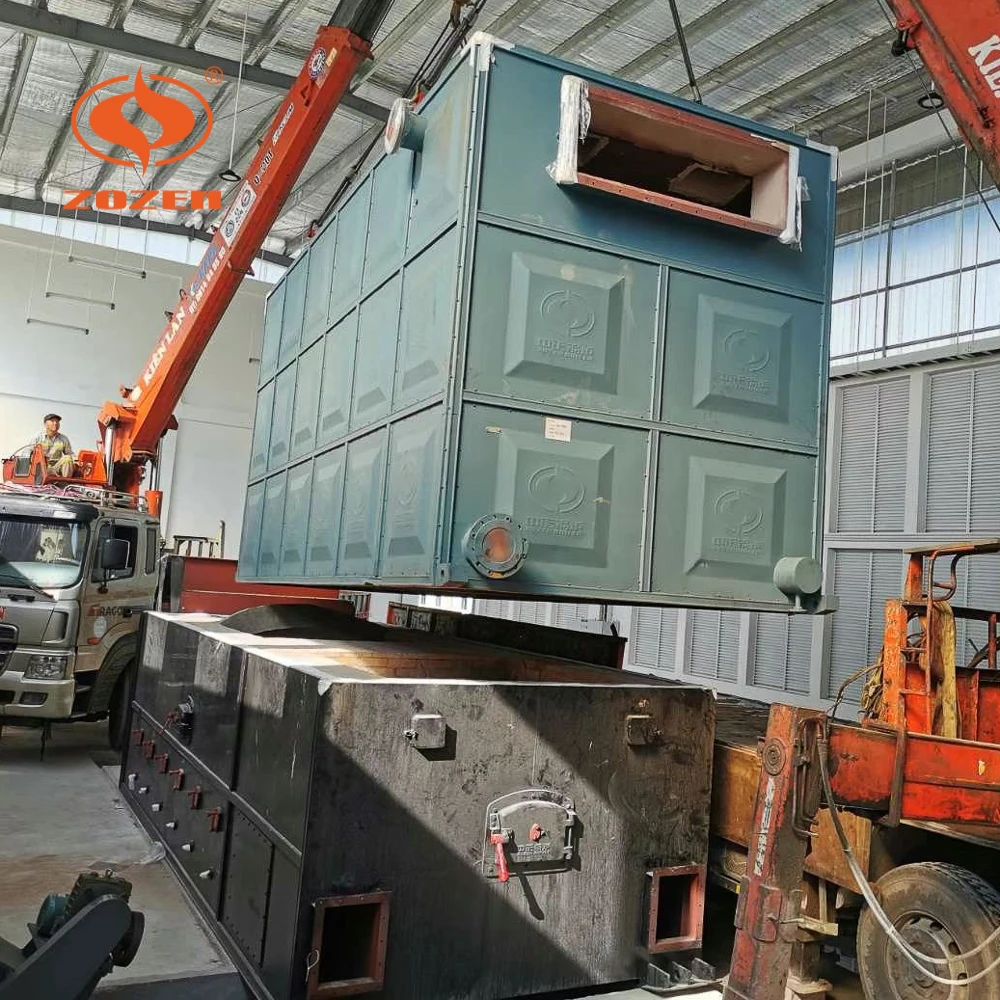

ZOZEN YLW series thermal fluid heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.
Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.
Product Description
Product Paramenters
Model | Rated thermal power (KW) | Rated thermal power (x104kcal/h) | Design working temperature(≤℃) | Rated working pressure(MPa) | Thermal efficiency(≥%) | System installation power(KW) | Maximum transport size(m) (L×W×H) |
YLW-1400M/AⅡ | 1400 | 120 | 320 | 0.8 | 85 | 55 | 5.0×2.3×2.5 |
YLW-1800M/AⅡ | 1800 | 160 | 320 | 0.8 | 85 | 63 | 5.6×2.3×2.8 |
YLW-2400M/AⅡ | 2400 | 200 | 320 | 0.8 | 85 | 76 | 6.5×2.5×2.8 |
YLW-2800M/AⅡ | 2800 | 240 | 300 | 0.8 | 85 | 85 | 6.5×2.6×3.2 |
YLW-3500M/AⅡ | 3500 | 300 | 320 | 0.8 | 85 | 105 | 7.5×2.6×3.2 |
YLW-4200M/AⅡ | 4200 | 360 | 320 | 0.8 | 85 | 125 | 7.4×2.9×3.3 |
YLW-4600M/AⅡ | 6000 | 500 | 320 | 0.8 | 85 | 155 | 8.4×3.4×3.3 |
YLW-6000M/AⅡ | 7000 | 600 | 320 | 1 | 85 | 170 | 9.0×3.4×3.4 |
YLW-7000M/AⅡ | 8200 | 700 | 320 | 1 | 85 | 193 | 9.8×3.3×4.1 |
YLW-8200M/AⅡ | 4600 | 400 | 320 | 1 | 85 | 150 | 8.0×2.9×3.4 |
YLW-9400M/AⅡ | 9400 | 800 | 320 | 1 | 85 | 160 | 9.8×3.5×4.1 |
YLW-10500M/AⅡ | 10500 | 900 | 320 | 1 | 85 | 160 | 10.5×3.5×4.1 |
YLW-12000M/AⅡ | 12000 | 1000 | 320 | 1 | 85 | 260 | 11.2×3.6×4.1 |
YLW-14000M/AⅡ | 14000 | 1200 | 320 | 1 | 85 | 320 | 10.5×4.0×3.5 |
YLW-16500M/AⅡ | 16500 | 1400 | 320 | 1 | 85 | 380 | 11.5×4.3×3.5 |
YLW-18000M/AⅡ | 18000 | 1600 | 320 | 1 | 85 | 450 | 11.5×4.5×3.5 |
YLW-21000M/AⅡ | 21000 | 1800 | 320 | 1 | 85 | 520 | 11.5×4.5×3.9 |
YLW-23300M/AⅡ | 23300 | 2000 | 320 | 1 | 85 | 600 | 11.5×3.0×4.0 |
YLW-26000M/AⅡ | 26000 | 2200 | 320 | 1 | 85 | 700 | 11.5×3.0×4.0 |
YLW-29200M/AⅡ | 29200 | 2500 | 320 | 1 | 85 | 825 | 12.0×3.3×4.2 |

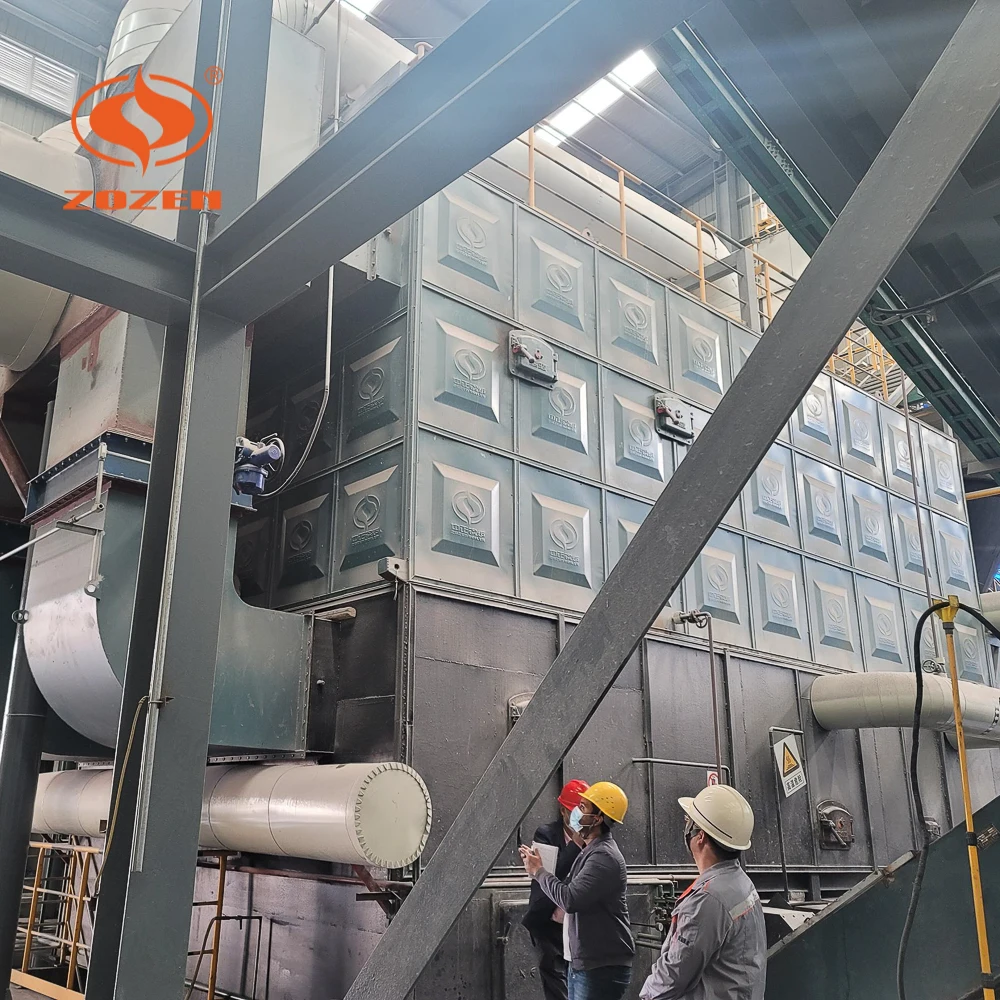

Typical Projects
Hot Sale Products
Why Choose Us
Company Profile
FAQ
1. How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
2. Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Jiangsu Boiler Inspection Institute;
(6).Passed ISO:9001 ,ISO14001,OHASA18001 and ASME(S and U) and A-class boiler certificate.
3. Quality warrantee
The seller guarantee quality of the machines for a period of 12 months from the date of trial run finish, but not to exceed 18 months from date on which the goods leave factory. If any parts (excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost.
4.Terms of payment
T/T 30% of total contract value as down payment;
T/T or L/C 70% of total contract value before delivery.
5.Claim
Any claims by the buyers regarding the machines shipped should be filed within 30 days after arrival of machines at the
destination specified in the relative B/L and supported by a survey report issued by a surveyor approved by the sellers, otherwise the sellers shall refuse to consider. Claims in respect of matters within responsibility of insurance company and/or shipping company will not be considered by the seller.
6. What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
2. Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Jiangsu Boiler Inspection Institute;
(6).Passed ISO:9001 ,ISO14001,OHASA18001 and ASME(S and U) and A-class boiler certificate.
3. Quality warrantee
The seller guarantee quality of the machines for a period of 12 months from the date of trial run finish, but not to exceed 18 months from date on which the goods leave factory. If any parts (excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost.
4.Terms of payment
T/T 30% of total contract value as down payment;
T/T or L/C 70% of total contract value before delivery.
5.Claim
Any claims by the buyers regarding the machines shipped should be filed within 30 days after arrival of machines at the
destination specified in the relative B/L and supported by a survey report issued by a surveyor approved by the sellers, otherwise the sellers shall refuse to consider. Claims in respect of matters within responsibility of insurance company and/or shipping company will not be considered by the seller.
6. What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
