Hot Sale F4L912 4 Cylinder Deutz Air Cooled Diesel Engine Driven Self priming Water Pump With Trailer

Product Overview

Description

Hot Sale F4L912 4 Cylinder Deutz Air Cooled Diesel Engine Driven Self-priming Water Pump With Trailer

 -----------F4L912 4 cylidner air cooled diesel engine driven water pump specification:

AIR COOLED DIESEL WATER PUMP QUOTATION
Model of Diesel pump set	V32DPD01T                            (Q=200m3/h       H=20m)
Model Diesel Engine	F4L912
Brand	BEINEI
Rated Power	32KW
Rated Speed (r/min)	1500
Bore×Stroke	100mm×120mm
Displacement	3.77Liters
Compression Ration	17:1
Starting Method	12V DC Electric motor
Induction system	Natural intaking
Cylinders	4
Type	Vertical, 4 stroke, air cooled direct injection
L*W*H	860×673×815MM
Weight	300kg
Model Pump	VZW150-200-20
Type	Self-priming pump
Max Outflow	200m3/h
Head lift	20M
Suction lift	5.5m
Shaft Power	22KW
Inlet diameter	150mm       (6 inch)
Outlet diameter	150mm
Casing material	cast iron
Shaft material	Stainless steel
Impeller material	Stainless steel
Sealing method	Stuffing seal
Control System	Display of oil pressure,rotation speed,water temperature,oil temperature etc.
Standard Equipments	Diesel engine: 1set
	Water pump: 1set
	Common base with 180L fuel tank:1 set
	Control System: 1 set
	High elastic connection: 1 set
	Accessary spare parts
	Technic file: 1set
	12V battery: 1 set
	All mounting accessries
Payment Terms	T/T30% deposit,balance before shipment
Delivery Time	20 working days after received 30%deposit

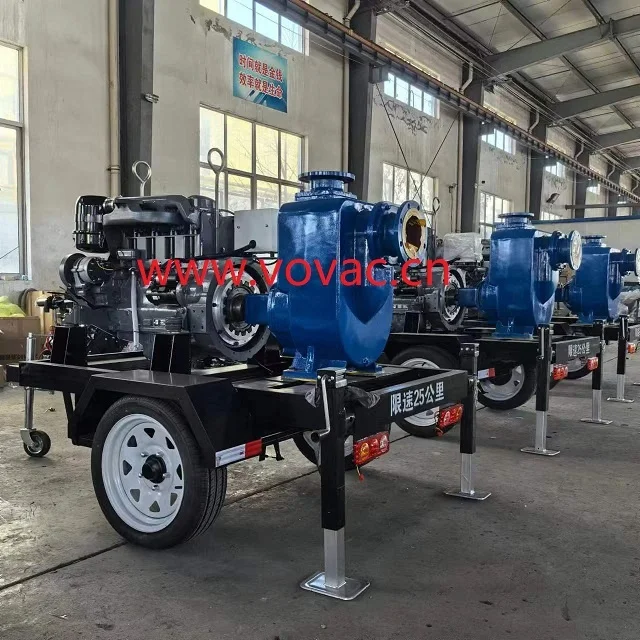

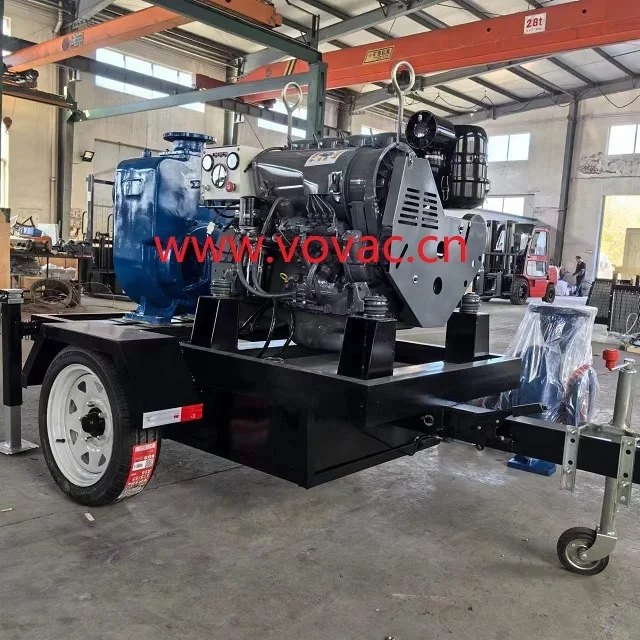

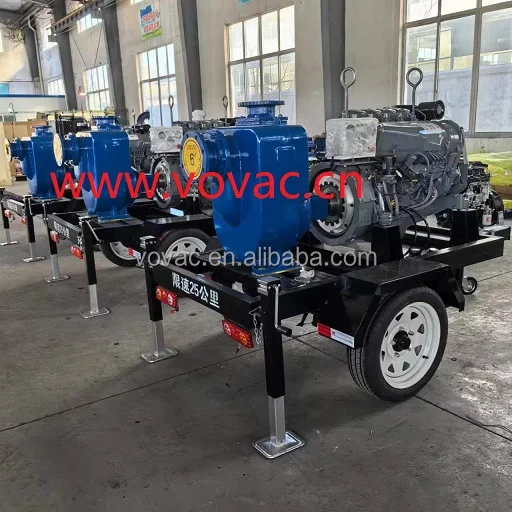

-------------Reference details picture
