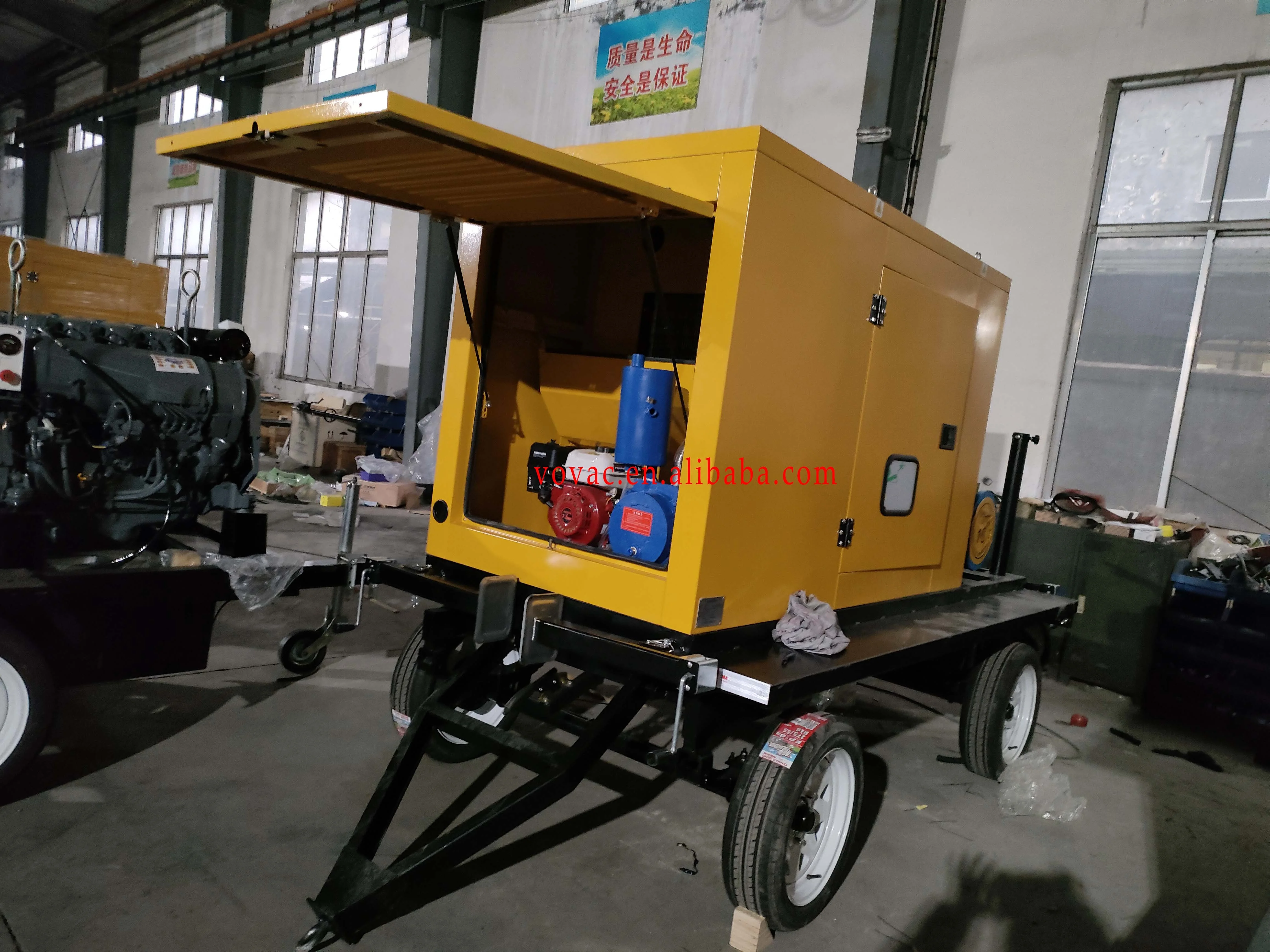

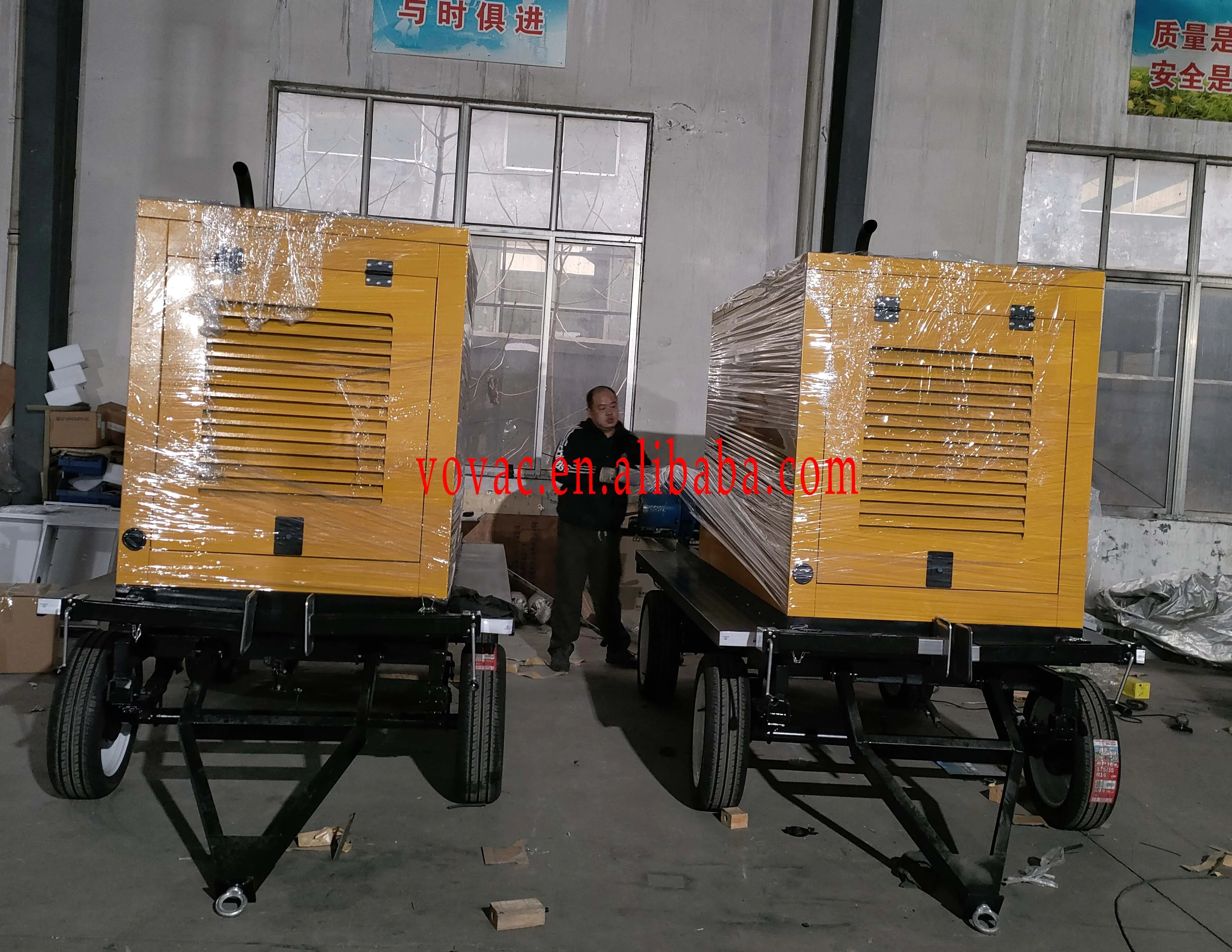

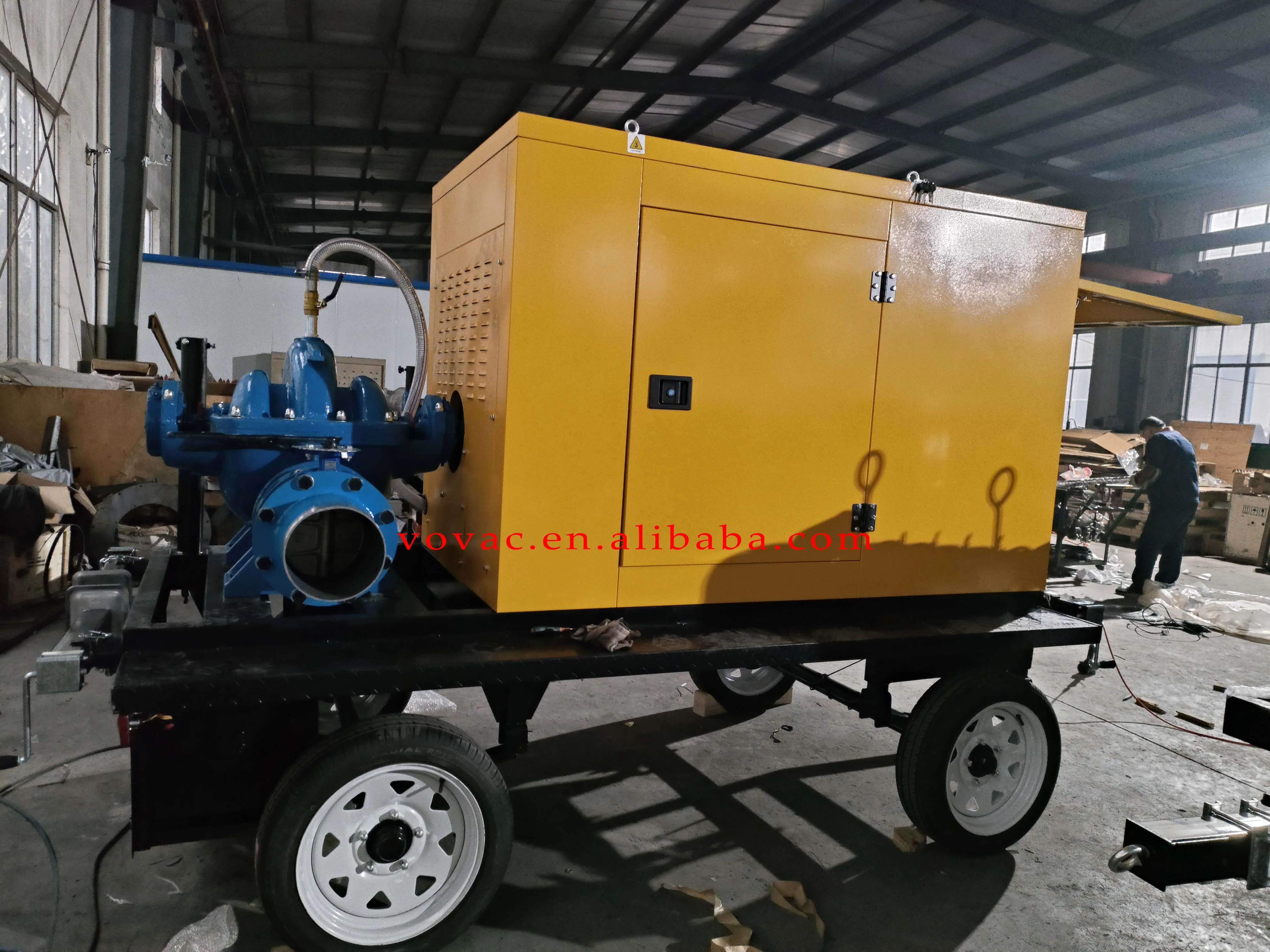

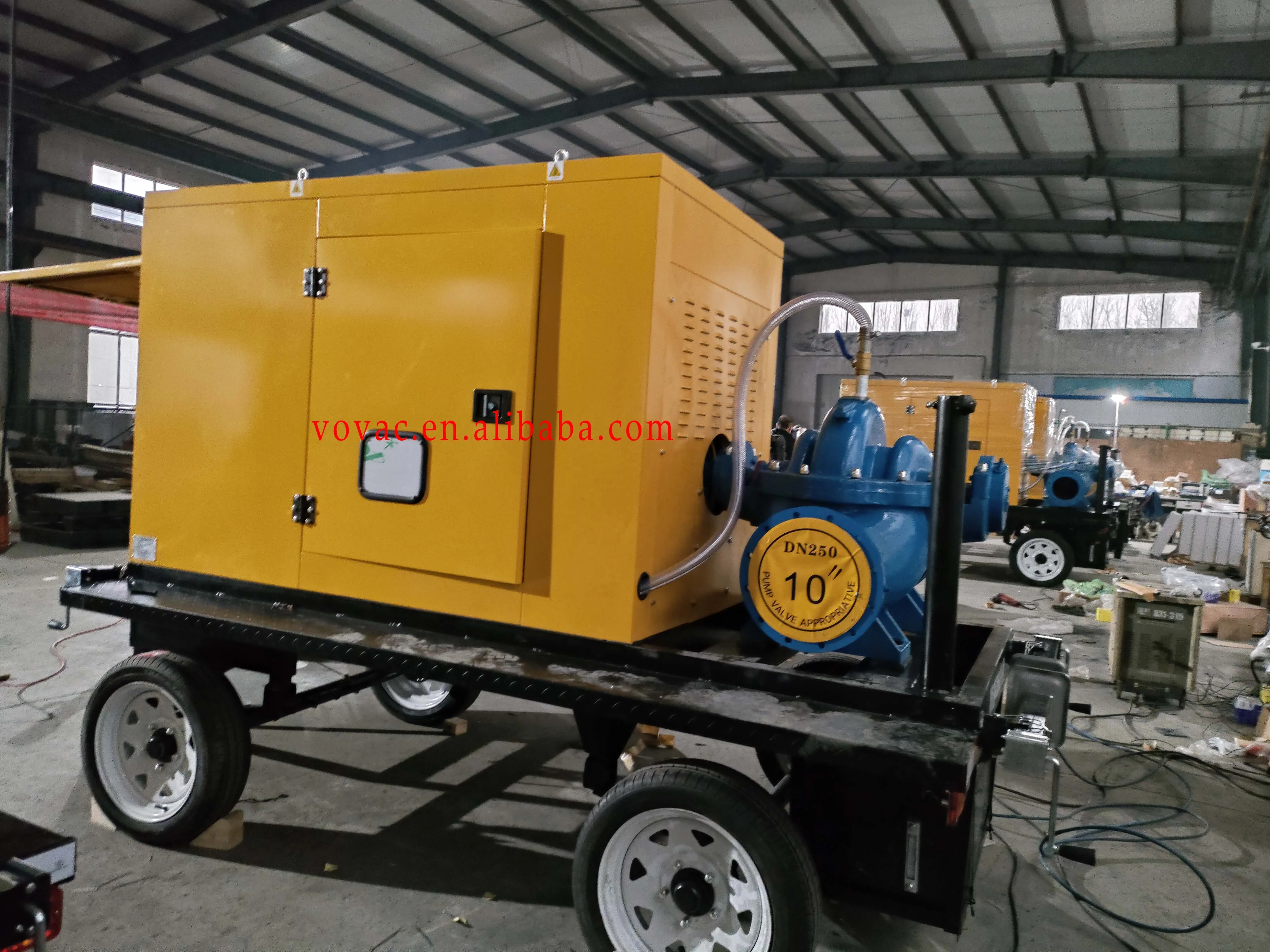

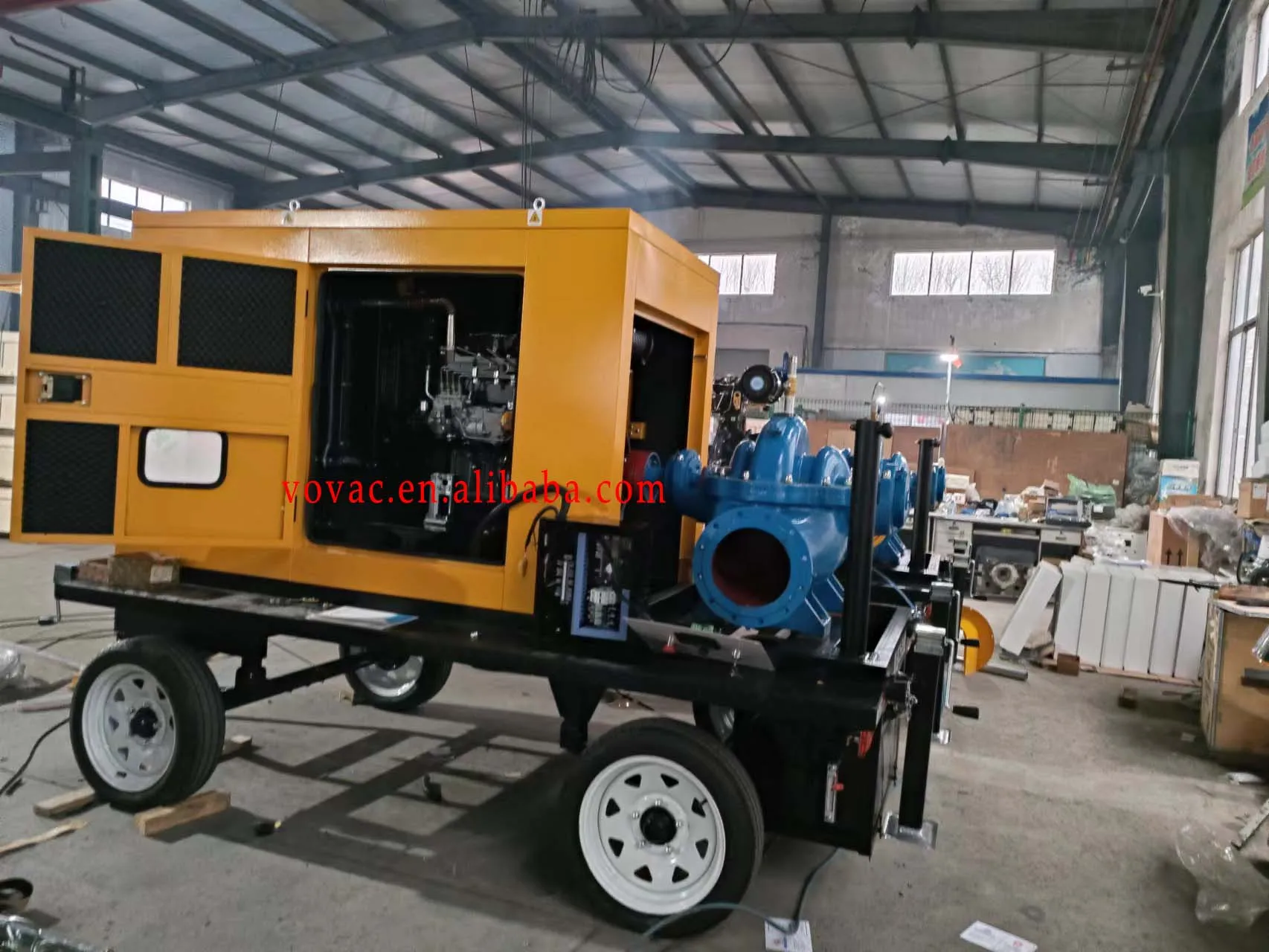

Product name | Diesel water pump |
Diesel pump model | V66R-576-19 |
Outflow | 576m³/h |
Head lift | 19m |
Diesel engine | |
Model | MN4105ZLDS-E |
Rated Output | 66kw |
Rated Speed (r/min) | 1500 |
Starting Method | 24DC Electric Motor |
Cooling Method | Water cooled |
Cylinders | 4 |
Type | inline,4 stroke,direct injection |
Model Pump | Single stage double suction centrifugal pump |
Model | 10SH-13 |
Outflow | 576m³/h |
Head lift | 19m |
suction | About 5m |
Inlet diameter | 250mm (14") |
Outlet diameter | 200mm (12") |
Casing material | cast iron |
Control System | Operation option;show water temperature,oil pressrue,and speed;start,stop. |
Standard Equipments | Diesel engine: 1set |
Pump: 1set | |
Common base with 8 hours fuel tank with 4 wheels:1 set | |
Rainproof canopy:1set | |
Control system: 1set | |
Battery:1set | |
Technic file: 1set |
Optional configuration | Two or four wheel trailer |
Rainproof canopy | |
Battery | |
Bottom Value | |
Inlet and outlet pipes | |
quick connector |
