Oriemac: 10ton Compactor XS113E Single Drum Vibratory 93KW Road Roller
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.
Share on (1601018264970):
Product Overview
Description
Product Show

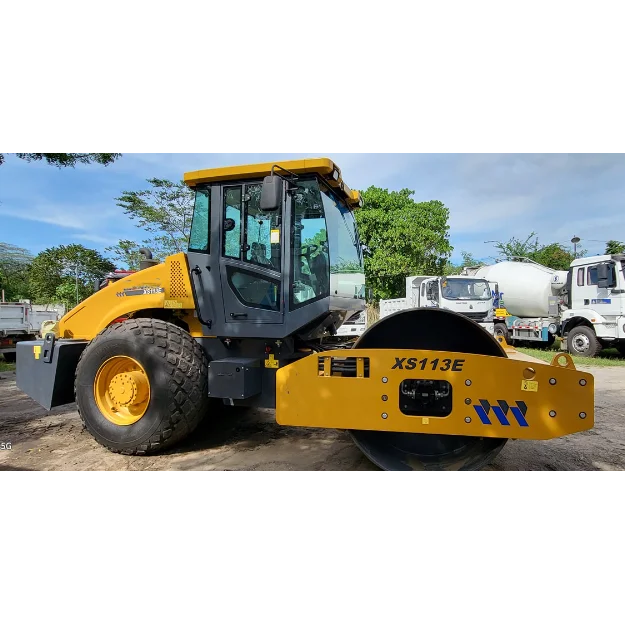

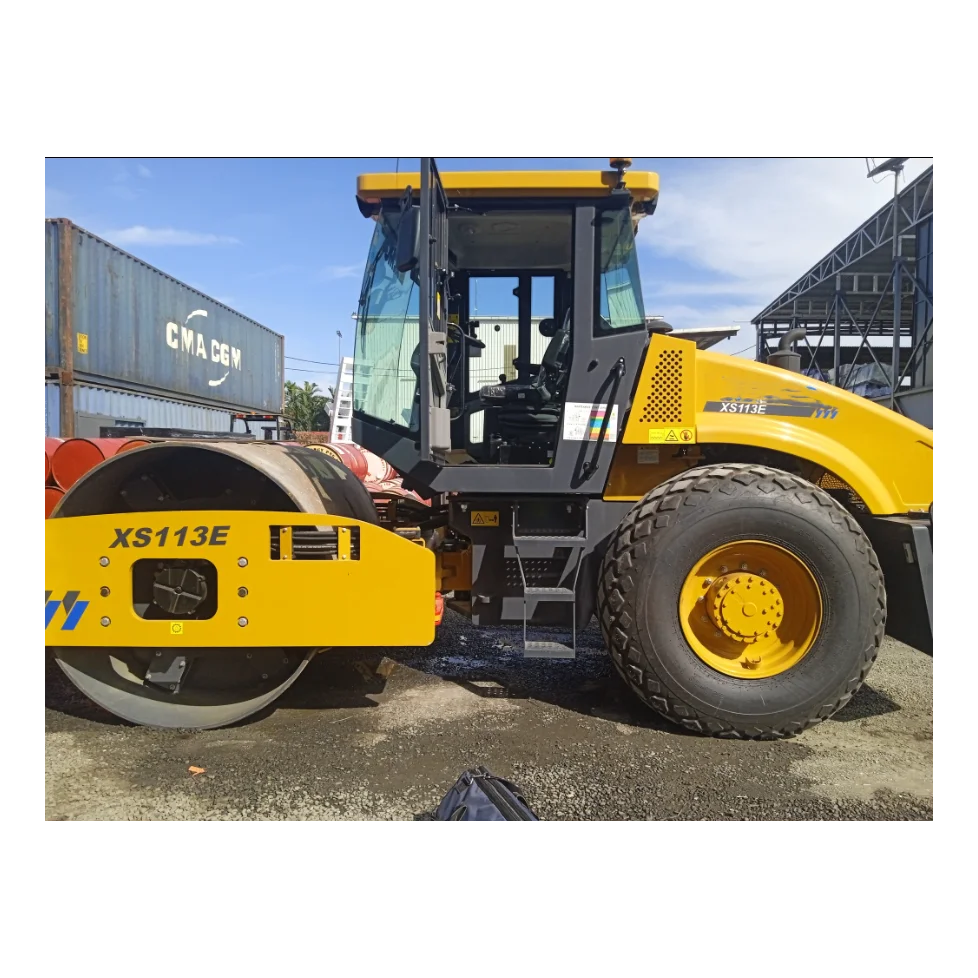

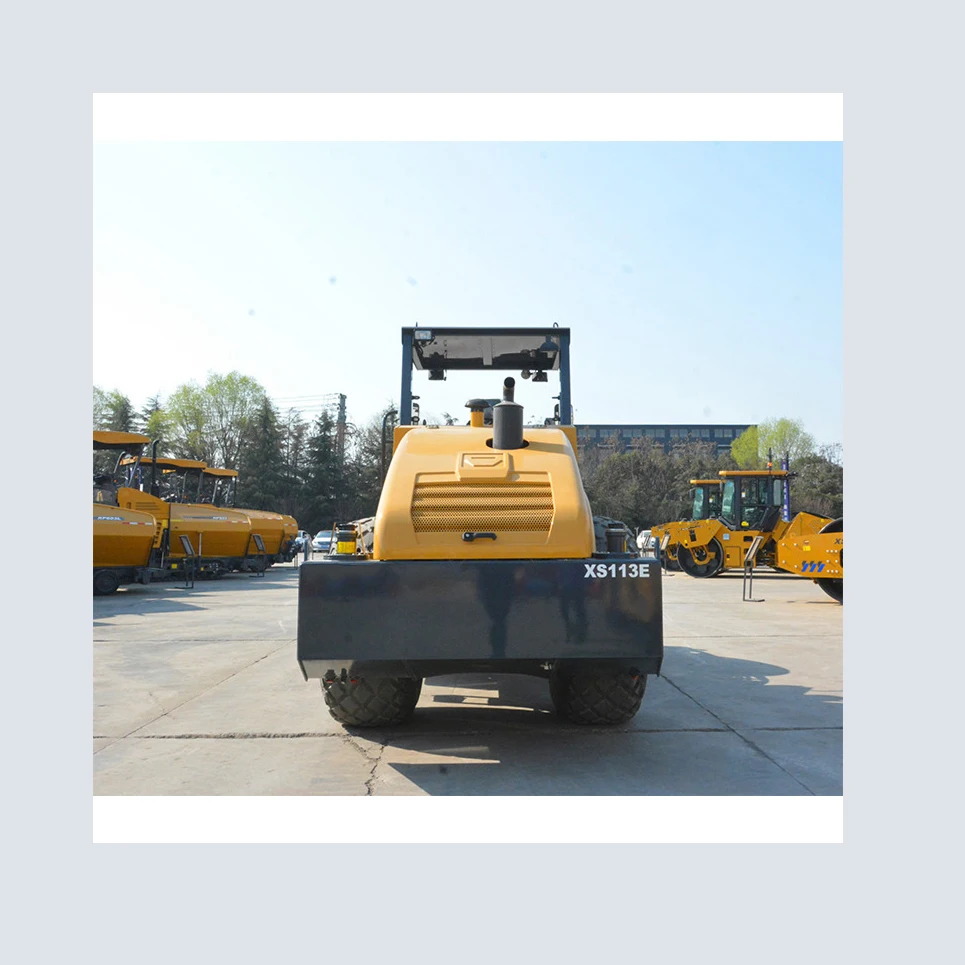

XS113E Single Drum Vibratory Roller
reliability, high compaction efficiency and good compaction quality. It is widely used in compaction work of base layer, sub-base layer and rock fill in roads, railways, airports, harbors, dams and industrial construction site.
Performance Characteristics:
* Imported brand turbocharged, water cooled engine, reliable quality, low fuel consumption, spare parts service is guaranteed.
* Closed hydraulic drive system, high transmission efficiency, stable and reliable performance.
* Special drive axle for roller, good traction performance, reliable and durable.
* unique cylinder type four point supporting vibration drum has simple structure, good nigidity, high reliability which has
been through decades of market validation.
* pioneered the "Three centers in one" homogeneous compaction technology, to ensure the coincidence of three centers (center of vibration quality, center of exciting force and center of geometry), obtaining the uniform static and dynamic compaction.
* Big distributed mass of vibration drum, high compaction ability.
Specification
Item | Unit | XS113E | ||
Weight | Operating weight | kg | 10400 | |
Distributed mass of front drum | kg | 5400 | ||
Distributed mass of rear drum | kg | 5000 | ||
Static linear load | kg/cm | 25.4 | ||
Driving performance data | Driving speed(gearⅠ) | km/h | 7.5 | |
Driving speed(gearⅡ) | km/h | 10 | ||
Theoretical gradeability | % | 40 | ||
Minimum turning radius | mm | 6800 | ||
Tire specification | - | 23.1*26 | ||
Ply rating | - | 12 | ||
Air pressure | kPa | 150-170 | ||
Power system | Engine manufacturer | - | Cummins | |
Type | - | 4BTA3.9 | ||
Rated power | kW(hp) | 93kw | ||
Rated speed | rpm | 2200 | ||
Voltage | V | 24 | ||
Vibration system | Vibrational frequency | Hz | 30/35 | |
Norminal amplitude | mm | 1.8/0.9 | ||
Exciting force | kN | 240/158 | ||
Volume | machine oil | L | 16.3 | |
Fuel tank | L | 200 | ||
Hydraulic tank | L | 100 | ||
Coolant | L | 20 | ||
Front drum chamber | L | 40 | ||
Axle | L | 16.4 | ||
