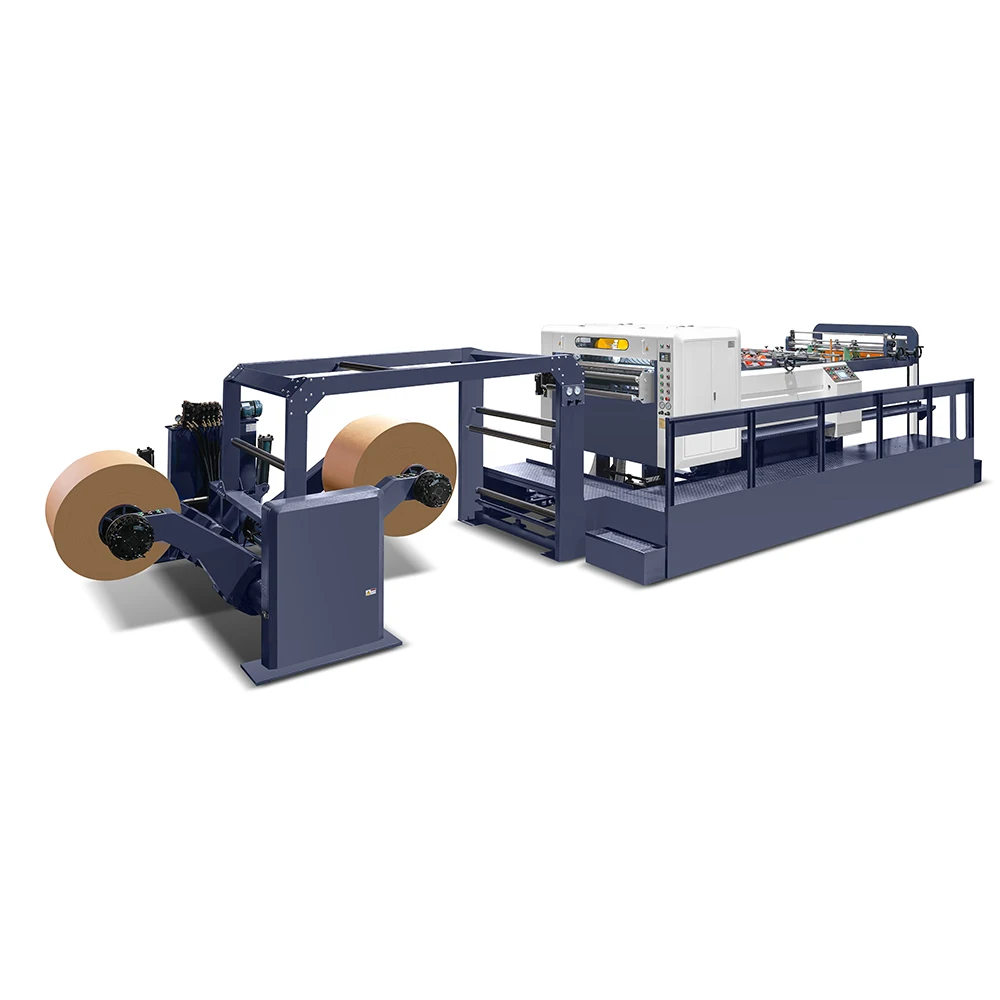

MSC 1700 2 Automatic PLC control paper roll to sheet cutting paper cutter machine
- Category: >>>
- Supplier: Ruian Mosun Machinery Co. Ltd.
Share on (1601018302899):
Product Overview
Description
VR
Product Appearance
Application

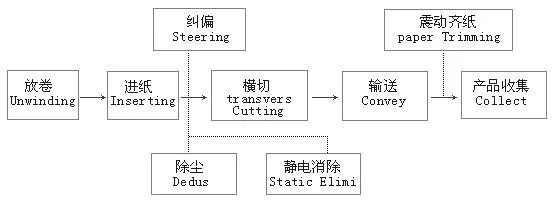

Process flow and equipment:
According to the technique of the MSC product, the specification is intended to describe the
functional requirements of automatic cutting equipment，The main process flow is：Unwinding→Inserting→Traverse
Cutting→Convey→Collect
functional requirements of automatic cutting equipment，The main process flow is：Unwinding→Inserting→Traverse
Cutting→Convey→Collect
Field public facilities:
1. Compressed air to the maximum pressure 80psi (3KW，8MPA)；
2. AC power supply for three-phase 380V，50Hz；DC power supply 24V，AC；
3. Pressure regulator：380V /50KW；
4. Cable：16mm² (three-phase line)；
5. Ground load demand: 2000kg/m²
6. Equipment operating environment temperature between 5 degrees Celsius to 40 degrees Celsius；
2. AC power supply for three-phase 380V，50Hz；DC power supply 24V，AC；
3. Pressure regulator：380V /50KW；
4. Cable：16mm² (three-phase line)；
5. Ground load demand: 2000kg/m²
6. Equipment operating environment temperature between 5 degrees Celsius to 40 degrees Celsius；
Products Description
Model | MSC-1400-2 | MSC-1700-2 | ||
Reference weight of cutting paper | 50-500g/㎡ | 50-500g/㎡ | ||
Max width of paper | 1400mm | 1700mm | ||
Max diamter of paper | 1800mm | 1800mm | ||
Total Power | 25KW | 28KW | ||
Cutting length | 400-1600mm | 400-1600mm | ||
Max cutting meter speed | 300m/min | 300m/min | ||
Atmospheric pressure | 0.8MPa | 0.8MPa | ||
Power supply | AC380V/220V*50HZ | AC380V/220V*50HZ | ||
Total weight | 11000kg | 13000kg | ||
Dimensions | 12000*3900*2350mm | 12000*4200*2350 | ||
Ralated Products
Details Images

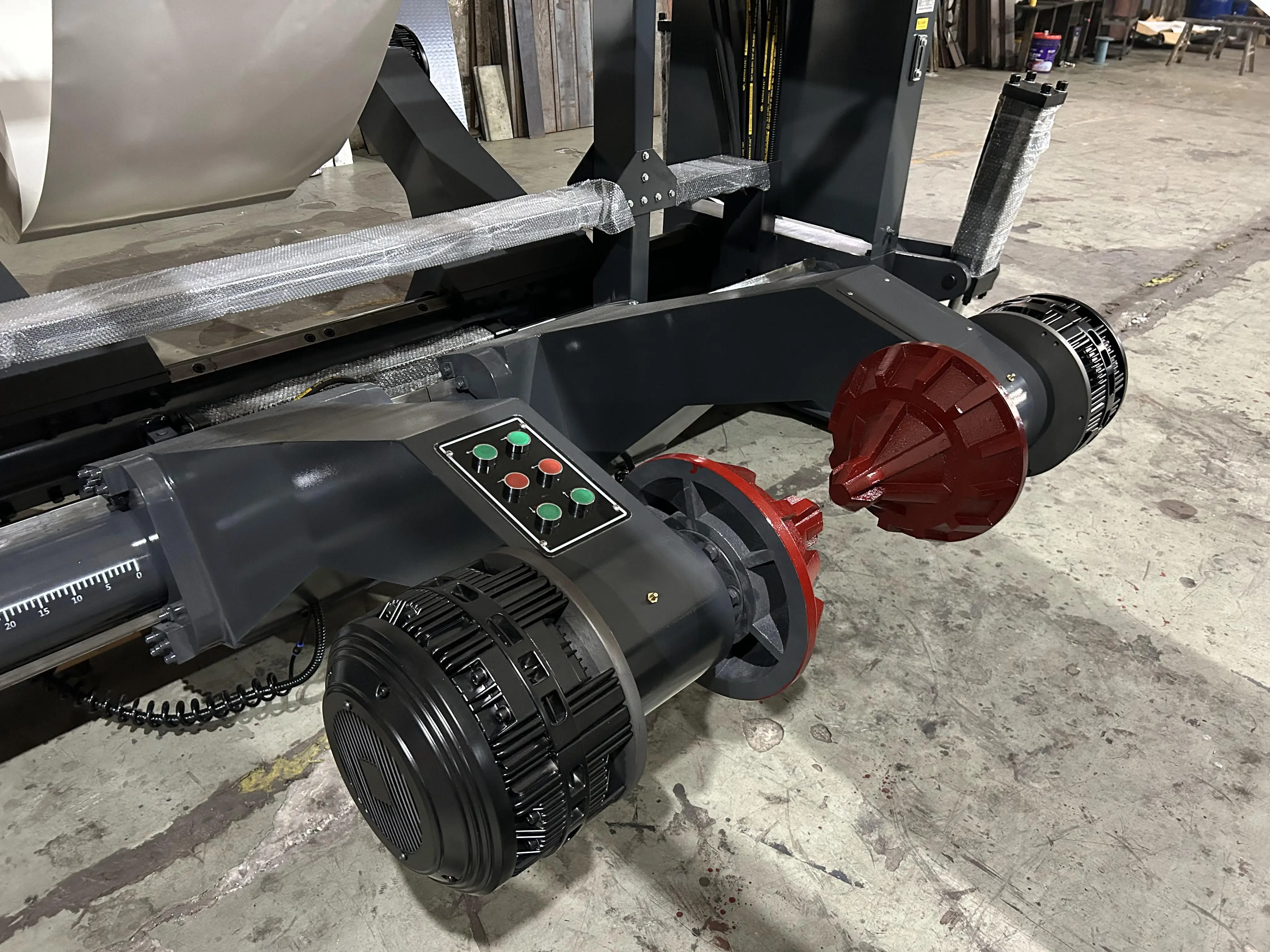

Automatic Roll Unwinding Unit
Automatic Roll Unwinding Unit is Equipped with Hydraulic Shaft-less Roll Stands two clamps and Braking system, which are Easy-to-use During Roll Manipulations

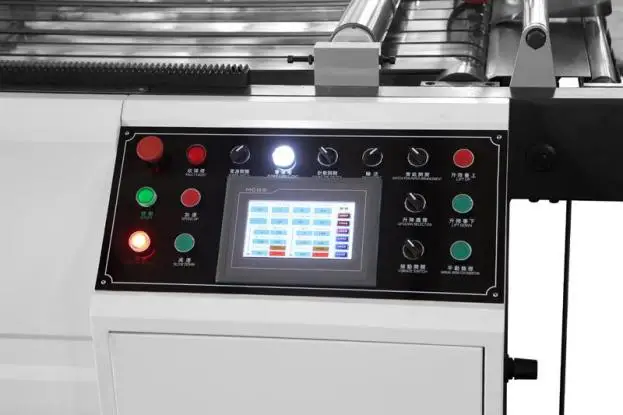

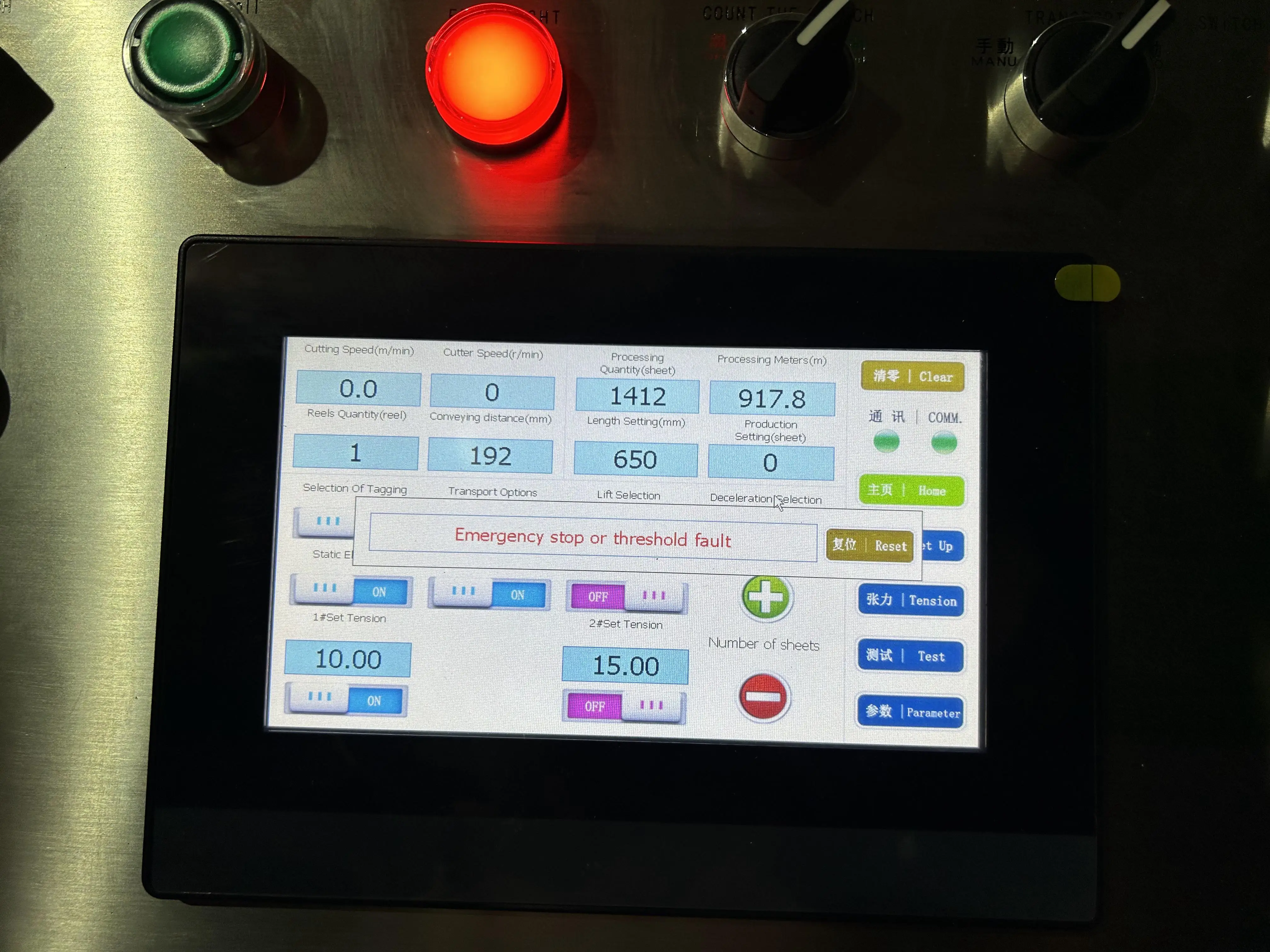

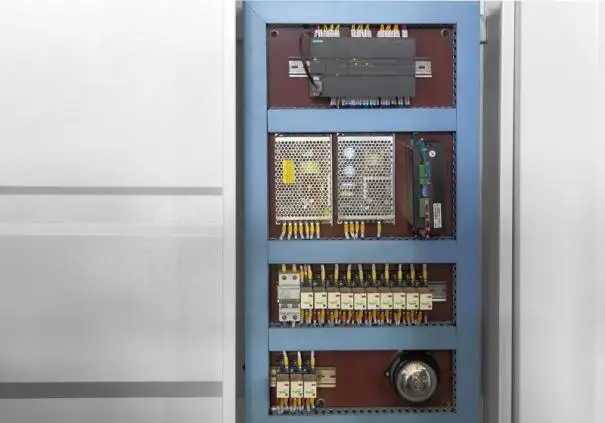

Concise, Sensitive and Friendly.Using the world’s advanced technology Simens PLC, keeps the whole equipment’s program and circuit control stable and runs without accident.
Antistatic device
Eliminate the static electricity on the paper, the flow-up operation of the paper more smoothly.

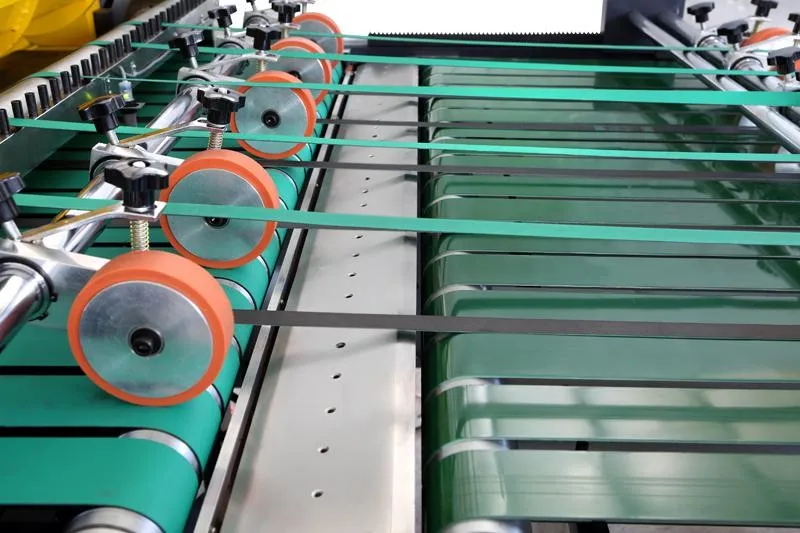

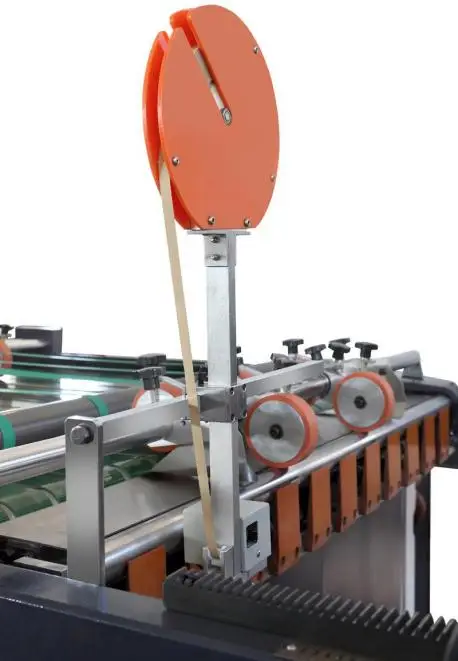

Counting marker
Inserting marks according to the number of sheets of paper set.

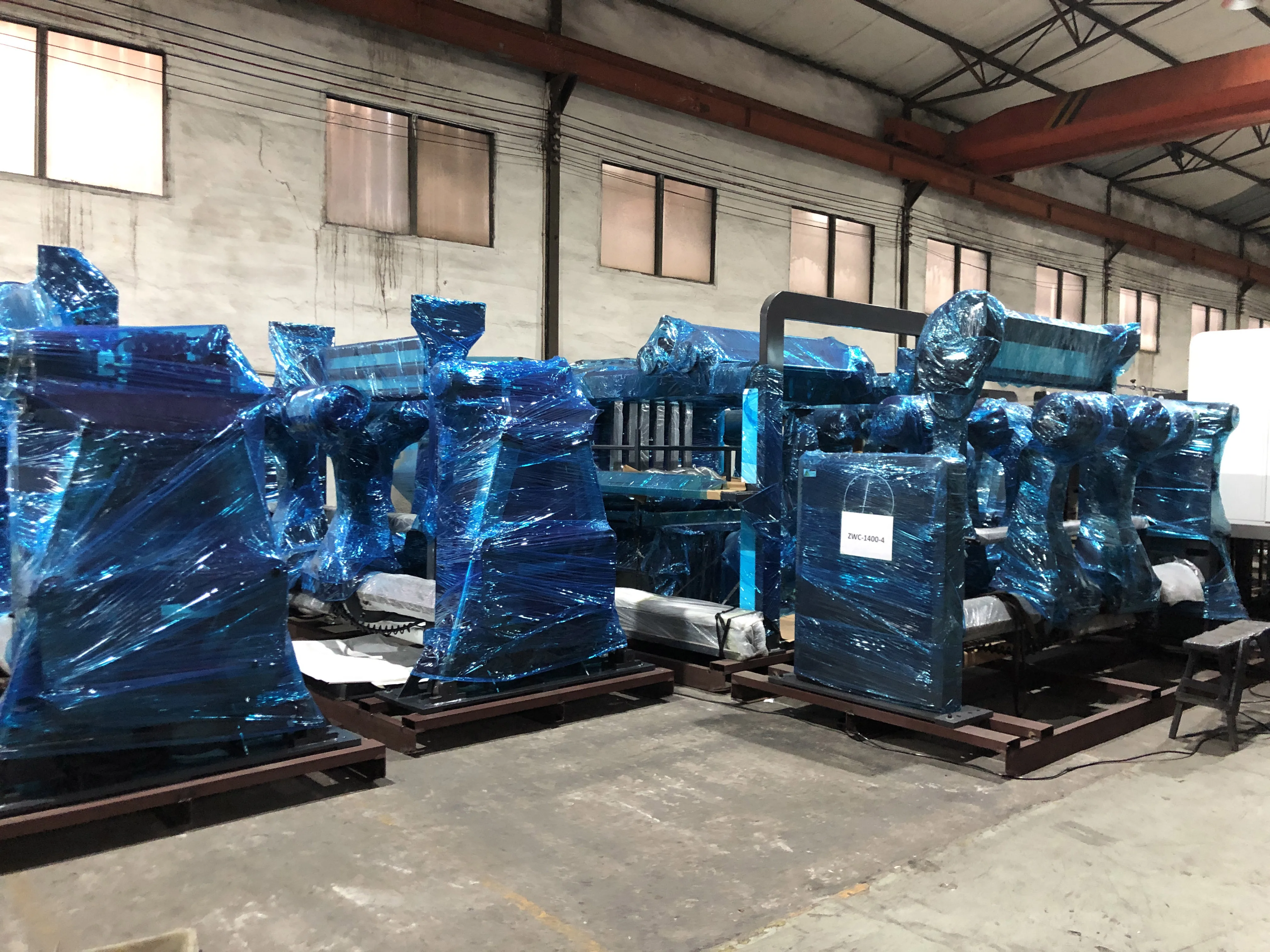

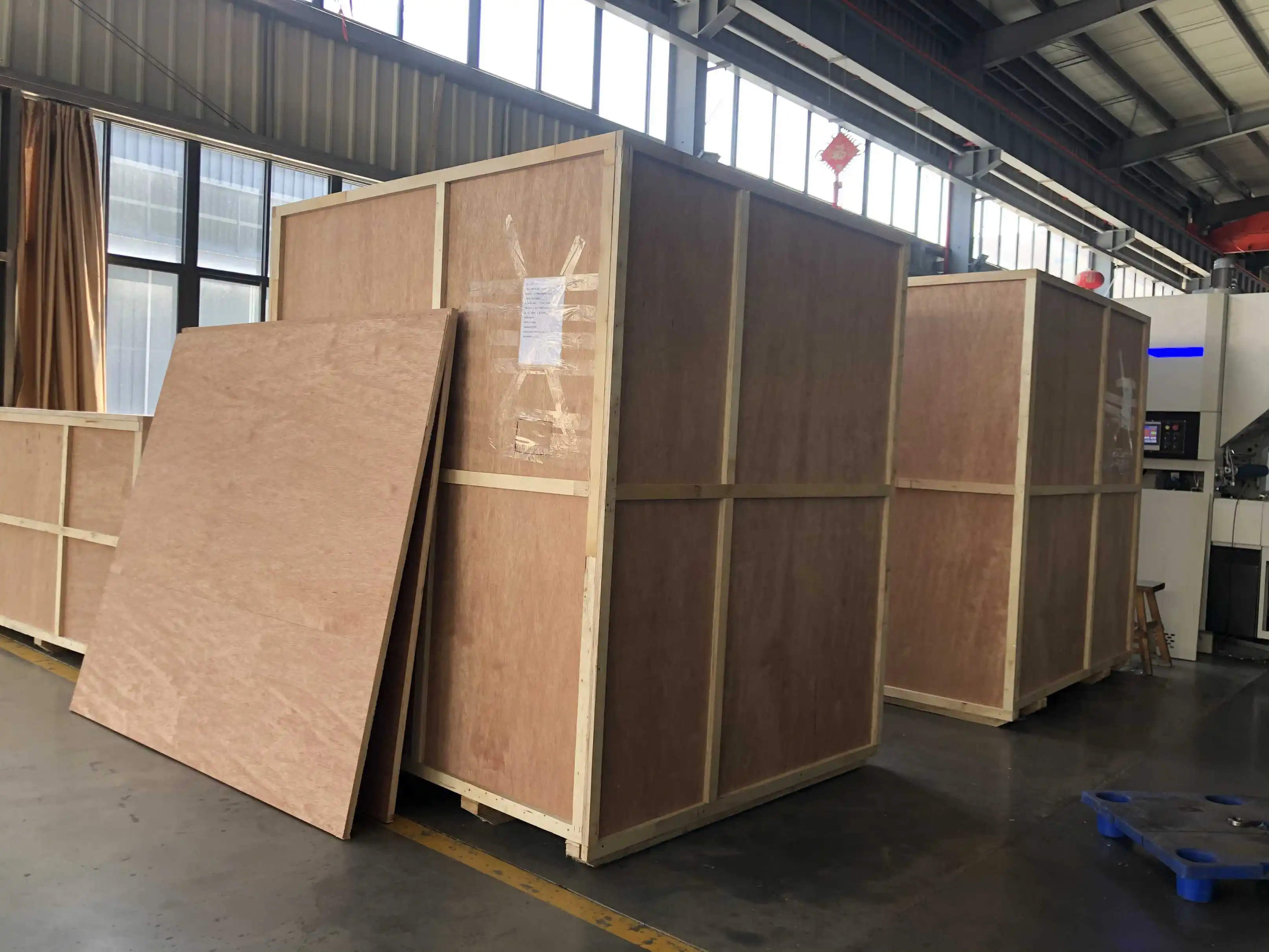

Product packaging
Company Information
SERVICE AND WARRANTY：
Marketing & Technical Service Center Technical Training Professional operating engineers sent by GREAT is responsible for equipment installation and commissioning work at the same time, training for user operators.
The customer need to bear his Visa, round-trip ticket, whole trip room and board and afford 100.00 USD per day wage.
Training Content:
All machines have been finished all adjustment and test in GREAT workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
Warranty:
13 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 13 months)
The customer need to bear his Visa, round-trip ticket, whole trip room and board and afford 100.00 USD per day wage.
Training Content:
All machines have been finished all adjustment and test in GREAT workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
Warranty:
13 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 13 months)
