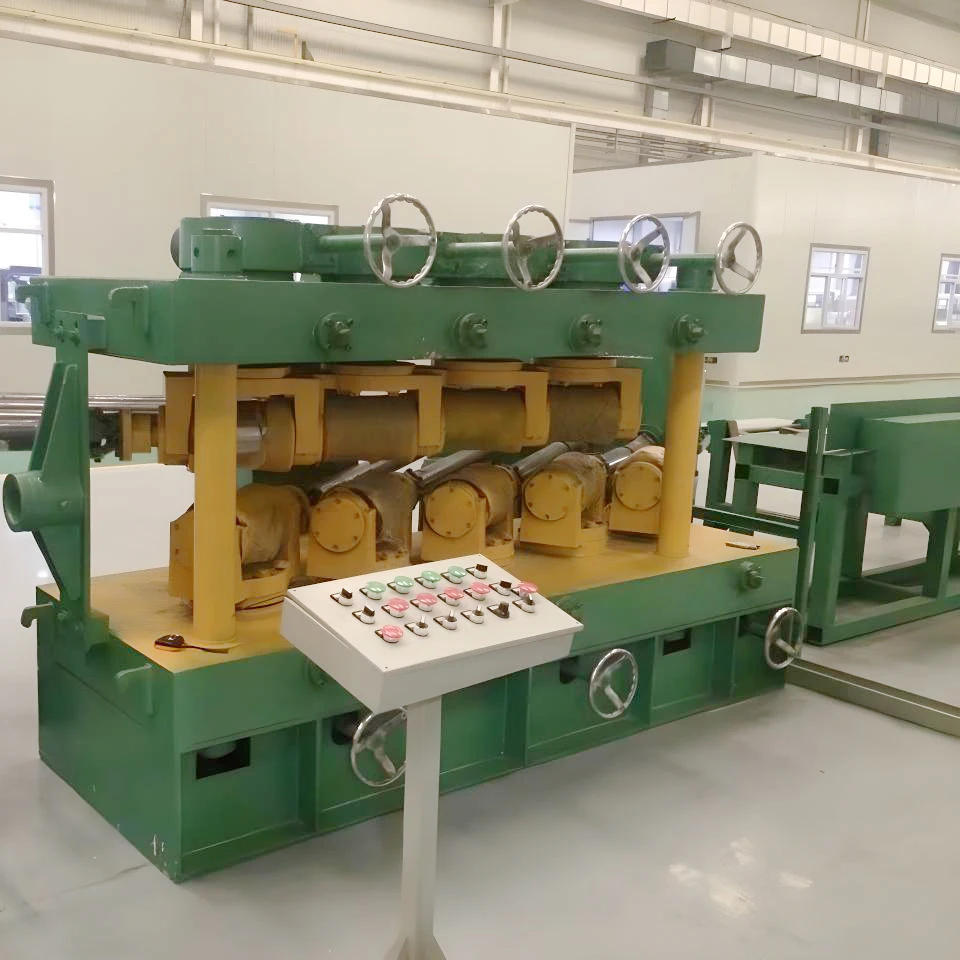

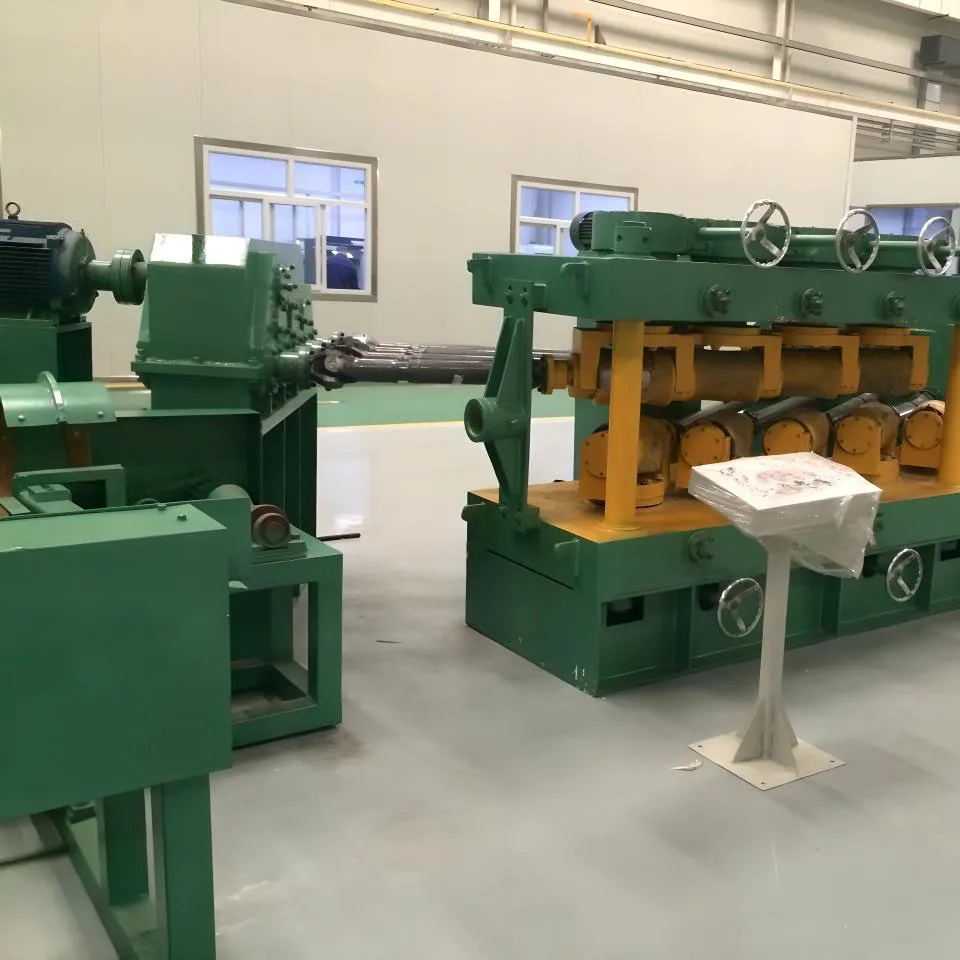

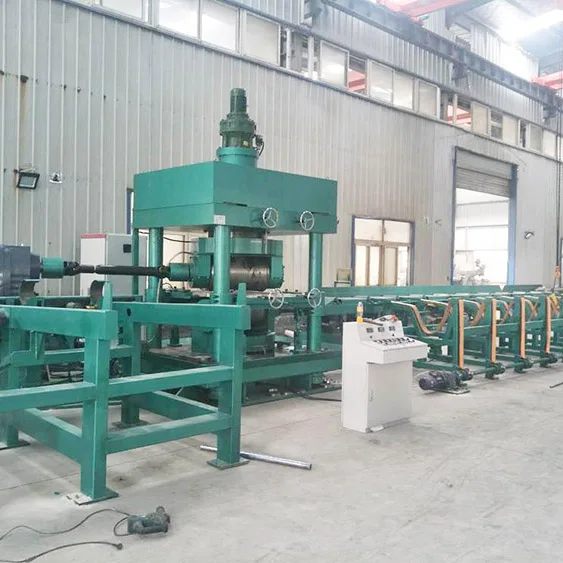

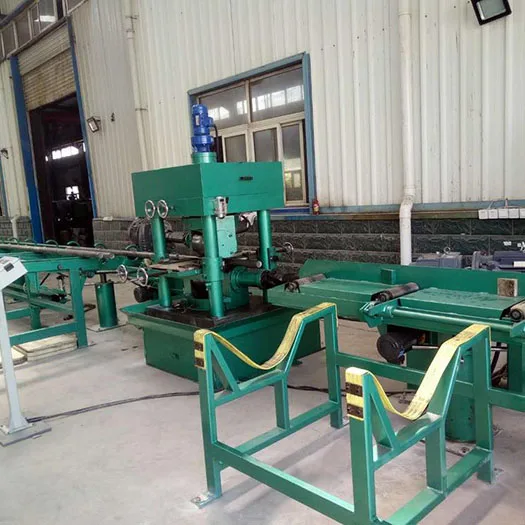

Mc Environmental Protection Profile Straightening Machine Shaft Straightening Machine 4 Roll Straightening Machine
- Category: >>>
- Supplier: Dalian Mingcheng Industry Co. Ltd.
Share on (1601018307186):
Product Overview
Description
Contacts: Ruby Xue
Tel: +86-411-82766928
Email: rubyxue001@gmail.com
Mob/Wechat/Whatsapp: +86 138 4093 6601
Tel: +86-411-82766928
Email: rubyxue001@gmail.com
Mob/Wechat/Whatsapp: +86 138 4093 6601
Products Description
Mc Stable Performance wire straightening and cutting machine price bar straightening press wire straightening and cutting

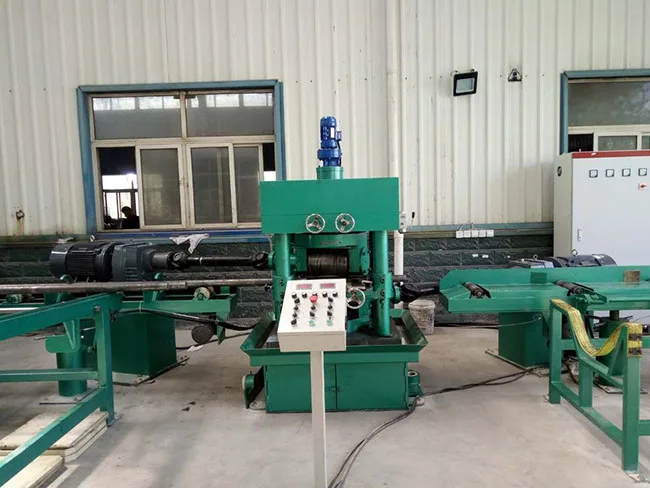

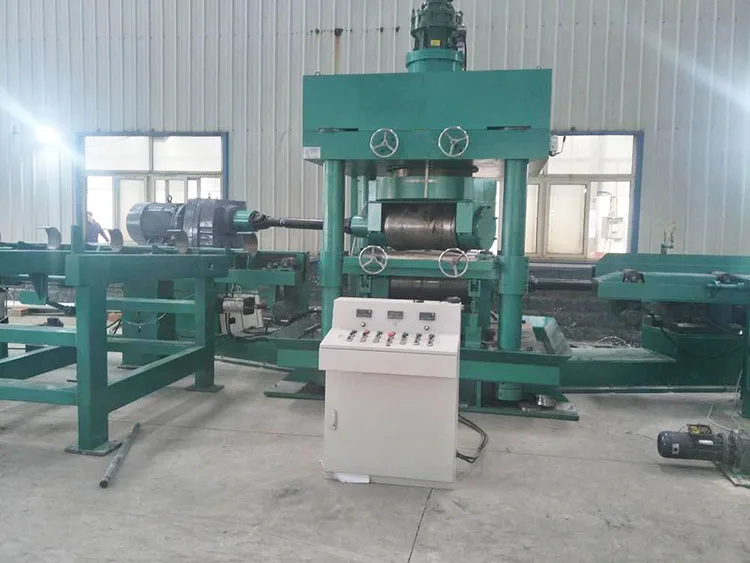

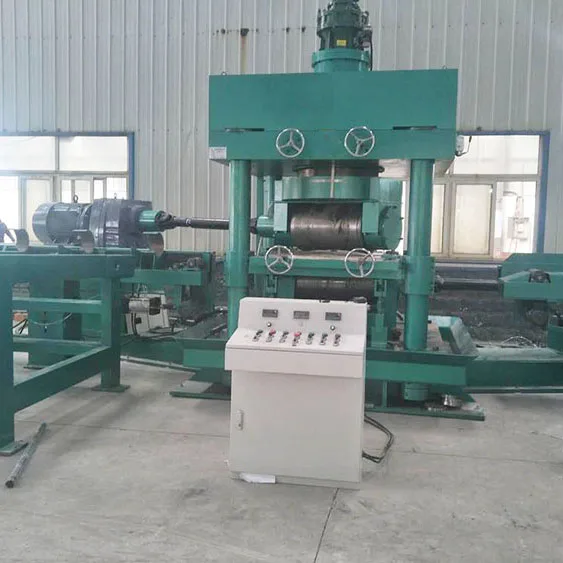

Our 2-roll JY straightening machines are used for accurately straightening warped metal bars or thick-walled tubes at high efficiency.Available for all metal materials,not limited ferrous or non-ferrous.It can form a production line with our center-less peeling machine.If straightness of raw material is more than 1.5mm/m, pre-straightening before peeling is recommended.
After straightening of peeling bar,straightness is up to 0.15~0.4mm/m and roughness is <0.8μm.Loading
and unloading system can be supplied for manual or automatic operation.
and unloading system can be supplied for manual or automatic operation.
Broad Application: Handles metals with diameters ranging from ∮8-150mm.
High Efficiency: Achieves a straightening speed of 0-25m/min, meeting high-speed production needs.
Precise Control: The roll speed goes up to 0-140rpm, ensuring smooth and consistent straightening of materials.
Superior Surface Treatment: Offers a surface roughness of Ra1.6-0.8 for hot-rolled materials.
Model
Name: MC-40
Brand: MC
Original: China
Name: MC-40
Brand: MC
Original: China
The MC-40 model is a specialized straightening machine designed specifically for post-stripped raw materials. It's apt for a variety of ferrous and non-ferrous metal rods, offering outstanding straightening results and efficiency, making it an ideal straightening tool.
Model
Name: MC-60Brand: MC
Original: China
In the vast realm of metal processing, the demand for precision, efficiency, and reliability has never been higher. This is where
the MC-60 Straightening Machine takes center stage, uniquely designed as the pinnacle of straightening technologies.
Model
Name: MC-80Brand: MC
Original: China
MC-80 Straightening Machine: A star product in the modern metal processing industry, designed specifically for medium-diameter
metal materials. With its powerful straightening ability, this machine can handle a variety of metals ranging from a diameter of
∮30-80mm, from conventional steel to more complex alloys. Regardless of your business size, requirements, or application, the
MC-80 model is an ideal partner in the metal processing industry, ensuring production quality while optimizing workflow.
Model
Name: MC-100Brand: MC
Original: China
The MC-100 straightening machine is an efficient equipment crafted especially for processing metals with diameters ranging from 25mm to 100mm. Renowned for its outstanding technical parameters and excellent straightening results, this machine has become the preferred choice in various industrial sectors such as automotive, aerospace, and machinery manufacturing. By seamlessly integrating high-speed straightening, precision, and cost-efficiency, the MC-100 guarantees the highest craftsmanship standards in metal materials, assuring top-notch production quality.
Model
Name: MC-150Brand: MC
Original: China
MC-150 Straightening Machine: Enhancing Precision in Metal Processing
Application Fields
Product Paramenters
Model | MC-40 | MC-60 | MC-80 | MC-100 | MC-150 |
Main Power Supply | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ |
Control Power Supply | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ |
Control System Power | DC24V | DC24V | DC24V | DC24V | DC24V |
Straightening Length (Standard configuration is 6M) | ≧1m | ≧2m | ≧2m | ≧2m | ≧2.5m |
Processing Range | ∮8-40 | ∮18-60 | ∮20-80 | ∮20-100 | ∮70-150 |
Straightening Speed | 1-25m/min | 1-25m/min | 1-18m/min | 1-18m/min | 1-10m/min |
Straightening Roller Speed | 1-140rpm | 1-140rpm | 1-63rpm | 1-63rpm | 1-63rpm |
Surface Roughness (for hot-rolled material) | Ra1.6-0.8 | Ra1.6-0.8 | Ra1.6-0.8 | Ra1.6-0.8 | Ra1.6-0.8 |
Diameter Tolerance (excluding material head and tail 100mm) | ≦h8 | ≦h8 | ≦h8 | ≦h8 | ≦h8 |
Linearity (raw material) | ≦2‰ | ≦2‰ | ≦2‰ | ≦2‰ | ≦2‰ |
Linearity (finished product) | ≦0.5‰ | ≦0.5‰ | ≦0.5‰ | ≦0.5‰ | ≦0.5‰ |
Installed Capacity | 48KW | 63kW | 115KW | 155KW | 187kW |
Dimensions (LxWxH in meters) | 14*4*2 | 14*4*2.5 | 15*4.5*3 | 15*4.5*3.5 | 16*4.5*4 |
Weight | 4T | 7T | 18T | 26T | 35T |
Recommend Products
Company Profile
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Product packaging
Packaging | ||
Size | 550 (L) * 220 (W) * 235 (D) | |
Weight | 4.5 T | |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
