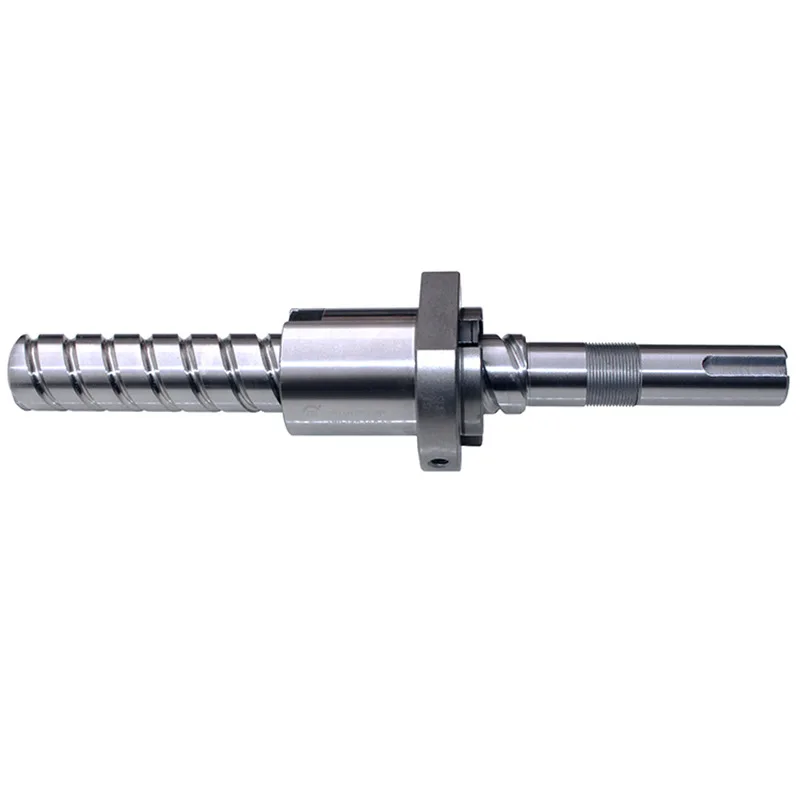

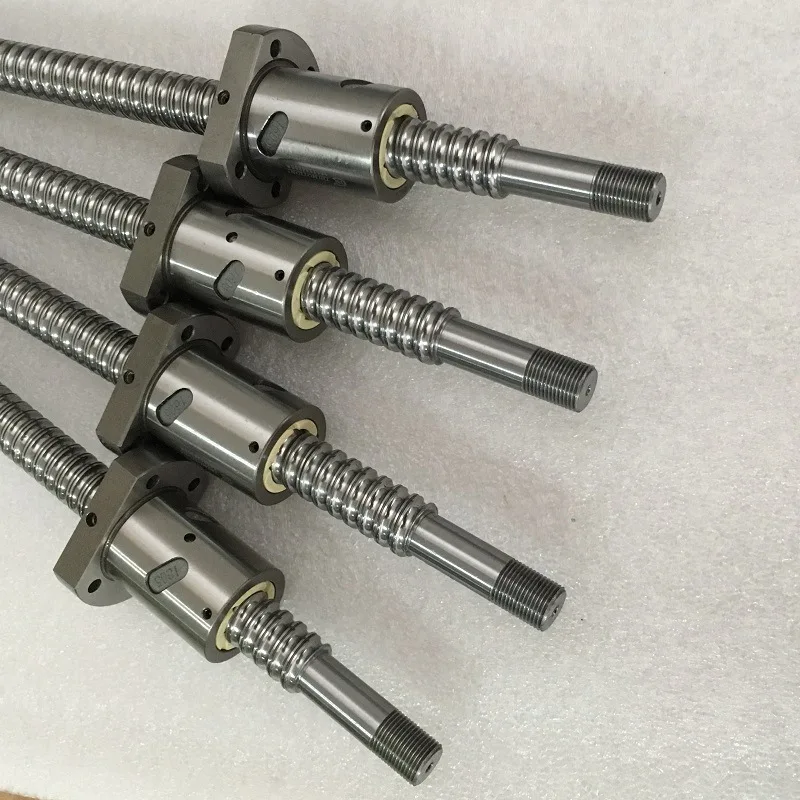

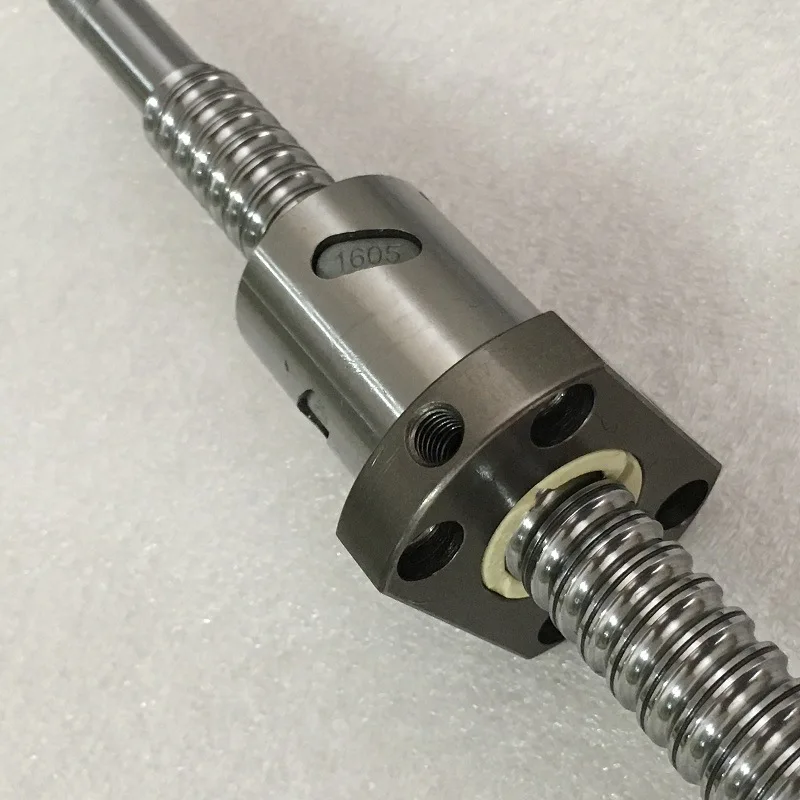

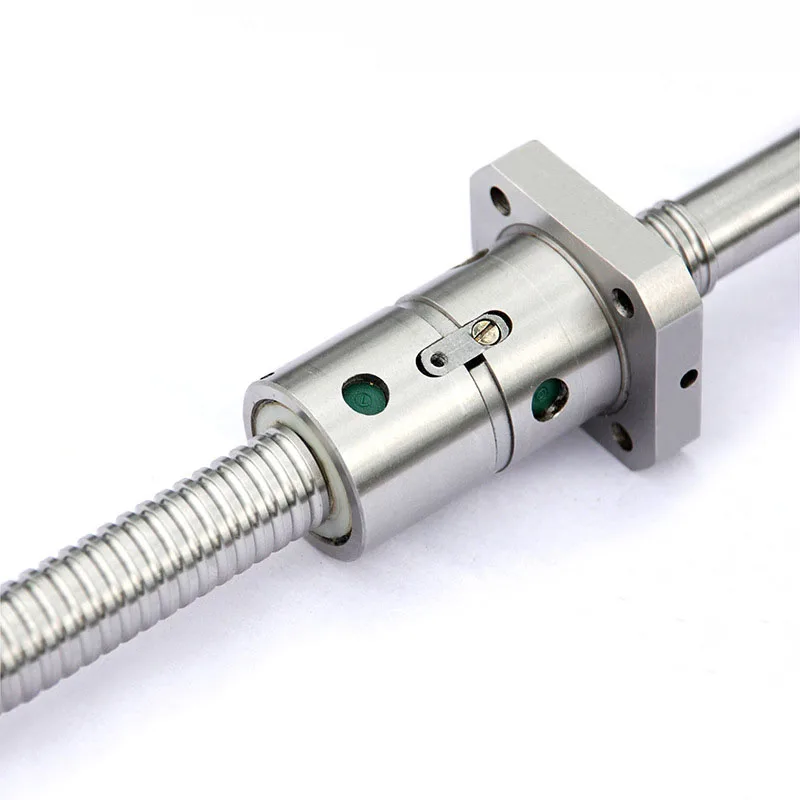

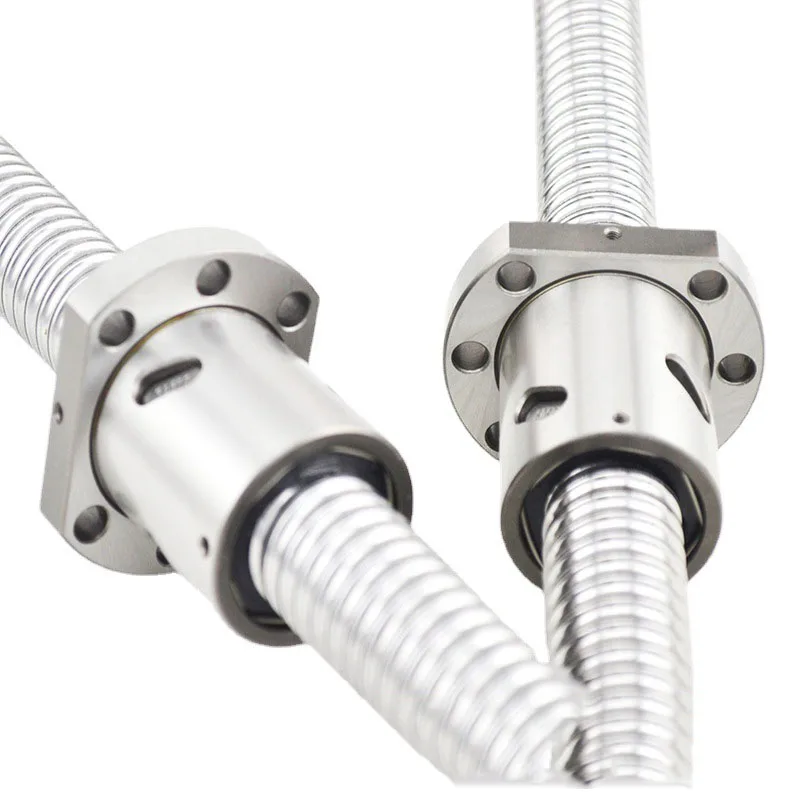

Taiwan HIWIN high speed Flange screw nut for robot 38-10K3- FSC R38-10K4
Ball screw is also called ball screw, lead screw, etc. It includes screw, nut, circulation system and steel balls. Ball screws are used for machine tools, IT, optoelectronics. The most commonly used transmission element in precision equipment such as semiconductors and medical equipment. Its main function is to convert rotational motion into linear motion or convert torque into axial motion. Repeated force; it also has the characteristics of high precision, reversibility and high efficiency.
HIWIN brand ball screws can meet different usage requirements in various fields. HIWIN ball screws are products manufactured by combining technology, process technology, and engineering expertise, and illustrate the meaning of HIWIN as "High TechWinners".

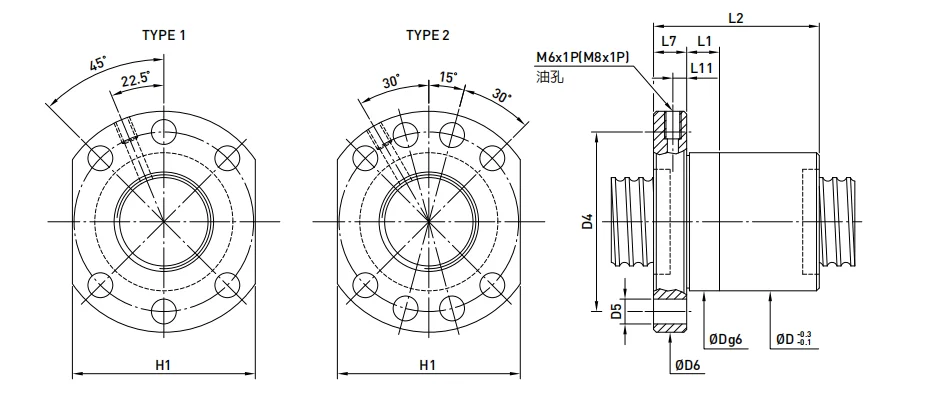

Size Information
Model No | Nominal outer diameter (mm) | Lead (mm) | L2(mm) | dynamic load C(kgf) | static load Ca(kgf) |
15-5K3 | 15 | 5 | 38 | 990 | 1580 |
16-5T3 | 16 | 5 | 40 | 1000 | 2000 |
20-5K3 | 20 | 5 | 36 | 1280 | 2410 |
20-5K4 | 20 | 5 | 40 | 1670 | 3270 |
25-5K3 | 25 | 5 | 38 | 1420 | 3050 |
25-5K4 | 25 | 5 | 43 | 1850 | 4150 |
25-10K5 | 25 | 10 | 70 | 2260 | 5200 |
32-5K4 | 32 | 5 | 38 | 2070 | 5360 |
32-5K6 | 32 | 5 | 48 | 2980 | 8190 |
32-10T3 | 32 | 10 | 74 | 3650 | 8660 |
32-10T4 | 32 | 10 | 85 | 4680 | 11550 |
32-10K5 | 32 | 10 | 73 | 3390 | 8160 |
32-10K6 | 32 | 10 | 83 | 3990 | 9860 |
40-5K4 | 40 | 5 | 40 | 2240 | 6590 |
40-5K6 | 40 | 5 | 50 | 3220 | 10060 |
38-10K3 | 38 | 10 | 60 | 4350 | 9140 |
40-10T3 | 40 | 10 | 74 | 4030 | 10680 |
38-10K4 | 38 | 10 | 70 | 5660 | 12410 |
40-10T4 | 40 | 10 | 87 | 5170 | 14240 |
50-5K4 | 50 | 5 | 40 | 2450 | 8330 |
50-5K6 | 50 | 5 | 50 | 3530 | 12720 |
50-10K3 | 50 | 10 | 60 | 4960 | 12240 |
50-10K4 | 50 | 10 | 70 | 6450 | 16610 |
50-10K6 | 50 | 10 | 90 | 9280 | 25350 |
63-10K6 | 63 | 10 | 94 | 10180 | 31750 |
Application Field
Ball screw for multi-axis robot
Ball screw for Rotary table
Ball screw for Optical detector
HIWIN converted grade screw also has the advantages of high smoothness, long life and low price; it is generally used in situations where precision is not required.
HIWIN precision screws have high smoothness and precise positioning, as well as low torque, high rigidity, ultra-quiet and predictable long life.
