Tobee Effluent Handling
$12,600

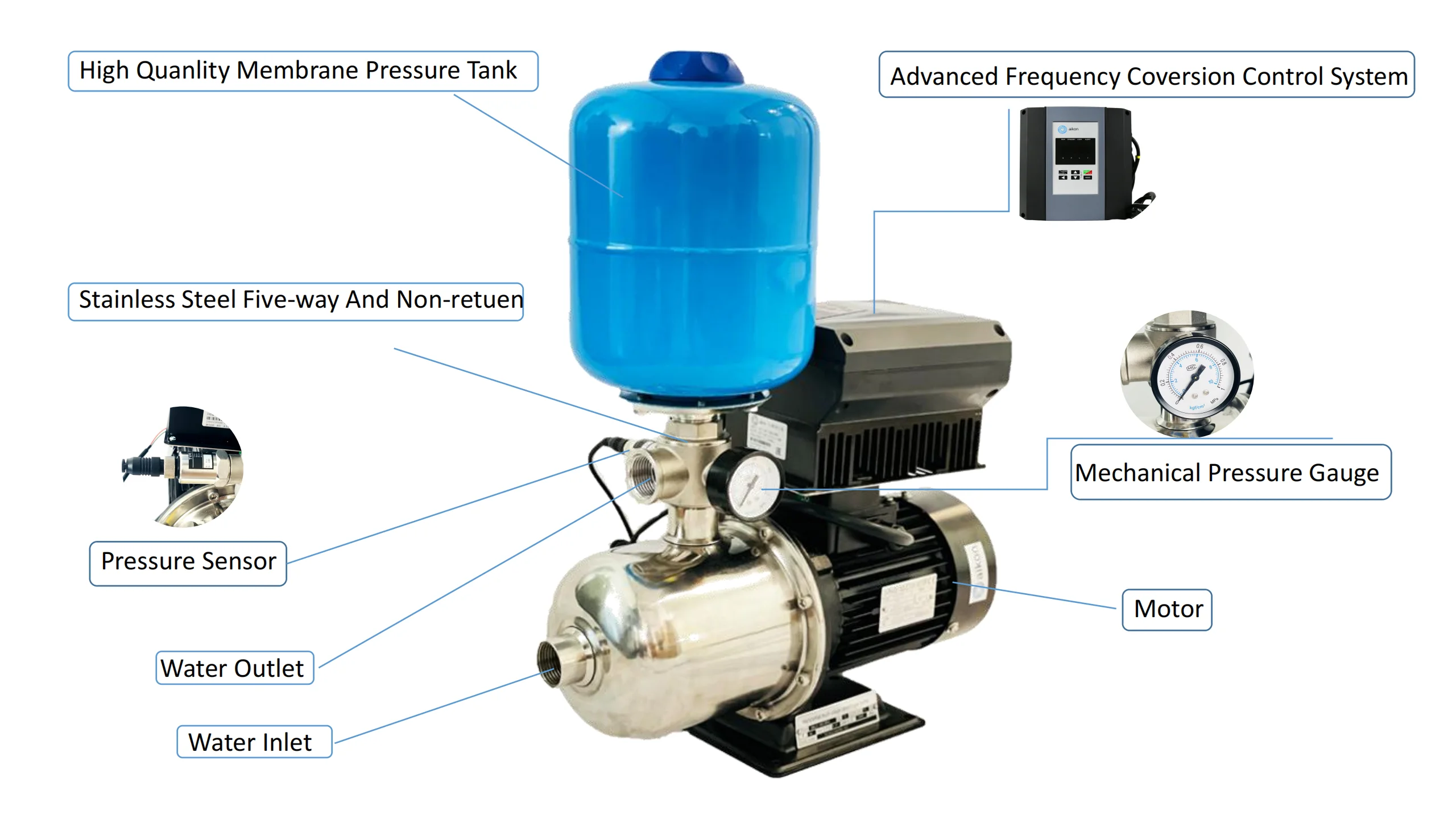

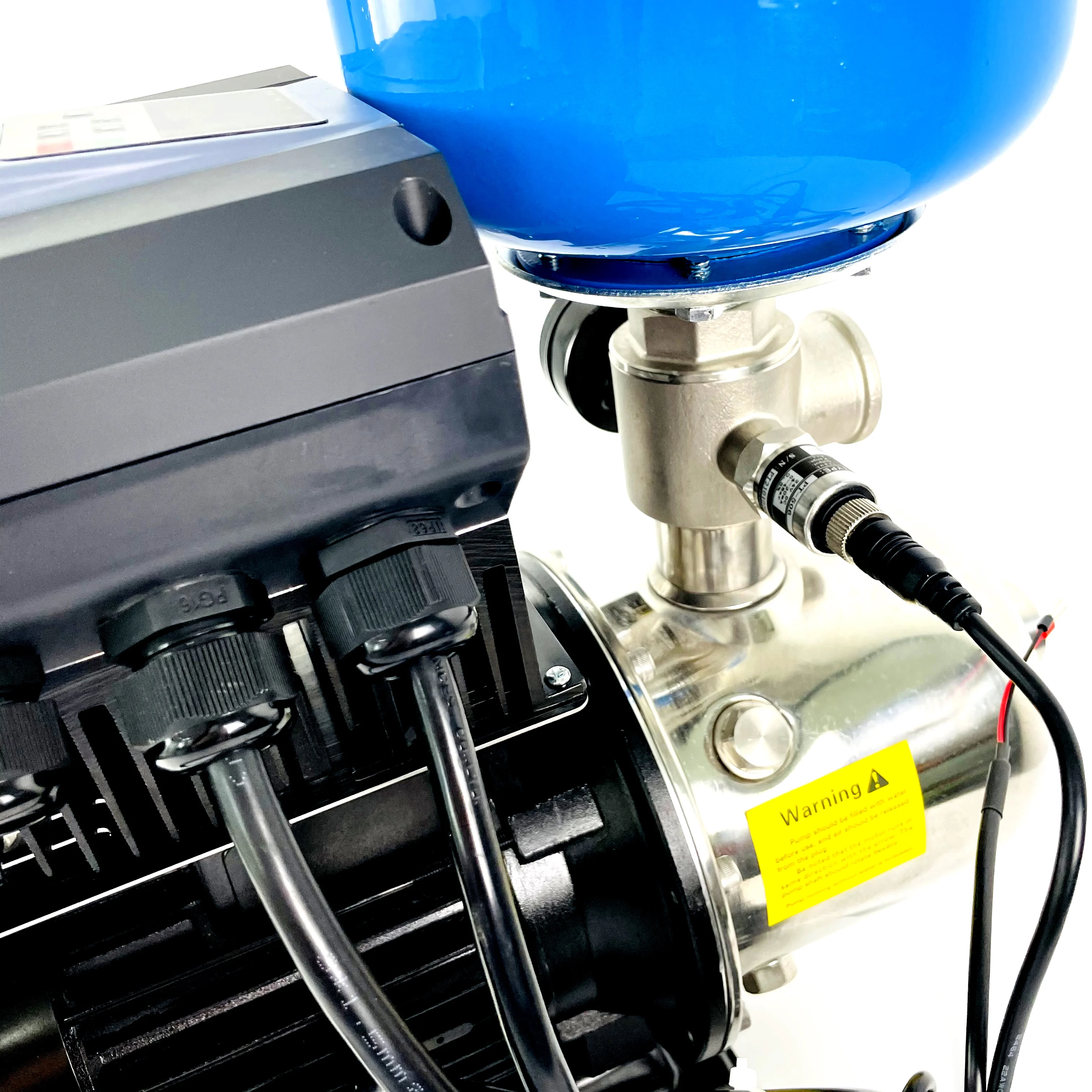

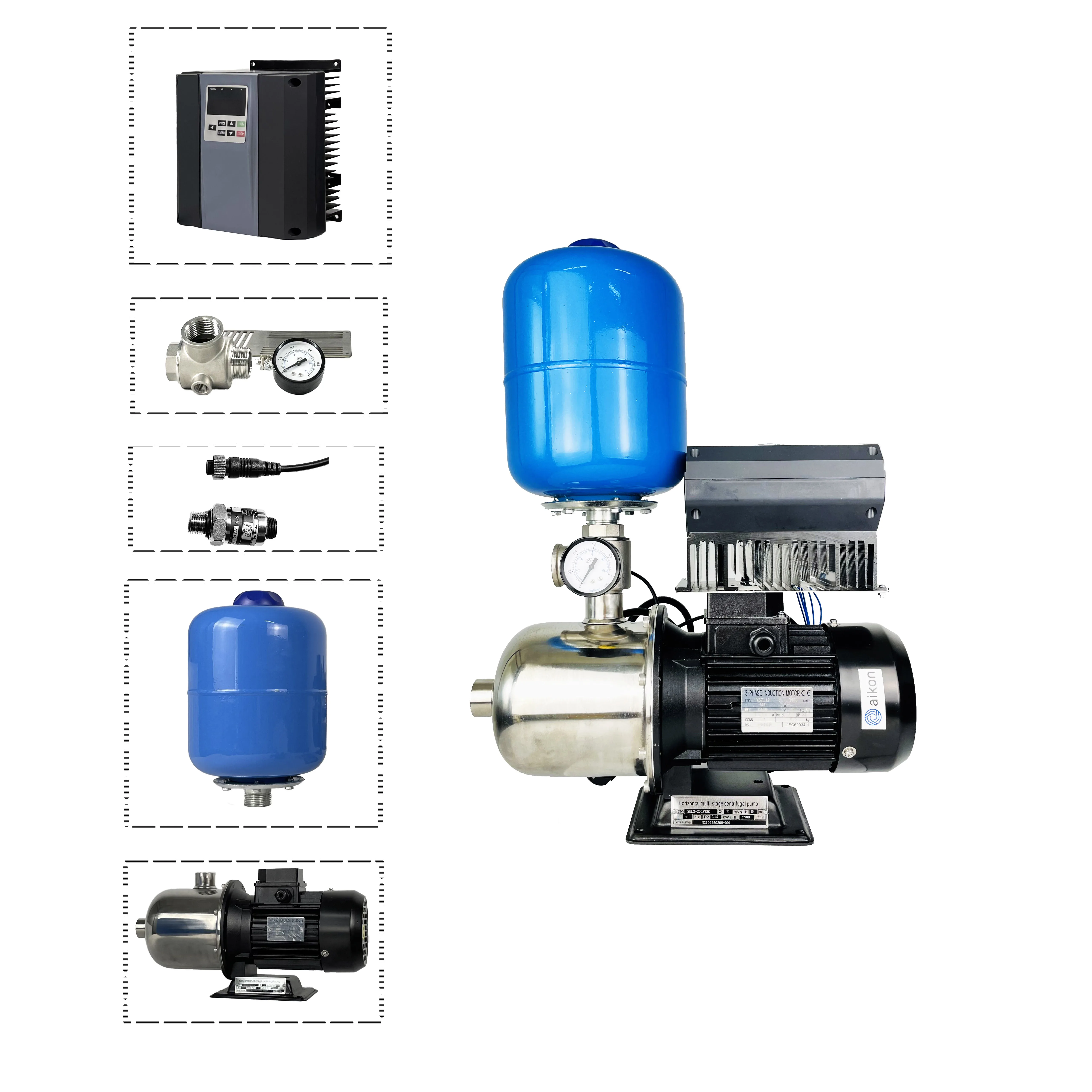

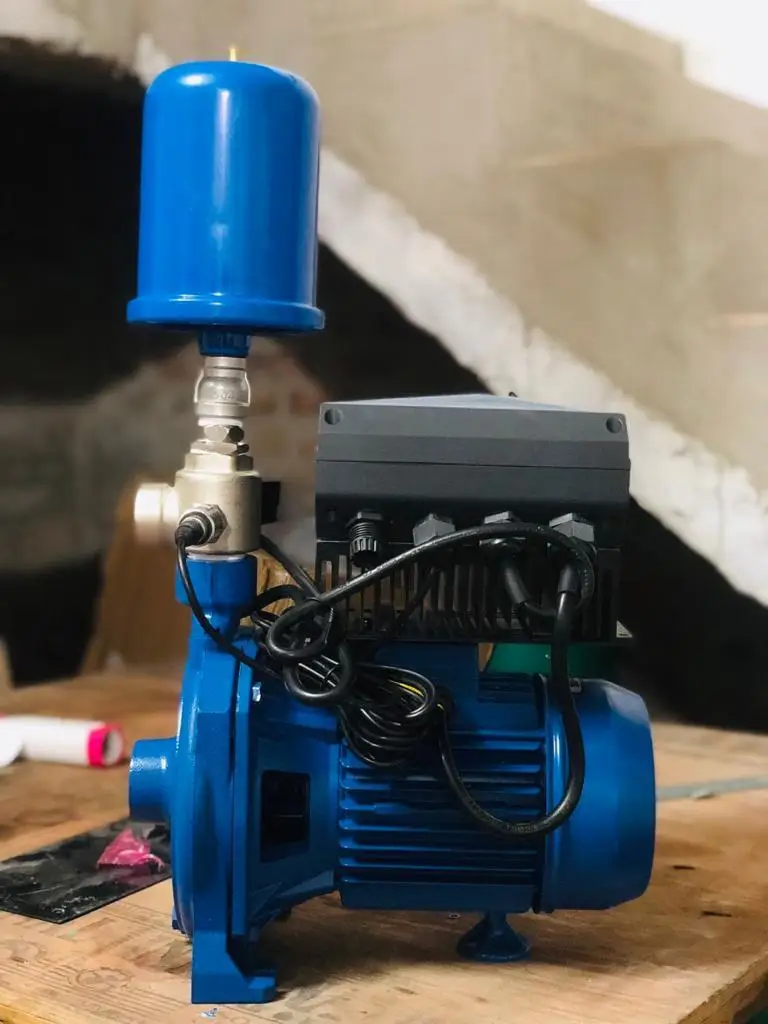

Intelligent Stainless steel centrifugal multistage pressure booster pressure pump for home
- Category: >>>
- Supplier: Shanghai Pumping Tech International Co. Ltd.
Share on (1601018385158):
Product Overview
Description
Detailed Images
Liquid temperaturePump operating conditions
*Pumping liquids which are thin, clean, non-flammable, non-combustible or non-explosive liquids, not containing solid particles or fibers.
*Maximum ambient temperature: +40 °C
*Maximum altitude above sea level: 1000 m
Normal temperature pump: -15°C to +70°C
Hot temperature pump: -15°C to +105°C
Pump material
Cast iron
Stainless steel(AISI304, AISI316)
Duplex stainless steel(2205)
Pipe connection
G-Thread
Motor
*Totally enclosed, fan-cooled, 2-pole standard motors
* Enclosure class: IP55
* Insulation class: F
* Voltage: 3x220-240/380-415V
1x220-240V
available with single-phase motors(0.37kW-2.2kW)
| Component | Construction |
| Pump body | Cast iron |
| Pump support | Cast iron |
| Structure | Single-stage pump |
| Voltage | AC 220V±15% /50Hz-60Hz |
| Motor housing | Aluminum |
| Impeller | AISI304 |
| Motor shaft | Carbon steel, AISI304 SS if request |
| Mechanical seal | SIC/Graphite |
| Bearings | 6201RZ/6201RZ (0.15HP&0.5HP) 6202RZ/6202RZ (0.75HP&1HP) |
| Pump | Single-phase,220V/50Hz, 60Hz if request |
| Inverter | Single-phase input,Three-phase output |
