Lab DC Vacuum Ion Sputtering Coater Machine
Introduction

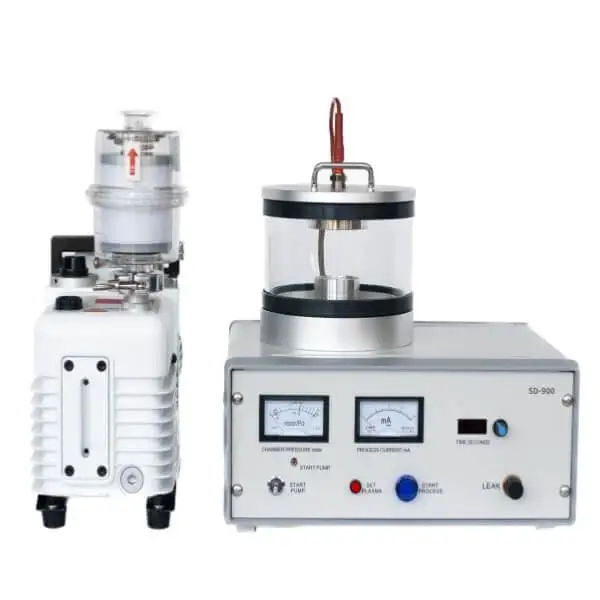

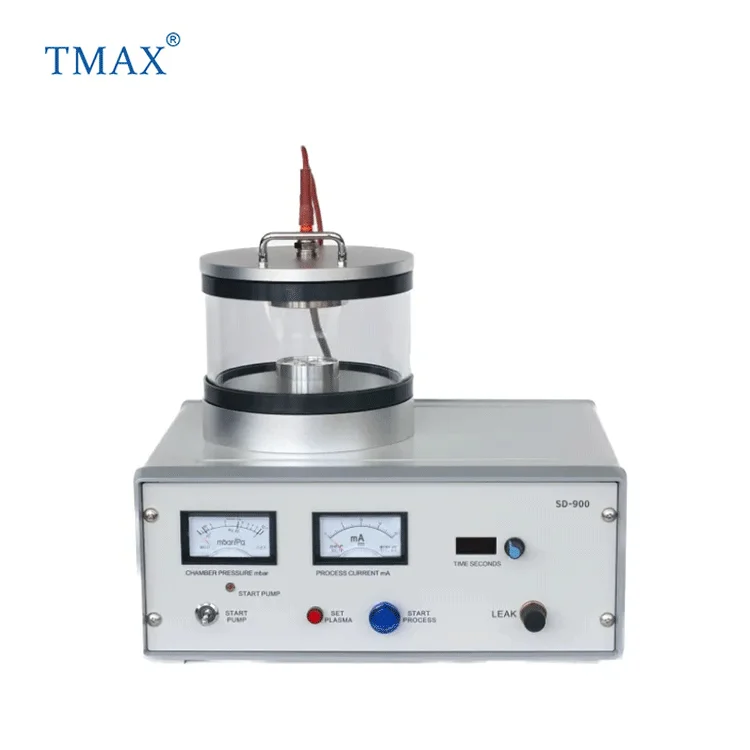

Ion Sputtering Coater (SD900 Model) is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive SEM samples with Au for better imaging. It is also excellent for surface treatment.
Working vacuum pressure can be achieved quickly within 2 minutes when using proper vacuum pump. It generates much less heat. It is user friendly and easy to operate.
Vacuum pump is included.
Parameter
Vacuum pump set | (Oil required) rotary vacuum pump |
Rotary pumping speed | 50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s) |
Vacuum limit | 2Pa |
Max sputtering current | 0-20mA |
Working pressure | 30Pa -7 Pa |
Vacuuming time | <5 Min(2 Pa) |
Vacuum measure | Measuring range from atmosphere to 2*10-2mbar |
Gas control | Gas flow controller |
Chamber size | Φ150*120mm (height) scratch resistant quartz glass |
Magnetron target source | Target size φ 50*0.1mm(Au)/ target source: Au,Ag,Pt |
Operation method | Instruction Manual |
Weight/size | 45kg/360mm length x 300mm wide x 380mm high |
Power supply | AC 110V 60Hz or AC 220V 50Hz |
Power consumption | <1500W |
Cooling method | Air cooling |
Warranty | One year limited warranty with lifetime product support |
