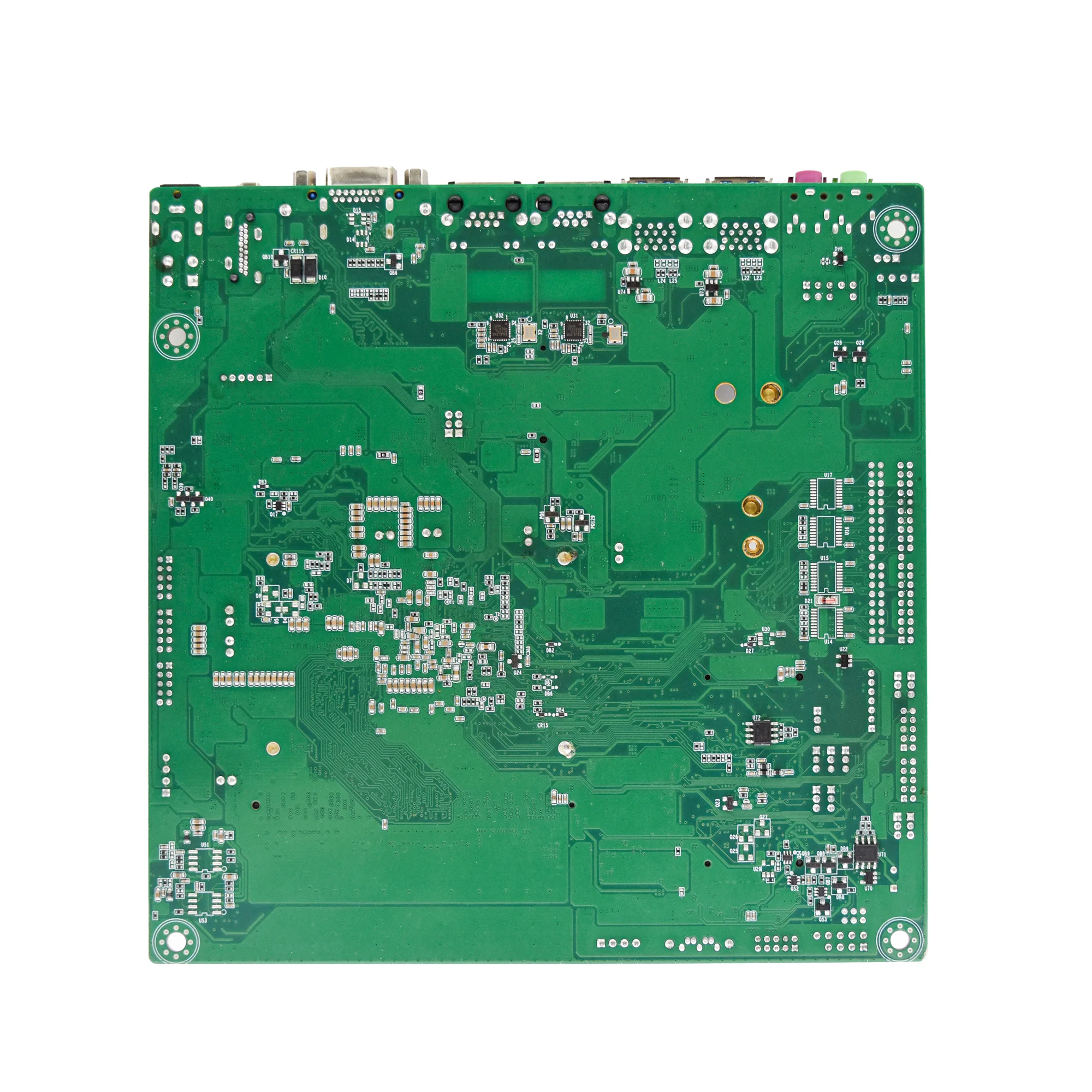

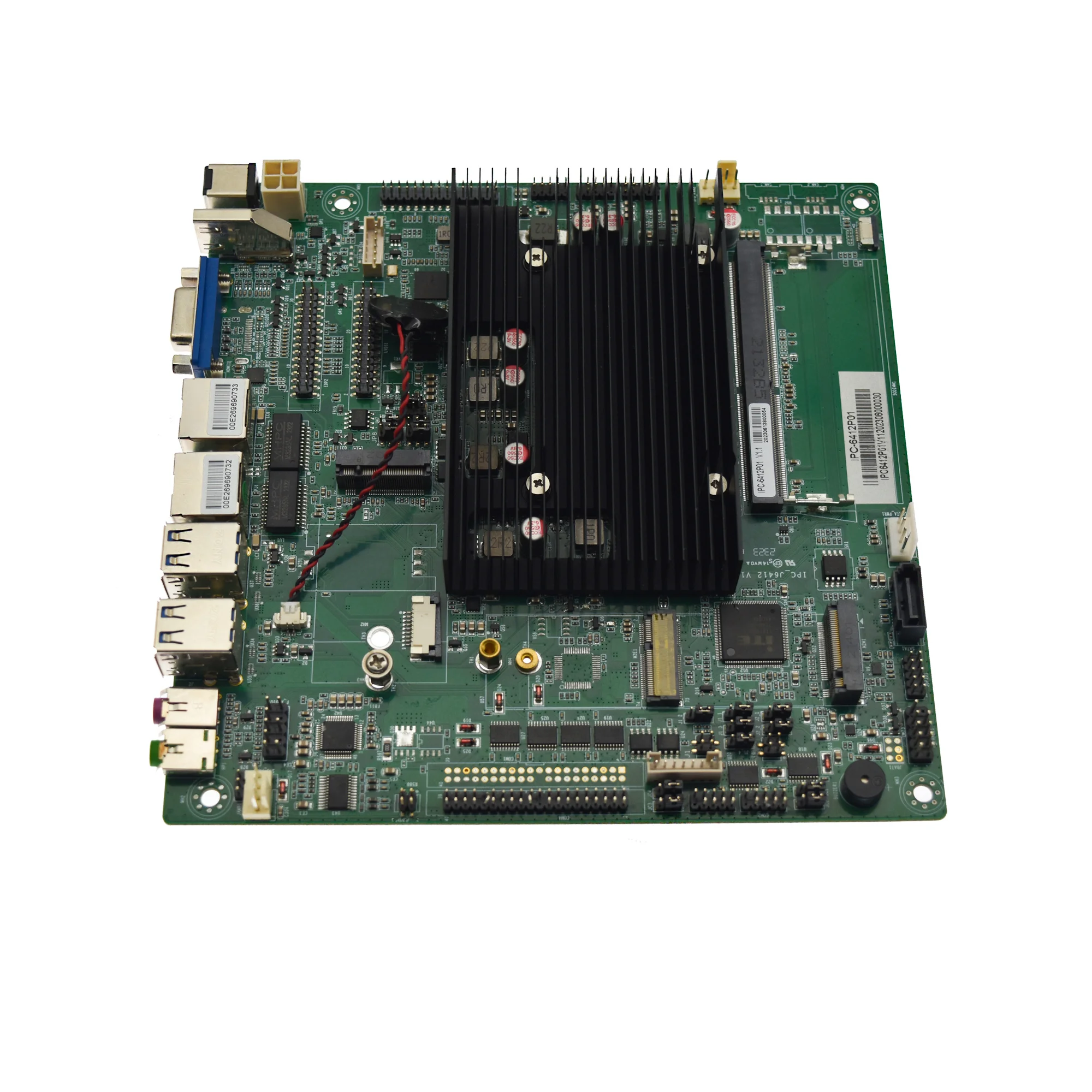

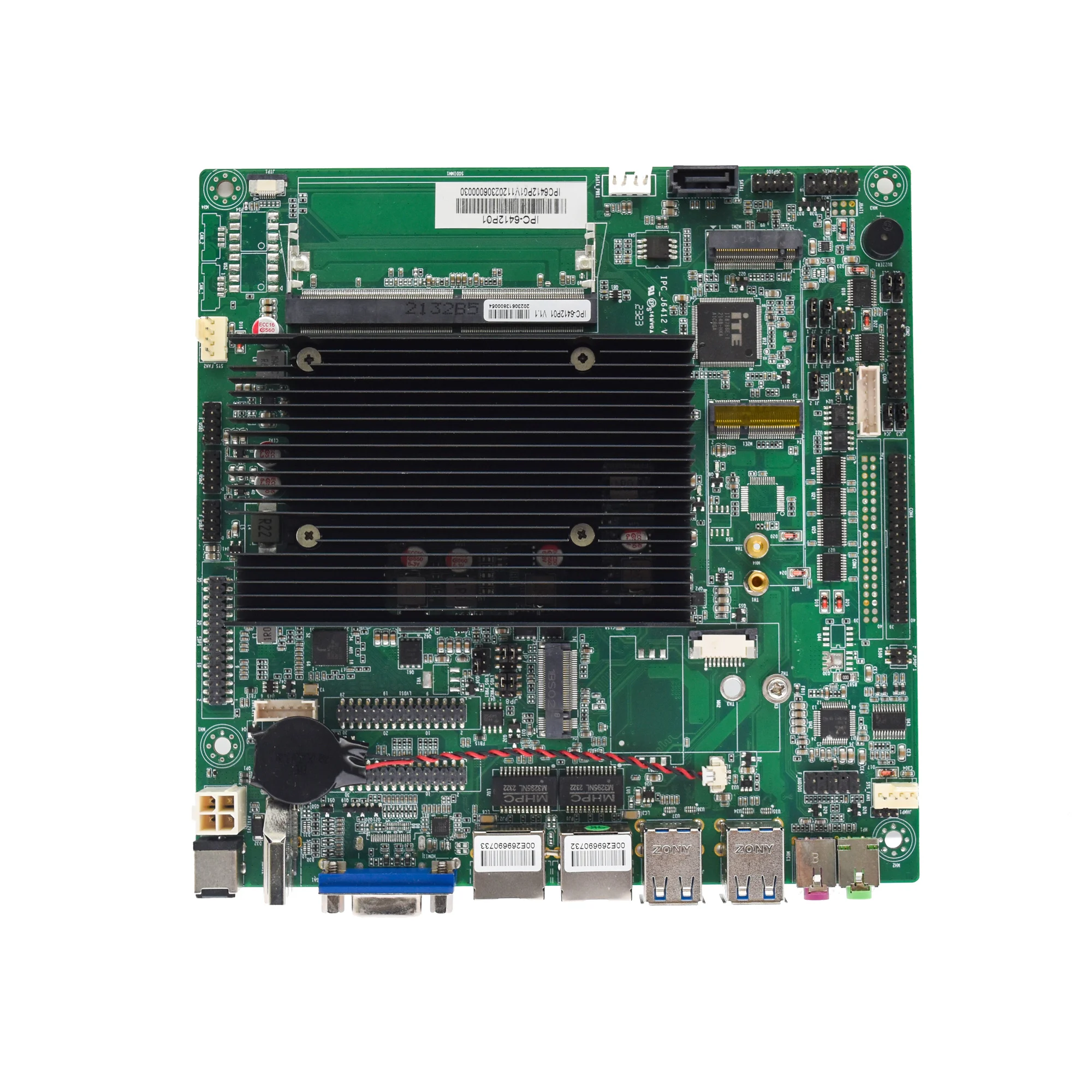

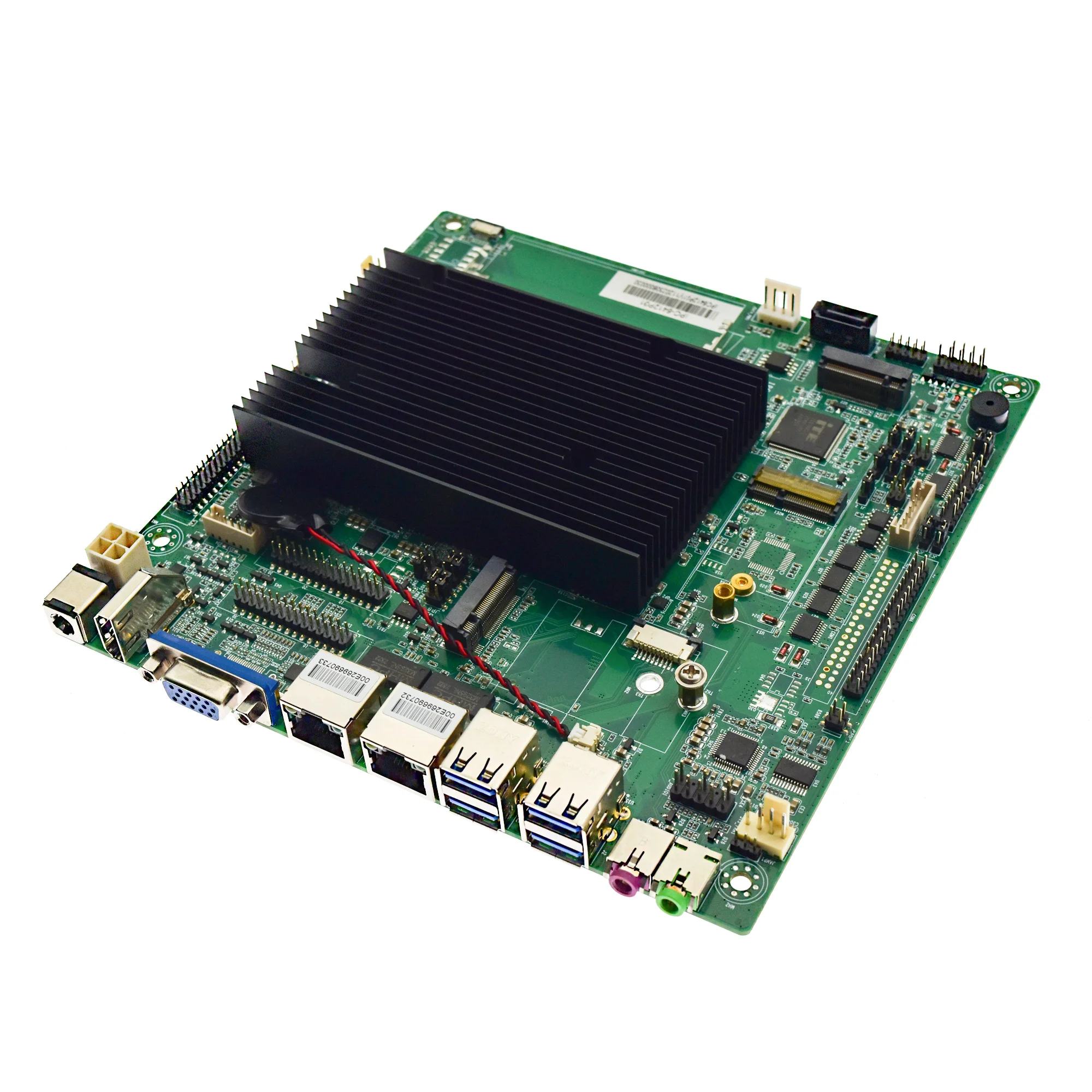

Customized J6412 HD MI VGA LVDS Triple Display 2 CAN Motherboard DDR4 Computer Industrial Motherboard
- Category: >>>
- Supplier: Fodenn Electronic Technology Co. Ltd.
Share on (1601018467448):
Product Overview
Description
Features
1.Intel Low-power embedded motherboard
2.Onboard SIM card slot supports external expansion
3.Support DDR4 notebook memory
4.VGA, HDMI,LVDSsynchronous/asynchronous
5.Support 10 COM port(COM2 Support RS422/RS485) Support 8 USB port
6.Onboard 1 MSATA port Onboard 1 MINIPCIE
2.Onboard SIM card slot supports external expansion
3.Support DDR4 notebook memory
4.VGA, HDMI,LVDSsynchronous/asynchronous
5.Support 10 COM port(COM2 Support RS422/RS485) Support 8 USB port
6.Onboard 1 MSATA port Onboard 1 MINIPCIE
Specification
IPC-6412P01 Industrial Motherboard | ||||
System | CPU | Intel Elkhart Lake Celeron J6412 TDP 10W | ||
RAM | DDR4 -2666/2933/3200Mhz,1*SO-DIMM up to 32G | |||
BIOS | AMI UEFI | |||
Graphics | Intel® HD Graphics | |||
OS Support | WIN10/11, LINUX,UNIX | |||
Watchdog | 256 levels, programmable 0-255 sec/min | |||

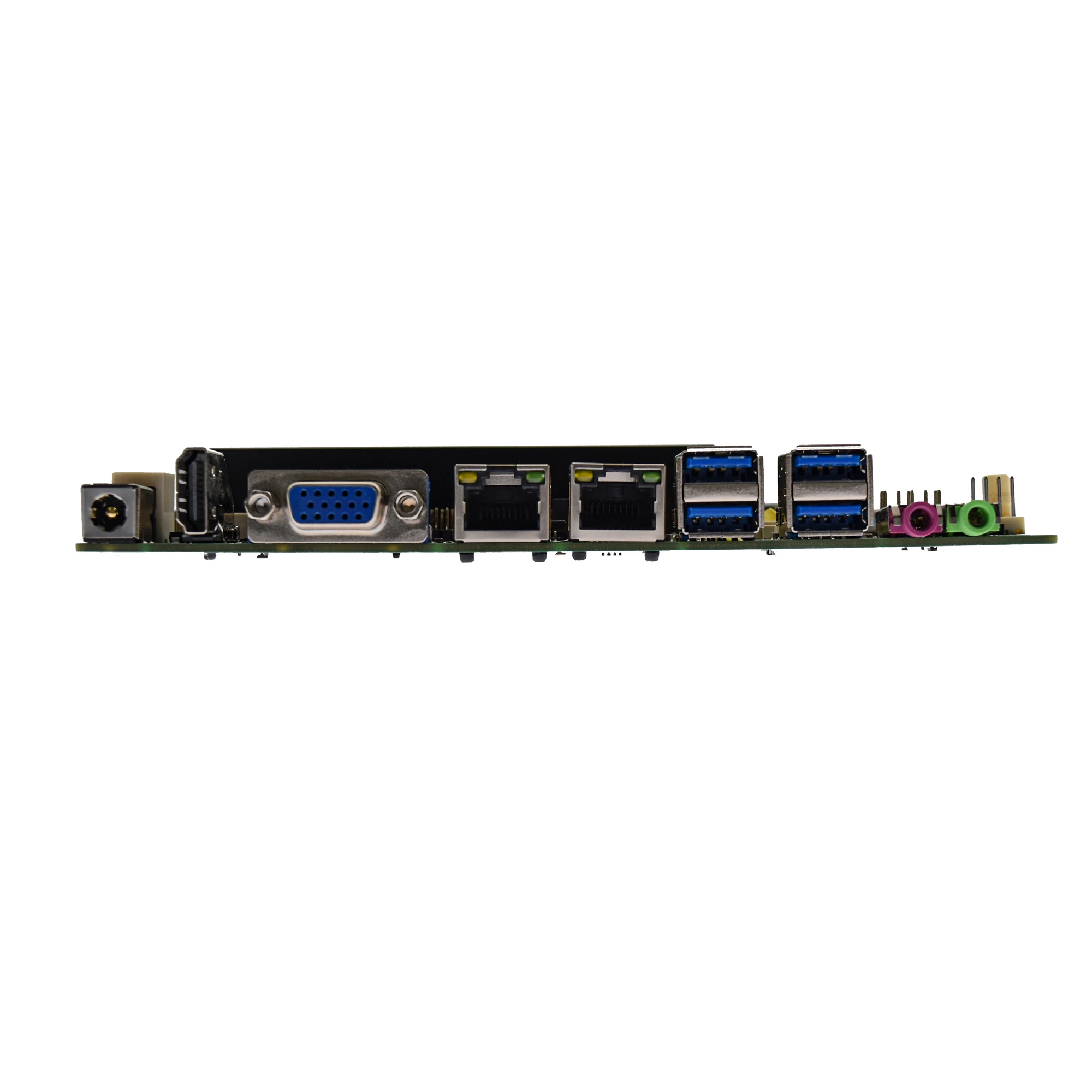

Rear I/O | LAN | 2*RJ45 Gigbite LAN | ||
Display | VGA/HDMI+HDMI/LVDs+eDP/LVDs synchronous/asynchronous TRIPLE display | |||
Audio | 1*LINE-OUT, build-in 10W ampifier | |||
USB | 4*USB3.0 | |||
Internal I/O | Expansion port | M.2 B key support 5G, M.2 E key support WiFi | ||
COM | 6*COM(COM1/2 support RS422/485） | |||
USB | 6*USB2.0 (5*USB2.0 if use 6COM port) | |||
Storage | 1*SATA 7 PIN，1*M.2 M key NVME 2280 | |||
CAN | 2*CAN | |||
GPIO | 8bits digital I/O | |||
SIM card | Onboard SIM card slot | |||
Power | Power Input | DCin | ||
Input Voltage | +12V | |||
Structure | Dimension | Mini ITX，170X170MM | ||
Environment | Operating Environment | 0℃~60℃，0~95%RH, non-condensing | ||
Storage Environment | -40℃~85℃，0~95%RH, non-condensing | |||
Certificate | Safety Certification | CE | ||
Parts List | DB9 COM cable，USB cable | |||
Product Description
Company Profile
Fodenn Electronics Technology Co.,Ltd.
Fodenn electronic technology Co., Ltd is a high-tech enterprise integrating R&D, design, production, sales and after-sales service
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
Packing & Delivery
FAQ
Q1: Are you a manufacture or a trading company?
A1: We are manufacture that have OEM/ODM experience for over 12 years.We have confidence to offer you satisfying products with
better quality and better price.
Q2: Do you accept OEM / ODM order?
A2: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q3: What payment method do you accept ?
A3: We accept T/T, L/C, Western Union is all ok. We suggest you could try alibaba trade assurance at first, more beneficial for
you.
Q4: Do you offer sample service?
A4: Yes, before mass production, we can offer sample according to your request.
Q5: How long is the warranty of your products?
A5: Basically we offer 12 month warranty for all of our products, if you would like to extend we can discuss depend on your order
quantity.
Q6: What kind of package do you provide for the motherboard?
A6: We typically work in bulk package, but if you need retail packing, it''s no problem, please tell us before placing your order.
A1: We are manufacture that have OEM/ODM experience for over 12 years.We have confidence to offer you satisfying products with
better quality and better price.
Q2: Do you accept OEM / ODM order?
A2: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q3: What payment method do you accept ?
A3: We accept T/T, L/C, Western Union is all ok. We suggest you could try alibaba trade assurance at first, more beneficial for
you.
Q4: Do you offer sample service?
A4: Yes, before mass production, we can offer sample according to your request.
Q5: How long is the warranty of your products?
A5: Basically we offer 12 month warranty for all of our products, if you would like to extend we can discuss depend on your order
quantity.
Q6: What kind of package do you provide for the motherboard?
A6: We typically work in bulk package, but if you need retail packing, it''s no problem, please tell us before placing your order.
