Product Overview
Description
Products Description
N-XP i.mx8m-mini quad core processor intergrated circuit low power som module development hardware PCBA board
The i.MX8MMini series processors use an advanced quad-core Arm®Cortex®-A53 core, which runs at speeds up to 1.8 GHz. And a general-purpose Cortex®-M4 400 MHz core processor is used for low-power processing. The DRAM controller supports 32-bit/16-bit LPDDR4, DDR4 and DDR3L memories. Besides, a variety of audio interfaces are available, including I2S, AC97, TDM and S/PDIF.

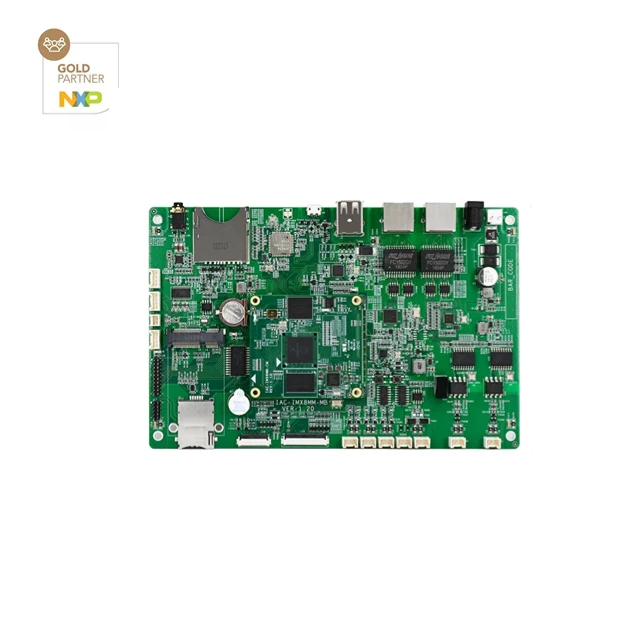

Details Images
Application area
Product Paramenters
Hardware Resources | CPU | NXP i.MX8M Mini processor,Quad ARM® Cortex™-A53+Cortex-M4, 1.8 GHz of i.MX8M, 400MHz of Cortex®-M4 |
RAM | 1GB LPDDR4 ( up to 2GB LPDDR4) | |
Flash | 8GB EMMC, ( up to 16GB EMMC、32GB EMMC) | |
Network | 1-ch AR8035 Internet chip adopts RGMII supporting adaptability l10M/100M/1000M | |
1-ch LAN 7430 port chip, supporting 10M/ 100M/1000M | ||
Onboard WIFI (AP6236) | ||
Communication | 4-ch RS232, 2 port as the debug UART | |
4-ch USB 2.0, 1-ch USB-OTG | ||
2-ch CAN 2.0 | ||
Display | 4-ch MIPI each Display channel’ s resolution up to 1920 * 1200 | |
Audio | McASP audio interface; binaural output; MIC audio input | |
Input | Standrad I2C Capacitive panel | |
1-ch CSI camera interface (4-ch) | ||
Expansion Interface | MINI-PCIE interface with SIM socket for 4g module | |
Memory Interface | 1-ch SD card | |
Expansion Interface | GPIO interface | |
Other | Reset circuit, Watch dog, RTC, Buzzer, JTAG interface | |
Power Input | +12V power supply | |
Development Tools | Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1 or Ubuntu 14.04 | |
Application layer development debug tool | ||
Cross-compiler | ||
Common terminal development debugging tool | ||
Image File | ISO of matched operating system | |
Test Program | Interface using demo test program and test program source code | |
Source Code | Bootloader, kernel, system source code | |
Manual | Mainboard User manual,Hardware Manual, Device Manual | |
Mechanical Chart | Back Plane’s Structure & Size | |

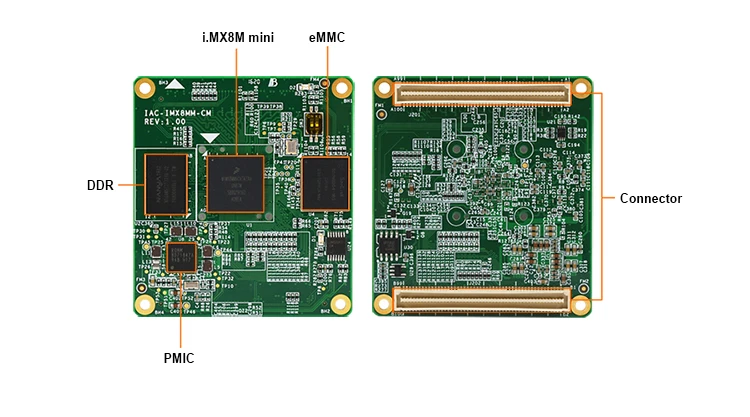

Size | Core Board:55mm*60mm, 8-layer high precision immersion gold process | |
Back Board: 200mm*130mm，4-layer high precision immersion gold process | ||
Power Consumption | ≤5W | |
Operation Temperature | -40℃ ~ +85℃ ( industrial level )，0℃ ~ +85℃ （Consume Level, According to customers’ requirements） | |
Operation Humidity | 5% ~ 95%, Non-Condensing | |
Operate System | Linux4.14.98+QT5.10.1 Android |

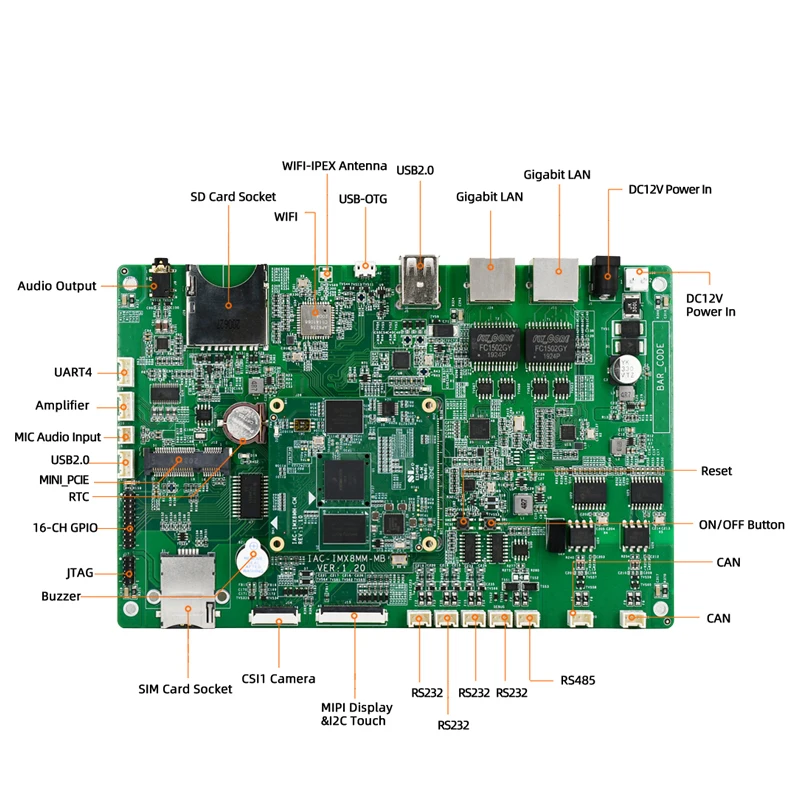

Product interface
