1/4 3/8 1/2 BFC Filter Pressure Gauge with Air Pressure Regulator Lubricator Combination Compressor Filter Regulator Water Trap
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1601018576536):
Product Overview
Description

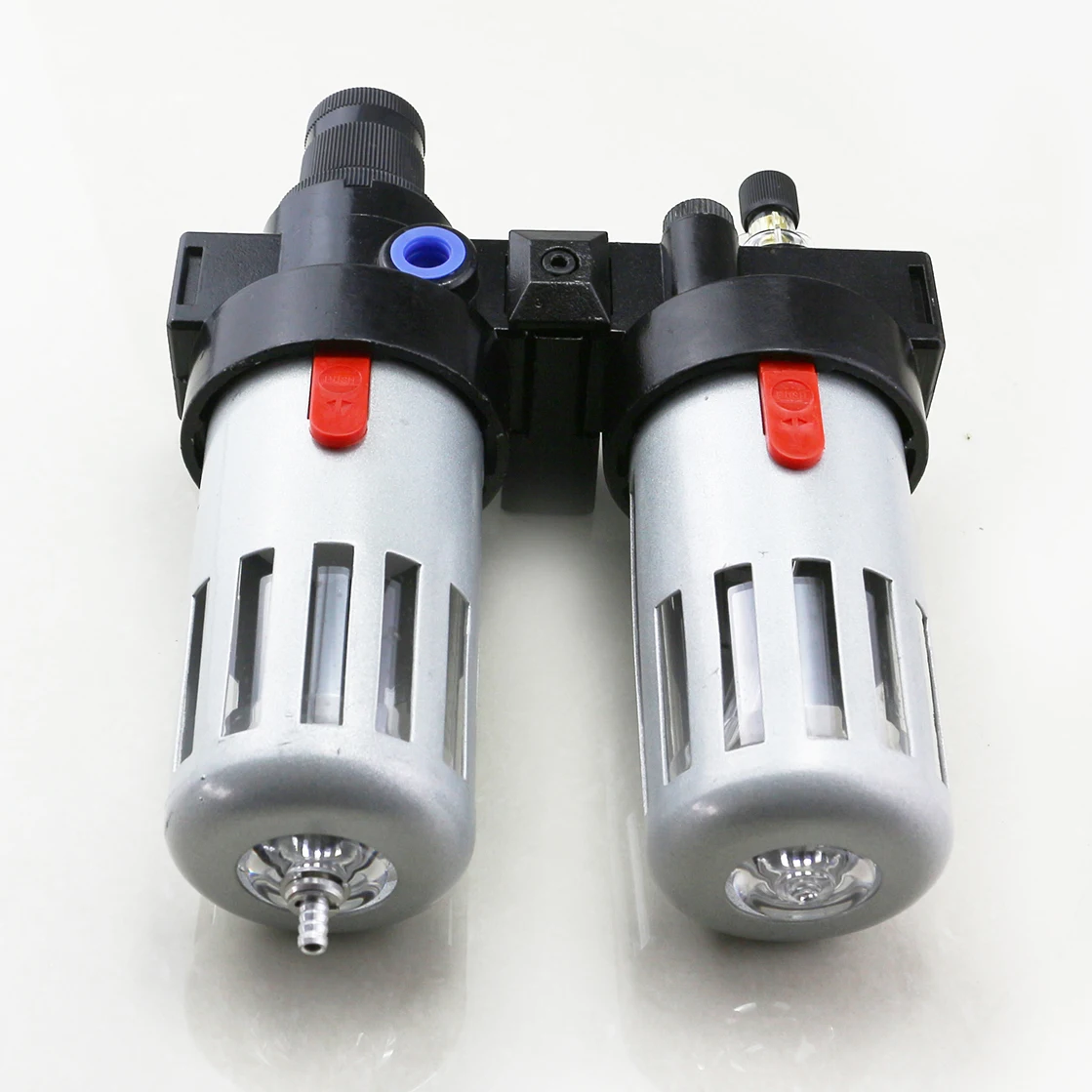

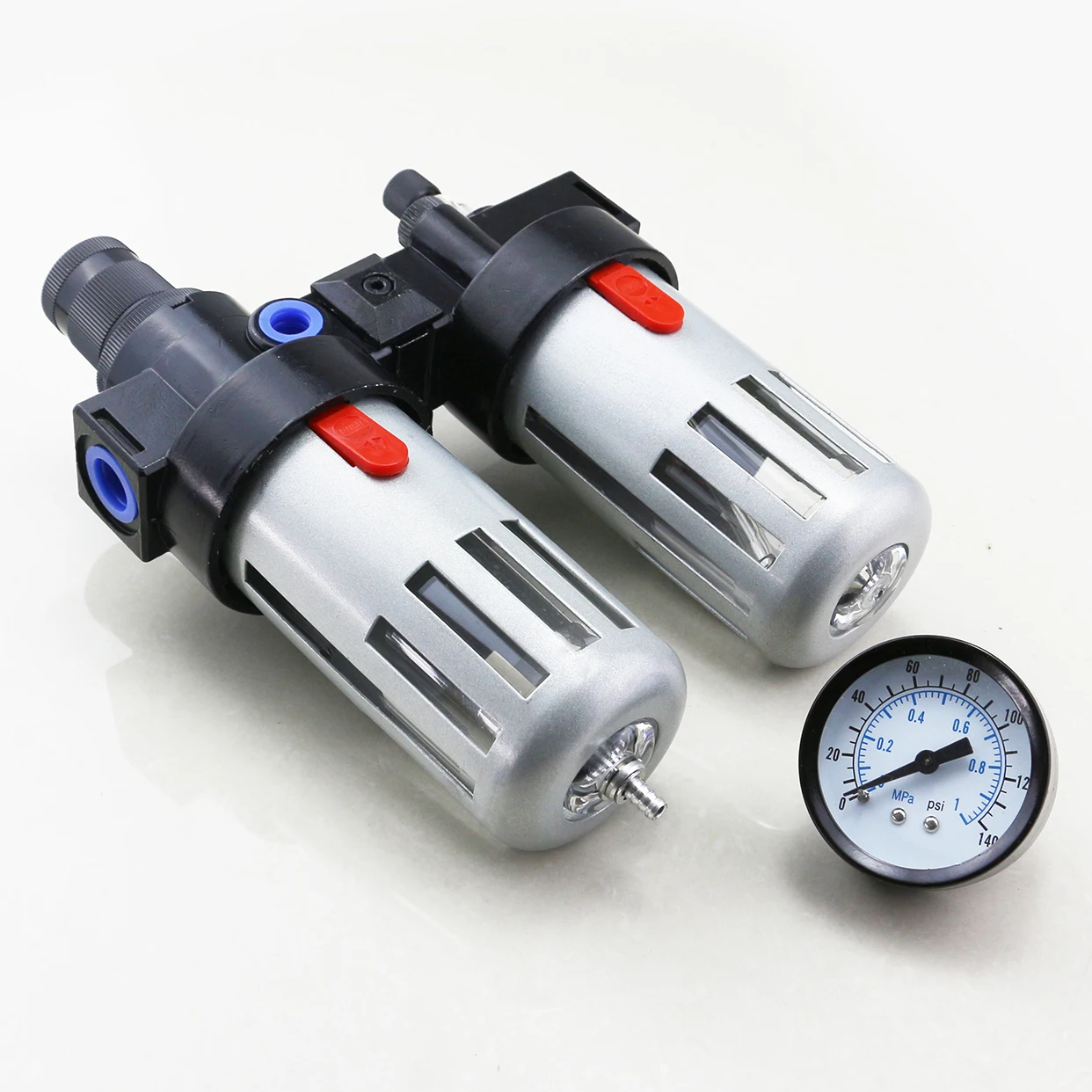

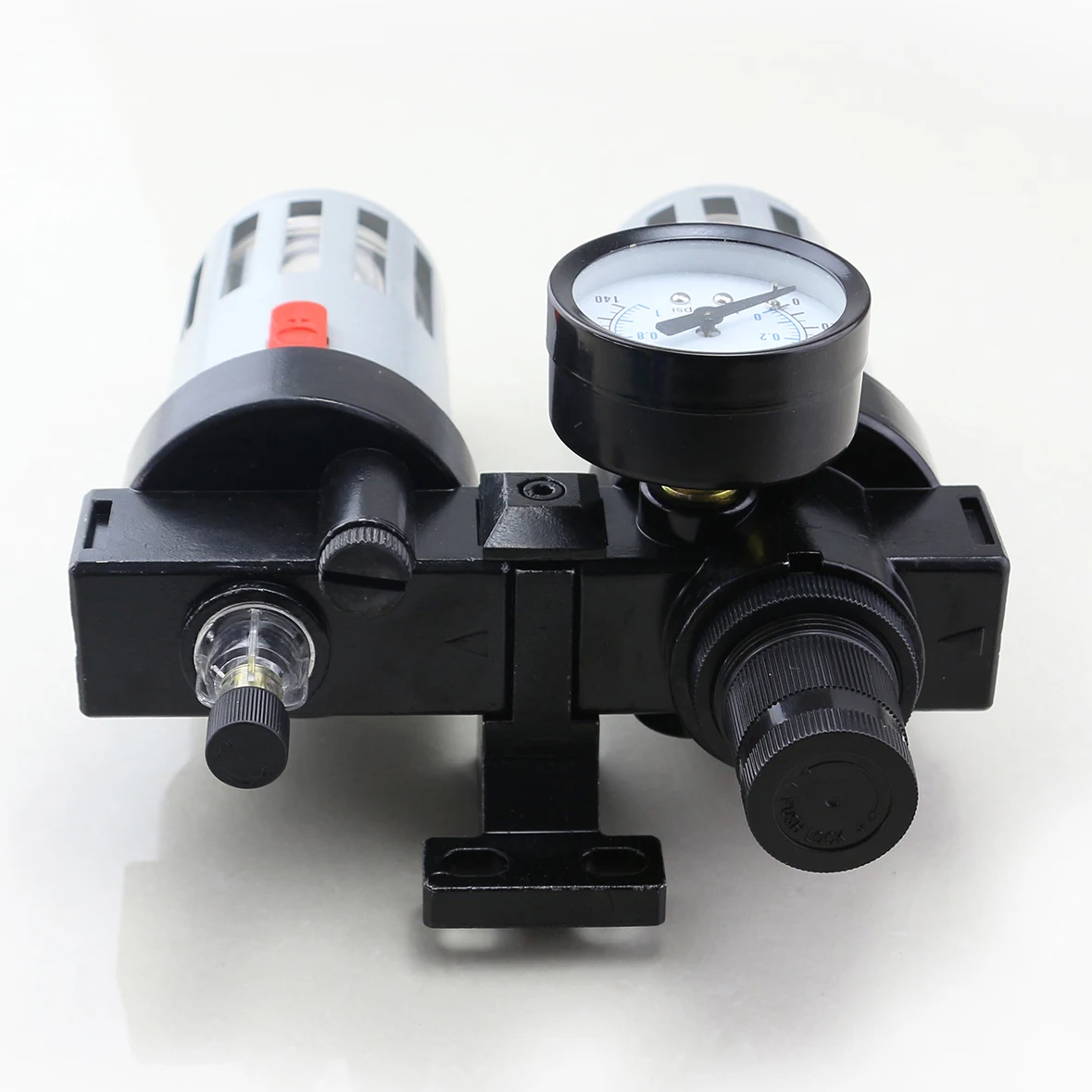

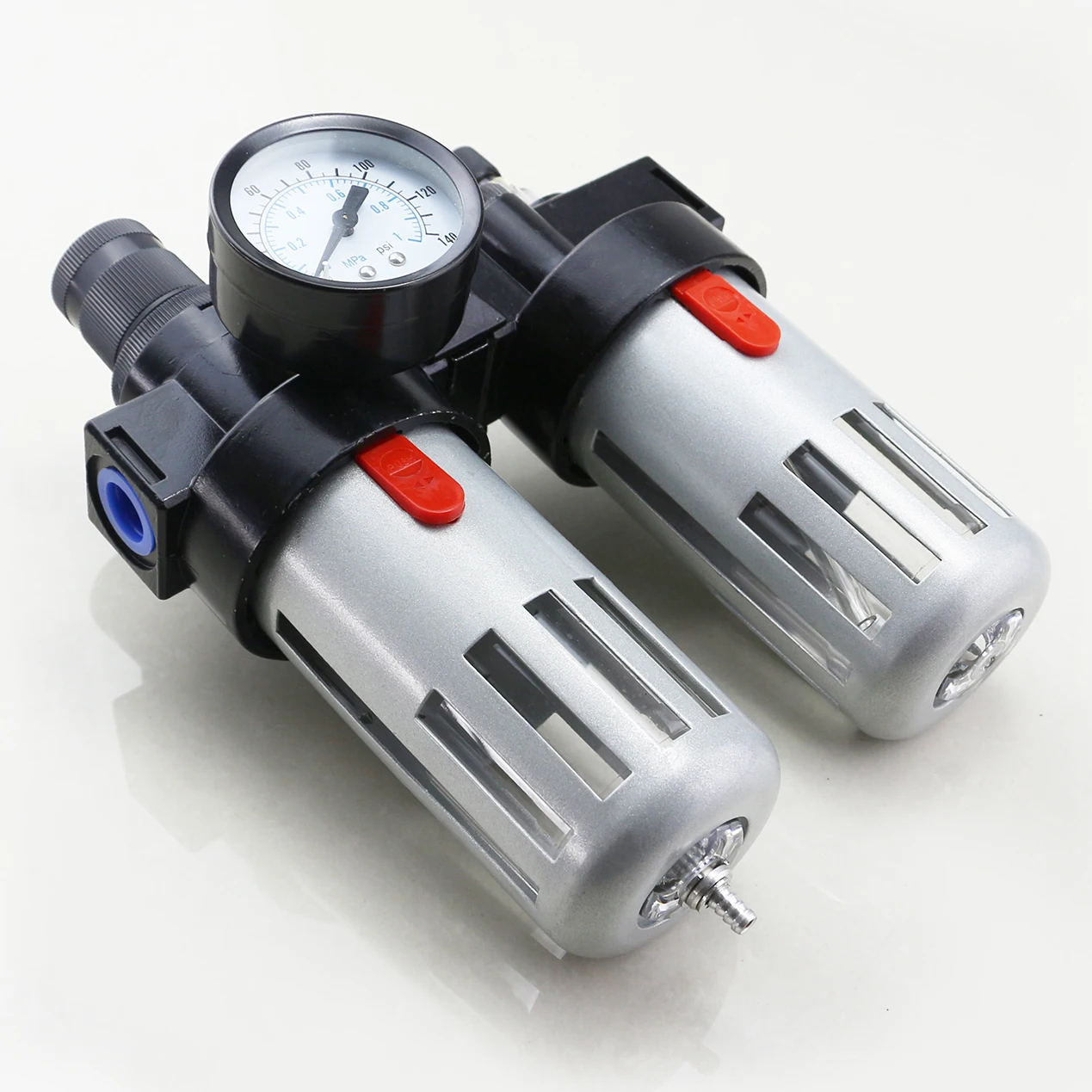

1/4 3/8 1/2 BFC Filter Pressure Gauge with Air Pressure Regulator Lubricator Combination Compressor Filter Regulator Water Trap

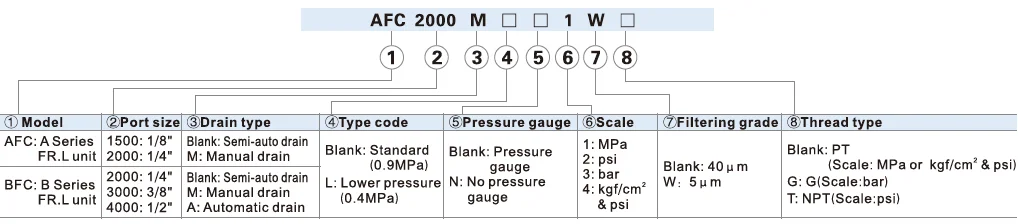

Ordering Code:

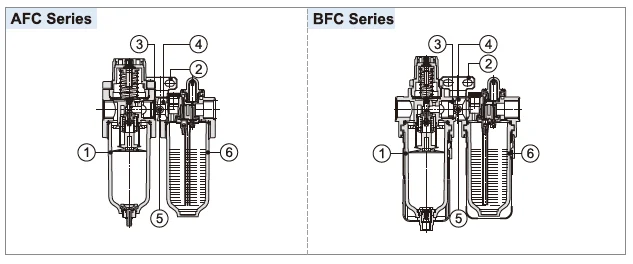

Inner structure
No | Item |
1 | AFR, BFR Series filter & regulator |
2 | A, B Series gasket |
3 | A, B Series bracket |
4 | A, B Series fixed kit |
5 | Screw |
6 | AR, BR Series regulator |
Specification
Model | AFC2000 | BFC2000 | BFC3000 | BFC4000 | |||||
Constiture | Filter-Regulator | AR2000 | BR2000 | BR3000 | BR4000 | ||||
Lubricator | AL2000 | BL2000 | BL3000 | BL4000 | |||||
Port size RC(PT) | 1/4'' | 1/4'' | 3/8'' | 1/2'' | |||||
Fluid | Air | ||||||||
Proof pressure | 15kgf/cm² | ||||||||
Max.operating pressure | 0.95Mpa(9.5kgf/cm²) | ||||||||
Ambient & fluid temperature | -5~70°C | ||||||||
Nominal filtration rate | 40µm | ||||||||
Adjustable Pressure range | 0.05~0.85Mpa | ||||||||

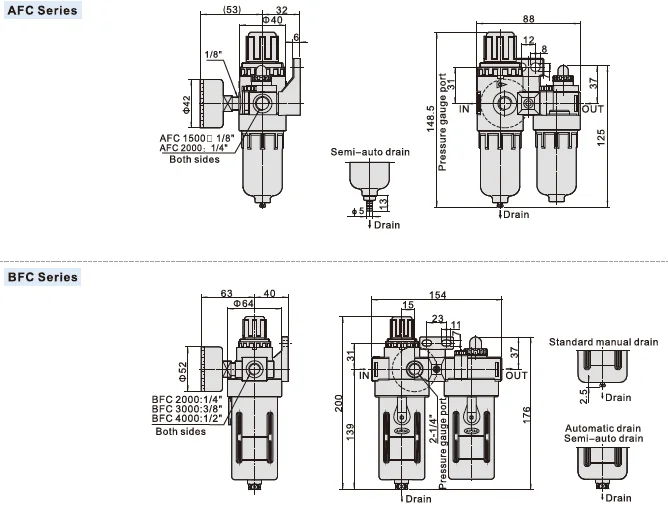

Dimension
More Product:
Other type for you to choose
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
