Product Overview

Description



Product Description

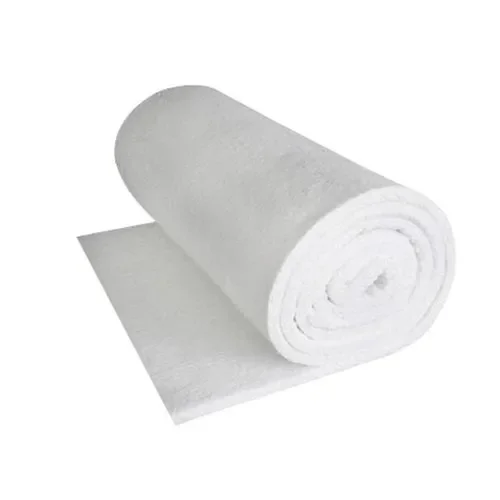

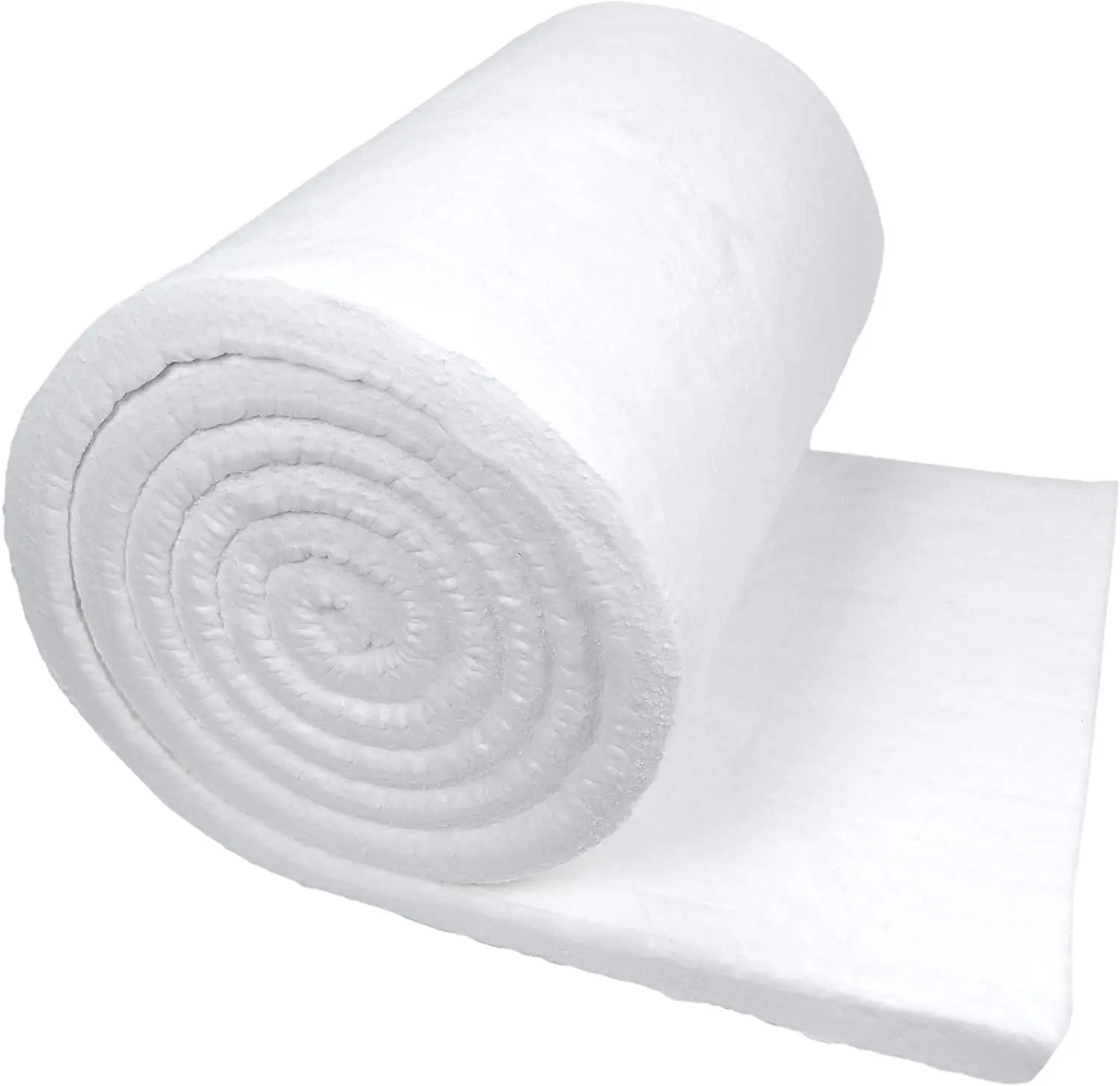

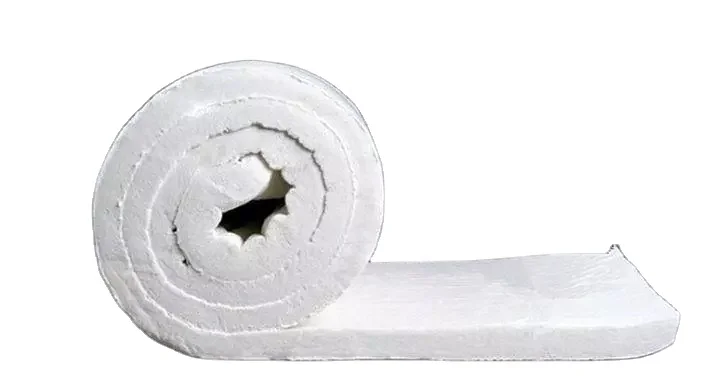

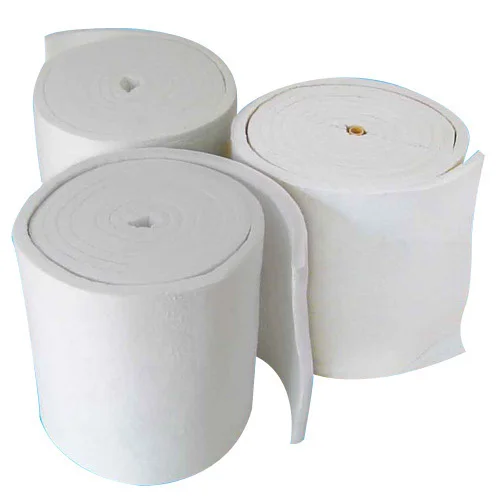

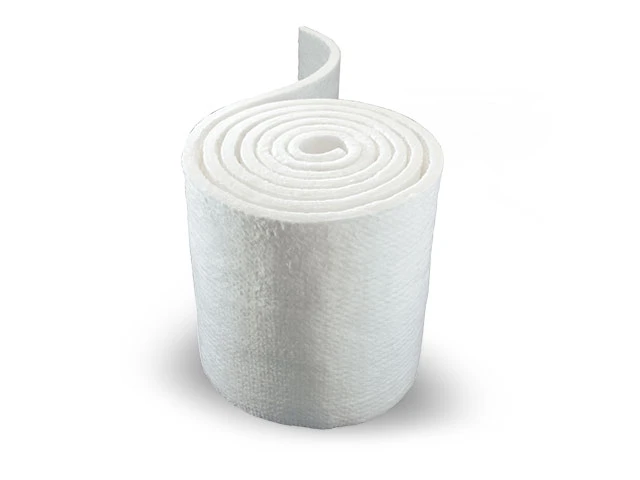

Ceramic Fiber Blanket adopts high pure raw materials without any binding agent, ensure the product own good reliability and stability in any environment . The function of the blanket isn't affected by water and oil , it will recover its thermal
performance and physical property after drying.
Needing blanket in different size and thickness provides users a wide range of material selection to gain the best heat insulation structure and energy saving effect .
Origin of the material: China




Standard Sizes


Nominal Density(kg)
64kg/m3, 96kg/m3, 128kg/m3
Lenght(mm)
3810,4800,5400,7320mm
Width(mm)
 610mm, 1220mm
Thickness(mm)
1″，  1 1/2″,     2″


Specification


Description
Result
Classification Temperature (℃)
1260
Chemical Composition(%)
Al2O3
≥43
SiO2
≥54
ZrO2
-
Color
White
Shot Content (%)
≤15
Model Number
CW-001
Density(kg/m3)
64kg/m3                                  96kg/m3                                   128kg/m3
Tensile Strength (kPa)
  30                                                 50                                             70
Permanent Linear Shrinkage (%)
1000Cx24hs2.5
Thermal Conductivity (W/m-K)
3810,4800,5400,7320mm
200C
0.07                                              0.06                                          0.06
400C
0.12                                              0.11                                           0.1
600C
0.2                                                 0.19                                          0.18
800C
0.3                                                 0.23                                           0.2
1000C
0.4                                                 0.32                                          0.27


Application


Features
* High tensile strength
* Excellent mechanical strength and structural strength
* Low thermal conductivity, low shrinkage, low density
* Excellent thermal capacity
* Good sound absorption
* Good thermal shock resistant

Applications
* Steel Industry:Heat treatment and annealing furnaces;Furnace door linings and seals; Furnace hot face repairs;Reheating furnace and ladle covers
* Refining and Petrochemical: Reformer and pyrolysis lining; Tube seals, gaskets and expansion joints; High temperature pipe, duct and turbine insulation; Crude oil heater linings
* Power Generation: Boiler Insulation; Boiler doors; Reusable turbine covers; Expansion seals/pipe coverings
* Others: Insulation of commercial dryers and ovens; Veneer over existing refractory; Stress relieving insulation;Glass furnace crown insulation; Fire protection


Company Profile


Tianjin EcoIn Tech Co.,Ltd is a company specialized in new tech insulation material manufacturing and export. Our aim is to provide Grade A non combustible Eco-Insulation, friendly to environment and human body, and affordable for clients.
EcoIn factory was set up in 1995, with the register fund of 15 million USD. We are now one of the biggest insulation factory in North of China, with the main products of fiberglass insulation, mineral wool insulation and aluminum jacketing system. Low bio-resistance mineral wool is under developing, and hopefully to be exported next year.




FAQ


1. who are we?
We are based in Tianjin, China, start from 2017,sell to South America(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),North America(20.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fiberglass wool insulation,Mineral wool Insulation,Aluminum jacketing system,Agricultural stone wool.

4. why should you buy from us not from other suppliers?
Tianjin EcoIn Tech Co.,Ltd is a company specialized in new tech insulation material manufacturing and export. Our aim is to provide Grade A non combustible Eco-Insulation, friendly to environment and human body, and affordable for clients.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
