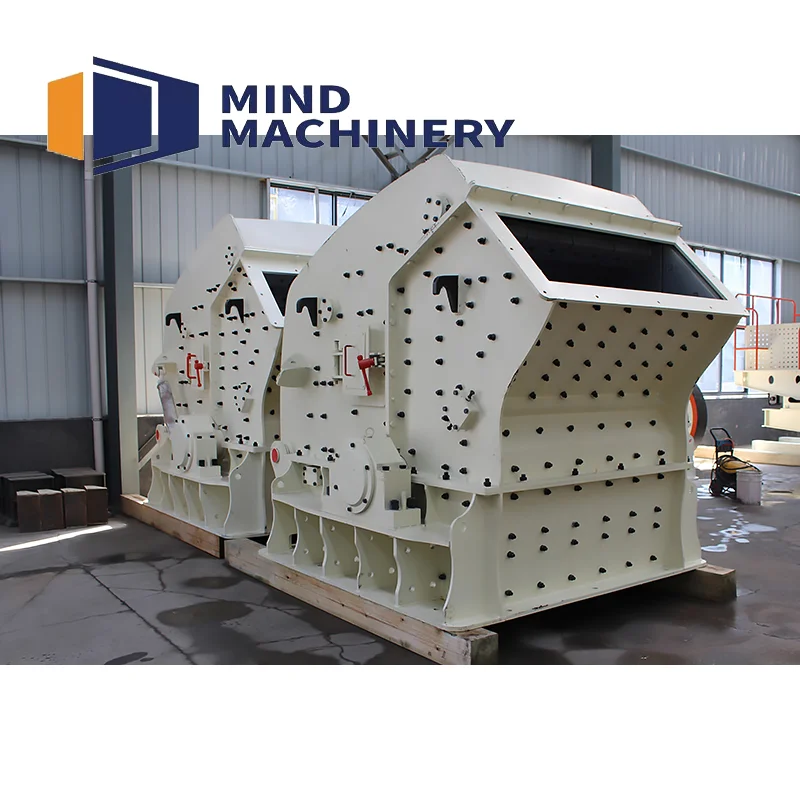

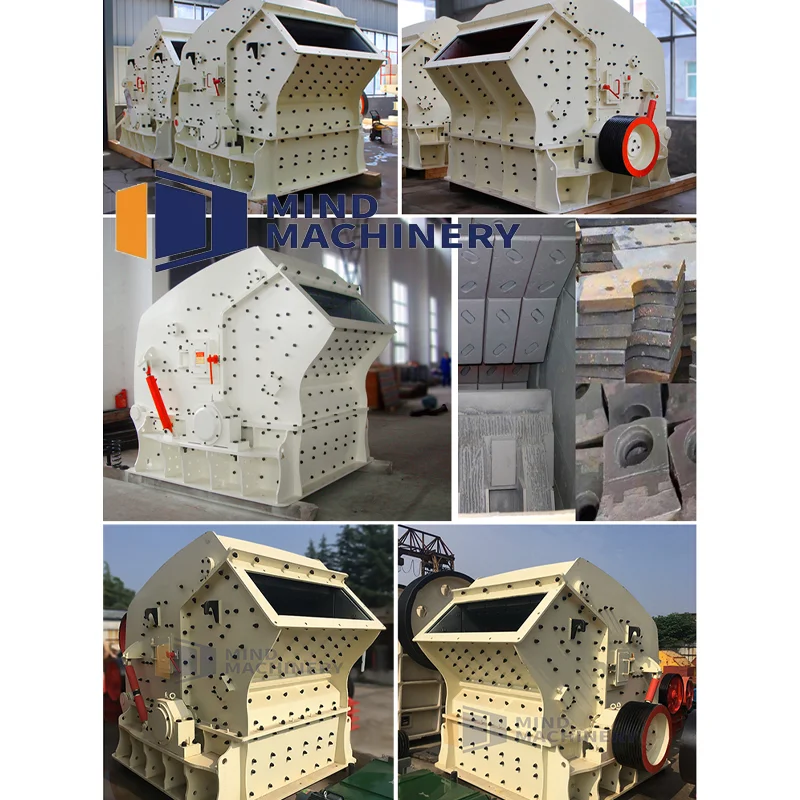

Limestone, dolomite, coal gangue impact crusher

Product Overview

Description

Introductions of impact crusher:

1. The impact crusher is mainly used for the processing of materials that often require relocation operations in metallurgy, chemical engineering, building materials, water and electricity, especially for the operation of flowing stones in highways, railways, water and electricity engineering, etc.

2. Multiple configuration forms can be adopted according to the type of processing materials, scale, and requirements for finished materials.

Specifications:

Model	Rotor size(mm)	Feed opening(mm)	Max feed size(mm)	Production capacity(t/h)	Power(kw)	Weight(t)
PF-1007	1000*700	400*730	250	15-60	37-55	9.5
PF-1010	1000*1050	40*1080	300	50-90	55-75	14
PF-1210	1250*1050	400*1080	300	70-130	110-132	17
PF-1214	1250*1400	400*1430	300	90-180	132-160	22
PF-1315	1320*1500	860*1520	350	120-250	180-260	26
PF-1320	1320*2000	860*2030	500	160-350	300-375	30
PF-1520	1500*2000	830*2040	700	200-550	315-400	50.6
PF-1820	1800*2000	1260*2040	800	400-800	630-710	83.21

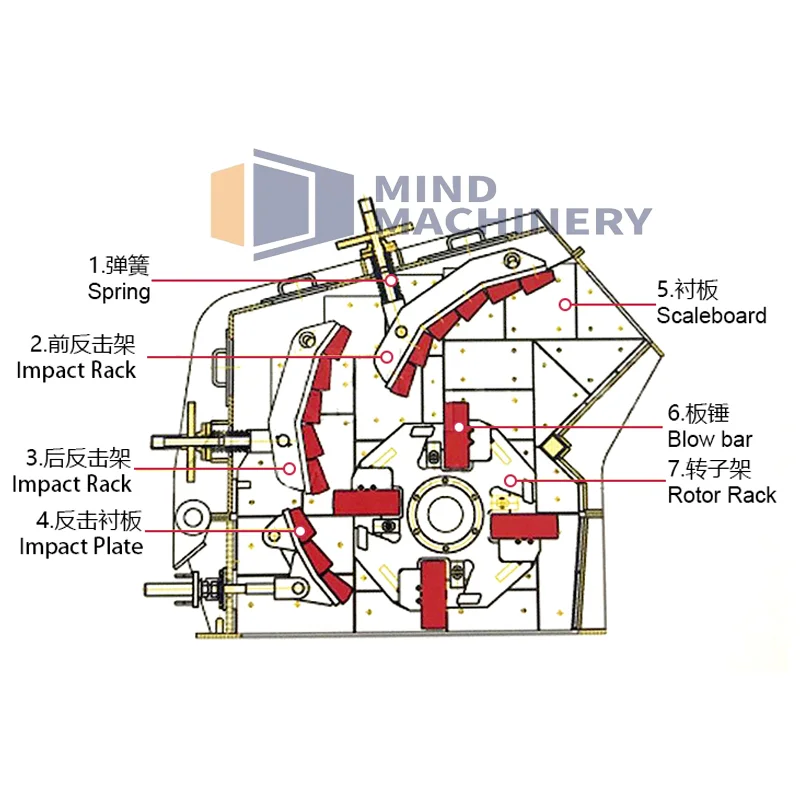

Structures of impact crusher:

1. Spring 2. Front Impact Rack  3. Rear Imapct Rack 4. Impact Plate 5.  Saleboard 6. Blow bar 7. Rotor Rack

Working Principles of impact crusher:

1. When the machine is working, driven by the motor, the rotor rotates at a high speed. And material enters the action zone of the plate hammer, it will impact and break with the plate hammer on the rotor.

2. Then it will be thrown to the counter device to break again, and then bounce back from the counter liner to the plate hammer action zone to break again. This process is repeated, and the material will enter the first, second and third counter cavities from large to small to break again.

3. Until the material is broken to the desired particle size, it is discharged through the discharge port. The stone falls directly into the high-speed rotating disk from the upper part of the machine

4.Under the action of high-speed centrifugal force, the flying stones scattered around the turntable with another part in the umbrella form produce high-speed collision and high-density crushing, and the stones will form eddy motion between the turntable and the housing after striking each other, resulting in many mutual blows and crushing.

Main Features:

1.The impact crusher treats the wet material more effectively, and effectively prevents the material blockage.

2.The impact crusher is suitable for a wider range of material hardness.

3. It can easily and flexibly adjust the discharge particle size, wide adjustment range,

4. Low wear of vulnerable parts, the metal utilization rate is high

5. Impact crusher spare parts replacement is simple and maintenance costs are reduced accordingly

About our company:About us
1. Henan Mind Machinery Equipment Co., Ltd., a professional enterprise specialized in machinery designing and manufacturing.
2.Since the very begining of our established, we have always taken customer-oriented as our management philosophy.
3. And continuous sound growth makes us striding to well-professional. In the profess of growth we never stop continuous efforts in technology innovation and pioneering.
4. Advanced technology and scientific management make our products the best in term of quality, function, price and after-sales service before sales among this field.
Certifications

Packing&Delivery

Our service
1. Pre-sale service: We can provide you with project design, process design, suitable purchase program for your equipment.
2. Sale service: We will accompany you to visit our factory and all kinds of machinery and equipment if you come here, also show you construction plan and assist in the development process in detail.
3. After Sale service: We will send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
FAQ
Q1: Can you give me a solution and quotation?/h2>
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Q2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! Mind also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Q3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Contact us

Related Products

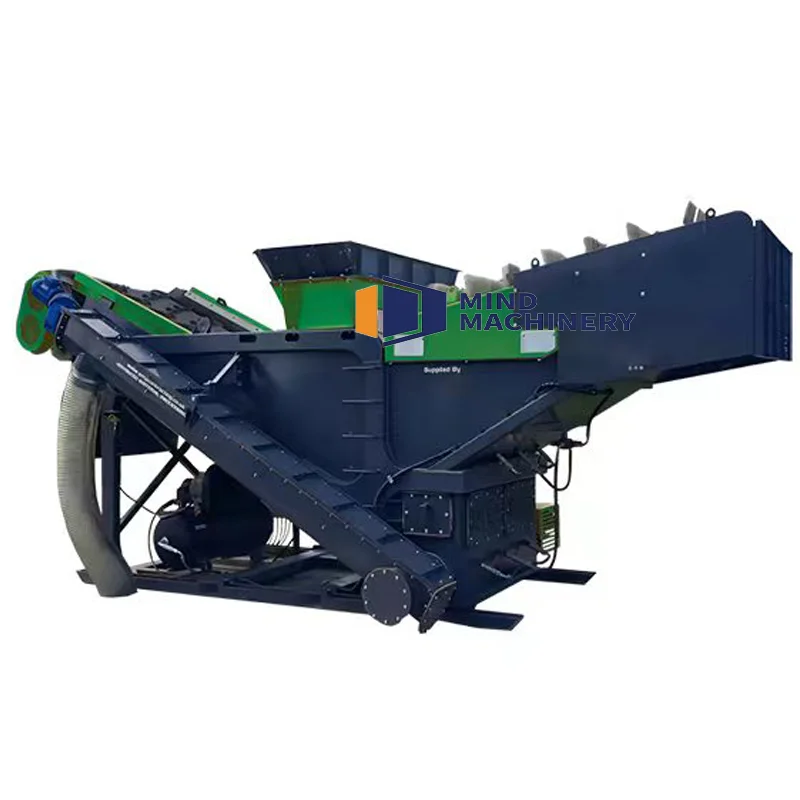

Double shaft shredder for bulky waste	Magnetic separator	Water flotation machine
