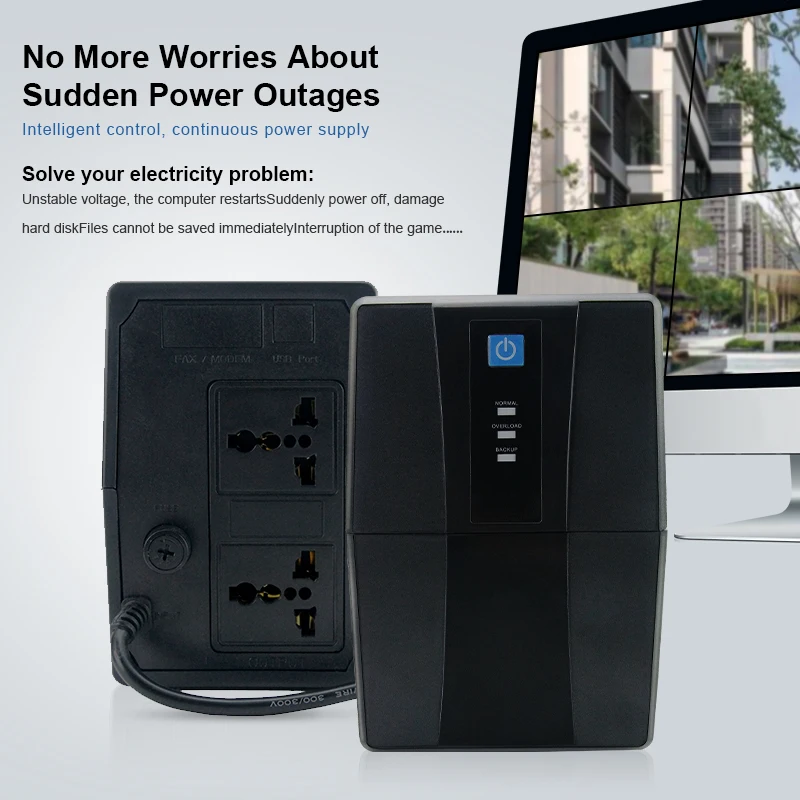

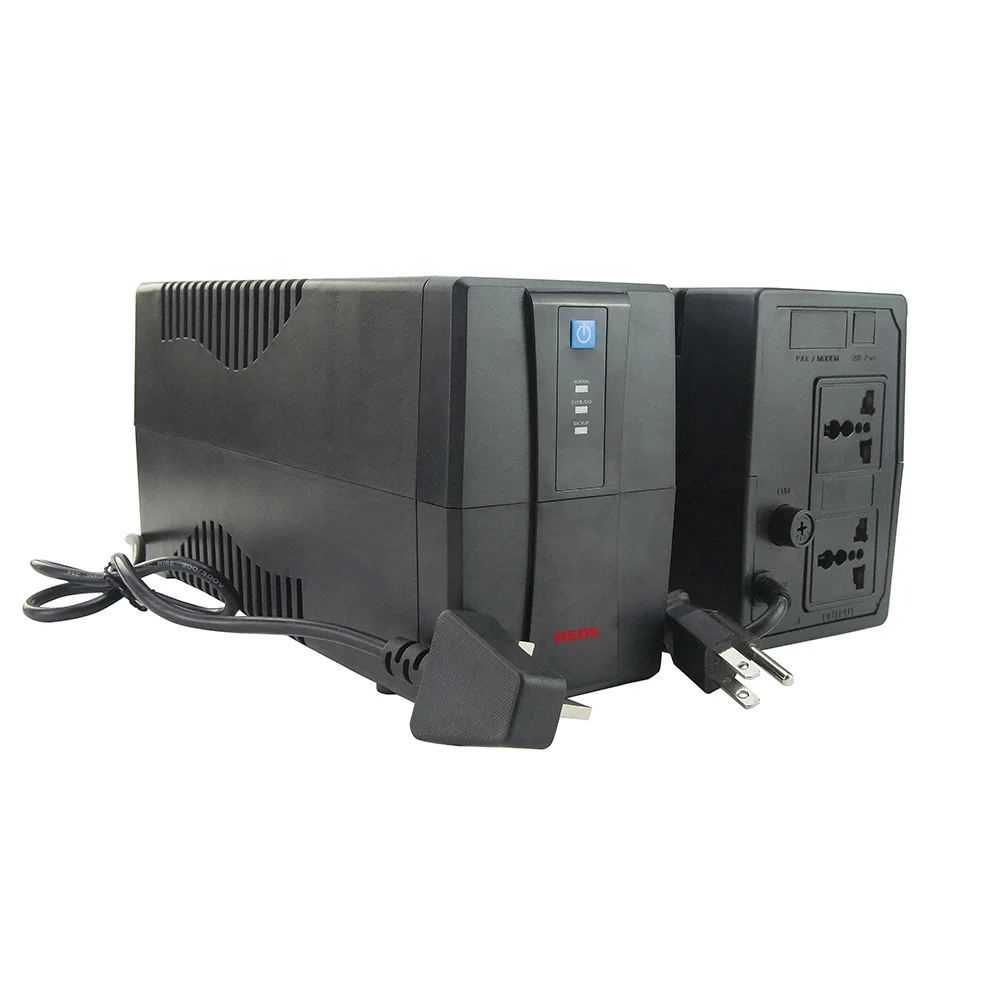

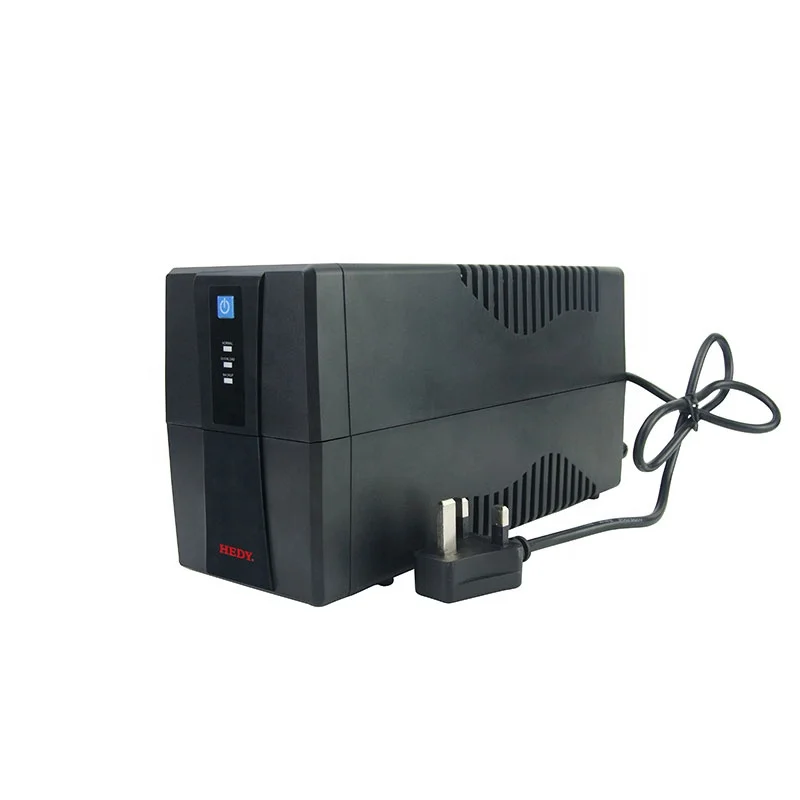

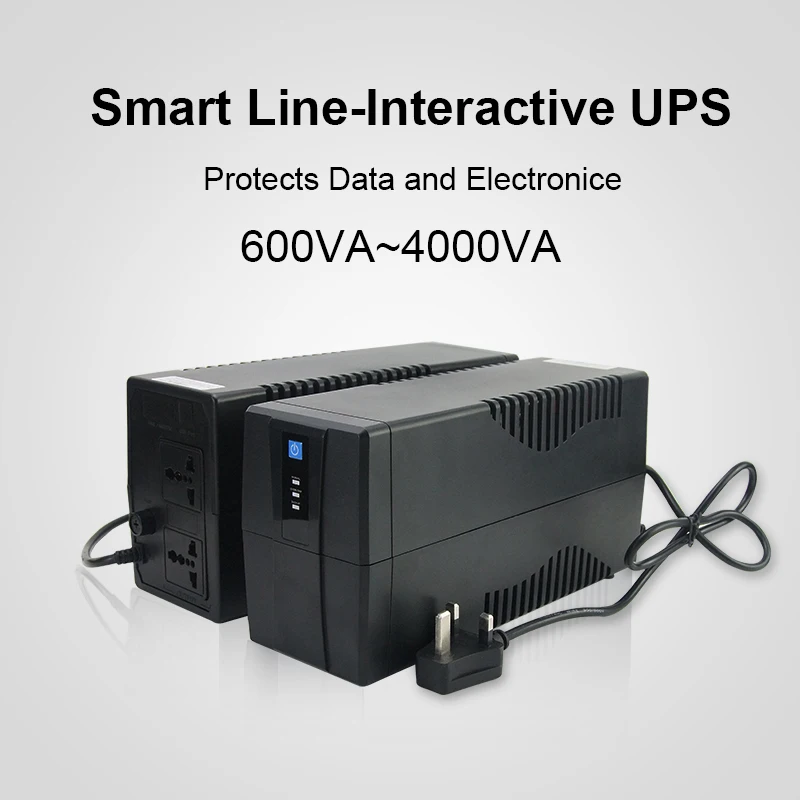

Factory OEM Customized Intelligent Emergency Backup Battery Uninterruptible Power Supply UPS 600VA Back up power supply
- Category: >>>
- Supplier: Guangzhou Hedy Lighting Co. Ltd.
Share on (1601018743166):
Product Overview
Description

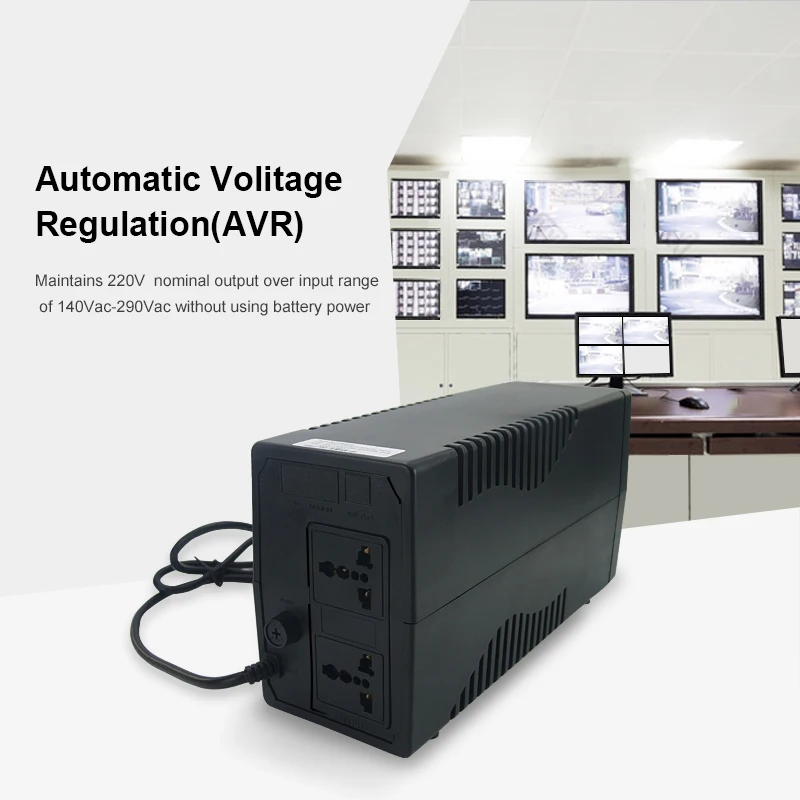

VR
Product Description
Product Feature:

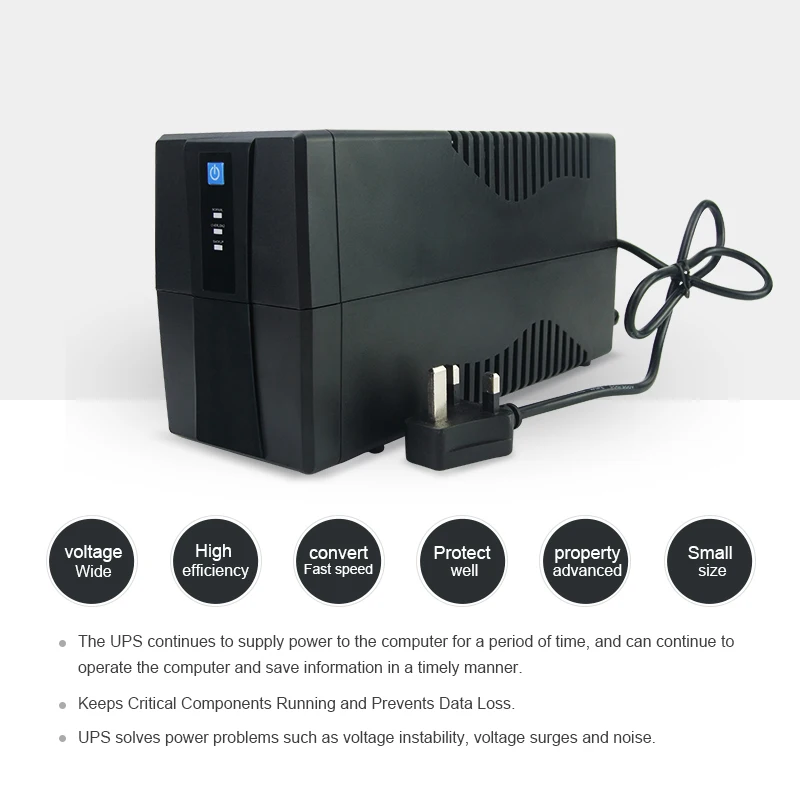

1.keep critical components runing and prevents data loss. 2.provides protection of connected equipment from dangerous surges and spikes. 3.corrects extended brownouts and over voltages from 140 to 300V. 4.Provide stable output voltage within the input voltage range.

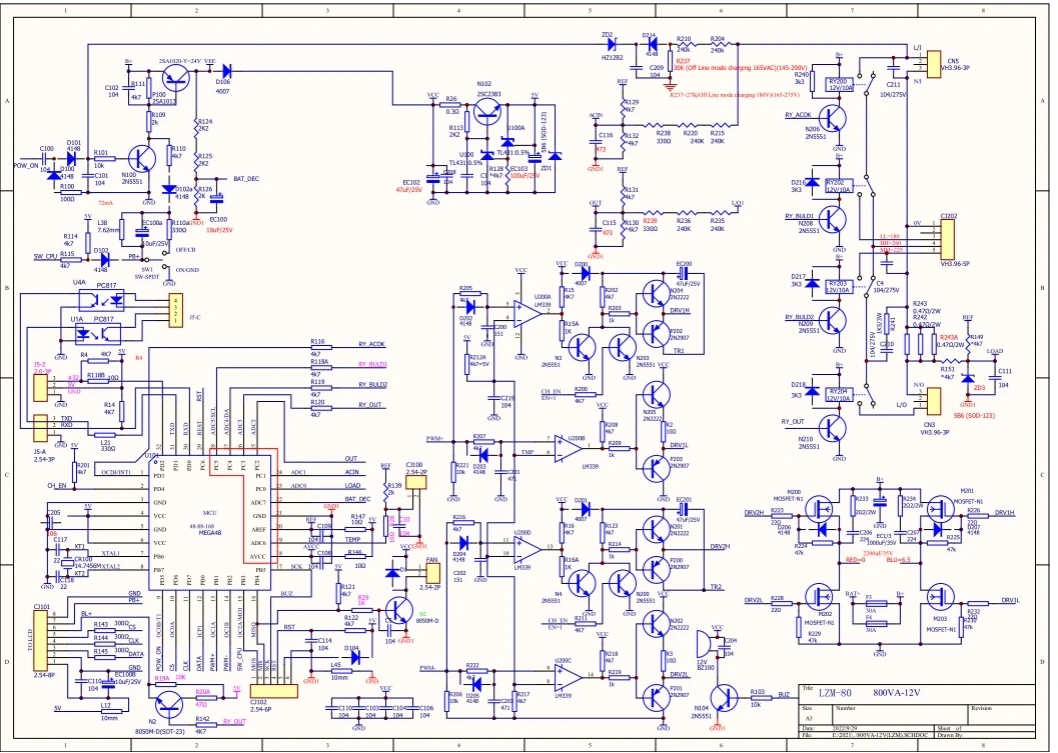

Circuit schematic
Specification
Model | HS-UPS600 | |||||
Output | ||||||
Rated output power | 360W | |||||
Adaptability of power supply | Input voltage (AC mode) | 140Vac-290Vac(±5Vac) | ||||
Output voltage (AC mode) | 190Vac-255Vac | |||||
Output voltage (battery mode) | 210Vac~235Vac（No load, effective value） | |||||
Output frequency (AC mode) | The Frequency is same as AC | |||||
Output frequency (battery mode) | 50Hz±0.5Hz | |||||
Backup time | ≥5m / 180W | |||||
Efficiency of power | Mains power mode≧90% （@220VAC±10% Fully loaded） | |||||
Battery mode≧70% （Load 180W） | ||||||
Transfer time | From DC to AC ≤ 10ms | |||||
From AC to DC ≤ 10ms | ||||||
Output waveform (battery mode) | PWM（square wave） | |||||
Synchronism/phase-shifting | Synchronism | |||||
Surge/short circuit | Protection | |||||
Charging voltage | 13.7V±0.2V | |||||
Automatic re-starts when AC recovers | YES | |||||
Communication&Management | ||||||
Communication function | NO | |||||
On-load indication function | Sound alarm prompt + indicator light prompt | |||||

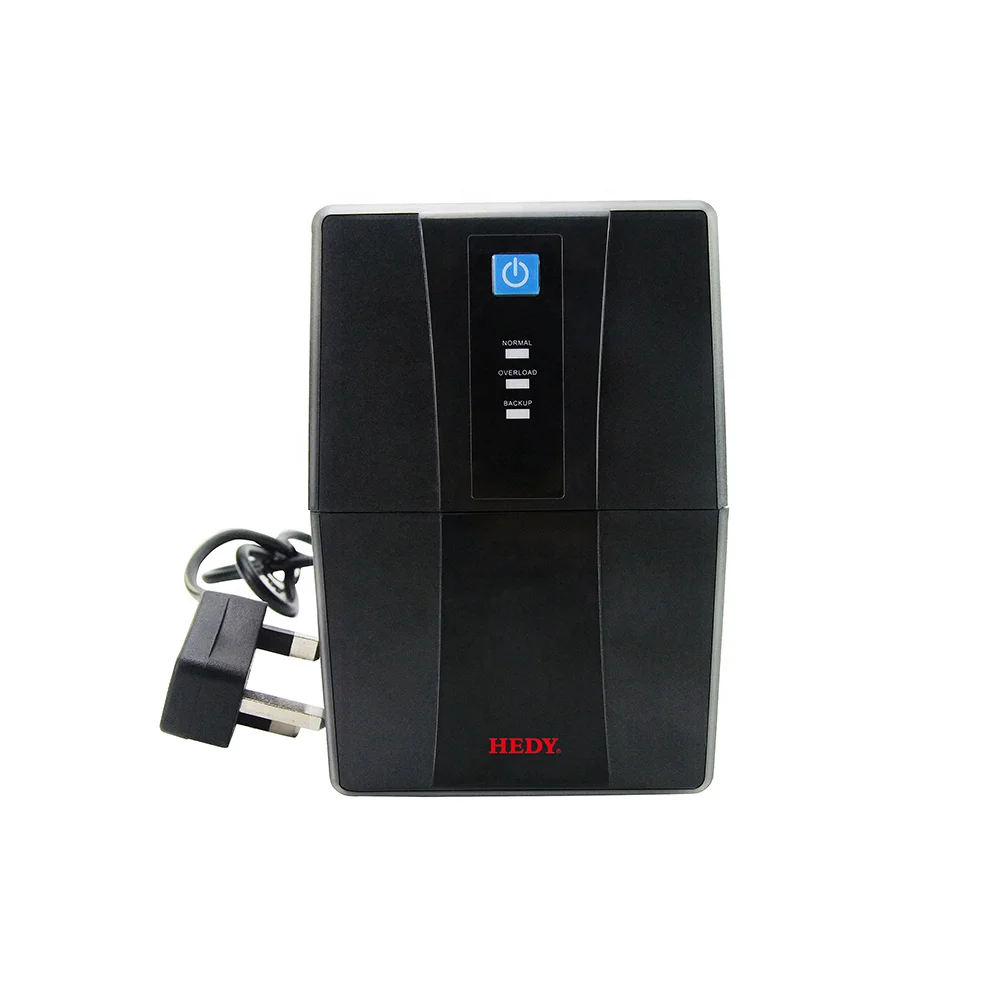

Operation condition indication function | Three-color LED light display | |||||
Indicator light | Buzzer | State | ||||
Green light stays on | Silent | Mains power is normal, battery is charging | ||||
Green light off | Silent | Shut down | ||||
Red light stays on | Sounding every 8 seconds, with a duration of 1 second | Battery mode is normal | ||||
Red light stays on | Sounding every 0.5 seconds, with a duration of 0.3 seconds | Low battery | ||||
Red light off | Continuously sounding | Shutdown protection when battery voltage is too low | ||||
Yellow light flashes | Continuously sounding | Overloaded | ||||
No-load cut-off function | NO | |||||
Silence setup | Yes (Quickly press the power button to switch after turning on) | |||||
Battery | ||||||
Self discharge | When the machine is off, discharging current (I) of the battery, I≤30uA | |||||
Battery voltage | Lead-Acid maintenance 12V/7AH*1PCS | |||||
Battery charging time | 10-16hours | |||||
Physical | ||||||
Product Net Weight | 4.1KG | |||||
Product Size | 285*95*140mm | |||||
Noise (1 meter horizontal distance) | ≦55dB | |||||
Usage environment | ||||||
Temperature | Use ambient temperature 0℃～40℃；Storage ambient temperature -10℃～50℃； | |||||
Humidity | Use relative humidity 30%～90%；Storage relative humidity 20%～95%； | |||||
Atmospheric pressure | Use atmospheric pressure 86kPa～106kPa；Store atmospheric pressure 75kPa～120kPa； | |||||
Altitude | Below 2000 meters above sea level | |||||
Implementation standards | GB/T 14715－2017 General specification for uninterruptible power supplies for information technology equipment | |||||
