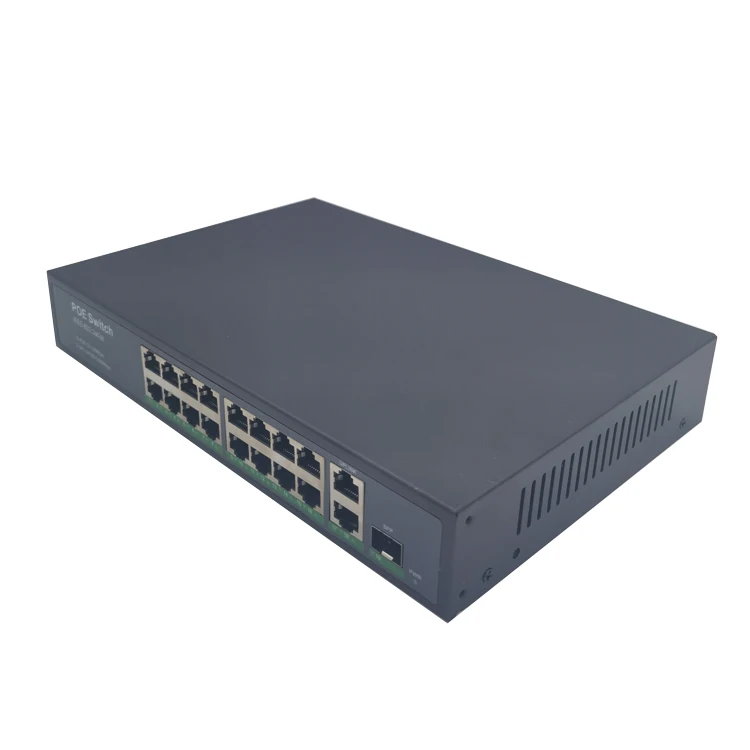

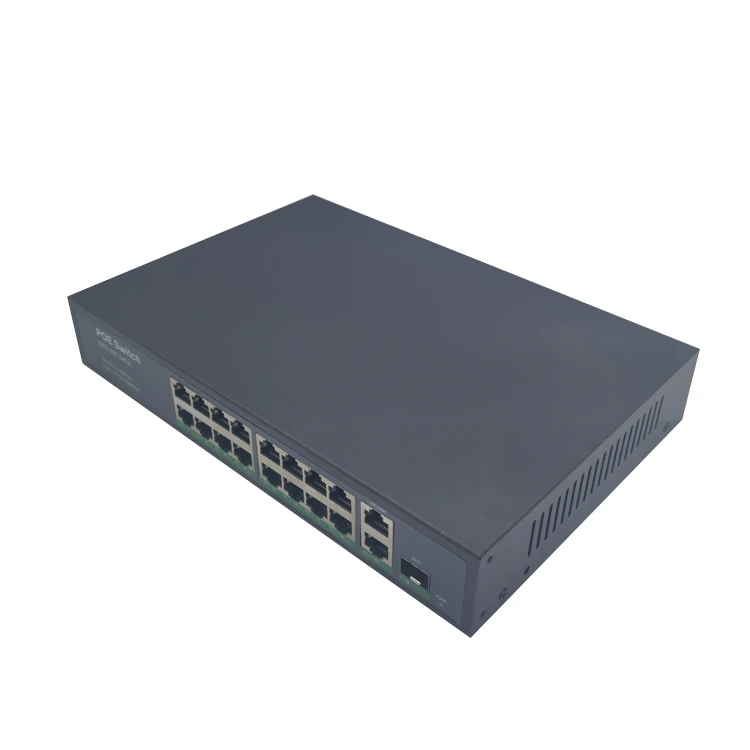

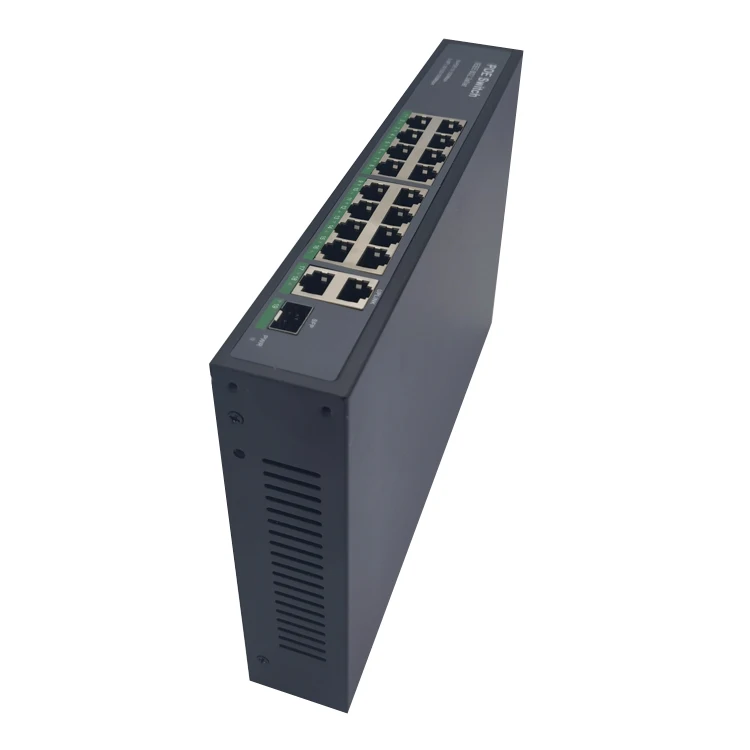

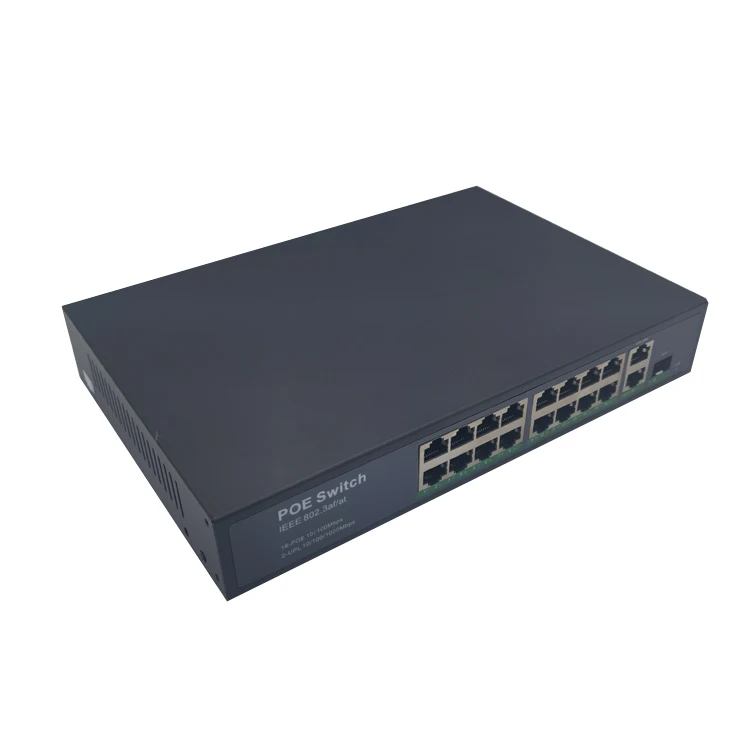

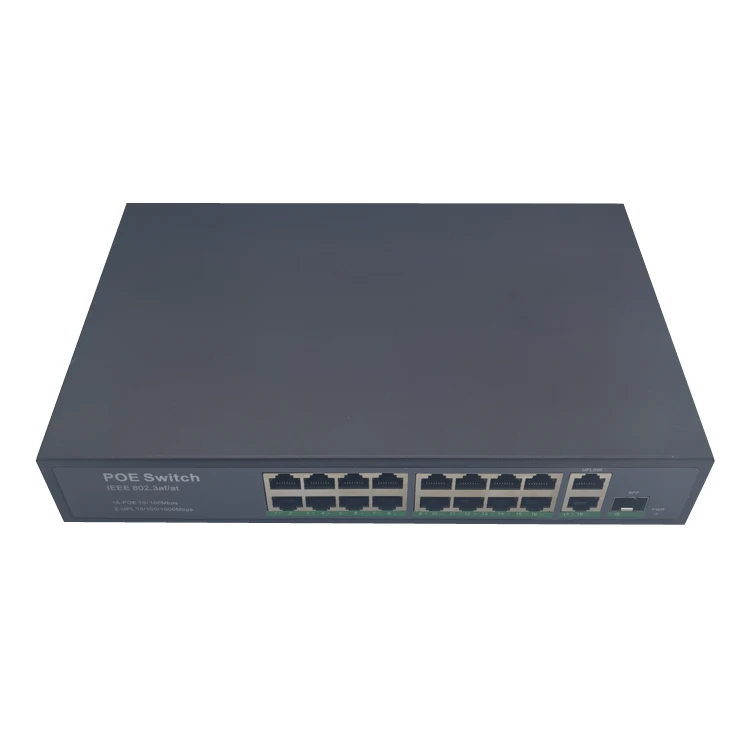

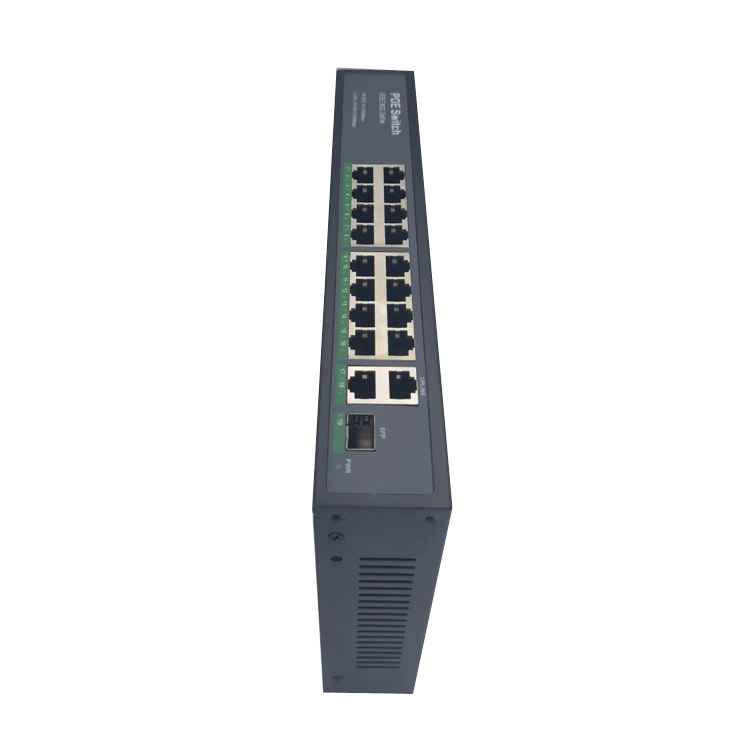

Poe optical switch Gigabit uplink 1 optical 18 Electric

Share on (1601018816263):


Price:$42.25 - $56.50

Quantity:


Product Overview

Description


International famous brand chips are adopted, with stable and reliable performance


Provide 16 10/100base-t Poe ports and 2 10/100/1000base-t electrical ports +1 Gigabit SFP optical port uplink


Support ieee8023af/at Poe Ethernet power supply standard, single port maximum output power 30W


16g backplane bandwidth, high-speed and smooth data exchange


Support one click VLAN and ultra long distance transmission, and adapt to different application scenarios


Built in power supply design, stable and reliable, providing maximum power of 250W


Lightning protection and surge protection, short circuit protection, overvoltage and undervoltage protection, safe and reliable


Compact appearance, plug and play, simple maintenance





















































project



parameter



port



16 10/100base-t Poe ports


Two 10/100/1000base-t uplink


1 SFP optical port uplink



Switching performance



Backplane bandwidth: 16g


MAC address table: 4K


Support store and forward



Standard protocol



IEEE802. 3, IEEE802. 3i 10Base-T, IEEE802. 3u 100Base-T, IEEE 802.3ab 1000BASE-T,


IEEE 802.3z 1000BASE-X,IEEE802. 3x Flow Control, IEEE802. 1q VLAN,


IEEE802. 3af PoE, IEEE802. 3at PoE+



Transmission medium and distance



Class V line: 100M;


Multimode fiber: 550m;


Single mode fiber: 20/40/80/120 km



Poe



Poe ports: 16


DC48V, single port MAXIMUM POWER 30W


Power supply line pair: 1/2 (+), 3/6 (-)



Power Supply



Ac100~240v 50/60hz input; Or dc48v~57v input


Total power 250W



indicator light



Power indicator, VLAN mode indicator, Poe indicator, electric port link connection indicator,


Electric port 1000m rate indicator, optical port link connection indicator



Use environment



Operating temperature: -10~+55 ℃


Storage temperature: -40~+70 ℃


Operating humidity: 10~90% non condensing


Storage humidity: 5~90% non condensing



physical characteristics



Dimension (W x D x H): 270x180x42mm


Weight: 2250g
