Automatic Mahjong Plastic Tiles Tarot Cards Playing Poker Card Die Cutting Machine
- Category: >>>
- Supplier: Shenzhen Wentong Machinery Co. Ltd.
Share on (1601018823830):
Product Overview
Description

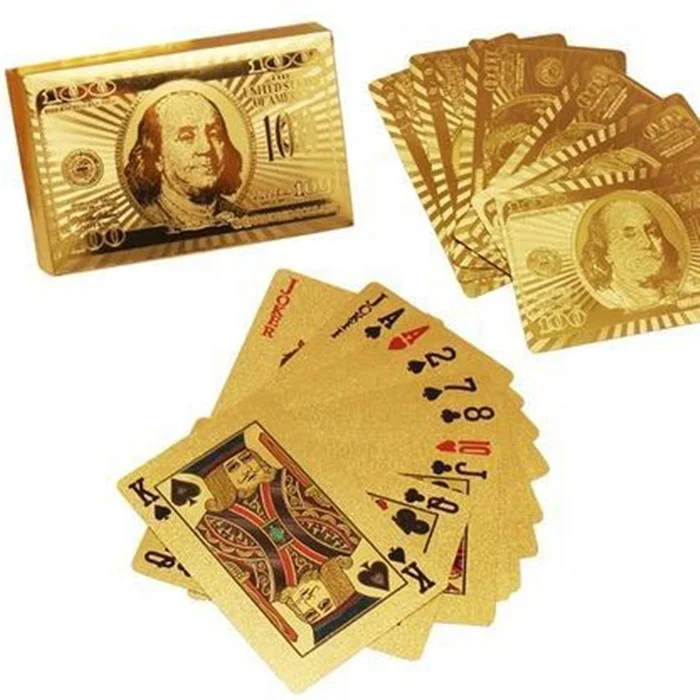

Finished Cards Sample
Product Description

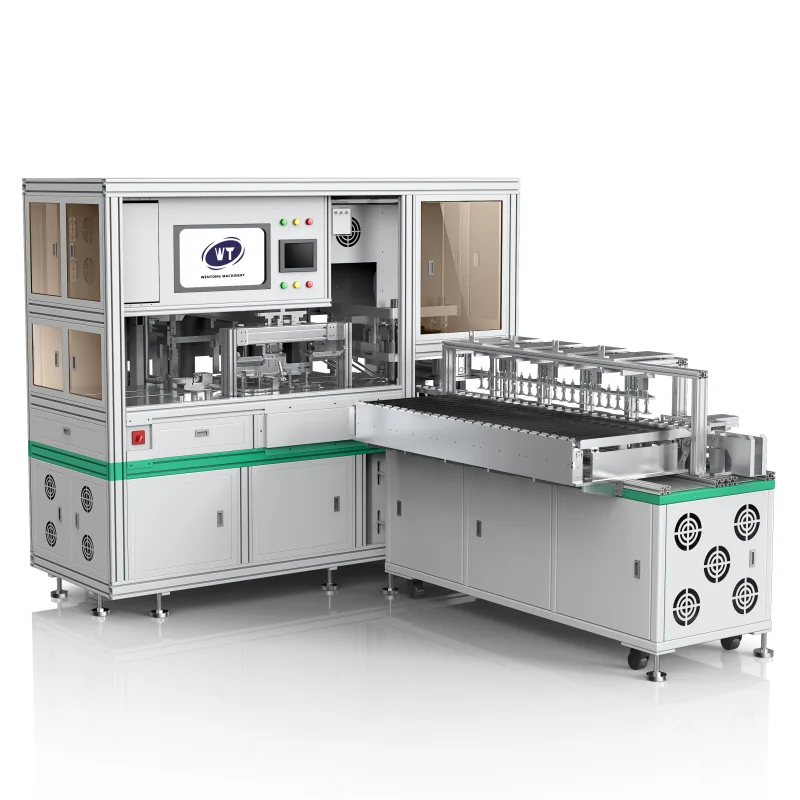

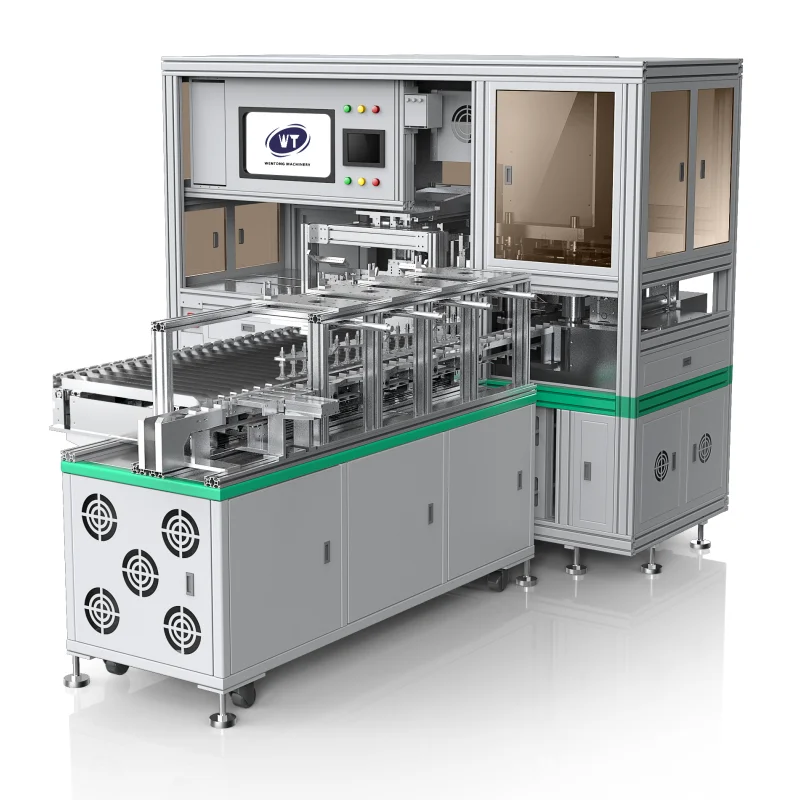

This automatic card punching and sorting machine is particularly suitable for manufacturing name cards, membership cards and ID cards. Suction cup holds the uppermost sheet to ensure single sheet feeding each time, facilitating automated sheets feeding process while preventing double pieces feeding. Two stepper motors allow for accurate positioning and alignment of sheets, as well as automatic cards sorting and collecting.
Power supply | AC 380V/50 HZ |
Sheet format | Max. (L*W) 1000*700MM/ Min. (L*W) 550*450MM |
Total power | 12KW |

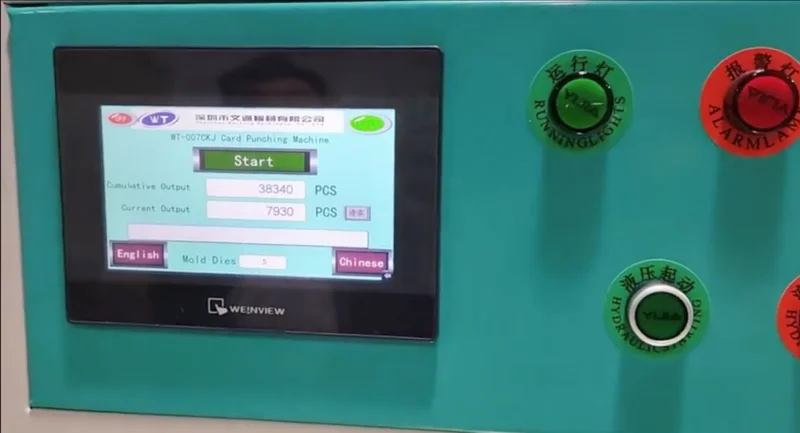

Control | PLC control + servo system |
Air source | 6 kg/cm2 |
Air consumption | Approx. 150L/min |
Dimension | L2800*W2750*H1700MM |
Punching pressure | 2T-6T |
Drive | Servo system |
Weight | Approx. 1800KG |
Punched card size | Customizable |
Punching accuracy | ±0.05mm |
Applicable card materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
Productivity | 20000~55000PCS/H |
Product features

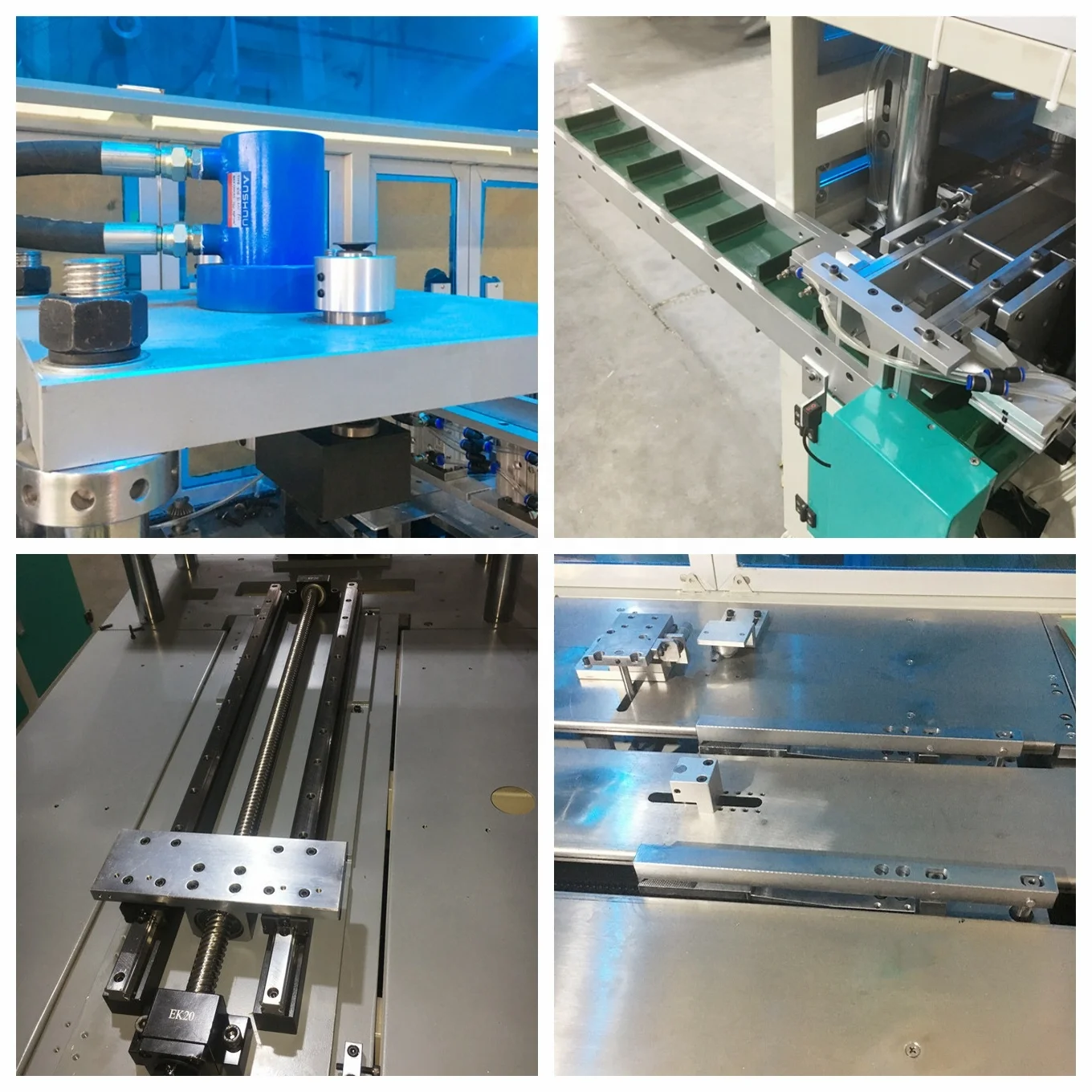

1.Sheet feeding unit：Sheets are stacked onto the tray, motor drives sheet tray to accomplish feeding process;
2.Alignment unit：Coupled with two stepper motors and photoelectric sensor, sheets are precisely positioned and aligned, providing high accuracy of sheet position;
3.Servo punching unit：High torque servo motor is adopted to guarantee stable work pressure and low noise level;

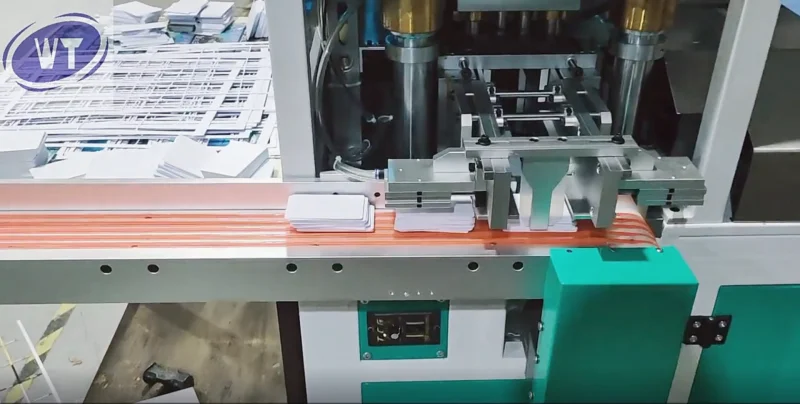

4.Automatic sorting unit: Vacuum suction cup transfers and distributes sheets into sorting lanes to accomplish card collection process, eliminating the need for manual sorting;
2.Alignment unit：Coupled with two stepper motors and photoelectric sensor, sheets are precisely positioned and aligned, providing high accuracy of sheet position;
3.Servo punching unit：High torque servo motor is adopted to guarantee stable work pressure and low noise level;
4.Automatic sorting unit: Vacuum suction cup transfers and distributes sheets into sorting lanes to accomplish card collection process, eliminating the need for manual sorting;
Packing&Shipping
Packaging and shipping methods
1. First wrap the machine with a plastic protective film;
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
Company Profile
Established in 1996, Wentong has over 20 years of experience in developing and manufacturing of smart card machines and post-press equipment. We have been committed to constantly growing and improving our products and service to meet all our customer’s requirements for production of children’s books, board books, paper cards and plastic cards. Our wide range of products includes die cutting machine, card collating machine, card punching machine, SIM card production machine, board book mounting and gluing machine, automatic packaging machine, ultrasonic welding system, magnetic tape laying machine, sheet cleaning machine, etc. which are widely applied in a variety of industries such as card production, printing & packaging, children’s book, paper products, etc.
FAQ
1.Q: How to order a card punching machine?
A:If you want to order a machine ,You need to provide some of the following information
1: Maximum and Minimum size of product
2: Thickness and specification of materials
3: The layout of the product
2.Q: Can you provide on-site installation services for your machine?
A: Yes, we have professional engineers to provide on-site training and commissioning services until you learn how to operate the machine. If you have any questions, we will have a technician to answer your questions.
