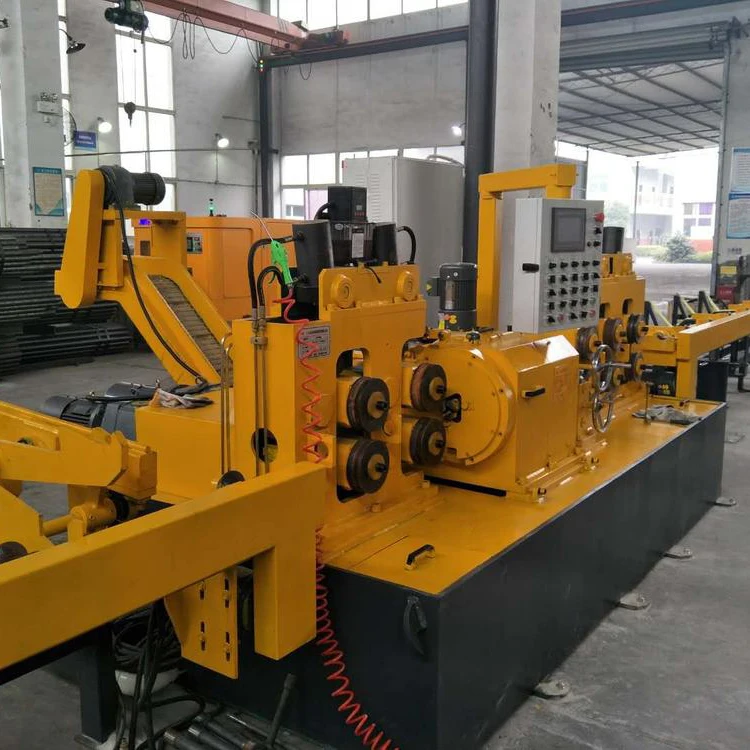

Mc China Source Automatic Steel Bar Peeling Machine Centerless Lathe Bar Peeling Machine Peeling Machine Round Steel Bar
- Category: >>>
- Supplier: Dalian Mingcheng Industry Co. Ltd.
Share on (1601018875439):
Product Overview
Description
Contacts: Ruby Xue
Tel: +86-411-82766928
Email: rubyxue001@gmail.com
Mob/Wechat/Whatsapp: +86 138 4093 6601
Tel: +86-411-82766928
Email: rubyxue001@gmail.com
Mob/Wechat/Whatsapp: +86 138 4093 6601
Products Description
Mc Multi-functionality black bar peeling machine used bar peeling machine metal peeling machine

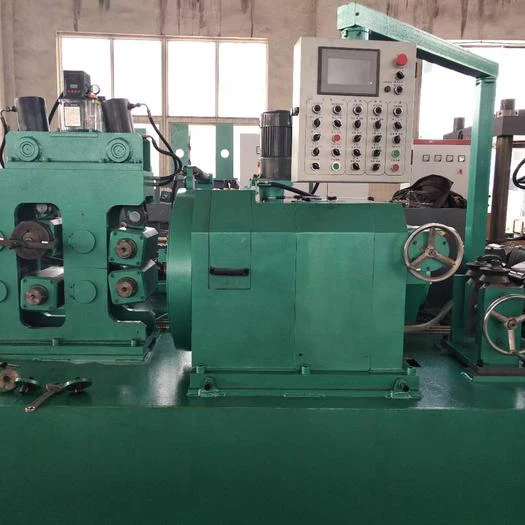

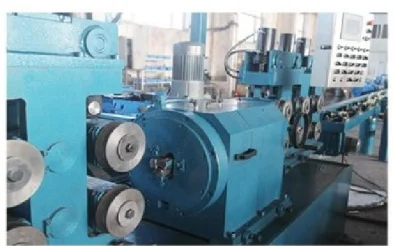

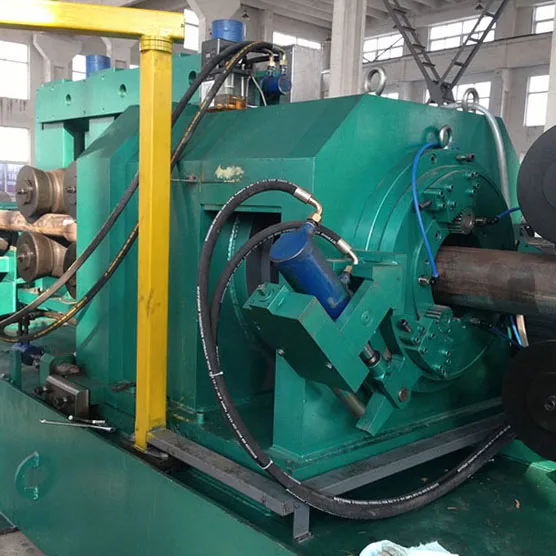

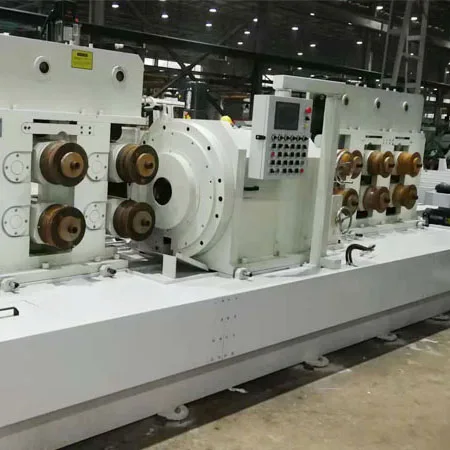

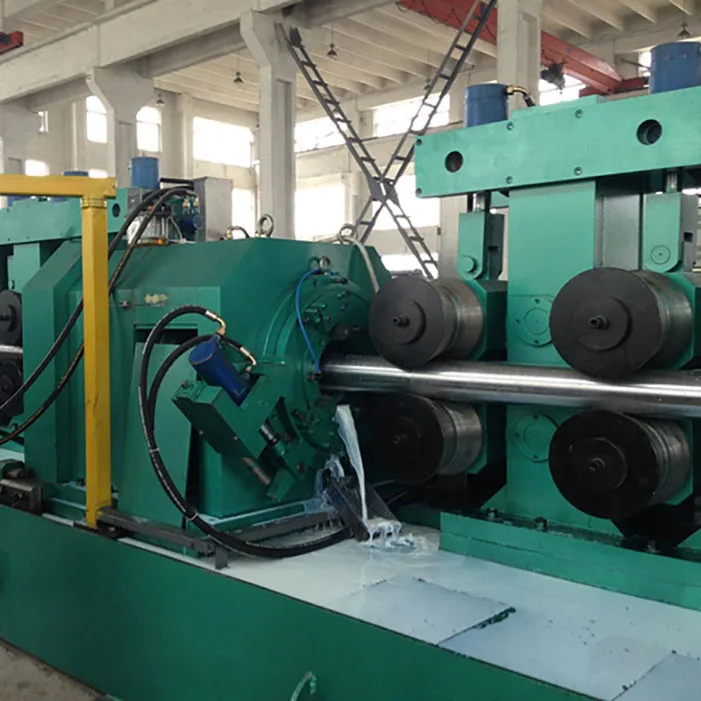

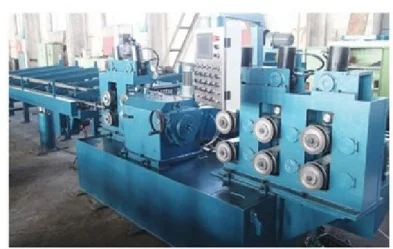

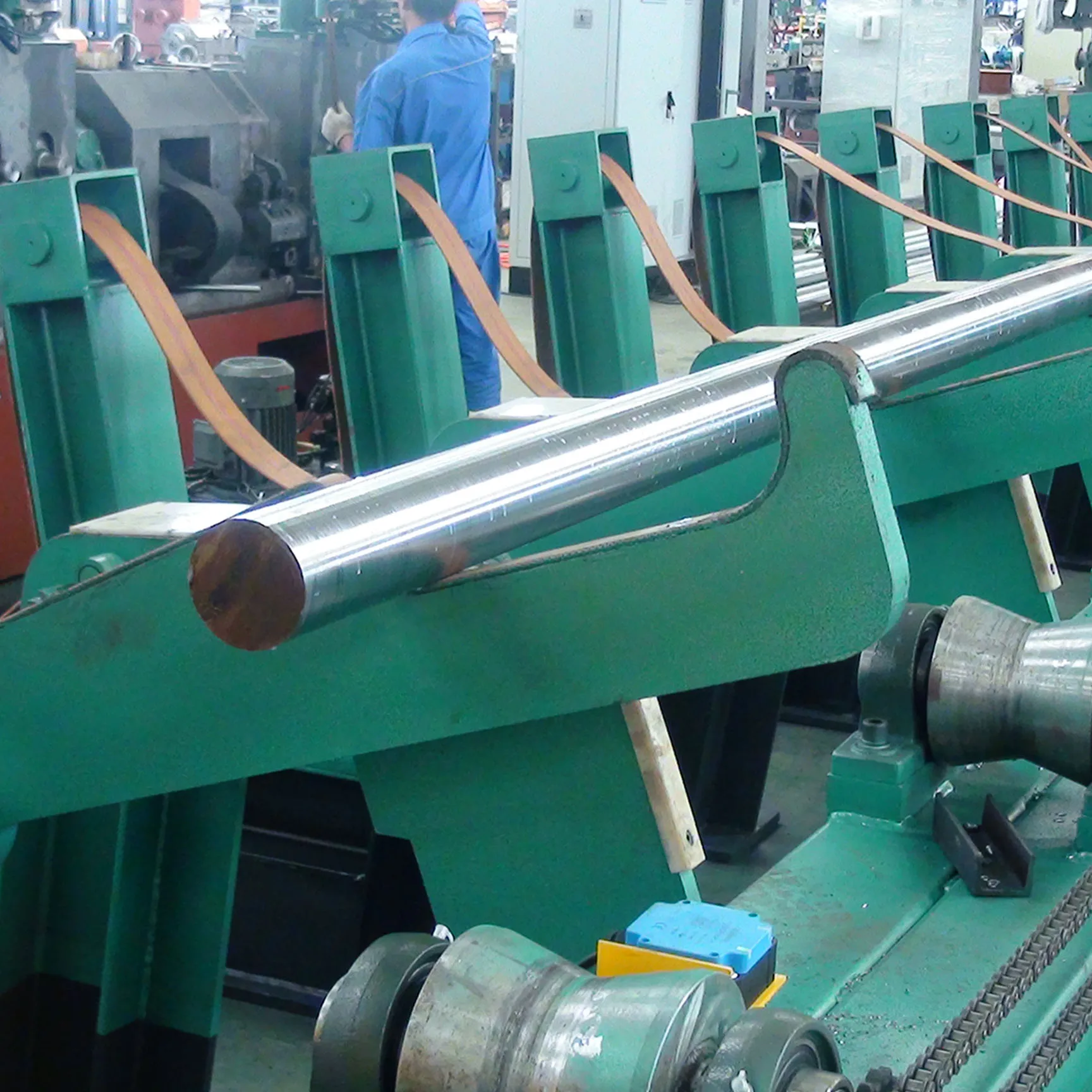

Series WXC centerless lathe(peeling machine) independently developed are mainly used for rough and finishing processing long and round metal materials with a diameter range of 5mm-700mm, including bar, tube, and wire rod with required surface finish and dimension accuracy. They can rapidly wipe off the defects of bars, such as surface cracks, oxide layers, and decarburized layers with high precision and surface roundness. The efficiency is several times more than 10 times superior to conventional lathes, greatly reducing the number of workers and equipment costs.

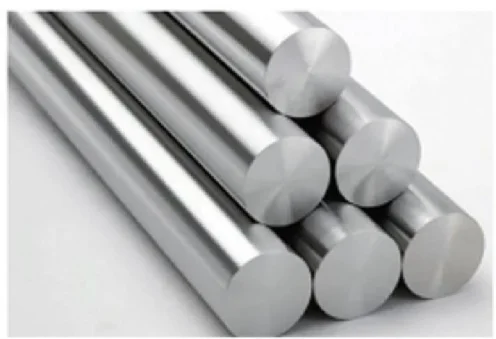

High Precision: the finished bars can reach diameter tolerance less than h9, surface roughness Ra less than 3.2um,
High Efficiency: with several cutters working together, the efficiency is dozens of times higher than the ordinary lathe.
No pollution: all the scraps can be recycled
High Efficiency: with several cutters working together, the efficiency is dozens of times higher than the ordinary lathe.
No pollution: all the scraps can be recycled
It can process over-length bars and tubes, as well as wire rods, including wire rod-to-wire roa, wire rod-to-bar, bar-to-bar
Introduction & Basics
Brand: MC
Original: China
Brand: MC
Original: China
Unlike conventional grinding methods, centerless grinding machines do not require any fixture or center hole in the workpiece. The workpiece revolves between two wheels without any holding.
Core Components
Brand: MCOriginal: China
Grinding Wheel: The primary wheel that removes material from the workpiece. Regulating Wheel: This wheel controls the rotation and feeds of the workpiece.
Work Rest Blade: A crucial component where the workpiece is positioned and guided during the grinding process.
Applications
Brand: MCOriginal: China
Automotive: For precision grinding of engine components.
Aerospace: In the manufacturing of aircraft components requiring high precision.
Medical Devices: Crafting surgical tools and other intricate medical components.
Maintenance & Safety
Brand: MCOriginal: China
Regular Check-ups: Ensuring all components are in sync and functioning optimally.
Safety Protocols: Adhering to safety guidelines to prevent mishaps and ensure worker safety.
Product Paramenters
Unit type | BP-40 | BP-80 | BP-100 | BP-150 | BP-250 |
Main power source | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ |
Control source | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ |
System control power | DC24V | DC24V | DC24V | DC24V | DC24V |
Hardness | hot rolled material ≤HB310 | hot rolled material ≤HB310 | hot rolled material ≤HB310 | hot rolled material ≤HB310 | hot rolled material ≤HB310 |
Peeling length(standard configuration：6m) | ≧2.2m | ≧2.5m | ≧2.5m | ≧3.2m | ≧3.5m |
Peeling diameter range size (raw material) | ∮11-41mm | ∮21-85mm | ∮21-102mm | ∮71-155mm | ∮92-255mm |
Peeling diameter range size (finished product) | ∮10-40mm | ∮20-80mm | ∮20-100mm | ∮70-150mm | ∮90-250mm |
The knife dish form | four knife | four knife | four knife | four knife | four knife |
Blade adjustment mode | Adjust the cutter online without stopping | Adjust the cutter online without stopping | Adjust the cutter online without stopping | Adjust the cutter online without stopping | Adjust the cutter online without stopping |
Speed of mainshaft | 300-2000r/min | 300-1000r/min | 300-1000r/min | 200-450r/min | 70-260r/min |
Peeling depth (diameter) | 0.5-1.5mm | 0.6-2mm | 0.6-2mm | 0.6-2mm | 1-5mm |
Feeding speed | 0.5-12m/ min | 0.5-10m/min | 0.5-10m/min | 0.5-5m/ min | 0.5-4m/min |
Diameter tolerance | h9-h11 | h9-h11 | h9-h11 | h9-h11 | h9-h11 |
Surface roughness | Ra1.6-3.2 | Ra1.6-3.2 | Ra1.6-3.2 | Ra1.6-3.2 | Ra3.2-12.5 |
Out of roundness | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 |
Precision | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
Straightness (raw material) | 3‰ | ≦3‰ | ≦3‰ | ≦3‰ | ≦3‰ |
Straightness (finished product) | 3‰ | ≦3‰ | ≦3‰ | ≦3‰ | ≦3‰ |

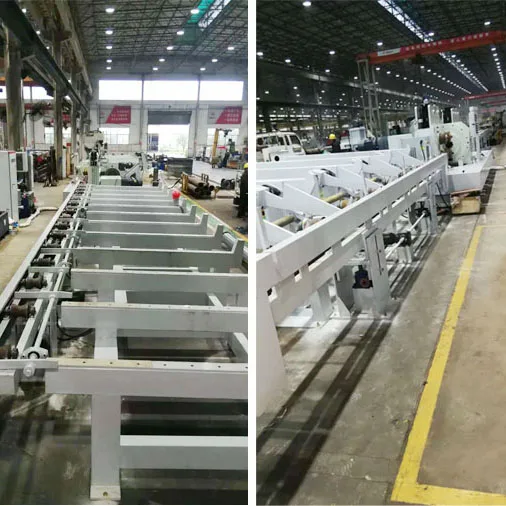

Loading frame and unloadingframe's length (standard configuration) | 6m | 6m | 6m | 6m | 6m |
Total power | 58KW | 76KW | 76KW | 122KW | 119KW |
Main motor power | 37KW | 55KW | 55KW | 90KW | 75KW |
Feed motor power | 3.0KW*2 | 3.0KW*2 | 3.0KW*2 | 3.0KW*3 | 3.0KW*6 |
Pull out motor power | 3.0KW*3 | 3.0KW*3 | 3.0KW*3 | 3.0KW*3 | 3.0KW*4 |
Hydraulic pressure station motor power | 3.0KW*1 | 3.0KW*1 | 3.0KW*1 | 11KW*1 | 11KW*1 |
Chip removal device motor pwer | 0.75KW*1 | 0.75KW*1 | 0.75KW*1 | 0.75KW*1 | 0.75KW*1 |
Motor power of the shrink knife | 0.4KW*1 | 0.4KW*1 | 0.4KW*1 | 0.4KW*1 | 0.4KW*1 |
Motor power of upper and lower roller table | 1.1KW*1 | 1.1KW*1 | 1.1KW*1 | 1.1KW*1 | 1.1KW*1 |
Weight | 8T | 12T | 12T | 25T | 60T |
Boundary dimension | 16.5*3.2*1.9 | 16.5*4*1.9 | 16.5*4*1.9 | 18*4*2.1 | 20*4.5*2.4 |
