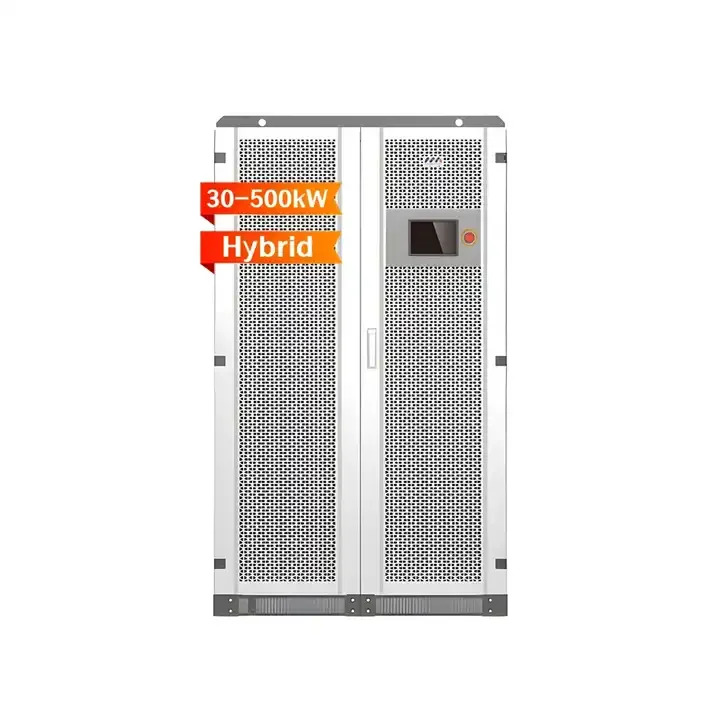

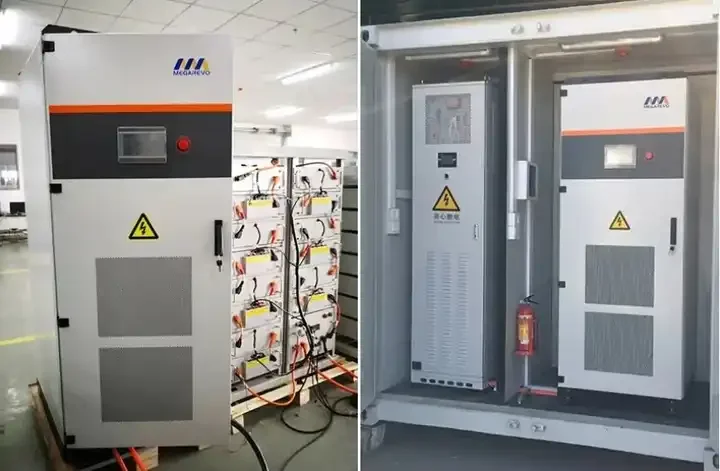

Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use
Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use
Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use
Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use
Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use
Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use
Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use

Megarevo MPS Microgrid Series 30KW 50KW 100KW 250KW 500KW Three Phase Hybrid Inverter For Commercial Use

Share on (1601018917750):


Price:$7,100.00 - $7,400.00

Quantity:


Product Overview

Description



Product Description




1. Hybrid Inverter is a high-quality inverter which can convert solar energy to AC energy and store energy into battery.

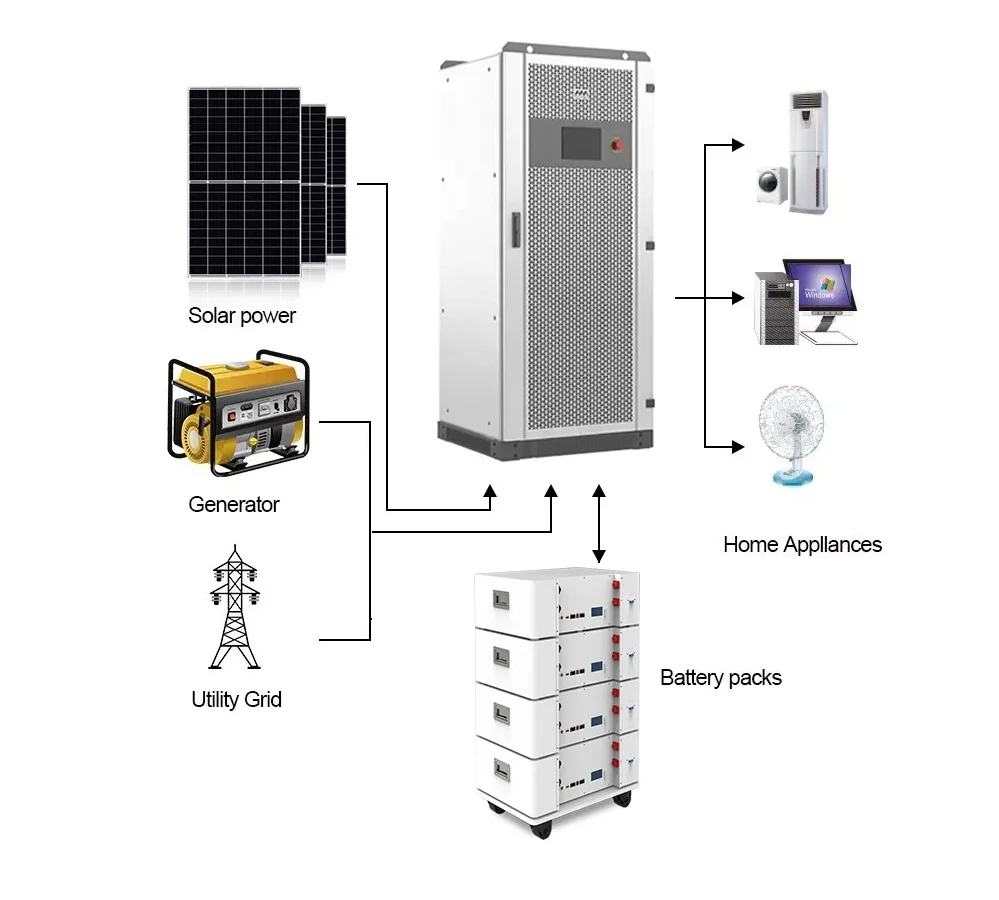

2. The inverter can be used to optimize self consumption, store in the battery for future use or feedin to public grid. Work mode depends on PV energy and user’s preference. It can provide power for emergency use during the grid lost by using the energy from battery and inverter (generated from PV). In addition, the parallel function is available(of grid model).


Specification


High Power Hybrid Solar Inverter Megarevo 500KW 250KW 150KW 50KW 30KW Solar Panel System
Model
MPS0030
MPS0050
MPS0100
MPS0150
MPS0250
MPS0500
AC(grid-connected)
Rated power
30kW
50kw
100kw
150kw
250kw
500kW
Rated current
43A
72A
144A
217A
361A
722A
Voltage range
320V-460V
Rated frequency
50/60Hz
Frequency range
45-55/55-65Hz
THDI
<3%
PF
0.8lagging-0.8leading
AC connection
3W+N+PE
Transformer
Yes
AC(off-grid)
Apparent power
33KVA
55KVA
110KVA
165KVA
275KVA
550KVA
Rated power
50KW
50KW
100KW
150KW
250KW
500KW
Rated Voltage
400V
Rated Current
43A
72A
144A
217A
361A
722A
THDU
≤ 2% linear
Rated frequency
50/60Hz
Overload capability
110%-10min120%-1min
PV
Max. PV open-circuit
voltage
1000VDC
Max Power
60/120KW
120/180/240KW
300/360KW
600/660/720KW
PV MPPT Voltage Range
220-850V
MPPT Number
1/2
2/3/4
5/6
10/11/12
Battery
Battery Voltage
150V-850V
420V-850V
500V-850V
Battery Full Loading Operation Volaage Range
150V-850V
420V-850V
500V-850V
General data
Dimension(WXDXH)
800X800X1900mm
1200X800X2050mm
1800X800X2050mm
2800X800X2050mm
Weight
440kg
620kg
900kg
1250kg
1700kg
3520kg
Environmental temperature
-25ºC~+55ºC
Relative humidity
0-95%non-condensing
Protection degree
IP20
Noise emission
75dB(A)@1m
Max.imum altitude
5000m(derate over 3000m)
Cooling
Forced-air
Communication
Display
Touch screen LCD
Communication interface
RS485/CAN

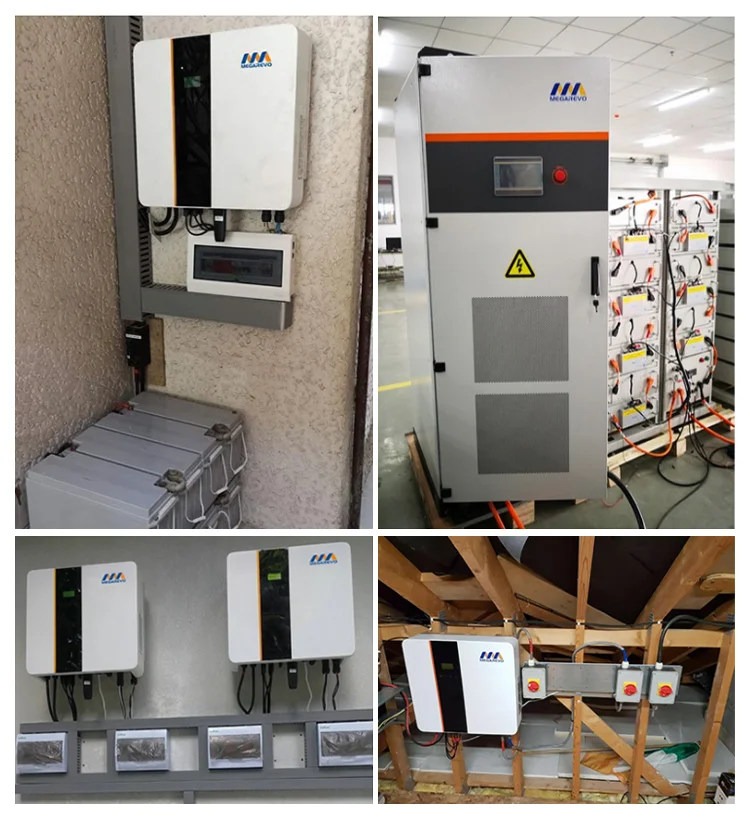

Applications
