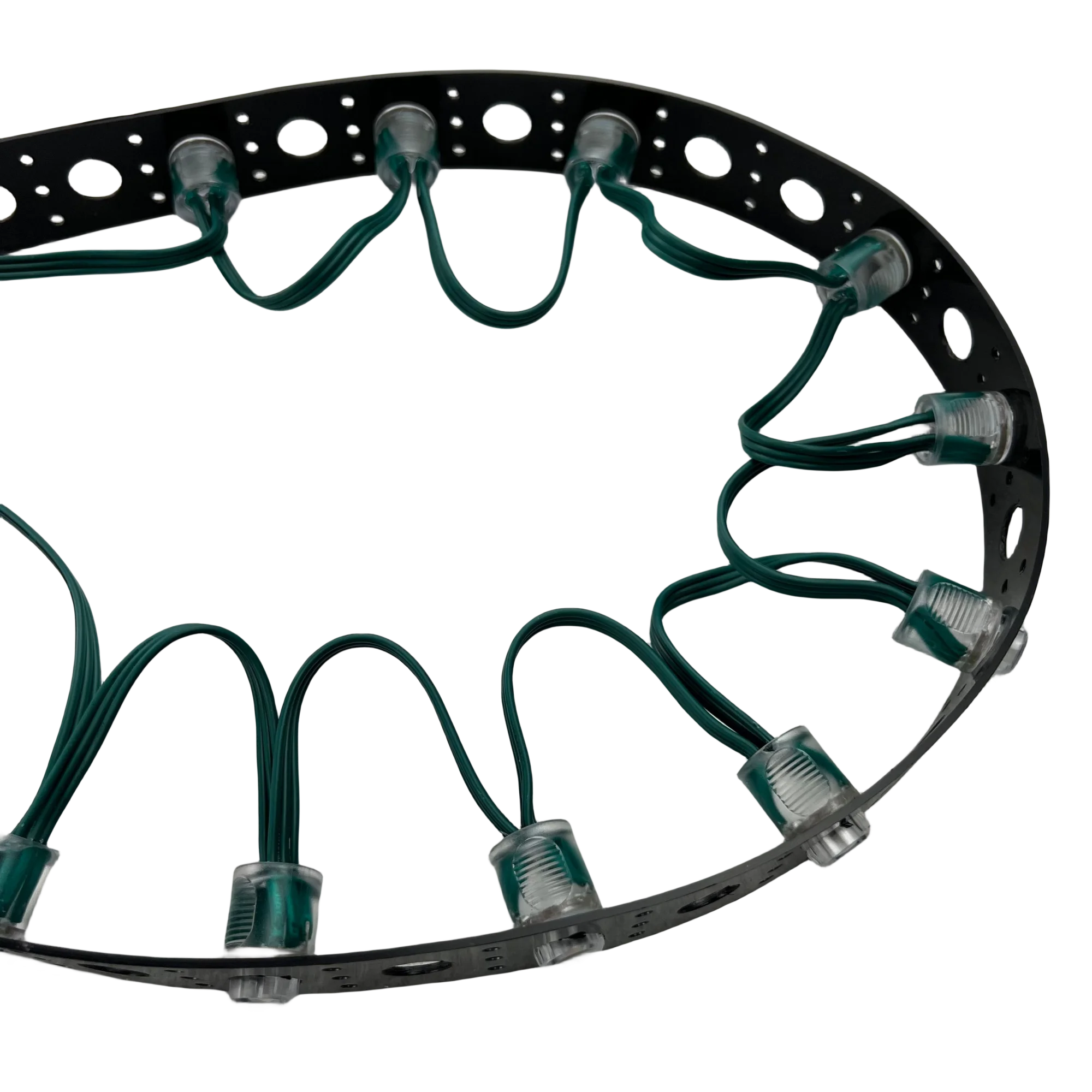

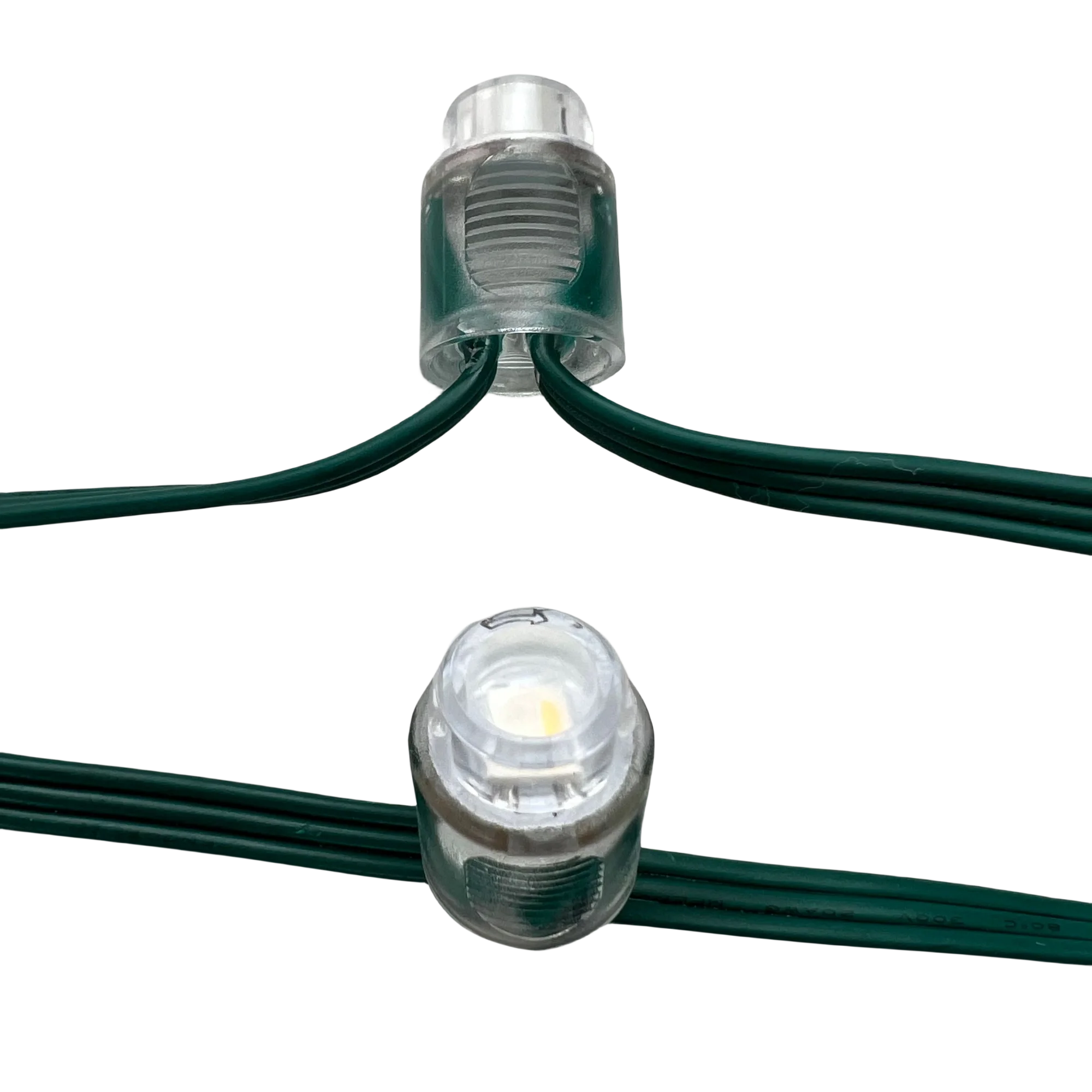

50 Pixels/String Addressable DC5V DC12V SK6812 RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire
50 Pixels/String Addressable DC5V DC12V SK6812-RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire
50 Pixels/String Addressable DC5V DC12V SK6812-RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire
50 Pixels/String Addressable DC5V DC12V SK6812-RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire
50 Pixels/String Addressable DC5V DC12V SK6812-RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire
50 Pixels/String Addressable DC5V DC12V SK6812-RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire
50 Pixels/String Addressable DC5V DC12V SK6812-RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire

50 Pixels/String Addressable DC5V DC12V SK6812 RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 3Pin Green Wire

Share on (1601018928866):


Price:

Quantity:


Product Overview

Description




Description



:

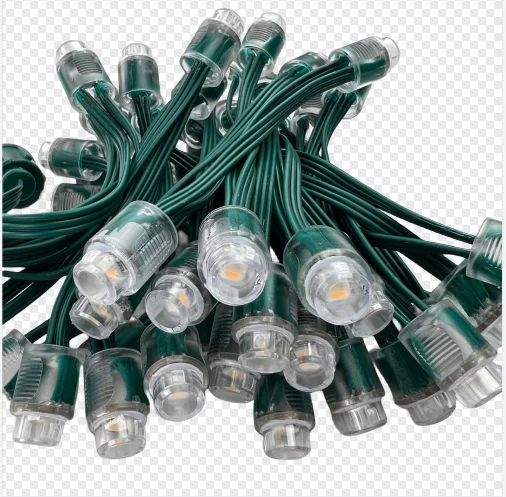

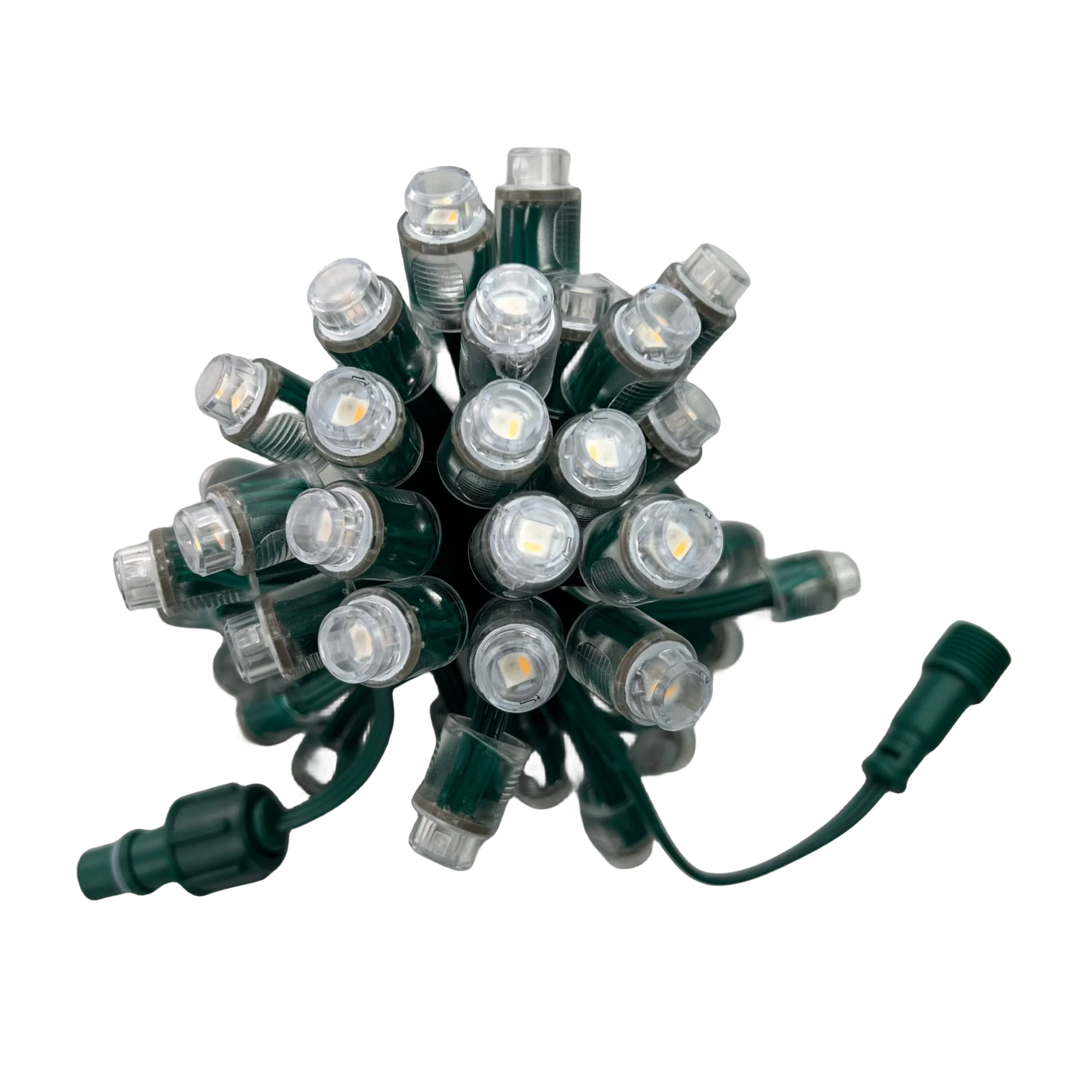

50 Pixels/String Addressable DC5V DC12V SK6812-RGBW(3000K) SMD Pixel Node Bullet 12mm Open Hole IP68 Clear Cover 3Pin Green Wire


Specification:


















































































Part No



LD-12mm-SK6812-RGBWW-5V12V-IP68-G



Color



full rgb color,24bit,256 gray scale



LED Qty



1 piece of 5050 SMD RGBW(warm white) LED with SK6812-RGBW IC



Input Volt



DC5V or DC12V



Max current



60MA or 25MA



Max Power



0.3W



Chip



SK6812-RGBW IC; TTL/SPI signal,Addressable RGBW full color

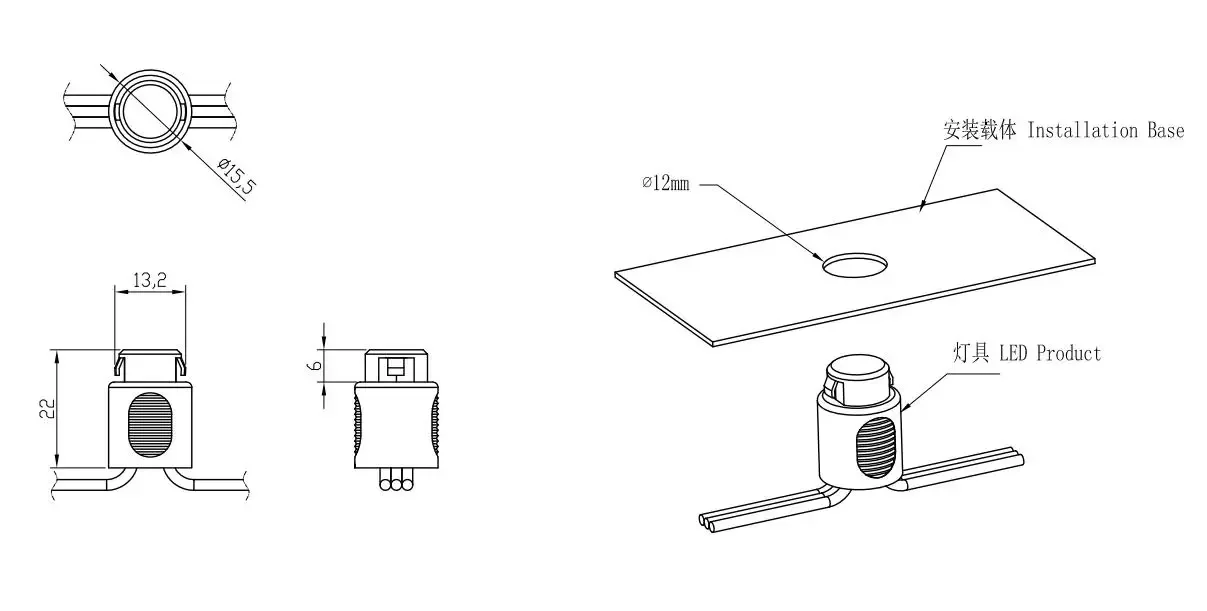

Dimension



12mm diameter(open hole)



Viewing angle



100-120degree



Protection Level



IP68 epoxy resin filled inside



Certification



CE and RoHS

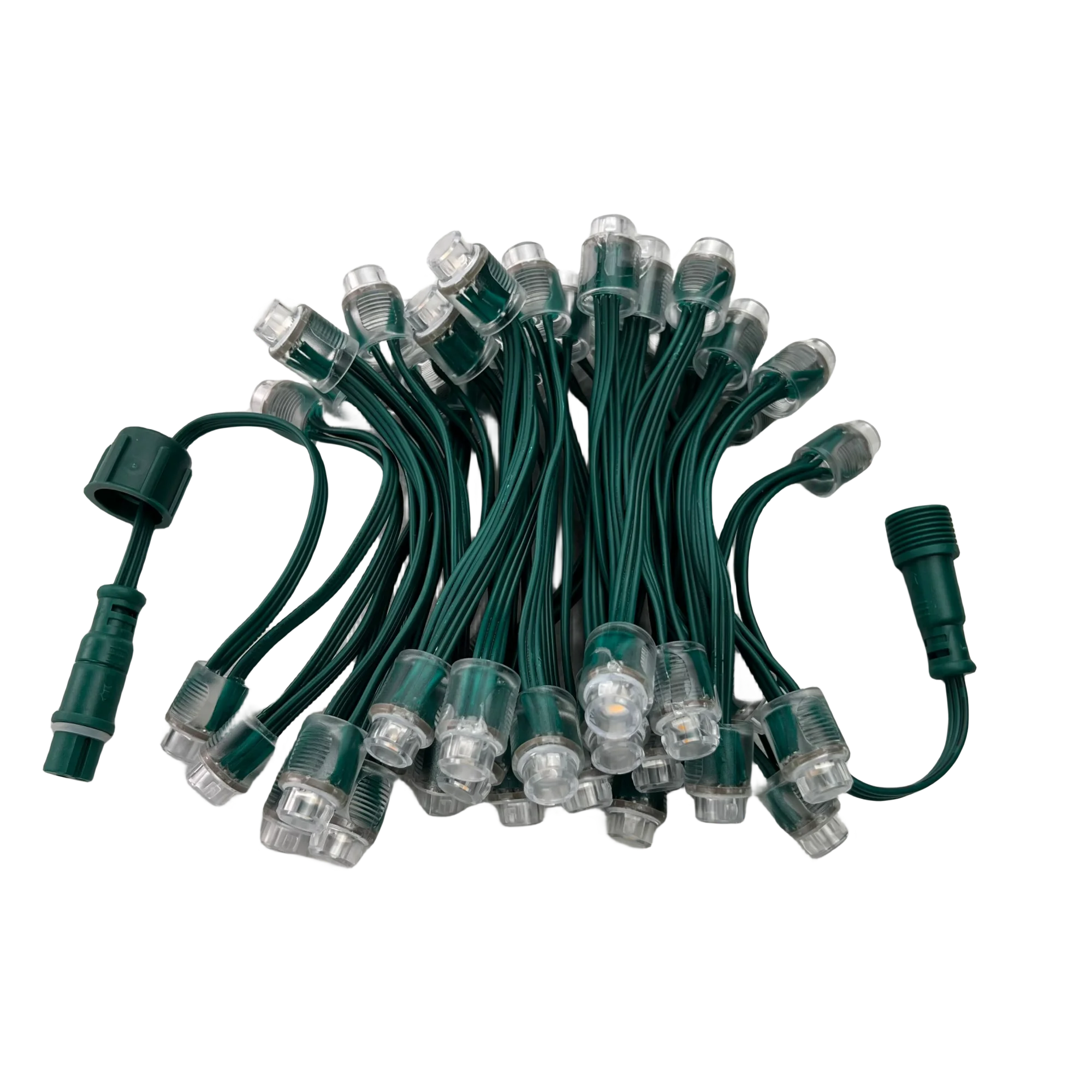

Standard connection



50pcs node per string



Standard wire length



100mm;3pin 18AWG Green wire



Housing



Clear PC Material, Clear cover



Fixed way



12mm diameter open hole



Wiring



12VCC+ / Data / GND



Warranty



3 years



Operation temperature



-40-50



Store temperature



-50-60

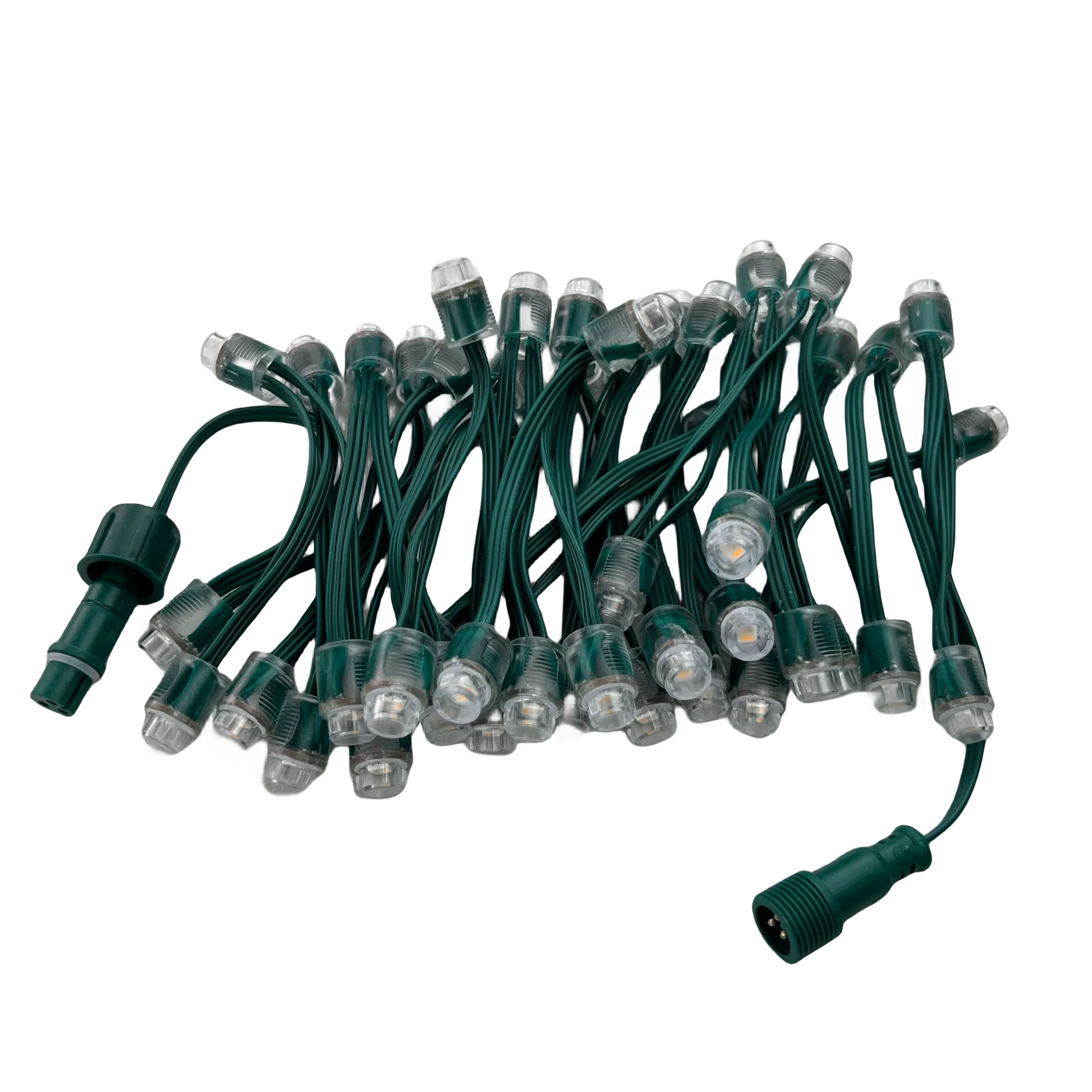

waterproof connector at the ends:


3 core xConnect pigtails 20cm long:


https://www.aliexpress.us/item/2251832869744835.html



standard pinout diagram for our pixel lights:


for pigtails:


Brown:                  5V/12V +
Yellow:                  data
Blue:                    GND


Input end:                male connector(screw end with bare pin)


Output end:             female connector(with hole)








Recommended Controllers:


APP bluetooth & WIFI/SD card/Artent SPI etc


2.pngQQ20231117221325_QQ20231117221319_QQ20231117221331_1QQ20231117221256_QQ20231117221344_QQ20231117221305_QQ20231117221207QQ20231117221336_
