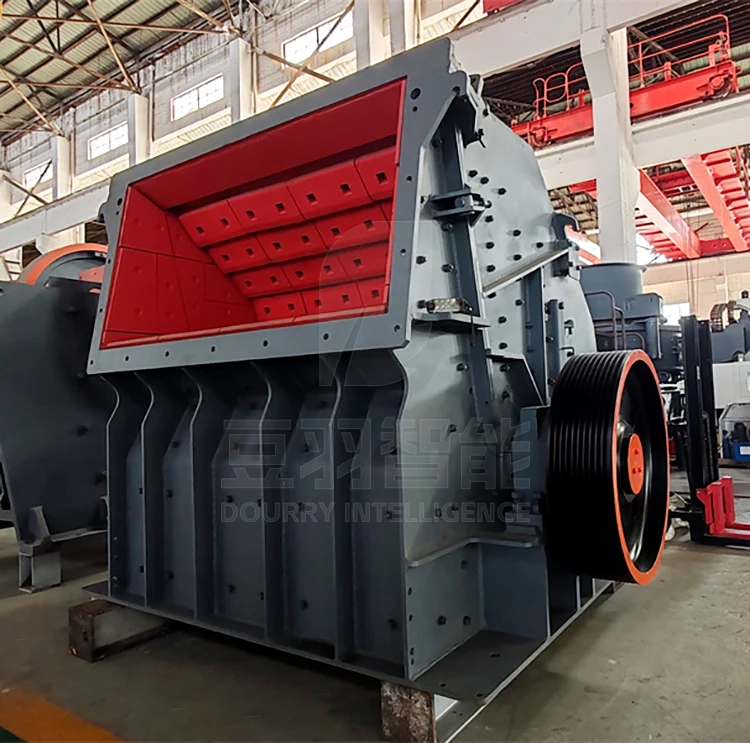

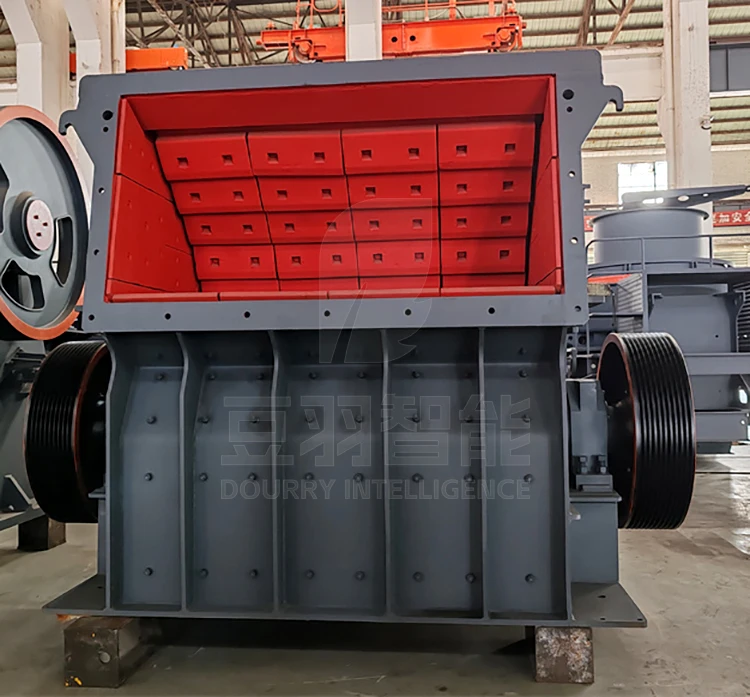

High capacity crushing equipment impact crusher for stone breaking limestone impact crusher for sale
- Category: >>>
- Supplier: Henan Dourry Intelligence Equipment Co. Ltd.
Share on (1601018931792):
Product Overview
Description
Products Description

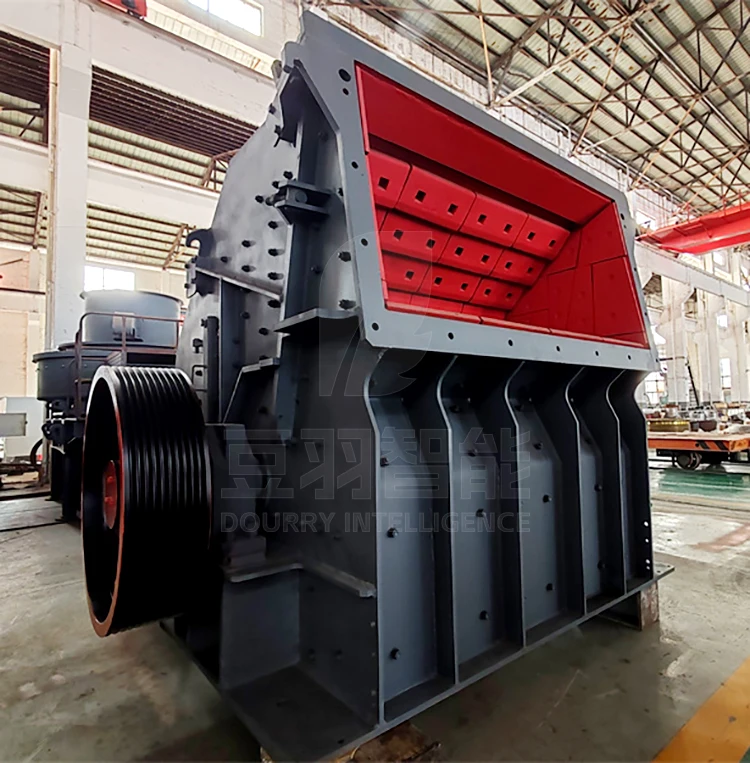

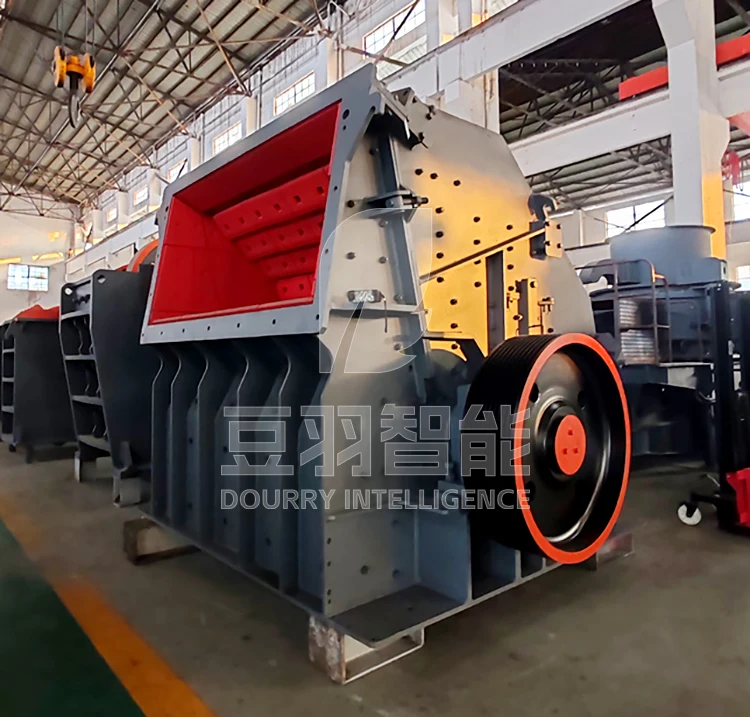

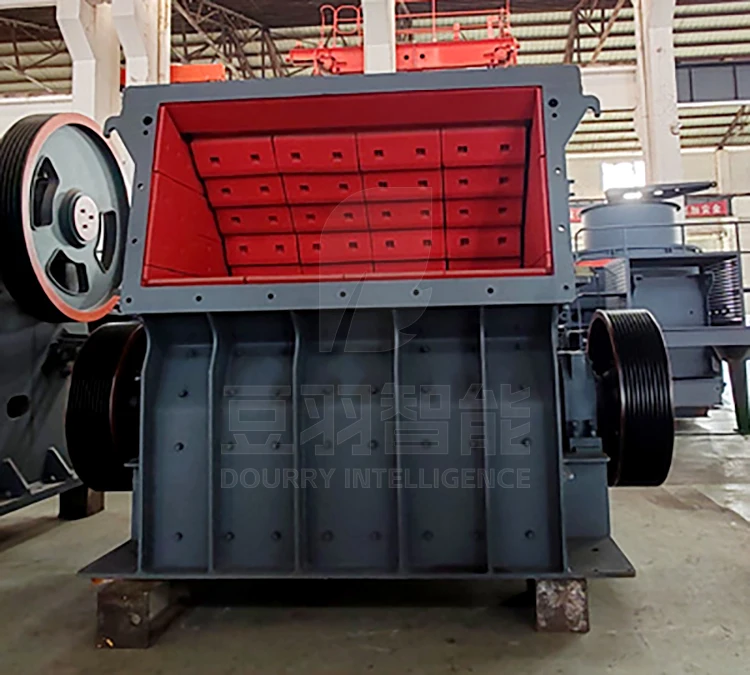

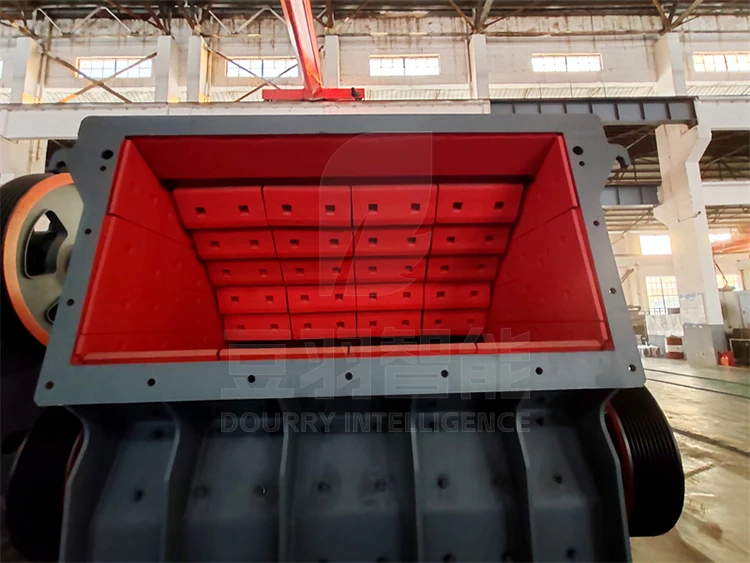

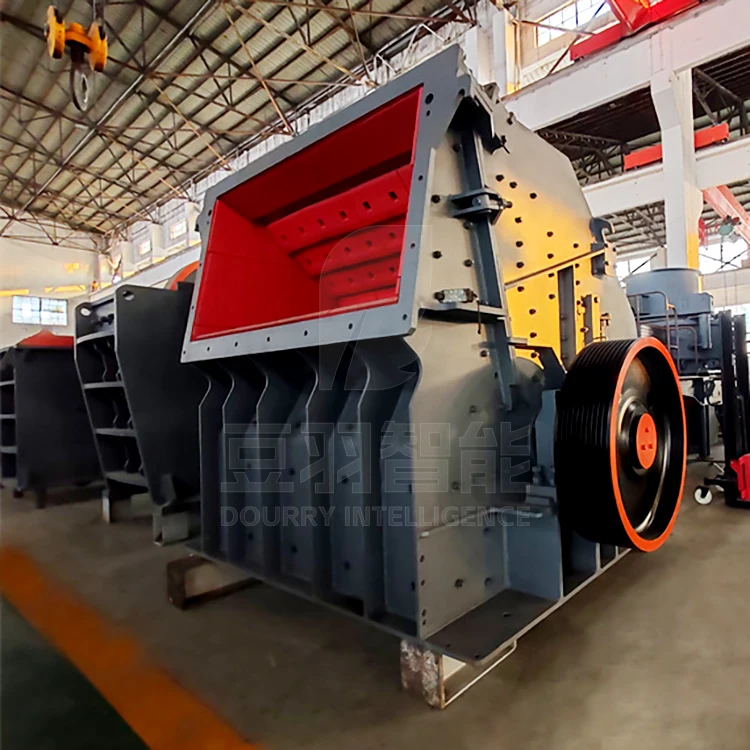

PF Impact Crusher Machine

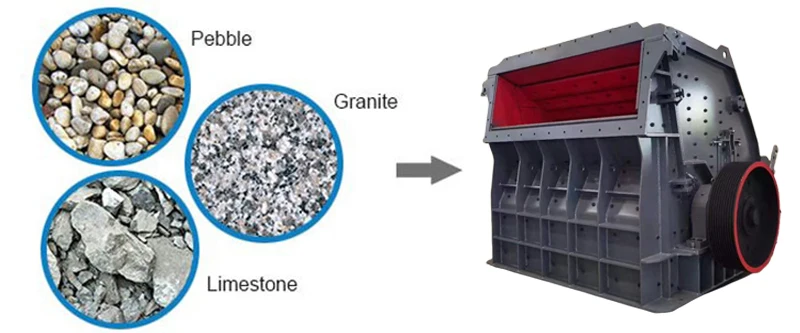

The impact crusher is suitable for crushing medium-hard materials, and can handle materials with a side length of 100-500 mm or less. The maximum pressure resistance can reach 350 MPa. It has a large crushing ratio and the crushed materials are in the form of cubes and particles. For example, the limestone crusher in a cement plant has the advantages of large production capacity and small discharge particle size. It can perform coarse, medium and fine crushing operations on various ores, rocks (such as granite, marble, limestone) and other materials. It is widely used in the production of stones for high-grade highways, hydropower, artificial sand and gravel, crushing, construction and other industries.
PERFORMANCE FEATURE
1.The crushing efficiency is significantly improved, the output is significantly improved compared to previous traditional
equipment, and the finished product has good particle shape.
1.The crushing efficiency is significantly improved, the output is significantly improved compared to previous traditional
equipment, and the finished product has good particle shape.
2.Maintenance is simple and fast, operation is simple, and downtime is short.
3.Improve the utilization rate of wearing parts and extend the service life of wearing parts.
4.Strive for excellence to ensure stable operation of equipment.
3.Improve the utilization rate of wearing parts and extend the service life of wearing parts.
4.Strive for excellence to ensure stable operation of equipment.
Product Paramenters
Model | Feed opening （mm） | Max feed Size(mm) | Capacity(tph) | Power(kw) | Dimension | Weight （t） |
PF-1007 | 400×730 | 300 | 30-70 | 37-45 | 2330×1660×2300 | 12 |
PF-1010 | 400×1080 | 350 | 50-90 | 45-55 | 2370×1700×2390 | 15 |
PF-1210 | 400×1080 | 350 | 70-130 | 110 | 2680×2160×2800 | 17.7 |
PF-1214 | 400×1430 | 350 | 100-180 | 132 | 2650×2460×2800 | 22.4 |
PF-1315 | 860×1520 | 500 | 130-250 | 220 | 3180×2720×2620 | 27 |
PF-1520 | 830×2040 | 700 | 300-550 | 315-400 | 3959×3564×3330 | 50.6 |
PF-1620 | 2000×1600 | 500 | 400-700 | 400-500 | 4259×3660×3450 | 58 |
PF-1820 | 1260×2040 | 800 | 600-800 | 630-710 | 4400×3866×4009 | 83.21 |
Performance characteristics:
The impact hammer crusher product is a new generation crusher product that absorbs the advantages of hammer crusher and impact crusher. It is a new generation crusher product launched after optimized design and has the following ten major advantages:
1. The feed port is large and the crushing chamber is high, suitable for materials with high hardness and large lumpiness, and the product has less stone powder.
2. The material is suspended in the air and the crushing power consumption is small.
3. Novel hammer head with strong impact.
4. The installation of the hammer shaft is adjustable and the hammer head has a long life.
5. The grid size is adjustable, the product particle size is controllable, and the particle shape is good.
6. The chassis can be flipped over, making maintenance more convenient.
7. Square handle bolts, resistant to impact and wear.
8. Compact structure and strong machine rigidity.
9. Assembled structure, easy to transport and install.
10. It has full functions of impact, counterattack, and impact (rock on rock) crushing, high production efficiency, low wear of machine parts, and significant overall benefits.

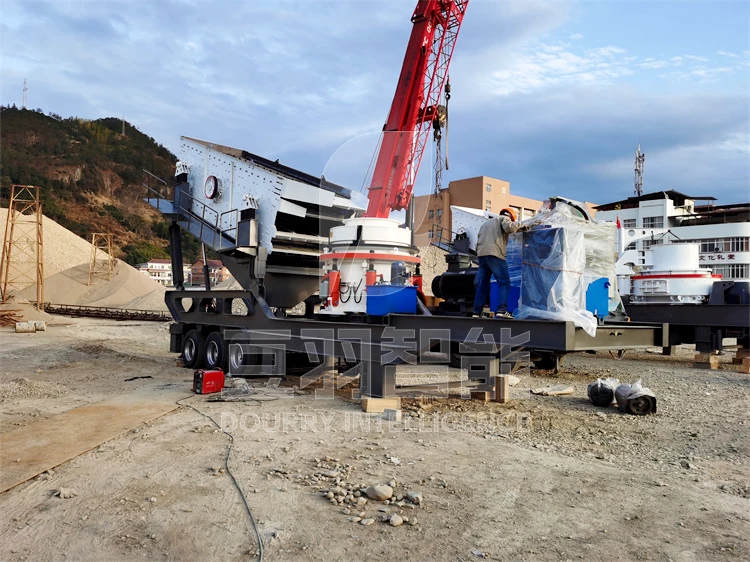

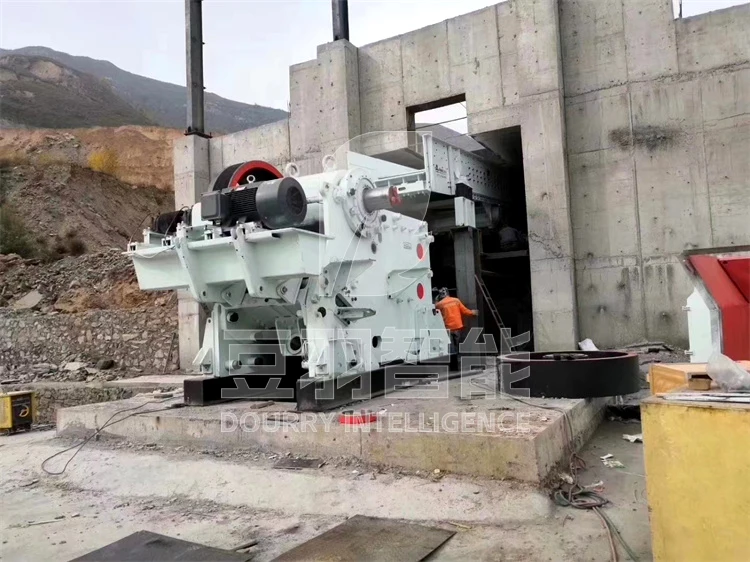

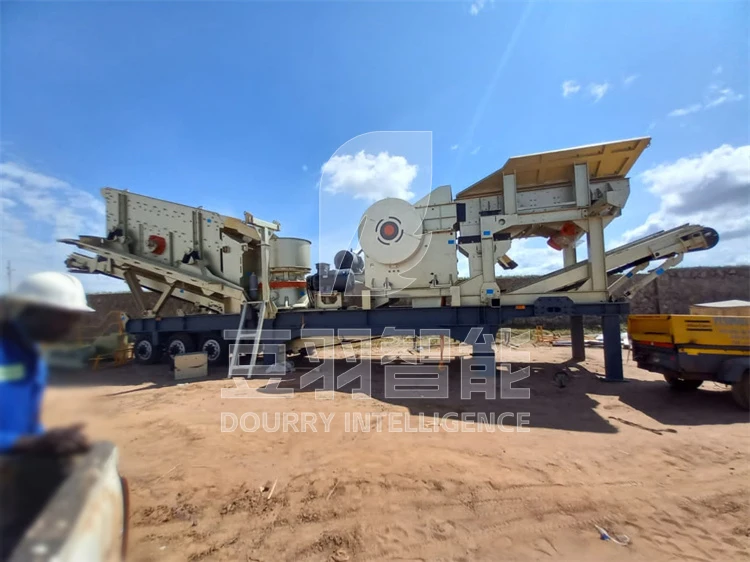

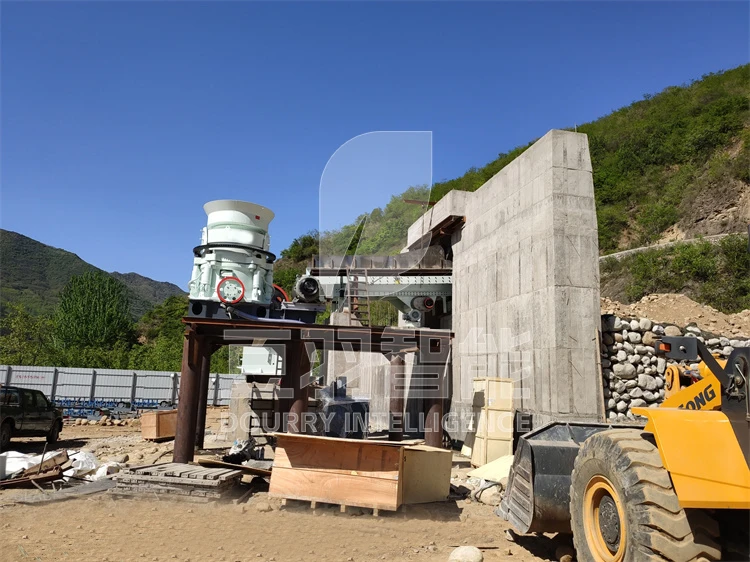

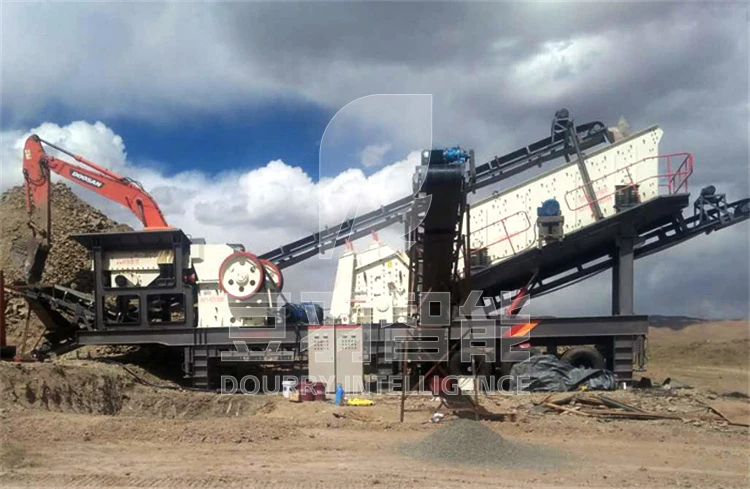

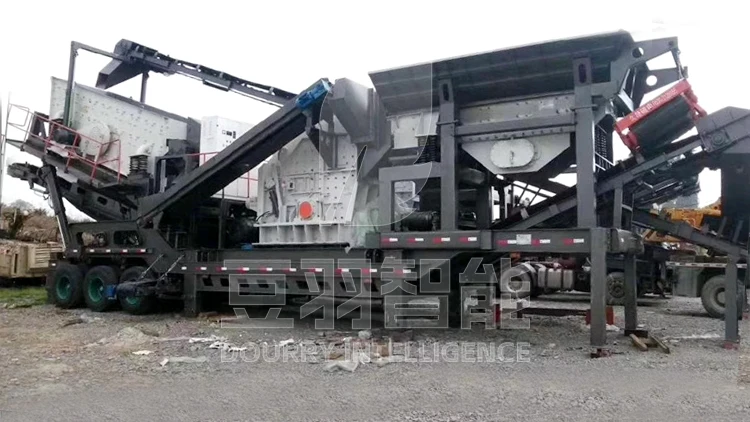

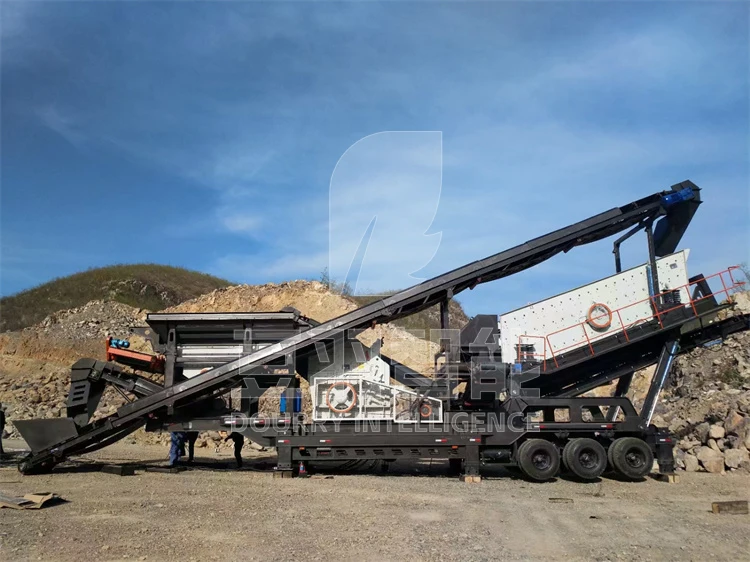

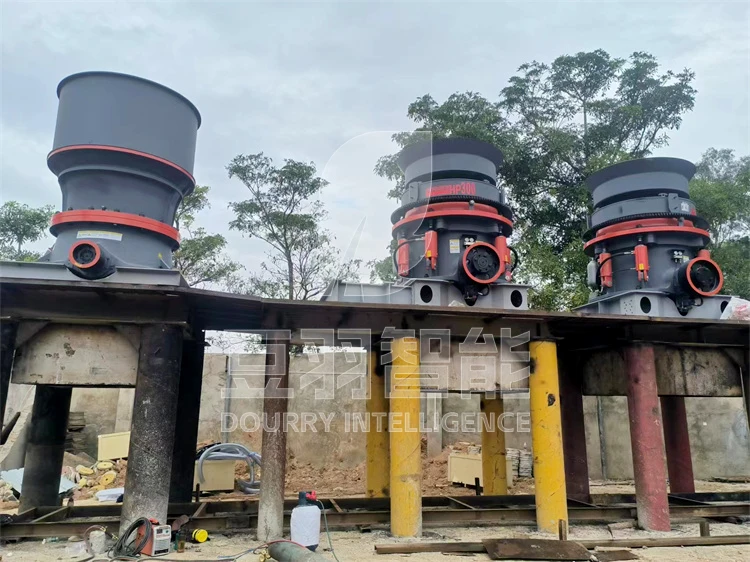

Crusher Case
Company Profile
HENAN DOURRY INTELLIGENCE EQUIPMENT CO., LTD.
Henan Dourry Intelligence Equipment Co., Ltd.the overall solution provider for new environmental protection equipment and complete intelligent mine crushing equipment production line, engaged in research and development for the machine, pre- sales service, after-sales service and import and export of crushing, sand making, shaping and screening series equipment.
Henan Dourry established in 2001, with 20 years’ experience in the mining crushing industry, we now have quality and mature production and processing technology, experienced technical research and development personnel, scientific and rigorous quality inspection, strict management system, and a serious and responsible after-sales service team. Gaining praise and trust from more and more customers. Over the years, the products have been exported to more than ten countries and regions such as the United States, Russia, South Korea, North Korea, the Philippines, Vietnam, Mexico, Guatemala, Bolivia, Libya, Ghana, Ethiopia, and Nigeria.
FAQ
Q1: Are you mining machinery manufacturer?
A: Yes, our company warmly welcome clients to visit our plant at any time. We can also provide samples test, mine design,
equipment manufacture, after-sale service, etc.
Q2: Which country have your products been exported?
A: We have been exported business for 10 years and we have lots of customers and agents in the world. such as MiddleEast. Malaysia. South Africa. Canada. America etc.
Q3: How to get the free solution and quotation ?
A: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours
Q4: How long about the delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q5: What payment terms do you provide?
A: Accepted Payment Type: T/T L/C, Western Union. Cash after sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery
Q6: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.
Q7: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need.We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.
Q7: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need.We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
