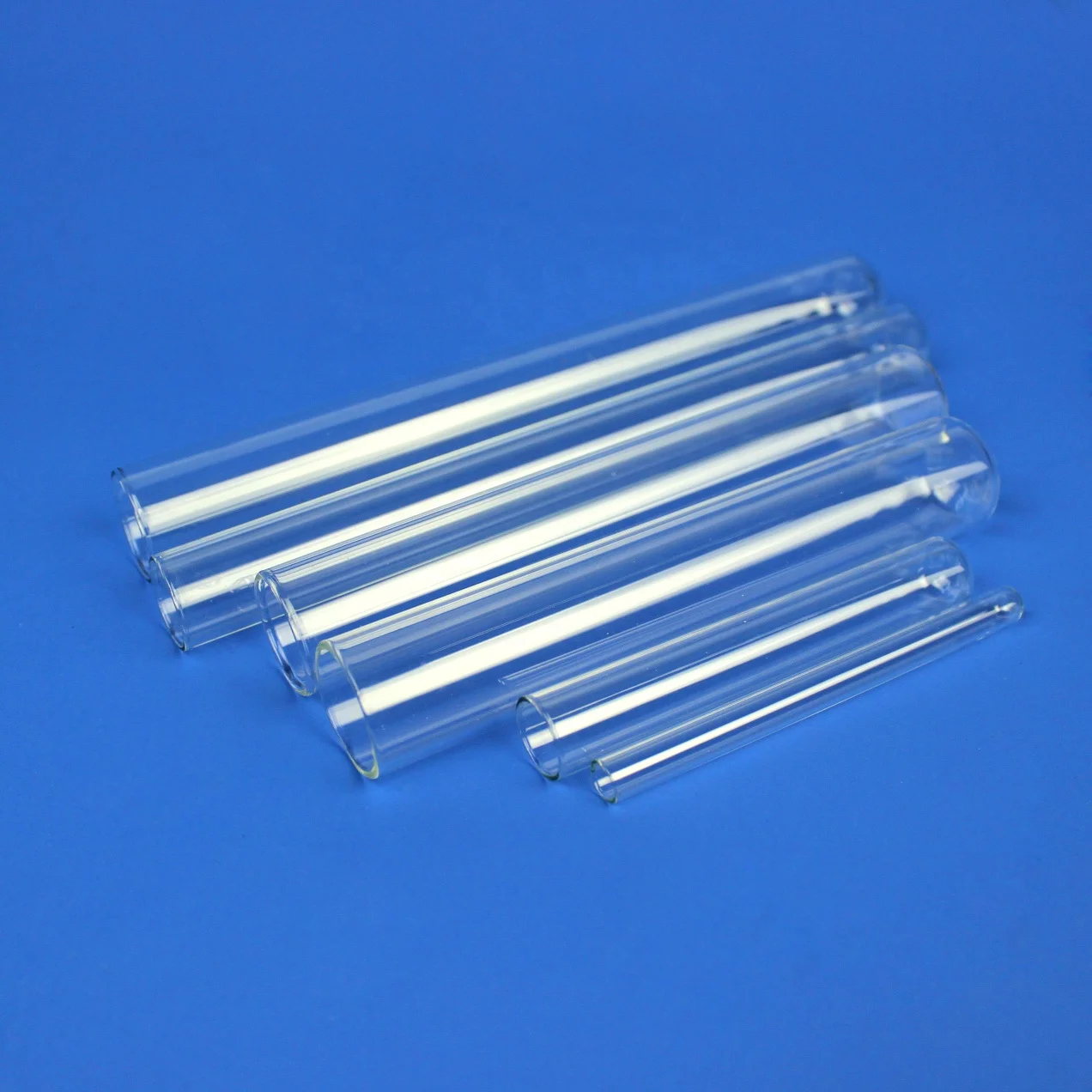

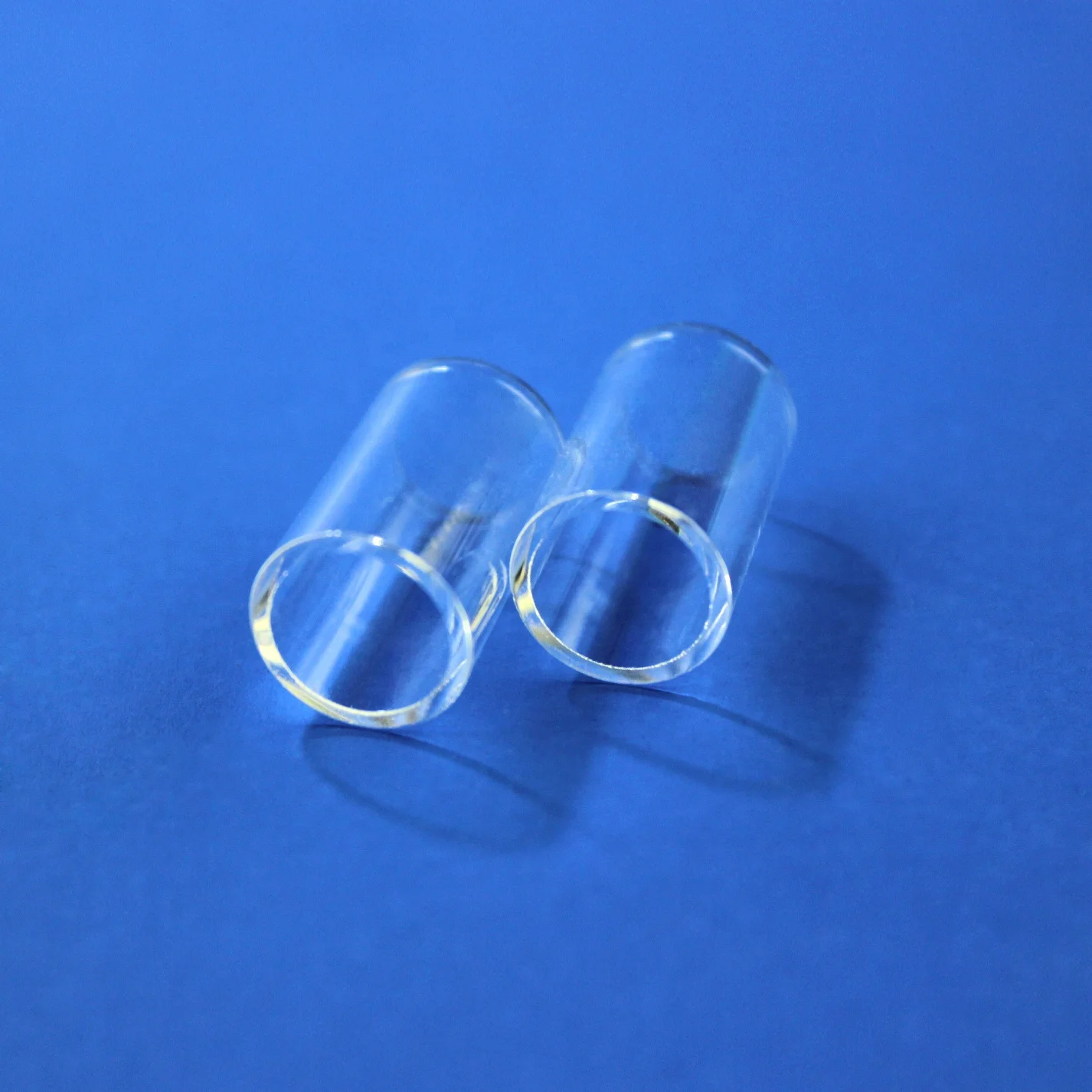

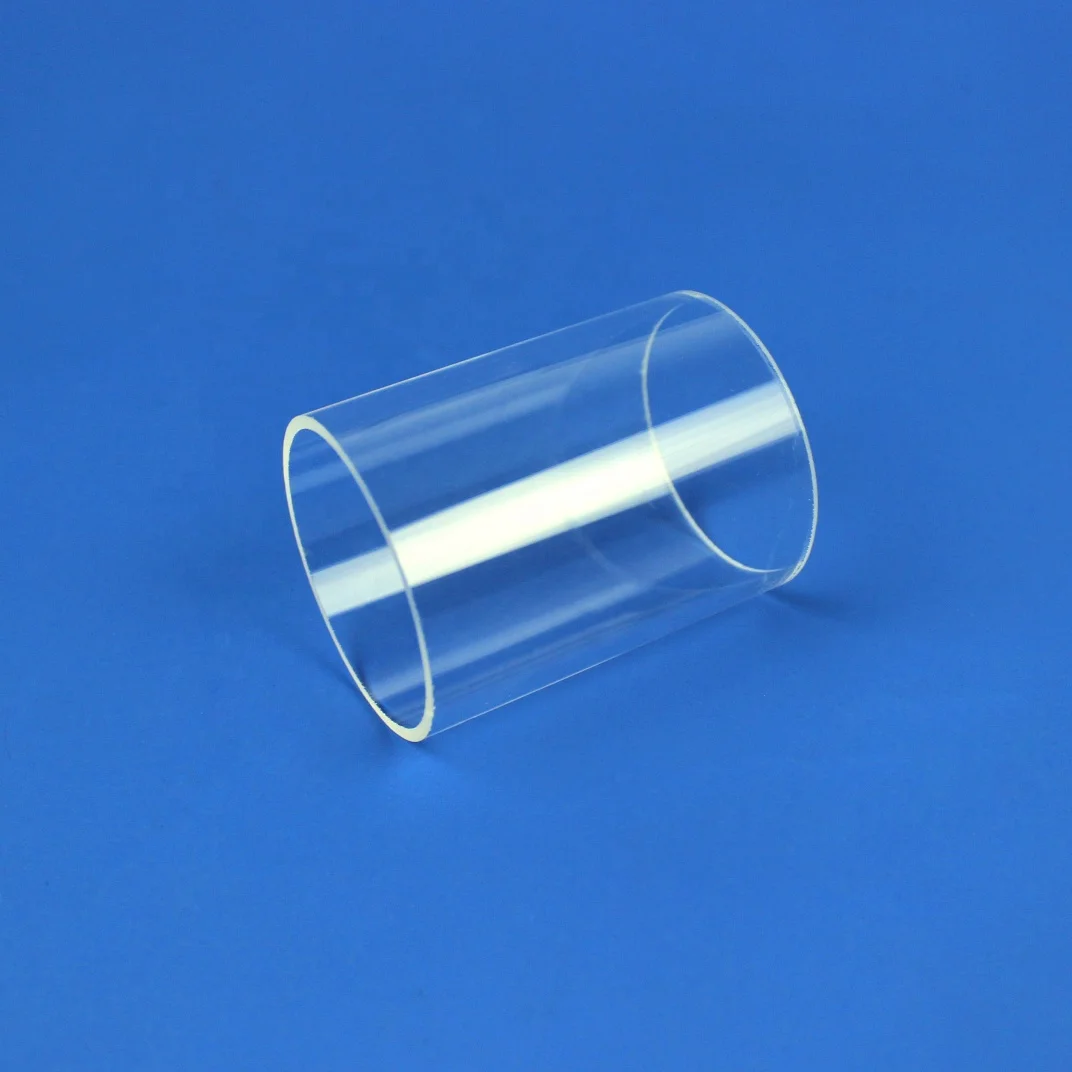

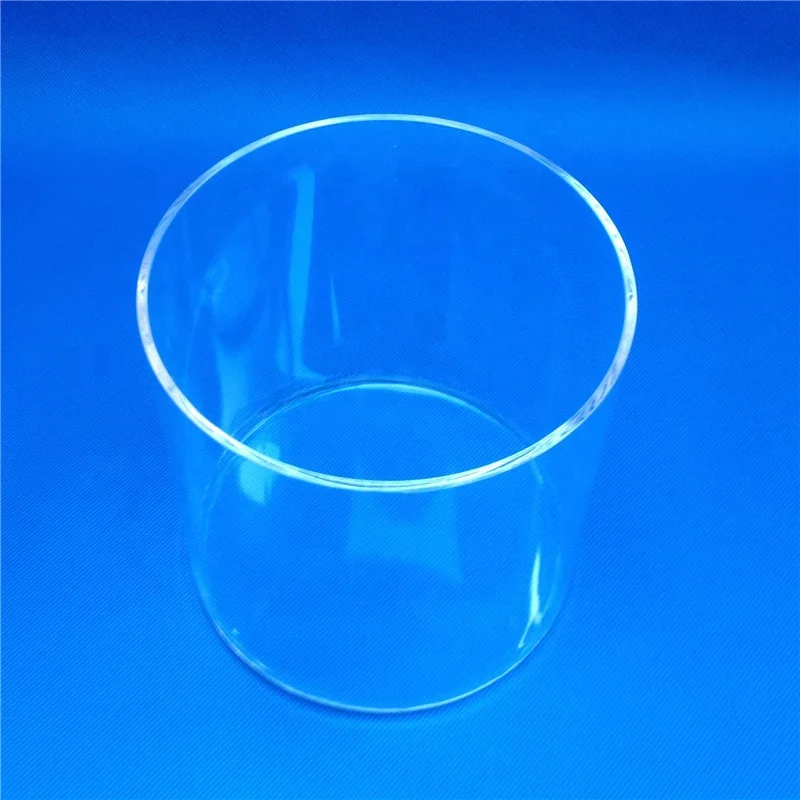

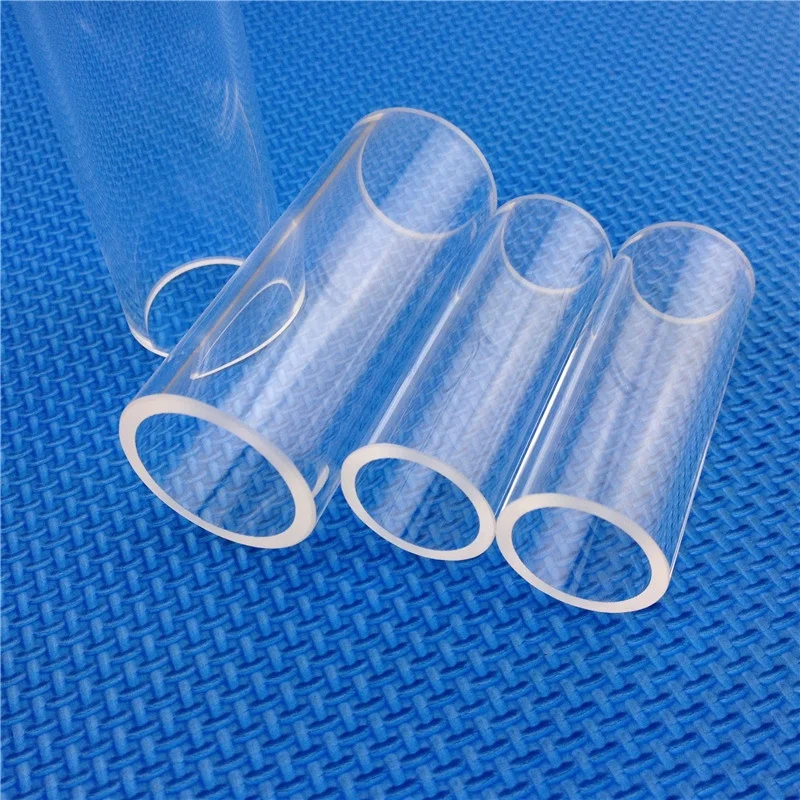

HM High temperature heat resistant large diameter UV lighting optical fused clear quartz glass cylinder capillary test pipe
- Category: >>>
- Supplier: Jinzhou Meihua Quartz Glass Co. Ltd.
Share on (1601018941641):
Product Overview
Description
HM High temperature heat resistant large diameter UV lighting optical fused clear quartz glass cylinder capillary test pipe
Product Description
Properties:
- HM High temperature heat resistant large diameter UV lighting optical fused clear quartz glass cylinder capillary test pipe can work in 500°C with long time.
- Corrosion resistant, except hydrofluoric acid, Borosilicate glass tube do not react with any acid.
- Excellent thermal shock stability making them more dimensionally stable.
- High transmission to 85%
- Electric insulation ,it is 10000 times of usual glass.
- Low thermal expansion.
Parameter:
| Physical Characteristics | Value |
| Coefficient of mean linear thermal expansion α (20ºC; 300ºC) | 3.3·10-6 K-1 |
| Transformation temperature Tg | 525ºC |
| Glass temperature at viscosity η in dPa·s: | |
| 1013 annealing point | 560ºC |
| 107.6 softening point | 825ºC |
| 104 working point | 500ºC |
| Maximum shot-time working temperature | 500ºC |
| Density ρ 25ºC | 2.23g·cm-3 |
| Modulus of elasticity E (Young's modulus) | 63·103N·mm-2 |
| Poisson's ratio μ | 0.20 |
| Thermal conductivity λw at 90ºC | 1.2W·m-1·k-1 |
| Temperature for the specific electrical resistance of 108 Ω·cn\\m tk 100 | 250ºC |
| Lagarithm of the electric volume resistivity (Ω·cm) at 250 Ω | 8 |
| Lagarithm of the electric volume resistivity (Ω·cm) at 350 Ω | 6.5 |
| Dielectric properties (1 MHz, 25) | |
| Dielectric constant (permittivity) ε | 4.6 |
| Dielectric loss factor (dissipation factor) tan δ | 37·10-4 |
| Refractive index (λ=587.6nm) nd | 1.473 |
| Stress-optical coefficient K | 4.0·10-6 mm2·N-1 |
Production Flow
Product Uses
Due to the corrosion resistant, high working temperature, low thermal expassion, HHM Large diameter fused quartz tempered glass tube quartz cylinder is widly used to observe processes inside tanks, pipes, reactors and vessels.
Packaging & Shipping
Company Information
Jinzhou Huamei Quartz Electrical Appliance Factory was established in the year of 2000 and located at Jinzhou city, Liaoning Province, China with 16 years excellent quartz glass producing experience.
Be with an advanced technological team, HUAMEI produce all kinds of quartz products, like quartz glass plate, quartz glass tube, mallet, instruments, quartz bowl, gold quartz tube, quartz heater, quartz heating tube, far infra-red directional radiation heater and other special or customized quartz products. Out products are widely used for electric light source ,electric heater, semiconductor, infra-red heating, light Optical communication, tank or vessel sight glass level gauge and chemical industry.
HUAMEI passed ISO9001and CE certified. With a quality control and assurance team, top Research & Development team, sales team, customer service team and after-sales service team, all the products is produced strictly as per international standards and customers' request with our own independent advanced producing team in our factory with high quality.
HUAMEI adheres to the "Professional, Integrity, Efficient" spirit of enterprise, we provide high quality products to all over the world. HUAMEI kindly welcome customers to visit us and we look forward to cooperate with you.
