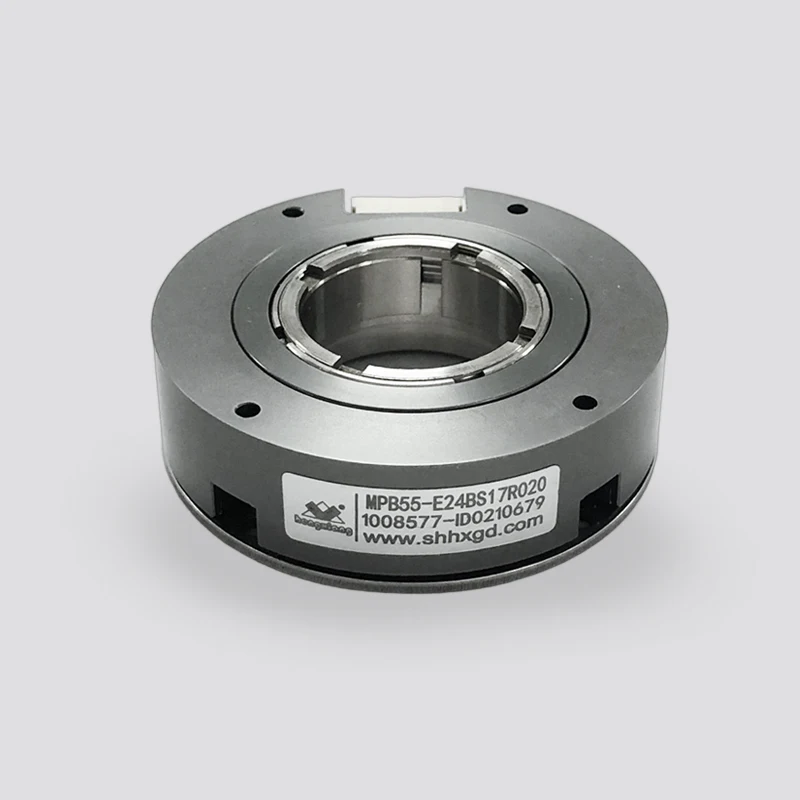

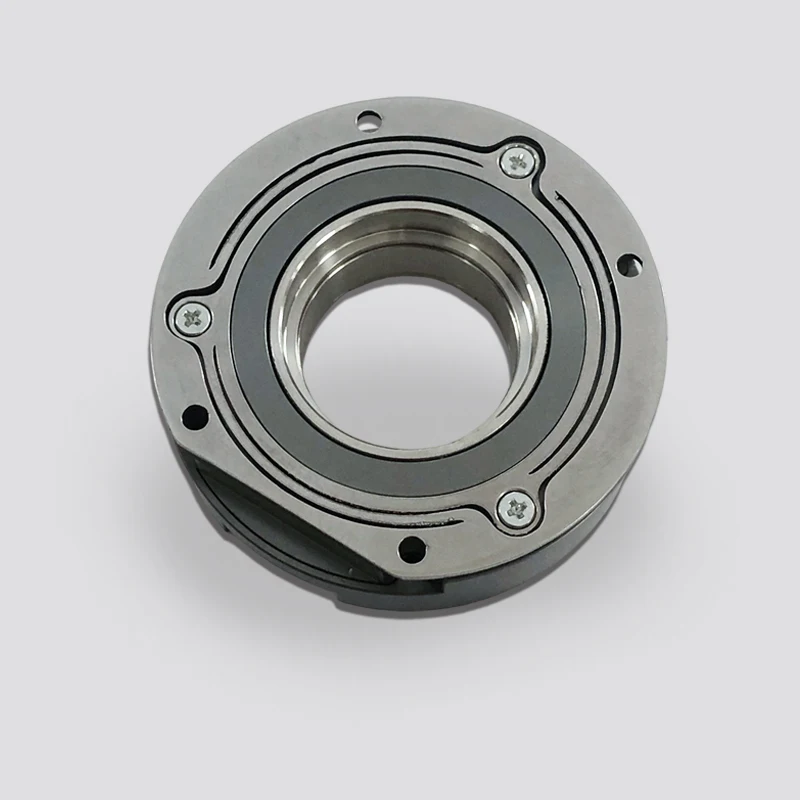

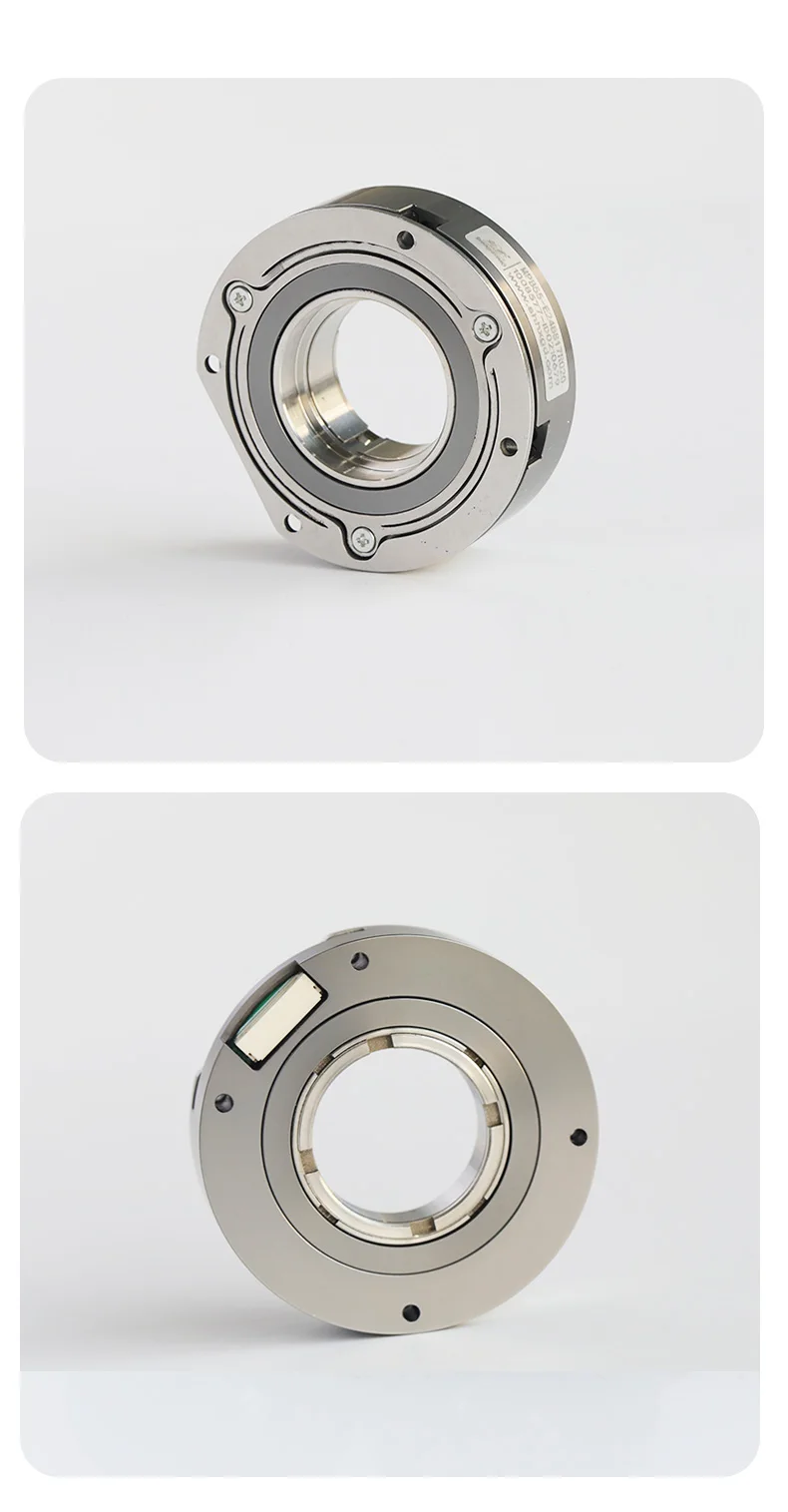

Hengxiang MPB55 absolute shaft encoder SSI 24mm through hole 16 24Bits absolute encoder disc accept customization
- Category: >>>
- Supplier: Shanghai Hengxiang Optical Electronics Co. Ltd.
Share on (1601018942879):
Product Overview
Description
Products Description

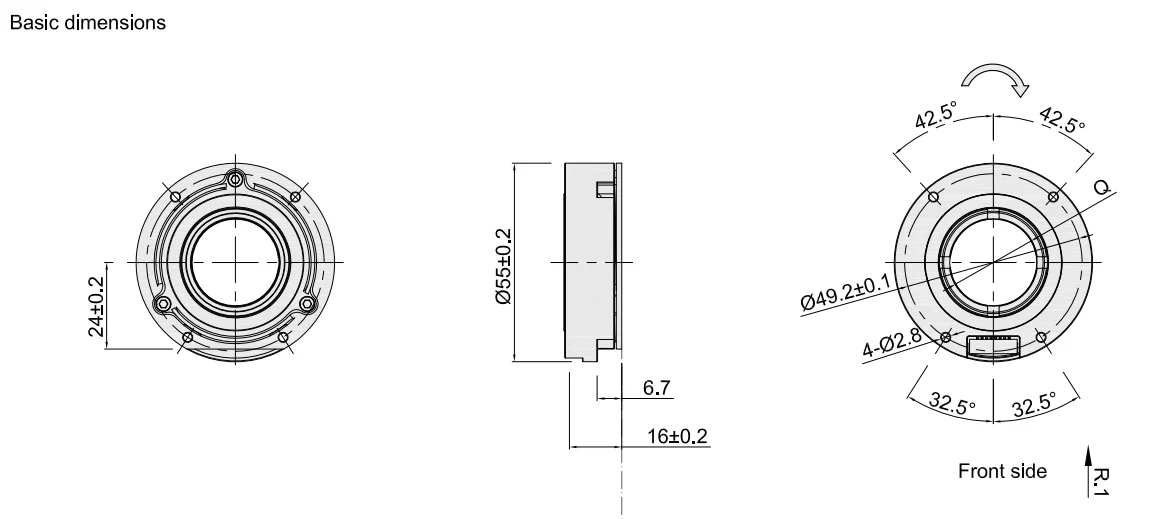

Items | Basic parameters |
Brand | Hengxiang |
Encoder type | Absolute encoder |
External diameter | 55mm |
Thickness | 16mm |
Hollow shaft type | Through hole |
Hollow shaft diameter | 14mm; 15mm; 19mm; 20mm; 24mm |
Resolution | single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit |
multi-turn: 1716=17+16Bit, 1916=19+16Bit, | |
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit | |

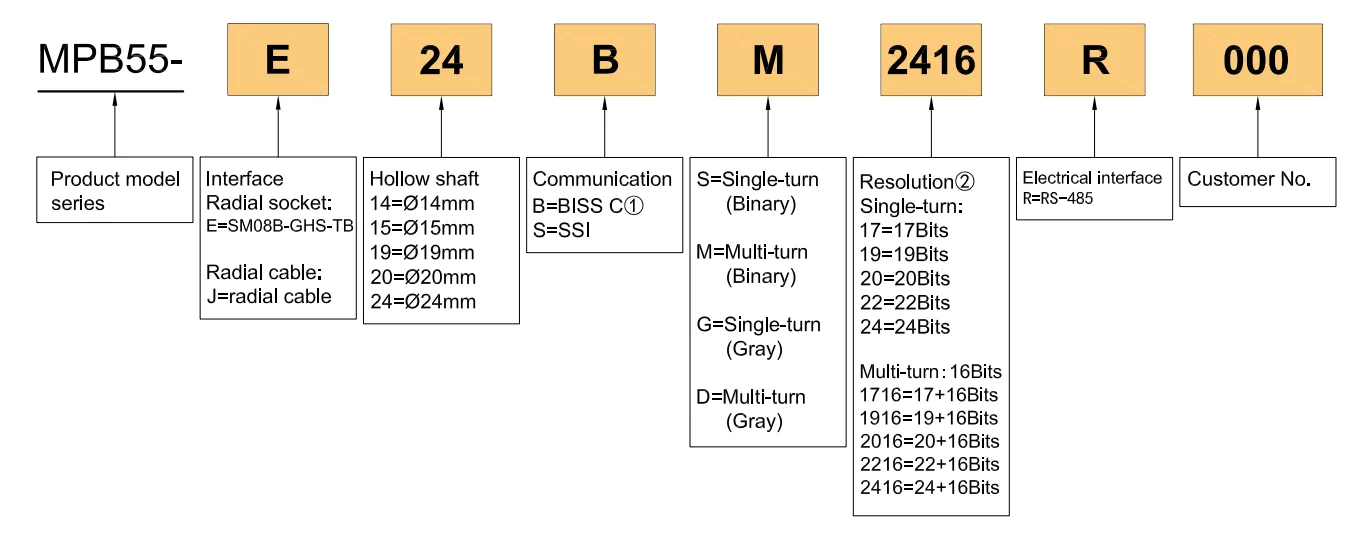

Interface | E=Radial socket (SM08B-GHS-TB); J=radial cable |
Communication | B=BISS-C; S=SSI |
Electrical connection | R=RS-485 |
Output mode | M=multi-turn |
S=single-turn | |
Scanning principle | Photoelectric |
Accuracy | ±120" |
Response speed | Normal action: 6000min-1 |
RMS position signal noise | ±2@18 bits/r |
Communication clock frequency | ≤10MHz(BISS) or ≤ 5MHz(SSI) |
Starting time | typical value: 13ms |
Absolute position sampling period | ≤75 ns |
Allowable speed | ≤32200 r/min (restricted by mechanical speed limit) |
Cable | Twisted-paired cable |
Cable length | 200mm-10000mm |
Mechanical Connection | Ring locking with shaft, flexible spring plate fixed with motor platform |
Starting Torque | less than 9.8×10-3 N.m |
Inertial moment | less than 6.5×10-6 kg.m2 |
Shaft load | Radial 20N; Axial 10N |
Slew speed | ≤4000rpm |
Shell Material | Aluminum alloy |
Environmental temperature | Operating: -20~+95℃; Storage: -25~+95℃ |
Environmental humidity | Operating and storage: 35~85%RH(Noncondensing) |
Vibration | Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually |
Shock | 980m/s2 11ms, three times for X,Y,Z direction individually |
Protection | IP50 |
Net weight | About 150g |
