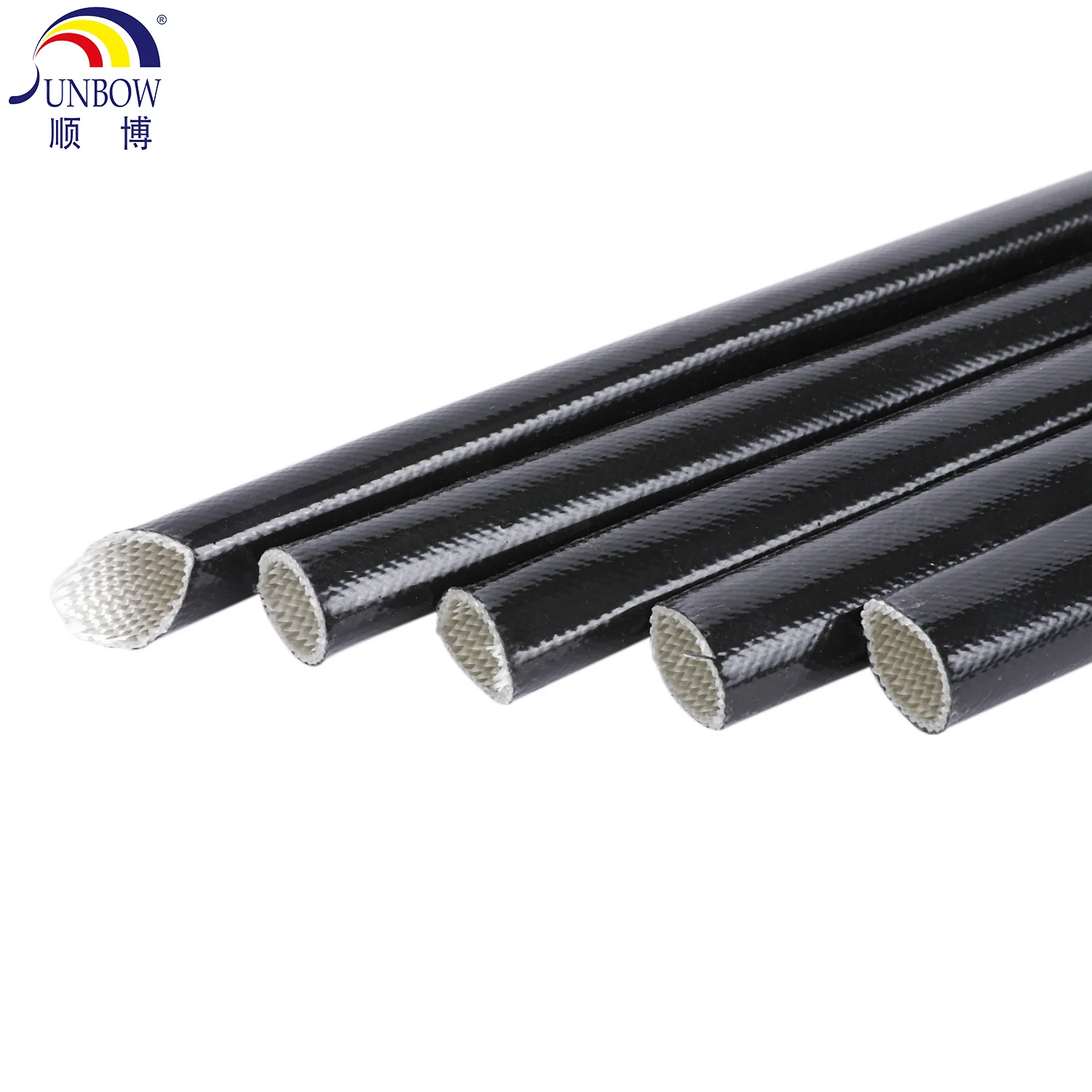

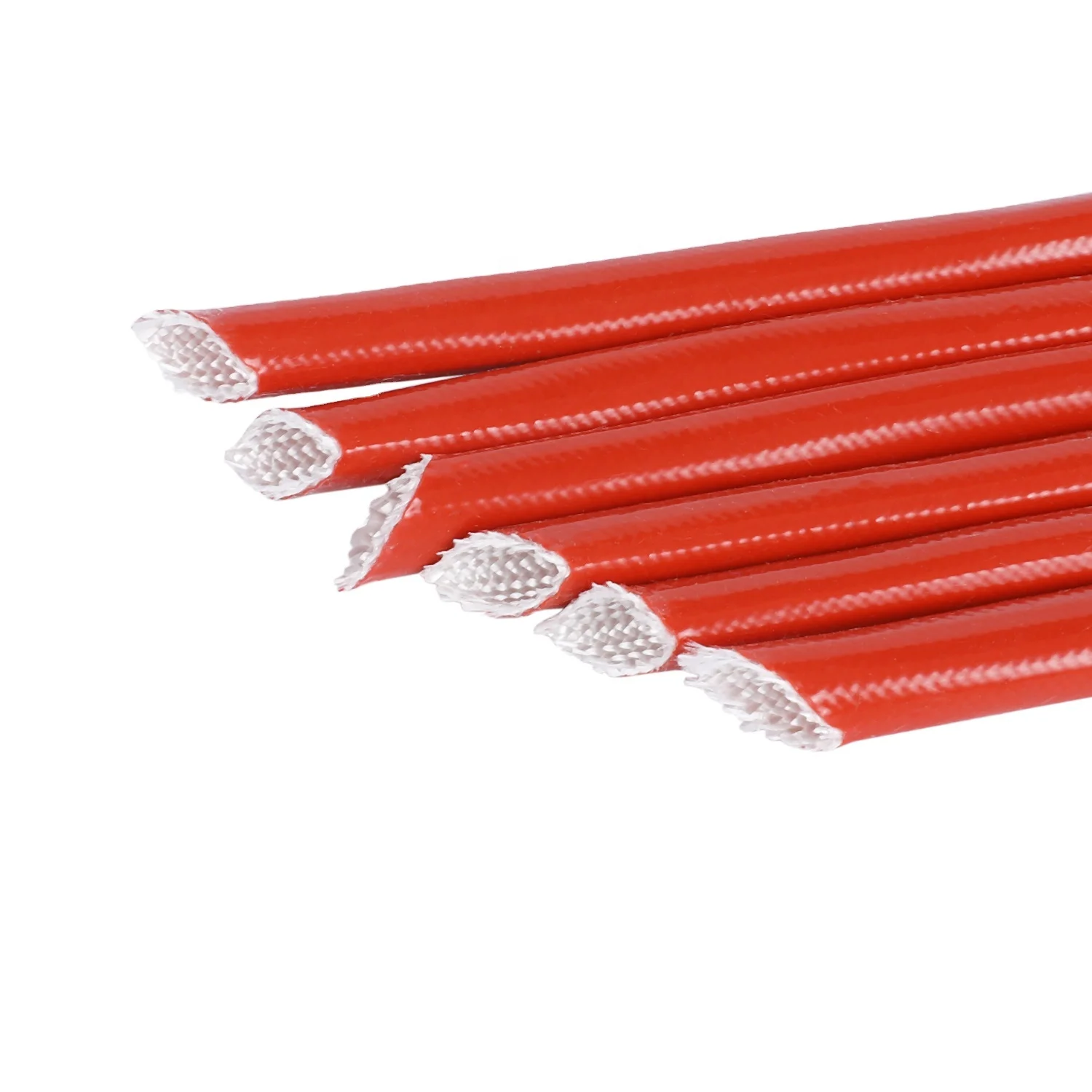

1.5KV Flexible Tear Resistance Silicone Fiberglass Braided Sleeve

Product Overview

Description

1.5KV Flexible Silicone Glass Fiber Fiberglass Braided Sleeve



Model Number:SB-SGS-15



Working temperature: -60~200ºC



Structure



1.5KV Flexible Silicone Glass Fiber Fiberglass Braided Sleeve is braided by non-alkali fiberglass, then coated with silicone resin and treated in high temperature.



Characteristics



1.5KV Flexible Silicone Glass Fiber Fiberglass Braided Sleeve has good performace Flammability: self-extinguishing, wear resistance, tear resistance, good compatibility with same class impregnation varnishes, good mechanical resistance, very flexible.



Application

1.5KV Flexible Silicone Glass Fiber Fiberglass Braided Sleeve is widely used in Internal wiring of electronics, electrical appliances and automotive, classes H and C motors, transformers, generators, heating apparatus, lighting, control, inverter, etc.



Specification

Item	Performance		Note
Dielectric breakdown voltage   KV  AC	Minimum average	≥1.5	Before aged
	Minimum single point	≥1.0
	Minimum average	≥1.0	6 HRS* 245±5ºC 245±5ºC 6HRS Aging
	Minimum single point	≥0.7
Thermal endurance	No indication of crack	OK	6 HRS* 245±5ºC 245±5ºC 6HRS Aging
Fire resistance	VW-1	OK	UL 1441



Dimension

Inside diameter		Wall thickness(mm)	Standard package(m/roll)
	Tolerance(mm)
φ0.5	+0.2, -0.1	≥0.30	200
φ1.0	+0.2, -0.1	≥0.30	200
φ1.5	+0.2, -0.1	≥0.30	200
φ2.0	+0.2, -0.1	≥0.30	100
φ2.5	+0.3, -0.1	≥0.35	100
φ3.0	+0.3, -0.1	≥0.35	100
φ3.5	+0.3, -0.1	≥0.35	100
φ4.0	+0.3, -0.1	≥0.35	100
φ4.5	+0.3, -0.1	≥0.40	100
φ5.0	+0.3, -0.1	≥0.40	100
φ6.0	+0.3, -0.1	≥0.40	100
φ7.0	+0.3, -0.1	≥0.45	50
φ8.0	+0.3, -0.1	≥0.45	50
φ9.0	+0.3, -0.1	≥0.55	50
φ10.0	+0.3, -0.1	≥0.55	50
φ12.0	+1.0, -1.0	≥0.55	50
φ14.0	+1.0, -1.0	≥0.55	50
φ16.0	+1.0, -1.0	≥0.55	50
φ18.0	+1.0, -1.0	≥0.55	25
φ20.0	+1.0, -1.0	≥0.65	25
φ25.0	+1.0, -1.0	≥0.65	25
φ30.0	+1.0, -1.0	≥0.65	25

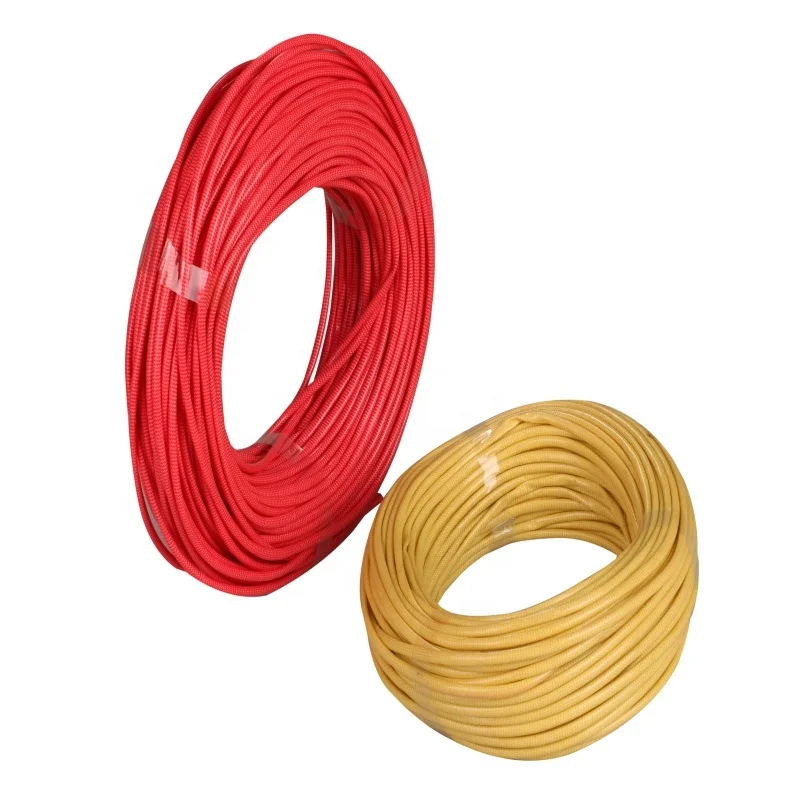

Package: Packing by rolls or cut upon request.

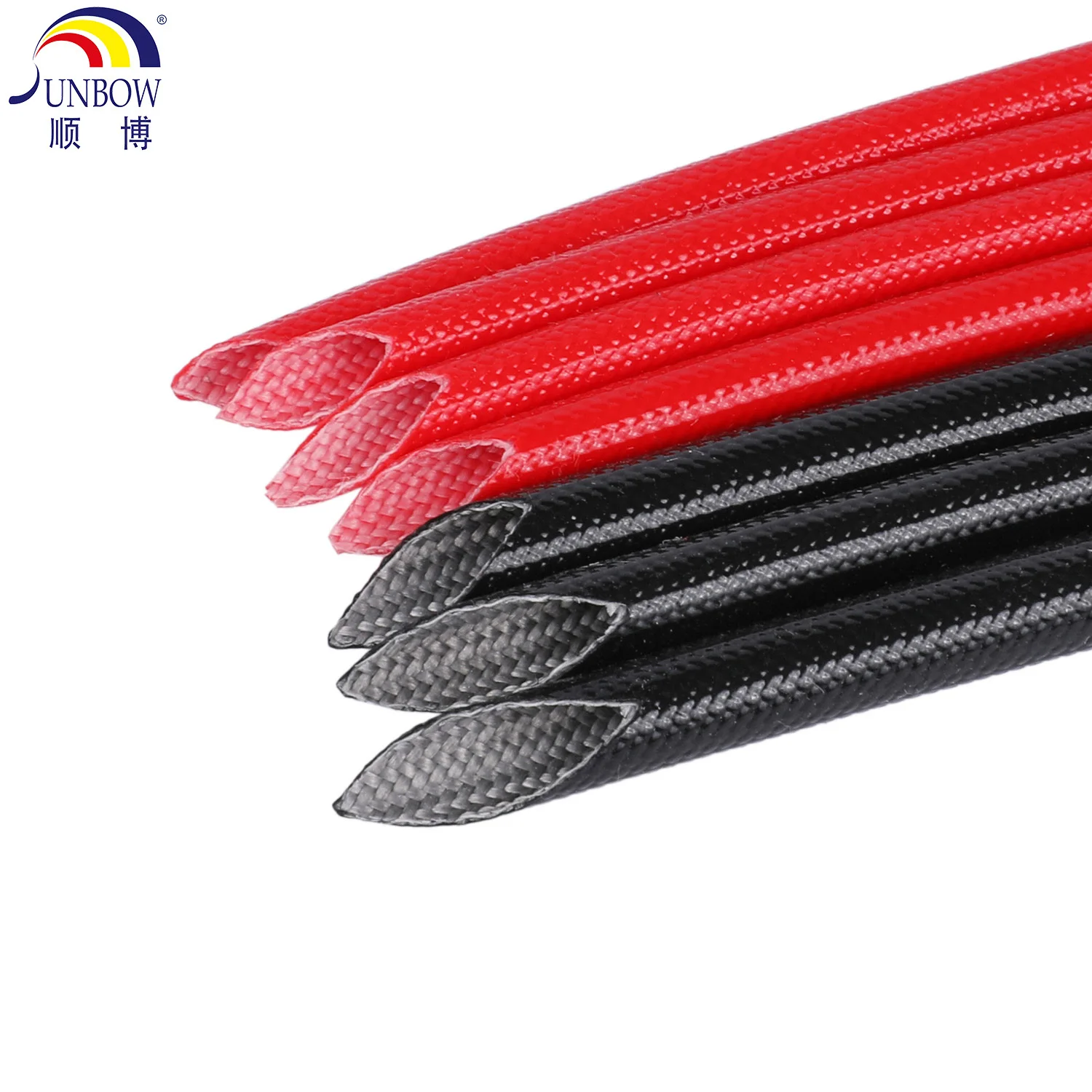

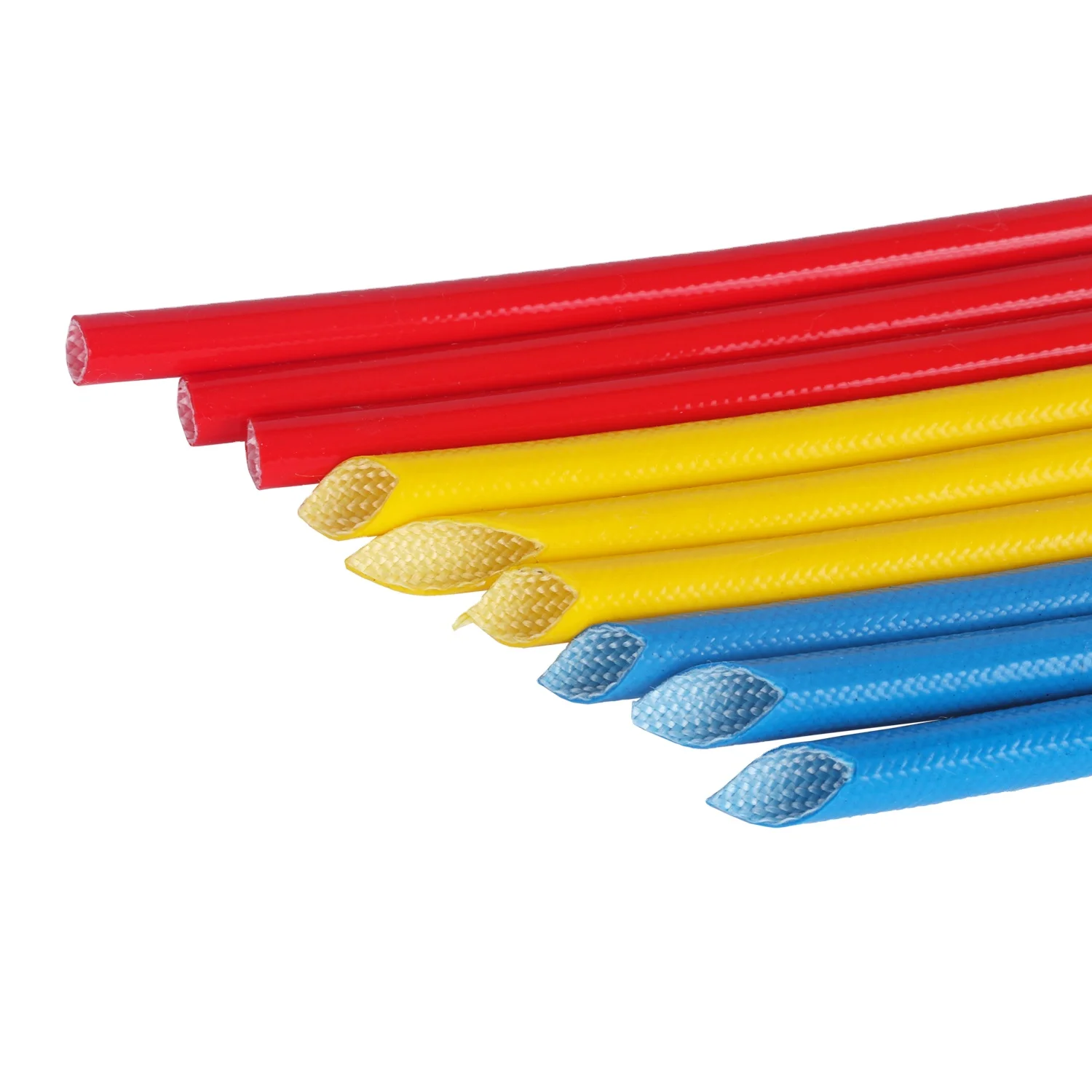

Color: Standard color is white, other color available upon request. The colors of braided can be customized



About Sunbow

Shenzhen Sunbow insulation Materials MFG Co., Ltd, established in 2003, mainly engaged in the research& development, manufacture
and sales of various insulation materials. In year 2016, Donguan Sunbow factory was founded.

Our products are silicone fiberglass sleeving, PVC tubing, silicone Tubing, Heat shrinkable Tube, PTFE tube, FEP Tube, PVDF tube, PFA tube, PET expandable sleeve, corrugated pipe and so on.
Sunbow is a IATF16949 2016 and ISO 9001 2015 manufactuer of insulation materials.

Many big famous brands select Sunbow Insulation sleeve.

Our cooperative partner are ABB, WHIRLPOOL, Benz, Toshiba, Siemens, Panasonic, TOYATA, Volvo and son on.

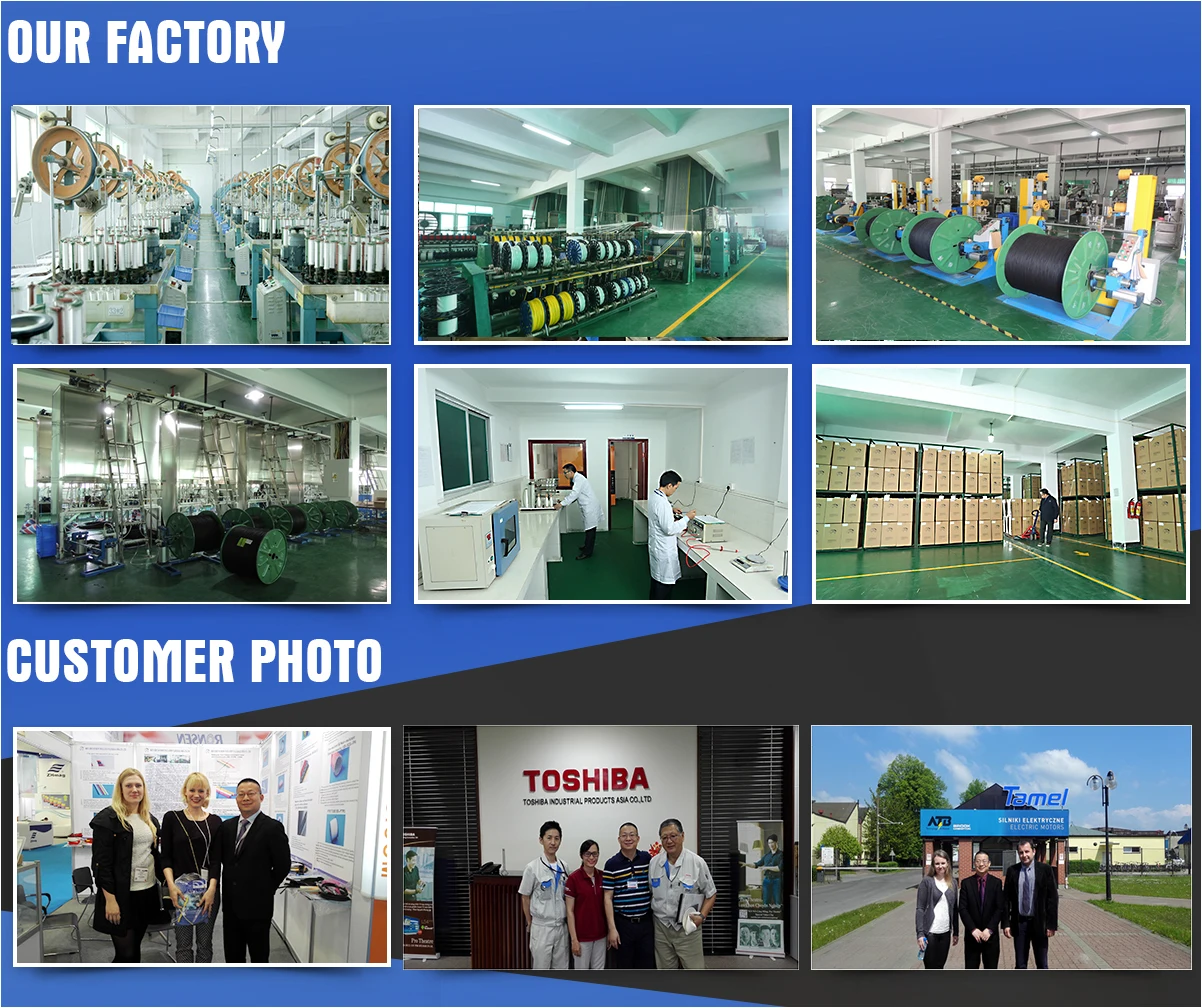

Workshop View
